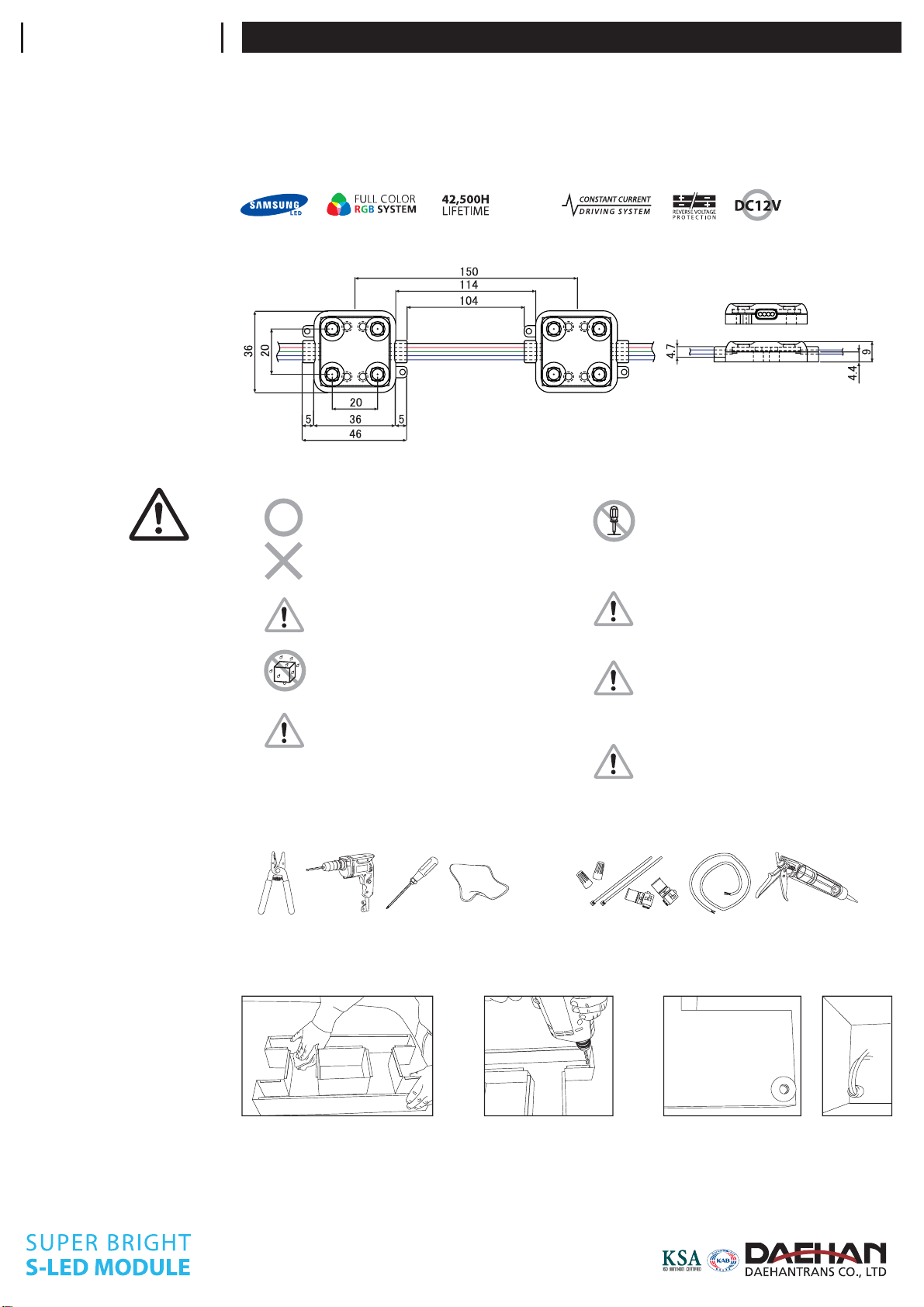

DAEHAN STAR RGB C04 User manual

User Guide 1
Use precautions to avoid damages to the product or injuries of users. Any actions against following contents will cause serious
issues such as malfunction, electric shock, or burn.
USE DC12V ONLY
DC12V
DO NOT USE AC INPUT
AC INPUT
Do not cut or rejoion wires while product
is connected wth live power source
Maximum driver quantity per serial
connection is limited. Failure causes overload
of current and damages to the product
Refer to‘WIRE THICKNESS’table to use proper
wire thickness between SMPS and the rst
LED module
Failure will cause dimmed output
Cable length between SMPS and the rst LED
module is limited. Refer to ‘CONNECTION
WITH POWER SUPPLY’ on page 2
Do not use the product under circumstances
listed below
- High temperature spots over 60˚C (140˚F)
- Spots draw extreme moisture or dust
- Spots have corrosive gas or highly eectied
by electromagnetic eld
Avoid performing installation under rain or
high humidity for outdoor use
Do not perform actions listed below
- Alter or modify
- Touch LED lamps with sharp objects
- Put glue or silicon over the LED lamps
PRECAUTIONS
PREPARATION
PREPARE CHANNELS
1. Clean moisture and dust inside 2. Make holes 3. Use bushing to protect wires
1. Wipe out dust, water, and oil inside. 3M tape will come o easily if product is mounted on uncleaned surfaces.
2. Make holes for wires from modules to SMPS.
3. Without bushins, wires will easily be cut and short-circuit will occur.
*Use white paint inside the channels for better reection
SUPPLIES REQUIREDTOOLS REQUIRED
Wire Nuts, Cable Ties, IDC Connectors, VCTF(PLTC) Cable,
(Optional : Silicon and Screws)
Wire Stripper, Drill, Screw Driver, Wiper
ELECTRICAL
Current dissipation : 120mA
Power Consumption : 1.44 W
Operating power : DC 12V
Maximum serial connection : 30 modules
Electronic dimming control supported
THERMAL
Cooling : Ambient air
Maximum operating temperature : 60˚C (140˚F)
Minimum operating temperature : -25˚C (-13˚F)
Maximum storage temperature : 60˚C (140˚F)
Minimum storage temperature : -30 C (-22 F)
SPECIFICATIONS
STAR RGB C04
PHYSICAL
IP63
DAEHANTRANS CO.,LTD
#7-11 Songdo-Dong, Yeonsu-Gu, Incheon, Korea
Tel. [phone] Fax. [phone] [email protected] / www.daehantrans.com

User Guide 2STAR RGB C04
80 mm 200 mm 400 mm 316 mm
Use 10% to 20% shorter length
than usual for circular arrange
Use recommended length for pitch between each module to achieve optimum lighting output while maintaining lowest unit
cost. Failure or misplacing will cause dimmed spots or uneven appearance of light on the surface.
LAYOUT DENSITY
GUIDELINES
RECOMMENDED PITCH PER DEPTH
120 mm
120 mm 200 mm
150 mm
100 mm
100 mm
70 mm
80 mm
RECOMMENDED LAYOUT DENSITY PER CHANNEL WIDTH
CONNECTION WITH
POWER SUPPLY
Output (W)
Model Name
Recommended
Extension Wire
Output (A)
Max Q’TY per Run
Maximum Length
30W
2.5A
PSCS-0030-12
18pcs
5M (15FT)
VCTF1.25
AWG18
60W
5A
PSCS-0060-12
36pcs
5M (15FT)
VCTF2.0
AWG14
120W
10A
PSCS-0120-12
70pcs
5M (15FT)
VCTF2.0
AWG12
600W
50A
PSCS-0600-12**
360pcs
15M (50FT)
VCTF5.5
AWG4
1000W
83A
PSCS-1000-12**
590pcs
15M (50FT)
VCTF8.0
AWG2
EXTENSION OF POWER SUPPLY LEAD WIRES
*Maximum quantity for S-LED is based on 85% of specied capacity of power supplies for extended lifespan
**PSCS-0600-12, PSCS-1000-12 are not weather-proof
Equip with protective box for outdoor use and the box should have ventilating holes
Maximum driver quantity per serial connection is limited. Using more quantity per run will cause overload from SMPS which
damages all connected products. This will cause voltage drop and also dimmed lighting output.
CAUTION
Keep extension lead wires as short as possible.
Refer to below table for specic length.
CAUTION
All signal wires are white and the wires
in this diagram are colored on purpose
for indication
CONNECTION GUIDE
RGB Controller
Power Supply
AC Input
DC Output
Signal Output
Signal to RGB C04
Signal to RGB C04
Signal to RGB C04
To next driver set
1st wire from S-OUTPUT to 1st wire of S-INPUT
2nd wire from S-OUTPUT to 2nd wire of S-INPUT
3rd wire from S-OUTPUT to 3rd wire of S-INPUT
4th wire from S-OUTPUT to 4th wire of S-INPUT
1st signal
output wire
4th signal
output wire
1st signal
input wire
4th signal
input wire
DRIVERDRIVERDRIVER
SIGNAL IN
SIGNAL OUT
1st 2nd 29th 30th
1st 2nd 29th 30th
1st 2nd 29th 30th
DAEHANTRANS CO.,LTD
#7-11 Songdo-Dong, Yeonsu-Gu, Incheon, Korea
Tel. [phone] Fax. [phone] [email protected] / www.daehantrans.com

User Guide 3STAR RGB C04

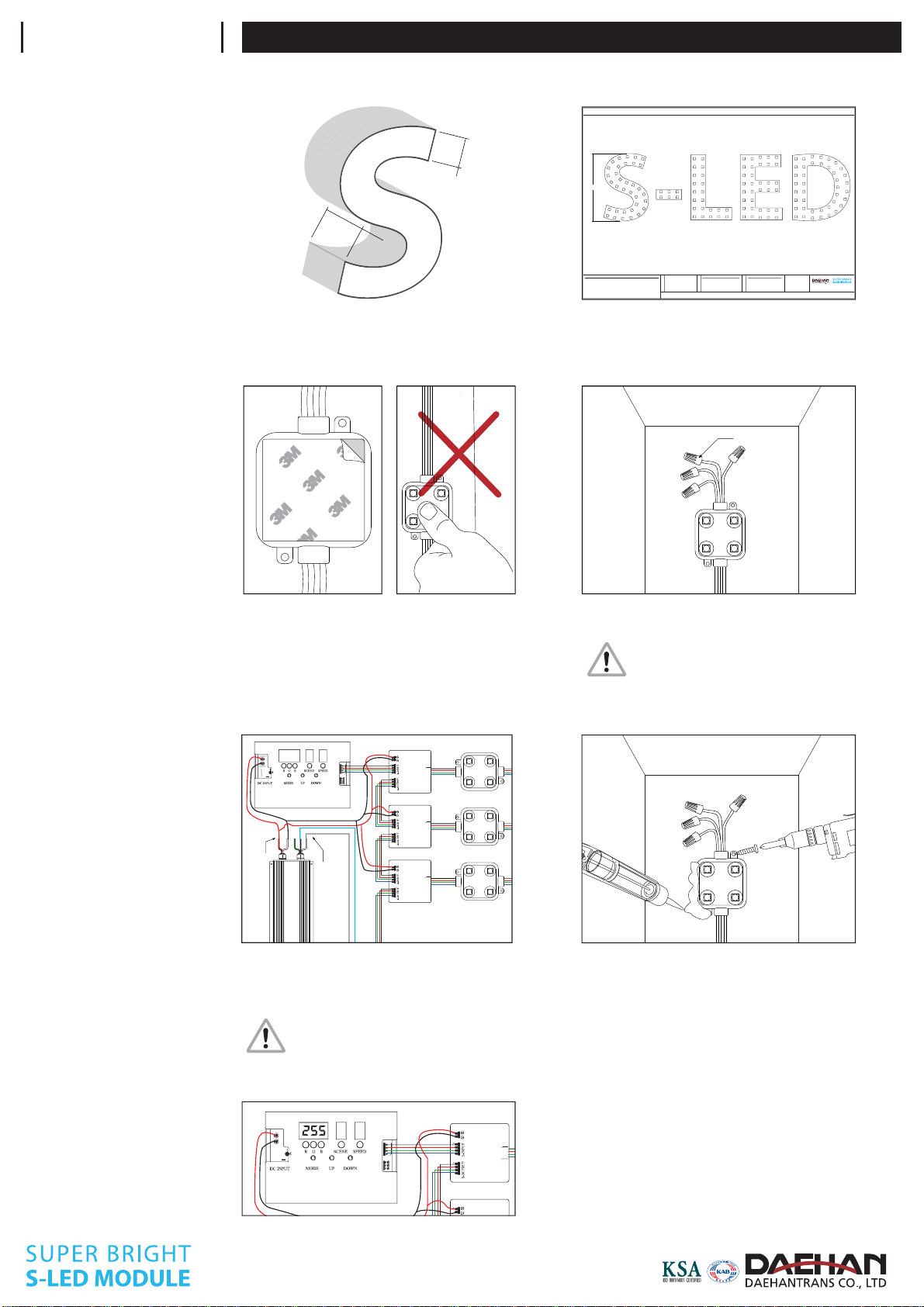

INSTALLATION GUIDE
Drawn by Brad Han
Date : 2009. 1. 1.
Rev.0 Tel: [phone]
www.daehantrans.com
Fax: [phone]
[email protected]
MATERIAL ESTIMATE
Attention to : John Doe Page 1 of 1
NUMBEROF SETInformation Model PowerSupply QuantityColor Quantity
STARC04 WHITE 143EA DC12V120W 2
S-LEDESTIMATE /SET
SUMMARY
POWERESTIMATE /SET
MODULEPITCH
1
QUANTITYPER SET 143EA
TOTALCLUSTERS 143EA
WATTAGEPER SET 187W
TOTALWATTAGE 187W
120mm
*Thisis for estimating purposes only. Material Estimates for S-LED system are based upon given font, letter height, depth, face material, and any special instructions. *Missinginformationwill aect the nal results *Powerconsumption is calculated with extra 15% for extended life of power supplies
*Allsigns should be tested for acceptable color, illumination and operation. Use appropriate power supply for testing *Fordetailed information, please refer to the applicable S-LED product found under http://www.daehantrans.com/download/products2007.pdf
34
RAINBOW C04 x 143
622 34 41
1000 mm
1. DETERMINE LAYOUT
Refer to‘LAYOUT DENSITY GUIDELINES’on page 2 to
determine spacing and amount of LEDs required.
SUPPORTS FOR OUR SIGNMATES
Ask us to obtain accurate layout
Stroke Width
Channel Depth
2. PEEL AND STICK
Using predetermined layout and LED placement
from step 1, remove 3M tape on the back of modules
and stick them into place. Ensure modules are rmly
attached on the surface. CAUTION
When handling the module, avoid pressing
down directly on top of LED lamp
The strand of modules should not be looped to
create a closed circuit.
3. CAP ALL UNUSED WIRES
Wire Nut
Using predetermined layout and LED placement
from step 1, divide channels into sections and
distribute each section to corresponding power
supplies.
CAUTION
Before connect with power supplies, check
polarity on every connections
4. CONNECT WITH POWER SUPPLY & TEST
FASTENERS : If desired, modules can be secured
with M2.5*15 metal screws.
SILICON : If desired, modules can be secured with
silicon. Do not to put silicon on the top of the LED
lamps.
SET CONTROLLER TO STATIC WHITE MODE
1. Push and hold‘MODE’ button for 3 seconds to switch to
static mode. Indicator on R, G, or B should be on.
2. Use ‘UP’ and ‘DOWN’ button to set all numeric values of
R, G, B to‘255’. Modules should have static white color now.
3. Check for dark spots on all channels
5. FIX MODULES PERMANENTLY
6. CHECK LIGHTS AND SPOTS
RGB Controller
120W
AC Input
DC Output
DRIVERDRIVERDRIVER
RGB Controller
DRIVER
E
R
DAEHANTRANS CO.,LTD
#7-11 Songdo-Dong, Yeonsu-Gu, Incheon, Korea
Tel. [phone] Fax. [phone] [email protected] / www.daehantrans.com

Entire sign or leg does not light
after complete installation.
Check connection from power supply lead to first module. Make sure polarity of connections
made at the power supply lead and any jumper wire is correct. Power supply outputs should
be connected red-to-red and white-to-white.
Check output voltage of power supply using a voltmeter. The output voltage should be
12.0VDC ± 0.5VDC. If there is no output voltage, have a licensed electrician check input
voltage. Make sure power supply is connected correctly and getting primary power. If power
supply is connected properly and getting primary power and there is still no output voltage,
try a different power supply.
Still does not light.
If power supply is getting primary power and the modules do not light, there may be a short
in the secondary wiring. Check all connections and cap all loose wires.
Still does not light.
The primary cause of a portion of a S-LED leg not lighting or lighting intermittently is a bad
connection or reverse polarity connection between the modules that light and the modules
that don’t light. Check this connection.
Beginning of a leg lights, but the
entire leg does not light or lights
intermittently.
S-LED is designed so if one module fails, it will not cause the entire sign or leg to go out. If one
module does not light, but all others in the leg do, replace this module with a new one.
One module does not light, but
all others in the leg light.
Check each run has no more than maximum number of modules. Also ensure that type of the
extension wire from SMPS to the first module is correct. If wires are not thick enough to
transmit current from SMPS, this will cause voltage drop and will dim the modules at the end.
All modules light, but some of
them are dimmed.
Channel depth is too low, or center distance between modules is too far. Refer to 'LAYOUT
DENSITY GUIDELINES' for more information.
Dark spots or dimmed spots
occur.
Covering acrylic is not intended for LED illumination. Use light diffusing acrylic sheets which
are specially made for LED light source.
Still has spots.
User Guide 4STAR RGB C04
TROUBLE SHOOTING
