Daewoo AMI-208MC User manual

Service Manual
MINI COMPONENT SYSTEM
Model :
DAEWOO ELECTRONICS CO., LTD.
AMI-208MC/208MCJ
AMI-308MC/308MCE
AMI-508MC
AMI-211MC
AMI-311MC
AMI-511MC

1
TABLE OF CONTENTS
SAFETY PRECAUTIONS ................................................................................................. 2
ADJUSTMENTS............................................................................................................. 4

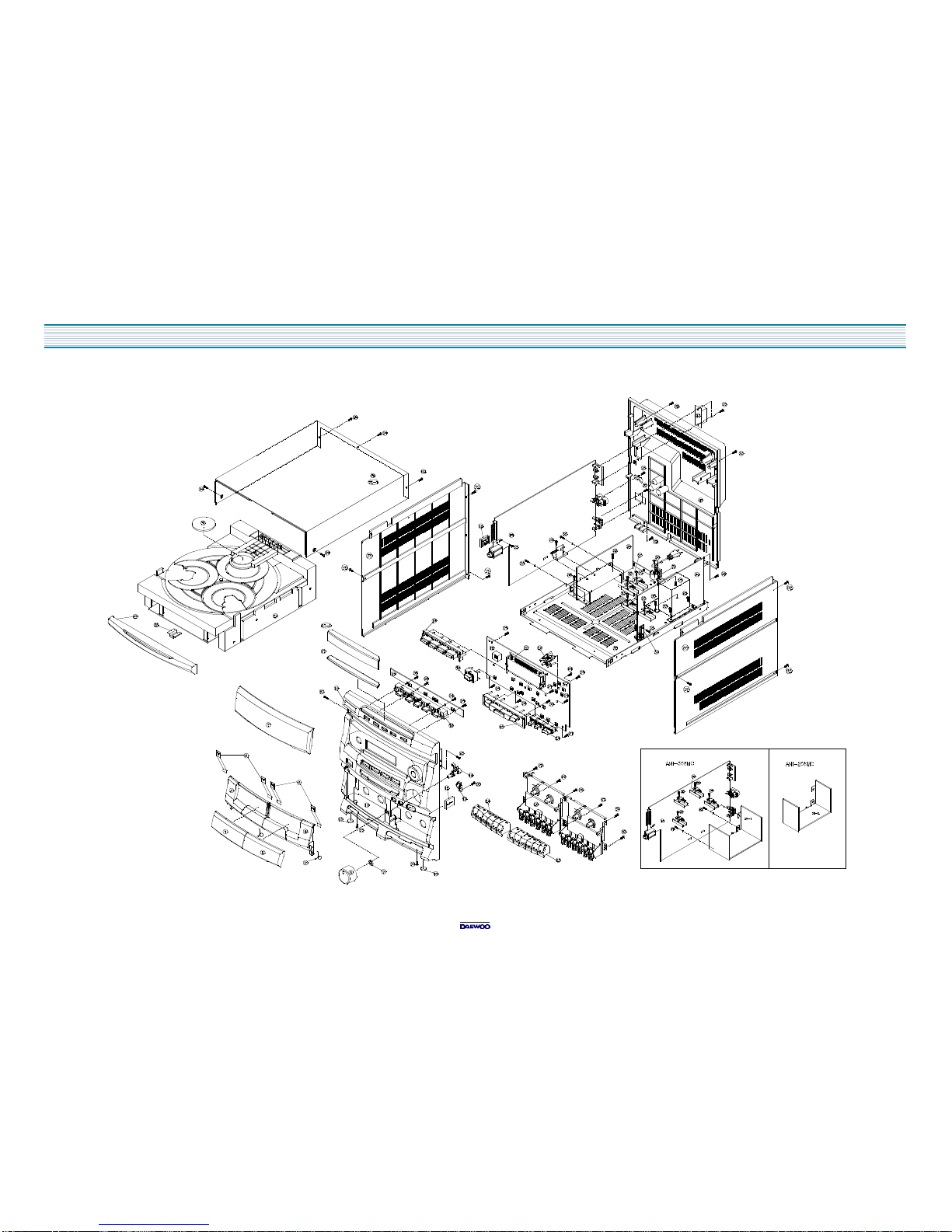

EXPLODED VIEW AND PARTS LIST ................................................................................. 7
AMI-208MC / 308MC / 508MC ......................................................................................................... 7
AMI-211MC / 311MC / 511MC ......................................................................................................... 9

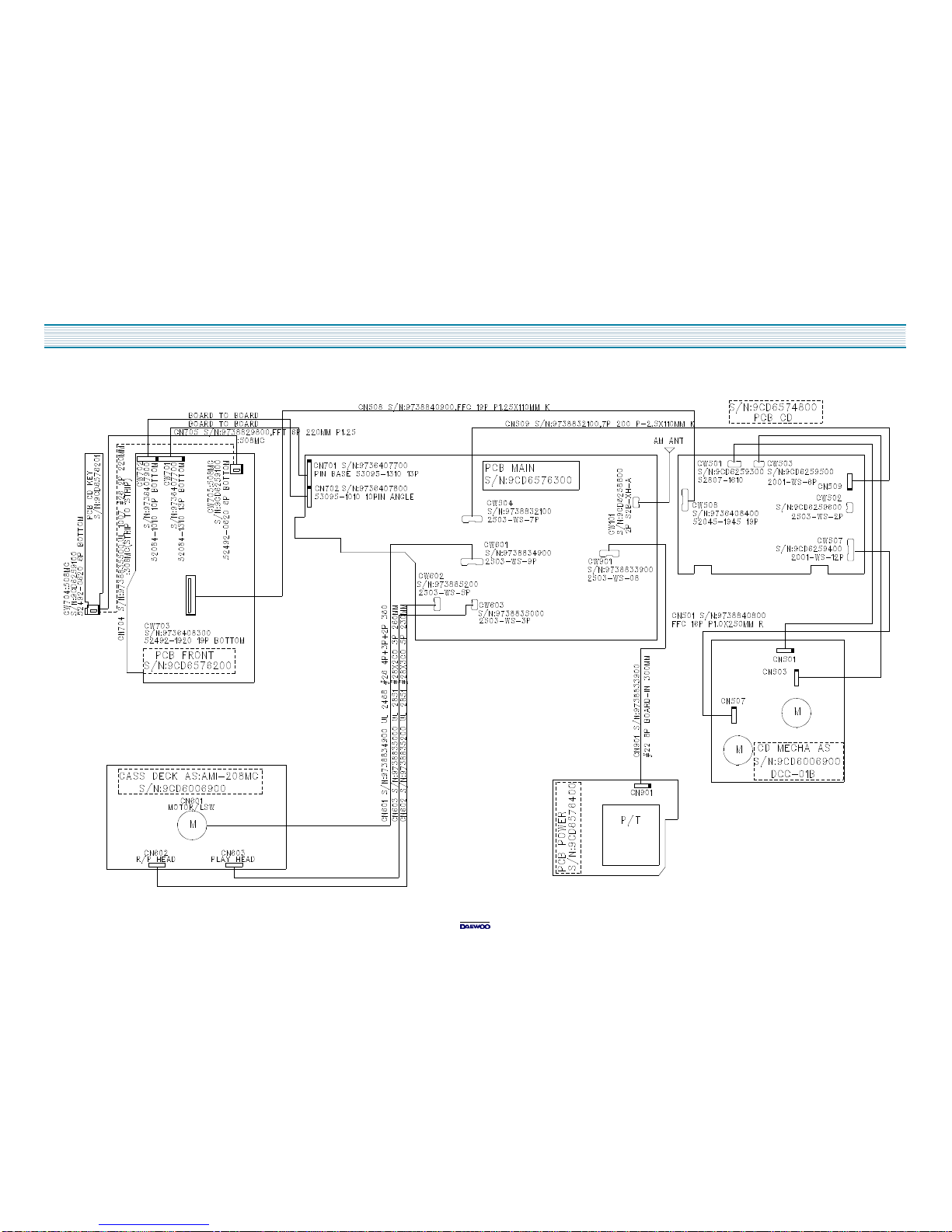

WIRING DIAGRAM ...................................................................................................... 11

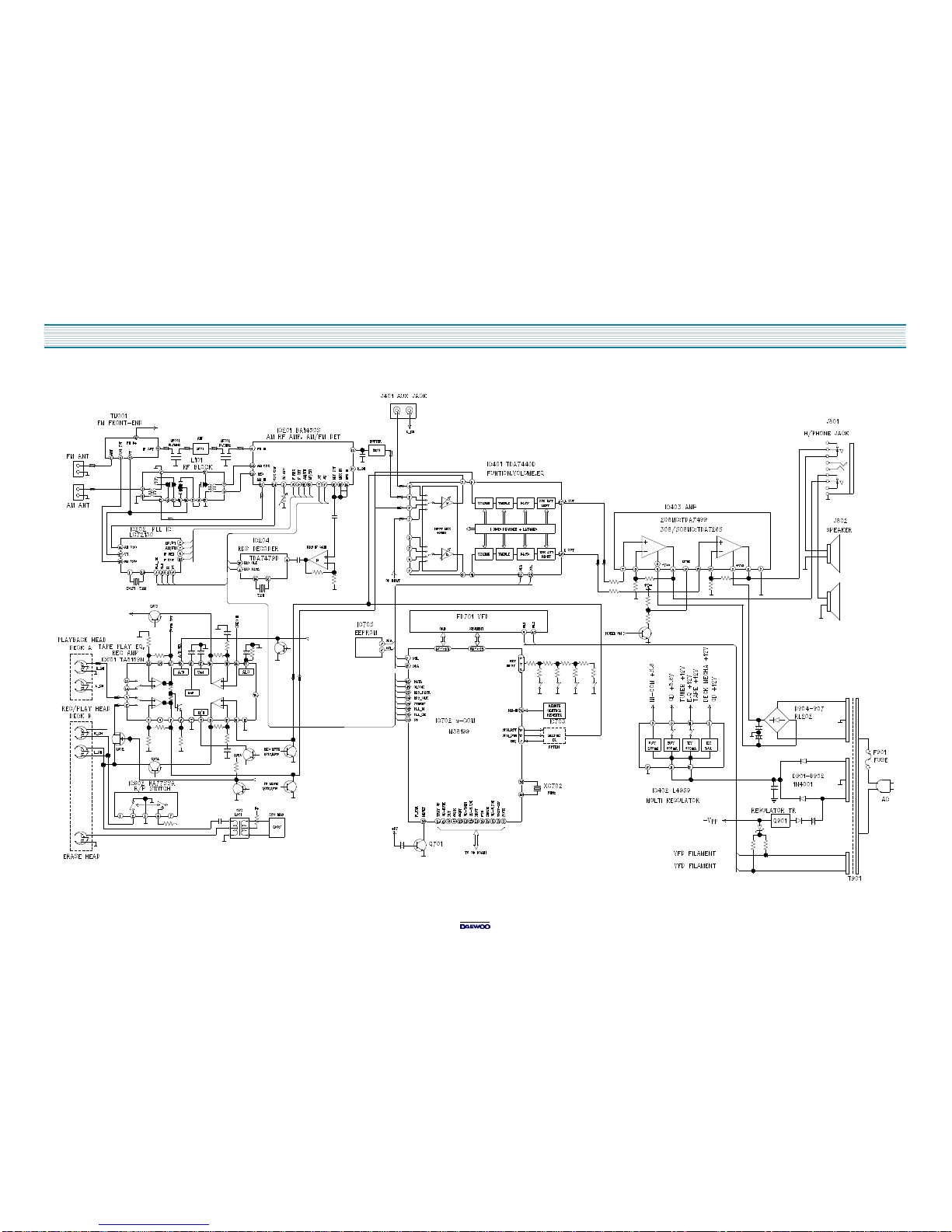

BLOCK DIAGRAM ....................................................................................................... 12
SCHEMATIC DIAGRAM................................................................................................ 13
POWER / AMP.................................................................................................................................... 13
CD.................................................................................................................................................... 17
TUNER (2BAND).................................................................................................................................. 18
TAPE.................................................................................................................................................. 19
CONTROL.......................................................................................................................................... 20
PCB PATTERN LAYOUT.................................................................................................. 22
ELECTRICAL PARTS LIST................................................................................................ 24

2
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYINGTHEAPPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THISUNIT EMPLOYSA LASER. ONLYQUALIFIEDSERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION: USEOFANYCONTROLS,ADJUSTMENTS, ORPROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
futurereference.
- All warnings on the appliance and in the operating instructions
shouldbe adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be usednear
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like. 2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should bemoved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance should be mounted to a wall or
ceiling only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so that its
location or position does not interfere with itsproper
ventilation. Forexample,theappliance shouldnotbe situated
on a bed, sofa, rug, or similarsurface that may block the
ventilation openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow ofair
through the ventilation openings.
6. Heat- The appliance should besituated away from heat
sources such as radiators, heat registers, stoves, or other
appliances(including amplifiers) that produceheat.
7. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked onthe appliance.
8. Grounding or Polarization - The precautions that shouldbe
taken so that the grounding or polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords shouldbe
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
pointwhere they exit from the appliance.
10.Protective Attachment Plug - The appliance is equipped with
an attachment plug having overload protection. This is a
safetyfeature. See Instruction Manual for replacement or
resettingof protective device. If replacement of the plug is
required,be sure the service technician has used a
replacement plug specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located away
from power lines.
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure2

3
SAFETY PRECAUTIONS
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna systemis
grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the National
ElectricalCode, ANSI/NFPA 70, provides information with
regardto proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unpluggedfrom the outlet when left unused for a long period
of time.
15.Objectand LiquidEntry- Care shouldbetaken so thatobjects
donotfallandliquidsarenotspilledintotheenclosurethrough
openings.
16.Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been damaged;or
b) Objects have fallen, or liquid has been spilled intothe
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing should be referred to qualified service
personnel.

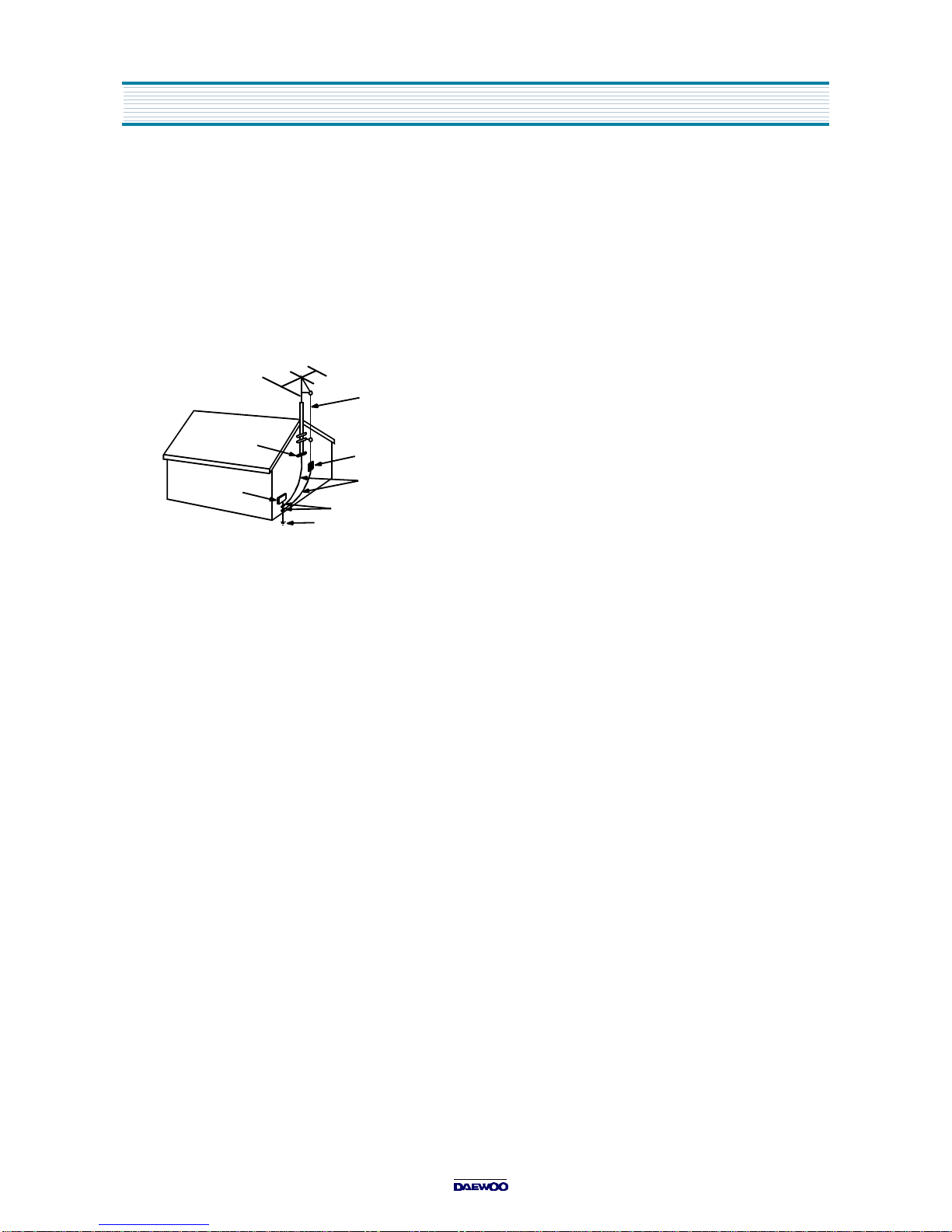

ANTENNADISCHARGEUNIT
(NECSECTION 810-20)
ANTENNALEAD
INWIRE
POWERSERVICE GROUNDING
ELECTRODESYSTEM
(NECART 250PART H)
GROUNDCLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDINGCONDUCTORS
(NECSECTION 810-21)
GROUNDCLAMPS
EXAMPLEOFANTENNA
GROUNDING
NEC- NATIONALELECTRICAL CODE

4
ADJUSTMENTS

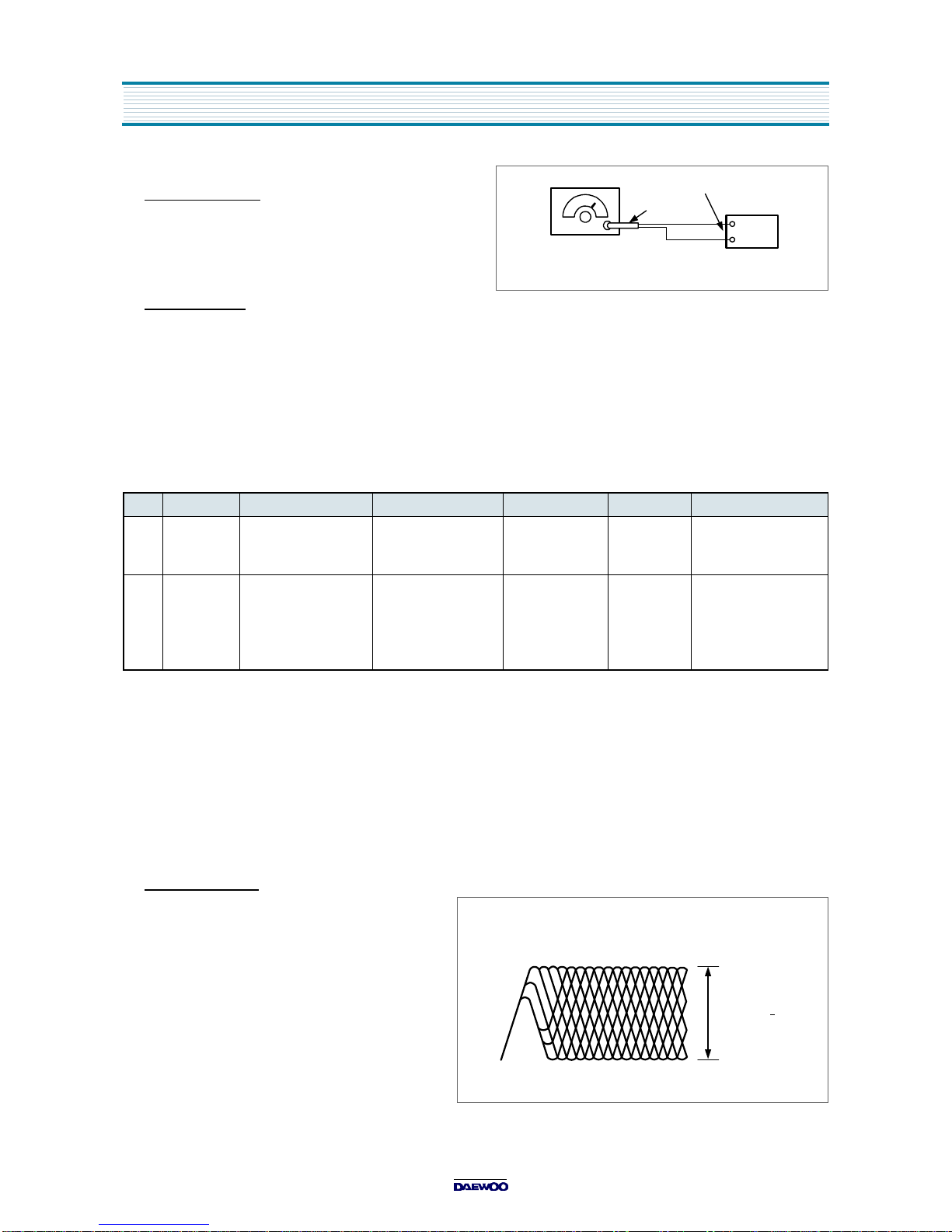

1. TUNER SECTION
TEST EQUIPMENT
1. Signal Generator with a frequency range of FM broadcast.
2. Oscilloscope with a side amplifier of approximately 100 KHz.
3. FM 75/50 Ω dummy antenna.
4. VTVM
FM ALIGNMENT
1. Turn on the FM signal generator and the VTVM allowing 15 minutes warming-up period.
2. Connect the VTVM across the headphone jack or speaker terminal.
3. Set signal generator frequency as listed in ALIGNMENT CHART and maintain a sufficient output level to provide an
indication on VTVM.
NOTE
1. Use a screwdriver with plastic or ceramic grip for all adjustments.
2. Standard test frequency 1 KHz and deviation 75 KHz for FM.
- FM RF, IF ALIGNMENT CHART -
Unless other specified set being switched FM mode, adjust generator's frequency to center of the FM band where no FM broadcast exists
Otherwise adjustment of FM usable sensitivity, frequency range for FM band are not needed, but confirm these data are satisfied with specifi-
cation.
CAUTION : When realigning the FM receiving frequency the highest end of the frequency range should not be more than 108 MHz and the
lowest end of the frequency range should not be less than 87.5 MHz, in order to comply with FTZ regulation in West Germany.
2. CD SECTION
Note: 1. Use the oscilloscope with more than 10M Ω impedance.
2. Clean an object lens by an applicator with natural detergent when the signal level is lower than specified value
with the following checks.
RF LEVEL CHECK
1. Connect oscilloscope to test point TP502 and IC502
Pin66 on CD PCB.
2. Press power switch on.
3. Put test disc(TCD-781) in and press play button then
pause button.
4. Confirm that oscilloscope waveform is clear. Clear
RF signal waveform means that the shape"#"can be
clearly distinguished at the center of waveform.
5. Adjust RV501 to get a clear waveform andmaximum
amplitude.
Step Item Input Circuit Setup Output Circuit Setup Tuner Setting Adjust Point Adjustment
1FM IF
Adjustment
Connectstereosignal
generator to FM ANT
terminal (J001)
Connect DC voltme-
ter to edge R201 FM98MHz75KHz
Dev. 26dB µ
L203 Adjust forDC 0V
± 0.1V
2Auto Stop
Sensitivity
Connectstereosignal
generator to FM ANT
terminal (J001)
Connect DC voltme-
ter to edge of RV201
FM 98MHz
75KHzDev.
26dB µ
RV201
Adjust for DC
1.17V ± 0.02V
Confirm stereo indica-
tor is lighted and L/R
channel is separated.
SET
FM Antenna
Terminal(75 ohm)
Carrier Frequency : 98MHz
Output Level : 26dBuV
Modulation:Audio 1kHZ, 75kHz Deviation
FM RF SSG
75 ohm Coaxal
Level : 1.2+0.3Vp-p
RF Signal Waveform VOLT/DIV : 200mV
TIME/DIV : 50ns

5
ADJUSTMENTS
E-F BALANCE ADJUSTMENT
1. Connect oscilloscope to test point TP502 and TP503
on CD PCB.
2. Press power switch on.
3. Put test disc(TCD-781) in and press play button then
pause button.
4. Pressing Fast Forward button, adjust RV502 to get
thattheoscilloscope waveform is symmetrical on the
bottom in relation to 0V, and check this level.
* Design and specifications may be subject to change without notice.
3. TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to TP603, GND.
2. Press the REC button.
3. Adjust L603 to obtain 80 KHz ± 100Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
Traverse Waveform
A
B
0V
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point

6
ADJUSTMENTS
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment
Normal
3,015~3,025Hz MTT-111N RV601 Line Out L/R
Channel Confirm Wow & Flut- ter is within 0.35% FIG.1
3,000~3,010Hz MTT-111N RV601 Line Out L/R
Channel
Confirm Tape Speed
of end position after
adjustment at tape
start position
FIG.1
High 5,820~6,180Hz MTT-111N - - - - - - Shorted TP601,
TP602
Confirm High speed
after normal speed
adjustment FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90° MTT-114N Head Screw Line Out L/R Channel FIG.2,3,4
3Recording Bias Oscilla- tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L603 TP603,GND Adjustwith frequency
counter connected. FIG.1
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape : MTT-111N(3kHz)
MTT-5511(Blank)
Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side Reverse
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB within
1 dB
L-CH
Peak R-CH Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong

7
EXPLODED VIEW AND PARTS LIST
1. AMI-208MC / 308MC / 508MC

8
EXPLODED VIEW AND PARTS LIST
NO. PART NAME CODE NO. DESCRIPTION 208MC 308MC 508MC
1WINDOW DOOR A 9CD1612500 ACRYL SMOG 1 1 1
2WINDOW DOOR B 9CD1612600 ACRYL SMOG 1 1 1
3DOOR CASS A 9CD1808500 MIPS 1 1 1
4DOOR CASS B 9CD1808600 MIPS 1 1 1
5SPRING DOOR EJECT 9CD3004500 PW-1 2 2 2
6SPRING C HOLDER 9713008900 STS T0.2 4 4 4
7WINDOW FLT 9CD1612700 ACRYL VIOLET 1 1 1
8KNOB VOLUME 9CD1332800 ABS 1 1 1
9SHAFT WASHER 9CD3601600 ACETAL 1 1 1
10 CUSHION FOOT 9CD4207700 URETHAN FOAM RUBBER 2 2 2
11 PANEL FRONT 9CD0305100 MIPS 1 1 1
12 BRKT SIDE 9CD2412900 ABS 1.5GR 2 2 2
13 DAMPER AS 9CD2602800 DA-12 1 1 1
14 SHAFT VR 9CD3601500 ACETAL 1 1 1
15 KNOB CD 9CD1332200 ACRYL --- 1 1
16 BADGE DAEWOO 9CD1500900 ABS HOT STAMPING 1 1 1
17 WINDOW FRONT 9CD1612800 ACRYL 1 1 1
17-1 KNOB EQ DUMMY 9CD1335500 ACRYL 1 1 1
18 KNOB FUNCTION 9CD1332300 ABS 1 1 1
19 KNOB POWER 9CD1332500 ABS 1 1 1
20 KNOB PRESET 9CD1332400 ABS 1 1 1
21 KNOB HI SPEED 9CD1332600 ABS 1 1 1
22 GUIDE FLT 9CD2505600 ABS 1 1 1
23 KNOB EQ 9CD1332700 ABS 1 1 1
24 KNOB DECK A 9CD1332900 ABS 1 1 1
25 KNOB DECK B 9CD1333000 ABS 1 1 1
26 DECK MECHANISM 9CD6006200 ADR 2010 FW2 (SAMSUNG) 1 1 1
27 DOOR CD 9CD1808700 MIPS 1 1 1
28 HEAT SINK 9CD4402800 BSP 0.5T 1 1 1
29 CD DECK MECHANISM 9CD6006100 3CD CH, S/S, W/O PCB ASSY 1 1 1
30 PLATE MAGNET 9CD0909300 --- --- 1
32 COVER TOP 9CD0409100 MIPS --- --- 1
32-1 COVER TOP 9CD0409600 MIPS 1 1 ---
33 COVER SIDE L 9CD0409200 MIPS 1 1 1
34 COVER SIDE R 9CD0409300 MIPS 1 1 1
35 CHASSIS BOTTOM 9CD0607100 SECC T1.0 1 1 1
36 BRKT PCB A 9CD2413100 SECC T1.0 --- --- 1
37 HEAT SINK TR 9CD4403200 BSP T1.0 --- 4 4
38 HEAT SINK 9CD4403700 AL - EX --- --- 1
38-1 HEAT SINK 9CD4403900 AL SHEET --- 1---
38-2 HEAT SINK 9CD4405100 AL SHEET 1--- ---
39 HOLDER AC CODE 9CD2303300 ABS 4.0GR 111
40 COVER BACK 9CD0409400 MIPS 111
41 BRACKET ANT 9CD2411100 SCP-1 T0.8 BK SPRAY 1 1 ---
P1 PCB MAIN 111
P2 PCB FRONT 111
P3 PCB CD --- 1 1
P4 PCB POWER 111
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6X10 MFZN 12 16 16
S2 SCREW TAPTTITE 7173301012 TT2 BIN 3.0X5 MFZN --- --- 1
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X10 MFZN 34 38 40
S4 SCREW TAPTTITE 7173400611 TT2 BIN 3.0X12 MFZN BK 555
S5 SCREW TAPTTITE 7173300611 TT2 BIN 4.0X6 MFZN 468
W1 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 111
NO. PART NAME CODE NO. DESCRIPTION 208MC 308MC 508MC

9
EXPLODED VIEW AND PARTS LIST
2. AMI-211MC / 311MC / 511MC

10
EXPLODED VIEW AND PARTS LIST
No Parts Name Parts Code Description Q'ty
211MC 311MC 511MC
1PANEL FRONT 9CD0305400 MIPS 111
2DOOR CASS. A/B 9CD1808900 MIPS 111
9CD1809000 MIPS 111
3SPRING DOOR EJECT 9CD3004500 PW-1 111
4SPRING C HOLD 9CD3003900 STS T0.2 111
5DAMPER AS 9CD2602800 DA-12 111
6DECK MECHANISM 9CD6006200 S/S , ADR2010FW2 111
7DOOR CD 9CD1808800 MIPS 111
8WINDOW FRONT 9CD1613400 ACRYL, BLACK 111
9WINDOW FLT 9CD1613300 ACRYL, SMOG 111
10 WINDOW DOOR A/B 9CD1613100 ACRYL, VIOLET 111
9CD1613200 ACRYL, VIOLET 111
11 KNOB CD 9CD1332200 ABS 111
12 KNOB POWER 9CD1333700 ABS 111
13 KNOB CD A 9CD1333200 ABS 111
14 KNOB FUNCTION 9CD1333400 ABS 111
15 KNOB TIMER 9CD1333800 ABS 111
16 KNOB EQ 9CD1333300 ABS 111
17 KNOB VOLUME 9CD1333600 ABS 111
18 SHAFT VOL 9CD3601700 ACETAL 111
19 SHAFT ST 9CD3601800 ACETAL 111
20 KNOB DECK Auto/Play 9CD1333900 ABS 111
9CD1334000 ABS 111
21 BRKT SIDE 9CD2412900 ABS 222
22 BRKT PCB B 9CD2413200 SECC T1.0 222
23 CUSHION FOOT 9CD4207700 URETHAN FOAM RUBBER 222
24 COVER TOP 9CD0409600 MIPS 111
25 SPRING TUNING 9CD3007000 SUS 111
26 CD DECK MECHANISM 9CD6006100 3CD CH, S/S, W/O PCB ASSAY 111
27 COVER SIDE L/R 9CD0409200 MIPS 111
9CD0409300 MIPS 111
28 HEAT SINK 9CD4402800 BSP T0.5 111
29 CHASSIS BOTTOM 9CD0607100 SECC T1.0 111
30 BRKT PCB A 9CD2413100 SECC T1.0 111
31 HEAT SINK 9CD4404000 AL 30W --- --- ---
31-1 HEAT SINK 9CD4405000 AL 20W --- --- 1
31-2 HEAT SINK 9CD4404500 AL 10W --- 1---
31-3 HEAT SINK 05 9CD4405100 AL 5W 1--- ---
32 HEAT SINK TR 9714403200 AL-EX 1 1 1
33 DECO FRONT 9CD1002300 ABS 1 1 1
34 COVER BACK 9CD0409400 MIPS 1 1 1
35 BADGE DAEWOO 9CD1500900 ABS, HOT STAMPING 1 1 1
36 GUIDE FLT 9CD2505600 ABS 1 1 1
37 HOLDER AC CORD 9CD2303300 ABS 1 1 1
38 BRKT H. SINK 9CD2413900 SUS 0.3 1 1 1
P1 PCB MAIN 1 1 1
P2 PCB FRONT 1 1 1
P3 PCB CD 1 1 1
P4 PCB POWER 1 1 1
P5 PCB TAPE
S1 SCREW TAPTTITE 7173300811 TT2 BIN 3.0X 8 MFZN 4 4 4
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 23 23 23
S3 SCREW TAPTTITE 7173261011 TT2 BIN 2.6X10 MFZN 17 17 17
S4 SCREW TAPTTITE 7173301212 TT2 BIN 3X12 MFZN BK 25 25 25
S5 SCREW TAPTTITE 7173400611 TT2 BIN 4X6 MFZN 6 6 6
S6 SCREW TAPTTITE 7173300511 TT2 BIN 3X5 MFZN 1 1 1
S7 WASHER SCREW 9CD3102400 TT2 BIN 3X10 + D14 1 1 1
WWASHER I:3.2, O: 6.0 1 1 1
No Parts Name Parts Code Description Q'ty
211MC 311MC 511MC

11
WIRING DIAGRAM
AMI-208MC / 308MC / 508MC / 211MC / 311MC / 511MC

12
BLOCK DIAGRAM
AMI-208MC / 308MC / 508MC / 211MC / 311MC / 511MC

13

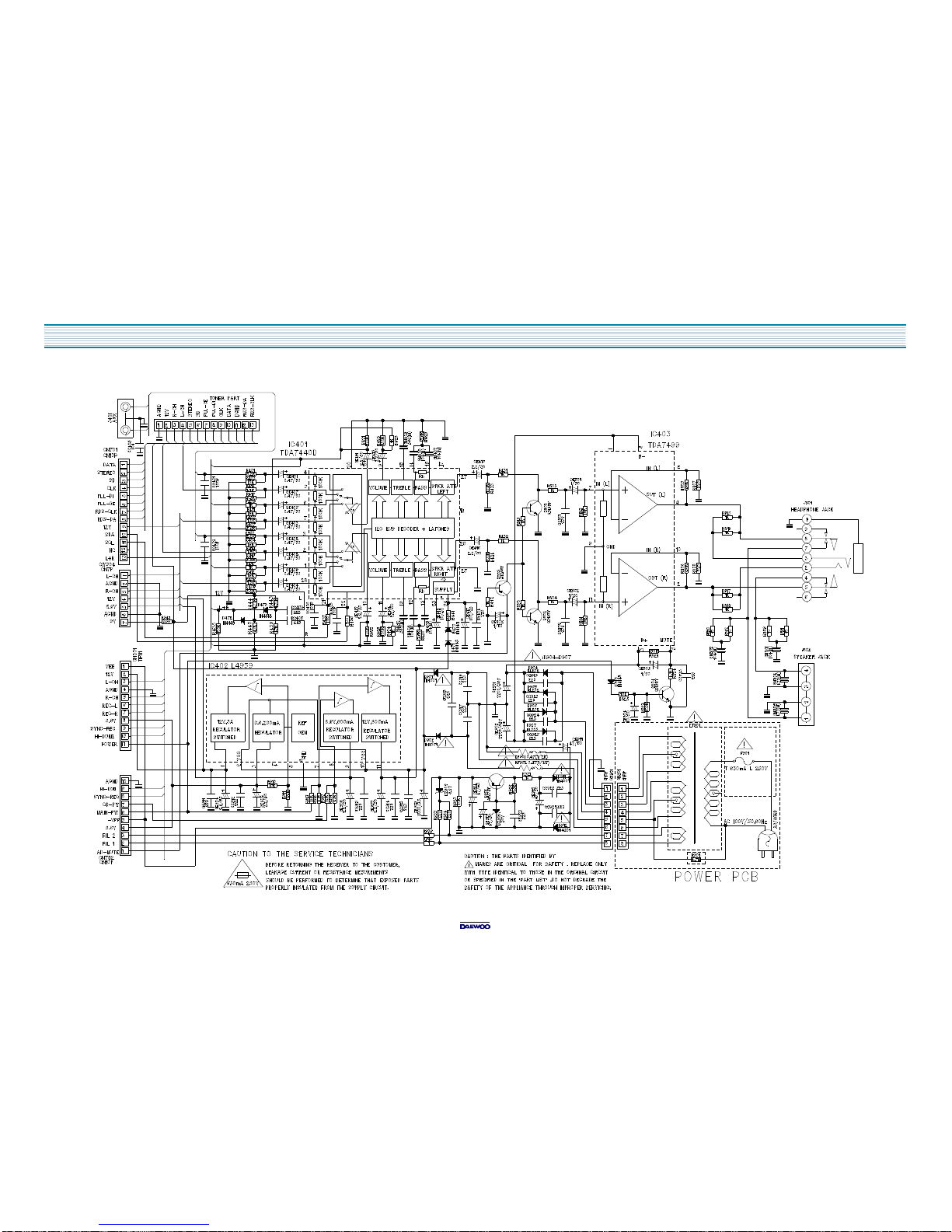

SCHEMATIC DIAGRAM
1. POWER / AMP
AMI-208MC / 211MC

14
SCHEMATIC DIAGRAM
AMI-208MCJ

15
SCHEMATIC DIAGRAM
AMI-308MC / 311MC

16
SCHEMATIC DIAGRAM
AMI-508MC / 511MC

17
SCHEMATIC DIAGRAM
2. CD
AMI-208MC / 308MC / 508MC / 211MC / 311MC / 511MC

18
SCHEMATIC DIAGRAM
3. TUNER (2BAND)
AMI-208MC / 308MC / 508MC / 211MC / 311MC / 511MC

19

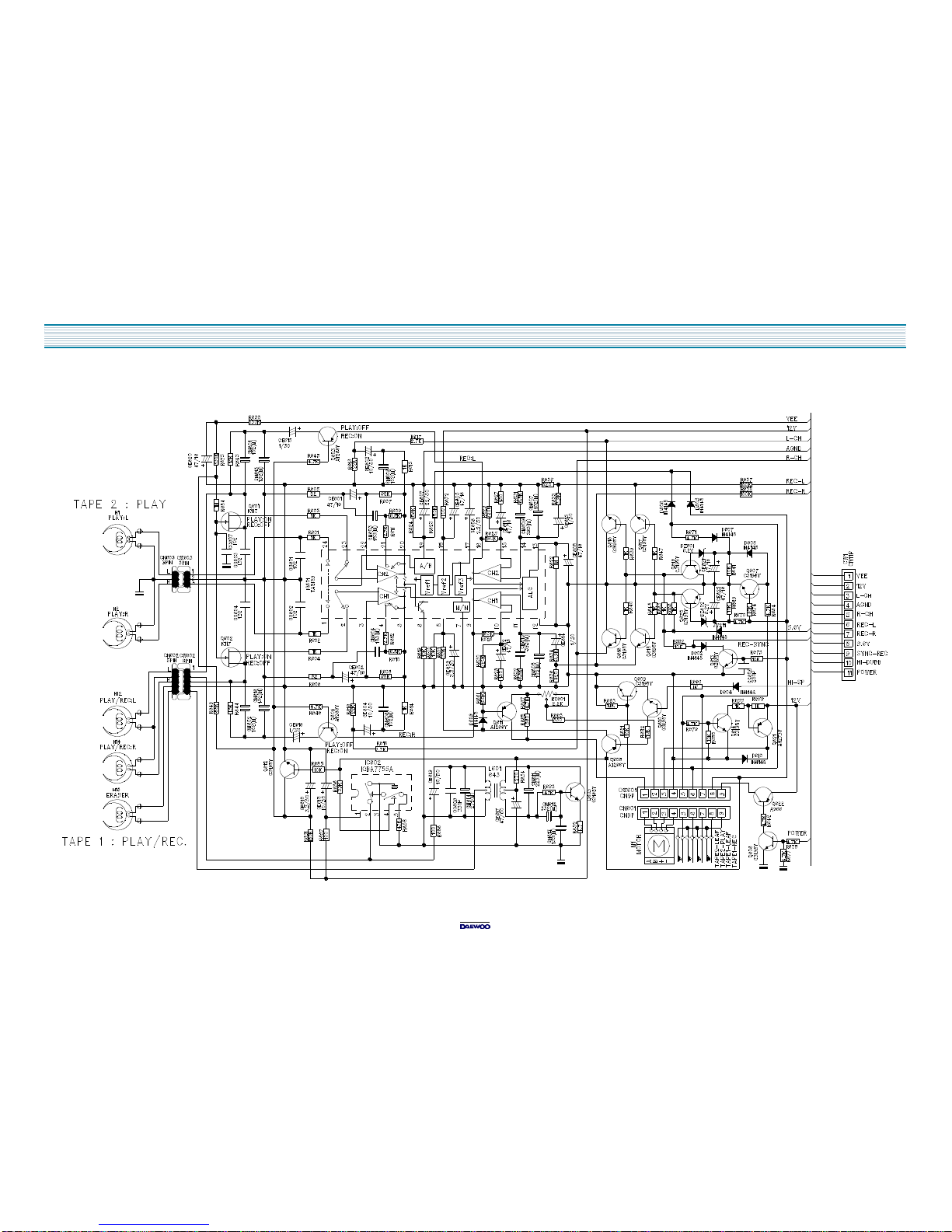

SCHEMATIC DIAGRAM
4. TAPE
AMI-208MC / 308MC / 508MC / 211MC / 311MC / 511MC
