Service Manual
MINI COMPONENT SYSTEM
Model :
DAEWOO ELECTRONICS CO., LTD.
AMI-910L/910R

1
TABLE OF CONTENTS
SAFETY PRECAUTIONS ................................................................................................. 2
ADJUSTMENTS............................................................................................................. 4

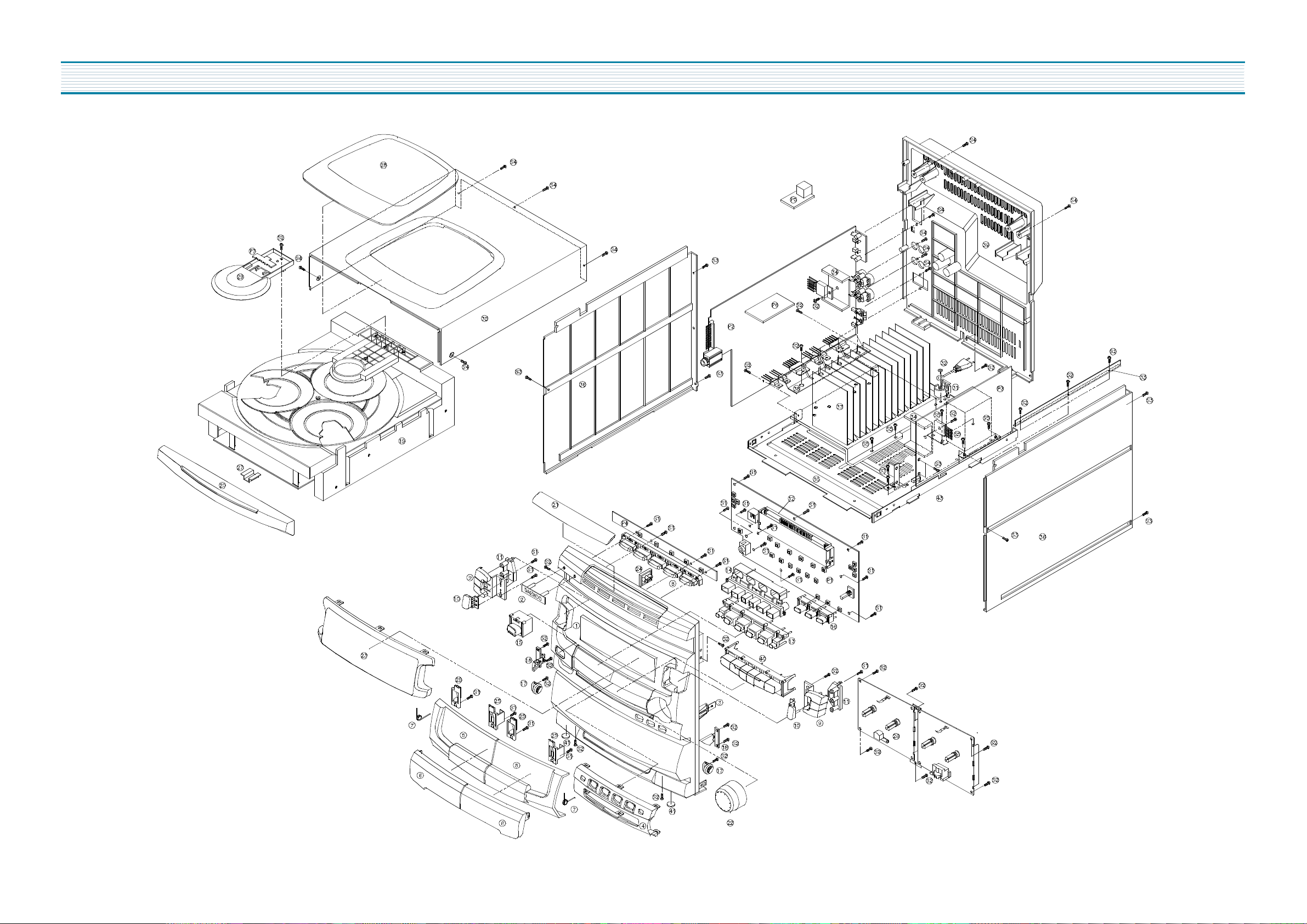

EXPLODED VIEW AND PARTS LIST ................................................................................. 7

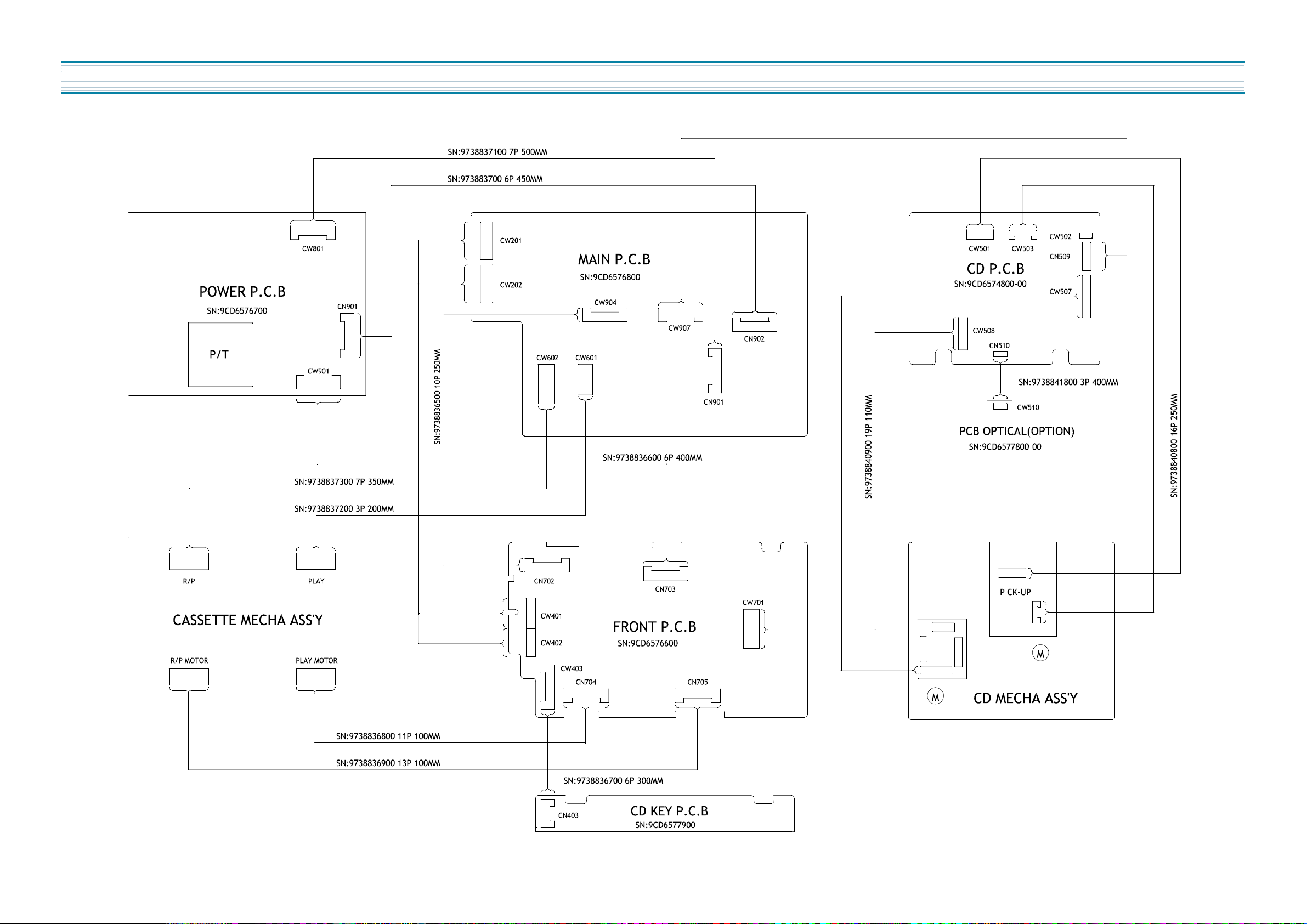

WIRING DIAGRAM ...................................................................................................... 9
BLOCK DIAGRAM ....................................................................................................... 10
SCHEMATIC DIAGRAM................................................................................................ 11

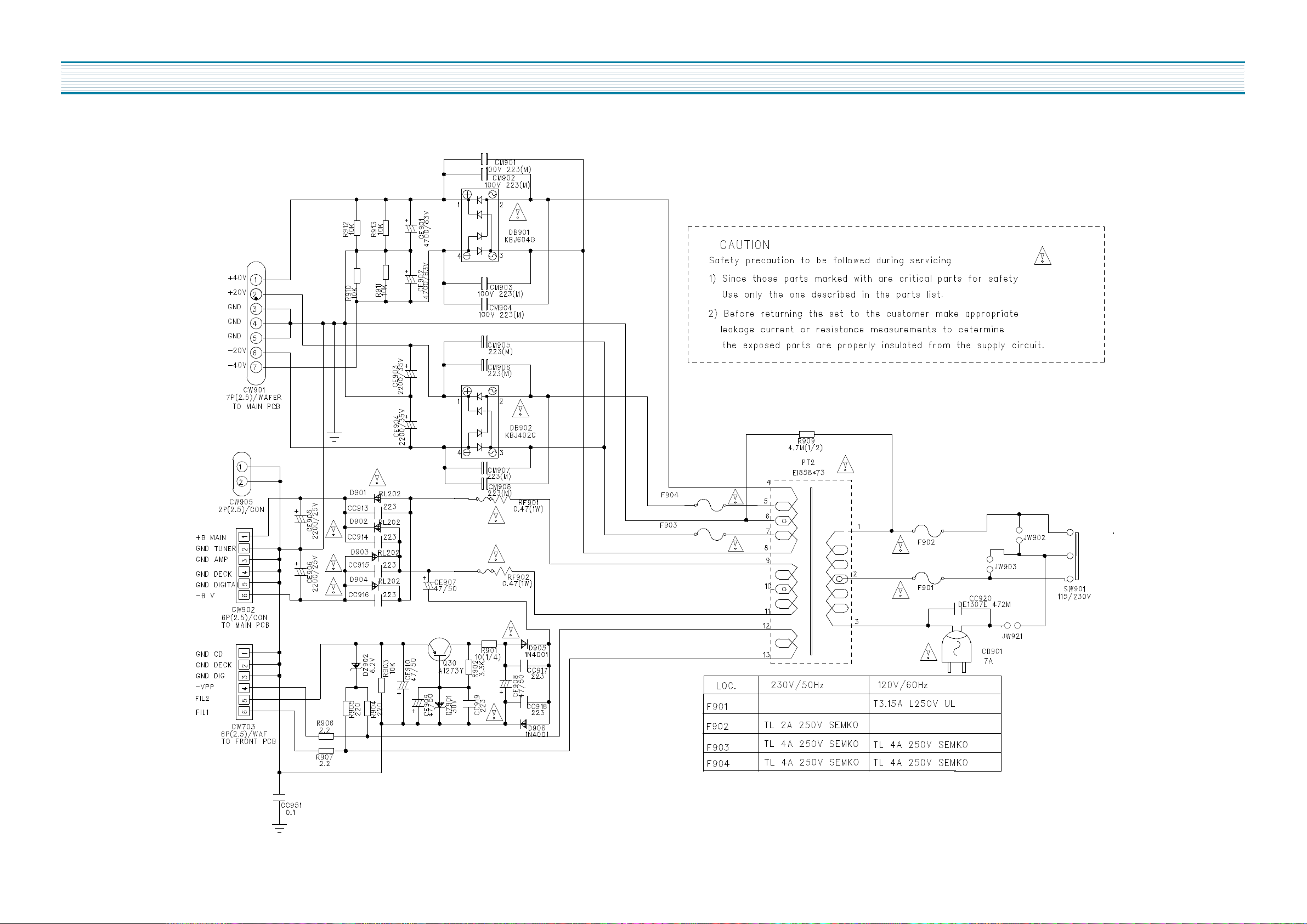

POWER ............................................................................................................................................. 11
CD.................................................................................................................................................... 12
AMP / TAPE / TUNER ........................................................................................................................... 13

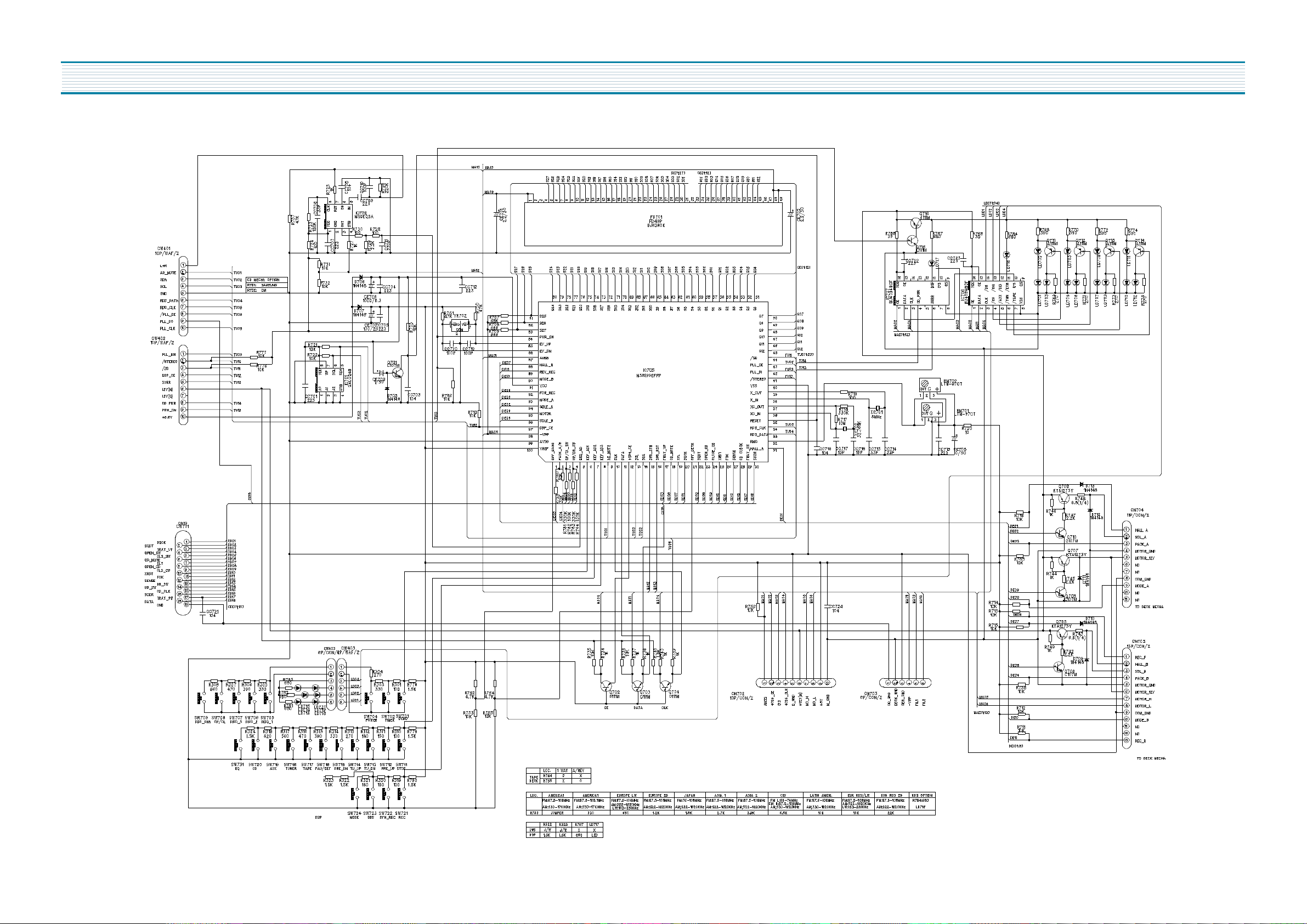

CONTROL.......................................................................................................................................... 14

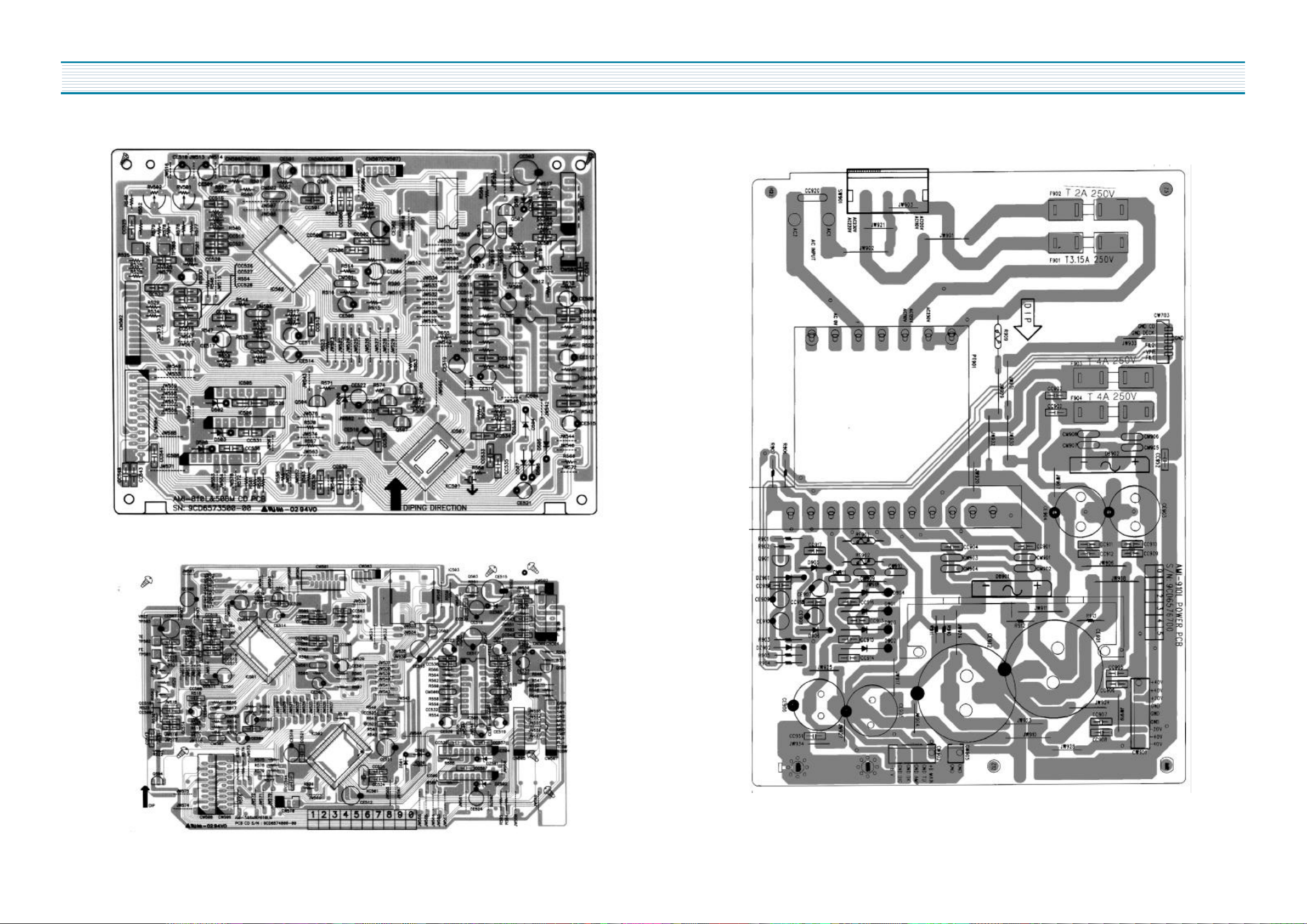

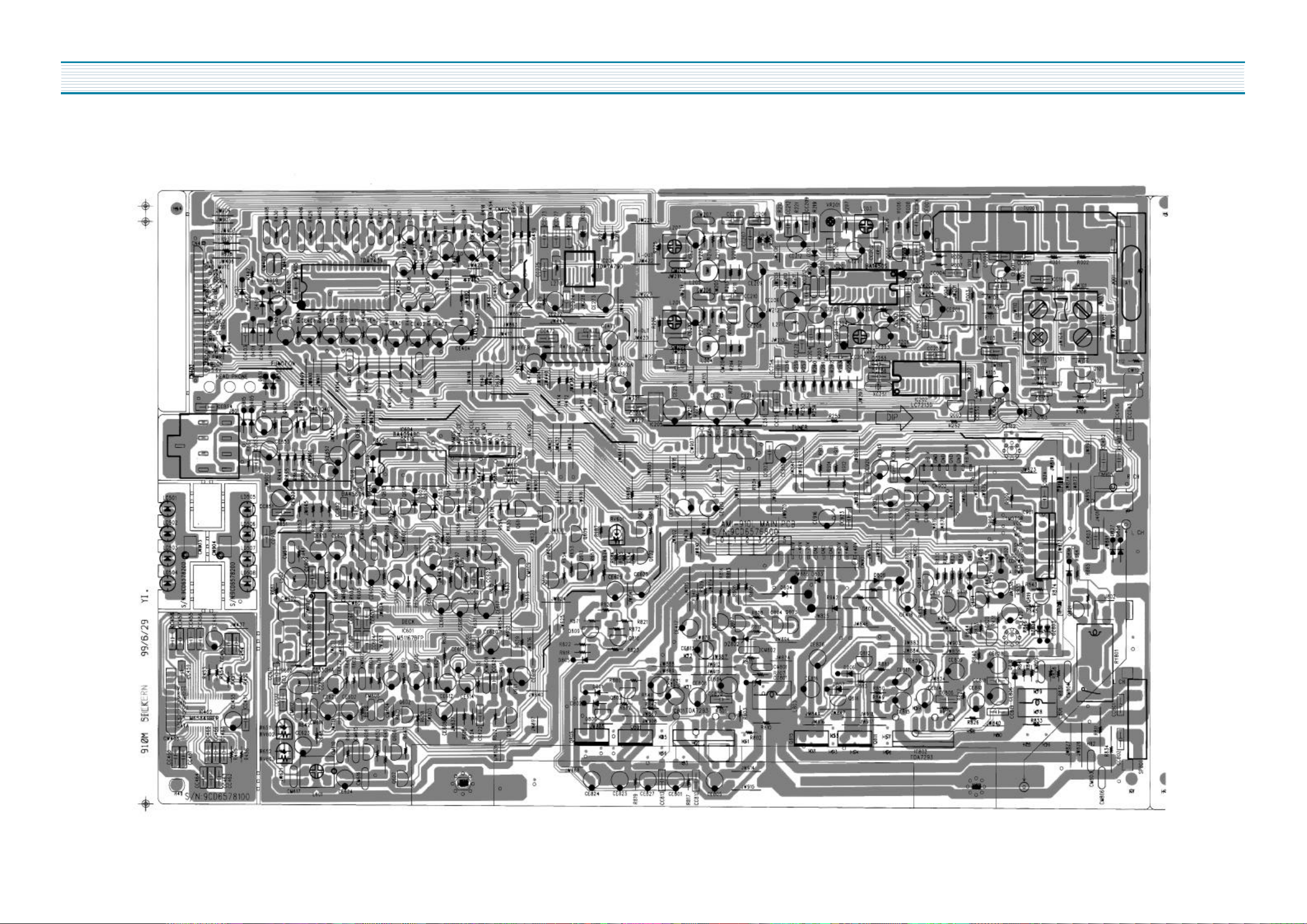

PCB PATTERN LAYOUT.................................................................................................. 15
ELECTRICAL PARTS LIST................................................................................................ 18

2
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYINGTHEAPPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THISUNIT EMPLOYSA LASER.ONLY QUALIFIEDSERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION: USEOFANYCONTROLS,ADJUSTMENTS, ORPROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
futurereference.
- All warnings on the appliance and in the operating instructions
shouldbe adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be usednear
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like. 2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should bemoved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance should be mounted to a wall or
ceiling only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so that its
location or position does not interfere with itsproper
ventilation. Forexample,theappliance shouldnotbesituated
on a bed, sofa, rug, or similarsurface that may blockthe
ventilation openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow ofair
through the ventilation openings.
6. Heat- The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances(including amplifiers) that produceheat.
7. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked onthe appliance.
8. Grounding or Polarization - The precautions that shouldbe
taken so that the grounding or polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords shouldbe
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
pointwhere they exit from the appliance.
10.Protective Attachment Plug - The appliance is equipped with
an attachment plug having overload protection. This is a
safetyfeature. See Instruction Manual for replacement or
resettingof protective device. If replacement of the plug is
required,be sure the service technician has used a
replacement plug specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located away
from power lines.
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure2

3
SAFETY PRECAUTIONS
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna systemis
grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the National
ElectricalCode, ANSI/NFPA 70, provides information with
regardto proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unpluggedfrom the outlet whenleft unused for a long period
of time.
15.Objectand Liquid Entry-Careshould betakenso thatobjects
donotfallandliquidsarenotspilledintotheenclosurethrough
openings.
16.Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been damaged;or
b) Objects have fallen, or liquid has been spilled intothe
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing should be referred to qualified service
personnel.
ANTENNADISCHARGEUNIT
(NECSECTION 810-20)
ANTENNALEAD
INWIRE
POWERSERVICE GROUNDING
ELECTRODESYSTEM
(NECART 250PART H)
GROUNDCLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDINGCONDUCTORS
(NECSECTION 810-21)
GROUNDCLAMPS
EXAMPLEOFANTENNA
GROUNDING
NEC- NATIONALELECTRICAL CODE

4

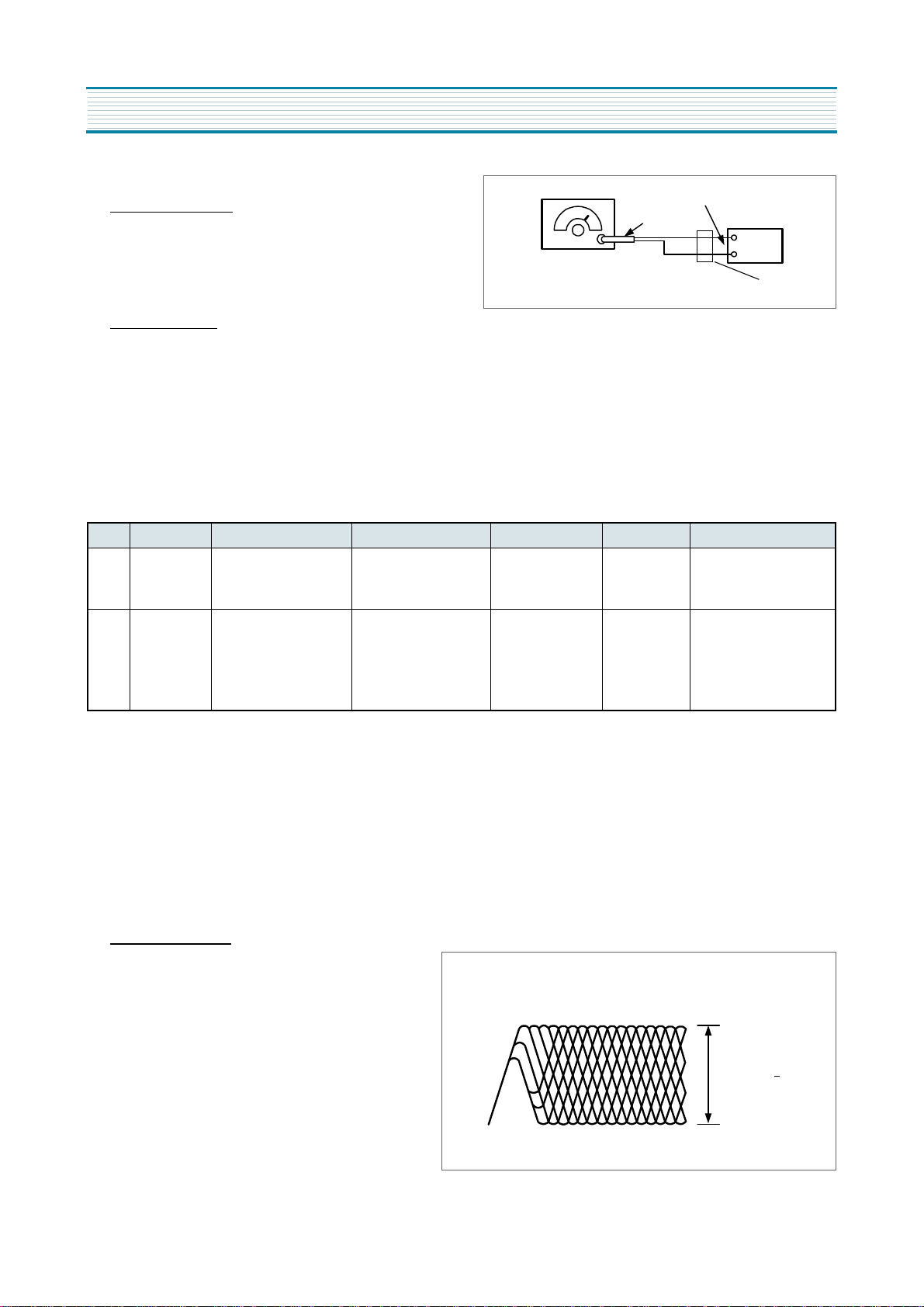

ADJUSTMENTS
1. TUNER SECTION
TEST EQUIPMENT
1. Signal Generator with a frequency range of FM broadcast.
2. Oscilloscope with a side amplifier of approximately 100 KHz.
3. FM 75/50 Ω dummy antenna.
4. VTVM
FM ALIGNMENT
1. Turn on the FM signal generator and the VTVM allowing 15 minutes warming-up period.
2. Connect the VTVM across the headphone jack or speaker terminal.
3. Set signal generator frequency as listed in ALIGNMENT CHART and maintain a sufficient output level to provide an
indication on VTVM.
NOTE
1. Use a screwdriver with plastic or ceramic grip for all adjustments.
2. Standard test frequency 1 KHz and deviation 75 KHz for FM.
- FM RF, IF ALIGNMENT CHART -
Unless other specified set being switched FM mode, adjust generator's frequency to center of the FM band where no FM broadcast exists.
Otherwise adjustment of FM usable sensitivity, frequency range for FM band are not needed, but confirm these data are satisfied with specifi-
cation.
CAUTION : When realigning the FM receiving frequency the highest end of the frequency range should not be more than 108 MHz and the
lowest end of the frequency range should not be less than 87.5 MHz, in order to comply with FTZ regulation in West Germany.
2. CD SECTION
Note: 1. Use the oscilloscope with more than 10M Ω impedance.
2. Clean the laser object lens using natural detergent and a soft applicator when the signal level is lower than the value as indicated in
the following checks.
RF LEVEL CHECK
1. Connect oscilloscope to test point TP502 and IC502
Pin66 on CD PCB.
2. Press power switch on.
3. Put test disc(TCD-781) in and press play button then
pause button.
4. Confirm that oscilloscope waveform is clear. Clear
RF signal waveform means that the shape"#"can be
clearly distinguished at the center of waveform.
5. Adjust RV501to geta clear waveformand maximum
amplitude.
Step Item Input Circuit Setup Output Circuit Setup Tuner Setting Adjust Point Adjustment
1FM IF
Adjustment
Connectstereosignal
generator to FM ANT
terminal (J001)
Connect DC voltme-
ter across R201 FM98MHz75KHz
Dev. 26dB µ
L203 Adjust forDC 0V
± 0.1V
2Auto Stop
Sensitivity
Connectstereosignal
generator to FM ANT
terminal (J001)
Connect DC voltme-
ter across RV201
FM 98MHz
75KHzDev.
26dB µ
RV201
Adjust for DC
1.17V ± 0.02V
Confirm stereo indica-
tor is lighted and L/R
channel is separated.
SET
FM Antenna
Terminal(75 ohm)
Carrier Frequency : 98MHz
Output Level : 26dBuV
Modulation:Audio 1kHZ, 75kHz Deviation
FM RF SSG
75 ohm Coaxal
FM 75/50 Ω
Dummy
Level : 1.2+0.3Vp-p
RF Signal Waveform VOLT/DIV : 200mV
TIME/DIV : 50ns

5
ADJUSTMENTS
E-F BALANCE ADJUSTMENT
1. Connect oscilloscope to test point TP502 and TP503
on CD PCB.
2. Press power switch on.
3. Put test disc(TCD-781) in and press play button then
pause button.
4. Press Fast Forward button and adjust RV502 for a
symmetricalwaveformon the oscilloscope inrelation
to 0V.
* Design and specifications may be subject to change without notice.
3. TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to a VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screwdriver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to CM617, GND.
2. Press the REC button.
3. Adjust L601 to obtain 80 KHz ± 100Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
Traverse Waveform
A
B
0V
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point

6
ADJUSTMENTS
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment
Normal 3,000~3,010Hz MTT-111N RV601 Line Out L/R
Channel
Be sure Wow & Flut-
ter is within 0.35%
AdjustTape Speedof
end position after
adjustment at tape
start position
FIG.1
High 5,820~6,180Hz MTT-111N - - - - - - Shorted TP601,
TP602
Be sure High speed
after normal speed
adjustment FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90° MTT-114N Head Screw Line Out L/R Channel FIG.2,3,4
3Recording Bias Oscilla- tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L601 CM617,GND Adjustwith frequency
counter connected. FIG.1
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape : MTT-111N(3kHz)
MTT-5511(Blank)
Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side Reverse
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB within
1 dB
L-CH
Peak R-CH Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong

7
EXPLODED VIEW AND PARTS LIST

8
EXPLODED VIEW AND PARTS LIST
No. Part Name Part Code Description Q’ty
1PANEL FRONT 9CD0305010 MIPS 1
2BADGE DAEWOO 9CD1500900 ABS, HOT STAMPING 1
3BRACKET FIXING 9CD2408900 SECC 1.0T 1
4COVER FRONT 9CD0408900 MIPS 1
5DOOR CASS A/B 9CD1808200 MIPS 1
9CD1808300 MIPS 1
6WINDOW DOOR A/B 9CD1612300 ACRYL 1
9CD1612400 ACRYL 1
7SPRING DOOR EJECT L/R 9CD30078L0 SUS 0.9D 1
9CD30078R0 SUS 0.10D 1
8KNOB DISK 9CD1331100 ACRYL 1
9KNOB EQ L/R 9CD1331500 ABS 1
9CD1331600 ABS 1
10 KNOB DEMO L/R 9CD1331700 ABS 1
9CD1331800 ABS 1
11 STOPPER KNOB EQ 9CD5700400 ABS 1
12 GUIDE FLT 9CD2505900 ABS 1
13 KNOB FUNCTION 9CD1331200 ACRYL 1
14 COVER LED 9CD0409000 ABS 1
15 KNOB POWER 9CD1331300 ABS 1
16 KNOB MODE 9CD1331400 ABS 1
17 DAMPER AS 9CD2602900 DA-10 1
18 LOCKER AS
9CD0B01400 ABS 1
9CD0B01500 ABS 1
9CD0B01600 PW-1 D0.3 1
19 CD DECK MECHANISM 9CD6006900 DCC-01BN/A 1
20 DOOR CD 9CD1808400 MIPS 1
21 WINDOW CD DECO 9CD1612100 ACRYL 1
22 KNOB VR 9CD1332100 ABS 1
23 WINDOW FRONT 9CD1612200 ACRYL 1
24 BRKT SIDE 9CD2412900 ABS 1
25 GUIDE TAPE L/R 9CD2505400 ABS 1
9CD2505500 ABS 1
26 CASS. DECK LOGIC 9CD6007000 ADR-2138MW 1
27 HEAT SINK 9CD4402800 SUS 0.5T 1
28 WINDOW TOP 9CD1612900 ACRYL 1
29 DECO TOP 9CD1002200 ACRYL 1
30 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1
31 HOLDER AC CORD 9CD2303300 ABS 1
32 WASHER SCREW 9CD3101212 TT2 BIN 3X12 + D14 1
33 FRAME BOTTOM 9CD0607800 SECC 1.0T 1
34 HEAT SINK P 9CD4404200 AL 2.0T 1
35 COVER TOP 9CD0409100 MIPS 1
36 COVER SIDE L/R 9CD0410000 MIPS 1
9CD0410100 MIPS 1
37 HEAT SINK 10 9CD4404900 AL 5.0T 1
38 BRKT HEAT SINK 9CD2414400 ST 0.3T 1
39 COVER BACK 9CD0409810 ABS 1
40 KNOB DECK 9CD1331900 ACRYL 1
41 CUSHION FOOT 9CD4207700 URETHAN FOAM RUBBER 1
42 BRACKET HEAT SINK 9CD2412700 SECC 1.0T 1
43 BRKT PCB C 9CD2414500 SECC 1.0T 1
S1 SCREW TAPPTITE 7173261011 TT2 BIN 2.6X10 13
S2 SCREW TAPPTITE 7173301011 TT2 BIN 3X10 35
S3 SCREW TAPPTITE 7173301012 TT2 BIN 3X10 BK 1
S4 SCREW TAPPTITE 7173301212 TT2 BIN 3X12 BK 5
S5 SCREW TAPPTITE 7173400611 TT2 BIN 4X6 4
S6 SCREW TAPPTITE 7173401011 TT2 BIN 4X10 4
S7 SCREW TAPPTITE 7173300411 TT2 BIN 3X4 2
P1 PCB FRONT 9CD6576600 SINGLE 256X146.5X1.6T 1
P2 PCB MAIN 9CD6576800 SINGLE 330X197X1.6T 1
P3 PCB POWER 9CD6576700 SINGLE 197X115X1.6T 1
P4 PCB CD CONTROL 9CD6577900 SINGLE 206X16.5X1.6T 1
P5 PCB DIGI OUT 9CD6578000 SINGLE 14X19.3X1.6T 1
P6 PCB DSP 9CD6578100 SINGLE 36X62.3X1.6T 1
P7 PCB LED CD 9CD6578200 SINGLE 1.6T 1
No. Part Name Part Code Description Q’ty

9
WIRING DIAGRAM

10
BLOCK DIAGRAM

11
SCHEMATIC DIAGRAM
1. POWER

12
SCHEMATIC DIAGRAM
2. CD

13
SCHEMATIC DIAGRAM
3. AMP / TAPE / TUNER

14
SCHEMATIC DIAGRAM
4. CONTROL

15
PCB PATTERN LAYOUT
1. MAIN PCB

16
PCB PATTERN LAYOUT
2. CD 3. POWER PCB

17
PCB PATTERN LAYOUT
4. CONTROL PCB

18
Location Part Code Part Name Description
10000 9CDC051300 PCB MAIN AS AMI-910L
11000 9CDC046103 PCB CD AS AMI-910L
12000 9CDC051400 PCB FRONT AS AMI-910L
13000 9CDC051500 PCB POWER AS AMI-910L
14000 9CDC051900 PCB DIR AS AMI-910L
15000 9CDC052200 PCB LED AS AMI-910L
30000 9CDM032000 FRONT AS AMI-910L
31000 9CDM032100 CHASS BOTT AS AMI-910L
32000 9CDM032200 COVER TOP AS AMI-910L
34000 9CDM035000 SPEAKER AS SP-100D 100W 2WAY
50000 9CDG010400 PACKINGAS AMI-710R0F
51000 9CDG010000 SUB AS AMI-810L
10000 9CDC051300 PCB MAIN AS AMI-910L
AT100 9736806000 ANTENNA FM 2M ANT PIG TAIL
B001 9CD6576800 PCB MAIN 330X197X1.6T
CC001 CCZB1H102K CCERA 50V B 1000PF K
CC002/CC004 CCZF1H103Z CCERA 50V F 0.01MF Z X 2EA
CC005/CC006
CC101 CCXF1H104Z CCERA 50V F 0.1MF Z X 3EA
CC102 CCZF1H103Z CCERA 50V F 0.01MF Z
CC103 CCXF1H104Z CCERA 50V F 0.1MF Z
CC104 CZCH1H120J CCERA 50V CH 12PF J
CC201 CCZF1H103Z CCERA 50V F 0.01MF Z
CC202 CCXF1H104Z CCERA 50V F 0.1MF Z
CC203/CC204 CCZB1H101K CCERA 50V B 100PF K X 2EA
CC205~CC207
CC209 CCZF1H103Z CCERA 50V F 0.01MF Z X 4EA
CC210/CC211 CCZB1H561K CCERA 50V B 560PF K X 2EA
CC212 CCXF1H473Z CCERA 50V F 0.047MF Z (TAPPING)
CC213 CCZF1H472Z CCERA 50V HIKF 0.0047MF Z
CC251/CC252 CCZF1H103Z CCERA 50V F 0.01MF Z X 2EA
CC253/CC254 CCZB1H102K CCERA 50V B 1000PF K X 2EA
CC255/CC256 CZCH1H330J CCERA CH 50V 33PFJ AXIAL52MM X 2EA
CC257 CCZF1H103Z CCERA 50V F 0.01MF Z
CC258 CCXF1H104Z CCERA 50V F 0.1MF Z
CC278 CCZB1H471K CCERA 50V B 470PF K
CC401~CC404 CCZB1H101K CCERA 50V B 100PF K X 4EA
CC405 CCZB1H223K CCERA HIBK 50V 0.022MF K AXL 52
CC406 CCXF1H104Z CCERA 50V F 0.1MF Z
CC471/CC472 CCZB1H221K CCERA 50V B 220PF K X 2EA
CC601/CC604 CCZB1H102K CCERA 50V B 1000PF K X 4EA
CC602
CC603
CC609/CC610 CCZB1H121K C CERA 50V B 120PF K X 2EA
CC611/CC612 CZCH1H470J C CERA CH 50V 47PF J AXIAL X 2EA
CC619 CCXF1H473Z C CERA 50V F 0.047MF Z (TAPPING)
CC621/CC624 CCZB1H821K C CERA 50V B 820PF K X 4EA
CC622
CC623
CC803 CCXF1H104Z C CERA 50V F 0.1MF Z
CC805/CC806 CCZB1H152K C CERA 50V B 1500PF K (AXIAL) X 2EA
CC812/CC813
CC818/CC819 CCXF1H104Z C CERA 50V F 0.1MF Z X 4EA
CC851/CC852 CCZB1H331K C CERA 50V B 330PF K X 2EA
CC853 CCXF1H104Z C CERA 50V F 0.1MF Z
CC920~CC924 CCZB1H223K C CERA HIBK 50V 0.022MF K AXL 52 X 5EA
CC930/CC943 CCXF1H104Z C CERA 50V F 0.1MF Z X 2EA
CE001 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE101 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE102 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
CE201 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE202 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE203 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE204 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP
CE205 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE206 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE207~CE211 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP X 5EA
CE212 CEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11) TP
CE213 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
CE214/CE251 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP X 2EA
CE285 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
CE401~CE412 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP X 12EA
CE413 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE414 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE415/CE416 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP X 2EA
CE417/CE418 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP X 2EA
CE419 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE420 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE421 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
CE471/CE472 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP X 2EA
CE601/CE602 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP X 2EA
CE603~CE606 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP X 4EA
CE607/CE608 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP X 2EA
CE609/CE610 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP X 2EA
CE611/CE612 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP X 2EA
Location Part Code Part Name Description
ELECTRICAL PARTS LIST

19
CE613~CE615 CEXF1H100V CELECTRO 50V RSS 10MF (5X11) TP X 3EA
CE617 CEXF1H109V CELECTRO 50V RSS 1MF (5X11) TP
CE618 CEXF1H100V CELECTRO 50V RSS 10MF (5X11) TP
CE620 CEXF1H229V CELECTRO 50V RSS 2.2MF (5X11) TP
CE621 CEXF1E101V CELECTRO 25V RSS 100MF (6.3X11) TP
CE622/CE623 CEXF1E470V CELECTRO 25V RSS 47MF (5X11) TP X 2EA
CE624 CEXE1E470A CELECTRO 25V RS 47MF 6.3*11
CE625 CEXF1C330V CELECTRO 16V RSS 33MF (5X11.5) TP
CE626 CEXF1C471V CELECTRO 16V RSS 470MF (10X12.5)TP
CE801 CEXF1H100V CELECTRO 50V RSS 10MF (5X11) TP
CE804 CEXF1C220V CELECTRO RSS 16V 22MF 5*11
CE805 CEXF1H220V CELECTRO 50V RSS 22MF (5X11) TP
CE806 CEXF1H100V CELECTRO 50V RSS 10MF (5X11) TP
CE807/CE808 CEXF1J109V CELECTRO 63V RSS 1MF (5*11) X 2EA
CE809 CEXF1C220V CELECTRO RSS 16V 22MF 5*11
CE810 CEXF1H220V CELECTRO 50V RSS 22MF (5X11) TP
CE813/CE814 CEXF1J109V CELECTRO 63V RSS 1MF (5*11) X 2EA
CE815 CEXF1H338V CELECTRO 50V RSS 0.33MF (5X11) TP
CE816 CEXF1J470V CELECTRO 63V RSS 47MF (10*12.5)
CE817/CE819
CE821 CEXF1H338V CELECTRO 50V RSS 0.33MF (5X11) TP X 3EA
CE824~CE826 CEXF1J470V CELECTRO 63V RSS 47MF (10*12.5) X 3EA
CE827/CE828 CEXF1H229V CELECTRO 50V RSS 2.2MF (5X11) TP X 2EA
CE851/CE852 CEXF1C330V CELECTRO 16V RSS 33MF (5X11.5) TP X 2EA
CE853 CEXF1H229V CELECTRO 50V RSS 2.2MF (5X11) TP
CE913 CEXF1H470V CELECTRO 50V RSS 47MF (6.3X11) TP
CE914/CE915 CEXF1H229V CELECTRO 50V RSS 2.2MF (5X11) TP X 2EA
CE916 CEXF1C471V CELECTRO 16V RSS 470MF (10X12.5)TP
CE917 CEXF1E101V CELECTRO 25V RSS 100MF (6.3X11) TP
CE918/CE919 CEXF1C330V CELECTRO 16V RSS 33MF (5X11.5) TP X 2EA
CE920/CE921 CEXF1H479V CELECTRO 50V RSS 4.7MF (5X11) TP X 2EA
CE922/CE923 CEXF1C101V CELECTRO 16VRSS100MF (6.3X11) TP X2EA
CF001 5PE107MS2A FILTERCERA SFE107MS2-A
CF002 5PE107MJA- FILTERCERA SFE 10.7MHZ RED
CF201 5PCFAZ0770 FILTERCERA PCFAZ-077
CM201 CMXM1H153J CMYLAR 50V 0.015MF J (TP)
CM202~CM205 CMXM1H103J CMYLAR 50V 0.01MF J (TP) X 4EA
CM206/CM207 CMXM1H562J CMYLAR 50V 5600 PF J X 2EA
CM401 CMXM1H183J CMYLAR 50V 0.018MF J
CM402 CMXM1H223J CMYLAR 50V 0.022MF J
CM403~CM406 CMXM1H104J CMYLAR 50V 0.1MF J X 4EA
CM407 CMXM1H223J CMYLAR 50V 0.022MF J
CM408 CMXM1H183J CMYLAR 50V 0.018MF J
Location Part Code Part Name Description
CM409/CM410 CMXM1H562J C MYLAR 50V 5600 PF J X 2EA
CM601/CM602 CMXM1H273J C MYLAR 50V 0.027 MF J X 2EA
CM603/CM604 CMXM1H183J C MYLAR 50V 0.018MF J X 2EA
CM605/CM606 CMXM1H152K C MYLAR 50V 1500 PF K X 2EA
CM607/CM608 CMXM1H103J C MYLAR 50V 0.01MF J (TP) X 2EA
CM609 CMXM1H223J C MYLAR 50V 0.022MF J
CM610 CMXM1H332J C MYLAR 50V 3300 PF J
CM611~CM614 CMXM1H102J C MYLAR 50V 0.001MF J (TP) X 4EA
CM615 CMXM1H332J C MYLAR 50V 3300 PF J
CM616 CMXM1H223J C MYLAR 50V 0.022MF J
CM617 CMXM1H332J C MYLAR 50V 3300 PF J
CM621/CM622 CMXM1H222J C MYLAR 50V 2200PF J X 2EA
CM801/CM802 CMXM1H202J C MYLAR 50V 0.002MF J X 2EA
CM803 CMXM1H104J C MYLAR 50V 0.1MF J
CM804/CM805 CMXM1H202J C MYLAR 50V 0.002MF J X 2EA
CM806 CMXM1H104J C MYLAR 50V 0.1MF J
CN601 9738839700 CONN AS AWG28 3P 200MM SHIELD
CN602 9738839800 CONN AS AWG28 7P 350MM SHIELD
CN610 9738834300 WIRE LEAD #26 1P 200MM
CN620 9738834700 CONN AS UL 1007 #26 1P 110MM
CN901 9738839600 CONN AS AWG22 7P 500MM
CN902 9738839500 CONN AS AWG22 6P 500MM
CN905 9738843200 CONN AS AWG22 2P 500MM
CW101 9CD6258800 CONN WAFER 2P S2B-XH-A
CW201/CW202 9736407800 CONN PIN 53095-1010 10PIN ANGLE X 2EA
CW509 9738832100 CONN AS 7P 200 P=2.5 BOARDIN
CW601 9738839700 CONN AS AWG28 3P 200MM SHIELD
CW602 9738839800 CONN AS AWG28 7P 350MM SHIELD
CW702 9738840000 CONN AS AWG26 10P 250MM
DZ801~DZ804 DZTZ3R9B-- DIODE ZENER MTZ3.9B X 4EA
D201
D401~D405
D601~D605
D801/D802
DZN4148--- DIODE 1N4148 AUTO 52MM X 13EA
D803 D1N5402--- DIODE 1N5402
D804 D1N5402--- DIODE 1N5402
D805 DZN4148--- DIODE 1N4148 AUTO 52MM X 3EA
D806/D807
D808/D809 D1N5402--- DIODE 1N5402 X 2EA
D810/D815
D827/D828 DZN4148--- DIODE 1N4148 AUTO 52MM X 4EA
IC201 1BA1450S-- IC BA1450S
IC202 1LC72130-- IC LC72130
IC205 1MC7805--- IC MC 7805 (KA7805)
Location Part Code Part Name Description
ELECTRICAL PARTS LIST
