Aiwa XS-G6 User manual
SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM BASIC TAPE MECHANISM : BZM-1 R1NM
BASIC CD MECHANISM : BZG-5 ZD3NM
XS-G6
EZ
S/M Code No. 09-015-441-5S1
SUPPLEMENT
SPEAKERSYSTEM CD
CASSEIVER REMOTE
CONTROLLER
XS–G6 RC–BAS11CX–G6 SX–G6
SX–S5
• This Service Manual contains information about the difference between
XS-G6 (EZ) and XS-G4 (EZ). If requiring other information, see Service Manual of
XS-G3 (U,LH,EZ,K) / XS-G4 (EZ) / XS-G5 (EZ,K), (S/M Code No. 09-013-441-5R1).
•If requiring information about the CD mechanisim, see Service Manual of BZG-5,
(S/M Code No. 09-00C-353-3N2)
– 2 –
SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 16.8 dBf
Antenna terminal 75 ohms (unbalanced)
<MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<LW tuner section>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated: 40 W + 40 W (6 ohms,
T.H.D. 1 %, 1 kHz/DIN45500)
Reference: 50 W + 50 W (6 ohms,
T.H.D. 10 %, 1 kHz/DIN45324)
DIN MUSIC POWER: 121 W + 121 W
Total harmonic distortion 0.08 % (25 W, 1 kHz, 6 ohms, DIN
AUDIO)
Input VIDEO/AUX: 500 mV
Outputs SPEAKERS: 6 ohms or more
PHONES: 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15000 Hz
Recording system AC bias
Heads Recording/playback x 1, erase x 1
<Compact disc player section>
Laser Semiconductor laser (λ = 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<General>
Power requirements 230 V AC, 50 Hz
Power consumption 70 W
Power consumption With ECO mode on : 0.6 W
in standby mode With ECO mode off : 17 W
Dimensions (W xH xD) 260 x 271.5 x 355 mm
Weight 6.5 kg
<Subwoofer SX–G6>
Speaker system Subwoofer system (magnetic
shielded type)
Speaker unit 200 mm cone type
Impedance 6 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 260 x 265 x 317 mm
Weight 5.0 kg
<Satellite speakers SX–S5>
Speaker system 2 way
Speaker unit Woofer: 100 mm cone type
Tweeter: 60 mm cone type
Impedance 6 ohms
Sencitivity 87 dB/W/m
Dimensions (W xH xD) 260 x 220 x 83 mm
Weight 1.0 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
– 3 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
ELECTRICAL MAIN PARTS LIST
IC
8B-NF8-646-010 C-IC,LC877264V-5V24
87-A21-831-010 IC,SPS-422-1-F1
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-893-040 C-IC,NJM4558V-TE2
87-A21-401-040 C-IC,M61503FP
87-070-289-040 IC,BU2092F
87-A21-695-010 IC,LA1845L
87-A20-440-040 C-IC,BU1920FS
87-A21-928-010 IC,LC72131D-N
87-020-454-010 IC,DN6851
TRANSISTOR
87-A30-559-010 TR,CSB1370EF
87-A30-492-080 TR,2SC5343G
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-494-080 TR,2SA1980G
87-A30-107-070 C-TR,CMBT5401
87-A30-484-080 C-TR,KRA102S
87-A30-190-080 TR,CC5551
87-A30-106-040 C-TR,CMBT5551
87-A30-306-010 TR,2SB1677
87-A30-307-010 TR,2SD2619
87-A30-490-080 C-TR,KRC107S
87-A30-162-010 FET,2SK2937
87-A30-582-080 TR,CDA1585BC
87-A30-495-080 TR,2SA1981Y
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-091-080 FET,2SJ460
87-A30-062-080 C-TR,KRC104S
87-A30-063-080 C-TR,KRA104S
87-A30-520-080 TR,2SC5342Y
87-A30-515-080 TR,2SA1979O/Y
87-A30-087-080 C-FET,2SK2158
87-A30-090-080 FET,2SK2541
89-327-143-080 C-TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-086-040 C-TR,CSD1306E
87-A30-234-080 TR,CSC4115BC
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-291-080 DIODE,1N4148M(CPT)
87-A40-455-090 DIODE,RL203 GW
87-A40-764-080 ZENER,UZ10BSC
87-A40-553-080 DIODE,1N4003 LES
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-002-080 ZENER,MTZJ5.1C
87-A40-749-080 ZENER,UZ5.6BSB
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-010-759-080 C-CAP,U, 0.1-25F
C10 87-010-759-080 C-CAP,U, 0.1-25F
C11 87-010-759-080 C-CAP,U, 0.1-25F
C12 87-010-759-080 C-CAP,U, 0.1-25F
C19 87-A12-779-090 CAP,E 3300-50 M 85 KR
C20 87-A12-779-090 CAP,E 3300-50 M 85 KR
C21 87-A12-782-090 CAP,E 4700-25 M 85 SKR
C22 87-A12-777-090 CAP,E 3300-25 M 85 SKR
C32 87-012-286-080 CAP, U 0.01-25
C34 87-A12-072-080 CAP,E 100-25 SMG
C35 87-A12-090-080 CAP,E 4.7-50 SMG
C36 87-A12-066-080 CAP,E 47-16 SMG
C38 87-012-286-080 CAP, U 0.01-25
C60 87-A12-089-080 CAP,E 3.3-50 SMG
C61 87-A12-071-080 CAP,E 47-25 SMG
C83 87-A12-074-080 CAP,E 470-25 SMG
C97 87-010-831-080 C-CAP,U,0.1-16F
C101 87-012-279-080 C-CAP,U 2700P-50 B
C102 87-012-279-080 C-CAP,U 2700P-50 B
C103 87-A12-084-080 CAP,E 0.22-50 SMG
C99 87-010-196-080 C-CAP,S 0.1-25 Z F
C104 87-A12-084-080 CAP,E 0.22-50 SMG
C105 87-012-277-080 C-CAP, U 1800P-50 B
C107 87-A12-089-080 CAP,E 3.3-50 SMG
C108 87-A12-089-080 CAP,E 3.3-50 SMG
C109 87-012-195-080 C-CAP,U 100P-50CH
C110 87-012-195-080 C-CAP,U 100P-50CH
C111 87-A12-077-080 CAP,E 33-35 SMG
C112 87-A12-077-080 CAP,E 33-35 SMG
C113 87-A10-596-080 C-CAP,S 100P-100 J CH
C114 87-A10-596-080 C-CAP,S 100P-100 J CH
C117 87-012-368-080 C-CAP,S 0.1-50 F
C118 87-012-368-080 C-CAP,S 0.1-50 F
C119 87-012-286-080 CAP, U 0.01-25
C120 87-012-286-080 CAP, U 0.01-25
C123 87-010-177-080 C-CAP,S 820P-50 SL
C124 87-010-177-080 C-CAP,S 820P-50 SL
C133 87-012-282-080 CAP, U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50 B
C186 87-010-759-080 C-CAP,U, 0.1-25F
C187 87-A12-091-080 CAP,E 10-50 SMG
C188 87-A12-091-080 CAP,E 10-50 SMG
C225 87-012-368-080 C-CAP,S 0.1-50 F
C226 87-012-368-080 C-CAP,S 0.1-50 F
C227 87-012-368-080 C-CAP,S 0.1-50 F
C228 87-012-368-080 C-CAP,S 0.1-50 F
C229 87-010-191-080 C-CAP,S 0.015-50 F
C230 87-010-191-080 C-CAP,S 0.015-50 F
C231 87-012-286-080 CAP, U 0.01-25
C232 87-012-286-080 CAP, U 0.01-25
C303 87-012-275-080 C-CAP,U 1200P-50 B
C304 87-012-275-080 C-CAP,U 1200P-50 B
C307 87-A12-062-080 CAP,E 100-10 SMG
C308 87-A12-062-080 CAP,E 100-10 SMG
C309 87-012-188-080 C-CAP,U 47P-50 CH
C310 87-012-188-080 C-CAP,U 47P-50 CH
C313 87-012-284-080 CAP, U 6800P-50
C314 87-012-284-080 CAP, U 6800P-50
C315 87-A12-062-080 CAP,E 100-10 SMG
C317 87-A12-085-080 CAP,E 0.33-50 SMG
C318 87-A12-085-080 CAP,E 0.33-50 SMG
C326 87-010-787-080 CAP, U 0.022-25
C327 87-010-831-080 C-CAP,U,0.1-16F
C350 87-012-286-080 CAP, U 0.01-25
C360 87-A12-087-080 CAP,E 1-50 SMG
C399 87-A10-039-080 C-CAP,U 470P-50 J CH
C401 87-A12-083-080 CAP,E 0.1-50 SMG
C402 87-A12-083-080 CAP,E 0.1-50 SMG
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C452 87-A12-069-080 CAP,E 22-25 SMG
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 CAP, U 560P-50
C460 87-010-831-080 C-CAP,U,0.1-16F
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-012-280-080 CAP, U 3300P-50
C606 87-012-280-080 CAP, U 3300P-50
C609 87-010-785-080 C-CAP,U0.015-25BK
C610 87-010-785-080 C-CAP,U0.015-25BK
C611 87-A12-084-080 CAP,E 0.22-50 SMG
C612 87-A12-084-080 CAP,E 0.22-50 SMG
C613 87-A12-084-080 CAP,E 0.22-50 SMG
C614 87-A12-084-080 CAP,E 0.22-50 SMG
C615 87-012-172-080 CAPACITOR CHIP U 10P CH
C616 87-010-221-080 CAP, ELECT 470-10V
C617 87-010-221-080 CAP, ELECT 470-10V
C618 87-A12-091-080 CAP,E 10-50 SMG
C620 87-A12-062-080 CAP,E 100-10 SMG
C623 87-A12-084-080 CAP, ELECT 0.22-50 SMG
C624 87-A12-084-080 CAP, ELECT 0.22-50 SMG
C630 87-A10-260-080 C-CAP,U 0.1-16 K B
C631 87-012-281-080 C-CAP,U 3900P-50 B
C632 87-012-281-080 C-CAP,U 3900P-50 B
C633 87-A11-070-080 C-CAP,U 0.033-16 K B
C634 87-A11-070-080 C-CAP,U 0.033-16 K B
C661 87-012-336-080 C-CAP,U 330P-50J SL
C662 87-012-336-080 C-CAP,U 330P-50J SL
C669 87-012-274-080 CHIP CAP,U 1000P-50B
C670 87-012-274-080 CHIP CAP,U 1000P-50B
C677 87-012-286-080 CAP, U 0.01-25
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C779 87-010-949-080 C-CAP,S 0.01-50 BJ
C780 87-010-949-080 C-CAP,S 0.01-50 BJ
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-016-118-080 C-CAP,U0.022-25BJ
C790 87-016-118-080 C-CAP,U0.022-25BJ
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 CAP, U 0.01-25
C799 87-010-265-080 CAP, ELECT 33-16V
C800 87-010-829-080 CAP, U 0.047-16
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C818 87-012-276-080 CAP, CHIP SS 1500 PBK
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-A10-915-080 C-CAP,U 1000P-25 J CH
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-010-596-080 CAP, S 0.047-16
C831 87-A12-092-080 CAP,E 22-50 SMG
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-831-080 C-CAP,U,0.1-16F
C859 87-010-831-080 C-CAP,U,0.1-16F
C860 87-012-286-080 CAP, U 0.01-25
C869 87-012-286-080 C-CAP,U, 0.01-25
C870 87-012-274-080 C-CAP,U, 1000P-50
C871 87-012-199-080 C-CAP,U, 220P-50
C872 87-012-199-080 C-CAP,U, 220P-50
C873 87-A10-039-080 C-CAP,U, 470P-50
C874 87-A12-091-080 CAP, ELECT 10-50 SMG
C875 87-010-759-080 C-CAP,U, 0.1-25F
C876 87-A12-091-080 CAP, ELECT 10-50 SMG
C877 87-012-286-080 C-CAP,U, 0.01-25
C878 87-012-184-080 C-CAP,U, 33P-50
C879 87-012-180-080 C-CAP,U, 22P-50
C940 87-012-286-080 CAP, U 0.01-25
C942 87-012-165-080 CAP 3P-50
C947 87-012-286-080 CAP, U 0.01-25
C948 87-A10-039-080 C-CAP,U 470P-50 J CH
C952 87-012-286-080 CAP, U 0.01-25
C957 87-012-174-080 C-CAP CERA SS 12P CHJ
C958 87-012-286-080 CAP, U 0.01-25
C959 87-010-831-080 C-CAP,U,0.1-16F
C960 87-010-831-080 C-CAP,U,0.1-16F
C962 87-A12-087-080 CAP,E 1-50 SMG
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-012-286-080 CAP, U 0.01-25
C984 87-012-286-080 CAP, U 0.01-25
C985 87-012-195-080 C-CAP,U 100P-50CH
C987 87-012-286-080 CAP, U 0.01-25
C989 87-012-286-080 CAP, U 0.01-25
C991 87-012-176-080 CAP 15P
C992 87-012-176-080 CAP 15P
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-423-010 FLTR,CF,SFE10.7MS3G-A
CF832 82-785-747-010 CF MS2 GHY R
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-750-010 CONN,15P V 9604SC
CN602 87-A60-131-010 CONN,6P V FE
CN605 87-A61-108-010 CONN,5P V TID-A
CN607 87-099-017-010 CONN, 15P V BLK 6216
FFC602 88-906-401-110 FF-CABLE,6P 1.25
FFE831 A8-6ZA-19H-030 6ZA-1 FEMENM
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J832 87-A60-403-010 TERMINAL,ANT PAL 2P
JR123 87-A10-596-080 C-CAP,S 100P-100 J CH
– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
JR124 87-A10-596-080 C-CAP,S 100P-100 J CH
L201 87-A50-610-010 COIL,1UH K(MDEC)
L202 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85KHZ BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH K CECS
L832 87-005-847-080 COIL,2.2UH K CECS
L861 87-005-847-080 COIL,2.2UH K CECS
L941 87-A50-020-010 COIL,ANT LW(COI)252KHZ
L942 87-A50-019-010 COIL,OSC LW(COI)856KHZ
L951 8A-NF8-668-010 COIL,AM PACK 2(TOK)
R129 87-A00-257-080 RES,M/F 0.15-1W J
R130 87-A00-257-080 RES,M/F 0.15-1W J
R131 87-A00-257-080 RES,M/F 0.15-1W J
R132 87-A00-257-080 RES,M/F 0.15-1W J
R790 87-012-286-080 CAP, U 0.01-25
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR451 87-A90-432-080 SFR,30K H NVZ6TLTA
SFR452 87-A90-432-080 SFR,30K H NVZ6TLTA
TC942 87-A91-774-080 TRIMMER,PLY30P 6.8X5.4CDYL
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
W99 8B-NF8-656-010 F-CABLE,7P 2.5 250MM
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X862 87-A70-307-010 VIB,XTAL 4.332MHZ CSA-309ST
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST
FRONT C.B
C141 87-012-278-080 C-CAP,U 2200P-50 B
C151 87-A10-189-040 CAP,E 220-10
C153 87-A10-353-080 C-CAP,U 0.22-10KB
C154 87-010-785-080 C-CAP,U0.015-25BK
C155 87-012-176-080 CAP 15P
C156 87-012-195-080 C-CAP,U 100P-50CH
C157 87-012-198-080 CAP 180P
C165 87-012-268-080 C-CAP,U 330P-50 B
C166 87-010-075-040 CAP,E 10-16 5L
C170 87-010-759-080 C-CAP,U, 0.1-25F
C171 87-016-114-080 C-CAP,U0.01-25B
C175 87-010-759-080 C-CAP,U, 0.1-25F
C176 87-012-274-080 CHIP CAP,U 1000P-50B
C177 87-010-757-080 C.CAP,U 0.047-25F
C180 87-010-759-080 C-CAP,U, 0.1-25F
C193 87-012-271-080 CAP, U 560P-50
C194 87-012-195-080 C-CAP,U 100P-50CH
C315 87-010-759-080 C-CAP,U, 0.1-25F
C441 87-010-412-040 CAP,E 10-25 5L
C451 87-010-067-040 CAP,E 0.1-50 5L
C452 87-010-421-040 CAP,E 4.7-50 5L
C453 87-010-788-080 C-CAP,U 0.033-2.5F
C454 87-012-273-080 C-CAP,U 820P-50 B
C456 87-010-785-080 C-CAP,U0.015-25BK
C457 87-012-280-080 CAP, U 3300P-50
C459 87-A10-025-080 C-CAP,U, 0.22-16ZF
C460 87-010-831-080 C-CAP,U,0.1-16F
C621 87-010-075-040 CAP,E 10-16 5L
C622 87-010-759-080 C-CAP,U, 0.1-25F
C623 87-012-188-080 C-CAP,U 47P-50 CH
C624 87-012-188-080 C-CAP,U 47P-50 CH
C625 87-012-188-080 C-CAP,U 47P-50 CH
C679 87-010-759-080 C-CAP,U, 0.1-25F
C689 87-010-759-080 C-CAP,U, 0.1-25F
CN101 87-099-750-010 CONN,15P V 9604SC
CN102 87-099-017-010 CONN, 15P 6216
CN103 87-099-196-010 CONN,8P 6216
CN121 87-A60-131-010 CONN,6P V FE
CN251 87-A60-133-010 CONN,8P V FE
CN401 87-A60-130-010 CONN,5P V FE
CNA141 8B-NF8-650-010 CONN ASSY,2P (35)
FFC101 88-915-151-110 FF-CABLE,15P 1.25 150MM
FFC102 8B-NF8-655-010 FF-CABLE,15P 1.25 150MM BLACK
FFC103 88-908-451-110 FF-CABLE,8P 1.25 450MM
FFC121 88-906-081-110 FF-CABLE,6P 1.25 80MM
FFC251 88-908-451-110 FF-CABLE,8P 1.25 450MM
FFC401 88-905-331-110 FF-CABLE,5P 1.25 330MM
L151 87-A50-657-010 COIL,CLK 9.43MHZ (TOKO)7KLY
LCD101 8B-NF8-601-010 LCD,AIW4272-30P1N
LED140 87-A40-317-080 LED,SLR-342VCT31 RED
LED671 87-A41-053-010 LED,SMLU18D16CGREEN/AMBER
LED681 87-A41-053-010 LED,SMLU18D16CGREEN/AMBER
R192 87-010-785-080 C-CAP,U0.015-25KB GRM
R193 87-010-785-080 C-CAP,U0.015-25KB GRM
R194 87-010-785-080 C-CAP,U0.015-25KB GRM
S306 87-A90-095-080 SW,TACT EVQ11G04M
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S309 87-A90-095-080 SW,TACT EVQ11G04M
S310 87-A90-095-080 SW,TACT EVQ11G04M
S341 87-A90-095-080 SW,TACT EVQ11G04M
S342 87-A90-095-080 SW,TACT EVQ11G04M
S343 87-A90-095-080 SW,TACT EVQ11G04M
S344 87-A90-095-080 SW,TACT EVQ11G04M
S345 87-A90-095-080 SW,TACT EVQ11G04M
S346 87-A90-095-080 SW,TACT EVQ11G04M
S347 87-A90-095-080 SW,TACT EVQ11G04M
S348 87-A90-095-080 SW,TACT EVQ11G04M
S349 87-A90-095-080 SW,TACT EVQ11G04M
SW162 87-A91-645-010 SW,RTRY EC12E24304NON-CLICK

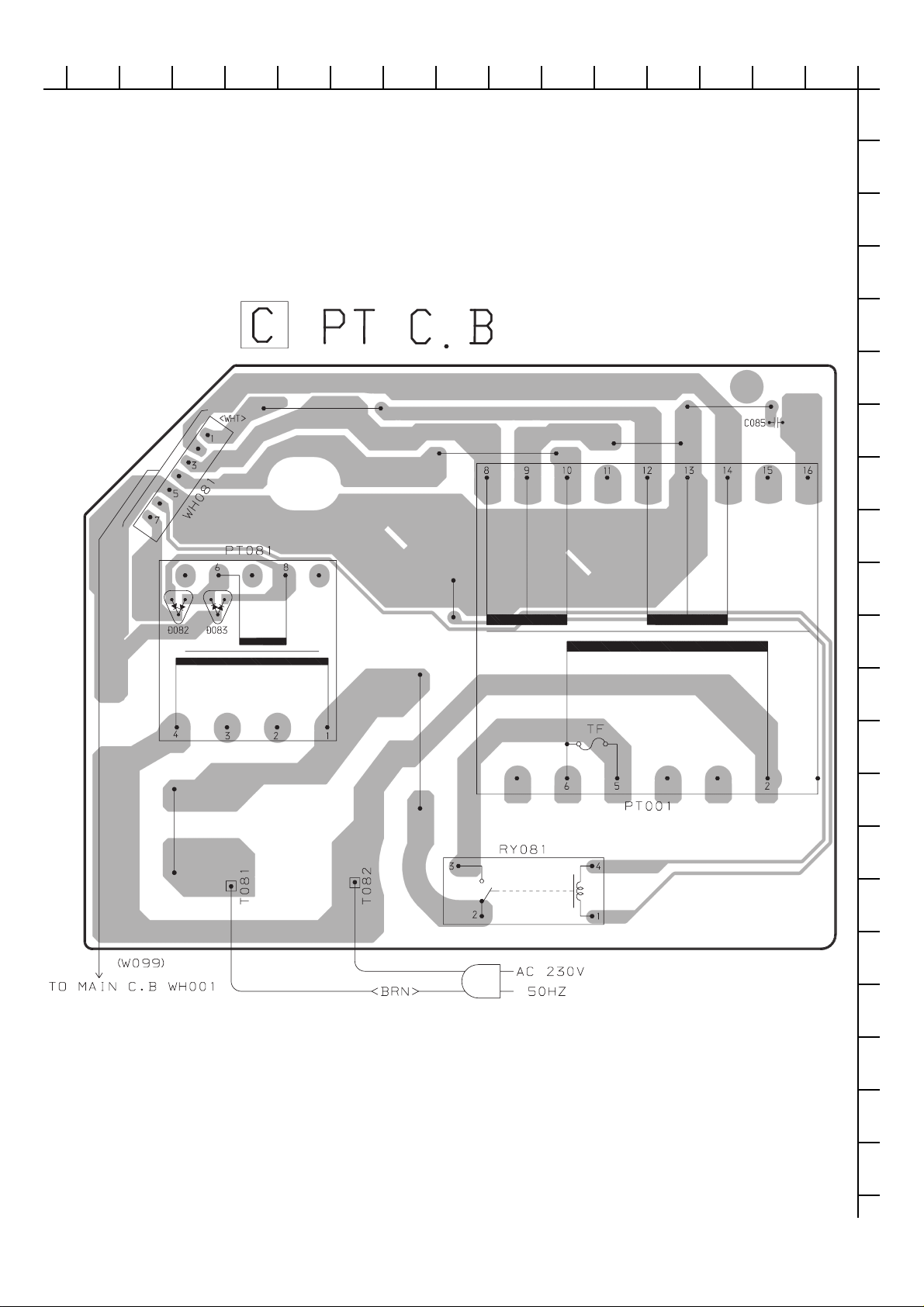

PT C.B
C85 87-010-831-080 C-CAP,U,0.1-16F
PT1 8B-NF8-608-010 PT,BNF8-EZK
PT81 8B-MA6-675-010 PT,SUB BMA E (VRK)
RY81 87-A91-418-010 RELAY,AC12V G5PA-1-M
T81 87-A60-317-010 TERMINAL, 1P MSC
T82 87-A60-317-010 TERMINAL, 1P MSC
WH81 87-A90-460-010 HLDR,WIRE 2.5-7P
JACK C.B
C223 87-010-176-080 C-CAP,S 680P-50 SL
C224 87-010-176-080 C-CAP,S 680P-50 SL
C241 87-010-831-080 C-CAP,U,0.1-16F
CNA5 8B-NF8-653-010 CONN ASSY,5P TID-A (600)
J201 87-A61-480-010 JACK,DIA6.3 BLK ST W/SW MSC16A
R243 87-A01-001-050 RES,220-1/2W J BLT2J
R244 87-A01-001-050 RES,220-1/2W J BLT2J
R245 87-A01-001-050 RES,220-1/2W J BLT2J
R246 87-A01-001-050 RES,220-1/2W J BLT2J
WH2 87-A90-460-010 HLDR,WIRE 2.5-7P

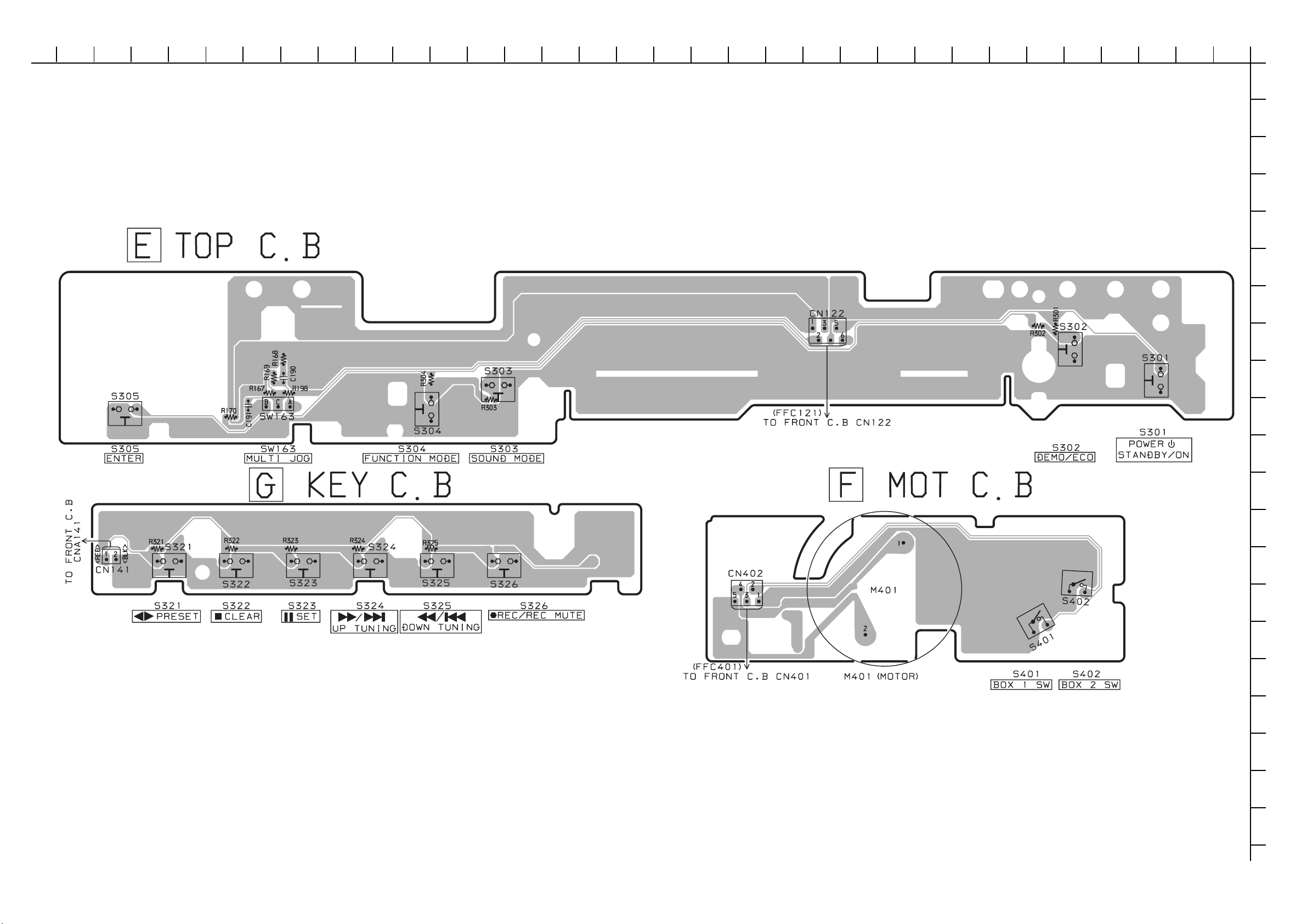

TOP C.B
C190 87-012-271-080 CAP, U 560P-50
C191 87-012-195-080 C-CAP,U 100P-50CH
CN122 87-A60-154-010 CONN,6P H FE
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M
SW163 87-A91-991-010 SW,RTRY REO12303PVB8H
!
!
!
!
!
– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
MOT C.B
CN402 87-A60-130-010 CONN,5P V FE
M401 87-045-305-010 MOTOR, RF-500TB DC-5V (2MA)
S401 87-036-110-010 SW,MICRO SPPB62
S402 87-036-110-010 SW,MICRO SPPB62
KEY C.B
CN141 87-009-030-010 CONN,2P V WHT PH
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S325 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
DECK C.B
CN1 87-A60-079-010 CONN,08P H 9604S-08F
M1 87-A91-825-010 MOT,M09Y/Z
SW1 87-036-110-010 PUSH SWITCH
SW2 87-036-110-010 PUSH SWITCH
SW4 87-036-110-010 PUSH SWITCH
SW5 87-036-110-010 PUSH SWITCH
SOL2 82-ZM3-628-010 SOL ASSY,23 SO
HEAD C.B
87-A91-195-110 HEAD,RPH KC9142 FPC
CNA351 8B-NF8-654-010 CONN ASSY,8P (375)
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
2SA1235F
2SC2714O
2SC3052F
CMBT5401
CMBT5551
CSD1306E
2SA1979O/Y
2SA1980G
2SA1981Y
2SC5343G
2SC5342Y
E C B
CC5551
CDA1585BC
CSC4115BC
E C B B C E
CSB1370EF
2SB1677
2SD2619
KRA102S
KRA104S
KRA107S
KRC102S-RTK
KRC104S
KRC107S
2SJ460
2SK2541
S D G
G
D
S
2SK360E
S
G
D
2SK2158
G D S
2SK2937
E
B
C
TRANSISTOR ILLUSTRATION

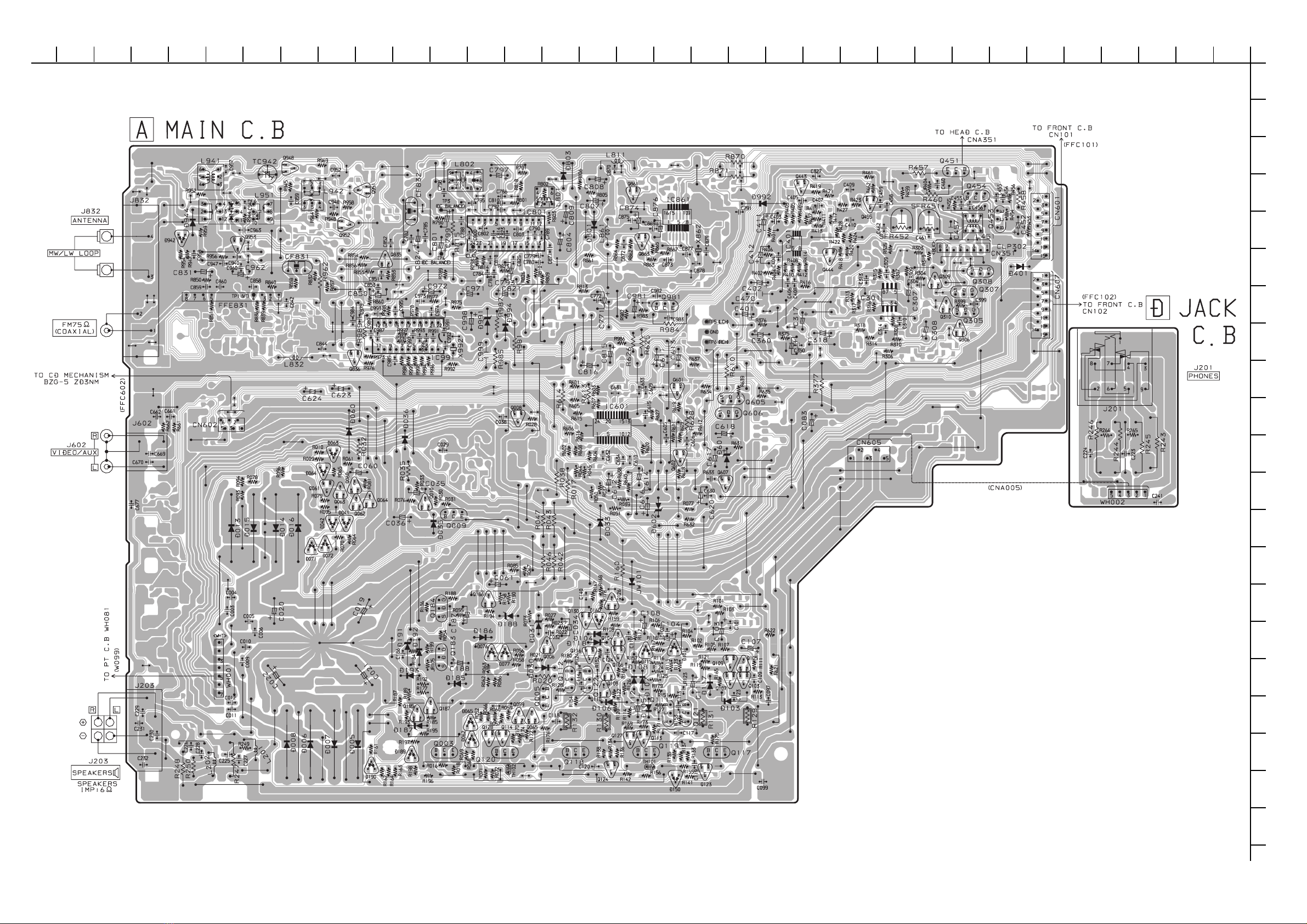

WIRING 1 (MAIN / JACK)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
8
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 9 –

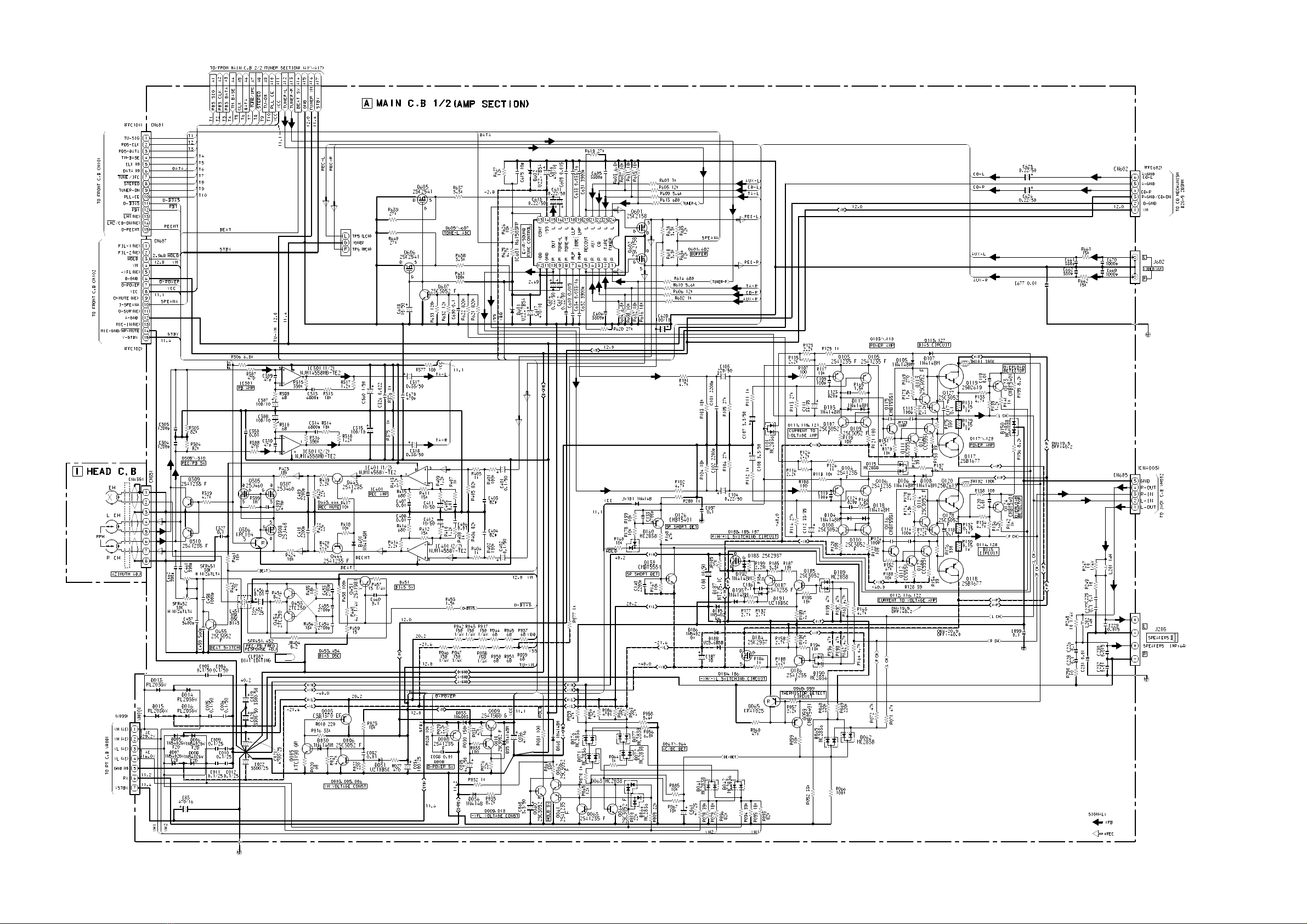

SCHEMATIC DIAGRAM _1 (MAIN 1 / 2 : AMP SECTION/HEAD)
– 10 –
SCHEMATIC DIAGRAM_2 (MAIN 2/2:TUNER SECTION)
– 11 –
SCHEMATIC DIAGRAM _3 (JACK)

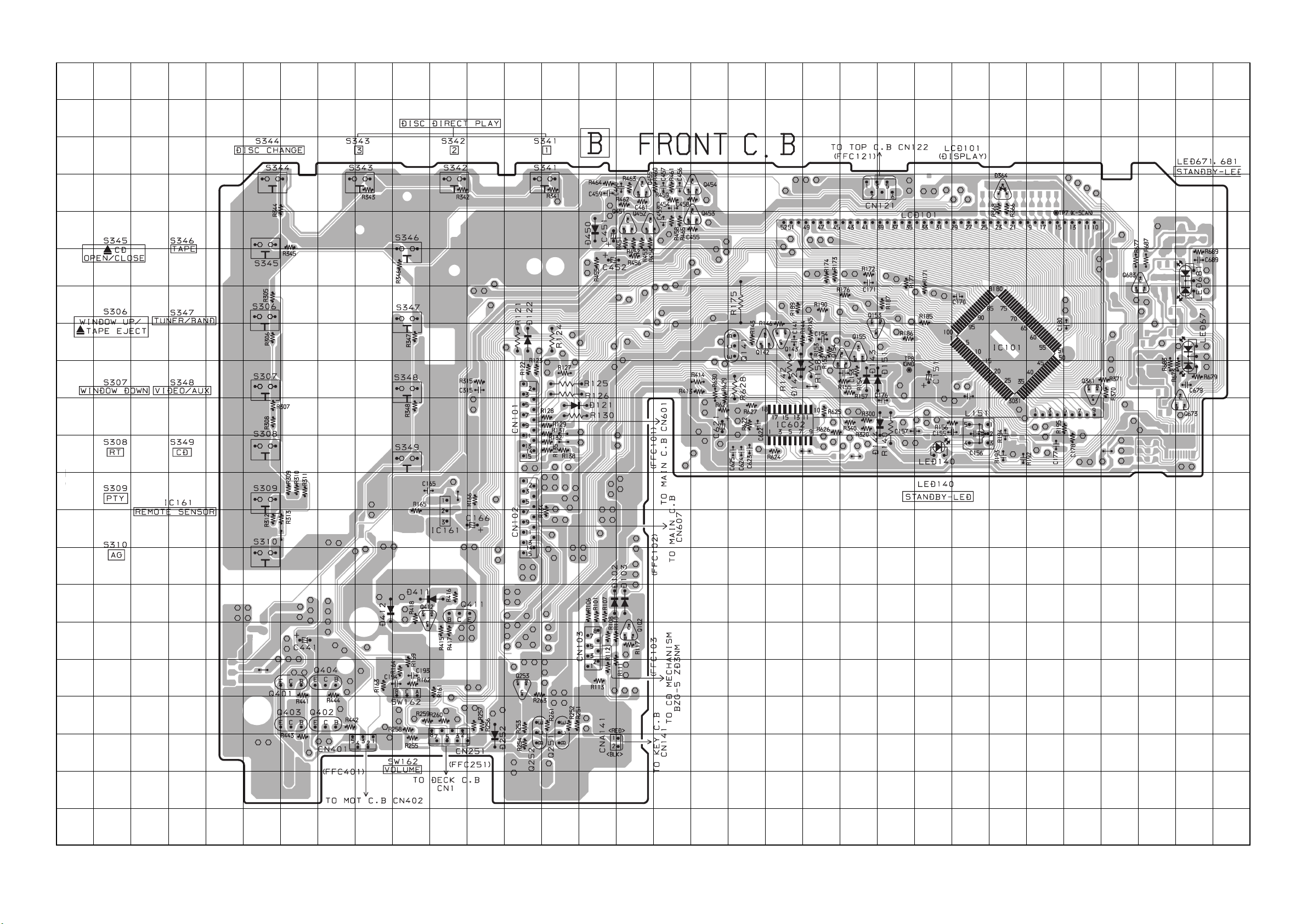

WIRING – 2 (FRONT) <1 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
– 12 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
WIRING 2 (FRONT) <2 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
13
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
WIRING 3 (TOP / MOT / KEY)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
14
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 15 –
SCHEMATIC DIAGRAM _4 (FRONT / TOP / MOT / KEY / DECK )
WIRING 4 (PT)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16
– 17 –
SCHEMATIC DIAGRAM_5 (PT)

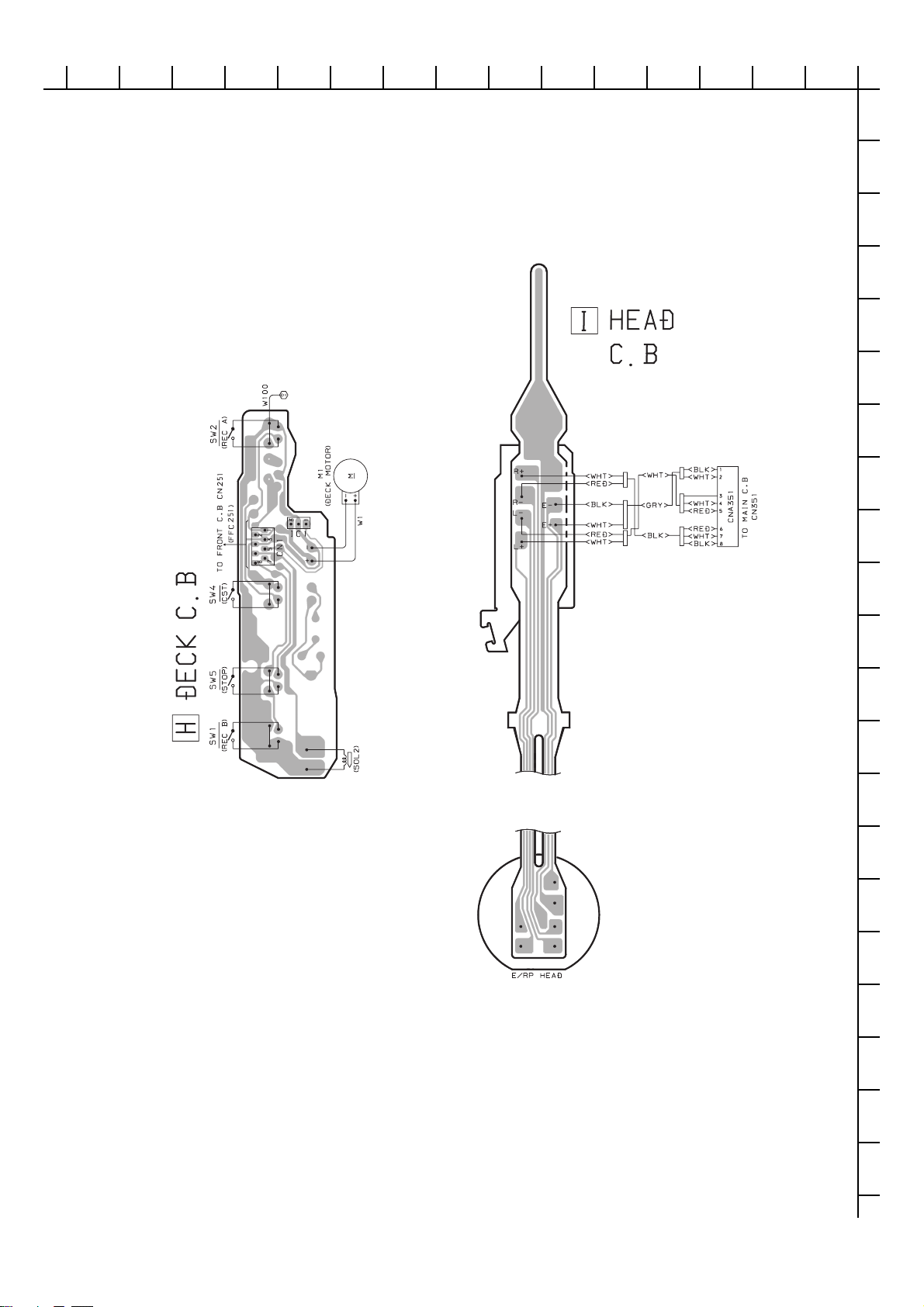

WIRING 5 (DECK / HEAD)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
18
– 19 –
1. Tape Speed Check
Settings : • Test tape : TTA–100
• Test point : TP5 (Lch), TP6 (Rch)
Method : Play back the test tape and check that the frequency
counter reads 3000Hz ±5Hz (FWD) and ±45Hz (REV)
with respect to forward speed.
2. Head Azimuth Adjustment
Settings : • Test tape : TTA–330
• Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location : Head azimuth
adjustment screw
Method : Play back (FWD) the 8kHz signal of the test tape
and adjust screw so that the output becomes maximum.
Next, perform on REV PLAY mode.
3. PB Frequency Response Check
Settings : • Test tape : TTA–330
• Test point : TP5 (Lch), TP6 (Rch)
Method : Play back the 315Hz and 8kHz signals of the test
tape and check that the output ratio of the 8kHz
signal with respect to that of the 315Hz signal is
0dB ±3dB.
4. PB Sensitivity Check
Settings : • Test tape : TTA–200
• Test point :TP5 (Lch), TP6 (Rch)
Method : Play back the test tape and check that the output level of
the test point is 110mV ±30mV.
5. REC/PB Frequency Response Adjustment
Settings : • Test tape : TTA–602
• Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location : SFR 451,SFR452
• Input signal : 8kHz/1kHz (LINE IN)(-20VU)
Method : Apply a 1kHz signal and REC mode. Then adjust
OSC attenuator so that the output level at the TP5,
TP6 becomes 10mV. Record and play back the 1kHz
and 8kHz signal and adjust SFRs so that the output of
the 8kHz signals is 0dB ±1dB with respect to that of the
1kHz signal.
6. REC/PB Sensitivity Check
Settings : • Test tape : TTA–602
• Test point : TP5 (Lch), TP6 (Rch)
• Input signal : 1kHz (LINE IN)(0VU)
Method : Apply a 1kHz signal and REC mode. Then adjust
OSC attenuator so that the output level at TP5, TP6
becomes 100mV. Record and play back the 1kHz
signals and check that the output is –1dB ±3.5dB.
< FRONT SECTION >
1. µ-CON OSC Adjustment
Settings : • Test point : TP7 (K-SCAN) and TP8 (GND)
• Adjustment location : L151
Method : Insert AC plug while pressing TUNER function key and
POWER key. Adjust L151 so that the frequency at the
test point is 97.28Hz ±0.10Hz.
1. Clock Frequency Check
Settings : • Test point : TP2 (CLK)
Method : Set to MW 1602kHz and check that the test point is
2052kHz ±45Hz.
2. MW VT Check
Settings : • Test point : TP1 (VT)
Method : Set to MW 1602kHz and check that the test point is less
than 8.0V. Then set to MW 531kHz and check that the
test point is more than 0.6V.
3. MW Tracking Adjustment
Settings : • Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location : L951 (1/3)
Method : Set to MW 999kHz and adjust L951 (1/3) so that the test
point becomes maximum.
4. LW VT Adjustment
Settings: • Test point :TP1 (VT)
• Adjustment location : L942
Method : Set to LW 144kHz and adjust L942 so that the test point
becomes 1.3V ±0.05V.
Then set to LW 290kHz and check that the test point is
less than 8.0V.
5. LW Tracking Adjustment
Settings : • Test point :TP5 (Lch), TP6 (Rch)
• Adjustment location :
L941................................144kHz
TC942..............................290kHz
Method: Set up TC942 to center before adjustment. The level at
144kHz is adjusted to maximum by L941. Then the level
at 290kHz is adjusted to maximum by TC942.
6. FM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to FM 108.0MHz and check that the test point is
less than 8.0V. Then set to FM 87.5MHz and check that
the test point is more than 0.5V.
7. FM Tracking Check
Settings : • Test point : TP5 (Lch), TP6 (Rch)
Method : Set to FM 98.0MHz and check that the test point is less
than 13.0dBµV.
8. AM IF Adjustment
Settings : • Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location :
L802..............................450kHz
9. DC Balance / Mono Distortion Adjustment
Settings : • Test point : TP3, TP4 (DC Balance)
: TP5 (Lch), TP6 (Rch) (Distortion)
• Adjustment location : L801
• Input level : 60dBµV
Method : Set to FM 98.0MHz and adjust L801 so that the voltage
between TP3 and TP4 becomes 0V ±500mV.
Then check that the distortion is less than 1.2%.
< TUNER SECTION >
ADJUSTMENT <TUNER / DECK / FRONT>
< DECK SECTION >
– 20 –

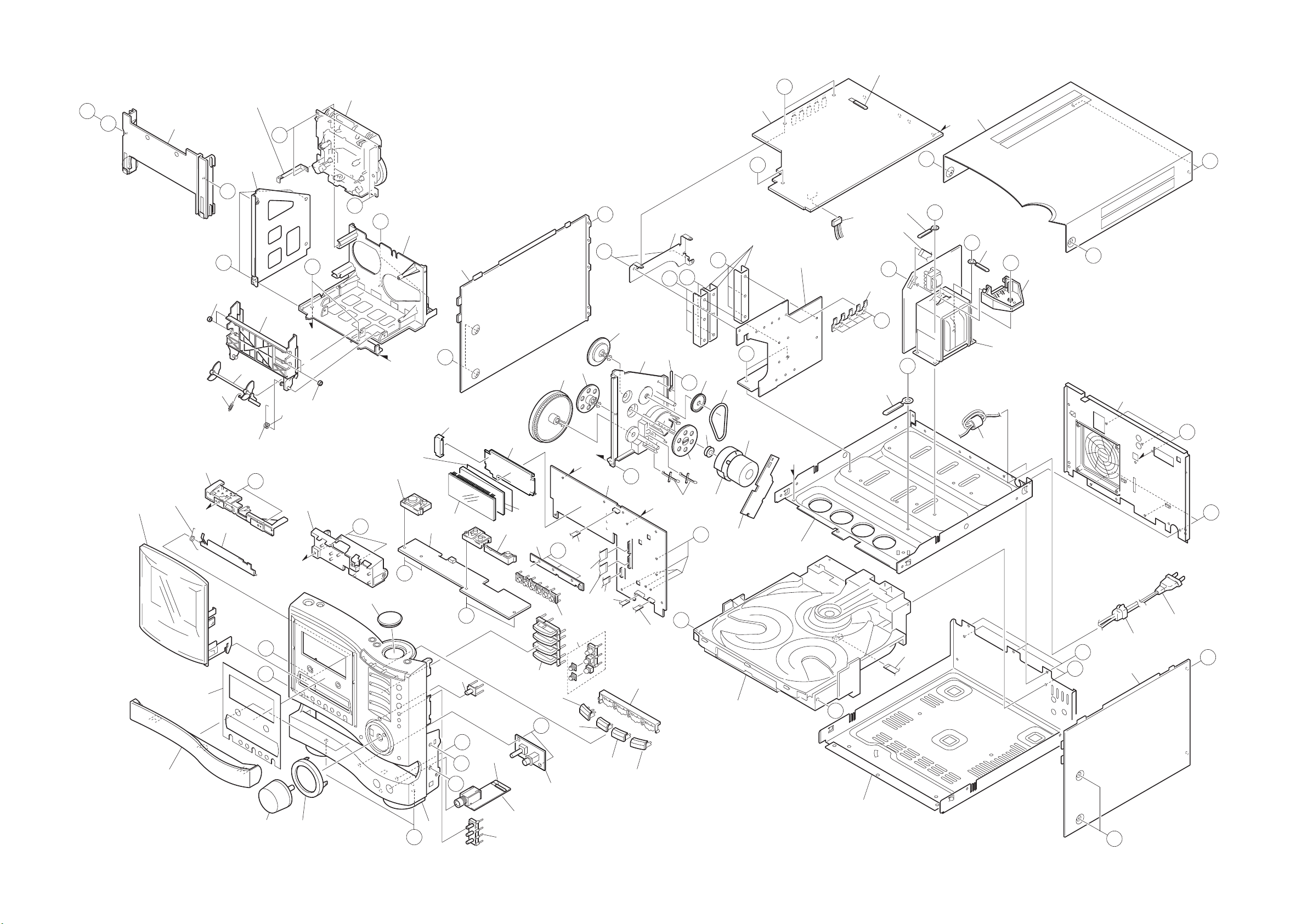

MECHANICAL EXPLODED VIEW 1 / 1
A
A
AA
A
60
PWB
PWB
PWB
PWB CHAS,MAIN U
PWB
1
2
PWB
PWB
BZM-1
BZG-5
CABI,BOTTOM EZ
HT-SINK,FIN2
WIRE,
BINDER
WIRE,
BINDER
WIRE,
BINDER
HT-SINK,
MAIN U
LCD
7
8
4
3
56
A
A
D
D
C
C
E
E
11
A
A
A
A
A
A
A
A
AAA
A
A
J
A
A
H
A
A
B
B
9
10
12
14
54
50
49
51
52
15
16
17
22
64
13
23
62
31
27
27
34 33
32
35 57
36 37
59
40
38
41
26
PLATE,EARTH
MECHA
43
55
42
65
HLDR,
HT-SINK
44
F
F
G
58
I
A
I
I
56
a
b
SH,LCD
61
a
b
18
19 20
21
63
28
29
30
c
e
KL24
E
25
48
M
M
e39
HLDR TR S
d
d
I
A
A
A47
45
46
c
53
Table of contents
Other Aiwa Stereo System manuals
