Service Manual
MINI COMPONENT SYSTEM
Model :
DAEWOO ELECTRONICS CO., LTD.
AXL-125/R

Table of Contents
- 1 -
SAFETY PRECAUTIONS......................................................................................... 2
ADJUSTMENTS....................................................................................................... 4
EXPLODED VIEW AND PARTS LIST...................................................................... 5
WIRING DIAGRAM................................................................................................... 8
BLOCK DIAGRAM.................................................................................................... 9
SCHEMATIC DIAGRAM ........................................................................................... 10
POWER / AMP /TUNER / TAPE .................................................................................................... 10

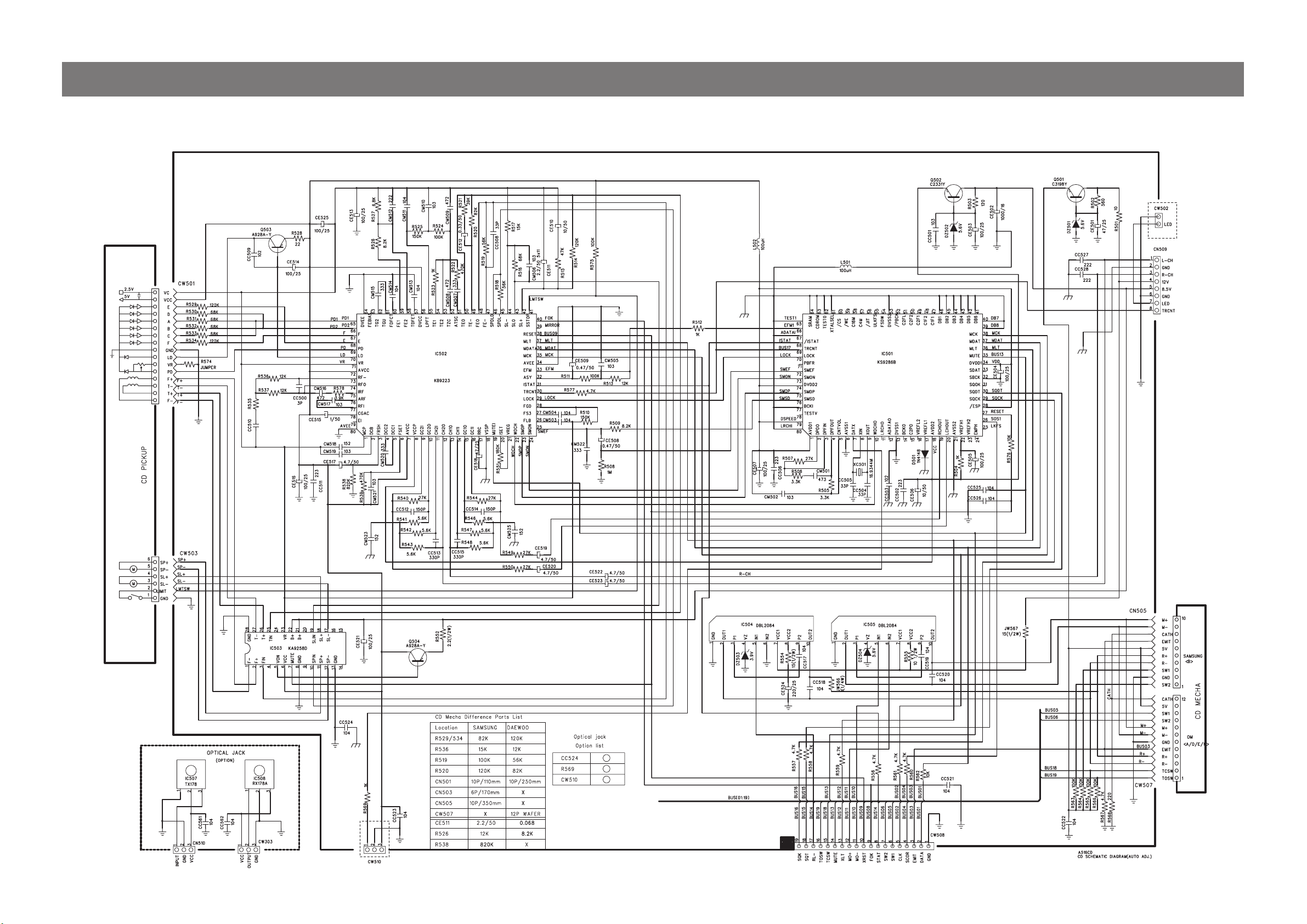

CD ....................................................................................................................................................11
CONTROL ........................................................................................................................................ 12

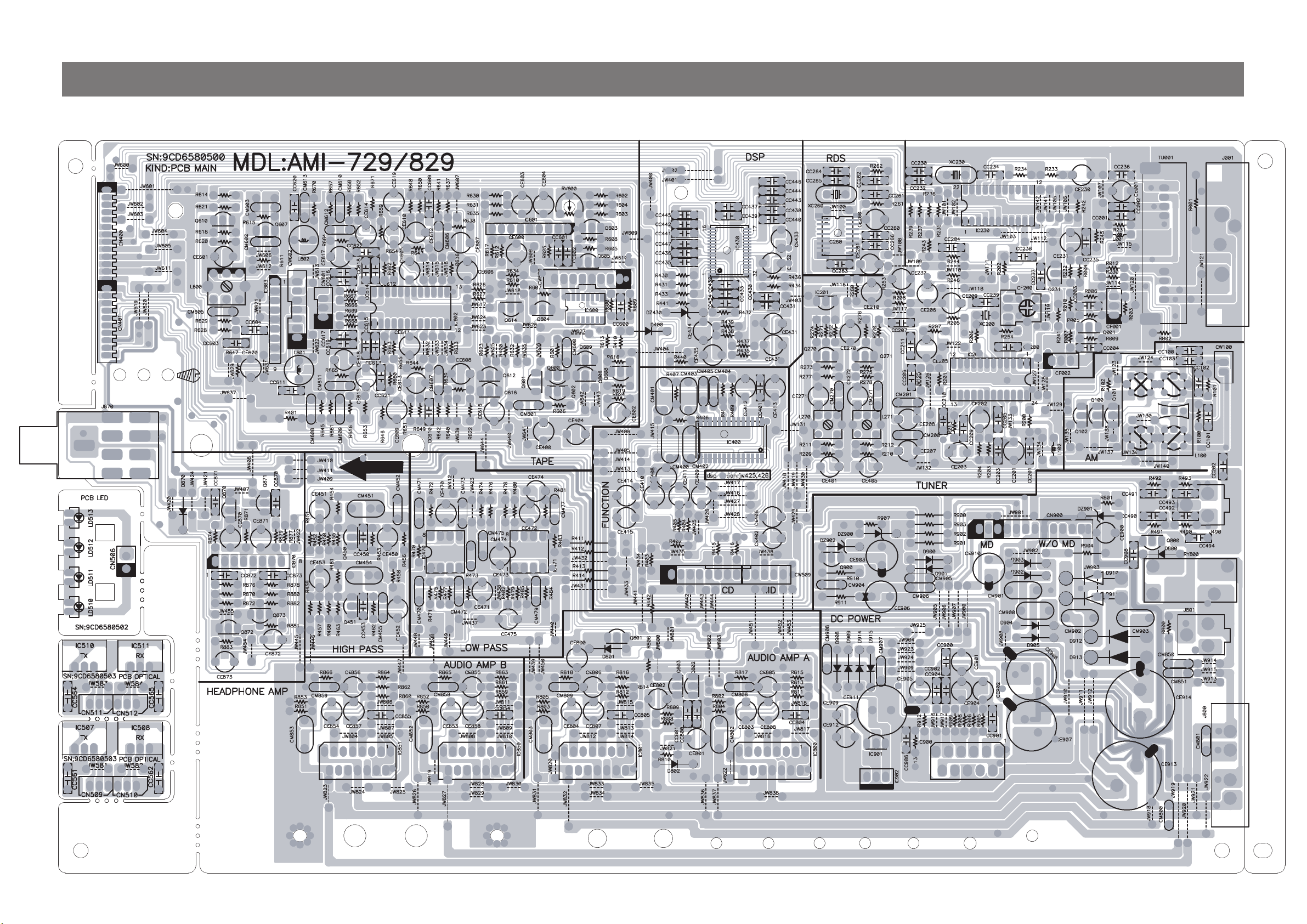

PCB PATTERN LAYOUT ........................................................................................ 13
ELECTRICAL PART LIST ....................................................................................... 16
MINI COMPONENT SYSTEM
XL-125/R

Safety Precautions
- 2 -
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
future reference.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be
used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like. 2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should
be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and
cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance
should be mounted to a wall or
ceiling
only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so
that its
location or position does not interfere with
its proper
ventilation. For example, the appliance
should not be situated
on a bed, sofa, rug, or
similar surface that may block the
ventilation
openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
6. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers,
stoves, or other
appliances (including amplifiers) that
produce heat.
7. Power Sources - The appliance should be
connected to a
power supply only of the type
described in the operating
instructions or as marked
on the appliance.
8. Grounding or Polarization - The precautions that
should be
taken so that the grounding or
polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords
should be
routed so that they are not likely to be
walked on or pinched
by items placed upon or
against them, paying particular
attention to cords at
plugs, convenience receptacles, and the
point where
they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload
protection. This is a
safety feature.
See Instruction Manual for replacement or
resetting of
protective device. If replacement of the plug is
required, be sure the
service technician has used a
replacement plug
specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located
away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure 2

Safety Precautions
- 3 -
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna
system is
grounded so as to provide some protection against voltage
surges and built-up static
charges. Article 810 of the National
Electrical Code,
ANSI/NFPA 70, provides information with
regard to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left
unused for a long period
of time.
15.Object and Liquid Entry - Care should be taken so
that objects
do not fall and liquids are not spilled into the enclosure through
openings.
16.Damage Requiring Service - The appliance should
be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been
damaged; or
b) Objects have fallen, or liquid has been spilled
into the
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate
normally or
exhibits a marked change in
performance; or
e) The appliance has been dropped, or the
enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing
should be referred to qualified service
personnel.
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
INWIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDINGCONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EXAMPLE OF ANTENNA
GROUNDING
NEC - NATIONAL ELECTRICAL CODE

- 4 -
Adjustments
1. TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to TP603, GND.
2. Press the REC button.
3. Adjust L603 to obtain 80 KHz ± 100Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment
Normal
3,015~3,025Hz MTT-111N RV601 Line Out L/R
Channel Confirm Wow & Flut- ter is within 0.35% FIG.1
3,000~3,010Hz MTT-111N RV601 Line Out L/R
Channel
Confirm Tape Speed
of end position after
adjustment at tape
start position
FIG.1
High 5,820~6,180Hz MTT-111N - - - - - - Shorted TP601,
TP602
Confirm High speed
after normal speed
adjustment FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90° MTT-114N Head Screw Line Out L/R
Channel FIG.2,3,4
3Recording Bias Oscilla-
tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L603 TP603,GND Adjust with frequency
counter connected. FIG.1
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape : MTT-111N(3kHz)
MTT-5511(Blank) Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side Reverse
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB
within
1 dB
L-CH
Peak R-CH Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong

Exploded View and Mechanical Parts List
Model No:XL-125/R
- 5 -
AXL-122L/124L/125R/123DP/125DP/128L

Model No:XL-125/R
Exploded View and Mechanical Parts List
- 6 -
1WINDOW DOOR A 9CD16177A0 MIPS 1
2WINDOW DOOR B 9CD16177B0 MIPS 1
3DOOR COVER A 9CD18123A0 MIPS 1
4DOOR COVER B 9CD18123B0 MIPS 1
5SRING DOOR EJECT R 9CD30080R0 STS 0.9 1
6SRING DOOR EJECT L 9CD30080L0 STS 0.9 1
7DOOR FRAME A 9CD18113A0 MIPS 1
8DOOR FRAME B 9CD18113B0 MIPS 1
9CUSHION FOOT 9CD4207700 URETHAN 2
10-A DAMPER GEAR B 9CD2603200 ACETAL 2
10-B DAMPER BASE B 9CD2603300 ABS 2
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2
11-C LOCKER SPRING 9CDOB01600 STS 2
12 BRKT SIDE 9CD2412900 ABS 2
13 KNOB CD A 9CD1342200 ABS 1
14 KNOB CD B 9CD1342300 ABS 1
15 DECO EQ L 9CD10034L0 ACRYL 1
16 DECO EQ R 9CD10034R0 ACRYL 1
17 KNOB FUNCTION 9CD1342400 ACRYL 4
18 PLATE FUNCTION 9CD0911900 PC 4
19 KNOB POWER 9CD1342600 ABS 1
20 KNOB DISC 9CD1342500 ABS 1
21-A CASSETTE DECK LOGIC 9CD6007800 ADR-243AMW 1
124L/125L/128L/123DP
21-B CASSETTE DECK LOGIC 9CD6007700 ADR-243DSW 1122L
22 BADGE DAEWOO 9CD1500900 ABS 1
23 PANEL FRONT 9CD0308600 MIPS 1
24 DECO VOL 9CD1003300 ABS 1
25 KNOB VOL 9CD1342700 ABS 1
26 WINDOW FLT 9CD1617800 ACRYL 1
27 CD DECK MECHA 9CD6006900 1
28 DOOR CD 9CD1812400 MIPS 1
29 WIN DOOR CD 9CD1617600 ACRYL 1
30 PLATE LED 9CD0911700 PVC T=0.5 1OPTION
31-A GUIDE FLT 9CD2506500 ABS 1
122L/124L/125L/123DP
31-B GUIDE FLT 9CD2506300 ABS 1
125S/128L/125DP
31-C GUIDE FLT 9CD2506700 ABS 1128
32 PLATE FLT 9CD0909800 PVC T=1.0 2
33 COVER TOP 9CD0411400 MIPS
NO PARTS NAME CODE NO. DESCRIPTIONS Q'TY REMARKS

Model No:XL-125/R
Exploded View and Mechanical Parts List
- 7 -
34 COVER SIDE L 9CD04115L0 MIPS 1
35 COVER SIDE R 9CD04115R0 MIPS 1
36-2 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1
124L/125L/123DP
37 COVER BACK 9CD0409800 MIPS 1OPTION
38 HOLDER AC CORD 9CD2303300 ABS 1
124L/125L/128L/123DP
39 COVER ANT 9CD0410400 ABS 1
41-3 HEAT SINK N50 9CD4405900 AL 1125L
42 9CD2414400 SUS 0.3T 1
43 9CD2414600 SECC 1.0T 1
44 9CD2413900 SUS 0.5T 1
49 HEAT SINK
BRACKET HEAT TR
BRACKET HEAT TR
BRACKET HEAT TR 9CD4402800 BSP 0.5T 1
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 13
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 18
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 18
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0X16 BK 2
S5 SCREW TAPTTITE 7173300611 TT2 BIN 3.0X6 MFZN 7
S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0X14 MFZN 2
S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN 4
S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0X10 MFZN 4
S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0X8 + D12 4
S9 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 3
W1 WASHER PLAIN 1
P1 1
P2 1
P3 1
P5 1
P5 1
Ref : AMI-128R
OPTION
FRONT PCB
MAIN PCB
POWER PCB
PCB JACK
PCB CD
NO PARTS NAME CODE NO. DESCRIPTIONS Q'TY REMARKS

WIRING DIAGRAM
- 8 -
Model No:XL-125/R
PLAY
HEAD R/P HEAD
CW703
SN : 9738804300 7P 350MM
SN : 9738835000 3P 260MM
CW704
10P CONN PINSN : 9736407800
SN : 973640760013P CONN PIN SN : 97388337008P 220MM
FD701
CW400
CW401
CN508
IC701
CN703CN704CN701
SN : 9738834100 13P 100MM
SN : 9728805500 11P 200MM
CW900
30W 50W
CN401
CN400
FUNCTION
SN:9738833900 10P 350MM
CW600
CW602
CW601
TUNER
CW400 CN900
CW508
CW501 CW503
SN:9738832101 7P 250MM
CN509
CW507
CW502
CN502
SN:9738840900 19P 110MM(D/W MECHA) SN:9738832400 19P 300MM(S/S MECHA)
SN:973883200 10P 350MM(S/S MECHA)
CN502 SN:9738824100 2P 400MM
SN:9738840800 16P 250MM(D/W MECHA) SN:9738835600 16P110MM(S/S MECHA)

BLOCK DIAGRAM
- 9 -
Model No:XL-125/R

Schemetic Diagram
-10 -
Model No:XL-125/R
Ass'y Name: POWER/AMP/TUNER/TAPE
DA CE CK DO XIN NC
PD1 VSS
AM/FM
XOUT
VDD
FMIN
IFIN
FM SD
AMIN
NC
ST/MO
IF REQ
LW
S-CURVE
AM/FM
IF
BUFF 304KHz 19K 19K 0
1612 3 6 145 13
811 7124 910 15
VDD1
R/DATA
QUAL
R/CLK
CLOCK
VSS1 ANALOG
V REF
VSS2 VSS3
PLL
1187.5Hz
PLL 57KHz
RDS/ARI
anti
aliasimg
8th switched
capacitor
filter comparator
BIPHASE
DECODER
TEST
Differential
DECODER
ALC

Schemetic Diagram
- 11 -
Model No:XL-125/R
Ass'y Name: CD

Schemetic Diagram
- 12 -
Model No:XL-125/R
Ass'y Name: CONTROL

P.C.B Pattern Layout
Model No:XL-125/R
Ass'y Name: Main PCB
- 13 -

Model No : XL-125/R
Ass'y Name : CD P.C.B
P.C.B Pattern Layout
- 14 -
Model No:XL-125/R
Ass'y Name: PT

P.C.B Pattern Layout
- 15 -
Model No:XL-125/R
Ass'y Name: CONTROL

Electrical Parts List
1
PCB MAIN AS
10000
9CDC057200
AMI-829LF
58
C ELECTRO CE408~411 CEXF1H229V 50V RSS 2.2MF (5X11)
2
PCB MAIN B001 9CD6580500-05 330X197X1.6T
59
C ELECTRO CE412 CEXF1H100V 50V RSS 10MF (5X11)
3
C CERA CC001~004 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
60
C ELECTRO CE413 CEXF1E101V 25V RSS 100MF (6.3X11)
4
C CERA CC100 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
61
C ELECTRO CE414~415 CEXF1H229V 50V RSS 2.2MF (5X11)
5
C CERA CC101 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
62
C ELECTRO CE600~601 CEXF1E470V 25V RSS 47MF (5X11)
6
C CERA CC102 CFSL1H150J SL 50V 15PF J (FORMING)
63
C ELECTRO CE602 CEXF1H479V 50V RSS 4.7MF (5X11)
7
C CERA CC103 CFSL1H470J SL 50V 47PF J (FORMING)
64
C ELECTRO CE603 CEXF1H478V 50V RSS 0.47MF (5X11)
8
C CERA CC200 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
65
C ELECTRO CE604 CEXF1H109V 50V RSS 1MF (5X11)
9
C CERA CC201 CCFF1H473Z HIKF 50V 0.047MF Z (FORMING)
66
C ELECTRO CE605 CEXF1E470V 25V RSS 47MF (5X11)
10
C CERA CC202 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
67
C ELECTRO CE606 CEXF1E330V 25V RSS 33MF (5X11)
11
C CERA CC203 CCFF1H473Z HIKF 50V 0.047MF Z (FORMING)
68
C ELECTRO CE607~608 CEXF1H229V 50V RSS 2.2MF (5X11)
12
C CERA CC204 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
69
C ELECTRO CE609 CEXF1H100V 50V RSS 10MF (5X11)
13
C CERA CC205 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
70
C ELECTRO CE610~611 CEXF1H229V 50V RSS 2.2MF (5X11)
14
C CERA CC206 CCFB1H821K HIKB 50V 820PF K (FORMING)
71
C ELECTRO CE612~613 CEXF1E470V 25V RSS 47MF (5X11)
15
C CERA CC207 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
72
C ELECTRO CE614~615 CEXF1H100V 50V RSS 10MF (5X11)
16
C CERA CC209~211 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
73
C ELECTRO CE616 CEXF1H339V 50V RSS 3.3MF (5X11)
17
C CERA CC230 CFSL1H390J SL 50V 39PF J (FORMING)
74
C ELECTRO CE617~618 CEXF1E470V 25V RSS 47MF (5X11)
18
C CERA CC232 CFSL1H330J SL 50V 33PF J (FORMING)
75
C ELECTRO CE619 CEXF1H100V 50V RSS 10MF (5X11)
19
C CERA CC234~238 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
76
C ELECTRO CE620~621 CEXF1E470V 25V RSS 47MF (5X11)
20
C CERA CC239 CFSL1H390J SL 50V 39PF J (FORMING)
77
C ELECTRO CE800 CEXF1E470V 25V RSS 47MF (5X11)
21
C CERA CC267 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
78
C ELECTRO CE801 CEXF1H100V 50V RSS 10MF (5X11)
22
C CERA CC401 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
79
C ELECTRO CE802 CEXF1H109V 50V RSS 1MF (5X11)
23
C CERA CC490~493 CCFB1H101K HIKB 50V 100PF K (FORMING)
80
C ELECTRO CE803~804 CEXF1H220V 50V RSS 22MF (5X11)
24
C CERA CC494 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
81
C ELECTRO CE805~806 CEXF1H470V 50V RSS 47MF (6.3X11)
25
C CERA CC600 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
82
C ELECTRO CE807~808 CEXF1H229V 50V RSS 2.2MF (5X11)
26
C CERA CC601 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
83
C ELECTRO CE809~810 CEXF1H109V 50V RSS 1MF (5X11)
27
C CERA CC602 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
84
C ELECTRO CE870~871 CEXF1E470V 25V RSS 47MF (5X11)
28
C CERA CC603~604 CFSL1H470J SL 50V 47PF J (FORMING)
85
C ELECTRO CE872~873 CEXF1H229V 50V RSS 2.2MF (5X11)
29
C CERA CC605~606 CCFB1H221K HIKB 50V 220PF K (FORMING)
86
C ELECTRO CE900~902 CEXF1E470V 25V RSS 47MF (5X11)
30
C CERA CC609~611 CCFB1H101K HIKB 50V 100PF K (FORMING)
87
C ELECTRO CE903 CEXF1H101V 50V RSS 100MF (8X11.5)
31
C CERA CC612~615 CCFB1H221K HIKB 50V 220PF K (FORMING)
88
C ELECTRO CE904~905 CEXF1E470V 25V RSS 47MF (5X11)
32
C CERA CC616~619 CCFB1H821K HIKB 50V 820PF K (FORMING)
89
C ELECTRO CE906 CEXF1H101V 50V RSS 100MF (8X11.5)
33
C CERA CC620 CCFB1H101K HIKB 50V 100PF K (FORMING)
90
C ELECTRO CE907~908 CEXF1E222V 25V RSS 2200MF (16X25)
34
C CERA CC621~622 CCFB1H331K HIKB 50V 330PF K (FORMING)
91
C ELECTRO CE910 CEXF1H101V 50V RSS 100MF (8X11.5)
35
C CERA CC801 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
92
C ELECTRO CE913~914 CEXF1V332V 35V RSS 3300MF (18X35.5)
36
C CERA CC804~805 CCFB1H221K HIKB 50V 220PF K (FORMING)
93
FILTER CERA CF001~002 5PE107MS3A SFE107MS3-A
37
C CERA CC870~871 CCFF1H473Z HIKF 50V 0.047MF Z (FORMING)
94
FILTER CF200 5PPCFAZ077 PCFAZ077
38
C CERA CC872~873 CCFB1H221K HIKB 50V 220PF K (FORMING)
95
C MYLAR CM200~201 CMXM2A223J 100V 0.022MF J
39
C CERA CC874~877 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
96
C MYLAR CM270~271 CMXM2A103J 100V 0.01MF J
40
C CERA CC900~902 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
97
C MYLAR CM400~403 CMXM2A104J 100V 0.1MF J
41
C CERA CC904 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
98
C MYLAR CM404~405 CMXM2A562J 100V 5600PF J
42
C CERA CC906 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING)
99
C MYLAR CM600~601 CMXM2A683J 100V 0.068MF J
43
C ELECTRO CE001 CEXF1E470V 25V RSS 47MF (5X11)
100
C MYLAR CM602 CMXM2A103J 100V 0.01MF J
44
C ELECTRO CE201 CEXF1H479V 50V RSS 4.7MF (5X11)
101
C MYLAR CM603 CMXM2A332J 100V 3300PF J
45
C ELECTRO CE202~203 CEXF1H100V 50V RSS 10MF (5X11)
102
C MYLAR CM605 CMXM2A392J 100V 0.0039MF J
46
C ELECTRO CE205 CEXF1H109V 50V RSS 1MF (5X11)
103
C MYLAR CM606~607 CMXM2A123J 100V 0.012MF J
47
C ELECTRO CE206 CEXF1H478V 50V RSS 0.47MF (5X11)
104
C MYLAR CM608 CMXM2A152J 100V 1500PF J
48
C ELECTRO CE207~208 CEXF1H229V 50V RSS 2.2MF (5X11)
105
C MYLAR CM609~610 CMXM2A682J 100V 0.0068MF J
49
C ELECTRO CE209 CEXF1H109V 50V RSS 1MF (5X11)
106
C MYLAR CM611~612 CMXM2A223J 100V 0.022MF J
50
C ELECTRO CE210 CEXF1E470V 25V RSS 47MF (5X11)
107
C MYLAR CM613 CMXM2A152J 100V 1500PF J
51
C ELECTRO CE230 CEXF1H229V 50V RSS 2.2MF (5X11)
108
C MYLAR CM800~801 CMXM2A473J 100V 0.047MF J
52
C ELECTRO CE231 CEXF1E470V 25V RSS 47MF (5X11)
109
C MYLAR CM802~803 CMXM2A104J 100V 0.1MF J
53
C ELECTRO CE232 CEXF1H229V 50V RSS 2.2MF (5X11)
110
C MYLAR CM808~809 CMXM2A392J 100V 0.0039MF J
54
C ELECTRO CE270 CEXF1E470V 25V RSS 47MF (5X11)
111
C MYLAR CM900~903 CMXM2A104J 100V 0.1MF J
55
C ELECTRO CE271~272 CEXF1H229V 50V RSS 2.2MF (5X11)
112
C MYLAR CM904~906 CMXM2A103J 100V 0.01MF J
56
C ELECTRO CE400~402 CEXF1H229V 50V RSS 2.2MF (5X11)
113
CONN PIN CN400 9736407600 53095-1310 13PIN BASE
57
C ELECTRO CE404~406 CEXF1H229V 50V RSS 2.2MF (5X11)
114
CONN PIN CN401 9736407800 53095-1010 10PIN BASE
LOCATION PART-CODE PART-DESC REMARKPART-DESC REMARK NO PART-NAMENO PART-NAME LOCATION PART-CODE
- 16 -

Electrical Parts List
LOCATION PART-CODE PART-DESC REMARKPART-DESC REMARK NO PART-NAMENO PART-NAME LOCATION PART-CODE
115
CONN AS CN900 9738833900 #22 8P P2.5 350 BOARD-IN
172
TR Q801~802 TZTA107M-- KTA107M(AUTO)
116
WAFER CW100 2503-WR-02 2P S2B-XH-A
173
TR Q803 TZRC111M-- KRC111M (KSR1010)
117
WAFER CW509 2503-WS-08 8P 2.5MM
174
TR Q804~805 TZTD1302Y- KTD1302Y AUTO
118
WAFER CW600 2503-WS-08 8P 2.5MM
175
TR Q870~873 TZRC111M-- KRC111M (KSR1010)
119
WAFER CW601 2503-WS-03 3P 2.5MM
176
TR Q900 TZTA1273Y- KTA1273Y(966Y)
120
WAFER CW602 2503-WS-07 7P 2.5MM
177
R SEMI FIXED RV600 RV1417222- 1/10 2.2K OHM B V6EK-PV1S
121
DIODE ZENER DZ900 DZTZ6R2B-- MTZ6.2B
178
WIRE JUMPER R002 W581GY6095 AWG22 1/0.65 SN 6 AUTO
122
DIODE ZENER DZ901 DZTZ12B--- MTZ 12V 26MM TAPPING
179
R CARBON FILM R003 RD-AZ331J- 1/6 330 OHM J
123
DIODE ZENER DZ902 DZTZ30B--- MTZ-30B
180
R CARBON FILM R004 RD-AZ470J- 1/6 47 OHM J
124
DIODE D400 DZN4148--- IN4148 AUTO 52MM
181
R CARBON FILM R005 RD-AZ332J- 1/6 3.3K OHM J
125
DIODE D801 DZN4148--- IN4148 AUTO 52MM
182
R CARBON FILM R006 RD-AZ681J- 1/6 680 OHM J
126
R CARBON FILM D802 RD-AZ103J- 1/6 10K OHM J
183
R CARBON FILM R007 RD-AZ331J- 1/6 330 OHM J
127
DIODE D870 DZN4148--- IN4148 AUTO 52MM
184
R CARBON FILM R009 RD-AZ121J- 1/6 120 OHM J
128
DIODE D900~901 DIN4001--- IN4001
185
R CARBON FILM R010 RD-AZ100J- 1/6 10 OHM J
129
DIODE D902~905 DRL202---- RL202
186
R CARBON FILM R100 RD-AZ223J- 1/6 22K OHM J
130
DIODE D910~913 DIN5402--- IN5402
187
R CARBON FILM R101 RD-AZ104J- 1/6 100K OHM J
131
IC IC200 1LA1833N-- LA1833N
188
R CARBON FILM R200 RD-AZ682J- 1/6 6.8K OHM J
132
IC IC201 1MC78L05-- MC78L05AC
189
R CARBON FILM R201 RD-AZ333J- 1/6 33K OHM J
133
IC PLL IC230 1LC72131-- LC72131
190
R CARBON FILM R202 RD-AZ102J- 1/6 1K OHM J
134
IC IC400 1TDA7440D- TDA7440D
191
R CARBON FILM R203 RD-AZ273J- 1/6 27K OHM J
135
IC IC600 1BU4094BCF BU4094BCF(SOP16)
192
R CARBON FILM R204 RD-AZ183J- 1/6 18K OHM J
136
IC AMSS IC601 1LA2000--- LA2000
193
R CARBON FILM R205 RD-AZ102J- 1/6 1K OHM J
137
IC IC602 1TA8189N-- TA8189N
194
R CARBON FILM R206 RD-AZ151J- 1/6 150 OHM J
138
IC IC603 1UPC1330HA UPC1330HA
195
R CARBON FILM R207 RD-AZ332J- 1/6 3.3K OHM J
139
IC IC800~801 1TDA7295-- TDA7295
196
R CARBON FILM R208 RD-AZ100J- 1/6 10 OHM J
140
IC IC870 1BA4560N-- BA4560N(H/P AMP)
197
R CARBON FILM R209~210 RD-AZ122J- 1/6 1.2K OHM J
141
IC IC900 1L4959---- L4959
198
R CARBON FILM R211~212 RD-AZ332J- 1/6 3.3K OHM J
142
R CARBON FILM JW129 RD-AZ220J- 1/6 22 OHM J
199
R CARBON FILM R213 RD-AZ563J- 1/6 56K OHM J
143
R CARBON FILM JW608 RD-AZ101J- 1/6 100 OHM J
200
R CARBON FILM R230~231 RD-AZ472J- 1/6 4.7K OHM J
144
DIODE JW636 DZN4148--- IN4148 AUTO 52MM
201
R CARBON FILM R232 RD-AZ470J- 1/6 47 OHM J
145
R CARBON FILM JW902 RD-4Z121J- 1/4 120 OHM J
202
R CARBON FILM R233 RD-AZ472J- 1/6 4.7K OHM J
146
JACK ANT J001 9736322201 PAT-646
203
R CARBON FILM R234 RD-AZ332J- 1/6 3.3K OHM J
147
JACK RCA J490 9CD6313700 S-436P
204
R CARBON FILM R235~237 RD-AZ102J- 1/6 1K OHM J
148
JACK SPEAKER J800 9736320500 CJ-9007-040
205
R CARBON FILM R239 RD-AZ102J- 1/6 1K OHM J
149
JACK HEADPHONE J870 9766319501 HTJ-064-05B GOLD
206
R CARBON FILM R241 RD-AZ102J- 1/6 1K OHM J
150
COIL PEAKING L001 5CPZ100K02 10UH K (AXIAL 3.5MM)
207
R CARBON FILM R243~244 RD-AZ103J- 1/6 10K OHM J
151
AM RF UNIT L100 5LR0000835 KSNT 213M-1
208
R CARBON FILM R245 RD-AZ472J- 1/6 4.7K OHM J
152
COIL PEAKING L102 5CPZ100K02 10UH K (AXIAL 3.5MM)
209
R CARBON FILM R246 RD-AZ103J- 1/6 10K OHM J
153
COIL L270~271 5P076068-- 6068MPX
210
R CARBON FILM R253 RD-AZ221J- 1/6 220 OHM J
154
COIL BIAS OSC L600 5L0503K643 SM-10F 5.04MH
211
R CARBON FILM R254 RD-AZ473J- 1/6 47K OHM J
155
COIL CHOKE L601~602 5LC333K804 33MH K
212
R CARBON FILM R270~271 RD-AZ222J- 1/6 2.2K OHM J
156
TR Q001 TZTC3194Y- KTC3194Y
213
R CARBON FILM R272 RD-AZ221J- 1/6 220 OHM J
157
TR Q231 TZTA107M-- KTA107M(AUTO)
214
R CARBON FILM R273 RD-AZ474J- 1/6 470K OHM J
158
TR Q270~271 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
215
R CARBON FILM R274 RD-AZ102J- 1/6 1K OHM J
159
TR Q600 TZRC111M-- KRC111M (KSR1010)
216
R CARBON FILM R275 RD-AZ474J- 1/6 470K OHM J
160
TR Q601 TZTA107M-- KTA107M(AUTO)
217
R CARBON FILM R276 RD-AZ102J- 1/6 1K OHM J
161
TR Q602 TZRC111M-- KRC111M (KSR1010)
218
R CARBON FILM R277~278 RD-AZ272J- 1/6 2.7K OHM J
162
TR Q603~604 TZTA1266Y- KTA1266Y- (AUTO)(1015Y)
219
R CARBON FILM R400 RD-AZ105J- 1/6 1M OHM J
163
TR Q605 TZRC111M-- KRC111M (KSR1010)
220
R CARBON FILM R401 RD-AZ105J- 1/6 1M OHM J
164
TR Q606 TZTD1302Y- KTD1302Y AUTO
221
R CARBON FILM R402~405 RD-AZ104J- 1/6 100K OHM J
165
TR Q607 TZTC3205Y- KTC3205Y (2236Y)
222
R CARBON FILM R406~407 RD-AZ562J- 1/6 5.6K OHM J
166
TR Q608 TZTA1266Y- KTA1266Y- (AUTO)(1015Y)
223
R CARBON FILM R408~409 RD-AZ103J- 1/6 10K OHM J
167
TR Q609 TZTD1302Y- KTD1302Y AUTO
224
R CARBON FILM R410 RD-AZ221J- 1/6 220 OHM J
168
TR Q610 TZTA1273Y- KTA1273Y(966Y)
225
R CARBON FILM R411 RD-AZ102J- 1/6 1K OHM J
169
TR Q612 TZTD1302Y- KTD1302Y AUTO
226
R CARBON FILM R412~413 RD-AZ104J- 1/6 100K OHM J
170
TR Q614 TZRC111M-- KRC111M (KSR1010)
227
R CARBON FILM R414 RD-AZ102J- 1/6 1K OHM J
171
TR Q616 TZTD1302Y- KTD1302Y AUTO
228
R CARBON FILM R415~416 RD-AZ683J- 1/6 68K OHM J
- 17 -

Electrical Parts List
LOCATION PART-CODE PART-DESC REMARKPART-DESC REMARK NO PART-NAMENO PART-NAME LOCATION PART-CODE
229
R CARBON FILM R490 RD-AZ392J- 1/6 3.9K OHM J
286
R CARBON FILM R808 RD-AZ103J- 1/6 10K OHM J
230
R CARBON FILM R491~492 RD-AZ103J- 1/6 10K OHM J
287
WIRE JUMPER R809 W581GY6095 AWG22 1/0.65 SN 6 AUTO
231
R CARBON FILM R493 RD-AZ392J- 1/6 3.9K OHM J
288
R CARBON FILM R811~812 RD-AZ473J- 1/6 47K OHM J
232
R CARBON FILM R600 RD-AZ100J- 1/6 10 OHM J
289
R CARBON FILM R813~814 RD-AZ681J- 1/6 680 OHM J
233
R CARBON FILM R601 RD-AZ561J- 1/6 560 OHM J
290
R CARBON FILM R815~816 RD-AZ223J- 1/6 22K OHM J
234
R CARBON FILM R602 RD-AZ392J- 1/6 3.9K OHM J
291
R CARBON FILM R817~818 RD-AZ104J- 1/6 100K OHM J
235
R CARBON FILM R603 RD-AZ821J- 1/6 820 OHM J
292
R CARBON FILM R819~820 RD-AZ472J- 1/6 4.7K OHM J
236
R CARBON FILM R604 RD-AZ682J- 1/6 6.8K OHM J
293
R CARBON FILM R870 RD-AZ102J- 1/6 1K OHM J
237
R CARBON FILM R605 RD-AZ104J- 1/6 100K OHM J
294
R CARBON FILM R871 RD-AZ560J- 1/6 56 OHM J
238
R CARBON FILM R606 RD-AZ561J- 1/6 560 OHM J
295
R CARBON FILM R872 RD-AZ563J- 1/6 56K OHM J
239
R CARBON FILM R607 RD-AZ103J- 1/6 10K OHM J
296
R CARBON FILM R874 RD-AZ101J- 1/6 100 OHM J
240
R CARBON FILM R609 RD-AZ103J- 1/6 10K OHM J
297
R CARBON FILM R876 RD-AZ183J- 1/6 18K OHM J
241
R CARBON FILM R610 RD-AZ102J- 1/6 1K OHM J
298
R CARBON FILM R877 RD-AZ101J- 1/6 100 OHM J
242
R CARBON FILM R611 RD-AZ479J- 1/6 4.7 OHM J
299
R CARBON FILM R878 RD-AZ183J- 1/6 18K OHM J
243
R CARBON FILM R612 RD-AZ101J- 1/6 100 OHM J
300
R CARBON FILM R879 RD-AZ101J- 1/6 100 OHM J
244
R CARBON FILM R613~614 RD-AZ103J- 1/6 10K OHM J
301
R CARBON FILM R880 RD-AZ102J- 1/6 1K OHM J
245
R CARBON FILM R615 RD-AZ333J- 1/6 33K OHM J
302
R CARBON FILM R881 RD-AZ333J- 1/6 33K OHM J
246
R CARBON FILM R616 RD-AZ103J- 1/6 10K OHM J
303
R CARBON FILM R882 RD-AZ563J- 1/6 56K OHM J
247
R CARBON FILM R617 RD-AZ472J- 1/6 4.7K OHM J
304
R CARBON FILM R883 RD-AZ333J- 1/6 33K OHM J
248
R CARBON FILM R618 RD-AZ103J- 1/6 10K OHM J
305
R CARBON FILM R900~901 RD-4Z479J- 1/4 4.7 OHM J
249
R CARBON FILM R619 RD-AZ102J- 1/6 1K OHM J
306
R CARBON FILM R902~903 RD-AZ221J- 1/6 220 OHM J
250
R CARBON FILM R620 RD-AZ101J- 1/6 100 OHM J
307
R CARBON FILM R904 RD-4Z121J- 1/4 120 OHM J
251
R CARBON FILM R621 RD-AZ472J- 1/6 4.7K OHM J
308
R CARBON FILM R905 RD-AZ562J- 1/6 5.6K OHM J
252
R CARBON FILM R622~623 RD-AZ184J- 1/6 180K OHM J
309
R CARBON FILM R906~908 RD-AZ103J- 1/6 10K OHM J
253
R CARBON FILM R624 RD-AZ103J- 1/6 10K OHM J
310
R CARBON FILM R909 RD-AZ562J- 1/6 5.6K OHM J
254
R CARBON FILM R625 RD-AZ684J- 1/6 680K OHM J
311
R CARBON FILM R910 RD-AZ102J- 1/6 1K OHM J
255
R CARBON FILM R626 RD-AZ221J- 1/6 220 OHM J
312
R CARBON FILM R911 RD-AZ100J- 1/6 10 OHM J
256
R CARBON FILM R627 RD-AZ683J- 1/6 68K OHM J
313
R CARBON FILM R912 RD-AZ562J- 1/6 5.6K OHM J
257
R CARBON FILM R628~629 RD-AZ823J- 1/6 82K OHM J
314
R CARBON FILM R913 RD-AZ103J- 1/6 10K OHM J
258
R CARBON FILM R631 RD-AZ102J- 1/6 1K OHM J
315
TUNER PACK TU001 9737613201 KST-F401VA-3
259
R CARBON FILM R633~635 RD-AZ103J- 1/6 10K OHM J
316
C DISCRIMINATOR XC200 5P107MG86C CDA10.7MG86N-C
260
R CARBON FILM R636 RD-AZ105J- 1/6 1M OHM J
317
X-TAL XC230 5XA7R2000D 7.2M
261
R CARBON FILM R637 RD-AZ271J- 1/6 270 OHM J
1
PCB CD AS
11000
9CDC05340D
AMI-516DPN
262
R CARBON FILM R638~639 RD-AZ392J- 1/6 3.9K OHM J
2
PCB CD B501 9CD6579500-07 247X197X1.6T
263
R CARBON FILM R640 RD-AZ271J- 1/6 270 OHM J
3
C CERA CC501 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL)
264
R CARBON FILM R641~642 RD-AZ103J- 1/6 10K OHM J
4
C CERA CC502 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
265
R CARBON FILM R643~644 RD-AZ184J- 1/6 180K OHM J
5
C CERA CC503 CCFB1H102K HIKB 50V 1000PF K (FORMING)
266
R CARBON FILM R645 RD-AZ183J- 1/6 18K OHM J
6
C CERA CC504~505 CFSL1H330J SL 50V 33PF J (FORMING)
267
R CARBON FILM R646 RD-AZ103J- 1/6 10K OHM J
7
C CERA CC506 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
268
R CARBON FILM R647 RD-AZ470J- 1/6 47 OHM J
8
C CERA CC508 CFSL1H330J SL 50V 33PF J (FORMING)
269
R CARBON FILM R648~649 RD-AZ334J- 1/6 330K OHM J
9
C CERA CC509 CCFB1H102K HIKB 50V 1000PF K (FORMING)
270
R CARBON FILM R650~651 RD-AZ151J- 1/6 150 OHM J
10
C CERA CC511 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
271
R CARBON FILM R652~653 RD-AZ103J- 1/6 10K OHM J
11
C CERA CC512 CCFB1H151K HIKB 50V 150PF K (FORMING)
272
R CARBON FILM R654~655 RD-AZ272J- 1/6 2.7K OHM J
12
C CERA CC513 CCFB1H331K HIKB 50V 330PF K (FORMING)
273
R CARBON FILM R656 RD-AZ102J- 1/6 1K OHM J
13
C CERA CC514 CCFB1H151K HIKB 50V 150PF K (FORMING)
274
R CARBON FILM R658 RD-AZ102J- 1/6 1K OHM J
14
C CERA CC515 CCFB1H331K HIKB 50V 330PF K (FORMING)
275
R CARBON FILM R659~660 RD-AZ682J- 1/6 6.8K OHM J
15
C CERA CC517~520 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
276
R CARBON FILM R662~663 RD-AZ683J- 1/6 68K OHM J
16
C CERA CC521 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL)
277
R CARBON FILM R664~665 RD-AZ820J- 1/6 82 OHM J
17
C CERA CC522~525 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
278
R CARBON FILM R666~669 RD-AZ102J- 1/6 1K OHM J
18
C CERA CC526 CCFB1H331K HIKB 50V 330PF K (FORMING)
279
R CARBON FILM R670 RD-AZ183J- 1/6 18K OHM J
19
C CERA CC527~528 CCFB1H222K HIKB 50V 2200PF K (FORMING)
280
R CARBON FILM R671 RD-AZ103J- 1/6 10K OHM J
20
C ELECTRO CE501 CEXF1E470V 25V RSS 47MF (5X11)
281
R CARBON FILM R672~673 RD-AZ333J- 1/6 33K OHM J
21
C ELECTRO CE502 CEXF1C102V 16V RSS 1000MF 13X20
282
R CARBON FILM R674~677 RD-AZ472J- 1/6 4.7K OHM J
22
C ELECTRO CE503~505 CEXF1E101V 25V RSS 100MF (6.3X11)
283
R CARBON FILM R678 RD-AZ332J- 1/6 3.3K OHM J
23
C ELECTRO CE506 CEXF1H100V 50V RSS 10MF (5X11)
284
R CARBON FILM R802~805 RD-AZ100J- 1/6 10 OHM J
24
C ELECTRO CE507 CEXF1E101V 25V RSS 100MF (6.3X11)
285
R CARBON FILM R806 RD-AZ103J- 1/6 10K OHM J
25
C ELECTRO CE508~509 CEXF1H478V 50V RSS 0.47MF (5X11)
- 18 -

Electrical Parts List
LOCATION PART-CODE PART-DESC REMARKPART-DESC REMARK NO PART-NAMENO PART-NAME LOCATION PART-CODE
26
C ELECTRO CE510 CEXF1H100V 50V RSS 10MF (5X11)
83
R CARBON FILM R503 RD-AZ121J- 1/6 120 OHM J
27
C ELECTRO CE511 CEXF1H229V 50V RSS 2.2MF (5X11)
84
R CARBON FILM R504 RD-AZ102J- 1/6 1K OHM J
28
C ELECTRO CE512 CEXF1H338V 50V RSS 0.33MF (5X11)
85
R CARBON FILM R505~506 RD-AZ332J- 1/6 3.3K OHM J
29
C ELECTRO CE513~514 CEXF1E101V 25V RSS 100MF (6.3X11)
86
R CARBON FILM R507 RD-AZ273J- 1/6 27K OHM J
30
C ELECTRO CE515 CEXF1H109V 50V RSS 1MF (5X11)
87
R CARBON FILM R508 RD-AZ105J- 1/6 1M OHM J
31
C ELECTRO CE516 CEXF1E101V 25V RSS 100MF (6.3X11)
88
R CARBON FILM R509 RD-AZ822J- 1/6 8.2K OHM J
32
C ELECTRO CE517 CEXF1H479V 50V RSS 4.7MF (5X11)
89
R CARBON FILM R510 RD-AZ154J- 1/6 150K OHM J
33
C ELECTRO CE518 CEXF1E470V 25V RSS 47MF (5X11)
90
R CARBON FILM R511 RD-AZ104J- 1/6 100K OHM J
34
C ELECTRO CE519~520 CEXF1H479V 50V RSS 4.7MF (5X11)
91
R CARBON FILM R512 RD-AZ102J- 1/6 1K OHM J
35
C ELECTRO CE521 CEXF1E101V 25V RSS 100MF (6.3X11)
92
R CARBON FILM R513 RD-AZ123J- 1/6 12K OHM J
36
C ELECTRO CE522~523 CEXF1H479V 50V RSS 4.7MF (5X11)
93
R CARBON FILM R514 RD-AZ124J- 1/6 120K OHM J
37
C ELECTRO CE524 CEXF1E221V 25V RSS 220MF (8X11.5)
94
R CARBON FILM R515 RD-AZ473J- 1/6 47K OHM J
38
C ELECTRO CE525 CEXF1E101V 25V RSS 100MF (6.3X11)
95
R CARBON FILM R516 RD-AZ683J- 1/6 68K OHM J
39
C MYLAR CM501 CMXM2A473J 100V 0.047MF J
96
R CARBON FILM R517 RD-AZ153J- 1/6 15K OHM J
40
C MYLAR CM502 CMXM2A103J 100V 0.01MF J
97
R CARBON FILM R518 RD-AZ563J- 1/6 56K OHM J
41
C MYLAR CM503~504 CMXM2A104J 100V 0.1MF J
98
R CARBON FILM R519 RD-AZ104J- 1/6 100K OHM J
42
C MYLAR CM505~506 CMXM2A103J 100V 0.01MF J
99
R CARBON FILM R520 RD-AZ124J- 1/6 120K OHM J
43
C MYLAR CM507 CMXM2A333J 100V 0.033MF J
100
R CARBON FILM R521 RD-AZ393J- 1/6 39K OHM J
44
C MYLAR CM508~509 CMXM2A472J 100V 4700PF J
101
R CARBON FILM R522 RD-AZ474J- 1/6 470K OHM J
45
C MYLAR CM510 CMXM2A103J 100V 0.01MF J
102
R CARBON FILM R523 RD-AZ102J- 1/6 1K OHM J
46
C MYLAR CM511 CMXM2A104J 100V 0.1MF J
103
R CARBON FILM R524 RD-AZ104J- 1/6 100K OHM J
47
C MYLAR CM512 CMXM2A222J 100V 2200PF J
104
R CARBON FILM R525 RD-AZ154J- 1/6 150K OHM J
48
C MYLAR CM513~514 CMXM2A104J 100V 0.1MF J
105
R CARBON FILM R526~527 RD-AZ153J- 1/6 15K OHM J
49
C MYLAR CM515 CMXM2A333J 100V 0.033MF J
106
R CARBON FILM R528 RD-AZ220J- 1/6 22 OHM J
50
C MYLAR CM516 CMXM2A472J 100V 4700PF J
107
R CARBON FILM R529 RD-AZ823J- 1/6 82K OHM J
51
C MYLAR CM517 CMXM2A103J 100V 0.01MF J
108
R CARBON FILM R530~533 RD-AZ683J- 1/6 68K OHM J
52
C MYLAR CM518 CMXM2A152J 100V 1500PF J
109
R CARBON FILM R534 RD-AZ823J- 1/6 82K OHM J
53
C MYLAR CM519 CMXM2A103J 100V 0.01MF J
110
R CARBON FILM R536~537 RD-AZ153J- 1/6 15K OHM J
54
C MYLAR CM520 CMXM2A333J 100V 0.033MF J
111
R CARBON FILM R539 RD-AZ474J- 1/6 470K OHM J
55
C MYLAR CM521 CMXM2A103J 100V 0.01MF J
112
R CARBON FILM R540 RD-AZ273J- 1/6 27K OHM J
56
C MYLAR CM522 CMXM2A333J 100V 0.033MF J
113
R CARBON FILM R541~543 RD-AZ562J- 1/6 5.6K OHM J
57
C MYLAR CM523 CMXM2A152J 100V 1500PF J
114
R CARBON FILM R544 RD-AZ273J- 1/6 27K OHM J
58
C MYLAR CM525 CMXM2A152J 100V 1500PF J
115
R CARBON FILM R546~548 RD-AZ562J- 1/6 5.6K OHM J
59
CONN AS CN501 9738840800 FFC 16P P1.0X250MM R
116
R CARBON FILM R549~550 RD-AZ273J- 1/6 27K OHM J
60
CONN AS CN509 9738832102 8P 240 P=2.5 BOARDIN
117
R CARBON FILM R551 RD-AZ184J- 1/6 180K OHM J
61
WAFER CW501 9CD6259300 52807-1610
118
R CARBON FILM R552 RD-2Y229J- 1/2 2.2 OHM J
62
WAFER CW502 2503-WS-02 2P 2.5MM
119
R CARBON FILM R554 RD-2Y150J- 1/2 15 OHM J
63
WAFER CW503 2001-WS-06 6P 2.0MM
120
R CARBON FILM R555 RD-2Y100J- 1/2 10 OHM J
64
WAFER CW507 2001-WS-12 12P 2.0MM
121
R CARBON FILM R556~561 RD-AZ472J- 1/6 4.7K OHM J
65
WAFER CW508 9736408400 52045-1945 19P
122
R CARBON FILM R562 RD-AZ103J- 1/6 10K OHM J
66
DIODE D501 DZN4148--- IN4148 AUTO 52MM
123
R CARBON FILM R563~566 RD-AZ104J- 1/6 100K OHM J
67
DIODE ZENER DZ501~502 DZTZ5R6B-- UZ-5.6B
124
R CARBON FILM R567 RD-AZ472J- 1/6 4.7K OHM J
68
DIODE ZENER DZ503 DZTZ3R9B-- UZ-3.9B
125
R CARBON FILM R568 RD-AZ221J- 1/6 220 OHM J
69
DIODE ZENER DZ504 DZTZ5R6B-- UZ-5.6B
126
R CARBON FILM R569 RD-AZ102J- 1/6 1K OHM J
70
IC CHIP DSP IC501 1KS9286B-- KS9286B DSP+DAC
127
R CARBON FILM R575 RD-AZ104J- 1/6 100K OHM J
71
IC CHIP RF IC502 1KB9223--- KB9223 RF+SSP+AF
128
R CARBON FILM R577 RD-AZ103J- 1/6 10K OHM J
72
IC CHIP IC503 1KA9258D-- KA9258D
129
RESONATOR CERA XC501 5PCSA16R93 CSA16.93MXZ04
73
IC IC504~505 1DBL2084-- DBL2084(D/W)
1
PANEL FRONT AS
15000
9CDM043501
AXL-125R
74
R CARBON FILM JW565 RD-2Y150J- 1/2 15 OHM J
2
PCB FRONT B701 9CD6583200 163X247X1.6T
75
R CARBON FILM R578 RD-4Z109J- 1/4 1 OHM J
3
C CERA CC701 CCZF1E223Z HIKF 25V 0.022MF Z (AXIAL)
76
R CARBON FILM JW578 RD-AZ472J- 1/6 4.7K OHM J
4
C CERA CC702 CCZB1H102K HIKB 50V 1000PF K (AXIAL)
77
COIL PEAKING L501~502 5CPZ101K02 100UH K (AXIAL 3.5MM)
5
C CERA CC703 CCZF1H104Z HIKF 50V 0.1MF Z (AXIAL)
78
TR Q501 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
6
C CERA CC704 CCZF1E223Z HIKF 25V 0.022MF Z (AXIAL)
79
TR Q502 TZSC2331Y- KSC2331Y
7
C CERA CC705~706 CCZF1H104Z HIKF 50V 0.1MF Z (AXIAL)
80
TR Q503~504 TZSA928AY- KSA928A-Y
8
C CERA CC707~708 CCZB1H101K HIKB 50V 100PF K (AXIAL)
81
R CARBON FILM R501 RD-AZ100J- 1/6 10 OHM J
9
C CERA CC709 CCZF1E223Z HIKF 25V 0.022MF Z (AXIAL)
82
R CARBON FILM R502 RD-AZ561J- 1/6 560 OHM J
10
C CERA CC710 CCZF1H104Z HIKF 50V 0.1MF Z (AXIAL)
- 19 -
