TableofContents
1
MINICOMPONENTSYSTEM
XG-318
Service Manual
S/N No. :
FEB. 2004
DAEWOO DAT CO., LTD.
Mini Component System
Model:
XG-318
9CD8302500
XG-318
APR. 2004

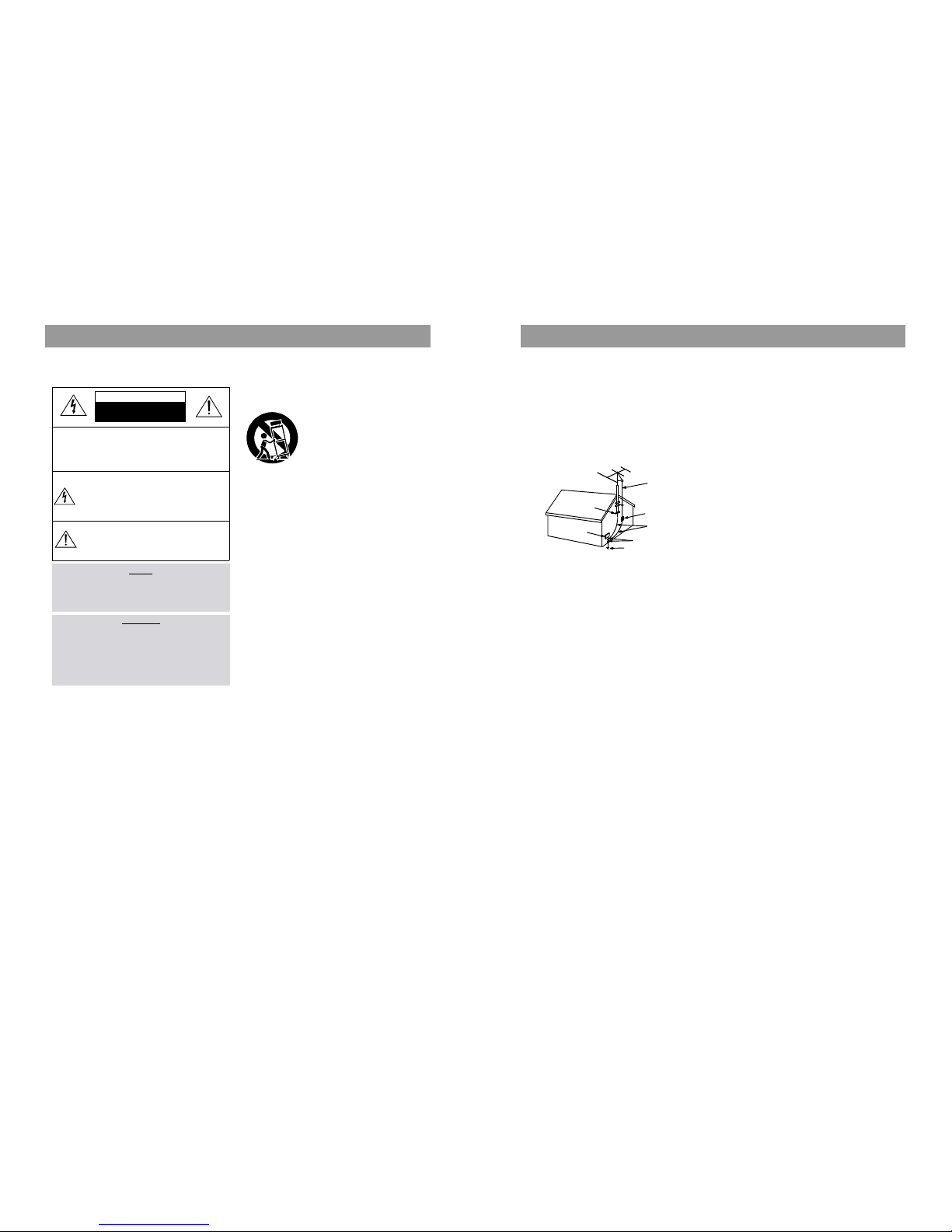

SafetyPrecautions
2
SafetyPrecautions
3
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
future reference.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like.
2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance should be mounted to a wall or
ceiling only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so that its
location or position does not interfere with its proper
ventilation. For example, the appliance should not be situated
on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
6. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
7. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
8. Grounding or Polarization - The precautions that should be
taken so that the grounding or polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload protection. This is a
safety feature. See Instruction Manual for replacement or
resetting of protective device. If replacement of the plug is
required, be sure the service technician has used a
replacement plug specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure 2
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period
of time.
15.Object and Liquid Entry - Care should be taken so that objects
do not fall and liquids are not spilled into the enclosure through
openings.
16.Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing should be referred to qualified service
personnel.
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
IN WIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EXAMPLE OF ANTENNA
GROUNDING
NEC - NATIONAL ELECTRICAL CODE

Adjustments
5
Adjustments
4

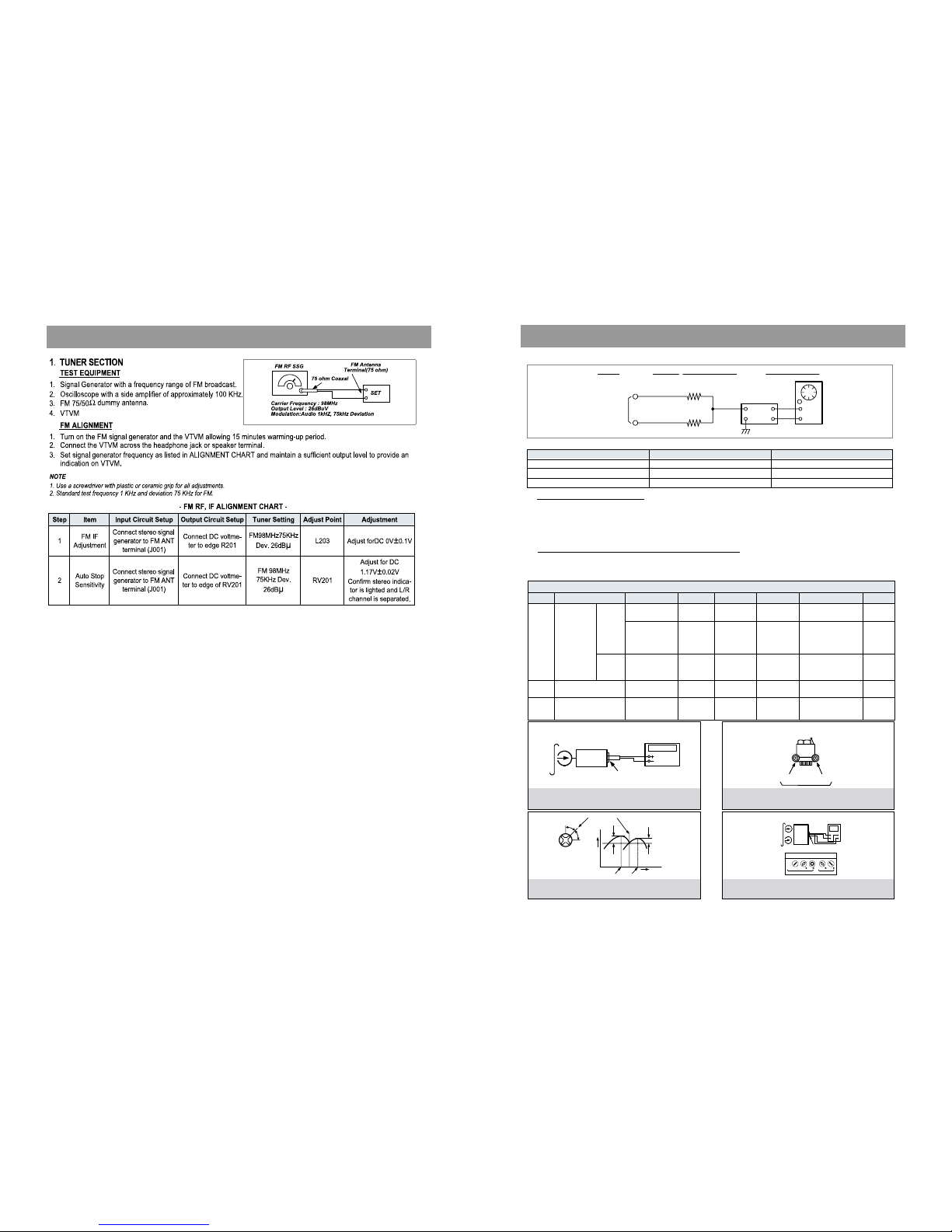

2. TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to TP603, GND.
2. Press the REC button.
3. Adjust L603 to obtain 80 KHz
± 500Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment
Normal
3,015~3,025Hz MTT-111N RV601 Line Out L/R
Channel
Line Out L/R
Channel
Confirm Wow & Flut-
ter is within 0.35% FIG.1
3,000~3,010Hz MTT-111N RV601 Line Out L/R
Channel
Confirm Tape Speed
of end position after
adjustment at tape
start position
FIG.1
High 5,820~6,180Hz MTT-111N - - - - - -
Confirm High speed
after normal speed
adjustment FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90∞MTT-114N Head Screw Line Out L/R
Channel FIG.2,3,4
3
Recording Bias Oscilla-
tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L603 TP603,GND Adjust with frequency
counter connected. FIG.1
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape MTT-111N(3kHz)
MTT-5511(Blank) Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side
Reverse
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB
within
1 dB
L-CH
Peak
R-CH
Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong

ExplodedViewandMechanicalPartsList
6

ExplodedViewandMechanicalPartsList
7

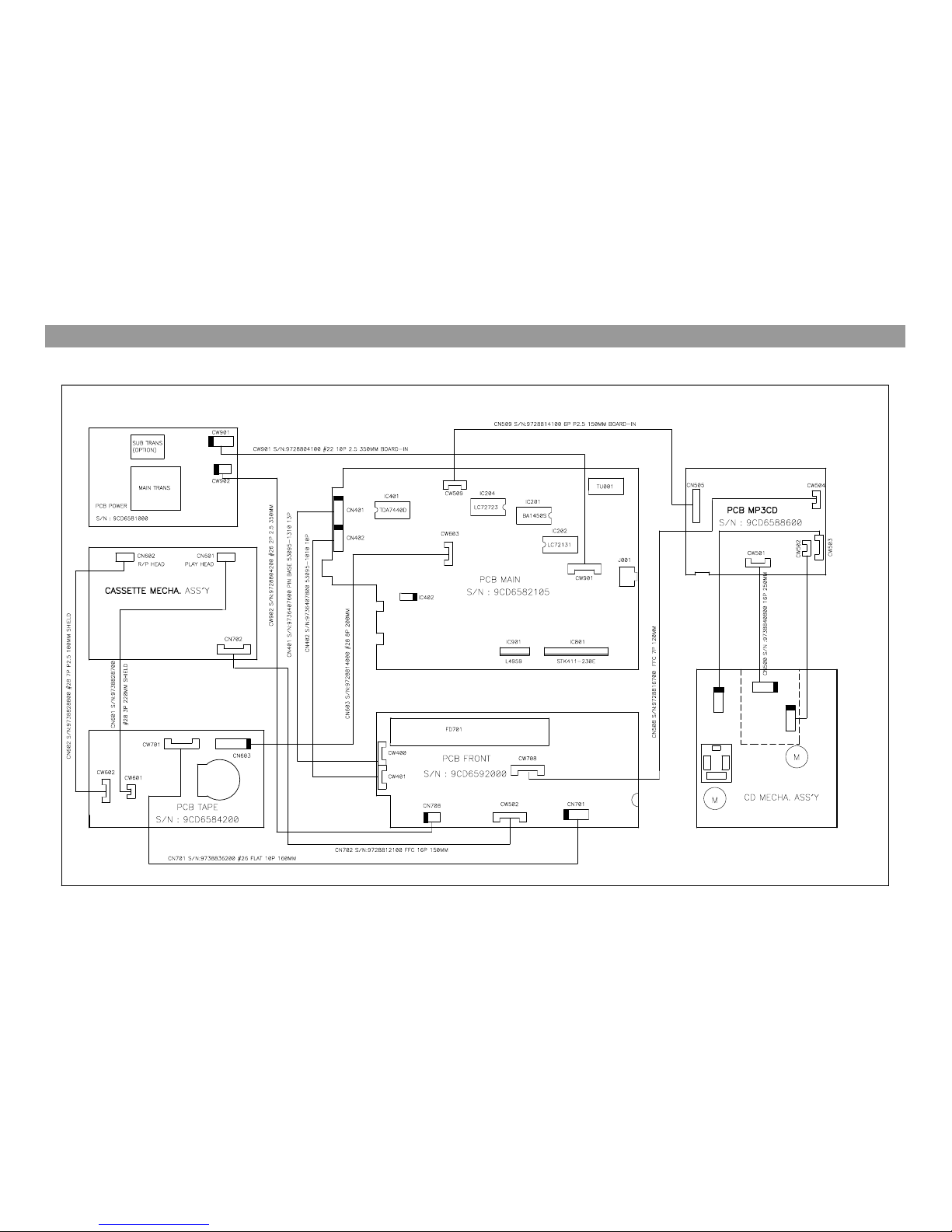

WiringDiagram
8

BlockDiagram
9

SchematicDiagram
10
"AMP

21 20 19
11
15
14
2
12 17
4
5
7
8
6
18
9
16 13
3
10
22
1
VSS VT
N.C
MUTE
AMOSC 1/2
VT-IN FM/AM IF N.C VDD
IFREQ
DO
DI
CL
C B
I/F
AM/FM
PD
FMOSC
ST/MO
X-OUT
X-IN
FM
CE
1
ANT
5
VT
8
OSC
3
GND
4
GND
6
B+
2
ANT
7
IFOUT OUT
3
14
13
1
210
6 5 4 9 8 7 11 12
2
3
1 4 7
5 8
69
13
11 14
1210
1 2 3 4 5
24 22 21 2023 1718 1619 15 14 13
10
9876 1211
VCC SD
DET GND LED
DRIVER
VREG
FM
IF
AM
OSC AM MIX
FM
DET
AGC
AM
DET
SW
1/2
1/2
SD
DECORDER
COMP
PD
VCO
SchematicDiagram
11
"TUNER

SchematicDiagram
12

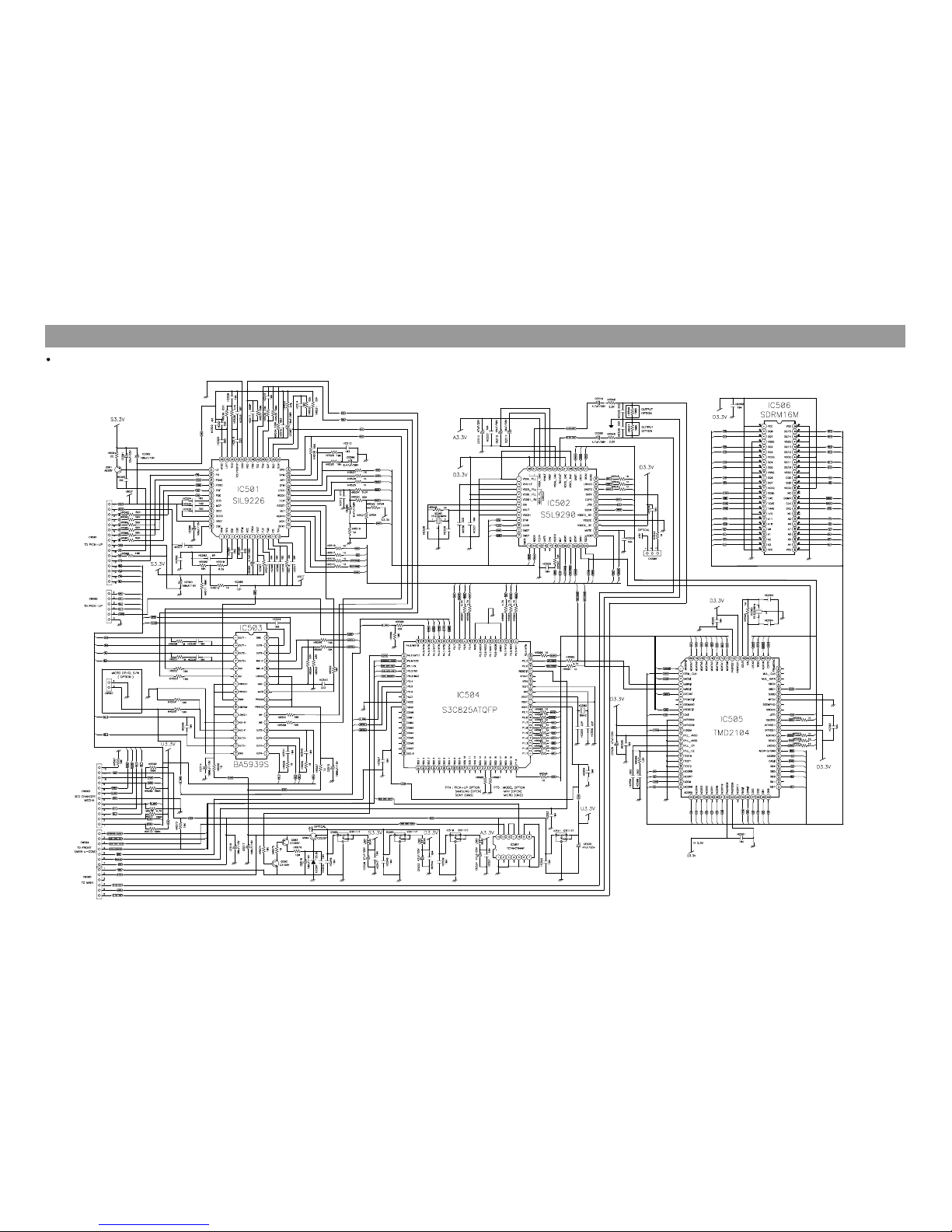

"TAPE

MP3 CD
SchematicDiagram
13

SchematicDiagram
14
"FRONT

SchematicDiagram
15

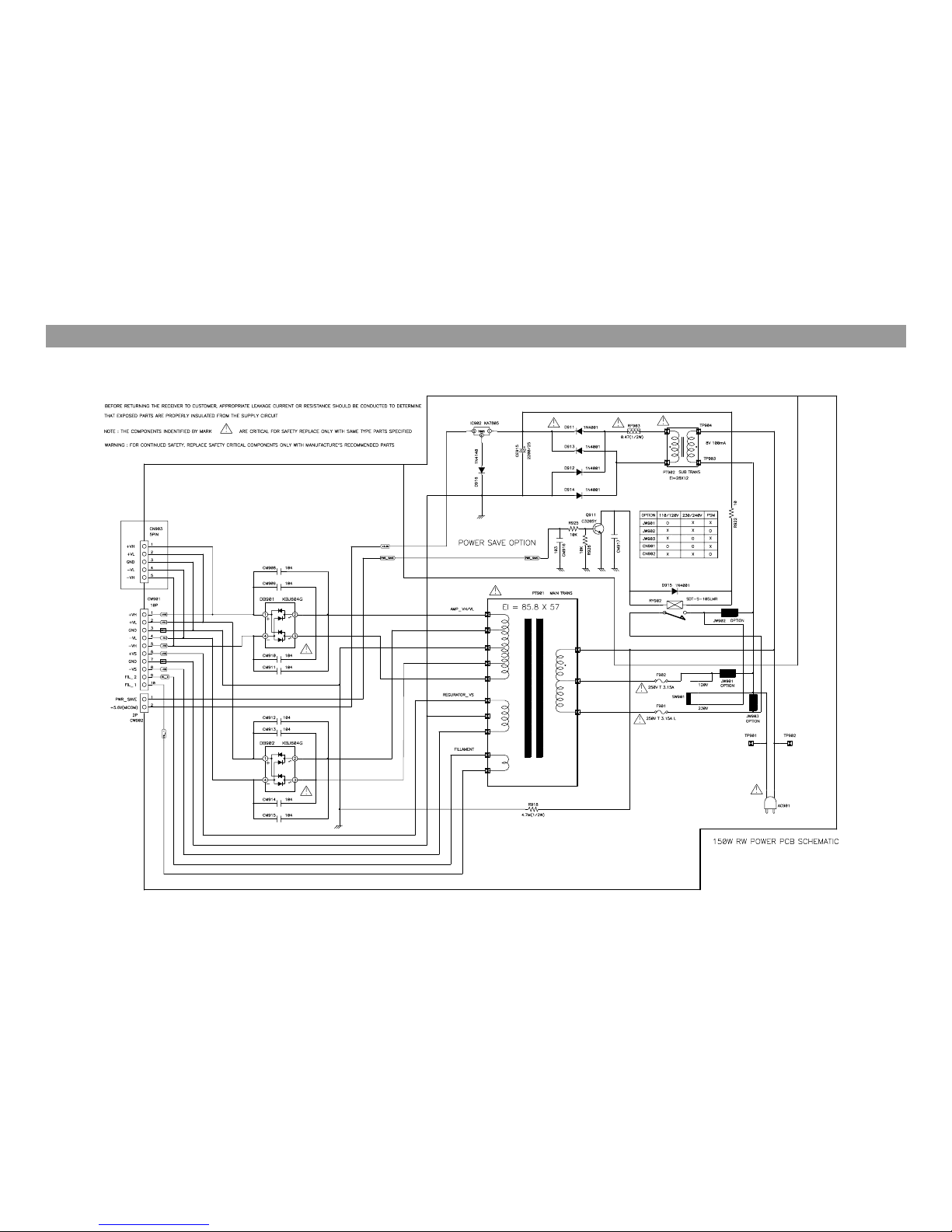

"POWER

P.C.BPatternLayout
16
"MAIN

P.C.BPatternLayout
17
"POWER "TAPE

P.C.BPatternLayout
18
<TOP VIEW>
MP3 CD
<BOTTOM VIEW>

P.C.BPatternLayout
19

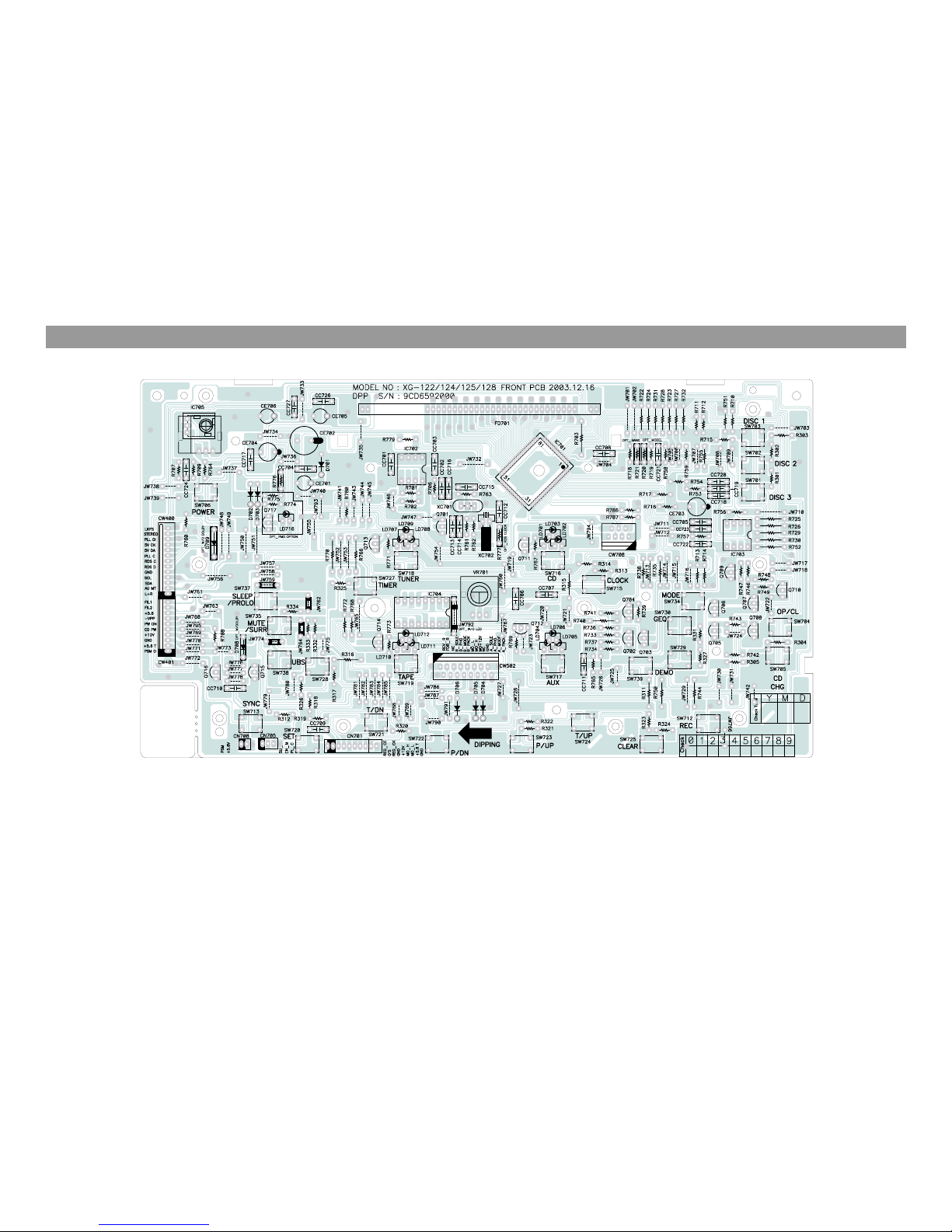

"FRONT

Loc. Part Code Part Name Description Remark/Option
B001 9CD6582105-03 PCB MAIN 247X197
CC000 CCFF1H473Z C CERA HIKF 50V 0.047MF Z (FORMING)
CC001 CCFB1H102K C CERA HIKB 50V 1000PF K (FORMING)
CC002 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC004 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC005 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC006 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC101 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC102 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC103 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC104 CFSL1H120J C CERA SL 50V 12PF J (FORMING)
CC201 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC202 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC203 CCFB1H101K C CERA HIKB 50V 100PF K (FORMING)
CC204 CCFB1H682K C CERA HIKB 50V 6800PF K (FORMING)
CC205 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC206 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC207 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC209 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC210 CCFB1H561K C CERA HIKB 50V 560PF K (FORMING)
CC211 CCFB1H561K C CERA HIKB 50V 560PF K (FORMING)
CC212 CCFF1H473Z C CERA HIKF 50V 0.047MF Z (FORMING)
CC213 CCFB1H472K C CERA HIKB 50V 4700PF K (FORMING)
CC251 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC252 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC253 CCFB1H102K C CERA HIKB 50V 1000PF K (FORMING)
CC254 CCFB1H102K C CERA HIKB 50V 1000PF K (FORMING)
CC255 CFSL1H330J C CERA SL 50V 33PF J (FROMING)
CC256 CFSL1H330J C CERA SL 50V 33PF J (FROMING)
CC401 CCFB1H101K C CERA HIKB 50V 100PF K (FORMING)
CC402 CCFB1H101K C CERA HIKB 50V 100PF K (FORMING)
CC403 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC404 CCFF1H473Z C CERA HIKF 50V 0.047MF Z (FORMING)
CC405 CCFB1H101K C CERA HIKB 50V 100PF K (FORMING)
CC406 CCFB1H101K C CERA HIKB 50V 100PF K (FORMING)
CC409 CCFB1H101K C CERA HIKB 50V 100PF K (FORMING)
CC410 CCFB1H101K C CERA HIKB 50V 100PF K (FORMING)
CC411 CCFB1H102K C CERA HIKB 50V 1000PF K (FORMING)
CC412 CCFB1H102K C CERA HIKB 50V 1000PF K (FORMING)
CC803 CCFB1H221K C CERA HIKB 50V 220PF K (FORMING)
CC804 CCFB1H221K C CERA HIKB 50V 220PF K (FORMING)
CC805 CCFB1H102K C CERA HIKB 50V 1000PF K (FORMING)
CC806 CCFB1H102K C CERA HIKB 50V 1000PF K (FORMING)
CC807 CFCH1H309C C CERA CH 50V 3PF C (FORMING)
CC808 CFCH1H309C C CERA CH 50V 3PF C (FORMING)
CC815 CCFF1H473Z C CERA HIKF 50V 0.047MF Z (FORMING)
CC816 CCFF1H473Z C CERA HIKF 50V 0.047MF Z (FORMING)
CC817 CCFB1H472K C CERA HIKB 50V 4700PF K (FORMING)
CC818 CCFB1H472K C CERA HIKB 50V 4700PF K (FORMING)
CC819 CCFB1H472K C CERA HIKB 50V 4700PF K (FORMING)
CC820 CCFF1H333Z C CERA HIKF 50V 0.033MF Z (FORMING)
CC901 CCFF1H473Z C CERA HIKF 50V 0.047MF Z (FORMING)
CC902 CCFF1H473Z C CERA HIKF 50V 0.047MF Z (FORMING)
CC903 CCFF1H223Z C CERA HIKF 50V 0.022MF Z (FORMING)
CC904 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC905 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC906 CCFF1H473Z C CERA HIKF 50V 0.047MF Z (FORMING)
PCB MAIN Ass'y [9CDC063400]
Page 1

Loc. Part Code Part Name Description Remark/Option
CC907 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC908 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC909 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC910 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CE001 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE101 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE102 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5）
CE201 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE202 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11)
CE203 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE204 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP
CE205 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE206 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE207 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE208 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE209 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE210 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE211 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE212 CEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11)
CE213 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5）
CE214 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE401 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE402 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE403 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE404 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE405 CEXD1H109B C ELECTRO 50V RL (LK) 1MF (5X11)
CE406 CEXD1H109B C ELECTRO 50V RL (LK) 1MF (5X11)
CE407 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE408 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE409 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5）
CE410 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE411 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE412 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE413 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE414 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE415 CEXD1H229B C ELECTRO 50V RL (LK) 2.2MF (5X11)
CE416 CEXD1H229B C ELECTRO 50V RL (LK) 2.2MF (5X11)
CE417 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE418 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE419 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE420 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE421 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE422 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE423 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE424 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE801 CEXF1K562V C ELECTRO RSS 80V 5600MF (5600/75V)
CE802 CEXF1K562V C ELECTRO RSS 80V 5600MF (5600/75V)
CE803 CEXF1H332V C ELECTRO RSS 50V 3300MF 26*41
CE804 CEXF1H332V C ELECTRO RSS 50V 3300MF 26*41
CE805 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE806 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE807 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE808 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE809 CEXF1J101V C ELECTRO 63V RSS 100MF (6.3X11)
CE810 CEXF1J101V C ELECTRO 63V RSS 100MF (6.3X11)
CE812 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE813 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE815 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
Page 2

Loc. Part Code Part Name Description Remark/Option
CE816 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11)
CE817 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE818 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE819 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11)
CE901 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE902 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE903 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE904 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE905 CEXF1V102V C ELECTRO 35V RSS 1000MF (13X22）
CE906 CEXF1V471V C ELECTRO 35V RSS 470MF (13X20)
CE907 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE908 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11)
CE909 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5）
CE910 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11)
CE911 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11)
CE912 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
CE913 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11)
5PE107MA5- FILTER CERA SFE 10.7M5-A UL only
5PE107MJA- FILTER CERA SFE 10.7MHZ RED Full FTZ only
5PE107MS3- FILTER CERA SFE107MS3-A Simple FTZ only
5PE107MA5- FILTER CERA SFE 10.7M5-A UL only
5PE107MJA- FILTER CERA SFE 10.7MHZ RED Full FTZ only
5PE107MS3A FILTER CERA SFE107MS3-A Simple/CE
CM201 CMXM2A153J C MYLAR 100V 0.015MF J
CM202 CMXM2A153J C MYLAR 100V 0.015MF J
CM203 CMXM2A153J C MYLAR 100V 0.015MF J
CM204 CMXM2A103J C MYLAR 100V 0.01MF J
CM205 CMXM2A103J C MYLAR 100V 0.01MF J
CM206 CMXM2A562J C MYLAR 100V 5600PF J
CM207 CMXM2A562J C MYLAR 100V 5600PF J
CM405 CMXM2A104J C MYLAR 100V 0.1MF J
CM406 CMXM2A104J C MYLAR 100V 0.1MF J
CM407 CMXM2A104J C MYLAR 100V 0.1MF J
CM408 CMXM2A104J C MYLAR 100V 0.1MF J
CM409 CMXM2A562J C MYLAR 100V 5600PF J
CM410 CMXM2A562J C MYLAR 100V 5600PF J
CM801 CMXM2A273J C MYLAR 100V 0.027MF J
CM802 CMXM2A273J C MYLAR 100V 0.027MF J
CM803 CMXM2A102J C MYLAR 100V 1000PF J
CM804 CMXM2A102J C MYLAR 100V 1000PF J
CM805 CMXM2A104J C MYLAR 100V 0.1MF J
CM806 CMXM2A104J C MYLAR 100V 0.1MF J
CM807 CMXM2A473J C MYLAR 100V 0.047MF J
CM808 CMXM2A473J C MYLAR 100V 0.047MF J
CM809 CMXM2A104J C MYLAR 100V 0.1MF J
CM905 CMXM2A103J C MYLAR 100V 0.01MF J
CM906 CMXM2A103J C MYLAR 100V 0.01MF J
CM907 CMXM2A104J C MYLAR 100V 0.1MF J
CN401 9736407600 CONN PIN 53095-1310 13PIN BASE
CN402 9736407800 CONN PIN 53095-1010 10PIN BASE
CW101 2503-WR-02 WAFER 2P S2B-XH-A
CW509 2503-WS-06 WAFER 6P 2.5MM
CW603 2503-WS-08 WAFER 8P 2.5MM
CW901 9728804100 CONN AS #22 10P 350MM BOARD-IN
D201 DZN4148--- DIODE IN4148 AUTO 52MM
D401 DZN4148--- DIODE IN4148 AUTO 52MM
D402 DZN4148--- DIODE IN4148 AUTO 52MM
D403 DZN4148--- DIODE IN4148 AUTO 52MM
CF001
CF002
Page 3
