Daewoo XM-111 User manual

XM-111/XM-113

1. SAFETY PRECAUTIONS................................................................................................ 2
2. ADJUSTMENTS............................................................................................................... 4
3. EXPLODED VIEW AND PARTS LIST .......................................................................... 5
4. WIRING DIAGRAM........................................................................................................ 7
5. BLOCK DIAGRAM ......................................................................................................... 8
6. SCHEMATIC DIAGRAM ................................................................................................ 9
6-1. AMP ................................................................................................................................................. 9
6-2. TUNER............................................................................................................................................. 10
6-3. TAPE................................................................................................................................................. 11
6-4. CD .................................................................................................................................................... 12
6-5. FRONT............................................................................................................................................. 13
7. PCB PATTERN LAYOUT .............................................................................................. 14
8. ELECTRICAL PART LIST ............................................................................................ 17
TableofContents
1
MINICOMPONENTSYSTEM
XM-111/XM-113
8-1. XM-111 .................................................................................................................................................... 17
8-2. XM-113 ............................................................................................................................................ 22

SafetyPrecautions
2
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYINGTHEAPPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THISUNITEMPLOYSA LASER.ONLY QUALIFIEDSERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION: USEOFANYCONTROLS,ADJUSTMENTS, ORPROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
futurereference.
- All warnings on the appliance and in the operating instructions
shouldbe adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be
usednear
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like. 2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should
bemoved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and
cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance
should be mounted to a wall or
ceiling
only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so
that its
location or position does not interfere with
itsproper
ventilation. Forexample,theappliance
shouldnotbesituated
on a bed, sofa, rug, or
similarsurface that may block the
ventilation
openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow ofair
through the ventilation openings.
6. Heat - Theappliance should be situatedaway from
heat
sources such as radiators, heat registers,
stoves, or other
appliances(including amplifiers) that
produceheat.
7. Power Sources - The appliance should be
connected to a
power supply only of the type
described in the operating
instructions or as marked
onthe appliance.
8. Grounding or Polarization - The precautions that
shouldbe
taken so that the grounding or
polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords
shouldbe
routed so that they are not likely to be
walked on or pinched
by items placed upon or
against them, paying particular
attention to cords at
plugs, convenience receptacles, and the
pointwhere
they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload
protection. This is a
safetyfeature.
See Instruction Manual for replacement or
resettingof
protectivedevice. If replacement ofthe plug is
required,be sure the
service technician has used a
replacement plug
specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located
away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure2

SafetyPrecautions
3
13.OutdoorAntenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna
systemis
grounded so as to provide some protection against voltage
surges and built-up static
charges. Article 810 of the National
ElectricalCode,
ANSI/NFPA 70, provides information with
regardto
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unpluggedfrom the outlet when left
unused for a long period
of time.
15.Objectand Liquid Entry-Care should betakenso
thatobjects
donotfallandliquidsarenotspilledintotheenclosurethrough
openings.
16.Damage Requiring Service - The appliance should
be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been
damaged;or
b) Objects have fallen, or liquid has been spilled
intothe
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate
normally or
exhibits a marked change in
performance; or
e) The appliance has been dropped, or the
enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing
should be referred to qualified service
personnel.
ANTENNADISCHARGEUNIT
(NECSECTION810-20)
ANTENNALEAD
INWIRE
POWERSERVICEGROUNDING
ELECTRODESYSTEM
(NECART250PARTH)
GROUNDCLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDINGCONDUCTORS
(NECSECTION 810-21)
GROUNDCLAMPS
EXAMPLEOF ANTENNA
GROUNDING
NEC- NATIONAL ELECTRICAL CODE

Adjustments
4
1. TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to TP603, GND.
2. Press the REC button.
3. Adjust L603 to obtain 80 KHz
± 100Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape MTT-111N(3kHz)
MTT-5511(Blank) Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side
Reverse
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB
within
1 dB
L-CH
Peak
R-CH
Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment Normal
3,015~3,025Hz MTT-111N RV601 Speaker L/R
Channel Confirm Wow & Flut- ter is within 0.35% FIG.1
3,000~3,010Hz MTT-111N RV601 Speaker L/R
Channel
Confirm Tape Speed
of end position after
adjustment at tape
start position FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90° MTT-114N Head Screw Speaker L/R
Channel FIG.2,3,4
3Recording Bias Oscilla-
tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L603 TP603,GND Adjustwithfrequency
counter connected. FIG.1

ExplodedViewandMechanicalPar
tsList
5
Model : XM-111/
XM
-113

ExplodedViewandMechanicalPartsList
6
Model : XM-111/XM-113

WiringDiagram
7
Model : XM-111/XM-113

BlockDiagram
8
Model : XM-111/XM-113

9
Model : XM-111/XM-113
AssÕy Name : AMP
SchematicDiagram

SchematicDiagram
Model : XM-111/XM-113
Ass’y Name : TUNER
10

SchematicDiagram
Model : XM-111/XM-113
Ass’y Name : TAPE
11

SchematicDiagram
Model : XM-111/XM-113
Ass’y Name : CD
12

SchematicDiagram
Model : XM-111/XM-113

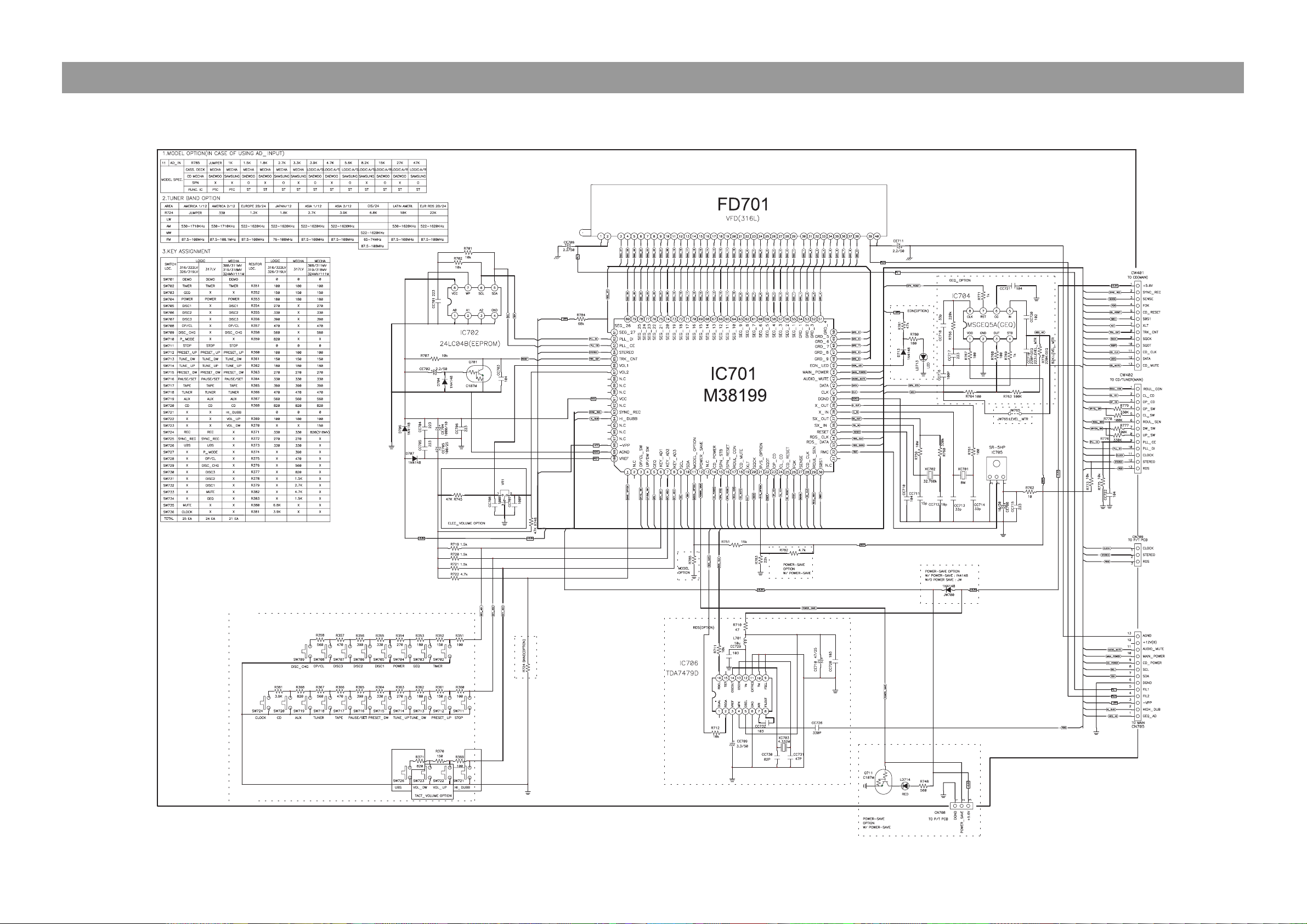

Ass’y Name : FRONT
13

P.C.BPatternLayout
14
Model : XM-111/XM-113
Ass’y Name : Main P.C.B

P.C.BPatternLayout
15
Model : XM-111/XM-113
Ass’y Name : FRONT P.C.B.

P.C.BPatternLayout
Model : XM-111/XM-113
Ass’y Name : P/T P.C.B
16

2 PCB MAIN B001 9CD6581900-04 330X197X1.6T 66 C CERA CC539 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL)
3C CERA CC001 CCFB1H102K HIKB 50V 1000PF K (FORMING) 67 C CERA CC540~541 CFSL1H330J SL 50V 33PF J (FORMING)
4C CERA CC002 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING) 68 C CERA CC542 CFCH1H309C CH 50V 3PF C (FORMING)
5C CERA CC004 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING) 69 C CERA CC543 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
6C CERA CC006 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING) 70 C CERA CC544 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
7C CERA CC102 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING) 71 C CERA CC545 CFCH1H309C CH 50V 3PF C (FORMING)
8C CERA CC103 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 72 C CERA CC547~549 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
9C CERA CC104 CFSL1H150J SL 50V 15PF J (FORMING) 73 C CERA CC553 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
10 C CERA CC105 CFSL1H820J SL 50V 82PF J (FORMING) 74 C CERA CC554 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL)
11 C CERA CC201~202 CCFF1H473Z HIKF 50V 0.047MF Z (FORMING) 75 C CERA CC555 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
12 C CERA CC203 CCFB1H821K HIKB 50V 820PF K (FORMING) 76 C CERA CC558~560 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
13 C CERA CC205 CCFB1H472K HIKB 50V 4700PF K (FORMING) 77 C CERA CC601~602 CCFB1H821K HIKB 50V 820PF K (FORMING)
14 C CERA CC206 CCFF1H473Z HIKF 50V 0.047MF Z (FORMING) 78 C CERA CC605 CCFB1H331K HIKB 50V 330PF K (FORMING)
15 C CERA CC207 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 79 C CERA CC607 CCFB1H102K HIKB 50V 1000PF K (FORMING)
16 C CERA CC209 CCFF1H473Z HIKF 50V 0.047MF Z (FORMING) 80 C CERA CC611~614 CCFB1H391K HIKB 50V 390PF K (FORMING)
17 C CERA CC210~213 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING) 81 C CERA CC615 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING)
18 C CERA CC214~215 CCFB1H562K HIKB 50V 5600PF K (FORMING) 82 C CERA CC617~618 CCFB1H471K HIKB 50V 470PF K (FORMING)
19 C CERA CC251 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 83 C CERA CC620~621 CCFB1H821K HIKB 50V 820PF K (FORMING)
20 C CERA CC252 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING) 84 C MYLAR CC622~623 CMXM2A122J 100V 1200PF J
21 C CERA CC253~254 CCFB1H102K HIKB 50V 1000PF K (FORMING) 85 C MYLAR CC624~625 CMXM2A102J 100V 1000PF J
22 C CERA CC255 CFSL1H360J SL 50V 36PF J (FORMING) 86 C CERA CC801~802 CCFB1H102K HIKB 50V 1000PF K (FORMING)
23 C CERA CC256 CFSL1H330J SL 50V 33PF J (FORMING) 87 C CERA CC803~804 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL)
24 C CERA CC257 CCFF1H103Z HIKF 50V 0.01MF Z (FORMING) 88 C CERA CC806~808 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL)
25 C CERA CC258 CCFB1H102K HIKB 50V 1000PF K (FORMING) 89 C CERA CC809~810 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
26 C CERA CC259 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL) 90 C CERA CC911~915 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING)
27 C CERA CC290 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 91 C ELECTRO CE001 CEXF1E470V 25V RSS 47MF (5X11) TP
28 C CERA CC401~402 CCFB1H101K HIKB 50V 100PF K (FORMING) 92 C ELECTRO CE101 CEXF1H229V 50V RSS 2.2MF (5X11) TP
29 C CERA CC404 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING) 93 C ELECTRO CE102 CEXF1E221V 25V RSS 220MF (8X11.5) TP
30 C CERA CC405~406 CCFB1H101K HIKB 50V 100PF K (FORMING) 94 C ELECTRO CE201 CEXF1H479V 50V RSS 4.7MF (5X11) TP
31 C CERA CC408~409 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING) 95 C ELECTRO CE202 CEXF1H100V 50V RSS 10MF (5X11) TP
32 C CERA CC410 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 96 C ELECTRO CE203 CEXF1H479V 50V RSS 4.7MF (5X11) TP
33 C CERA CC501 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING) 97 C ELECTRO CE204 CEXF1E330V 25V RSS 33MF (5X11) TP
34 C CERA CC502 CCFB1H102K HIKB 50V 1000PF K (FORMING) 98 C ELECTRO CE206 CEXF1H109V 50V RSS 1MF (5X11) TP
35 C CERA CC503 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING) 99 C ELECTRO CE207 CEXF1H478V 50V RSS 0.47MF (5X11) TP
36 C CERA CC504 CCFB1H472K HIKB 50V 4700PF K (FORMING) 100 C ELECTRO CE208~210 CEXF1H109V 50V RSS 1MF (5X11) TP
37 C CERA CC505 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL) 101 C ELECTRO CE211 CEXF1H339V 50V RSS 3.3MF (5X11) TP
38 C CERA CC506 CCFB1H152K HIKB 50V 1500PF K (FORMING) 102 C ELECTRO CE214 CEXF1E470V 25V RSS 47MF (5X11) TP
39 C CERA CC507 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL) 103 C ELECTRO CE401~408 CEXF1H229V 50V RSS 2.2MF (5X11) TP
40 C CERA CC508~509 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 104 C ELECTRO CE411~416 CEXF1H229V 50V RSS 2.2MF (5X11) TP
41 C CERA CC510 CCFF1H333Z HIKF 50V 0.033MF Z (FORMING) 105 C ELECTRO CE417 CEXF1E221V 25V RSS 220MF (8X11.5) TP
42 C CERA CC511 CCFB1H151K HIKB 50V 150PF K (FORMING) 106 C ELECTRO CE418 CEXF1H100V 50V RSS 10MF (5X11) TP
43 C CERA CC512~513 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 107 C ELECTRO CE501 CEXF1C101V 16V RSS 100MF (6.3X11) TP
44 C CERA CC514 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL) 108 C ELECTRO CE502 CEXF1E330V 25V RSS 33MF (5X11) TP
45 C CERA CC515 CCFB1H152K HIKB 50V 1500PF K (FORMING) 109 C ELECTRO CE503 CEXF1H109V 50V RSS 1MF (5X11) TP
46 C CERA CC516 CCFB1H222K HIKB 50V 2200PF K (FORMING) 110 C ELECTRO CE504 CEXF1C101V 16V RSS 100MF (6.3X11) TP
47 C CERA CC517 CCFF1H153Z HIKF 50V 0.015MF Z (FORMING) 111 C ELECTRO CE505 CEXF1H479V 50V RSS 4.7MF (5X11) TP
48 C CERA CC518 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 112 C ELECTRO CE507 CEXF1H229V 50V RSS 2.2MF (5X11) TP
49 C CERA CC519 CCFB1H331K HIKB 50V 330PF K (FORMING) 113 C ELECTRO CE508 CEXF1E470V 25V RSS 47MF (5X11) TP
50 C CERA CC520 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL) 114 C ELECTRO CE509~510 CEXF1H479V 50V RSS 4.7MF (5X11) TP
51 C CERA CC521~522 CCFB1H472K HIKB 50V 4700PF K (FORMING) 115 C ELECTRO CE511 CEXF1H229V 50V RSS 2.2MF (5X11) TP
52 C CERA CC523 CCFF1H333Z HIKF 50V 0.033MF Z (FORMING) 116 C ELECTRO CE512 CEXF1H100V 50V RSS 10MF (5X11) TP
53 C CERA CC524 CCFB1H331K HIKB 50V 330PF K (FORMING) 117 C ELECTRO CE513~514 CEXF1H479V 50V RSS 4.7MF (5X11) TP
54 C CERA CC525 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 118 C ELECTRO CE515~516 CEXF1H478V 50V RSS 0.47MF (5X11) TP
55 C CERA CC526 CCFB1H151K HIKB 50V 150PF K (FORMING) 119 C ELECTRO CE517 CEXF1C471V 16V RSS 470MF 10X12.5
56 C CERA CC527 CFSL1H330J SL 50V 33PF J (FORMING) 120 C ELECTRO CE518 CEXF1C102V 16V RSS 1000MF (10X20)
57 C CERA CC528 CCFB1H152K HIKB 50V 1500PF K (FORMING) 121 C ELECTRO CE519 CEXF1C101V 16V RSS 100MF (6.3X11) TP
58 C CERA CC529 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 122 C ELECTRO CE520 CEXF1H100V 50V RSS 10MF (5X11) TP
59 C CERA CC530 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL) 123 C ELECTRO CE521~522 CEXF1C101V 16V RSS 100MF (6.3X11) TP
60 C CERA CC531 CCFF1H223Z HIKF 50V 0.022MF Z (FORMING) 124 C ELECTRO CE523 CEXF1C221V 16V RSS 220MF (8X11.5) TP
61 C CERA CC532~533 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 125 C ELECTRO CE524 CEXF1C101V 16V RSS 100MF (6.3X11) TP
62 C CERA CC534 CCFF1H333Z HIKF 50V 0.033MF Z (FORMING) 126 C ELECTRO CE601~602 CEXF1E470V 25V RSS 47MF (5X11) TP
63 C CERA CC535 CCZF1E103Z HIKF 25V 0.01MF Z (AXIAL) 127 C ELECTRO CE603~604 CEXF1H100V 50V RSS 10MF (5X11) TP
64 C CERA CC536 CCFF1H104Z HIKF 50V 0.1MF Z (FORMING) 128 C ELECTRO CE605 CEXF1E470V 25V RSS 47MF (5X11) TP
1PCB MAIN AS 10000 9CDC054940 AMI-V225M 65 C CERA CC538 CCFF1H473Z HIKF 50V 0.047MF Z (FORMING)
NO PART-NAME LOCATION PART-CODE PART-DESC REMARK NO PART-NAME LOCATION PART-CODE PART-DESC REMARK
ElectricalPartsList
17
MODEL : XM-111

Electrical Parts List
NO PART-NAME LOCATION PART-CODE PART-DESC REMARK NO PART-NAME LOCATION PART-CODE PART-DESC REMARK
129 C ELECTRO CE606 CEXF1H229V 50V RSS 2.2MF (5X11) TP 193 IC IC202 1LC72131D- LC72131D
130 C ELECTRO CE608 CEXF1E470V 25V RSS 47MF (5X11) TP 194 IC REGULATOR IC205 1KA78L05AZ KA78L05AZ
131 C ELECTRO CE609 CEXF1H339V 50V RSS 3.3MF (5X11) TP 195 IC IC401 1TDA7440D- TDA7440D
132 C ELECTRO CE610 CEXF1H100V 50V RSS 10MF (5X11) TP 196 IC MOTOR DRIVE IC501 1BA5939S-- BA5939S
133 C ELECTRO CE611~612 CEXF1E470V 25V RSS 47MF (5X11) TP 197 IC CHIP RF IC502 1KB9223--- KB9223 RF+SSP+AF
134 C ELECTRO CE613~614 CEXF1H100V 50V RSS 10MF (5X11) TP 198 IC CHIP DSP IC503 1KS9286B-- KS9286B DSP+DAC
135 C ELECTRO CE615~616 CEXF1H109V 50V RSS 1MF (5X11) TP 199 IC IC601 1TA8189N-- TA8189N
136 C ELECTRO CE617~618 CEXF1E470V 25V RSS 47MF (5X11) TP 200 IC SWITCHING IC602 1BA7755A-- BA7755A (HEAD SW)
137 C ELECTRO CE619 CEXF1H229V 50V RSS 2.2MF (5X11) TP 201 IC IC801 1TDA7499-- TDA7499
138 C ELECTRO CE621~623 CEXF1E470V 25V RSS 47MF (5X11) TP 202 IC IC901 1L4959---- L4959
139 C ELECTRO CE624 CEXF1H229V 50V RSS 2.2MF (5X11) TP 203 COIL BEAD JW404 5LX159P829 1.5UH MIN
140 C ELECTRO CE626 CEXF1E470V 25V RSS 47MF (5X11) TP 204 DIODE JW411 DZN4148--- IN4148 AUTO 52MM
141 C ELECTRO CE627 CEXF1E330V 25V RSS 33MF (5X11) TP 205 R CARBON FILM JW507 RD-AZ102J- 1/6 1K OHM J
142 C ELECTRO CE801~803 CEXF1H109V 50V RSS 1MF (5X11) TP 206 COIL BEAD JW539 5LX159P829 1.5UH MIN
143 C ELECTRO CE804~805 CEXF1H100V 50V RSS 10MF (5X11) TP 207 COIL BEAD JW551 5LX159P829 1.5UH MIN
144 C ELECTRO CE806 CEXF1E470V 25V RSS 47MF (5X11) TP 208 JACK ANT J001 9736322201 PAT-646
145 C ELECTRO CE901~903 CEXF1E222V 25V RSS 2200MF (16X25) TP 209 JACK RCA J401 9CD6313700 S-436P
146 C ELECTRO CE904~907 CEXF1H229V 50V RSS 2.2MF (5X11) TP 210 JACK HEADPHONE J801 9766319501 HTJ-064-05B GOLD
147 C ELECTRO CE911~914 CEXF1H470V 50V RSS 47MF (6.3X11) TP 211 JACK SPEAKER J802 9736320500 CJ-9007-040
148 FILTER CERA CF001~002 5PE107MS3A SFELA10M7HA00-B0 212 COIL PEAKING L001 5CPZ100K02 10UH K (AXIAL 3.5MM)
149 FILTER CF201 5PPCFAZ077 PCFAZ077 213 AM RF UNIT L101 5LR0000835 KSNT 213M-1
150 C MYLAR CM201~202 CMXM2A223J 100V 0.022MF J 214 COIL PEAKING L251 5CPZ100K02 10UH K (AXIAL 3.5MM)
151 C MYLAR CM405~408 CMXM2A104J 100V 0.1MF J 215 COIL BIAS OSC L601 5L0503K643 SM-10F 5.04MH
152 C MYLAR CM409~410 CMXM2A562J 100V 5600PF J 216 TR Q001 TZTC3194Y- KTC3194Y
153 C MYLAR CM603~604 CMXM2A223J 100V 0.022MF J 217 TR Q003 TZRA107M-- KRA107M (KSR2006)
154 C MYLAR CM605~606 CMXM2A102J 100V 0.001MF J 218 TR Q501 TZTA1266Y- KTA1266Y- (AUTO)(1015Y)
155 C MYLAR CM609~610 CMXM2A153J 100V 0.015MF J 219 TR Q502 TZTA1273Y- KTA1273Y(966Y)
156 C MYLAR CM611 CMXM2A223J 100V 0.022MF J 220 TR Q503 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
157 C MYLAR CM612 CMXM2A332J 100V 3300PF J 221 FET Q601~602 TKTK117Y-- KTK117(Y)
158 C MYLAR CM613 CMXM2A153J 100V 0.015MF J 222 TR Q603~604 TZTA1266Y- KTA1266Y- (AUTO)(1015Y)
159 C MYLAR CM614 CMXM2A222J 100V 2200PF J 223 TR Q605 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
160 C MYLAR CM801~802 CMXM2A104J 100V 0.1MF J 224 TR Q607 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
161 C MYLAR CM803~804 CMXM2A473J 100V 0.047MF J 225 TR Q612 TZRC111M-- KRC111M
162 C MYLAR CM901~904 CMXM2A223J 100V 0.022MF J 226 TR Q613 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
163 C MYLAR CM916~918 CMXM2A223J 100V 0.022MF J 227 TR Q614 TZRC107M-- KRC107-M TAPPING(KSR1006)
164 C MYLAR CM921~923 CMXM2A223J 100V 0.022MF J 228 TR Q615~620 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
165 CONN PIN CN401 9736407600 53095-1310 13PIN BASE 229 TR Q621 TZTA1273Y- KTA1273Y(966Y)
166 CONN PIN CN402 9736407600 53095-1310 13PIN BASE 230 TR Q626 TZTA1273Y- KTA1273Y(966Y)
167 CONN AS CN603 9738834900 UL 2468 #26 4P+3P+2P 300MM 231 TR Q627 TZRC111M-- KRC111M
168 WAFER CW101 2503-WR-02 2P S2B-XH-A 232 TR Q801~802 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
169 WAFER CW501 9738842900 16P FFC PIT1.0 233 TR Q803 TZRA111M-- KRA111M
170 WAFER CW502 2001-WS-06 6P 2.0MM 234 TR Q804 TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
171 WAFER CW503 2001-WS-12 12P 2.0MM 235 TR Q805 TZRA111M-- KRA111M
172 WAFER CW601 2503-WS-03 3P 2.5MM 236 TR Q901 TZTA1274Y- KTA1274Y-
173 WAFER CW602 2503-WS-05 5P 2.5MM 237 R FUSIBLE RF901~902 RF-2F478J- 1/2W 0.47 OHM J
174 WAFER CW603 2503-WS-09 9P 2.5MM 238 R SEMI FIXED RV601 RV1417222- 1/10 2.2K OHM B V6EK-PV1S
175 WAFER CW605 2503-WS-02 2P 2.5MM 239 WIRE JUMPER R002 W581GY6095 AWG22 1/0.65 SN 6 AUTO
176 WAFER CW705 2503-WS-13 13P 2.5MM 240 R CARBON FILM R003 RD-AZ470J- 1/6 47 OHM J
177 WAFER CW991 2503-WS-08 8P 2.5MM 241 R CARBON FILM R004 RD-AZ100J- 1/6 10 OHM J
178 DIODE ZENER DZ601~602 DZTZ6R2B-- MTZ6.2B 242 R CARBON FILM R005 RD-AZ332J- 1/6 3.3K OHM J
179 DIODE ZENER DZ901 DZTZ30B--- MTZ30B 243 R CARBON FILM R006 RD-AZ681J- 1/6 680 OHM J
180 DIODE ZENER DZ902 DZTZ6R2B-- MTZ6.2B 244 R CARBON FILM R007 RD-AZ331J- 1/6 330 OHM J
181 DIODE D201 DZN4148--- IN4148 AUTO 52MM 245 R CARBON FILM R008 RD-AZ101J- 1/6 100 OHM J
182 DIODE D401~402 DZN4148--- IN4148 AUTO 52MM 246 R CARBON FILM R101 RD-AZ472J- 1/6 4.7K OHM J
183 DIODE D472~473 DZN4148--- IN4148 AUTO 52MM 247 R CARBON FILM R103~105 RD-AZ472J- 1/6 4.7K OHM J
184 DIODE D501 DZN4148--- IN4148 AUTO 52MM 248 R CARBON FILM R106 RD-AZ332J- 1/6 3.3K OHM J
185 DIODE D601~603 DZN4148--- IN4148 AUTO 52MM 249 R CARBON FILM R107 RD-AZ223J- 1/6 22K OHM J
186 DIODE D605~608 DZN4148--- IN4148 AUTO 52MM 250 R CARBON FILM R109 RD-AZ104J- 1/6 100K OHM J
187 DIODE D610 DZN4148--- IN4148 AUTO 52MM 251 R CARBON FILM R201 RD-AZ682J- 1/6 6.8K OHM J
188 DIODE D801~802 DZN4148--- IN4148 AUTO 52MM 252 R CARBON FILM R202 RD-AZ473J- 1/6 47K OHM J
189 DIODE D901~902 DIN4001--- IN4001 253 R CARBON FILM R203 RD-AZ822J- 1/6 8.2K OHM J
190 DIODE D904~907 DRL202---- RL202 254 R CARBON FILM R204A RD-AZ123J- 1/6 12K OHM J
191 DIODE D911~912 DIN4001--- IN4001 255 R CARBON FILM R204B RD-AZ183J- 1/6 18K OHM J
192 IC IC201 1LA1833N-- LA1833N 256 R CARBON FILM R205~206 RD-AZ102J- 1/6 1K OHM J
ElectricalPartsList
18
MODEL : XM-111

Electrical Parts List
NO PART-NAME LOCATION PART-CODE PART-DESC REMARK NO PART-NAME LOCATION PART-CODE PART-DESC REMARK
257 R CARBON FILM R207 RD-AZ121J- 1/6 120 OHM J 321 R CARBON FILM R532 RD-AZ333J- 1/6 33K OHM J
258 R CARBON FILM R208 RD-AZ332J- 1/6 3.3K OHM J 322 R CARBON FILM R533 RD-AZ104J- 1/6 100K OHM J
259 R CARBON FILM R209 RD-AZ472J- 1/6 4.7K OHM J 323 R CARBON FILM R534 RD-AZ562J- 1/6 5.6K OHM J
260 R CARBON FILM R210 RD-AZ682J- 1/6 6.8K OHM J 324 R CARBON FILM R535 RD-AZ183J- 1/6 18K OHM J
261 R CARBON FILM R211 RD-AZ100J- 1/6 10 OHM J 325 R CARBON FILM R536 RD-AZ683J- 1/6 68K OHM J
262 R CARBON FILM R212~213 RD-AZ182J- 1/6 1.8K OHM J 326 R CARBON FILM R537 RD-AZ273J- 1/6 27K OHM J
263 R CARBON FILM R216 RD-AZ473J- 1/6 47K OHM J 327 R CARBON FILM R538 RD-AZ683J- 1/6 68K OHM J
264 R CARBON FILM R217~218 RD-AZ822J- 1/6 8.2K OHM J 328 R CARBON FILM R539 RD-AZ184J- 1/6 180K OHM J
265 R CARBON FILM R219~220 RD-AZ223J- 1/6 22K OHM J 329 R CARBON FILM R540 RD-AZ153J- 1/6 15K OHM J
266 R CARBON FILM R221 RD-AZ563J- 1/6 56K OHM J 330 R CARBON FILM R541 RD-AZ103J- 1/6 10K OHM J
267 R CARBON FILM R251 RD-AZ102J- 1/6 1K OHM J 331 R CARBON FILM R542 RD-AZ683J- 1/6 68K OHM J
268 R CARBON FILM R252 RD-AZ470J- 1/6 47 OHM J 332 R CARBON FILM R543 RD-AZ103J- 1/6 10K OHM J
269 R CARBON FILM R253 RD-AZ222J- 1/6 2.2K OHM J 333 R CARBON FILM R544 RD-AZ473J- 1/6 47K OHM J
270 R CARBON FILM R254 RD-AZ103J- 1/6 10K OHM J 334 R CARBON FILM R545~546 RD-AZ273J- 1/6 27K OHM J
271 R CARBON FILM R255 RD-AZ100J- 1/6 10 OHM J 335 R CARBON FILM R547 RD-AZ683J- 1/6 68K OHM J
272 R CARBON FILM R256 RD-AZ102J- 1/6 1K OHM J 336 R CARBON FILM R548 RD-AZ333J- 1/6 33K OHM J
273 R CARBON FILM R257~258 RD-AZ103J- 1/6 10K OHM J 337 R CARBON FILM R549 RD-AZ104J- 1/6 100K OHM J
274 R CARBON FILM R259 RD-AZ123J- 1/6 12K OHM J 338 R CARBON FILM R550 RD-AZ333J- 1/6 33K OHM J
275 R CARBON FILM R260~263 RD-AZ102J- 1/6 1K OHM J 339 R CARBON FILM R551~552 RD-AZ103J- 1/6 10K OHM J
276 R CARBON FILM R264~265 RD-AZ222J- 1/6 2.2K OHM J 340 R CARBON FILM R553 RD-AZ154J- 1/6 150K OHM J
277 R CARBON FILM R290 RD-AZ105J- 1/6 1M OHM J 341 R CARBON FILM R554 RD-AZ105J- 1/6 1M OHM J
278 R CARBON FILM R401~402 RD-AZ822J- 1/6 8.2K OHM J 342 R CARBON FILM R555~556 RD-2Y150J- 1/2 15 OHM J
279 R CARBON FILM R403~404 RD-AZ153J- 1/6 15K OHM J 343 R CARBON FILM R557 RD-AZ104J- 1/6 100K OHM J
280 R CARBON FILM R405~406 RD-AZ392J- 1/6 3.9K OHM J 344 R CARBON FILM R558 RD-AZ102J- 1/6 1K OHM J
281 R CARBON FILM R407~408 RD-AZ682J- 1/6 6.8K OHM J 345 R CARBON FILM R559 RD-AZ822J- 1/6 8.2K OHM J
282 R CARBON FILM R409~410 RD-AZ102J- 1/6 1K OHM J 346 R CARBON FILM R560 RD-AZ123J- 1/6 12K OHM J
283 R CARBON FILM R411~412 RD-AZ153J- 1/6 15K OHM J 347 R CARBON FILM R561 RD-AZ273J- 1/6 27K OHM J
284 R CARBON FILM R413~414 RD-AZ182J- 1/6 1.8K OHM J 348 R CARBON FILM R562~563 RD-AZ332J- 1/6 3.3K OHM J
285 R CARBON FILM R415~416 RD-AZ392J- 1/6 3.9K OHM J 349 R CARBON FILM R564 RD-AZ102J- 1/6 1K OHM J
286 R CARBON FILM R421~422 RD-AZ104J- 1/6 100K OHM J 350 R CARBON FILM R567 RD-AZ102J- 1/6 1K OHM J
287 R CARBON FILM R423~424 RD-AZ102J- 1/6 1K OHM J 351 R CARBON FILM R568 RD-AZ221J- 1/6 220 OHM J
288 R CARBON FILM R425~426 RD-AZ104J- 1/6 100K OHM J 352 R CARBON FILM R569~570 RD-AZ104J- 1/6 100K OHM J
289 R CARBON FILM R427~428 RD-AZ562J- 1/6 5.6K OHM J 353 R CARBON FILM R571 RD-AZ562J- 1/6 5.6K OHM J
290 R CARBON FILM R431~432 RD-AZ102J- 1/6 1K OHM J 354 R CARBON FILM R572~573 RD-AZ104J- 1/6 100K OHM J
291 R CARBON FILM R433~434 RD-AZ104J- 1/6 100K OHM J 355 R CARBON FILM R574~579 RD-AZ472J- 1/6 4.7K OHM J
292 R CARBON FILM R436~437 RD-AZ101J- 1/6 100 OHM J 356 R CARBON FILM R580~581 RD-AZ103J- 1/6 10K OHM J
293 R CARBON FILM R439~440 RD-AZ473J- 1/6 47K OHM J 357 R CARBON FILM R582 RD-AZ101J- 1/6 100 OHM J
294 R CARBON FILM R441 RD-AZ221J- 1/6 220 OHM J 358 R CARBON FILM R601~604 RD-AZ102J- 1/6 1K OHM J
295 R CARBON FILM R442 RD-AZ104J- 1/6 100K OHM J 359 R CARBON FILM R605~606 RD-AZ820J- 1/6 82 OHM J
296 R CARBON FILM R443~444 RD-AZ474J- 1/6 470K OHM J 360 R CARBON FILM R607~608 RD-AZ683J- 1/6 68K OHM J
297 R CARBON FILM R501 RD-AZ823J- 1/6 82K OHM J 361 R CARBON FILM R609~610 RD-AZ682J- 1/6 6.8K OHM J
298 R CARBON FILM R502~505 RD-AZ393J- 1/6 39K OHM J 362 R CARBON FILM R611~612 RD-AZ272J- 1/6 2.7K OHM J
299 R CARBON FILM R506 RD-AZ823J- 1/6 82K OHM J 363 R CARBON FILM R613~614 RD-AZ102J- 1/6 1K OHM J
300 R CARBON FILM R507 RD-AZ101J- 1/6 100 OHM J 364 R CARBON FILM R615~616 RD-AZ223J- 1/6 22K OHM J
301 R CARBON FILM R508 RD-AZ123J- 1/6 12K OHM J 365 R CARBON FILM R617~618 RD-AZ272J- 1/6 2.7K OHM J
302 R CARBON FILM R509 RD-AZ153J- 1/6 15K OHM J 366 R CARBON FILM R619~620 RD-AZ103J- 1/6 10K OHM J
303 R CARBON FILM R510 RD-AZ220J- 1/6 22 OHM J 367 R CARBON FILM R621 RD-AZ333J- 1/6 33K OHM J
304 R CARBON FILM R512 RD-AZ100J- 1/6 10 OHM J 368 R CARBON FILM R622 RD-AZ105J- 1/6 1M OHM J
305 R CARBON FILM R513 RD-AZ474J- 1/6 470K OHM J 369 R CARBON FILM R623 RD-AZ683J- 1/6 68K OHM J
306 R CARBON FILM R514 RD-AZ100J- 1/6 10 OHM J 370 R CARBON FILM R624 RD-AZ103J- 1/6 10K OHM J
307 R CARBON FILM R515 RD-AZ682J- 1/6 6.8K OHM J 371 R CARBON FILM R625~626 RD-AZ184J- 1/6 180K OHM J
308 R CARBON FILM R516 RD-AZ153J- 1/6 15K OHM J 372 R CARBON FILM R627~628 RD-AZ151J- 1/6 150 OHM J
309 R CARBON FILM R517 RD-AZ273J- 1/6 27K OHM J 373 R CARBON FILM R629~630 RD-AZ224J- 1/6 220K OHM J
310 R CARBON FILM R518 RD-AZ562J- 1/6 5.6K OHM J 374 R CARBON FILM R631~632 RD-AZ822J- 1/6 8.2K OHM J
311 R CARBON FILM R519~520 RD-AZ103J- 1/6 10K OHM J 375 R CARBON FILM R633~634 RD-AZ392J- 1/6 3.9K OHM J
312 R CARBON FILM R521 RD-AZ154J- 1/6 150K OHM J 376 R CARBON FILM R635~636 RD-AZ561J- 1/6 560 OHM J
313 R CARBON FILM R522~523 RD-AZ562J- 1/6 5.6K OHM J 377 R CARBON FILM R637~638 RD-AZ184J- 1/6 180K OHM J
314 R CARBON FILM R524 RD-AZ102J- 1/6 1K OHM J 378 R CARBON FILM R639~640 RD-AZ472J- 1/6 4.7K OHM J
315 R CARBON FILM R525 RD-AZ104J- 1/6 100K OHM J 379 R CARBON FILM R641 RD-AZ103J- 1/6 10K OHM J
316 R CARBON FILM R526 RD-AZ100J- 1/6 10 OHM J 380 R CARBON FILM R643~644 RD-AZ223J- 1/6 22K OHM J
317 R CARBON FILM R527 RD-AZ224J- 1/6 220K OHM J 381 R CARBON FILM R645~648 RD-AZ472J- 1/6 4.7K OHM J
318 R CARBON FILM R528 RD-AZ100J- 1/6 10 OHM J 382 R CARBON FILM R649 RD-AZ823J- 1/6 82K OHM J
319 R CARBON FILM R529~530 RD-AZ562J- 1/6 5.6K OHM J 383 R CARBON FILM R650 RD-AZ124J- 1/6 120K OHM J
320 R CARBON FILM R531 RD-AZ103J- 1/6 10K OHM J 384 R CARBON FILM R651 RD-AZ103J- 1/6 10K OHM J
ElectricalPartsList
19
MODEL : XM-111
