INSTRUCTION MANUAL
DWD-E113R
Washing Machine Instruction Manual
CONTENTS Page
A NOTE TO YOU
Thank you for buying a DAEWOO appliance.
DAEWOO washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer property and safely.
Please read it carefully.
󱇲Economic wash system
Using artificial intelligence, the washer uses minimum energy and water by selecting
optimal water level and washing time.
󱇲Low noise system
The washer minimizes the washing and spinning noises by sensing the amount of
laundry.
󱇲Child-Lock
The Child-Lock system has been used to prevent children from pressing any button
to change the program during operation.
󱇲Nano-silver sterilization washing(Option)
By applying very fine silver particles on essential parts inside, the washer sterilizes
up to 99.9% as is done by boiling wash.
󱇲Air bubble washing(Option)
This is an advanced technology that generates millions of air bubbles inside the drum on washing sequence, and the
bubbles dissolve the detergent particles completely and cleanse all the soil in clothes gently and neatly.
󱇲SUPERIOR INTERIOR DESIGN
By Applying graceful design for Front Door, the Washer matches very well with other Furnitures and Appliances.
And By placing the Handle of Door on the Upper side, it is convenient to open and close the door.
PARTS AND FEATURES..................................................................................................................................2
WASHER SAFETY............................................................................................................................................3
INSTALLATION INSTRUCTIONS .....................................................................................................................4
INLET HOSE CONNECTION ............................................................................................................................5
ELECTRICAL REQUIREMENTS.......................................................................................................................6
OPERATING YOUR WASHER..........................................................................................................................7
THE FUNCTIONS OF THE CONTROL PANEL................................................................................................9
WASHING PROGRAM....................................................................................................................................10
WASHING PROCEDURE AND SELECTION..................................................................................................11
GUIDE FOR OTHER USEFUL PROGRAMS..................................................................................................23
MAINTENANCE...............................................................................................................................................27
HOW TO CLEAN THE FILTER........................................................................................................................28
REMOVING STAINS .......................................................................................................................................29
TROUBLE SHOOTING....................................................................................................................................30
SPECIFICATION .............................................................................................................................................31

2
PARTS AND FEATURES
The parts and features of your washer are illustrated on the page.
Become familiar with all parts and features before using your washer.
Accessories
NOTE
The drawings in the book may vary from your washer model.
They are designed to show the different features of all models coverd by this book,
Your model may not include all features.
Hose drain Inlet hose Spanner Manual Cap holder(4EA)
ADJUSTABLE LEG
CONTROL PANEL
DOOR
PUMP COVER
DETERGENT CASE
INLET HOSE
(HOT, OPTION) INLET HOSE (COLD)
POWER CORD
HOSE DRAIN

3
Save these instructions
Your safety is important to us.
To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the
following basic precautions.
Understanding your responsibilities
• Do not use chlorine bleach and ammonia or acid(such as vinegar or rust remover) in the same
wash. Hazardous fumes can form.
• Unplug power supply cord before attempting to service your washer.
• Do not wash fiberglass material.
Small particles can stick to fabrics washed in following loads and cause skin irritation.
• Do not spray water on the control panel of the washer.
It could cause fire or an electric shock.
• In case of the dual valve model, if you connect only cold water inlet valve, while water
temperature is selected as hot or warm, there can be water leakage from unconnected water
inlet valve.
• This appliance must be grounded.
To avoide electrical shock, use a metal pipe for the ground connection.
• Flammable fluids (dry-cleaning solvents,
kerosene, gasoline, etc.) should not be used
or stored in or near your washer.
Do not add flammable fluids to your wash
water.These substances give off vapors that
can create a fire hazard or explosion.
• After starting a cycle, do not reach into the
washer until all motions stop.
• Do not tamper with the controls.
• The appliance is not intended for use by
young children or infirm persons without
supervision.
• If the supply cord is damaged, it must be
replaced by the manufacturer, or its service
agent or a similarly qualified person in order
to avoid a hazard.
• If the appliance is supplied from a cord
extension set or electrical portable outlet
device it should be positioned so that it is not
subjected to splashing or ingress of
moisture.
Please ...
• Have only a qualified person install, repair,
or replace parts on washer.
• Maintain washer properly.
• Protect washer from the weather and keep
it where the temperature will not fall below
freezing.
• Do not install the washer at a place of
extremely high humidity. It could cause an
electric shock or a short circuit.
• Connect washer to the correct outlet,
electrical supply, water supply, and drain
supply.
WASHER SAFETY
Read all instructions before using your washer

4
Removing transit bolts
1. Before operating the washer, remove the
transit bolts(4ea) along with the rubber.
• If the bolts are not removed, it may cause
heavy vibration, noise and malfunction.
2. Unscrew the 4 bolts with the spanner
supplied. Keep the 4 bolts and spanner for
future use.
• Whenever the appliance is transported, the
transit bolts must be refitted.
3. Close the holes with the cap holders supplied.
Location of washer
• Check location where the washer will be installed. Make sure you have everything necessary for
correct installation.
• Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.
• Do not place or store laundry products on top of washer at any times.
• Install the washer on the horizontal solid floor.
If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate
severely and cause a malfunction. If the washer is not level, adjust leg up or down for horizontal
installation.
• Ventilation openings must not be obstructed by carpeting when the washer is installed on a
carpeted floor.
• Leave some space (right & left : 2cm, rear : 10cm).
• In case of built-in installation, the distance between top of the washer and bottom of upper plate
should be at least 3mm.
INSTALLATION INSTRUCTIONS

5
The washer should be connected to the water mains using new hose sets and old hose sets
should not be reused.
In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the
cold water inlet valve.
Option : Be careful not to confuse hot water inlet and cold water inlet.
For Ordinary Tap
For Screw-Shaped Tap

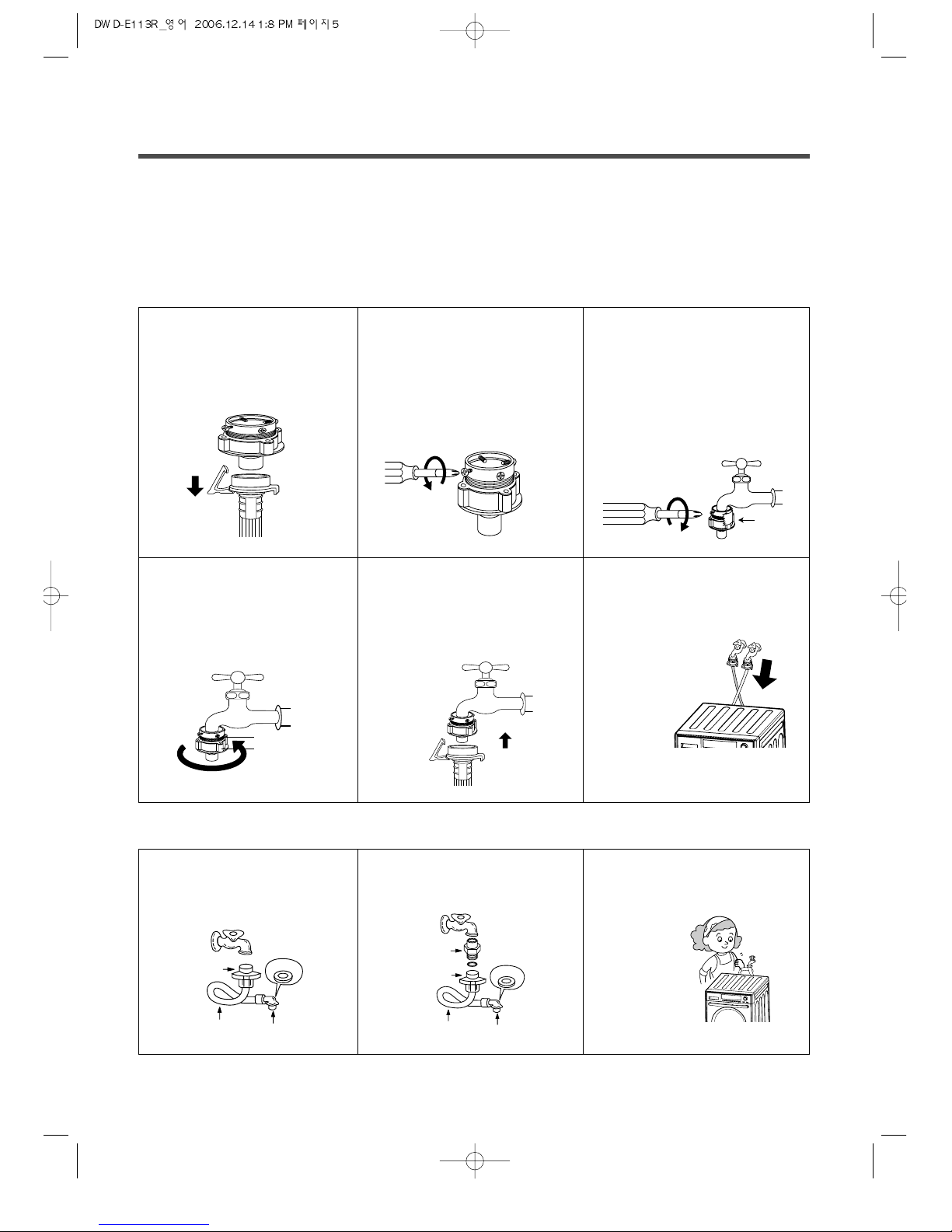

INLET HOSE CONNECTION
1Pull down the collar of the
inlet hose to separate it
from the water tap
adapter.
2Loosen the four screws
properly in order to fit into
water tap.
3Fit the water tap adapter
into the water tap and
tighten the four screws
evenly while pushing up
the adapter so that the
rubber packing can stick
to the water tap tightly.
4Remove the tape, and
screw connector B into
connect A tightly.
5Connect the inlet hose to
the water tap adapter by
pulling down the collar of
the hose end.
6Connect the inlet hose
adapter of the hose to the
water inlet of the washer
by turning it clockwise to
be fixed tightly.
• Please check the rubber
packing present inside the inlet
hose adapter of the hose.
1Connect the inlet hose to
the water tap by screwing
the connector tightly.
2Connect the connector-
inlet supplied if necessary. 3Connect the inlet hose adapter to the water inlet
of a washer and turn it to
be fixed.
*Check the packing in the inlet
TAPE
Connector B
Connector A
Connector
Connector
Rubber
Packing
Hose
Connector Rubber
Packing
Hose
Connector
inlet
Connector

6
ELECTRICAL REQUIREMENTS
•Electrical earth is required on this washer
•If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
•Don’t earth to a gas pipe.
•Don’t change the power supply cord plug.
•Check with a qualified electrician if you are not
sure the washer is properly earthed.
WARNING
Recommended earthing method
Electrical shock hazard : Failure to follow these instructions could result in death or serious injury.
For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord ‘A’having a earthing plug ‘B’.
To minimize possible shock hazard, the cord must be plugged into a mating earthing-
type wall receptacle ‘C’. If a mating wall receptacle is not available, it is the personal
responsibility and obligation of the customer to have the proper earthed wall
receptacle installed by a qualified electrician.
C
B
A
Drain system
•Never forget to install drain hose before operating your washer.
•Open the packing box, and there is a drain hose inside the drum.
•Connect the drain hose to the drain outlet at the back side of the washer.
•Proper securing of the drain hose will protect the floor from damage due to water leakage.
•When the drain hose is too long, do not force it back into the washer. This will cause abnormal noise.
•For Pump Model
Top of laundry tub must be at least 60cm high and no higher than 100cm For Pump Model of washer.
When installing the drain hose to tub(sink), secure it tightly with a string.
•For Non-Pump Model
If you need to extend drain hose,
contact the sales agent, or service center.
Level adjustment
1If the washer is installed on an unsuitable floor,
it could make considerable noise, vibrate and
cause a malfunction.
contacting outlet
Connect the - type end
of drain hose to the end
of contacting outlet securely.
less than 1m less than
10cm
Height of Length of
drain hose drain hose
if the height of drain hose less than 10cm less than 1m
is elevated in the middle
If not the height of drain –less than 3m
hose is elevated in the middle
For extending the drain hose, the type of end of drain hose to be used is not "ㄱ" type, but "-" type.

7
OPERATING YOUR WASHER

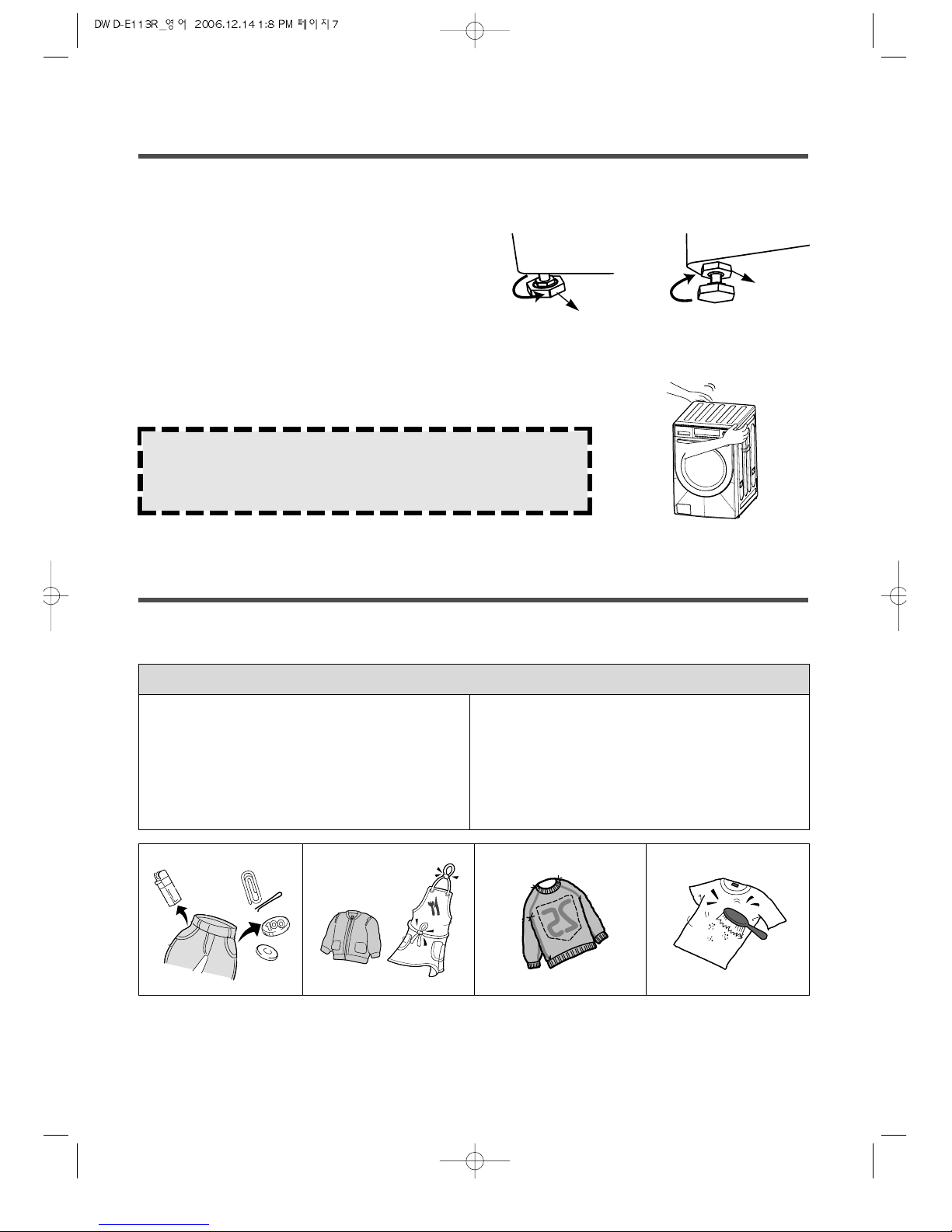

2Adjust the level of washer using adjustable legs.
•Please check if there is any gap between the
four adjustable legs and the floor.
•Turning adjustable legs by the enclosed
spanner, adjust the level of washer and make
it sure that there is no swaying of washer.
•After the adjustment is finished, turn the fixing
nuts up tightly so that the washer maintains
the adjustment.
3Make it sure that the washer does not sway when you press
down the four corners of the washer's top plate.
adjustable leg
Fixing Nut
NOTE
There should be no swaying of washer and all the
adjustable legs should stick to the floor closely.
To obtain the best washing results, you must operate your washer properly.
This section gives you this important information.
•Close zippers, snaps, and hooks to avoid
snagging other items.
Remove pin, buckles, and other hard
objects to avoid scratching the washer
interior.
•Empty pockets and pull them inside out.
•Turn down cuffs and turn synthetic knits
inside out to avoid pilling.
•Tie strings and sashes to avoid tangling.
•Treat spots and stains.
(See “Removing stains”on page 21)
Preparing clothes for washing

8
•Drop items into washer loosely. Items
should move easily through wash water for
best cleaning and wrinkle-free results.
•Load washer properly and select correct
load size setting.
Overloading and selecting a setting too
small for the wash load can :
- Cause poor cleaning
- Increase wrinkling
- Create excessive lint
- Wear out items faster (because of pilling)
•Mix large and small items in each load. Load
evenly to maintain washer balance.
An unbalanced load can make the washer
vibrate during spin.
•Reduce wash time when using a small load
size setting. Load with only a few small
items needs less wash time.
•Use a large load size setting to reduce
wrinkling with permanent press clothes and
some synthetic knits. These items should
have more room to move in the water than
heavy items. (towels, jeans)
Loading
1Detergent case 2Adding fabric softener
•If desired, add measured liquid fabric
softener to the softener inlet.
•Pour liquid fabric softener into the
dispenser using the amount
recommended on the package.
•Do not exceed the maximum fill line.
Overfilling can cause early dispensing of the
fabric softener which could stain clothes.
•Do not open the detergent case when
water is supplied.
•Avoid pouring fabric softener directly on
the clothes.
Adding detergent
•Separate heavily soiled items from lightly soiled ones, even if they would normally be washed
together.
•Separate dark colors from light colors, colorfast items from non-colorfast item.
Sorting
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lignts, Darks) Separate white clothes from colored clothes.
Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately.
Main wash Pre wash
Fabric softener

9
Press this switch to turn the power 'ON' or 'OFF'.
Operation and temporary stop is repeated as it is pressed. When you want to change program in
operating; Press the 'Start/Pause' button →Select the program that you want to change→Press the
'Start/Pause' button again.
If you press the dial 'B', you take the dial 'B' out automatically,
If you want to select the course, you turn the dial 'B' and each lamp in 'A' is lighted corresponding to
the course you select.
You can select the spin speed you want and corresponding lamp is turned on when that spin
speed is selected.
It can be used to pre-engage time for wash from 2 hr to 12 hrs.
(For the Anti-Allergy Course, it is possible to choose from 1:00 hrs to 12:00 hrs.
You can select the dry condition you want and corresponding lamp is turned on when that dry
condition is selected.
If you want to open Door intensionally during operation, press the 'Start/Pause' button and press again
'Door unlock' button.
In this case, signal will be appeared on PCB board, then you can open Door after cooling insideTub
temperature and draining water, also no button functions except Power button.
Use to curtail the full cycle time to about 10 min.
After you select the course, you press the 'Time Save' button, and ‘Time Save’is lighted.
If you select the course as follows: 'Drum Drying', 'Quick 30','Anti-Allergy', 'Time Save' is not selected.
You can select the wash course you want and each lamp is turned on when that course is selected.
As this button is pressed, the wash course is selected by 'Main Wash'
→ 'Pre Wash' → 'Soak' → 'Adding
10min'
→ 'Adding 20min'
You can select the rinse time(s) you want and each lamp is turned on when that course is selected.
As this button is pressed, the rinse time(s) is selected by '1'
→ 'Add Water' → '2' → 'Add Water' →
... ... → '5' → 'Add Water' → '1'.
Use this function when you want to protect any accident occurring from handling of washer by a child.
During an operation of washer, press 'SPIN' and 'DRY' buttons simultaneously during 3 second.
If this mode will be set successfully, CHL and remain time will be showen on PCB board alternately.
In Child Lock mode, no button functions except Power button.
If you want to set this mode, press 'SPIN' and 'DRY' buttons simultaneously during 3 second.
And if you want to release this mode, press 'SPIN' and 'DRY' buttons simultaneously again during 3
second.
If you want to change to the desire program, while this mode is working;
1. Press 'SPIN' and 'DRY' buttons simultaneously again during 3 second.
2. Press the 'Start/Pause' button.
3. Select the desired program and press the
'Start/Pause' buttom again.
* The Child Lock will be cancelled when power is off.
THE FUNCTION OF CONTROL PANEL
Change
the desired
program
AB

10
WASHING PROGRAM
Program
Normal
Maximum
Load (kg)
For Wash : 11
For Dry : 6.5
For Wash : 11
For Dry : 6.5
For Wash : 11
For Dry : 6.5
For Wash : 11
For Dry : 6.5
For Wash : 11
For Dry : 6.5
For Wash : 3
Dry is not
allowed
For Wash : 2
For Dry :1.0
For Wash : 5
Dry is not
allowed
For Wash : 3
For Dry :1.5
without load.
Proper Temp.
40 °C
(cold,30°C, 60°C)
Default data
Wash: main wash
Rinse: 2
Spin: Medium
Temp.: 40°C
Wash: main wash
Rinse: 3
Spin: Medium
Temp.: 95°C
Wash: main wash
Rinse: 3
Spin: Medium
Temp.: 60°C
Wash: main wash
Rinse: 2
Spin: Medium
Temp.: 40°C
Wash: pre wash
Rinse: 3
Spin: Medium
Temp.: 40°C
Wash: main wash
Rinse: 2
Spin: Low
Temp.: cold
Wash: main wash
Rinse: 1+Add Water
Spin: Medium
Temp.: 40°C
Wash: main wash
Rinse: 3
Spin: Medium
Temp.: cold
Wash: main wash
Rinse: 1+Add Water
Spin: Medium
Temp.: cold
Wash: soak
Rinse: 2
Spin: 400
Temp.: cold
(Dry :cupboard)
95 °C
(fixed)
60 °C
(40°C)
40 °C
(30°C, 60°C, 95°C)
40 °C
(cold, 30°C, 60°C)
Cold
(fixed, in order to
prevent textile damage)
40°C
(cold, 30°C, 60°C)
Cold
(fixed, in order to
prevent textile damage)
30 °C
(cold)
Cold
Fabric type
Colorfast garments (shirts,
night dresses, pajamas,..) and lightly
soiled white cottons(underwares,..)
First check whether laundry is
machine washable.(white cotton,
linen, towel and sheets..)
First check whether laundry is
machine washable.(white cotton,
linen, towel and sheets..)
Cotton Clothes
Heavy soiled clothes
(blue-jean,climbing clothes, ruck
sack, sports wear,...)
Machine washable woolens with
pure new wool only
Small amount of clothes less than
2kg
Blanket, curtains,..
Lightly soiled clothes and frequently
washing clothes and small amount
of clothes.
Use to memory program you want.
Use to clean (and dry) the Tub
and Drum.
White
Eco-White
Cotton
Heavy Stain
Wool
Small Wash
Blanket
Quick 30
Memory
DRUM
DRYING
For Dry : 4-coldUse to sterilize the small amount of
clothes
Anti-Allergy
