DAF DAVIE XDc II User manual

DAVIE XDc II
User Manual
for Runtime 5.3.0
For Laptops with new VCI only

©200706 1
Contents
DAVIE XDc II
1 Safety Notices...................................................................................................... 1-1
1.1 Important safety notices.....................................................................................................1-2
2 General Information ............................................................................................ 2-1
2.1 General Notes.................................................................................................................... 2-1
2.2 Safety Instructions ............................................................................................................. 2-1
2.3 Designated Use ................................................................................................................. 2-2
2.4 Associated Documents ...................................................................................................... 2-2

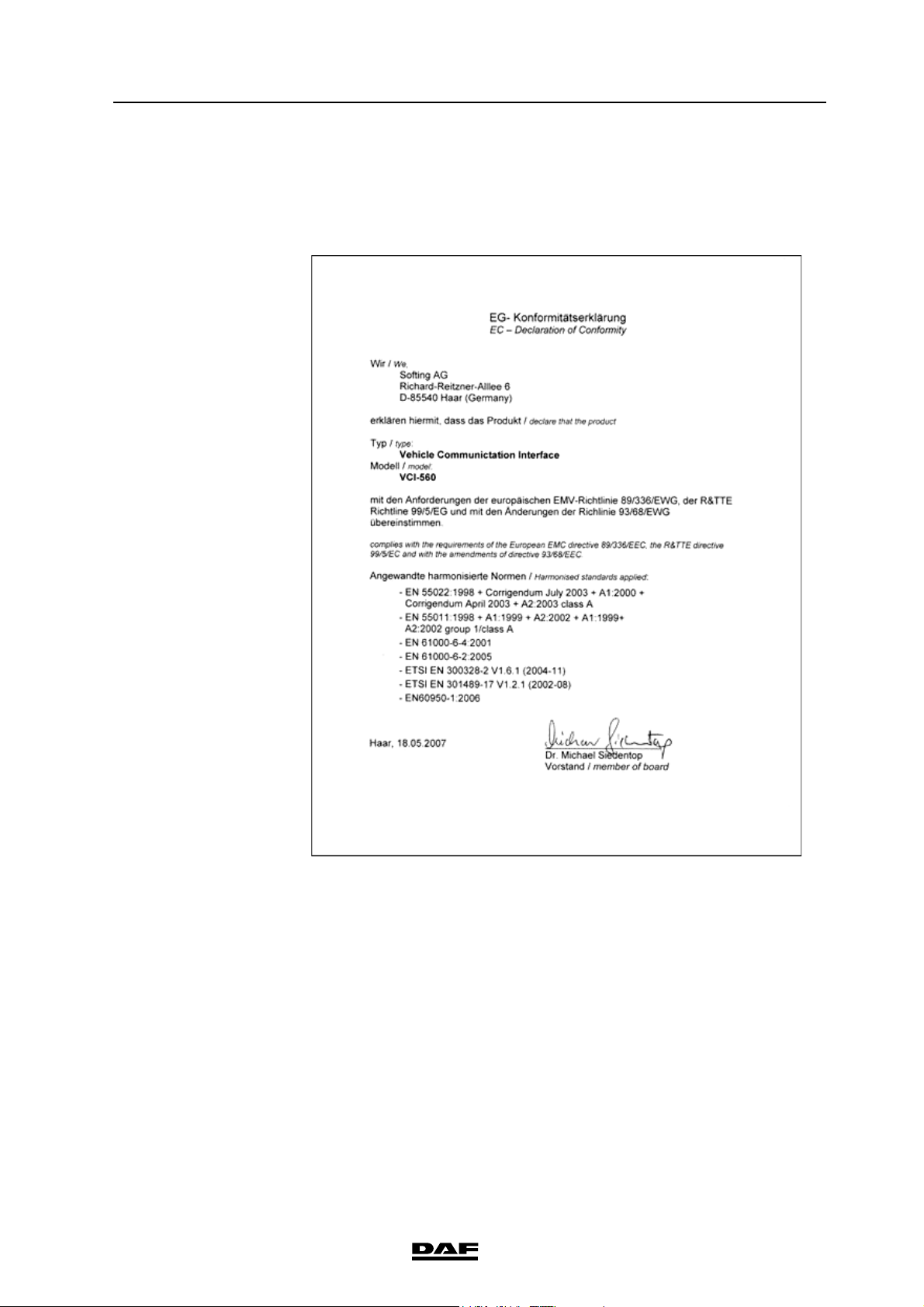

2.5 EC Declaration of Conformity ............................................................................................ 2-3
2.6 Technical Data................................................................................................................... 2-4
2.6.1 Laptop................................................................................................................................ 2-4
2.6.2 Vehicle Communication Interface (VCI)............................................................................. 2-4
3 Components......................................................................................................... 3-1
3.1 Overview............................................................................................................................ 3-1
3.2 DAVIE XDc II Laptop ......................................................................................................... 3-1
3.3 DAVIE XDc II Software ...................................................................................................... 3-2
3.4 Vehicle Communication Interface (VCI)............................................................................. 3-2
3.4.1 Led Status.......................................................................................................................... 3-4
3.4.2 VCI Battery ........................................................................................................................ 3-5
3.4.2.1 Buffering ............................................................................................................................ 3-5
3.4.2.2 Charging ............................................................................................................................ 3-5
3.4.3 WLAN RF exposure...........................................................................................................3-6
4 Operation.............................................................................................................. 4-1
4.1 Power-up ........................................................................................................................... 4-1
4.2 Start-up and Exit ................................................................................................................ 4-1
4.3 Administrator Login on a newly delivered or installed DAVIE XDc II ................................. 4-1
4.4 User Login ......................................................................................................................... 4-8
4.5 Touchscreen (optional) ...................................................................................................... 4-9
4.6 Use of the Screens ............................................................................................................ 4-10
4.7 Logout................................................................................................................................ 4-12
4.8 How to switch wired or wireless communication................................................................ 4-13
5 Vehicle Identification........................................................................................... 5-1
5.1 Start of Diagnostic Session................................................................................................ 5-1
5.2 Automatic Identification...................................................................................................... 5-2
5.3 Manual Identification.......................................................................................................... 5-4
5.4 Deselect ECU Installation Variant...................................................................................... 5-7
6 Direct Testing....................................................................................................... 6-1
6.1 Overview............................................................................................................................ 6-1
6.2 Vehicle Identification.......................................................................................................... 6-2
6.3 Executing test procedures ................................................................................................. 6-4
6.4 Navigation bar.................................................................................................................... 6-6
6.5 Go To button...................................................................................................................... 6-7
6.5.1 EXIT................................................................................................................................... 6-8
6.5.2 Health Check ..................................................................................................................... 6-8
6.5.3 Fault Memory Contents ..................................................................................................... 6-8
CONTENTS

2©200706
DAVIE XDc II
Contents
6.5.4 Documents .........................................................................................................................6-9
6.5.5 Test Plan ............................................................................................................................6-10
6.5.6 ECU Installation Variants ...................................................................................................6-11
6.5.7 Direct Test Selection Screen..............................................................................................6-11
6.6 Use of illustrations ..............................................................................................................6-11
6.6.1 Index page..........................................................................................................................6-12
6.6.2 Explanation of buttons on the screen .................................................................................6-13
7 Guided Diagnosis ................................................................................................7-1
7.1 Principle op of Guided Diagnosis ....................................................................................... 7-1
7.2 Starting Guided Diagnosis.................................................................................................. 7-2
7.3 Vehicle Identification ..........................................................................................................7-2
7.4 Guided Entry ...................................................................................................................... 7-3
7.5 Guided entry with Fault code(s) .........................................................................................7-3
7.5.1 Health Check......................................................................................................................7-4
7.6 Guided entry with a Symptom ............................................................................................7-5
7.7 Test plan.............................................................................................................................7-7
7.7.1 Test plan Overview.............................................................................................................7-7
7.7.2 Building a Test plan based on Fault codes and Symptoms ...............................................7-8
7.7.3 Test plan screen lay out .....................................................................................................7-9
7.7.4 Executing tests ...................................................................................................................7-10
7.7.4.1 Direct test ...........................................................................................................................7-11
7.7.4.2 Symptom test or Check test ...............................................................................................7-11
7.7.4.3 Measurement Test .............................................................................................................7-12
7.7.5 Function Component selection...........................................................................................7-13
7.8 Extra options ...................................................................................................................... 7-15
7.8.1 Fault Memory Contents ......................................................................................................7-15
7.8.2 Deselecting Systems..........................................................................................................7-16
7.8.3 Suspend session ................................................................................................................7-17
7.9 Quitting Guided Diagnosis..................................................................................................7-21
8 Administration .....................................................................................................8-1
8.1 Overview ............................................................................................................................8-1
8.2 Start Administration ............................................................................................................8-1
8.3 Select Function................................................................................................................... 8-3
8.4 Install update ......................................................................................................................8-4
8.4.1 Install update of a new Runtime CD:..................................................................................8-4
8.4.2 Install update of a new delivered Application CD: ..............................................................8-4
8.4.3 Install a second language...................................................................................................8-6
8.4.4 Install update of a new Parts Rapido Subset CD ...............................................................8-7
8.4.5 Install update(s) from DAVIE XDc Download. .................................................................... 8-7
8.4.6 Install update from Parts Rapido online .............................................................................8-8
8.5 Change language ...............................................................................................................8-8
8.6 Dealership identifier............................................................................................................8-9
8.7 Initial Graphic .....................................................................................................................8-9
8.8 Version information ............................................................................................................8-10
8.9 Contents of application data...............................................................................................8-11
8.10 Passwords..........................................................................................................................8-11
8.11 Log Files.............................................................................................................................8-12
8.12 Helpdesk Log Files.............................................................................................................8-14
8.13 Vehicle test Files ................................................................................................................8-14

©200706 3
Contents
DAVIE XDc II
9 VCI Configuration Manager ................................................................................ 9-1
9.1 VCI Tray Icon..................................................................................................................... 9-1
9.2 Start up the VCI Configuration Manager Program............................................................. 9-3
9.2.1 Status info.......................................................................................................................... 9-3
9.2.2 Basic Setup........................................................................................................................ 9-5
9.2.3 Advanced Setup ................................................................................................................ 9-6
9.2.4 Common Settings .............................................................................................................. 9-9
10 Help....................................................................................................................... 10-1
10.1 Overview............................................................................................................................ 10-1
10.2 Start Help........................................................................................................................... 10-1
10.3 Help Overview ................................................................................................................... 10-2
10.4 Help on Topics................................................................................................................... 10-3
10.5 Help on the selected button ............................................................................................... 10-4
11 Troubleshooting .................................................................................................. 11-1
11.1 Classification...................................................................................................................... 11-1
11.2 Computer Hardware .......................................................................................................... 11-2
11.2.1 Laptop self test .................................................................................................................. 11-2
11.2.2 Laptop does not work correctly.......................................................................................... 11-2
11.2.3 Touchscreen (optional) ...................................................................................................... 11-3
11.3 Software installation........................................................................................................... 11-3
11.3.1 Windows Explorer popup................................................................................................... 11-3
11.3.2 CD incompatible with Base-CD ......................................................................................... 11-4
11.3.3 Problems with application data .......................................................................................... 11-4
11.4 Problems with Vehicle Communication Interface (VCI) ..................................................... 11-5
11.4.1 Self-test of the VCI Configuration Manager. ...................................................................... 11-5
11.4.2 VCI Configuration Manager Self-test error list ................................................................... 11-6
11.4.3 Wireless Communication recovery .................................................................................... 11-8
11.5 Fault Report to Local helpdesk .......................................................................................... 11-9
12 Care and Maintenance ........................................................................................ 12-1
12.1 Visual check of the DAVIE XDc II components ................................................................. 12-1
12.2 Cleaning the components .................................................................................................. 12-1
12.2.1 Cleaning the laptop............................................................................................................ 12-1
12.2.2 Cleaning the VCI................................................................................................................ 12-1
12.3 Batteries............................................................................................................................. 12-2
12.3.1 Laptop battery.................................................................................................................... 12-2
12.3.2 VCI battery......................................................................................................................... 12-2
12.3.3 Replace the VCI battery..................................................................................................... 12-2

4©200706
DAVIE XDc II
Contents

©200706 DW33368901
© 200706 DAF Trucks N.V., Eindhoven,
the Netherlands
In the interest of continuing product
development, DAF reserves the right to
change specification or equipment at any time
without notice.
No part of this publication may be reproduced
and/or published by printing, photocopying,
microfilming or by any other means without
the manufacturer's prior permission in writing.

©200706 1-1
Safety Notices
DAVIE XDc II
1 SAFETY NOTICES
Severe injury or damage may result if unqualified persons attempt to work on
the equipment or if the safety notices are disregarded.
The safety notices in this operating manual and on the products have the
following meanings:
DANGER
Indicates an imminently hazardous situation, which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not avoided, could result in
death or serious injury.
CAUTION
Used with the safety alert symbol, this indicates a potentially hazardous
situation, which, if not avoided, may result in minor or moderate injury.
CAUTION
Used without the safety alert symbol, this indicates a potentially hazardous
situation, which, if not avoided, may result in property damage.
NOTICE
Used without the safety alert symbol, this indicates a potential situation, which,
if not avoided, may result in an undesirable result or state.
NOTE
This is important information about the product or how it is used, or indicates a
part of the documentation requiring particular attention.

1-2 ©200706
DAVIE XDc II
Safety Notices
General safety notices are listed below. Additional safety notices are given
throughout the operating manual where they are relevant.
1.1 Important safety notices
Read all the safety notices:
WARNING
Please read the operating and safety instructions which are delivered with the
laptop.
WARNING
If the power cable or DAVIE XDc II is damaged, you must not use the DAVIE
XDc II until a qualified specialist has tested and, if necessary, repaired the
equipment.
WARNING
The power cable must not be laid over tables, benches or cabinets. It must not
be located near hot objects or rotating parts.
WARNING
The length of the power cable must not be extended. Use only the supplied
power cable as far as possible.
WARNING
The DAVIE XDc II must not be operated in the vicinity of open fuel containers
or other open containers with inflammable substances due to the risk of
explosion or fire.
WARNING
Make sure there is adequate ventilation when you are working on vehicles with
running motors to prevent the risk of carbon monoxide poisoning.

©200706 1-3
Safety Notices
DAVIE XDc II
WARNING
Use the DAVIE XDc II only as described in the operating manual. Use only the
manufacturer's recommended attachments.
WARNING
The DAVIE XDc II is a safety class 1 device and is equipped with a safety tested
power cable. It may only be connected to systems with equipment grounding
conductors (TN systems) and grounding sockets.
WARNING
Ensure the DAVIE XDc II is secured during test drives and connect it to the
vehicle using the DAVIE XDc II Interface. A second person must operate the
DAVIE XDc II.
WARNING
If you open the equipment without authorization or carry out improper repairs,
you may place yourself in serious danger.
WARNING
To reduce the risk of electric shock, do not use on wet surfaces or expose to
rain.
NOTE
Fluctuations and deviations of the mains voltage beyond the permissible
tolerance may lead to electronics failures.
KEEP THESE SAFETY NOTICES IN A SAFE PLACE

1-4 ©200706
DAVIE XDc II
Safety Notices

©200706 2-1
General Information
DAVIE XDc II
2 GENERAL INFORMATION
2.1 General Notes
This operating manual contains the necessary information for the proper use of
the "DAF Vehicle Investigation Equipment - Excellence in Diagnosis compact",
known as DAVIE XDc II.
Please refer the DAVIE XD user manual for DAVIE XD and or yellow VCI
specific issues.
This manual is intended for technically qualified personnel with knowledge in
the area of vehicle diagnostics and testing and basic knowledge of Windows
XP.
Knowledge and technically flawless implementation of the safety instructions
and warnings contained in this operating manual are essential for the safe
installation, operation and maintenance of the DAVIE XDc II package.
For reasons of clarity, this operating manual does not contain all the details of
all uses of the operating modes described, and cannot cover every conceivable
case relating to installation, use, servicing and maintenance.
Likewise, the contents of the dialog screens shown here may differ slightly from
those displayed on the screen depending on the version.
2.2 Safety Instructions
Pay attention to the safety instructions for the DAVIE XDc II. They are listed
after the table of contents.

2-2 ©200706
DAVIE XDc II
General Information
2.3 Designated Use
DAVIE XDc II may be used for:
• Vehicle diagnosis
• Inform Service Rapido 2.0 and Parts Rapido 2.2
NOTE
DAF has not tested other NON-DAF released applications on the DAVIE XDc II.
DAF can not guaranty when other applications have been installed on the
DAVIE XDc II, that the DAVIE XDc II application runs free from problems.
The described product was developed, manufactured, tested and documented
in accordance with safety standards. Consequently, if the safety instructions,
the specified commissioning procedure, the rules governing designated use
and the service and maintenance recommendations are followed there is, under
normal circumstances, no danger that the DAVIE XDc II will present any risk to
property or health and safety.
2.4 Associated Documents
In addition to this operating manual, which is intended for use in the workshop,
the following relevant technical documents also apply to the DAVIE XDc II:
• Quickstart Vehicle Communication Interface
• Diagnostic Manual
• Installation Manual
• Application Information

©200706 2-3
General Information
DAVIE XDc II
2.5 EC Declaration of Conformity

2-4 ©200706
DAVIE XDc II
General Information
2.6 Technical Data
2.6.1 Laptop
See originally delivered documentation which is delivered with the laptop.
2.6.2 Vehicle Communication Interface (VCI)
Dimensions (W x D x H) 126 x 214 x47 mm
Weight 1.1 kg
Ambient conditions
Operation
Storage
Temperature gradient
Ambient temperature 0 to +50 °C
Relative humidity 10 to 90 %,
at max. +25 °C non-condensing
Ambient temperature -20 to +80 °C
Relative humidity <90% non-condensing)
5 °C/1 h
Power supply from the vehicle
electrical system
Rated voltages
Current consumption in the
load range
The VCI must be powered from the vehicle.
8 to 32 V DC
Max. 1 A
Power supply from the
rechargeable battery
Battery type
Buffered time
If external power is interrupted, the VCI will be
buffered by the rechargeable battery
NiMH 4,8V/1100mAh
Between 20 and 60 sec or no buffering
Communication
USB
Wireless LAN
For communication by wire to the DAVIE XDc II
For wireless communication to the DAVIE XDc II
via a (internal) wireless network card according
802.11b and 802.11g

©200706 2-5
General Information
DAVIE XDc II
WLAN module VCI
Used WLAN-Module:
Frequency Range:
Type of Transmission:
Transfer Rate:
Number of Channels:
Modulation Type:
Transmit Output Power:
WiPort from Lantronix Inc.
802.11b/g = 2400 – 2483.5 MHz
Direct Sequence Spread Spectrum
1/5.5/11 Mbps for 802.11b mode
6/36/54 Mbps for 802.11g mode
802.11b mode (2400-2483.5 MHz) = 11
802.11g mode (2400-2483.5 MHz) = 11
CCK, OFDM
Ch. 1-11 14dBm Average (Typical)
for 802.11b mode
Ch. 1-10: 14dBm Average &
Ch. 11: 12dBm Average(Typical)
for 802.11g mode

2-6 ©200706
DAVIE XDc II
General Information

©200706 3-1
Components
DAVIE XDc II
3 COMPONENTS
3.1 Overview
DAVIE XDc II system features;
• Portable equipment DAVIE XDc II Laptop with an optional touchscreen and
installed with the DAVIE XDc II software packages: Runtime, Application
and Parts Rapido Subset.
• USB or wireless communication with the diagnostics interface in the vehicle
via the DAVIE XDc II Vehicle Communication Interface (VCI).
• VCI Configuration Manager program to set-up the wireless communication
between the DAVIE XDc II and the DAVIE XDc II Vehicle Communication
Interface (VCI).
Figure 3-1 DAVIE XDc II Panasonic CF-19 with VCI
3.2 DAVIE XDc II Laptop
See originally documentation which is delivered with the laptop.

3-2 ©200706
DAVIE XDc II
Components
3.3 DAVIE XDc II Software
For optimal functioning of the DAVIE XDc II, three CD's must be installed. The
Runtime, Application and Parts Rapido Subset are needed to operate with the
DAVIE XDc II. These CD's are already installed at delivery.
Description of the CD's
3.4 Vehicle Communication Interface (VCI)
The DAVIE XDc II communicates with the ECU's installed in the truck via the
truckside "Diagnostic Connector" by using a special communication interface,
called the Vehicle Communication Interface (VCI).
The VCI switches the input channel automatically to the required data line (K-
line, L-line) or CAN-bus of the truckside "Diagnostic Connector".
The DAVIE XDc II provides two options for the communication between VCI
and DAVIE XDc II, wireless or via cable (USB). Normally, the VCI
communicates with the DAVIE XDc II by Wireless-LAN radio communication.
NOTE
Please take care. The use of wireless communication has to conform to the
local regulations of your country.
The VCI is equipped with a battery to prevent immediate shut down of the VCI
when the power supply is interrupted for a short time. (e.g. ignition off)
CD Content Update sequence
Runtime Diagnostic Operation system ~ once a year
Application System tests for Direct Test and
Guided Diagnosis
Normally every 8 weeks
Parts Rapido Subset Truck database Every 4 weeks
