DAIICHI D1002ISOFIX User manual

Weight
Age
Weight
Age
below 0kg ~ 11kg (Group0)
New-born ~ 12months old
below 11kg ~ 18kg (Group1)
12months ~ 4years old

Do not place a child seat rear-facing in the front seat of a vehicle with a passenger air bag uniess deactivated
DEATH OR SERIOUS INJURY can occur

Keep the manual inside
a belt cover on a backside of the car seat.
Side cushion is recommended for infants under
6 months.Position the cushion to support a child's
head from both sides.
Safe Keeping of Manual How to Use Side Cushion

ISOFIX latch
ISOFIX top tether hook
ISOFIX latch lever
Name of parts
Shoulder belt hole (4 stages)
Head Sheet
Shoulder pad
Fastening plate buckle
Seat cover
Shoulder belt
Upper base
Angle adjusting lever
(Lever to change to the rearward-facing)
Belt Guide
(For Rear-Facing Installation)
Seat Angle Indicator
(For Rear-Facing Installation)
Belt length adjusting lever
Belt cover
When removing the belt cover
Length of the belt cover
The shoulder belt hanger is necessary for
adjusting the height of the shoulder belt.
Belt passage
Belt locking lever
(For Forward-facing Mode)

How to operate
Releasing
Fastening plate
Buckle
Press button
Button Cover
Click
Click
Click Buckle
Press button
Button Cover
Buckle
Press button
Button Cover
Take out the fastening plate by pushing the
press button within the buckle of the front pad.
Fastening plate
Fastening plate
Fastening plate

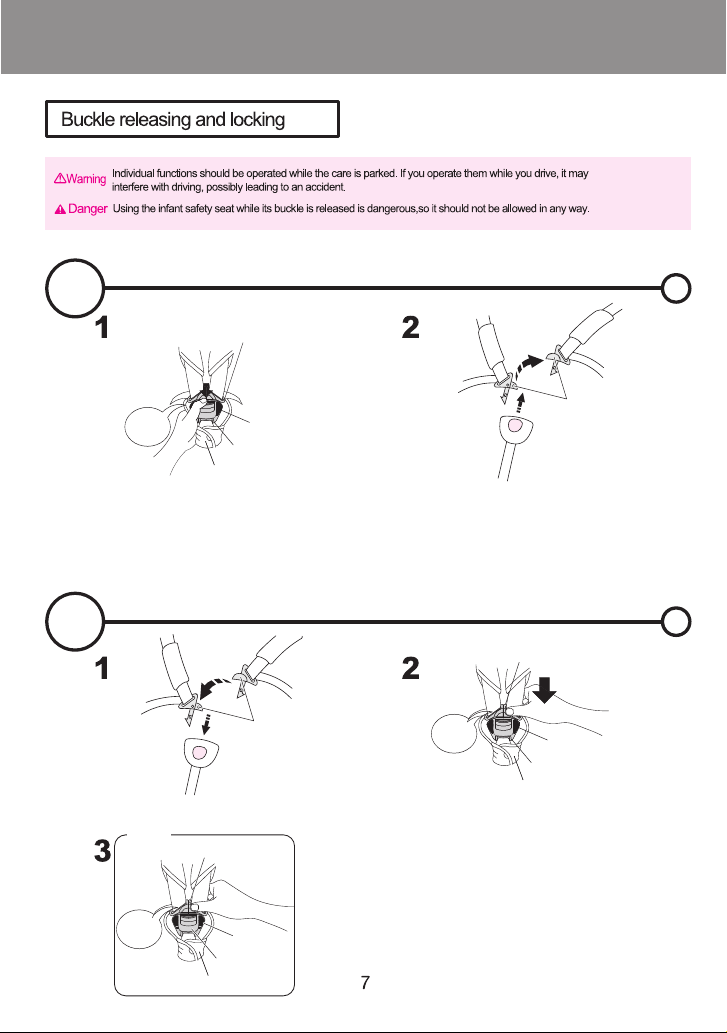

Separate the fastening plate consisting of
2 parts into the upper and lower units.
Locking
Insert the united fastening plate into
the buckle until there is a “Click” sound.
Put together the left and right parts by placing
them into the upper and lower positions individually.
Check
The fastening
plate should be
checked for
its locking.

The angle can be adjusted in four stages, with the 1st ~ 3rd stages for the front
viewing mode, and the 4th stage for the rear viewing mode.
In case of the front viewing mode, the safety seat’s angle needs to be adjusted
according to the angle of the car seat to which the safety seat will be fastened.
How to use the angle adjusting lever
Front viewing mode
Rear viewing
mode
Weight Below 13kgApplicable
Weig Below 9kg ~ 18kgApplicable
Angle adjustment for Rearward - facing mode
In case of the rear viewing mode for the infant safety seat, it can be adjusted to the 4th stage.
The angle adjusting lever needs to be
pulled for pushing it backwards
Lay it down to the 4th stage (The lowest laying position).
(Refer to the arrow on the main body for checking the
position of the angle adjustment)
Lever to change to the rearward facing mode
Angle adjustment for Forward - facing mode
In case of the Forward - facing for the infant safety seat, it can be adjusted in 3 stages ranging from 1st ~ 3rd.
Lever to change to the Forward - facing mode
The angle adjusting lever needs to be pulled
for pushing it backwards
Adjust the angle of the product to one of the 3 stages
according to the angle of the car seat (Refer to the
arrow on the side of the main body).

How to use the locking lever
Locking lever
The locking lever is a device to attach the infant
safety seat into the car firmly. It should be used.
There are 2 locking levers, located at the right and
left side individually. Use the product according to the
attachment position.
Danger The locking lever and the belt guide are used to attach the infant safety seat by using the car seat belt.
They should be used. If they are not used, the safety seat may not be fastened when an impact or an abrupt
stopping occurs, possibly leading to a dangerous situation.
Danger
Before using the product, it should be checked whether it can be attached onto your car seat (Refer to About
the Seats to Which the Safety Seat Can Not Be Attached on page 2). Even when the safety seat can not be
installed as described in the user manual, you should not use any forceful measures to fasten it.
The safety seat may not function fully when a situation occurs, possibly causing an accident unexpectedly.
Caution While operating the locking lever, you should be careful not to get your hands or fingers caught in it.
Locking
Slide the locking lever sideway to unlock.
Insert the car shoulder strap through the locking lever and slide the lever
to the opposite side to lock it while pulling the strap tightly.
Position the strap under the lever and push the lever all the way to securely
hold the strap.
In case of the rearward facing mode only
As indicated above, fix the belt with the locking lever and hang it
to the belt guide while pulling it tightly.
Vehicle shoulder belt
Belt guide
Locking lever
Releasing
Release the car buckle Slide the locking lever to unlock,
and release the car shoulder strap.

Before being attached into the car
How to seat an infant
Each part needs to be adjusted to be suitable for the body of the infant before being attached into the car.
Danger Every time when an infant is seated, the adjusting belt should be pulled to seat the baby tightly. If the shoulder
belt can not function as originally designed, consequently, the infant may risk his or her life, or suffering critical damage.
The buckle of the front pad needs to be released first,
the, the belt adjusting lever needs to be finger-pressed
while pulling and loosening the shoulder belt (Refer to
Buckle Releasing and Locking on page 7)
After the infant is seated, the shoulder belt
needs to be put on. At that time, the height of
the shoulder belt needs to be adjusted to fit the
height of the infant’s shoulder (Refer to Height
Adjustment of the Shoulder Belt on page 11)
Seating
the
infant

The shoulder strap comes in 2 positions upon the product shipment. Adjust the height of the shoulder strap
depending on a child's sitting height.
* Note
Adjustment
Belt cover
Belt cover Shoulder belt
hanger

Headrest Adjustment
For easy operation, insert the shoulder strap through the hole on the backrest cover.
The headrest and shoulder strap move together from the 2nd position of the backrest height.
* Note
Adjustment
1. Pull the head adjustment lever forward on the back of the car seat to adjust
up and down.The headrest can be adjusted to 4 positions.
2. The bottom of the headrest should be aligned close to infant's shoulders.
How to Finish Back Covering
The position of the headrest must be adjusted appropriately to infant's body.
If failed to do so, the safety seat may not deliver sufficient effects.
Flip up the top edge of the backrest covering
when adjusting the headrest. (from the 3rd position)
Roll the flipped edge of the covering inward.
Slide the covering into the space between the backrest
and headrest to neatly finish the covering.
Finished covering
Caution

14

Adjust the height of the shoulder strap and headrest appropriately to infant's body.
(See the shoulder strap and headrest adjustment on page 11 & 12.)

1. Slide the locking lever on the other end of the vehicle mounting plate
sideway to unlock.
2. Insert the car shoulder strap through the locking lever and slide the
lever to the opposite side to lock it while pulling the strap tightly.
(Position the strap under the lever and push the lever all the way to
securely hold the strap.)

slide the strap locking lever sideway and press down to fasten it while pulling
the strap tightly using your body weight from above the car seat after checking
if the car shoulder strap is properly inserted through the locking lever.
Hang the car shoulder strap to the belt guide for dual fix of the strap initially
fastened with the locking lever.
(See how to use locking lever and belt guide on page 9.)

Adjust the height of the shoulder strap and headrest appropriately to infant's body.
(See the shoulder strap and headrest adjustment on page 11 & 12.)

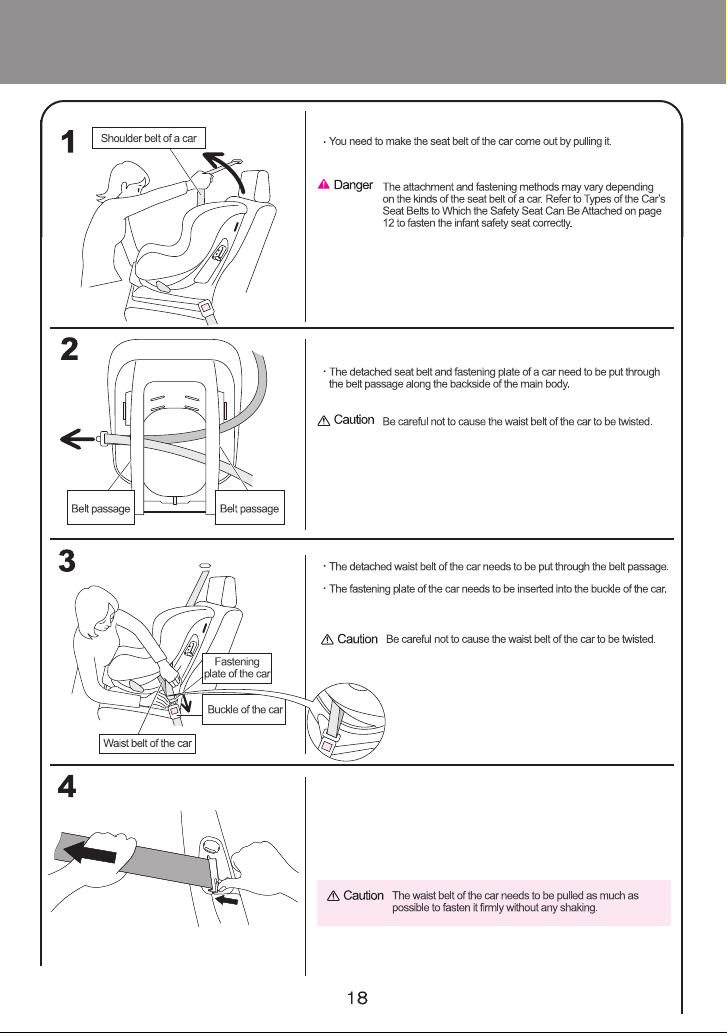

Group l 9kg~ 18kg

1. Slide the locking lever on the other end of the vehicle mounting plate sideway
to unlock.
2. Insert the car shoulder strap through the locking lever and slide the lever to
the opposite side to lock it while pulling the strap tightly.
(Position the strap under the lever and push the lever all the way to securely
hold the strap.)
