SERVICE MANUAL
Indoor Unit
Inverter
Wall Mounted Type
9000/12000/18000 Btu/h Class
Si041417EA

Service Manual
Removal Procedure
Indoor Unit
zCooling Only
FTK09P5VL
FTK12P5VL
FTK18P5VL
zHeat Pump
FTH09P5VL
FTH12P5VL
FTH18P5VL
FTX09N5VL
FTX12N5VL
FTX18N5VL

Si041417EA
Removal Procedure 1
Table of Contents
1. Air Filters / Front Panel ...........................................................................2
2. Front Grille ..............................................................................................3
3. Horizontal Blade......................................................................................4
4. Electrical Box ..........................................................................................5
5. PCBs / Swing Motor ................................................................................9
6. Indoor Heat Exchanger .........................................................................12
7. Fan Rotor / Fan Motor...........................................................................14
8. Fan Guards / Vertical Blade ASSYs......................................................16
Note: The illustrations may be slightly different depending on the model.

Air Filters / Front Panel Si041417EA
2Removal Procedure
1. Air Filters / Front Panel
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the air filters. The air filter is not marked
for difference between the
right and left sides.
The air filter can be set
easily by inserting it along
the guides.
Insert the air filter with the
“FRONT” mark faced up.
Be sure to insert the 2 lower
hooks when installing the air
filter.
1
2
Open the front panel.
Unfasten the 2 hooks
and pull out the air filter
downward to remove it.
2. Remove the front panel.
1 Release the left and
right shafts.
2 Remove the front panel. When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them in position.
Front panel
Hook Air filter
(R21000)
Left Shaft
(R24251)
Right Shaft
(R24252)
Front panel
(R21003)

Si041417EA Front Grille
Removal Procedure 3
2. Front Grille
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

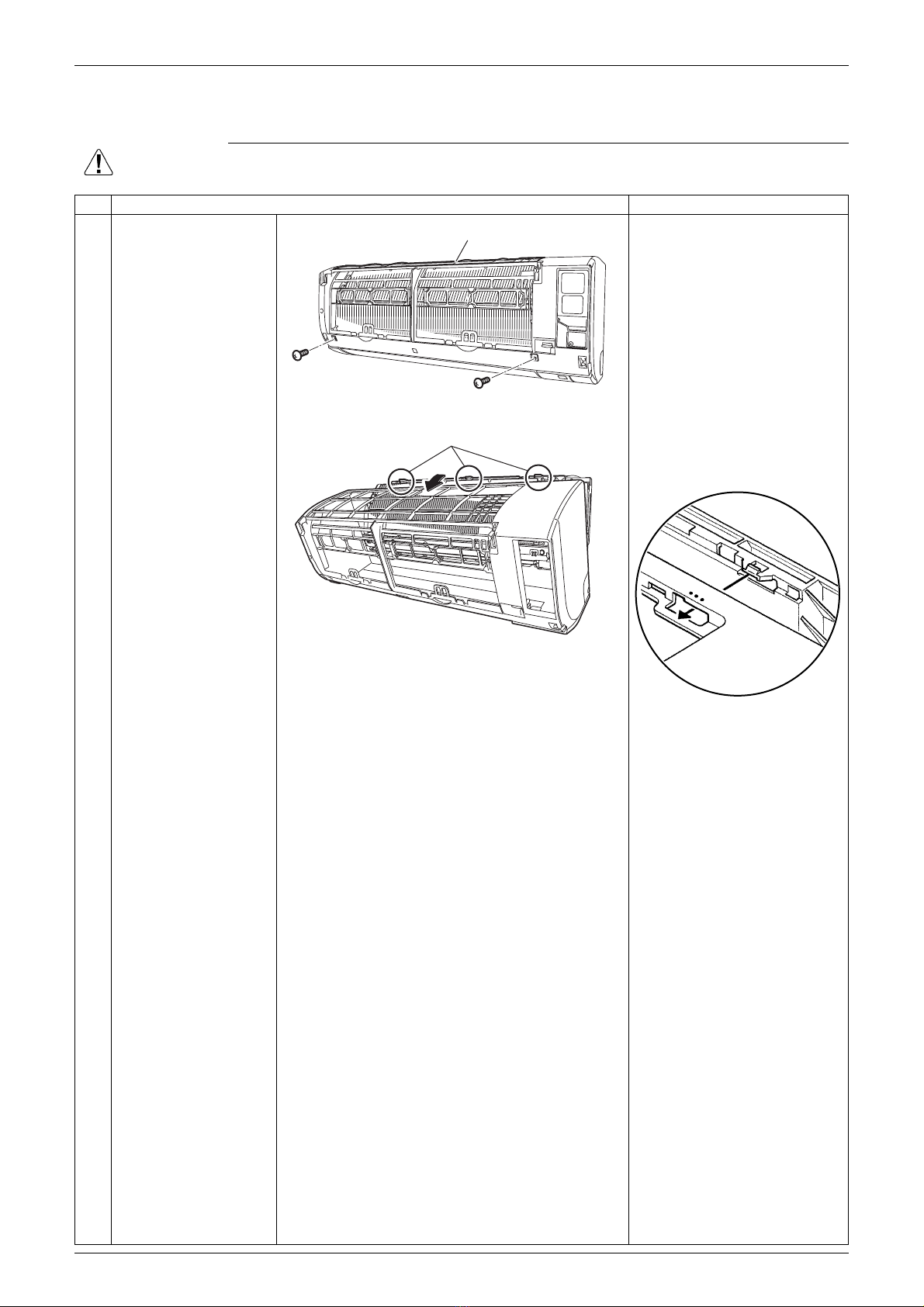

1 Remove the 2 screws
of the front grille.
2
3
Unfasten the 3 hooks at
the top.
Pull out the upper part
of the front grille, lift up
the lower part, and then
remove the front grille.
The convex marks (…) on
the front panel indicate the
position of the hooks.
When reassembling, make
sure that all the 3 hooks are
fastened.
Front grille
(R21004)
Hook
(R21005)
(R12715)

Horizontal Blade Si041417EA
4Removal Procedure
3. Horizontal Blade
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

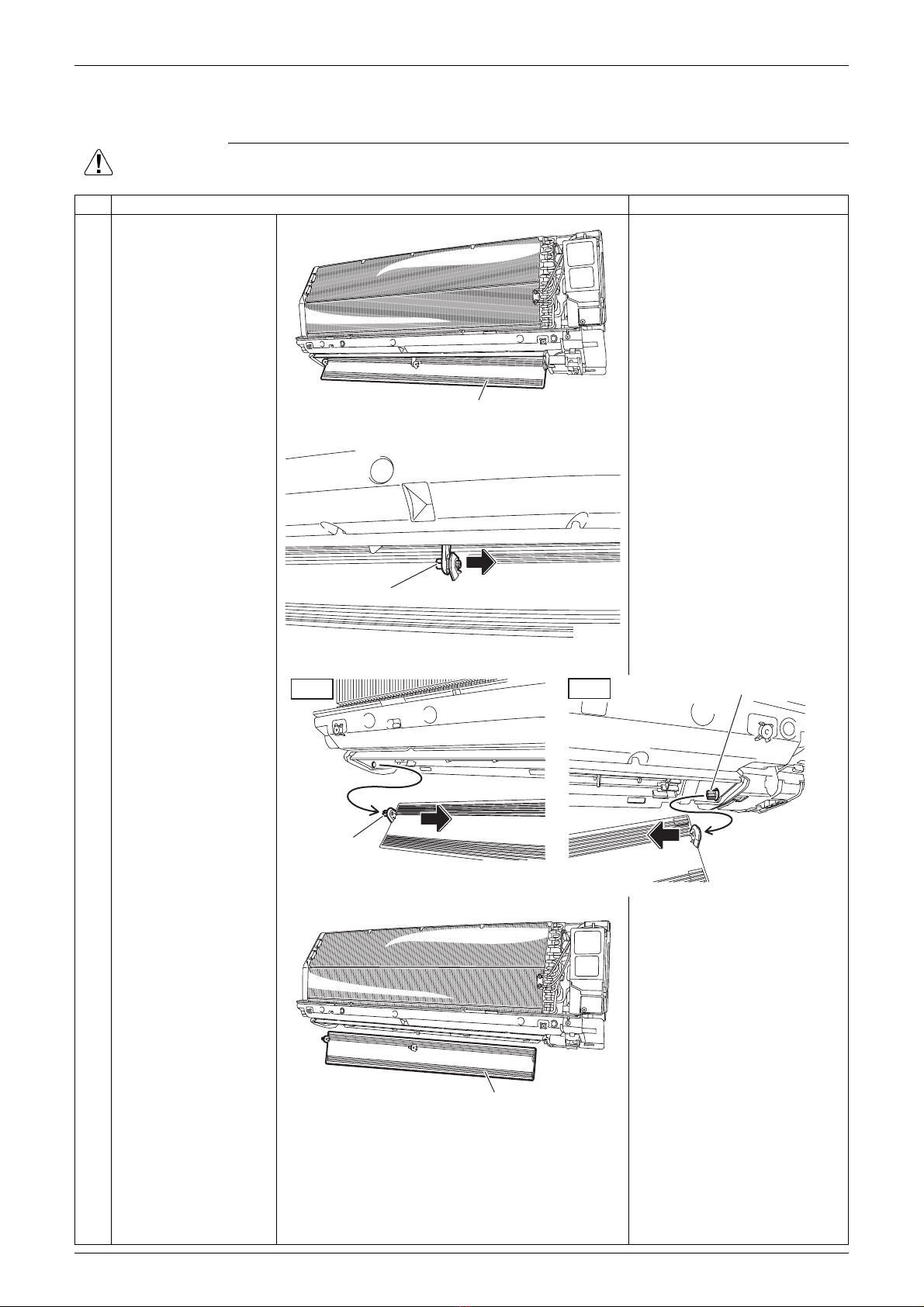

1 Release the center
shaft while bending the
horizontal blade
slightly.
Installation procedure
1. Fit the right shaft of the
horizontal blade first. Make
sure to rotate the horizontal
blade so the shaft fits in the
correct position.
2. Fit the horizontal blade to the
center and left shafts.
2
3
Release the left shaft.
Release the right shaft.
4 Remove the horizontal
blade.
Horizontal blade (R21006)
Shaft
(R21007)
Shaft
Left
(R21008)
Shaft
Right
(R24253)
Horizontal blade (R21010)

Si041417EA Electrical Box
Removal Procedure 5
4. Electrical Box
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

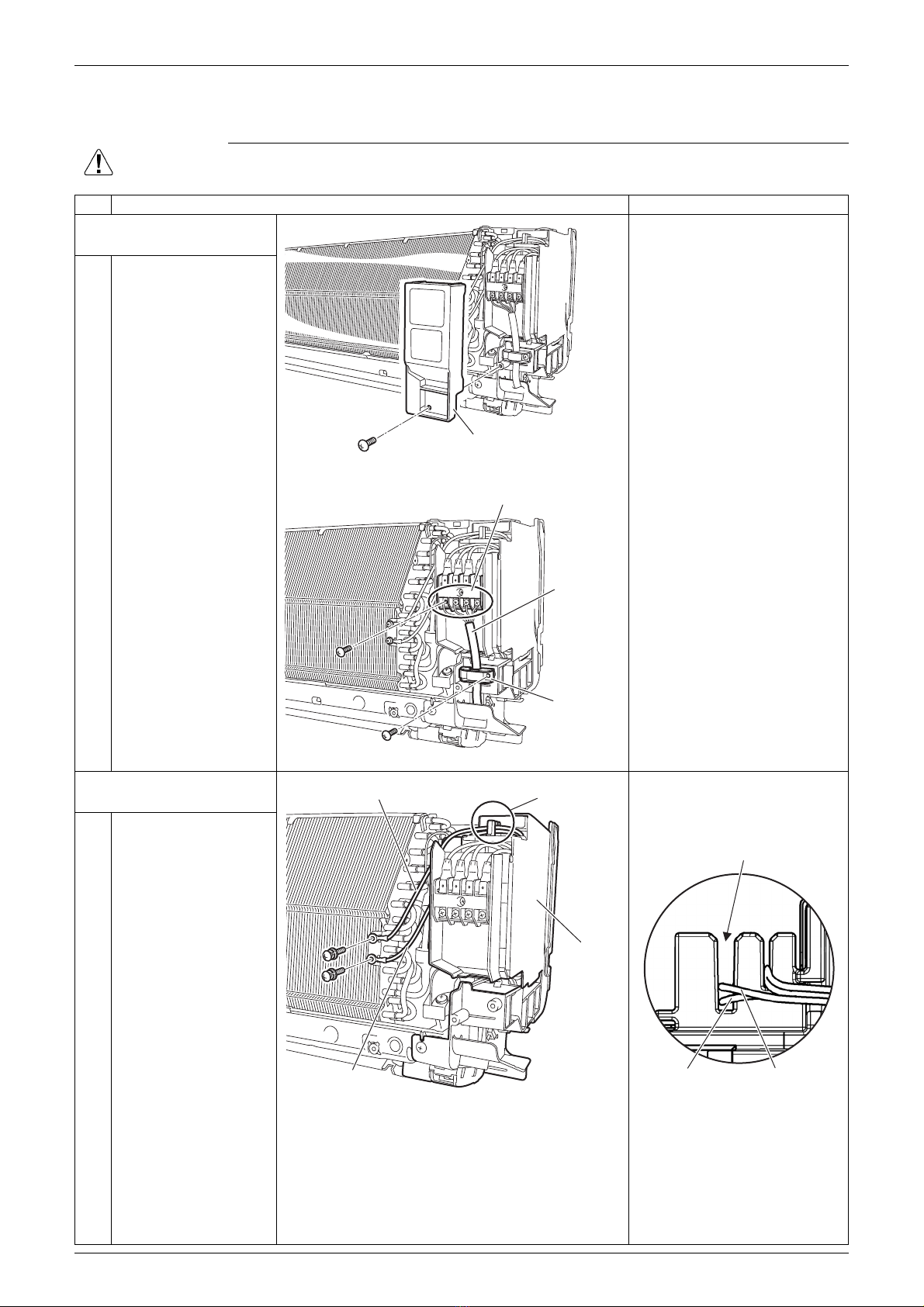

1. Disconnect the
connecting wire.
Service cover can be
removed without removing
the front grille.
1 Remove the screw, and
then the service cover.
2
3
Remove the screw, and
then the wire fixture.
Remove the 4 screws
of the terminal board
and disconnect the
connecting wire.
2. Remove the electrical
box.
When reassembling, be sure
to insert the earth/ground
wires in the front slit.
1
2
Remove the 2 screws
and detach the earth/
ground wires.
Release the earth/
ground wires from the
front slit at the top of the
electrical box.
Service cover
(R21011)
Terminal board
Connecting
wire
Wire fixture
(R21012)
Earth/ground wire (yellow/green)
Electrical
box
Front slit
Earth/ground
wire (green) (R24254)
Front slit
Green Yellow/green
(R24255)

Electrical Box Si041417EA
6Removal Procedure

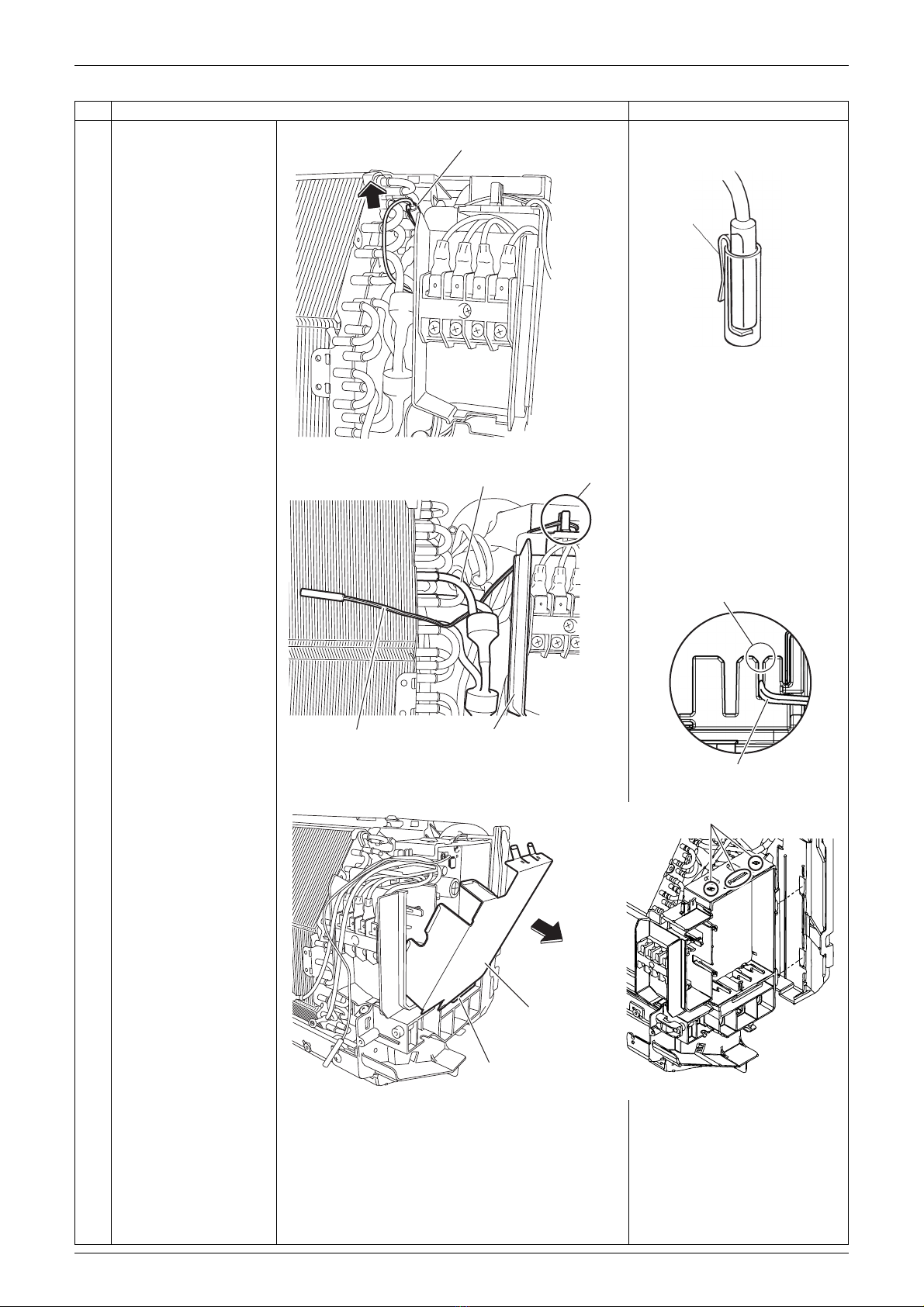

3 Pull out the indoor heat
exchanger thermistor.
Be careful not to lose the clip
of the thermistor.
The position of the indoor
heat exchanger thermistor
varies depending on the
model.
4 Release the thermistor
harness from the pipes
of the heat exchanger
ASSY and from the
back slit at the top of
the electrical box.
When reassembling, be sure
to insert the thermistor
harness in the back slit and
pass it below the pipes of the
heat exchanger ASSY as
shown in the picture.

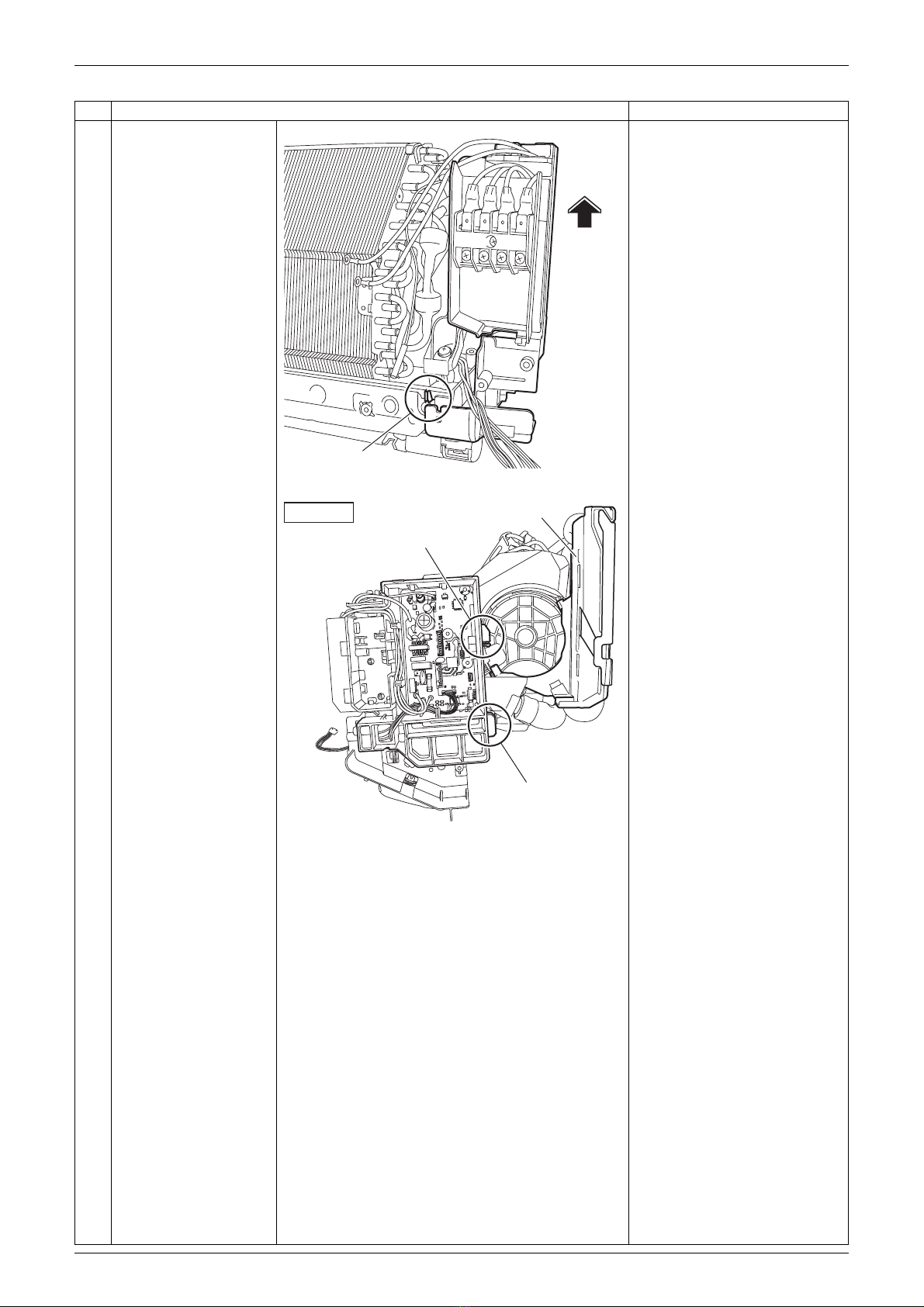

5 Unfasten the 4 hooks
and remove the
electrical box cover.
When reassembling, make
sure that the 4 hooks are
securely fastened.
Step Procedure Points
Indoor heat exchanger thermistor
(R21015)
Clip
(R11268)
Thermistor harness
Heat exchanger ASSY
Electrical box
Back slit
(R24256)
Back slit
Thermistor harness (R21079)
Hook
Electrical box
cover
Hook
(R21017)

Si041417EA Electrical Box
Removal Procedure 7
6
7
Disconnect the
connector [S200].
Release the harnesses
from the 4 hooks.
[S200]: fan motor
8
9
Disconnect the
connector [S6].
Release the harnesses
from the 4 hooks.
[S6]: swing motor
10 Remove the screw of
the electrical box.
Step Procedure Points
Hook Hook
[S200]
(R21019)
Hook
Hook
[S6]
(R21020)
Electrical box
(R21021)

Electrical Box Si041417EA
8Removal Procedure
11 Slightly lift the electrical
box upward and
remove it.
When reassembling, make
sure the hook is securely
fastened.
When reassembling, make
sure that the 2 hooks are
securely fastened to the
bottom frame.
Step Procedure Points
Hook (R21022)
Hook
Hook
Bottom frame
Right view
(R24349)

Si041417EA PCBs / Swing Motor
Removal Procedure 9
5. PCBs / Swing Motor
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the control PCB.

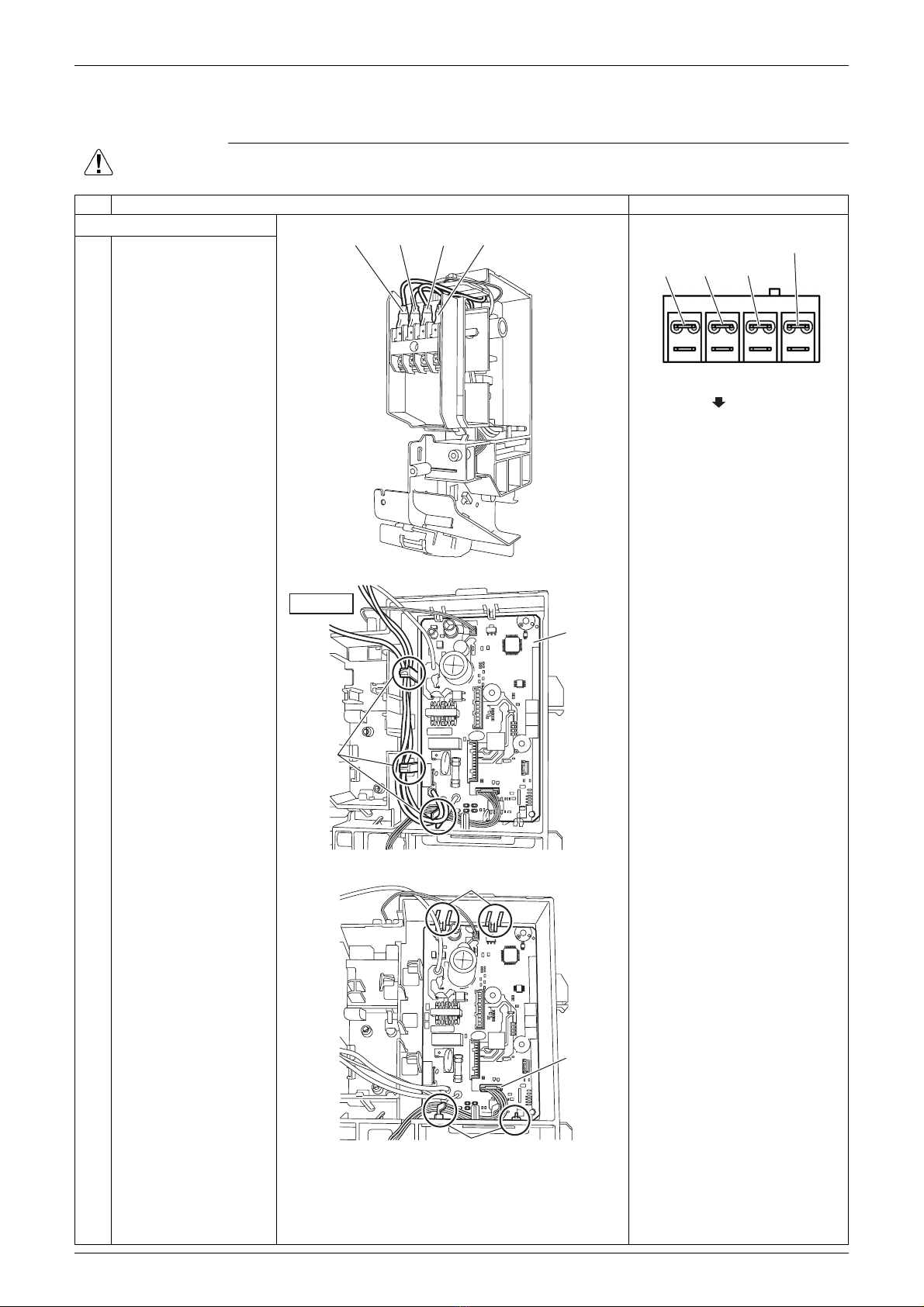

1 Disconnect all the 4
terminals.
2 Release the wires from
the 3 hooks.
3
4
Remove the connector
[S26].
Unfasten the 4 hooks
and remove the control
PCB.
[S26]: display PCB
Black White Red Earth/ground
(R24257)
Black White Red
Earth/ground
1234
FRONT
(R24260)
Hook
Control
PCB
Right view
(R24258)
Hook
Hook
[S26]
(R24259)

PCBs / Swing Motor Si041417EA
10 Removal Procedure
When reassembling, be sure
to fit the control PCB to the 4
projections.
2. Remove the display PCB.
1 Unfasten the 3 hooks of
the display PCB ASSY.
2 Release the harnesses
of the display PCB
ASSY from the 2 hooks.
Step Procedure Points
Projection
(R24261)
Hook
Display PCB ASSY
Left side
(R21028)
Hook
Display PCB ASSY
Front side
(R24262)
Hook
Display PCB ASSY (R21030)

Si041417EA PCBs / Swing Motor
Removal Procedure 11
3
4
Turn over the display
PCB ASSY.
Unfasten the 3 hooks
and remove the display
PCB.
3. Remove the swing motor.
1 Remove the screw, and
then the swing motor.
Step Procedure Points
Hook
Display PCB
Hook
Back view
(R24263)
Swing motor
(R21032)

Indoor Heat Exchanger Si041417EA
12 Removal Procedure
6. Indoor Heat Exchanger
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
In pump-down work, be sure to stop the compressor before disconnecting the
refrigerant pipe. If the refrigerant pipe is disconnected with the compressor operating
and the stop valve open, air may be sucked in and may generate an over-pressure in
refrigeration cycle, thus resulting in pipe rupture or accidental injury.
When removing or reinstalling the indoor heat exchanger, be sure to wear gloves or
wrap the indoor heat exchanger with cloths. (You may be injured by the fins.)
Caution Be sure to conduct pump down operation before disassembling the refrigerant pipe.
If the refrigerant leaks, repair the spot of leaking, then collect all refrigerant from the
unit. After conducting vacuum drying, recharge proper amount of refrigerant.
From the viewpoint of global environmental protection, make sure to use a vacuum
pump for air purging.
Step Procedure Points
1. Disconnect the refrigerant
piping.
Place a plastic sheet around
the drain pan to prevent
wetting the floor with
remaining drain.

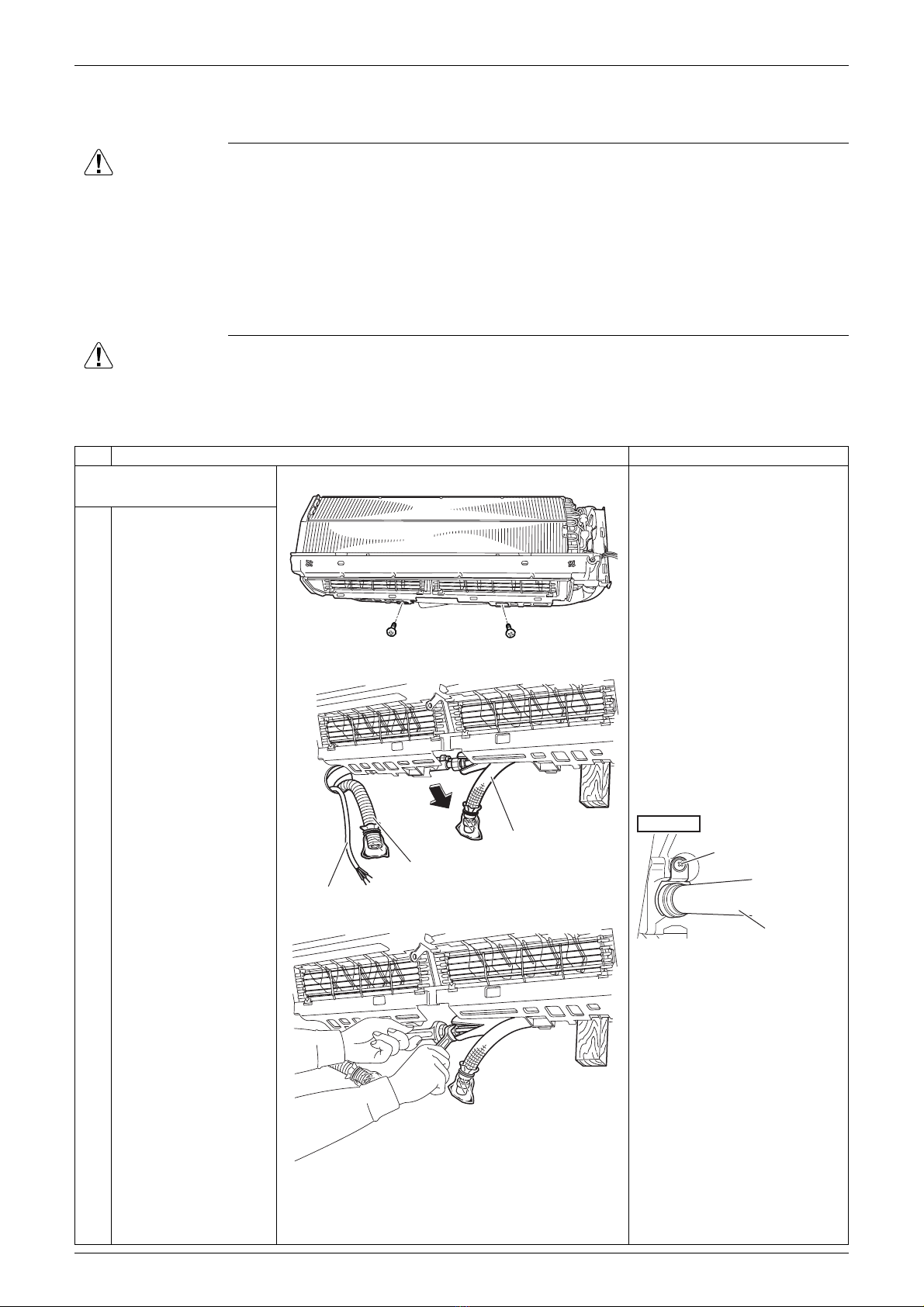

1 Remove the 2 screws.
2
3
Pull out and disconnect
the drain hose.
Wrap the open ends of
the drain hose with
plastic sheets to
prevent water dripping.
Hold the indoor unit up with a
piece of wood.
If embedded in the wall, the
drain hose can be
disconnected from the back
of the unit.
Carry out the removal work
with 2 wrenches.
4
5
6
Disconnect the flare nut
for gas piping.
Disconnect the flare nut
for liquid piping.
Protect the open ends
of both the pipes and
the unit from moisture
intrusion.
(R21033)
Connecting wires
Drain hose
Extension drain hose
(R21206)
Fixing screw
Drain hose
Back view
(R24395)
(R21207)

Si041417EA Indoor Heat Exchanger
Removal Procedure 13
7 Detach the indoor unit
from the installation
plate.
2. Remove the indoor heat
exchanger.
1 Unfasten the 2 hooks
and remove the piping
fixture on the back of
the indoor unit.
2 Slightly pull out the
auxiliary piping.
3 Remove the 2 screws
on the left side and
unfasten the hook on
the rear side.
4 Unfasten the hook on
the right side and lift up
the indoor heat
exchanger.
When reassembling the
indoor heat exchanger,
make sure that the hook is
fastened.
Step Procedure Points
(R21034)
Hook
Piping fixture
Back view
(R24350)
Auxiliary piping (R21036)
Hook
(R21037)
Hook
Indoor heat exchanger
(R21038)

Fan Rotor / Fan Motor Si041417EA
14 Removal Procedure
7. Fan Rotor / Fan Motor
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

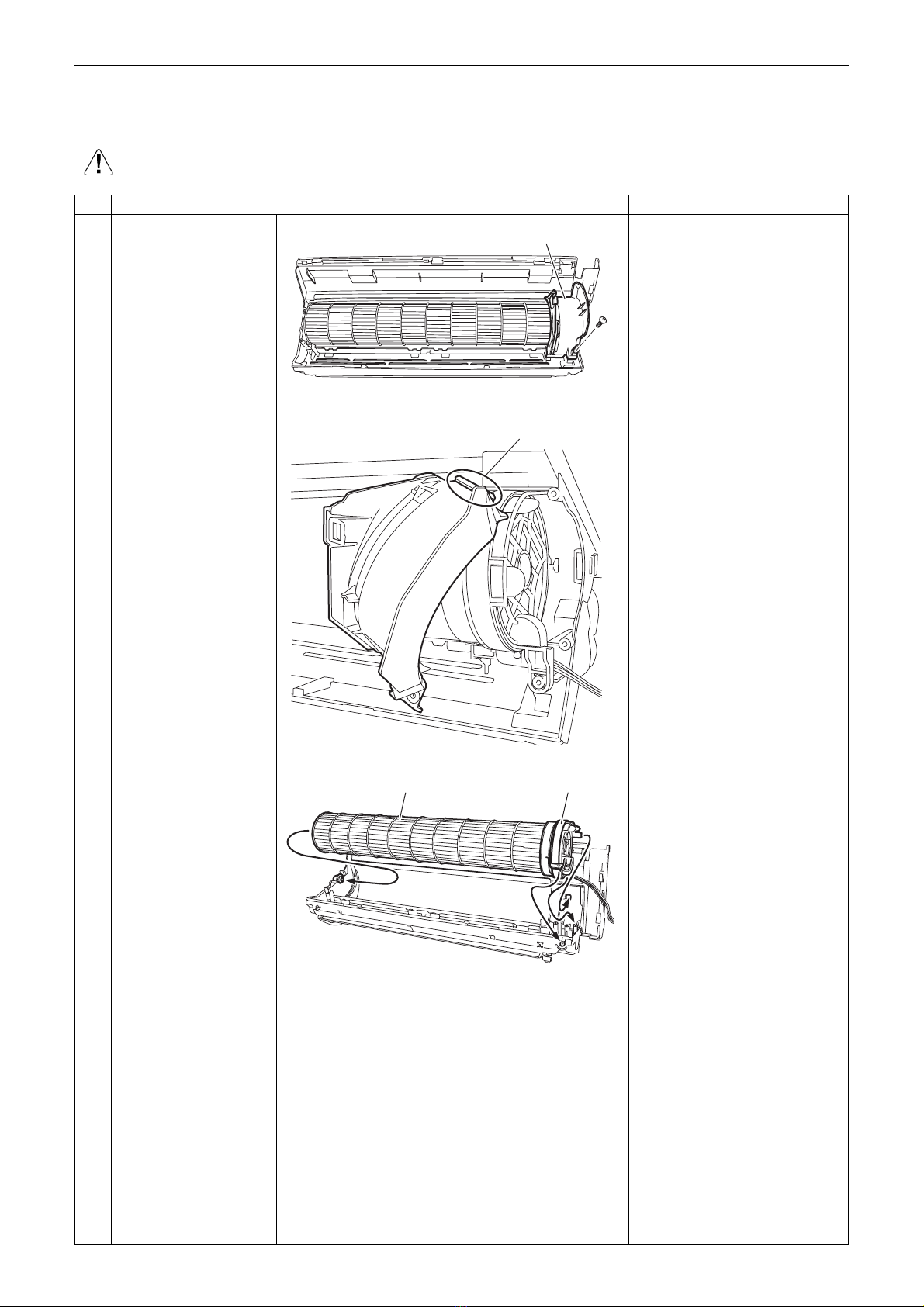

1 Remove the screw of
the right side plate.
3
2 Unfasten the hook and
remove the right side
plate.
3 Remove the fan rotor
and the fan motor.
The fan motor has 3
projections on the right side.
The fan rotor has a rotating
shaft on the left side.
Right side plate
(R21039)
Hook
(R21040)
Fan motorFan rotor
(R21041)

Si041417EA Fan Rotor / Fan Motor
Removal Procedure 15
4
5
Pull out and remove the
fan motor stator ASSY.
Unfasten the 2 hooks
and disassemble the
fan motor stator ASSY.
Step Procedure Points
Hook
Fan motor stator ASSY
(R24351)
(R24264)
Fan motor cover (body)
Bearing rubber
cushion
Fan motor
stator
Fan motor
cover (cap)

Fan Guards / Vertical Blade ASSYs Si041417EA
16 Removal Procedure

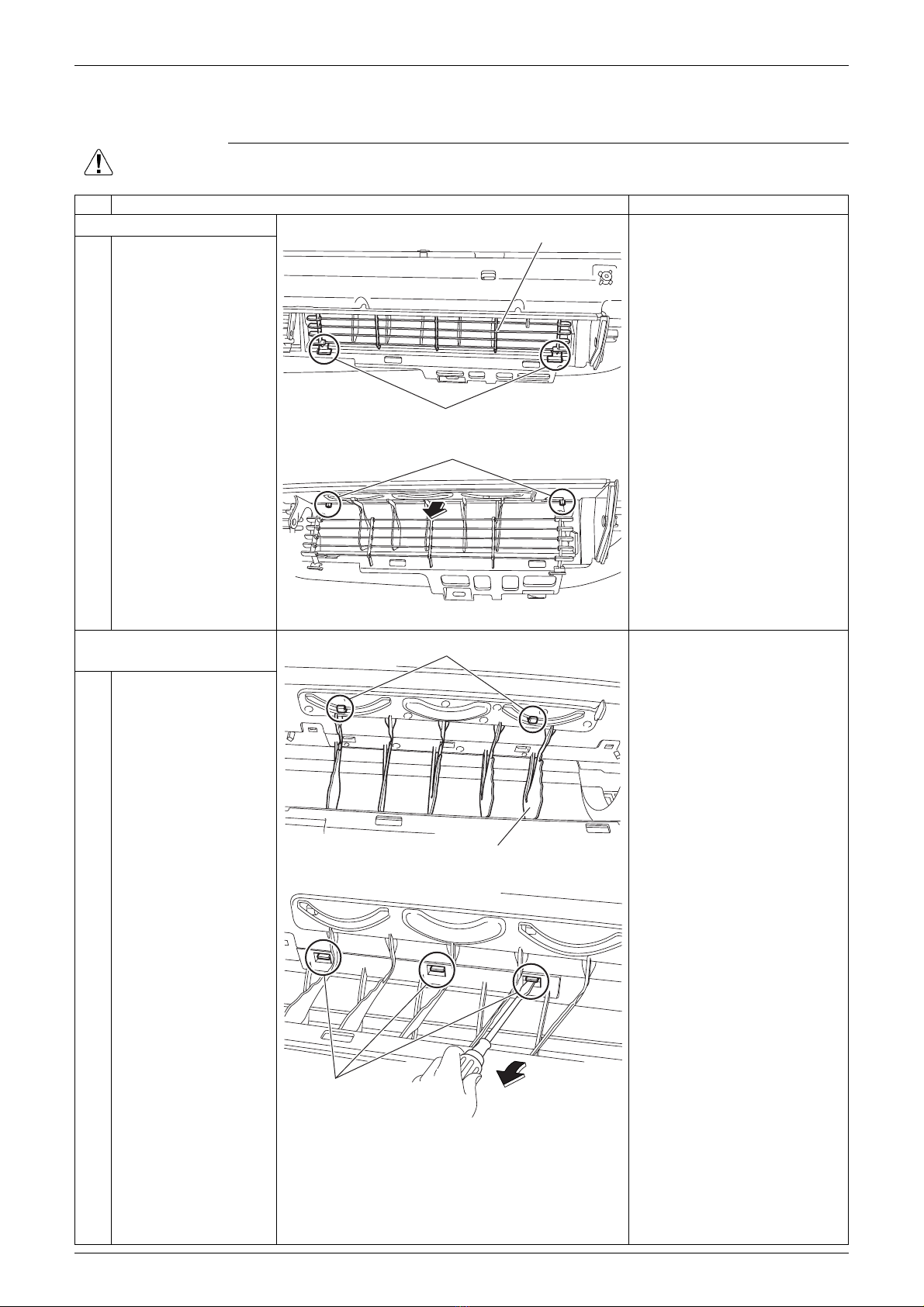

8. Fan Guards / Vertical Blade ASSYs
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the fan guards. The fan guards are not
marked for difference
between right and left.
When reassembling, fit the
fan guard to the 2
projections at the top and
fasten the 2 hooks at the
bottom.
1
2
Unfasten the 2 hooks at
the bottom and remove
the fan guard.
Remove the other fan
guard in the same way.
2. Remove the vertical blade
ASSYs.
Each vertical blade ASSY
has 5 fins. It is impossible to
replace only one fin.
The vertical blade ASSY is
not marked for difference
between right and left.
1 Unfasten the upper 2
hooks.
2
3
4
Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
Remove the vertical
blade ASSY.
Remove the other
vertical blade ASSY in
the same way.
Hook
Fan guard
(R21044)
Projection
(R21045)
Vertical blade ASSY
Hook
(R21046)
Hook
(R21047)

Revision History
Month / Year Version Revised contents
01 / 2015 Si041417E First edition
12 / 2016 Si041417EA Model addition: FTK09/12/18P5VL, FTH09/12/18P5VL

Head Office:
Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,
Kita-ku, Osaka, 530-8323 Japan
Tokyo Office:
JR Shinagawa East Bldg., 2-18-1, Konan,
Minato-ku, Tokyo, 108-0075 Japan
http://www.daikin.com/products/ac/
All rights reserved
c
Warning
zDaikin products are manufactured for export to numerous countries throughout the world. Prior to
purchase, please confirm with your local authorised importer, distributor and/or retailer whether this
product conforms to the applicable standards, and is suitable for use, in the region where the product
will be used. This statement does not purport to exclude, restrict or modify the application of any local
legislation.
zAsk a qualified installer or contractor to install this product. Do not try to install the product yourself.
Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion.
zUse only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or
contractor to install those parts and accessories. Use of unauthorised parts and accessories or
improper installation of parts and accessories can result in water or refrigerant leakage, electrical
shock, fire or explosion.
zRead the user's manual carefully before using this product. The user's manual provides important
safety instructions and warnings. Be sure to follow these instructions and warnings.
If you have any enquiries, please contact your local importer, distributor and/or retailer.
Cautions on product corrosion
1. Air conditioners should not be installed in areas where corrosive gases, such as acid gas or alkaline gas, are produced.
2. If the outdoor unit is to be installed close to the sea shore, direct exposure to the sea breeze should be avoided. If you need to install
the outdoor unit close to the sea shore, contact your local distributor.
Dealer
zSpecifications, designs and other content appearing in this brochure are current as of December 2016 but subject to change without notice. Si041417EA
12/2016 AK.B
