Daikin FTKD User manual

1
READ BEFORE OPERATION
■Safety Precautions ................................................. 2
■Names of Parts
●Indoor unit, Opening the front grille .............. 5
●Remote controller ......................................... 6
●Outdoor unit .................................................. 7
■Preparation Before Operation
●Remote controller ......................................... 8
●Indoor unit ..................................................... 9
OPERATION
■AUTO • DRY • COOL • HEAT • FAN Operation .... 10
■Adjusting the Air Flow Direction
●Adjusting the horizontal blade (flap) ........... 11
●Adjusting the vertical blade (louvre) ........... 11
■POWERFUL Operation ........................................ 12
■OUTDOOR UNIT SILENT Operation ................... 12
■HOME LEAVE Operation ..................................... 13
■Timer Operation
●OFF TIMER operation ................................ 15
●ON TIMER operation .................................. 15
CARE
■Care and Cleaning
●Cleaning the air filters ................................. 16
●Cleaning the indoor and outdoor units
and the remote controller ............................ 16
●Replacing air purifying filters ...................... 16
●Cleaning the front grille ............................... 17
●Check .......................................................... 17
●Before a long idle period ............................. 17
TROUBLE SHOOTING
■Trouble Shooting
●These cases are not troubles ..................... 18
●Check again ................................................ 19
●Call the service shop immediately .............. 20
CONTENTS

2
■Read the following warnings and cautions
carefully before operating the system and
use it correctly.
■This manual classifies the precautions to
the user into the following two categories.
Be sure to follow all as they are all
important to ensure safety.
■After reading this manual, keep it in a place
easily accessible to the user for future
reference.
● ●
● ●
● Do not expose your body to the cool (heat) air for a long time, do not cool (heat) the
room too much.
It will affect your physical conditions and cause health problems.
● ●
● ●
● Do not put a finger, a rod or other objects into the air outlet or inlet.
As the fan is rotating at a high speed, it will cause injury.
● ●
● ●
● Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself.
Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult the shop
where you bought the air conditioner.
● ●
● ●
● If anything abnormal such as a burning smell occurs, stop the operation immediately
and turn the breaker OFF.
Continued abnormal operation will cause troubles, electric shocks, fire etc. If anything is
abnormal, consult the shop where you bought the air conditioner.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard;
● ●
● ●
● Do not use the air conditioner for preservation purposes.
Do not use it for preserving precision instruments, foods, plants, animals, works of fine arts etc.
Performance or quality may deteriorate and animal or plant life may be shorter.
● ●
● ●
● Do not operate the air conditioner with a wet hand.
It may cause an electric shock.
● ●
● ●
● Ventilate the room from time to time.
Be careful especially when using a burning appliance in the same room. Insufficient
ventilation may cause shortage of oxygen.
● ●
● ●
● Before cleaning, be sure to stop the operation and turn the breaker OFF.
As a fan is rotating at a high speed, cleaning during operation may cause injury.
● ●
● ●
● After a long use, check the unit stand and fittings for damage.
The unit may drop and cause injury if damage is left unrepaired.
● ●
● ●
● Do not stand or sit on the outdoor unit. Do not place any object on the unit.
The object or the person may fall down or drop, causing injury.
Safety Precautions
WARNING
CAUTION
Failure to follow a caution may result in
serious injury or property damage, and in
certain conditions, may result in a grave
consequence.
CAUTION
Failure to follow a warning is very likely to
result in such grave consequences as death or
serious injury.
WARNING

3
● ●
● ●
● Depending on the environment, an earth leakage breaker must be installed.
Lack of an earth leakage breaker may result in electric shocks.
● ●
● ●
● Do not install the air conditioner in places where flammable gas may leak.
If leaked gas should accumulate near the unit, fire may occur.
● ●
● ●
● Arrange the drain hose to ensure smooth drainage.
Incomplete drainage may cause wetting of the building, furniture etc.
● ●
● ●
●
Do not connect the air conditioner to a power supply different from the specification.
It may cause trouble or fire.
● ●
● ●
● Do not attempt to install the air conditioner by yourself.
Consult the service shop or a qualified technician.
Incorrect work will result in water leakage, electric shocks or fire. For installation,
consult the service shop where you bought the unit or a qualified technician.
● ●
● ●
● The air conditioner must be earthed.
Incomplete earthing may result in electric shocks. Do not connect the earth line to a
gas pipe, water pipe, lightening rod, or a telephone earth line.
WARNING
CAUTION
Installation
● ●
● ●
● Do not place under the indoor or outdoor unit anything which must be kept away from moisture.
Indoor unit : moisture in the air may condense and drip in certain conditions.
outdoor : during cooling operation, condensation may drip from the piping connections.
● ●
● ●
● Do not wash the unit with water.
It may cause an electric shock.
● ●
● ●
● Do not place a burning appliance in places exposed to the air flow from the unit or
under the indoor unit.
It may cause incomplete combustion or deformation of the unit from heat.
● ●
● ●
● Do not place a vessel containing water on the unit.
Water may penetrate into the unit and degrade electrical insulations, resulting in an electric
shock.
● ●
● ●
● Do not expose plants or animals directly to the air flow.
It may cause adverse effects on the plant or the animal.
● ●
● ●
● Do not block air inlets nor outlets.
Impaired air flow may result in insufficient performance or troubles.
● ●
● ●
● Do not allow children to mount on the outdoor unit or avoid placing any object on it.
Falling or tumbling may result in injury.

4
● For power supply, be sure to use a
separate power circuit dedicated to the
air conditioner.
■ To install the air conditioner in the
following types of environments, consult
the shop.
● Places with an oily ambient or where
steam or soot occurs.
● Salty environment such as coastal
areas.
● Places where sulfide gas occurs such
as hot springs.
● Places where snow may block the
outdoor unit.
The drain from the outdoor unit must be
discharged to a place of good drainage.
Installation site
■ For installation, choose a place as
described below.
● A place solid enough to bear the
weight of the unit which does not
amplify the operation noise or
vibration.
● A place from where the air
discharged from the outdoor unit or
the operation noise will not annoy
your neighbours.
Consider nuisance to your
neighbours from noises
Electrical work
● Relocating the air conditioner requires
specialized knowledge and skills.
Please consult the shop where you
bought the air conditioner if relocation is
necessary for moving or remodeling.
System relocation
NOTE
<Note for heat pump multi system>
When two or more indoor units have no precedence-
room settings and are set to modes that differ from
each other, the indoor unit which is operated first
activates, while the other indoor unit does not activate
and the OPERATION lamp blinks. (This is not a
malfunction.)
An indoor unit that is not in operation will
automatically start and operate in the mode in which
a previously operated indoor unit was stopped.
However, if the unit in operation provides only COOL
and DRY modes, simultaneous operation is
possible.
Note for Multi
System
●Precedence-room setting
When setting the preference-room during installation, the
indoor unit’s operation mode always takes priority.
When the precedence-setting room unit is operated in
POWERFUL mode, there are times that air conditioners
in other rooms will temporarily stop in order to centralize
power to the unit in the room.
Please adjust the precedence-room setting to match your
life style. Moreover, for precedence-room settings, please
consult the service shop where you bought the unit.
∗Precedence-room setting is applied to only 4MX80,
4MK90.
●COOL/HEAT mode
This mode is used to set the unit to only cool or heat. For
information on using this mode, consult the service shop
where you bought the unit.
∗COOL/HEAT mode is applied to only 4MX80, 4MK90.
●Precautions for outdoor unit connected to
RMK(X)140
•In heating operation, when all indoor units are stopped,
the outdoor unit stops its operation automatically after 5
minutes. This is a part of preparation process for the
next operation, not a failure.
•In heating operation, no warm air may come out
temporarily. This is for an oil recovery operation
performed at certain time intervals, not a failure.
•In simultaneous operation at two or more rooms, when
heating operation is performed at one room, cooling
operation cannot be performed at other rooms.
Whichever mode selected first is preferred.

5
Room temperature sensor:
•It senses the air temperature around
the unit.
•Push this button once to start operation. Push once again
to stop it.
•The operation mode refer to the following table.
•This button is useful when the remote controller is missing.
ON/OFF button
•It receives signals from the remote controller.
•When the unit receives a signal, you will hear
a short beep.
Before opening the front grille, be sure to
stop the operation and turn the breaker
OFF. If the power is on, the fan may rotate
inside and may cause injury.
CAUTION
Receiver:
FTKD COOL
Mode
22˚C
Temperature setting
AUTO
FTXD AUTO 25˚C AUTO
Air flow rate
DAIKIN
Front grille
Indicator lamps
Grille tab
Diffuser
OPERATION lamp (green)
HOME LEAVE lamp (red)
TIMER lamp (yellow)
The louvre is inside of the air outlet.
(See page 11.)
•Lights up when you use HOME
LEAVE Operation.
(See page 13.)
Air outlet
Louvre
(vertical blades)
(See page 11.)
(See page 15.)
Flap
(Horizontal blade)
ON/OFF button
Air inlet
Air purifying filter
Air purifying filters are
attached to the inside
of the air filters.
Air filter

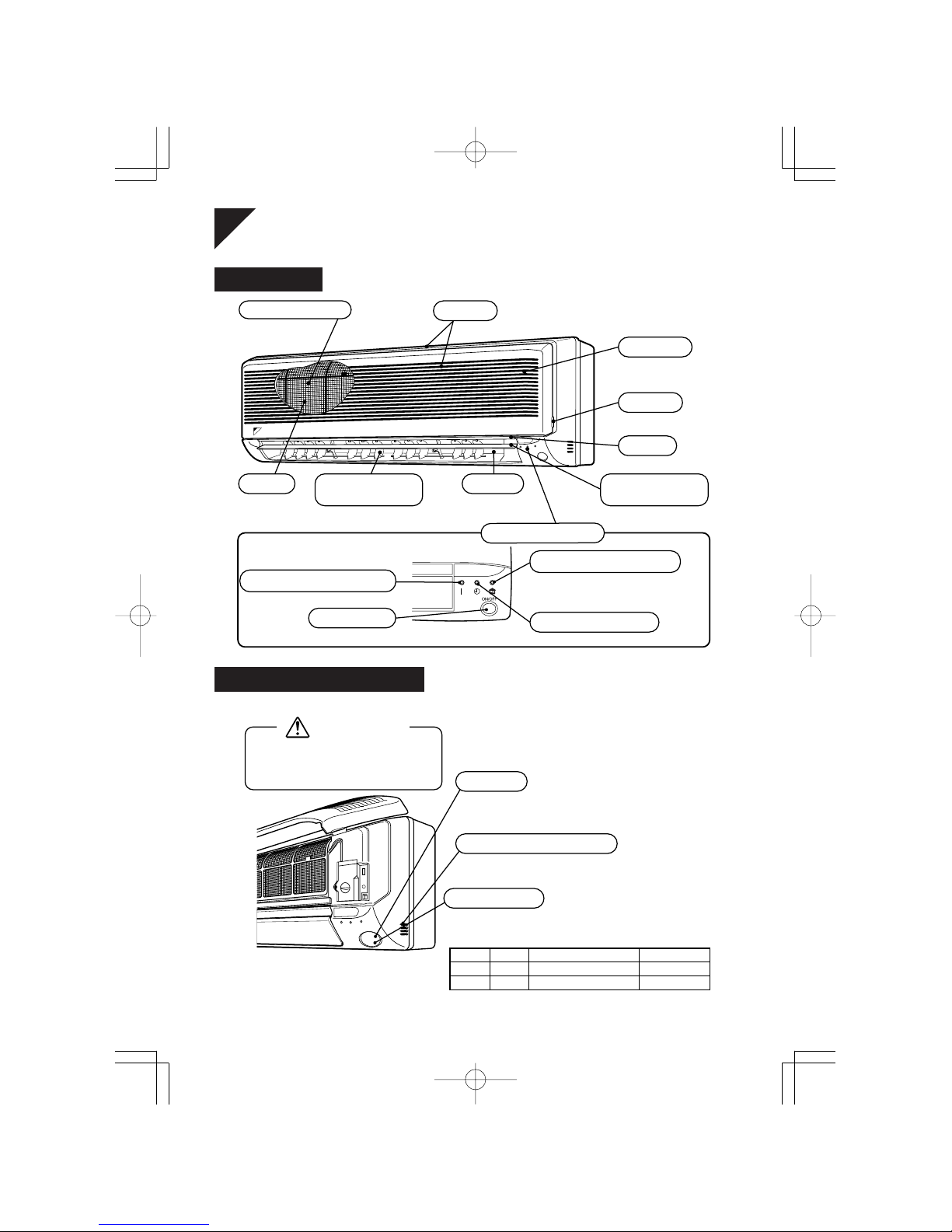

Indoor unit
Opening the front grille
How to open the front grille : (See page 9.)
Names of Parts

6
Names of Parts

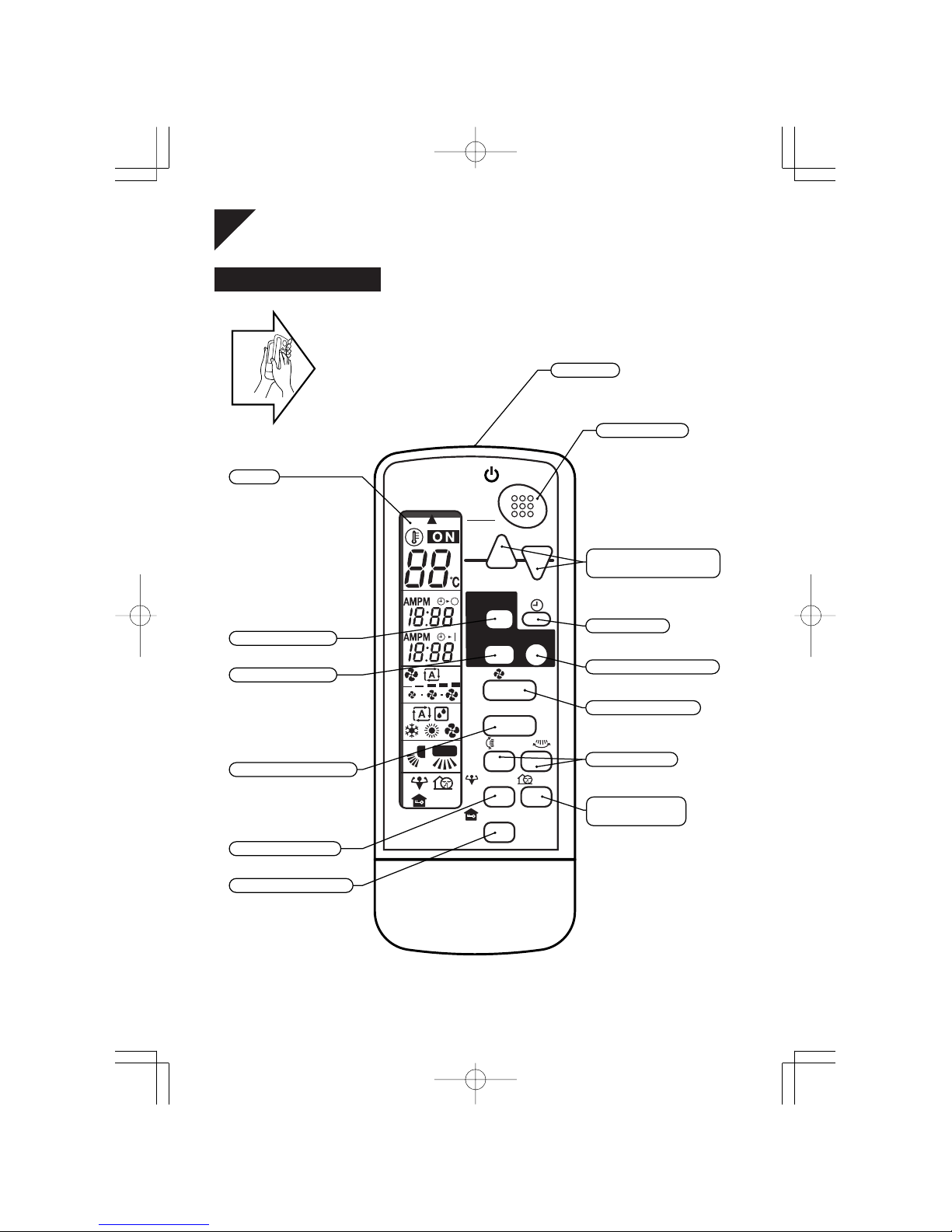

Remote controller
MODE
FAN
CANCEL
ON/OFF
TEMP
SWING
OFF TIMER
TIME
ON TIMER
UP
DOWN
POWERFUL
SILENT
HOME LEAVE
Open
the
cover.
Transmitter
It sends signals to the indoor unit.
ON/OFF button
Press it once to start
operation. To stop it,
press it once again.
CLOCK button
(See page 9.)
TIMER CANCEL button
It cancels the timer setting.
FAN setting button
It selects the air flow
rate setting.
SWING buttons
(See page 11.)
It changes the temperature
or time setting.
Display
It displays the current settings.
(In this illustration, each
section is shown with all its
displays ON for the purpose of
explanation.)
POWERFUL button
(See page 12.)
(See page 15.)
It selects the operation mode.
(AUTO / DRY / COOL / HEAT / FAN)
(See page 10.)
HOME LEAVE button
(See page 13.)
MODE selector button
TEMPERATURE / TIME
adjustment buttons
(See page 12.)
OUTDOOR UNIT
SILENT button
OFF TIMER button
(See page 15.)
ON TIMER button
<ARC417 A15 >

7
Outdoor unit
Names of Parts
Air inlet
Air outlet
(Back and side)
Refrigerant piping
and inter-unit cable
Earth terminal
It is inside of this part.
Drain hose
Appearance of the outdoor unit may differ with some models.

8
Receiver
Preparation Before Operation
■■
■■
■Setting the batteries
2
3
1
Position + and
–correctly!
Address switch
About batteries
●When replacing the batteries, use
batteries of the same type, and replace
the two old batteries together.
●When the system is not used for a long
time, take the batteries out.
●When the operation display screen of the
remote controller is hard to see and the
reception become hard, replace the
batteries with new AAA batteries.
●The attached batteries are provided for the
initial use of the system.
The usable period of the batteries may be
short depending on the manufactured date
of the air conditioner.
ATTENTION
■■
■■
■Operating the remote controller
● To use the remote controller, aim the transmitter at
the indoor unit. If there is anything to block signals
between the unit and the remote controller, such as
a curtain, the unit will not operate.
● Do not drop the remote controller. Do not get it wet.
● The maximum distance for communication is about
7 m.
● To remove, pull it upwards.
ATTENTION
Remote controller
holder
Set.
Push.
1
2
■■
■■
■To fix the remote controller
holder on the wall
Choose a place from where the signals reach
the unit.
Fix the holder to a wall, a pillar, etc. with the
screws supplied with the holder.
Fit the claw of the holder into the bottom of
the remote controller, and push the remote
controller onto the wall.
1
2
3
Remote controller
Press with a finger and slide the back
cover to take it off.
Set two dry batteries (AAA).
Set the back cover as before.
●This will cause the figures on the display
to flash. Set the clock at this point.
1
2
3
About the remote controller
●Never expose the remote controller to
direct sunlight.
●Dust on the signal transmitter or receiver
will reduce the sensitivity. Wipe off dust
with soft cloth.
●Signal communication may be disabled if
an electronic-starter-type fluorescent lamp
(such as inverter-type lamps) is in the
room. Consult the shop if that is the case.
●If the remote control signals happen to
operate another appliance, move that
appliance to somewhere else, or consult
the shop.

9
Preparation Before Operation
■■
■■
■Setting the air purifying filters
Indoor unit
●Holding down ( ) or ( ) button
rapidly increases or decreases the time display.
NOTE
■■
■■
■Setting the clock
Press .
Press to set the clock to the
present time.
■■
■■
■Turn the breaker ON
●Turning ON the breaker opens the flap, then
closes it again. (This is a normal procedure.)
Pull out the air filters.
●Push upwards the
tab at the center of
each air filter, then
pull it down.
2
Open the front grille.
●Hold the grille by the tabs on the two sides
and lift it until it stops with a click.
(about 60°)
1
運転タイマおそうじ
℃
運転タイマ

Set the air purifying filters.
●Attach an air purifying filter to each air filter.
(See page 16 “Care and cleaning”)
Set the air filters in their original
positions and close the front grille.
●Operation without air filters may result in
troubles as dust will accumulate inside the
indoor unit.
3
4
1
is displayed.
2
blinks.
3
Please note
●The air conditioner always consumes 15 –35
watts of electricity even while it is not operating.
●If you are not going to use the air conditioner for a
long period, for example in spring or autumn, turn
the breaker OFF.
●Use the air conditioner in the following conditions.
Press .
blinks.
(Now the clock is set.)
Mode
COOL
HEAT
DRY
Operating conditions
Outdoor temperature : –5 to 46 °C
Indoor temperature : 18 to 32 °C
Indoor humidity : 80% max.
Outdoor temperature : –15 to 24 °C
Indoor temperature : 10 to 30 °C
Outdoor temperature : –5 to 46 °C
Indoor temperature : 18 to 32 °C
Indoor humidity : 80% max.
If operation is continued out of this range
•A safety device may work to stop the operation.
(In multi system, it may work to stop
the operation of the outdoor unit only.)
•Condensation may occur on the indoor unit and drip.
•A safety device may work to stop the operation.
•A safety device may work to stop the operation.
•Condensation may occur on the indoor unit and drip.
Tips for saving energy
●Be careful not to cool the room too much.
Keeping the temperature setting at a
moderate level helps save energy.
Recommended temperature setting
For cooling: 26°C –28°C
For heating: 20°C –24°C
●Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors
increases the cooling effect.
●Clogged air filters cause inefficient
operation and waste energy. Clean them
once in about every two weeks. (*1) Use in humidity 60 % or lower when using the
unit at an outdoor temperature of 10°C or lower.

10

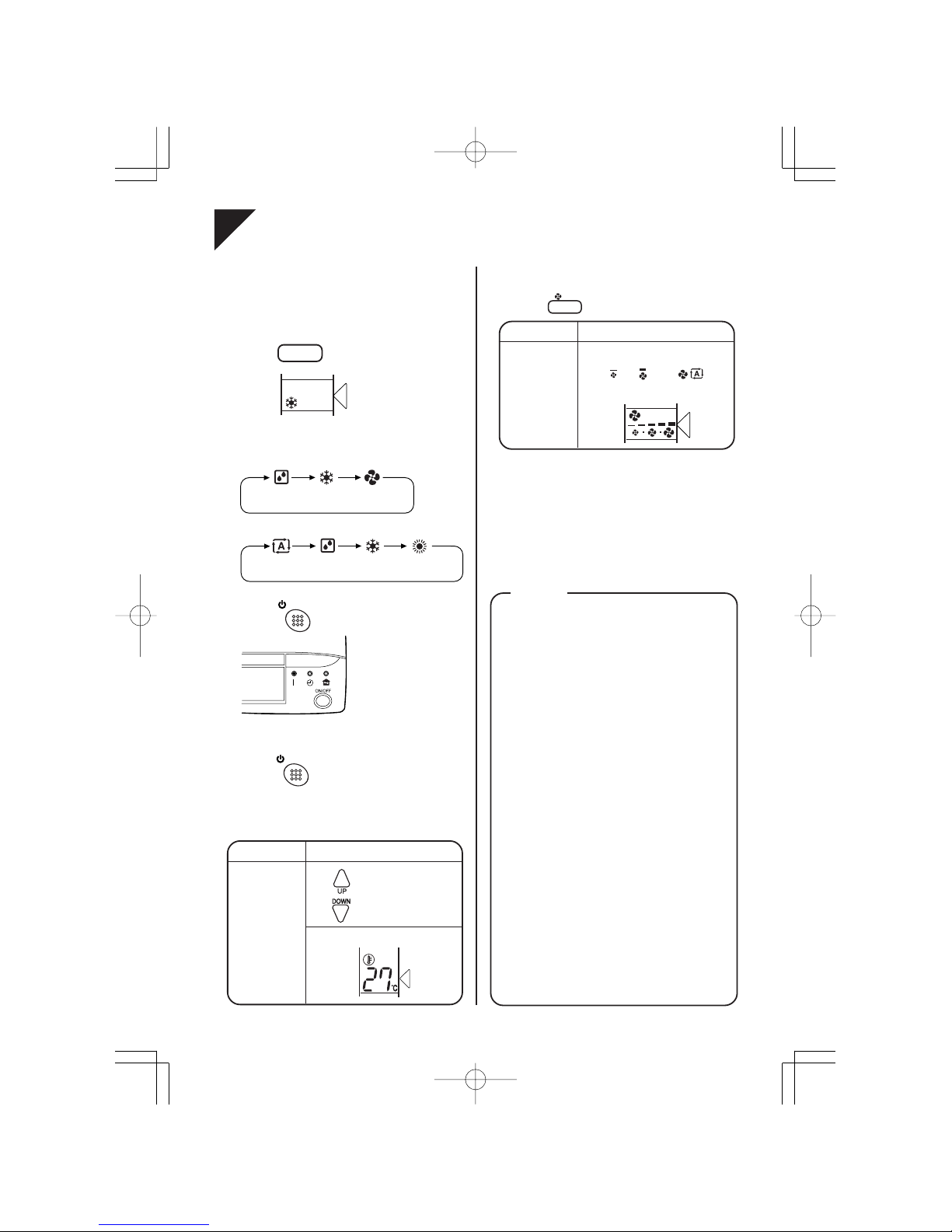

The air conditioner operates with the settings of
your choice.
From the next time on, the air conditioner will
operate with the same settings.
Press
MODE
and select a mode.
●Each pressing of the button advances the
mode setting in sequence.
Press
ON/OFF
.
Then OPERATION
lamp lights up.
■■
■■
■To stop:
Press
ON/OFF
once again.
Then OPERATION lamp goes off.
■■
■■
■ To change the temperature setting:
■■
■■
■To change the air flow direction:
(See page 11.)
●At smaller air flow rates, the cooling effect is
also smaller.
AUTO • DRY • COOL • HEAT • FAN Operation
1
2
Display
AUTO or HEAT or COOL mode
Press to raise the temperature and
press to lower the temperature.
Set to the temperature you like.
DRY or FAN mode
The temperature
setting is not
variable.
■■
■■
■ To change the air flow rate setting:
COOL or FAN mode
Five levels of air flow rate setting
from “”to “”plus “”are
available.
DRY mode
The air flow rate
setting is not
variable.
Press
FAN
.
<FTKD>
<FTXD>
Display
Display
NOTE
<Note on HEAT mode operation>
●Since this air conditioner heats the room by
taking heat from outdoor air to indoors, the
heating capacity becomes smaller in lower
outdoor temperatures. If the heating effect is
insufficient, it is recommended to use another
heating appliance in combination with the air
conditioner.
●The heat pump system heats the room by
circulating hot air around all parts of the room.
After the start of heating operation, it takes
some time before the room gets warmer.
●In heating operation, frost may occur on the
outdoor unit and lower the heating capacity. In
that case, the system switches into defrosting
operation to take away the frost.
●During defrosting operation, hot air does not
flow out of indoor unit.
<Note on AUTO operation>
●In AUTO operation, the system selects a
temperature setting and an appropriate mode
(COOL or HEAT) based on the room
temperature at the start of the operation.
●The system automatically reselects setting at a
regular interval to bring the room temperature
to user-seetting level.
●If you do not like AUTO operation, you can
select manually, you like the mode and setting.

11

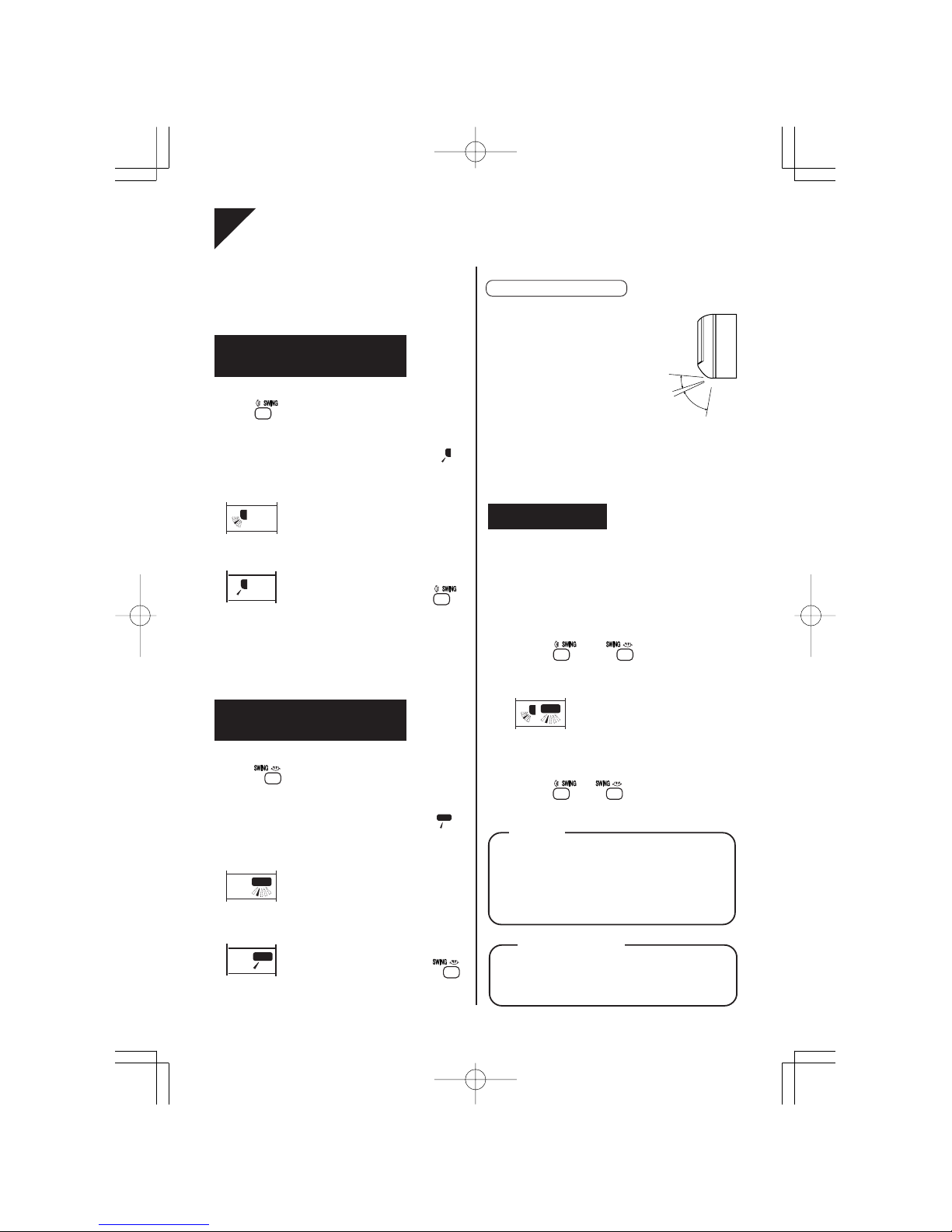

Adjusting the Air Flow Direction
You can adjust the air flow direction to increase
your comfort.
Adjusting the
horizontal blade (flap)
....... To stop the flap at an
angle you like, press .
●When [SWING] is
selected, the flap
swinging range depends
on the operation mode.
(See the figure.)
●When [SWING] is
selected in heating
operation, the flap and
the diffuse swing up and
down in combination.
●The diffuser is kept open
in DRY or COOL mode.
Press .
●Every time the button is pressed, “”
appears or disappears.
....... The flap automatically
swings up and down.
ATTENTION
●Always use a remote controller to adjust
the flap angle. If you attempt to move it
forcibly with hand when it is swinging,
the mechanism may be broken.
Notes on flap angles
Adjusting the
vertical blade (louvre)
Press .
●Every time the button is pressed, “”
appears or disappears.
....... The louvre automatically
swings right and left.
....... To stop the flap at an
angle you like, press .
DRY⋅COOL
HEAT
NOTE
Unless [SWING] is selected, you should
set the flap at a downward angle in HEAT
mode and at a nearhorizontal angle in
COOL or DRY mode to obtain the best
performance.
3-D air flow
The 3-D air flow function controls the air flow by
alternating the horizontal swing (up and down)
and vertical swing (left and right).
This provides good air circulation throughout
the room and reduces temperature fluctuations.
Press and during the air
conditioner is operating.
■■
■■
■To cancel 3-D air flow:
Press or .
The up/down and left/right
swing displays on the remote
controller will move.

12
POWERFUL operation quickly maximizes the
cooling effect in any operation mode.You can get
the maximum capacity with a touch of a button.
●Pressing the (POWERFUL) button during
operation starts POWERFUL operation.
●POWERFUL operation ends in 20 minutes.
Then the system automatically operates again
with the settings which were used before
POWERFUL operation.
●During you use “POWERFUL operation”, the
other functions will not go on.
Press .
■■
■■
■To cancel POWERFUL operation:
POWERFUL
Operation
1
OUTDOOR UNIT
SILENT Operation
Display
Press .
Notes on POWERFUL operation
●In COOL and HEAT mode
To maximize the cooling and heating effect, the
capacity of outdoor unit must be increased and
the air flow rate be fixed to the maximum
setting.
The temperature and air flow settings are not
variable.
●In DRY mode
The temperature setting is lowered by 3°C and
the air flow rate is slightly increased.
●In FAN mode
The air flow rate is fixed to the maximum
setting.
OUTDOOR UNIT SILENT operation lowers the
noise-level of the outdoor unit by changing the
frequency and fan rpm on the outdoor unit.
This function is convenient when sleeping, etc.
How to use OUTDOOR UNIT SILENT operation
∗This function is available in COOL, HEAT,
and AUTO modes.
■■
■■
■To use the “OUTDOOR UNIT
SILENT operation”
Press
SILENT
.
■■
■■
■To cancel the “OUTDOOR UNIT
SILENT operation”
Press
SILENT
again.
Note on OUTDOOR UNIT SILENT operation
●This function is available in COOL, HEAT,
and AUTO modes.
(This is not available in FAN and DRY
modes.)
●Using POWERFUL operation (P12) during
OUTDOOR UNIT SILENT operation will
disengage OUTDOOR UNIT SILENT
operation.
●Turning the unit off either with the remote
control or by flipping the switch on the unit
during OUTDOOR UNIT SILENT operation
will shut the unit off. The unit will continue in
OUTDOOR UNIT SILENT operation when
turned back on.

13
HOME LEAVE Operation
HOME LEAVE operation function is useful when
you leave the house or the room.

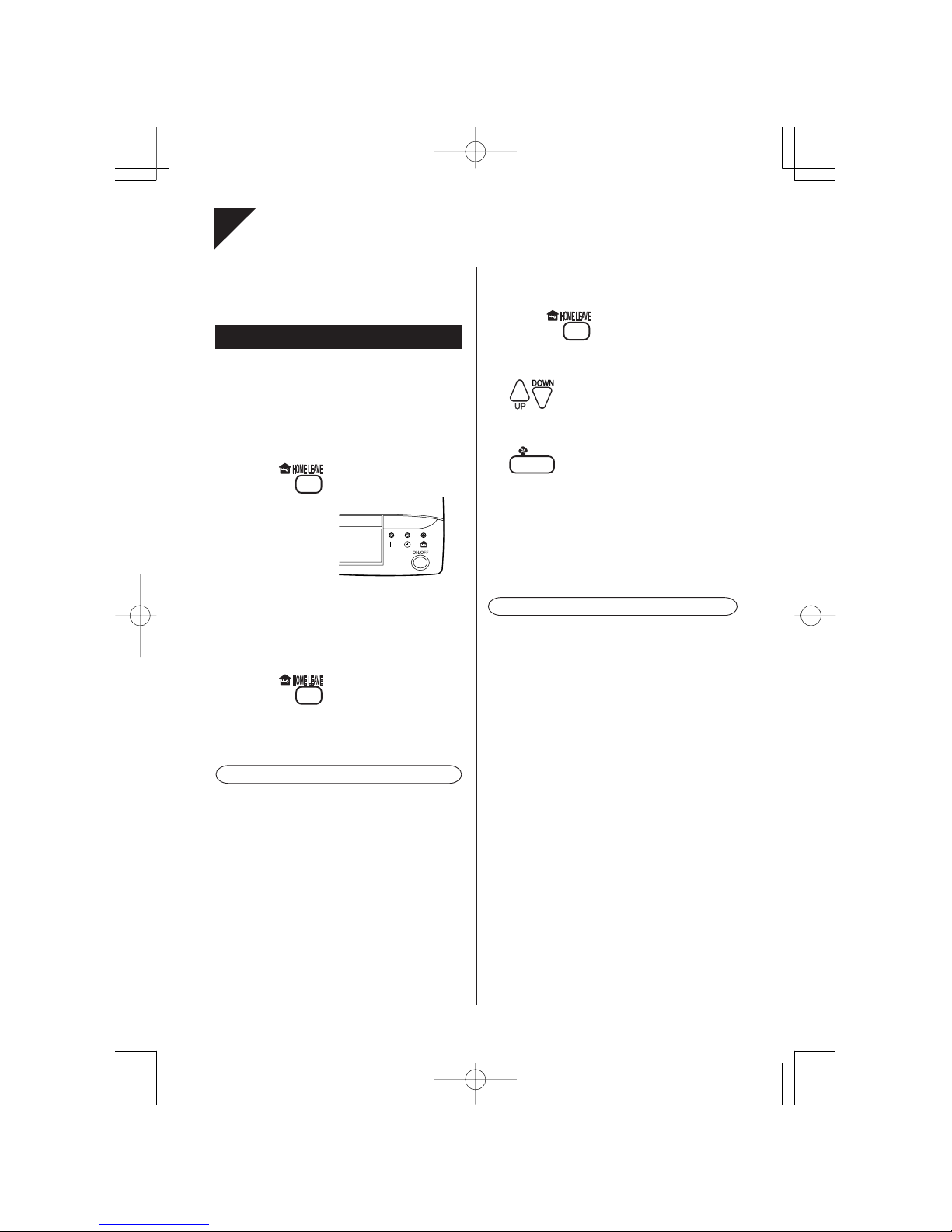

How to use HOME LEAVE Operation
∗This function is only available in COOL and
HEAT modes.
■■
■■
■To use the “HOME LEAVE
Operation”
Press while the air conditioner
is operating.
(The HOME LEAVE lamp lights up. )
■■
■■
■To cancel the “HOME LEAVE
Operation”
Press again.
(The HOME LEAVE lamp goes off. )
Before using HOME LEAVE Operation...
●When using HOME LEAVE Operation for the
first time, set the temperature and air flow
rate for HOME LEAVE Operation.
The initial settings are:
Heating ... Temperature 25°C Air flow rate AUTO
Cooling ... Temperature 25°C Air flow rate AUTO
■■
■■
■How to set the temperature and
air flow rate.
Press .
Adjust the set temperature with
as you like.
1
2
3Adjust the air flow rate setting with
FAN
as you like.
∗The temperature and air flow rate will be the
same as the previous settings starting with
the second use.
∗If you want to change the settings from the
previous use, repeat steps 1 through 3.
What’s it the HOME LEAVE Operation
●What is HOME LEAVE Operation?
Using HOME LEAVE Operation
During heating... It prevents the temperature in
the room from dropping too far
on cold winter days by using
weak heating operation (*1).
Disengaging HOME LEAVE
Operation will return the room
to the set temperature right
away.
During cooling... It prevents the temperature in
the room from rising too high on
hot summer days by using weak
cooling operation (*1).
Disengaging HOME LEAVE
Operation will return the room
to the set temperature right
away.
(*1)...You can change the set temperature and air
flow rate as you wish. Refer to the “Before
using home leave operation”section above on
how to change the settings.

14
HOME LEAVE Operation
1 Every day before you leave the house...
■■
■■
■Useful at times like these!
2 Before bed...
When you go out, push the
“HOME LEAVE Operation”
button, and the air
conditioner will adjust
capacity to reach the
preset temperature for
HOME LEAVE Operation.
When you return, you will
be welcomed by a
comfortably air conditioned
room.
Push the “HOME LEAVE
Operation”button again,
and the air conditioner will
adjust capacity to the set
temperature for normal
operation.
Set the unit to HOME
LEAVE Operation before
leaving the living room
when going to bed.
The unit will maintain the
temperature in the room at
a comfortable level while
you sleep.
When you enter the living room in
the morning, the temperature will
be just right.
Disengaging HOME LEAVE
Operation will return the
temperature to that set for normal
operation. Even the coldest
winters will pose no problem!
NOTE
<Note on HOME LEAVE Operation>
●HOME LEAVE Operation is only available in COOL and HEAT modes. (Cannot be used in AUTO, DRY, and FAN
modes.)
●HOME LEAVE Operation runs in accordance with the operation mode the unit was in before using HOME LEAVE
Operation.
●HOME LEAVE Operation can be set within the ranges shown below.
Temperature: (During heating) 10°C to 30°C
(During cooling) 18°C to 32°C
Air flow rate: 5 steps from weak to strong, or automatic.
●Using POWERFUL operation (P12) during HOME LEAVE Operation will disengage HOME LEAVE Operation.
●Turning the unit off by flipping the switch on the unit during HOME LEAVE Operation will shut the unit off. The unit
will continue in HOME LEAVE Operation when turned back on.
●Turning the unit off with the remote control during HOME LEAVE Operation will shut the unit off.
H/P: HOME LEAVE Operation will be disengaged when the unit is turned back on.
C/O: HOME LEAVE Operation will continue when the unit is turned back on.

15
●Check that the clock is correct.
If not, set the clock to the present time. (See page 9.)

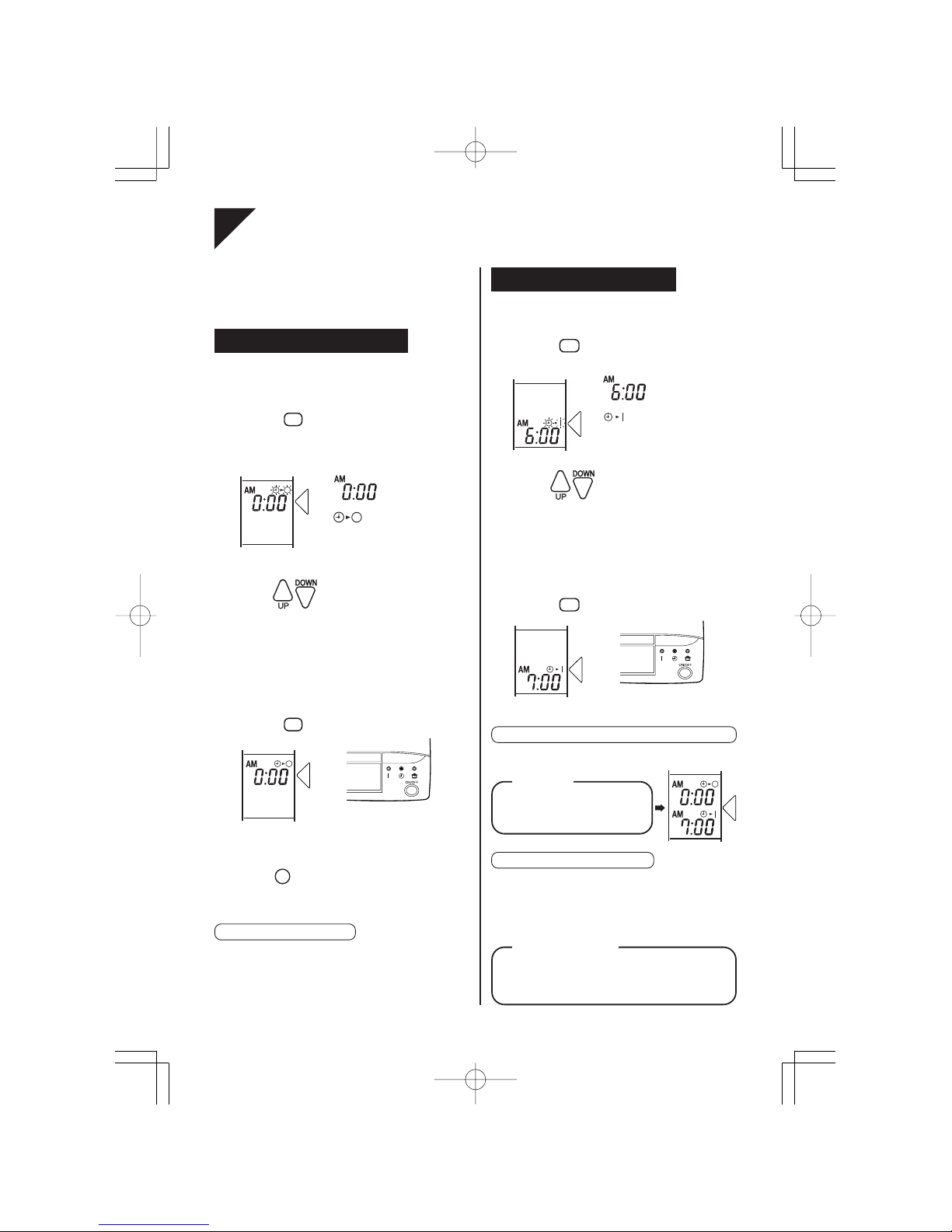

Timer Operation
Timer functions are useful for automatically
switching the air conditioner on or off at night or in
the morning. You can also use OFF TIMER and
ON TIMER in combination.
● NIGHT SET MODE
When the OFF TIMER is set, the air conditioner
automatically adjusts the temperature setting
(0.5°C up in COOL) to prevent excessive
cooling for your pleasant sleep.
Press
OFF TIMER
while the air conditioner
is operating.
Press
CANCEL
.
■■
■■
■To cancel the timer:
Press
OFF TIMER
once again.
Then the TIMER lamp goes off.
Press until the time setting
reaches the point you like.
●Every pressing of either button increases or
decreases the time setting by 10 minutes.
Holding down either button changes the
setting rapidly.
2
3
Then the TIMER lamp
lights up.
is displayed.
blinks.
OFF TIMER operation
1
Notes on OFF TIMER
ON TIMER operation
Press
ON TIMER
while the air conditioner is
not operating.
Press
ON TIMER
once again.
●Check that the clock is correct. If not, set the
clock to the present time (See page 9).
1
is displayed.
blinks.
2
Press until the time setting
reaches the point you like.
●Every pressing of either button
increases or decreases the time setting
by ten minutes. Holding down either
button changes the setting rapidly.
3
Then the TIMER lamp lights up.
Combining ON TIMER and OFF TIMER
ATTENTION
■In the following cases, set the timer again.
●After a breaker has turned OFF.
●After a power failure.
●After replacing batteries in the remote controller.
●When TIMER is set, the present time is not
displayed.
●Once you set ON,OFF TIMER, the time setting is
kept in the memory. (The memory is canceled
when remote controller batteries are replaced.)
●A sample setting for combining the two timers is shown below.
Notes on ON,OFF TIMER
Display
Display
Display
Display
Display
Present time: 11:00 PM
(The unit operating)
OFF TIMER at 0:00 a.m.
ON TIMER at 7:00 a.m. Combined






(Example)

16

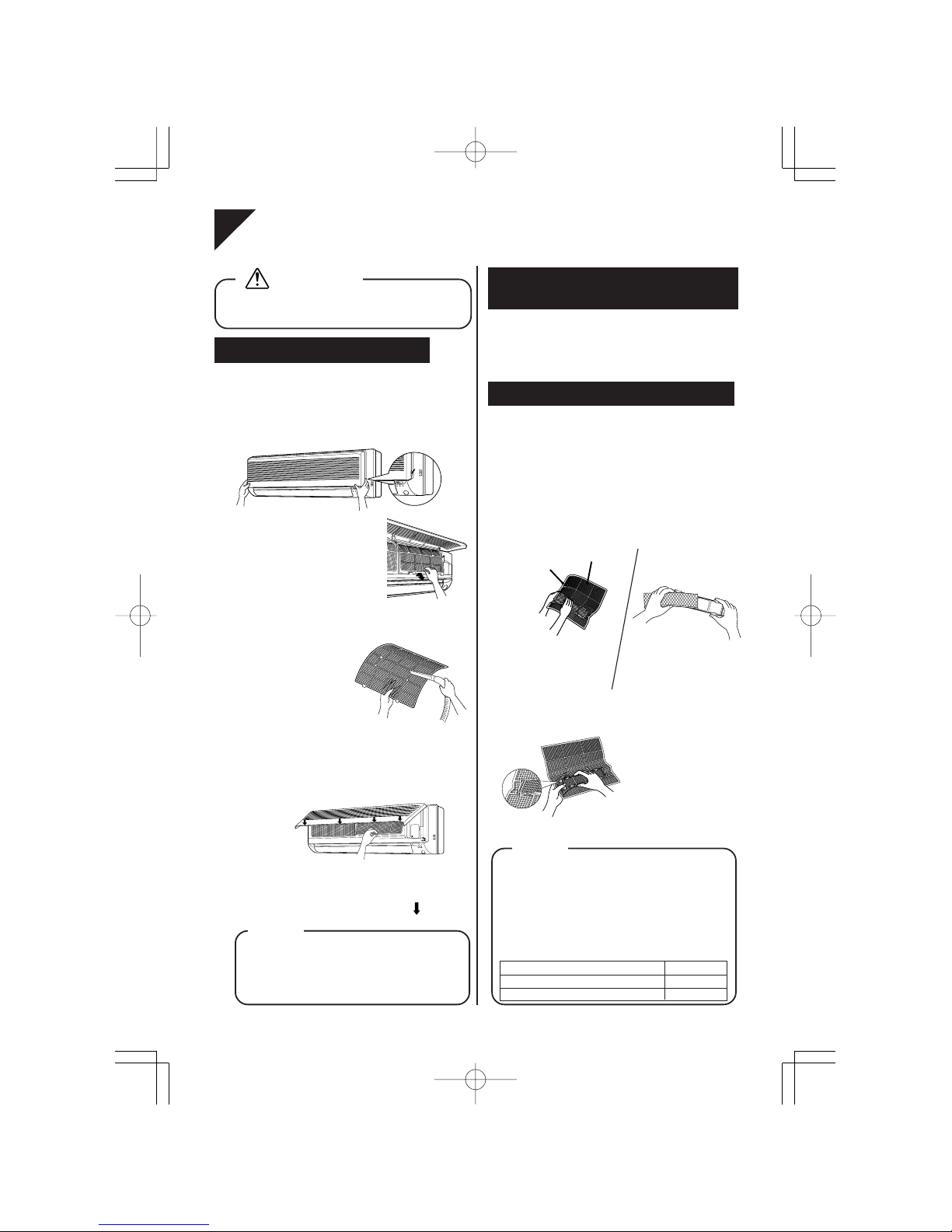

Detach the
filter element
and attach a
new one.
Set the air
filters as they
were and
close the front
grille.
(Push the grille
at the 4 points,
two at both sides
and in the
middle.)
5
Air filter
Air purifying
filter frame
• Hold the recessed
parts of the frame
and unhook the four
claws.

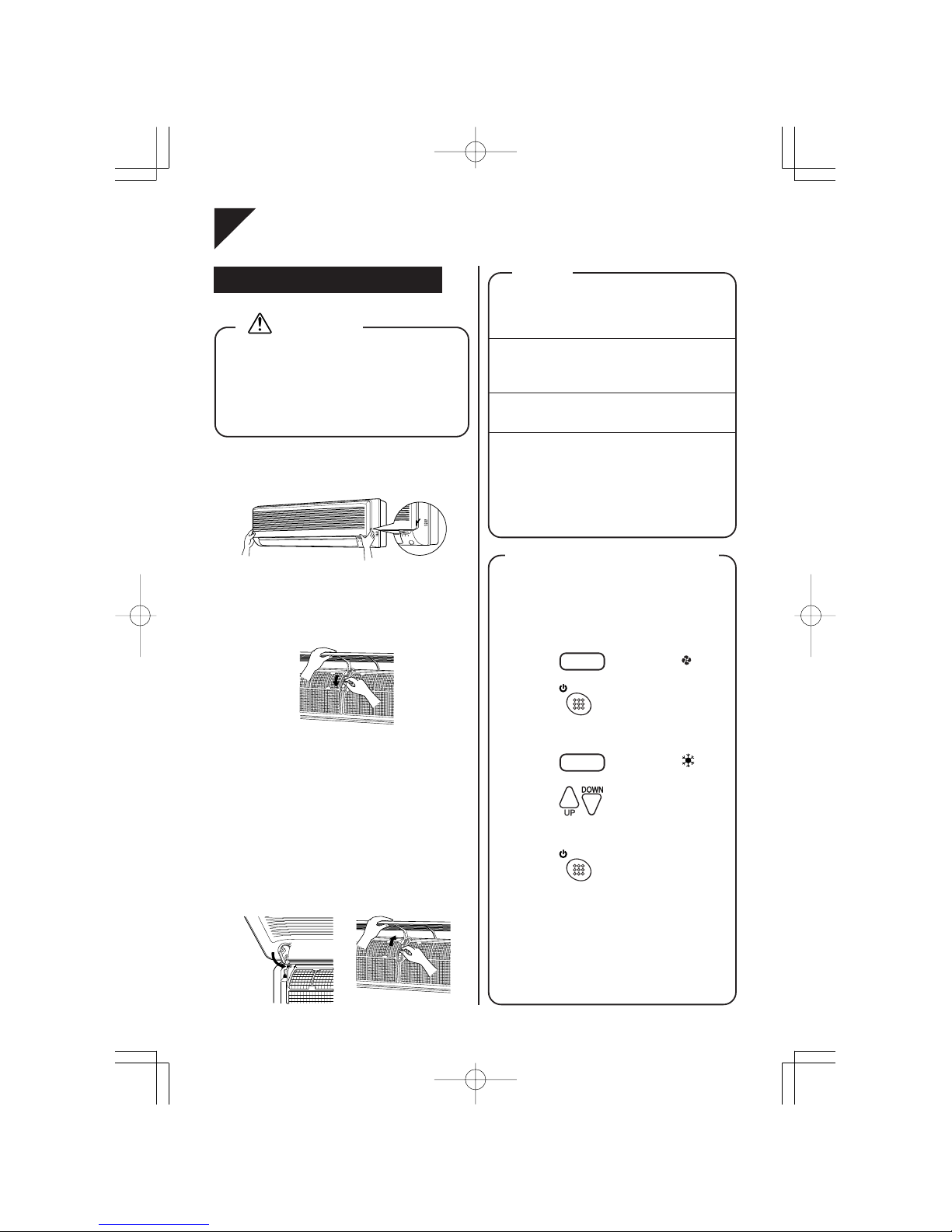

Before cleaning, be sure to stop the
operation and turn the breaker OFF.
Open the front grille.
● Hold the grille by the tabs on the two sides
and lift it unitl it stops with a click. (about 60°)
Pull out the air filters.
●Push a little upwards the
tab at the center of each
air filter, then pull it down.
1
32
Take off the air purifying filters and
clean them.
●Wash them with
water, or clean them
with a vacuum
cleaner.
●If the dust does not
come off easily, wash
them with neutral
detergent thinned
with lukewarm water,
then dry them up in the shade.
Set the air purifying filters and the
air filters as they were and close the
front grille.
4
(It is recommended to clean them every two weeks.)
Open the front grille and pull out
the air filters.
Take off the air
purifying filters.
●Wipe them with dry soft cloth.
For cleaning, do not use water hotter than
40°C, benzine, gasoline, thinner, nor other
volatile oils, polishing compound, scrubbing
brushes nor other hard stuff.
(It is recommended to replace them every
three months.)
● Air purifying filters need to be replaced regularly.
Attach the air
purifying filter.
Care and Cleaning
CAUTION
NOTE
● Insert claws of the filters into slots of the front
panel. The front grille should lock at both
sides and at the point in the middle. Push the
grille at the 4 points indicated by .
Push
●In a dusty environment, clean the air filters
at least once in every two weeks.
●Operation with dusty air filters lowers the
cooling and heating capacity and wastes
energy.
NOTE
●To order air purifying filters, contact the
service shop where you bought the air
conditioner.
●Once the air purifying filter element gets
dirty, it is not reusable but must be thrown
away.
●Operation with dirty air purifying filters :
•cannot clean the air.
•results in poor cooling.
•may cause odour.
Cleaning the indoor and outdoor
units and the remote controller
Replacing air purifying filters
Item
Air purifying filter (with frame)
Air purifying filter (without frame)
Part No.
KAF918A41
KAF918A42
4
1
3
2
Cleaning the air filters
運転タイマおそうじ
℃
運転タイマ


17
CAUTION
Clean the front grille.
● You may wipe it with a soft cloth soaked in water.
● Only neutral detergent may be used.
● You may wash the grille with water. After washing,
dry it with cloth, then dry it up in the shade.
Remove the front grille.
● Supporting the front grille with one hand, release
the lock by sliding down the knob with the other
hand.
● To remove the front grille, pull it toward yourself
with both hands.
Care and Cleaning
Cleaning the front grille
You may remove the front grille for cleaning.
● When removing or attaching the front grille, use a robust
and stable stool and watch your steps carefully.
● When removing or attaching the front grille, support the
grille securely with hand to prevent it from falling.
● For cleaning, do not use water hotter than 40°C, benzine,
gasoline, thinner, nor other volatile oils, polishing
compound, scrubbing brushes nor othe hard stuff.
● After cleaning, make sure that the front grille is securely
fixed.
1
3
2
4Attach the front grille.
● Set the 3 keys of the front grille into the slots and
push them in all the way.
● Supporting the front grille with one hand, fit the
lock by sliding up the knob with the other hand.
● Close the front grille slowly in this state. (Push
the grille at the 3 points, two at both sides and in
the middle.)
Open the front grille.
●Hold the grille by the tabs on the two sides
and lift it until it stops with a click.
Before a long idle period
1
2
Press
MODE
and select “”.
Press
ON/OFF
.
1 Operate the fan alone for several
hours on a fine day to dry out the
inside.
<FTK>
2 Clean the air filters and set them
again.
3 Take out batteries from the remote
controller.
4 Turn OFF the breaker for the room air
conditioner.
Check that the base, stand and other
fittings of the outdoor unit are not
decayed or corroded.
Check that nothing blocks the air
inlets and the outlets of the indoor unit
and the outdoor unit.
Check that the earth wire is not
disconnected or broken.
Check that the drain comes smoothly
out of the drain hose during COOL or
DRY operation.
●If no drain water is seen, water may be
leaking from the indoor unit. Stop
operation and consult the service shop if
this is the case.
Check
運転タイマおそうじ
℃
運転タイマ

Fit the key
into the slot.
Side up the knob.
<FTX>
1
2
Press
MODE
and select “”.
Press and set the
temperature to 32°C
3Press
ON/OFF
.
•Perform this operation when the room
temperature is under 28°C.

18
Trouble Shooting
●●
●●
●These cases are not troubles.
The following cases are not air conditioner troubles but have some reasons. You may just continue
using it.
Case
Operation does not start soon.
●When ON/OFF button was
pressed soon after operation
was stopped.
●When the mode was reselected.
Hot air does not flow out soon
after the start of heating
operation.
The heating operation stops
suddenly and a flowing sound is
heard.
The outdoor unit emits water or
steam.
Mists come out of the indoor unit.
The indoor unit gives out odour.
The outdoor fan rotates while the
air conditioner is not in operation.
The operation stopped suddenly.
(OPERATION lamp is on)
Explanation
●This is to protect the air conditioner.
You should wait for about 3 minutes.
●The air conditioner is warming up.You should wait for 1 to 4 minutes.
(The system is designed to start discharging air only after it has reached
a certain temperature.)
●The system is taking away the frost on the outdoor unit.
You should wait for about 3 to 10 minutes.
■In HEAT mode
•The frost on the outdoor unit melts into water or steam when the air
conditioner is in defrost operation.
■In COOL or DRY mode
•Moisture in the air condenses into water on the cool surface of
outdoor unit piping and drips.
■This happens when the air in the room is cooled into mist by the cold
air flow during cooling operation.
■This happens when smells of the room, furniture, or cigarettes are
absorbed into the unit and discharged with the air flow.
(If this happens, we recommend you to have the indoor unit washed
by a technician. Consult the service shop where you bought the air
conditioner.)
■After operation is stopped:
•The outdoor fan continues rotating for another 60 seconds for system
protection.
■While the air conditioner is not in operation:
•When the outdoor temperature is very high, the out door fan starts
rotating for system protection.
■For system protection, the air conditioner may stop operating on a
sudden large voltage fluctuation.
It automatically resumes operation in about 3 minutes.

19
●●
●●
●Check again
Please check again before calling a repair person.
Case
The air conditioner does not
operate.
(OPERATION lamp is off)
Cooling or Heating effect is
poor.
Operation stops suddenly.
(OPERATION lamp blinks.)
An abnormal functioning
happens during operation.
Check
●Hasn’t a breaker turned OFF or a fuse blown?
●Isn’t it a power failure?
●Are batteries set in the remote controller?
●Is the timer setting correct?
●Are the air filters clean?
●Is there anything to block the air inlet or the outlet of the indoor and the
outdoor units?
●Is the temperature setting appropriate?
●Are the windows and doors closed?
●Are the air flow rate and the air direction set appropriately?
●Are the air filters clean?
●Is there anything to block the air inlet or the outlet of the indoor and the
outdoor units?
Clean the air filters or take all obstacles away and turn the breaker OFF.
Then turn it ON again and try operating the air conditioner with the remote
controller. If the lamp still blinks, call the service shop where you bought the
air conditioner.
●Are operation modes all the same for indoor units connected to outdoor
units in the multi system?
If not, set all indoor units to the same operation mode and confirm that the
lamps blink.
Moreover, when the operation mode is in “AUTO”, set all indoor unit opera-
tion modes to “COOL”or “HEAT”for a moment and check again that the
lamps are normal.
If the lamps stop blinking after the above steps, there is no malfunction.
(See page 12.)
●The air conditioner may malfunction with lightening or radio waves. Turn the
breaker OFF, turn it ON again and try operating the air conditioner with the
remote controller.
Trouble Shooting

20
Trouble Shooting
If one of the following symptoms takes place, call the service shop immediately.
●●
●●
●Call the service shop immediately.
WARNING
■When an abnormality (such as a burning smell) occurs, stop operation
and turn the breaker OFF.
Continued operation in an abnormal condition may result in troubles,
electric shocks or fire.
Consult the service shop where you bought the air conditioner.
■Do not attempt to repair or modify the air conditioner by yourself.
Incorrect work may result in electric shocks or fire.
Consult the service shop where you bought the air conditioner.
■The power cord is abnormally hot or damaged.
■An abnormal sound is heard during operation.
■The safety breaker, a fuse, or the earth leakage
breaker cuts off the operation frequently.
■A switch or a button often fails to work
properly.
■There is a burning smell.
■Water leaks from the indoor unit.
Turn the breaker
OFF and call the
service shop.
We recommend periodical maintenance
In certain operating conditions, the inside of the air conditioner may get foul
after several seasons of use, resulting in poor performance. It is recommended
to have periodical maintenance by a specialist aside from regular cleaning by
the user. For specialist maintenance, contact the service shop where you
bought the air conditioner.
The maintenance cost must be born by the user.
■After a power failure
The air conditioner automatically
resumes operation in about three
minutes. You should just wait for
a while.
■Lightening
If lightening may strike the
neighbouring area, stop operation
and turn the breaker OFF for
system protection.
