Daikin FTXN-LV Programming manual

TS13-01
Inverter Split
Wall mounted Type L-Series
Heat pump:
Indoor unit: FTXN-LV
Outdoor unit: RXN-LV
Troubleshooting
Manual

TS13-01 Troubleshooting manual 2
Inverter Air conditioning technology is today’s solution for superior comfort, higher efficiency and better energy
saving. Daikin Inverter included Residential, Light Commercial and Multi Split Unit.
INVERTER Y SINGLE SPLIT (Residential, Light Commercial)
i) INDOORS
ii) OUTDOORS
1.1 INVERTER Y SINGLE SPLIT
Residential (FTXN-LV & RXN-LV):
- High Quality & Efficiency Daikin DC Inverter compressor
- High Performance Daikin Inverter Controller
- 5-speed Step-less Fan operation
- BioPro IAQ.
- New Inverter-only Remote Control
Piping Length & Elevation
Model
Max. total
piping length
(m)
Max. height
difference
(m)
Pre-charge for
up to piping
length (m)
Additional
charge
(g/m)
RXN25LV1B
20
10
7.5
20
RXN30LV1B
20
10
7.5
20
RXN50LV1B
30
10
7.5
20
RXN60LV1B
30
10
7.5
20

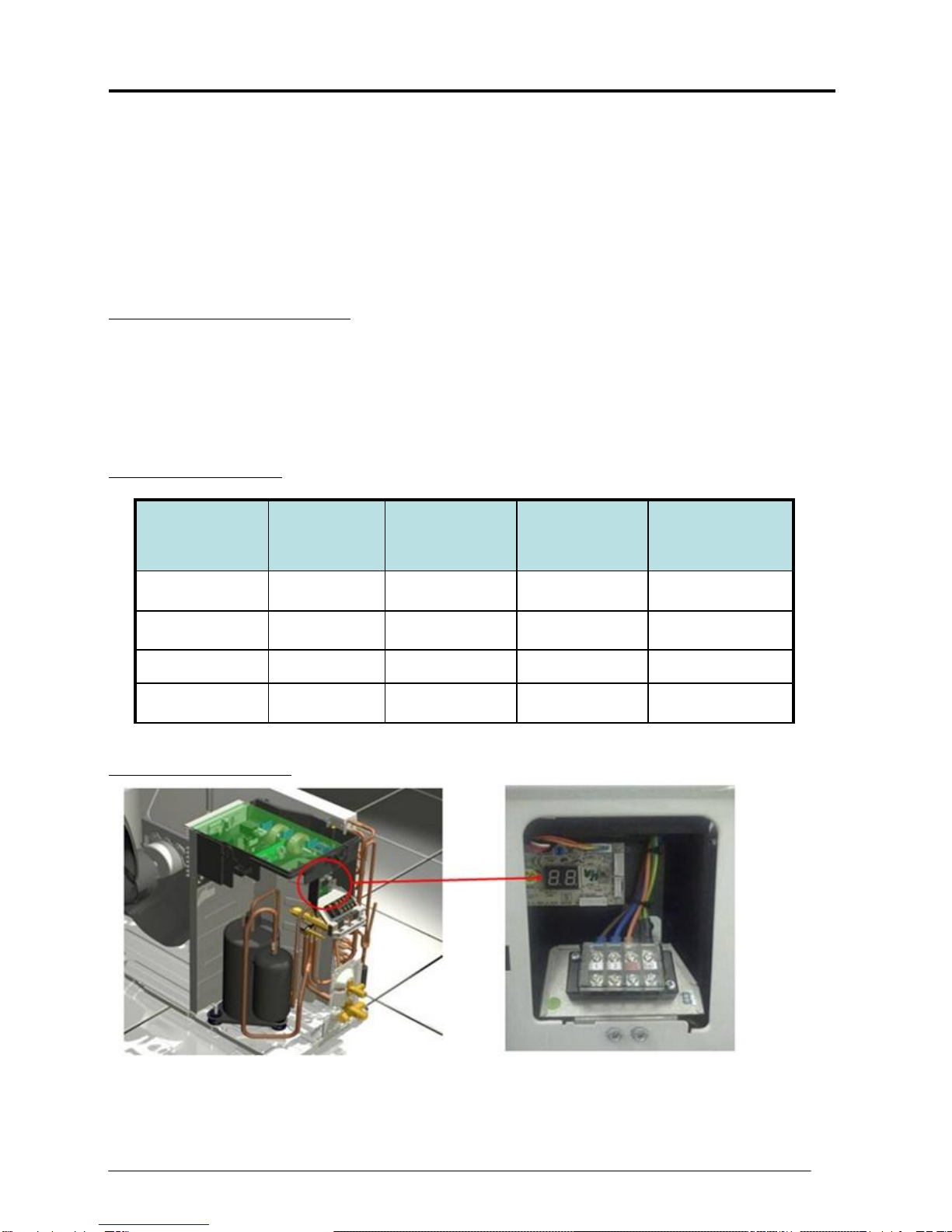

Terminal Block for outdoor:
- Equipped with 7-segment display to improve serviceability. (Exclude for RXN25/30LV1B)
- To retrieve error code & running parameters.
1.0 Introduction

TS13-01 Troubleshooting manual 3

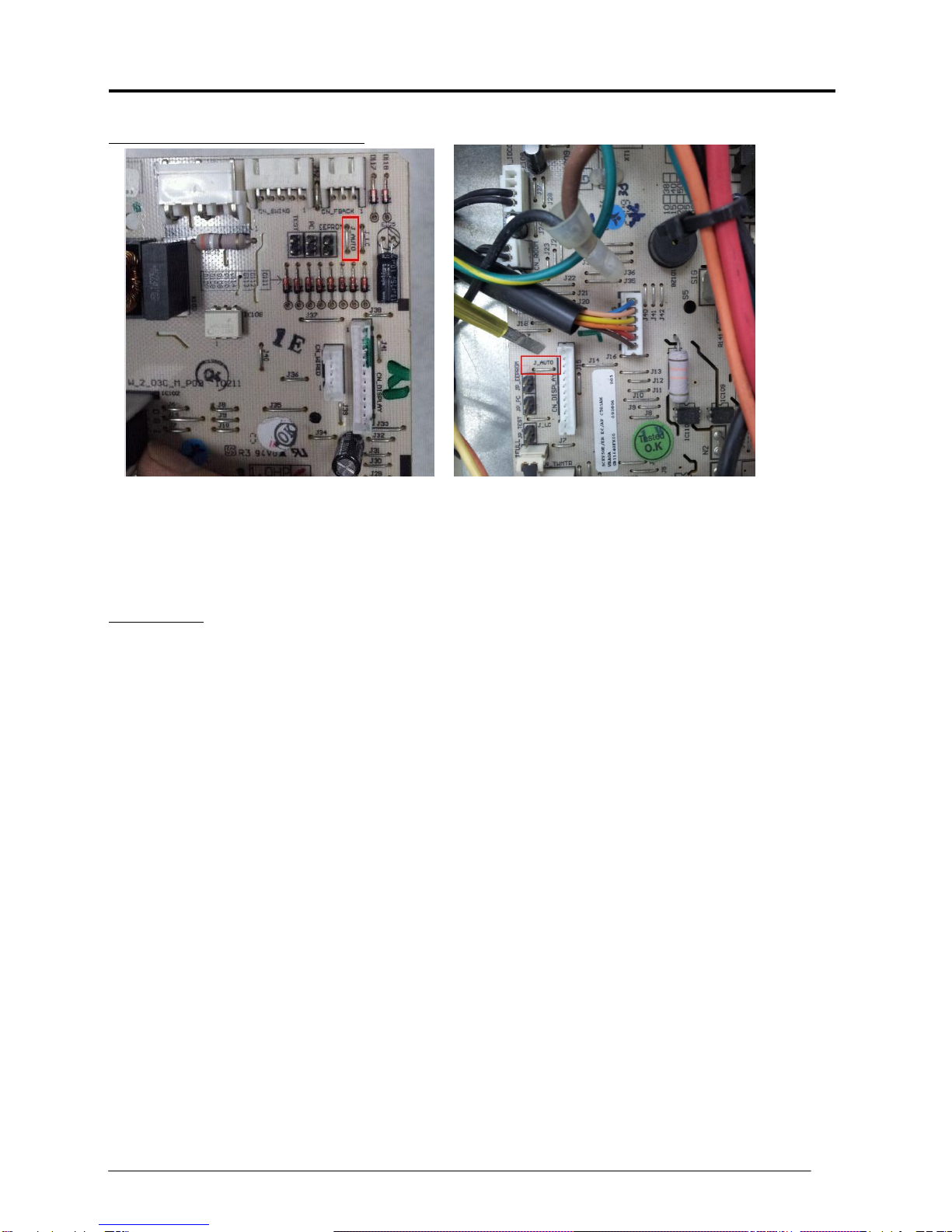

Disable Auto Random Restart function:
Series I Series II
To disable the auto random restart function, kindly cut off the jumper J_AUTO as highlighted in attachment.
Please be informed that after disable auto random restart, unit is not able to restart with last state memory after
power resume from failure. Unit will revert to default setting as below:
Default setting
Unit: Off
Temperature: 24°C
Fan speed: High
Mode: Cooling

TS13-01 Troubleshooting manual 4
INDOOR BASIC FUNCTIONS
Residential and Light Commercial
-The system has 5 operating modes. The mode selection is done from indoor using handset.
-The operating modes are:
•Cool
•Heat
•Fan
•Auto
•Dry
Cool Mode:
-When Tr ≥ Ts - 1.5°C
•Comp, Indoor Fan and Outdoor Fan ON.
-When Tr ≤ Ts - 2°C
•Compressor and Outdoor Fan OFF.
•Indoor Fan remains ON.
Tr = Room Temperature
Ts = Set Temperature
When cooling load is too small and the room temperature still falling below compressor cut off point,
compressor will stop.
2.0 Algorithm and Control

TS13-01 Troubleshooting manual 5

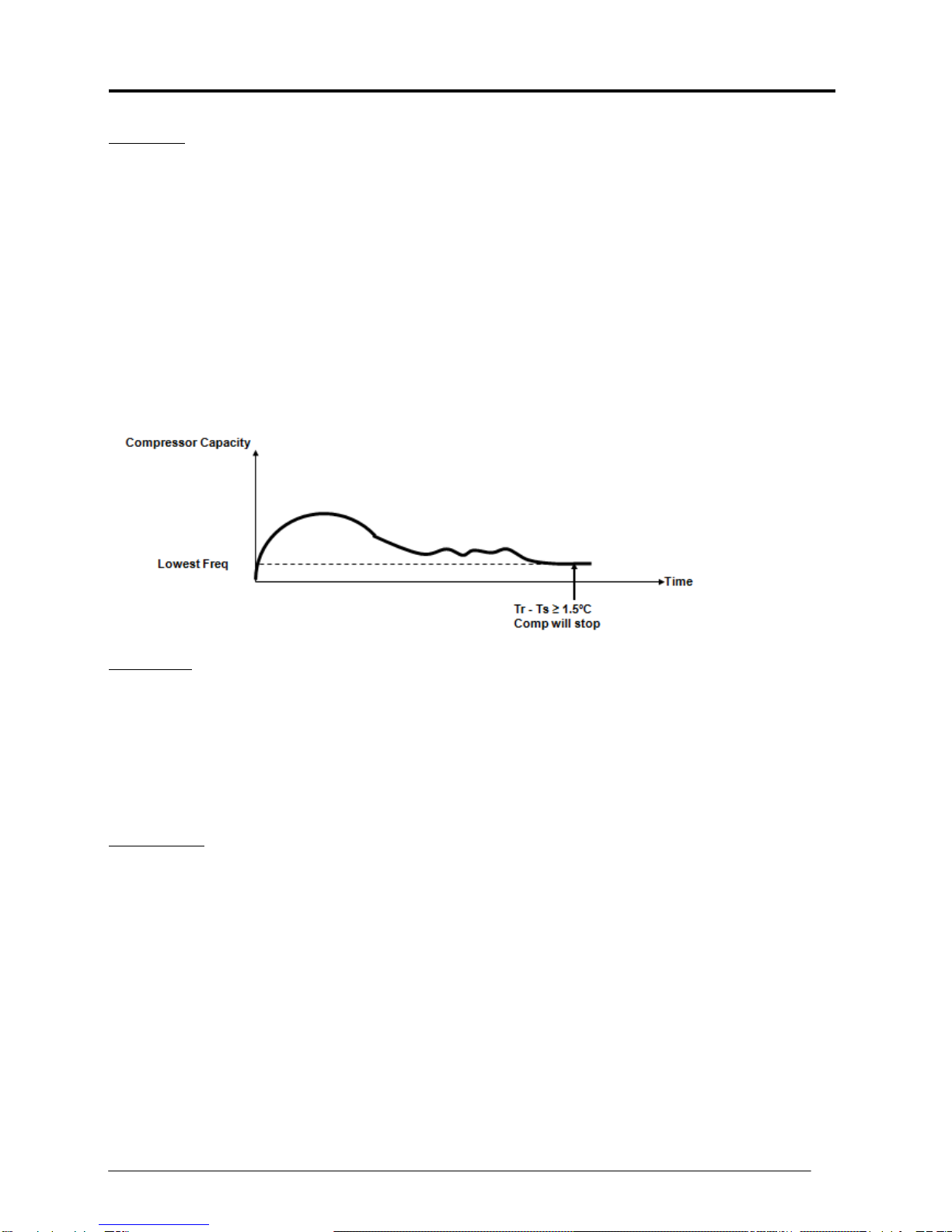

Heat Mode:
-When Ts > Tr - 1.0°C
•Comp, ID Fan and OD Fan ON.
-When Tr ≥ Ts + 1.5°C
•Compressor and Outdoor Fan OFF.
•Indoor Fan off if indoor coil ≤20°C.
Tr = Room Temperature
Ts = Set Temperature
When heating load is too small, and the room temperature still rising above compressor cut off point, compressor
will stop.
FAN MODE
-Only High, Medium and Low fan speeds are allowed.
-When changing cool mode to fan mode, the compressor will stop and OD fan stops based on fan OFF
control.
-Compressor only ON if the minimum stop time is > 3 minutes and the user change back to cool mode.
-Fan speed will maintain same as during fan mode.
AUTO MODE
-For heat pump only
-Mode switching point:
•Heating Cooling
Tr ≥ Ts + 2.5
•Cooling Heating
Tr ≤ Ts – 2.5
-During initial operation
•Cooling operation: Tr > Ts
•Heating operation: Tr < Ts

TS13-01 Troubleshooting manual 6
ID-OD COMMUNICATION
-Master by outdoor unit.
-Indoor controller board will transmit signal to outdoor controller board every 0.5s. Outdoor unit will
response to indoor once the valid data is received.
-If the data communication line between indoor and outdoor disrupted for 15s continuously, compressor
will stop, OD fan stop with fan OFF timer. ID LED blinks error.
-If the communication resumes within 15s, error code is clear and compressor restarts after 3 minutes.
-If the communication does not resume after 15s, unit unable to restart and the error keep blinking.

TS13-01 Troubleshooting manual 7
THERMISTORS IN RXN-LV
FUNCTIONS OF THERMISTOR
Thermistor
Functions
Discharge pipe
Used for discharge superheat (SH) & EXV control. Also used for crankcase
heater/ preheating control in Series 2 model.
Outdoor coil
Used for defrost control. Also used for inverter current protection control in
Series II.
Outdoor air
Used for defrost & outdoor fan speed control. Also used for PMV, overall
current protection & preheating operation control.
Heat sink
Used for capturing heat sink temperature.
Suction pipe
Used for EXV (SH) & suction pipe SH protection control in heating.
Gas pipe
Used for gas pipe isothermal control in cooling. EXV opening is controlled so
that accurate cooling capacity is achieved in each room.
Liquid pipe
Used for sub-cooling control in heating. Actual sub-cooling will be calculated
with liquid pipe & max. heat exchanger temperature among all rooms. EXV
opening is then adjusted to reach the target sub-cooling.

TS13-01 Troubleshooting manual 8
MINIMUM RUN CONTROL
To prevent frequent compressor ON/OFF & to allow pressure equalization
•The compressor will be on 3 minutes stand-by after turning OFF before it is allowed to turn ON.
•OD fan OFF delay to improve pressure equalization & to prevent refrigerant from entering into
evaporator.
AUTO RESTART
-Factory pre-set.
-Allow unit to automatically resume the same operating mode it was in before a power failure.
4-WAY VALVE CONTROL
-Change over switching is only carried out during operation.
-OFF delayed is applied when the coil switches from ON to OFF, i.e. A5LCY Series I - 45 second,
Operating mode
4-way valve is
Heat, except for defrost
ON
Cool
Dry
Defrost
OFF
DEFROST CYCLE
During defrost
RXN-LV
Compressor
ON
4-way valve
OFF
EXV in operation room
Fixed opening
EXV in operation stop room
-
Outdoor fan
OFF
Indoor fan
OFF

TS13-01 Troubleshooting manual 9
FTXN-LV and RXN-LV:
DEFROST CONTROL
-Condition for entering defrost
•Compressor minimum run time –6 minutes OR
•Compressor accumulated run time of 45 minutes if OD coil < 3C.
•When OD coil < 0C AND OD coil < OD air - 10C.
-Condition for terminating defrost
•OD coil > 12C or
•Total defrost timer of 650 seconds.
OUTDOOR FAN CONTROL
-Determine from
•Compressor target rotation: higher fan speed with higher rotation.
•Outdoor air temperature.
-Cool mode: Higher fan speed with higher outdoor air temperature.
-Heat mode: Higher fan speed with lower outdoor air temperature.
-When compressor stops, fan OFF delay 30 seconds is carried out
INDOOR COIL FREEZE PREVENTION
-Only available in cooling mode.
-When the indoor coil temperature < 2°C, the compressor starts to drop the frequency.
-This protection will cut in when:
•Indoor coil temperature < 0°C for more than 180s. Compressor will stop, OD fan stop after 30s
and indoor fan can only run at lowest fan speed.
-The unit can only be restarted after 3 minutes.
-When the indoor coil temperature > 13°C, the compressor frequency will be reset based on the OD
ambient, room and set temperature.

TS13-01 Troubleshooting manual 10

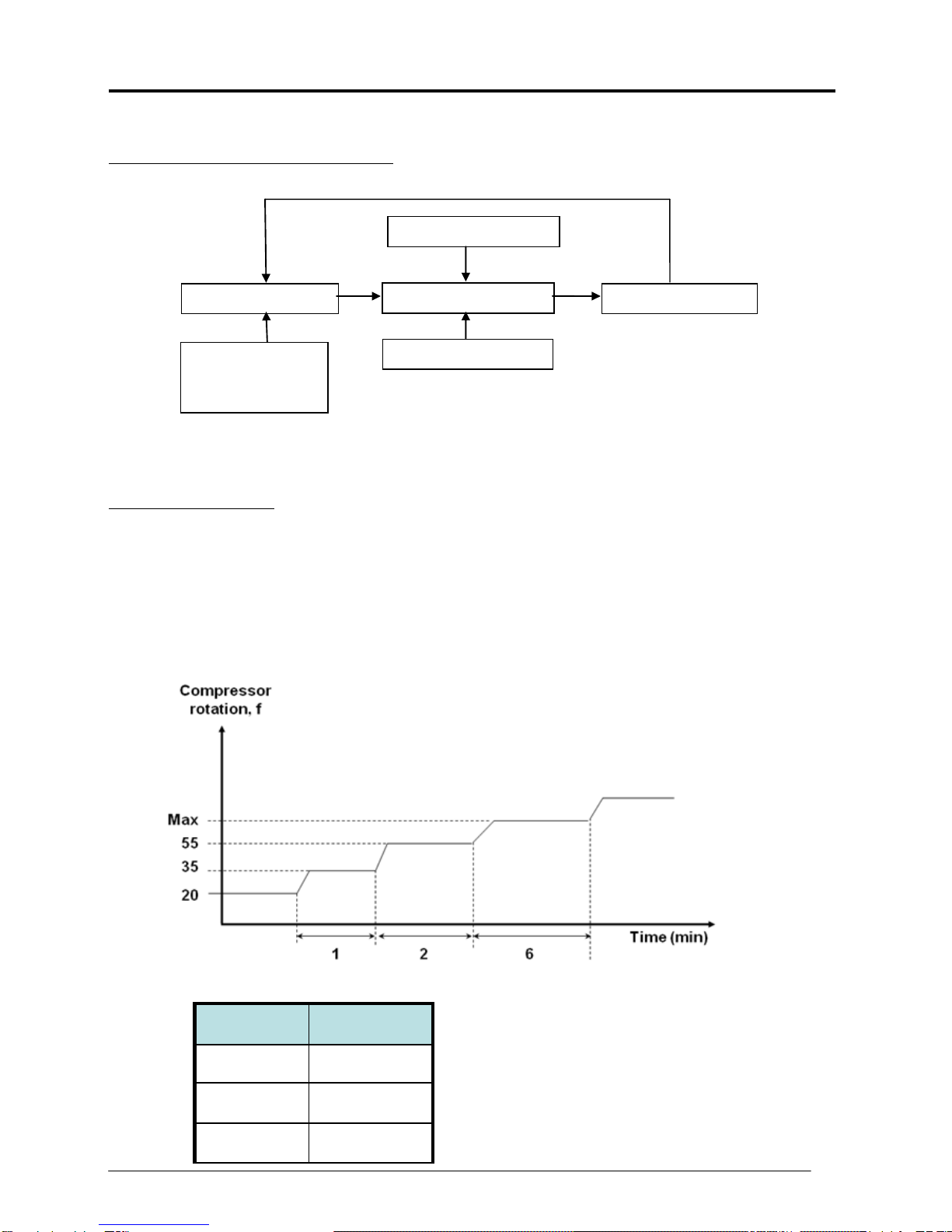

ROTATION REGULATING FUNCTIONS
* Defrost control for heat pump model only
STARTING ROTATION
STARTING CONTROL
-To avoid excessive oil discharge from compressor or to promote oil lubrication during startup.
-To prevent liquid flood back to the compressor.
-To limit starting current.
-When compressor starts to rotate from OFF to ON, compressor rotation is set to run gradually to each
upper limit at a specific timer setting.
Model
Max. f
RXN25LV1B
68 Hz
RXN35LV1B
74 Hz
RXN50LV1B
90 Hz
Upper limit rotation
Limit Rotation
Lower limit rotation
Target Rotation
Command Rotation
Starting Rotation
∆T
Defrost*

TS13-01 Troubleshooting manual 11
COMMAND ROTATION
-Cut in upon termination of Starting Control.
-Achieve capacity control by controlling the compressor rotation based on :
•Temperature difference between set and room temperature, T.
•Limit Rotation.
•Defrost control.
Fuzzy Control
-Based on temperature difference, T, current fan speed setting & current indoor operating mode at every
30 seconds interval.
-
LIMIT ROTATION
Determine from
•Upper limit rotation
RXN60LV1B
93 Hz
Temperature Difference
Condition 1
∆T
Condition 2
d∆T
∆Tt= Troom - Tset
d∆Tt= ∆Tt- ∆Tt-1
Use to set target for compressor frequency change
Compressor frequency is increased or
decreased

TS13-01 Troubleshooting manual 12
A minimum value was determined among the upper limits rotation, i.e. protection controls.
•Lower limit rotation
A maximum value was determined among the lower limits rotation, i.e. protection controls.
Generally, compressor rotation is controlled within 4 zones: stop, drop, keep, up and reset subjected to a
particular operating temperature/current/pressure.
Zone
Control
Stop
Compressor is stopped when a certain limit reaches the stop zone for abnormality
correction.
Drop
Frequency will be dropped with a timer setting.
Keep
Frequency is maintained at lower/upper limit.
Up
Frequency will be increased with a timer setting.
Reset
Frequency lower/upper limit is canceled and returned to command rotation.
HIGH PRESSURE PROTECTION
-To prevent high pressure in the system.
-Compressor operating frequency is adjusted based on upper limit of coil temperature (RXN-LV)

TS13-01 Troubleshooting manual 13
-The compressor frequency is adjusted based on coil temperature:
•During cooling mode –outdoor coil temperature.
•During heating mode –indoor coil temperature.
-This protection is activated when the coil temperature > 64°C, the compressor stop and OD fan stop after
30s.
-The unit can only be restarted after 3 minutes.
DISCHARGE PIPE TEMPERATURE CONTROL
-Used as a measure of the compressor’s internal temperature.
-Compressor frequency is control to keep this temperature from going up further when it rises above a
certain level.
-If compressor discharge temperature >102°C (111°C) for the first time, this control starts and set the
current frequency as upper limit. At the same time, running frequency start to reduce by 1 step and so on,
until temperature falls between 99°C (109°C)and 90°C (107°C) –at the maintain zone.
-This protection is activated when the compressor discharge temperature > 110°C (120°C). The
compressor will stop and considered trip.
-If the compressor discharge temperature < 90°C (107°C), the compressor frequency will be reset based
on the OD ambient, set and room temperature.

TS13-01 Troubleshooting manual 14
OVERALL CURRENT CONTROL
-To monitor the overall current and to restrict the compressor upper limit rotation in order to prevent
circuit breakers from exceeding the rated capacity.
-Detected during compressor running.
Model
L1
RXN50LV1B
12.0A
RXN60LV1B
12.0A
-When the input current for running compressor exceeds L2, running frequency will be reduced by 1 step.
If current still exceeds L2, frequency will be reduced by another 1 step until total current falls between
L2 and L3.
-This protection cut in when the input current exceeds L1 for 2 seconds –(RXN-LV ).Compressor will
stop and it is considered total current overload.
-If input current <L3, the compressor frequency is reset based on the OD ambient, set and room
temperature.
OIL RECOVERY CONTROL
-When the compressor operates for certain duration at low frequency, the oil level in the compressor may
become low due to incomplete oil return.
-To prevent damage to the compressor or compressor lock due to low oil lever.
-To promote refrigerant flow to carry the oil back to the compressor.

TS13-01 Troubleshooting manual 15
Entering condition:
•Compressor rotation < 35 Hz, at the end of a 20 minutes timer: set lower limit rotation to 35 Hz
& EXV opening is fixed at current opening + 50 pulse. This control is reset when rotation > 35
Hz.
OR •Compressor rotation > 35 Hz, for every 120 minutes: current rotation is remained & EXV is
fixed at current opening + 50 pulse. This control is reset after 5 minutes.
From indoor units
•When any error occurs, indoor LED display will keep blinking –green light:
•The blinking pattern not indicate error details
•The error details have to retrieve from handset in error code form.

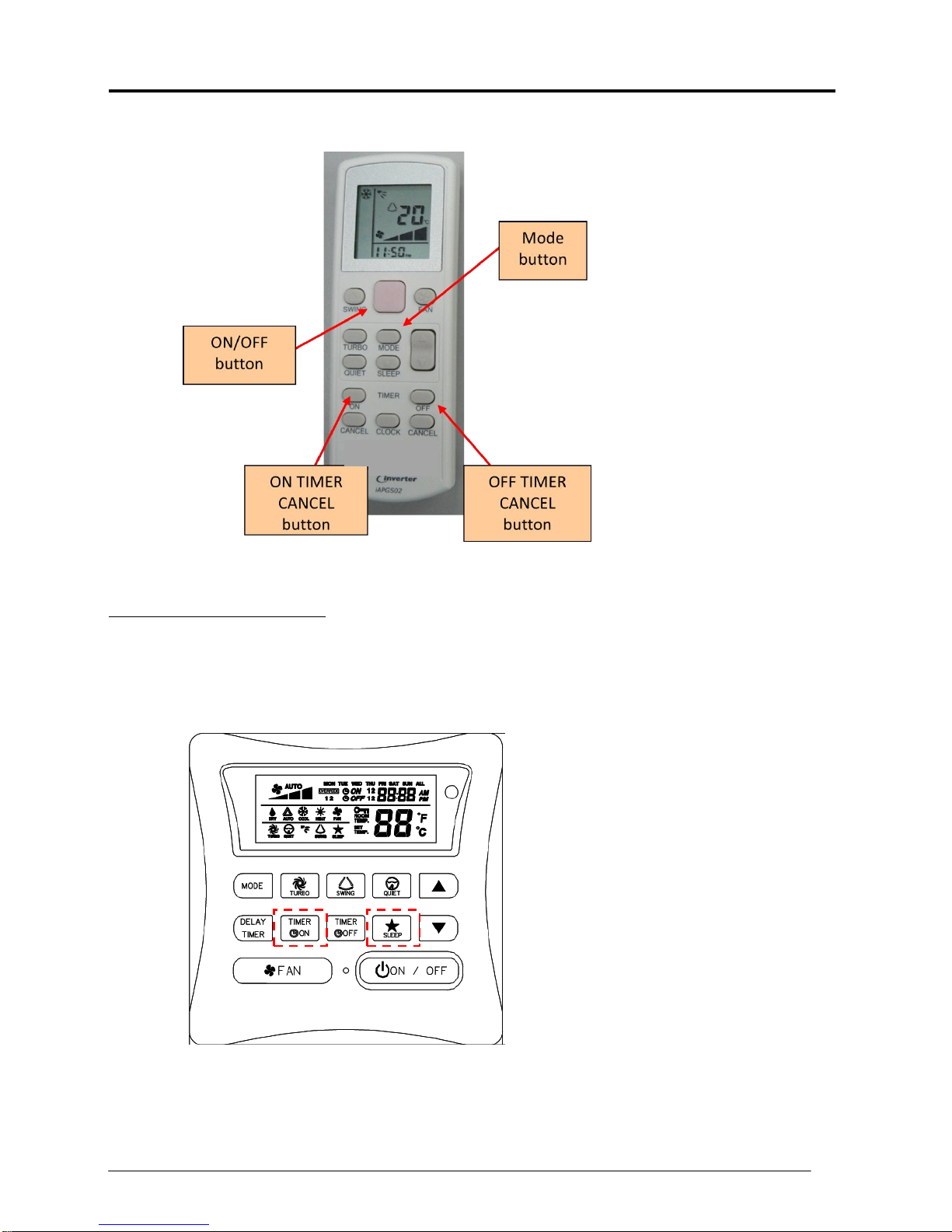

Indoor Wireless Handset: BRC52A61

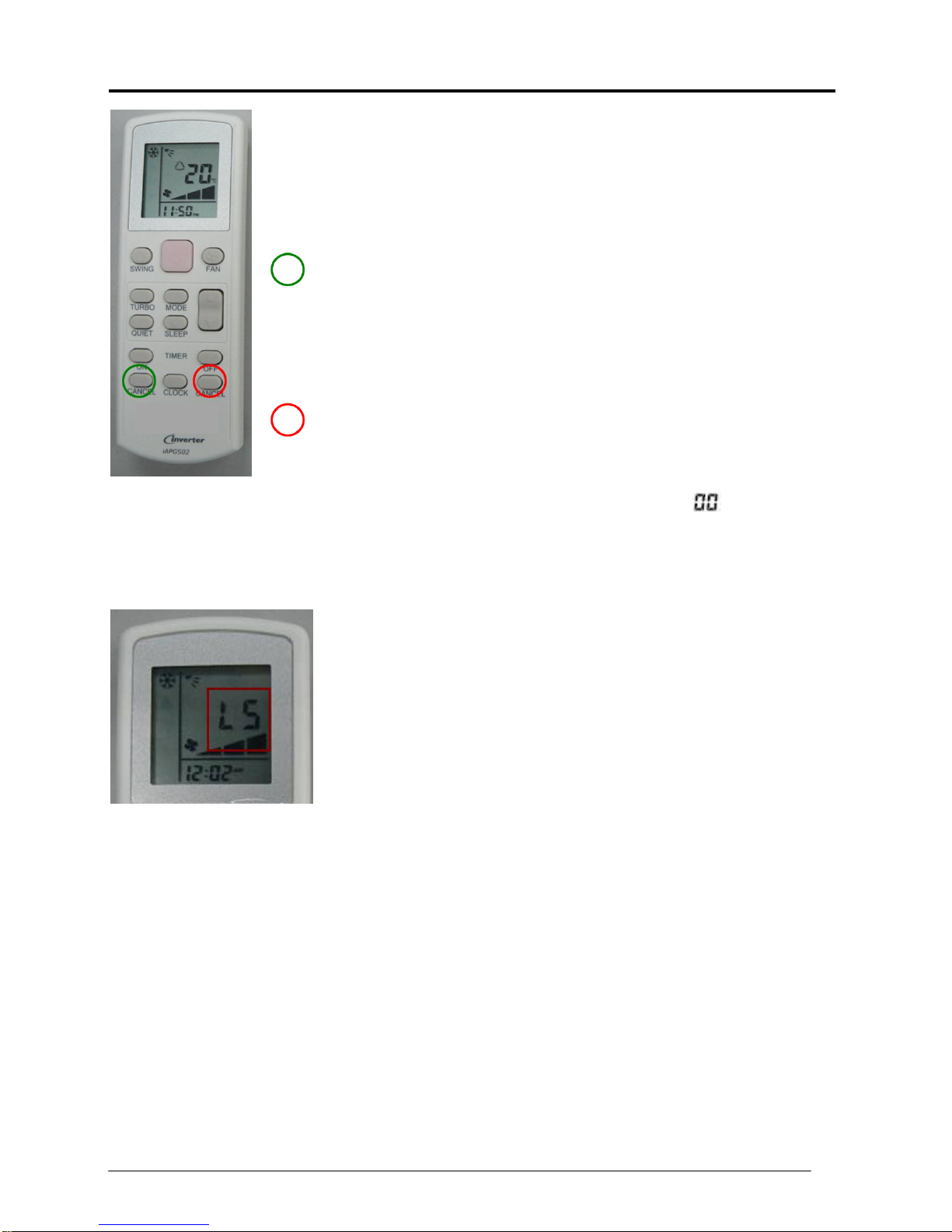

Using wireless handset BRC52A61 to retrieve error code:
3.0 Service Diagnosis
LED blinks here

TS13-01 Troubleshooting manual 16
1. Hold down ON TIMER CANCEL or OFF TIMER CANCEL for 5 seconds until “ ” indication
flashes on the handset temperature display section.
2. Then, press the same button repeatedly. A series of error code will appear until ID buzzer produces a
long beep. The corresponding error code is indicated on the handset temperature display section.
3. ID unit buzzer will produce a long beep if the handset error code matched with unit error.
4. A short and two consecutive beeps is Not the unit error.
5. The code display will cancel itself if the button is not pressed for 1 minute.
How to Retrieved Last State Error:
1) Remove battery from remote controller.
2) Replace battery again into remote controller.
3) Press Mode & ON/OFF buttons together.
4) The “ 00 “ will show at temperature section.
5) Press Mode button to 5:00
6) Press Power On. Unit LED blink two times
7) ON hold fan button till screen become normal display.
ON TIMER CANCEL
OFF TIMER CANCEL

TS13-01 Troubleshooting manual 17
8) Repeat the normal step to retrieve error. (by using remote controller step. Holding TIMER CANCEL…)
Using wired handset BRC51A61:
-The error will show at the LCD display.
-BRC51A61 can retrieved last state memory by :
-Press SLEEP & TIMER ACTIVE simultaneously for 5 seconds and the error will be flashed.

TS13-01 Troubleshooting manual 18
Error code description for Y-series Inverter:
No
.
ERROR
CODE
ERROR DESCRIPTION
RXN50,60 LV1B
RXN25,35LV1B
1
00
Normal
√
√
2
A1
INDOOR PCB ERROR
√
√
3
A3
DRAIN PUMP ABNORMAL
√
x
4
A5
ANTIFREEZE PROTECTION
√
√
5
A6
INDOOR FAN MOTOR ABNORMAL
√
√
6
A7
AIR SWING MOTOR LOCK
√
x
7
C4
INDOOR HEAT EXCHANGER
THERMISTOR SHORT/OPEN
√
√
8
C9
INDOOR ROOM THERMISTOR
SHORT/OPEN
√
√

TS13-01 Troubleshooting manual 19
9
E1
OUTDOOR PCB ERROR
x
√
10
E5
COMPRESSOR OVERLOAD
x
√
11
E6
COMPRESSOR LOCK /START-UP
ERROR
√
√
12
E7
OUTDOOR FAN MOTOR LOCK
x
√
13
E8
AC INPUT OVER CURRENT
√
√
14
EA
4 WAY VALVE ERROR
x
√
15
F3
DISCHARGE PIPE OVERHEAT
√
√
16
F6
HEAT EXCHANGER OVERHEAT
√
√
17
H0
COMPRESSOR SENSOR SYSTEM
ABNORMAL
x
√
18
H6
POSITION SENSOR ABNORMAL (
compressor )
√
√
19
H8
AC CURRENT SENSOR ERROR
√
√
20
H9
OUTDOOR AIR THERMISTOR
SHORT/OPEN
√
√
21
J3
COMPRESSOR DISCHARGE PIPE
THERMISTOR
SHORT/OPEN/MISPLACED
√
√
22
J6
OUTDOOR HEAT EXCHANGER
THERMISTOR SHORT/ OPEN
√
√
23
L3
ELECTRICAL BOX TEMPERATURE
RISE
( compressor off )
x
√
24
L4
HEAT SINK OVERHEAT ( compressor
on )
√
√
25
L5
IPM ERROR / IGBT ERROR ( output
over current )
√
√
26
P4
HEAT SINK THERMISTOR SHORT /
OPEN
√
√
27
U0
INSUFFICIENT GAS
√
√

TS13-01 Troubleshooting manual 20
28
U2
DC VOLTAGE OUT OF RANGE
√
√
29
U4
COMMUNICATION ERROR
√
√
30
UA
INSTALLATION ERROR
√
√
Error Code:
A1
Description
Indoor unit PCB abnormality
Supposed Cause
1) Faulty indoor PCB
2) Faulty connector connection at indoor
Troubleshooting
A3
Description
Water Pump Error
