Daikin RC50PRV16 User manual

4.2/5.0/6.0 kW Class
REMOVAL
PROCEDURE
SERVICE MANUAL
Outdoor Unit
Non-Inverter
Pair Type
Si011360EC

Service Manual
Removal Procedure
Outdoor Unit
zCooling Only
RC50PRV16 RF50PRV16 RQ50PRV16
RC60PRV16 RF60PRV16 RQ60PRV16
RC50QRV16 RF50QRV16 RQ50QRV16
RC60QRV16 RF60QRV16 RQ60QRV16
RC50QRV161 RF50QRV161
RC60QRV161 RF50QRV1625 RQ50RRV162
RC50QRV1615 RF60QRV1625 RQ60RRV162
RC60QRV1615 RQ50RRV1625
RF50RRV161 RQ60RRV1625
RC42RRV162 RF60RRV161
RC50RRV161 RF50RRV1615 RQA50QRV16
RC50RRV162 RF60RRV1615 RQA60QRV16
RC60RRV162
RC42RRV1625 RFA50QRV16 RQA50RRV162
RC50RRV1615 RFA60QRV16 RQA60RRV162
RC60RRV1625
RFA50RRV161 RQD50QRV16
RCA50QRV16 RFA60RRV161 RQD60QRV16
RCA60QRV16
RFD50QRV16 RQD50RRV162
RCA42RRV162 RFD60QRV16 RQD60RRV162
RCA50RRV161
RCA50RRV162 RFD50RRV161 RUF50RRV161
RCA60RRV162 RFD60RRV161 RUF60RRV161
RCD50QRV16
RCD60QRV16
RCD42RRV162
RCD50RRV161
RCD50RRV162
RCD60RRV162

Si011360EC
Removal Procedure 1
Table of Contents
1. Outer Panels ...........................................................................................2
2. Outdoor Fan / Fan Motor.........................................................................3
3. Electrical Component ASSY ...................................................................5
4. Sound Blanket / Capillary Tube...............................................................9
5. Compressor ASSY ................................................................................11
Note: The illustrations may be slightly different depending on the model.

Outer Panels Si011360EC
2Removal Procedure
1. Outer Panels
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
Remove the 4 screws,
and then the top panel.
Remove the 7 screws
of the front panel.

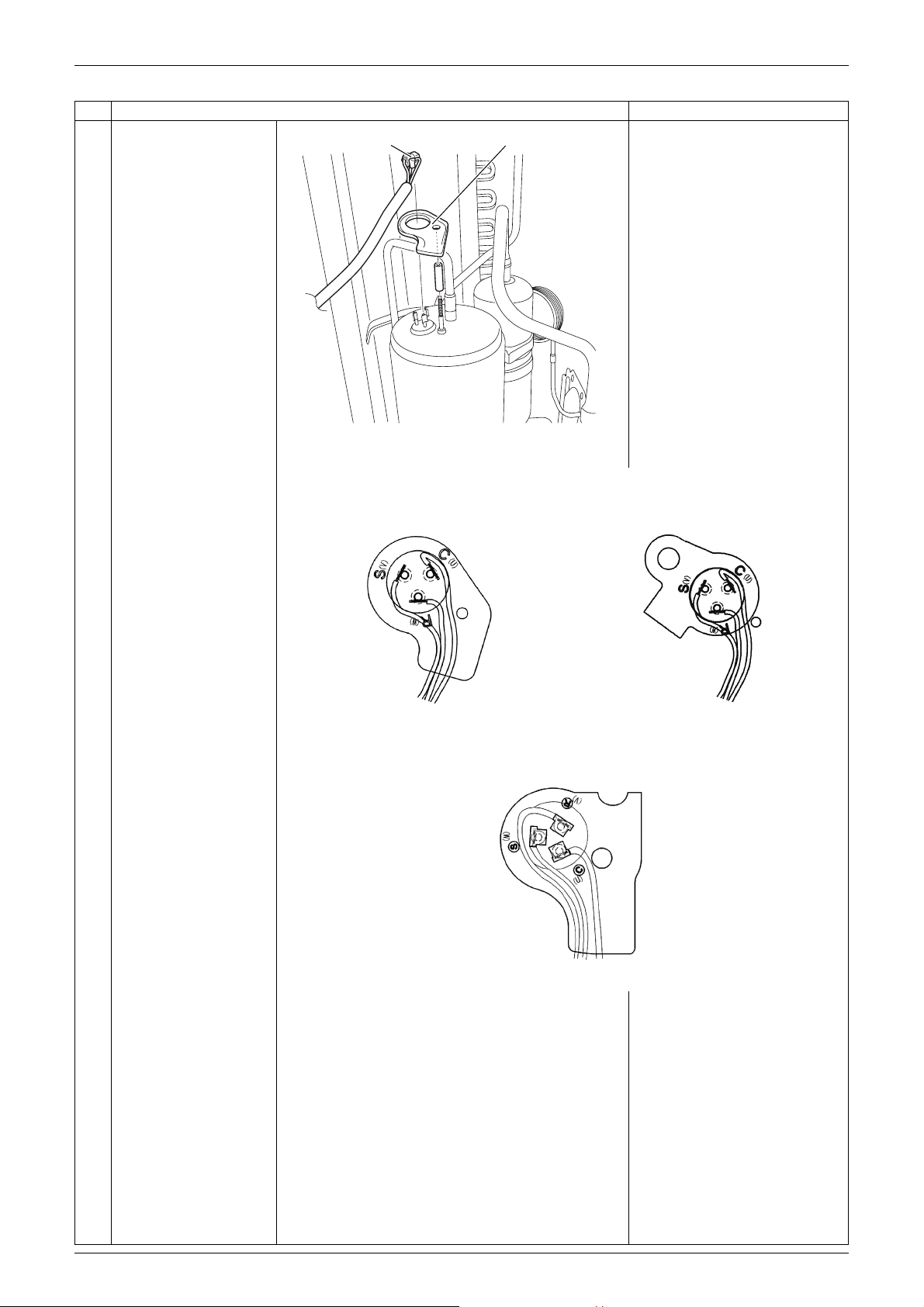

3
4
Unfasten the 2 right
side hooks and remove
the front panel.
Remove the screw, and
then the discharge
grille.
The discharge grille has 2
projections to prevent its
rotation. Press the projection
from the rear side and rotate
the discharge grille to
remove it.
Top panel
Front panel (R19481)
Discharge grille
Projection
(R23463)
Hook
rear side (R19405)

Si011360EC Outdoor Fan / Fan Motor
Removal Procedure 3

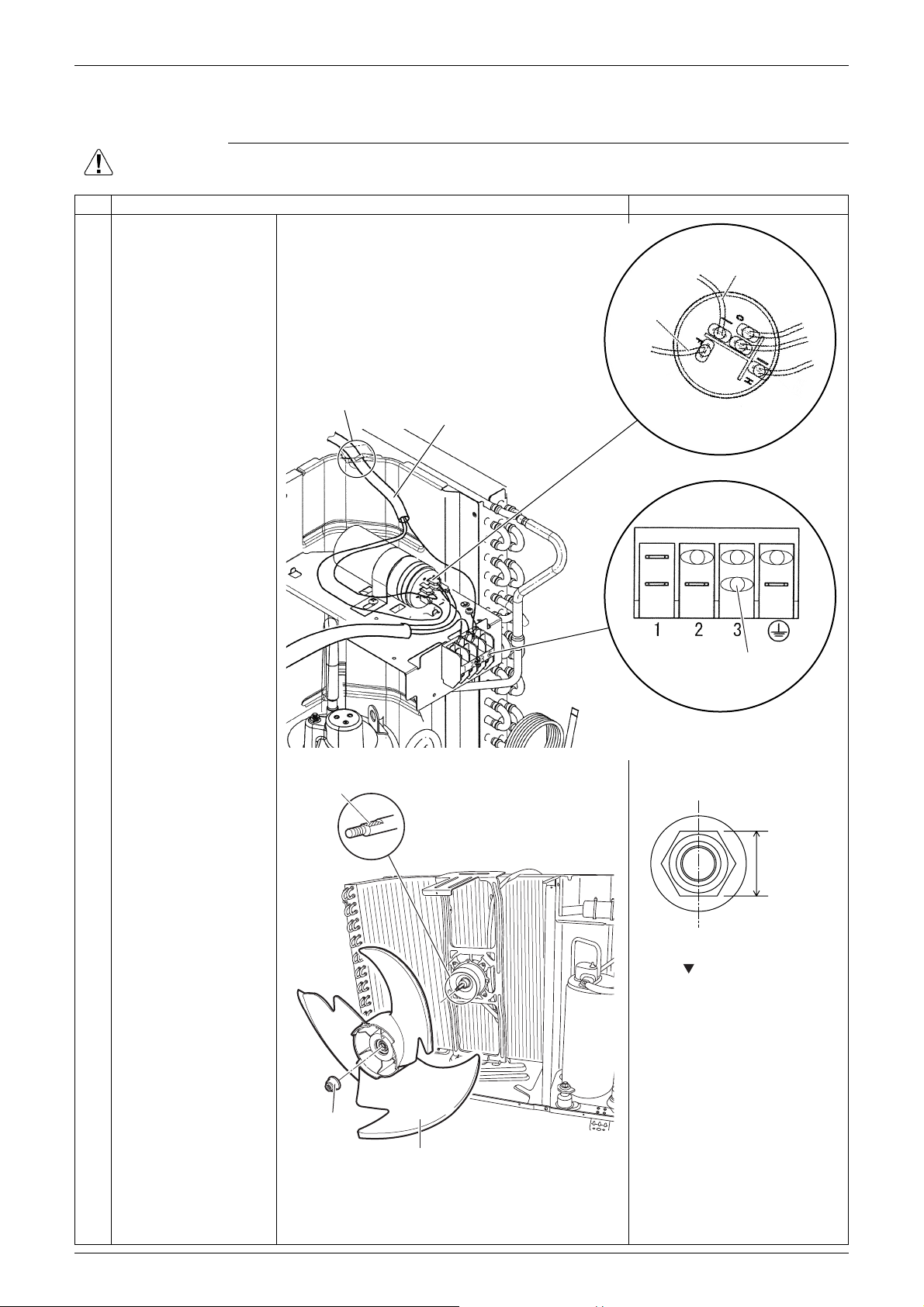

2. Outdoor Fan / Fan Motor
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
3
Pull out the 2 terminals
(red, white) from the
capacitor (C1).
Pull out the terminal
3 (front, black) from the
terminal board (X1M).
Release the fan motor
lead wire from the hook.
4 Remove the nut, and
then the outdoor fan.
Nut size: M6
When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
Hook
Fan motor lead wire
(R20991)
(R23464)
from fan
motor:
white
from fan motor:
red
Terminal board (X1M)
Capacitor (C1)
from fan motor:
black (R23465)
Outdoor fan
Nut
D-cut
(R23466)
10 mm
(0.39 inch)
(R18954)

Outdoor Fan / Fan Motor Si011360EC
4Removal Procedure
5 Remove the screw, and
then the fan motor
fixing frame.
Be careful so as not to
damage the top part of the
outdoor heat exchanger fins.
When reassembling, put the
fan motor lead wire through
the back of the fan motor to
avoid any entanglement with
the outdoor fan.
When reassembling, fit the 2
lower hooks into the bottom
frame.
6 Unfasten the 2 hooks
and release the fan
motor lead wire.
7 Remove the 4 screws,
and then the fan motor.
Screw size: M4 × 16
Step Procedure Points
Fan motor fixing frame
(R19487)
(R15385)
(R3249)
Lead wire Outdoor fan
(R19009)
Hook
Fan motor
(R18992)

Si011360EC Electrical Component ASSY
Removal Procedure 5

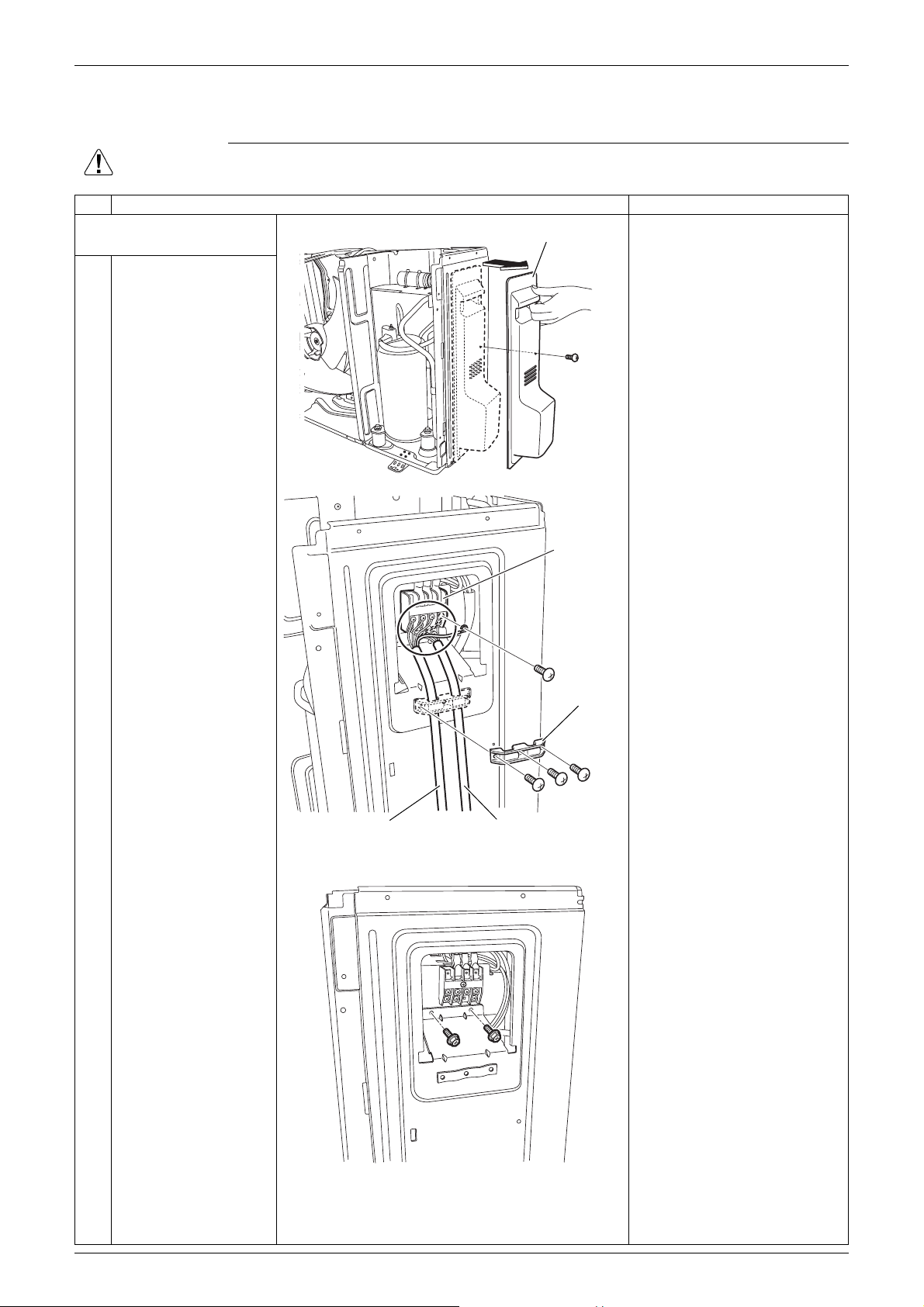

3. Electrical Component ASSY
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the right side
panel.
The stop valve cover has 3
hooks.
1 Remove the screw, and
then the stop valve
cover.
2
3
Remove the 3 screws
and remove the wire
fixture.
Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and the
power supply wire.
4 Remove the 2 screws
on the right side
(upper).
(R19488)
Stop valve cover
Wire fixture
Power supply wire
Connecting wire
Terminal
board
(R22656)
(R19010)

Electrical Component ASSY Si011360EC
6Removal Procedure
5
6
Remove the 2 screws
on the right side
(lower).
Remove the 3 screws
on the rear side.
7 Unfasten the hook on
the back.
When reassembling, make
sure the hook is securely
fastened.
8 Remove the right side
panel.
The right side panel has 2
hooks at the bottom.
Step Procedure Points
(R18995)
Hook
(R23467)
(R19490)
Right side panel
Hook
(R23468)

Si011360EC Electrical Component ASSY
Removal Procedure 7
2. Remove the electrical
component ASSY.
Capacitor (C1)
Pattern 1:
Pattern 2:
1
2
Pull out all the 3
remaining terminals
from the capacitor (C1).
Pull out the terminal
3 (back, white) from the
terminal board (X1M).
* When reassembling, connect the connectors as
below.
Terminal board (X1M)
Capacitor (C1)
Pattern 1: RC50PRV16, RQ60PRV16
Step Procedure Points
Capacitor
Terminal board
(R20992)
from compressor(R): blue
from compressor(S):
red
(R23477)
from terminal board
2(back): blue
from compressor(R): blue
from compressor(S):
red
from terminal board
2(back): blue
(R23469)
from compressor(C):
white
(R23470)
from
earth/ground
terminal:
yellow/green
from capacitor(C1):
blue
from fan motor:
black
from fan motor:
red
from fan motor:
white
from compressor(R):
blue
from compressor(S):
red
from terminal board 2:
blue
(R23471)

Electrical Component ASSY Si011360EC
8Removal Procedure
Pattern 2: RC60PRV16, RC-Q Series, RC-R Series, RF Series, RQ50PRV16,
RQ-Q Series, RQ-R Series, RUF Series
3 Remove the screw, and
then the electrical
component ASSY.
Step Procedure Points
from compressor(S):
red
from compressor(R):
blue
from terminal board 2:
blue
from fan motor:
red
from fan motor: white
(R23472)
Electrical component ASSY
(R19493)

Si011360EC Sound Blanket / Capillary Tube
Removal Procedure 9

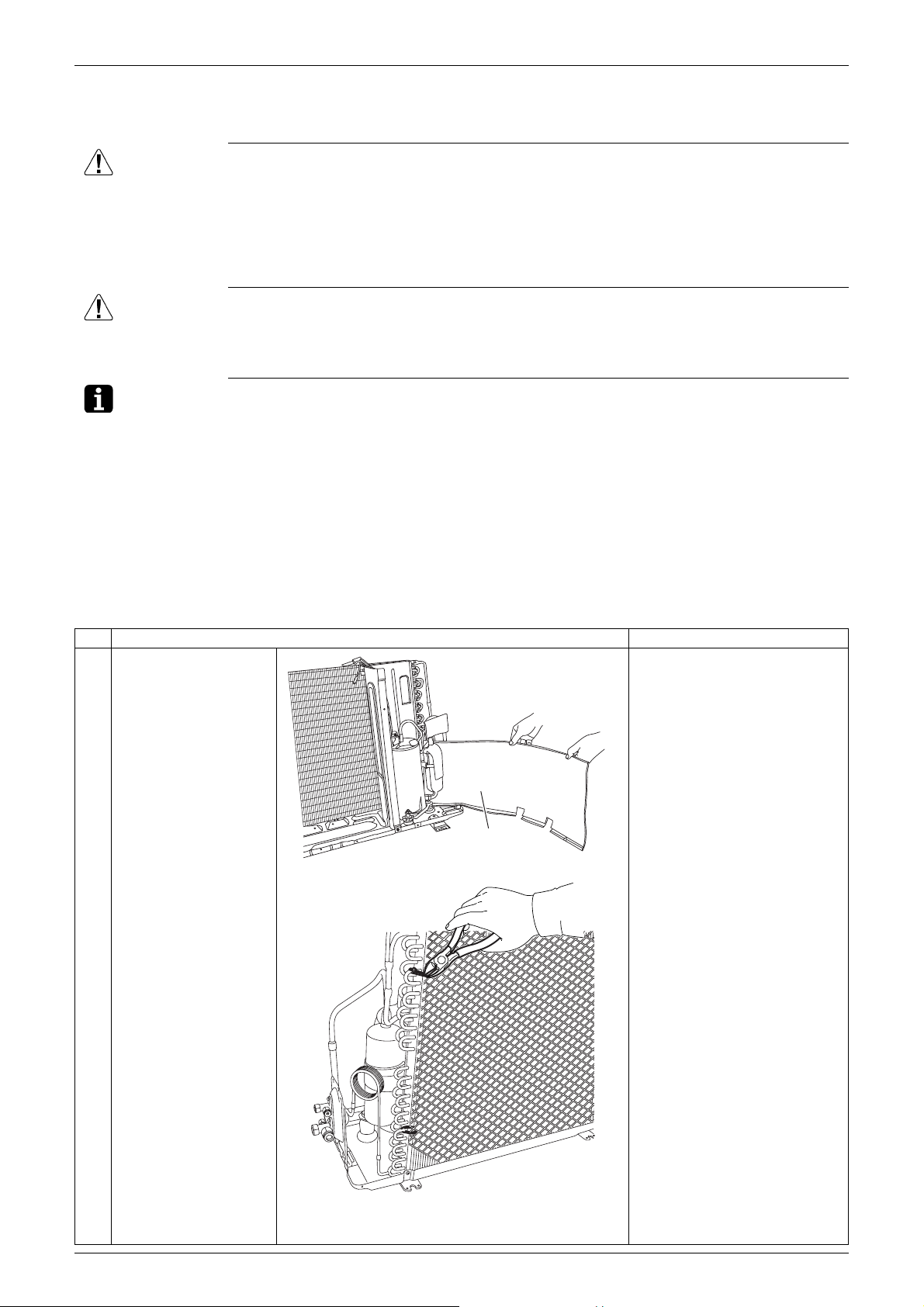

4. Sound Blanket / Capillary Tube
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Be careful not to get yourself burnt with the pipes and other parts that are heated by
the gas brazing machine.
If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is
exposed to flames, toxic gas may be generated.)
Caution From the viewpoint of global environment protection, do not discharge the refrigerant
gas in the atmosphere. Make sure to collect all the refrigerant gas.
Restore the piping by non-oxidation brazing.
Note Before working, make sure that the refrigerant gas is empty in the circuit.
Be sure to apply nitrogen replacement when heating up the brazed part.
Do not use a metal saw for cutting pipes by all means because the sawdust comes into
the circuit.
When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes
may get deformed.
Provide a protective sheet or a steel plate so that the brazing flame cannot influence
peripheries.
Be careful so as not to burn the compressor terminals, the name plate, the outdoor
heat exchanger fin.
In case of difficulty with gas brazing machine
1. Disconnect the brazed part where is easy to disconnect and restore.
2. Cut pipes on the main unit with a tube cutter in order to make it easy to disconnect.
Step Procedure Points
1 Remove the sound
blanket.
Some models have sound
blanket (top).
Since the piping ports are
torn easily, remove the
sound blanket(s) carefully.
2 Cut the 2 clamps. The type of the protection
net varies depending on the
model.
Sound blanket
(R20122)
(R19494)

Sound Blanket / Capillary Tube Si011360EC
10 Removal Procedure
3 Remove the protection
net.
4
5
Remove the putties, if
any.
Heat up the 2 brazed
parts and remove the
capillary tube.
The shape of the capillary
tube varies depending on the
model.
Step Procedure Points
Protection net
(R19495)
(R19496)
Brazed parts
Capillary tube
(R19551)

Si011360EC Compressor ASSY
Removal Procedure 11
5. Compressor ASSY
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Be careful not to get yourself burnt with the pipes and other parts that are heated by
the gas brazing machine.
If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is
exposed to flames, toxic gas may be generated.)
Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet
cloth so as to extinguish fire immediately.
Caution From the viewpoint of global environment protection, do not discharge the refrigerant
gas in the atmosphere. Make sure to collect all the refrigerant gas.
Restore the piping by non-oxidation brazing.
Note Before working, make sure that the refrigerant gas is empty in the circuit.
Be sure to apply nitrogen replacement when heating up the brazed part.
Do not use a metal saw for cutting pipes by all means because the sawdust comes into
the circuit.
When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes
may get deformed.
Provide a protective sheet or a steel plate so that the brazing flame cannot influence
peripheries.
Be careful so as not to burn the compressor terminals, the name plate, the outdoor
heat exchanger fin.
In case of difficulty with gas brazing machine
1. Disconnect the brazed part where is easy to disconnect and restore.
2. Cut pipes on the main unit with a tube cutter in order to make it easy to disconnect.
Step Procedure Points
1
2
Remove the nut.
Remove the terminal
cover.
The shape of the terminal
cover varies depending on
the model.
(R19497)
Nut
Terminal
cover

Compressor ASSY Si011360EC
12 Removal Procedure
3
4
Disconnect the
compressor lead wires.
Remove the gasket.
Step Procedure Points
GasketCompressor lead wire
(R19498)
Pattern 1: Pattern 2:
C (U): white, S (V): red, R (W): blue C (U): white, S (V): red, R (W): blue
Pattern 3:
C (U): white, S (W): red, R (V): blue
(R20298)
(R20989)
(R22653)

Si011360EC Compressor ASSY
Removal Procedure 13

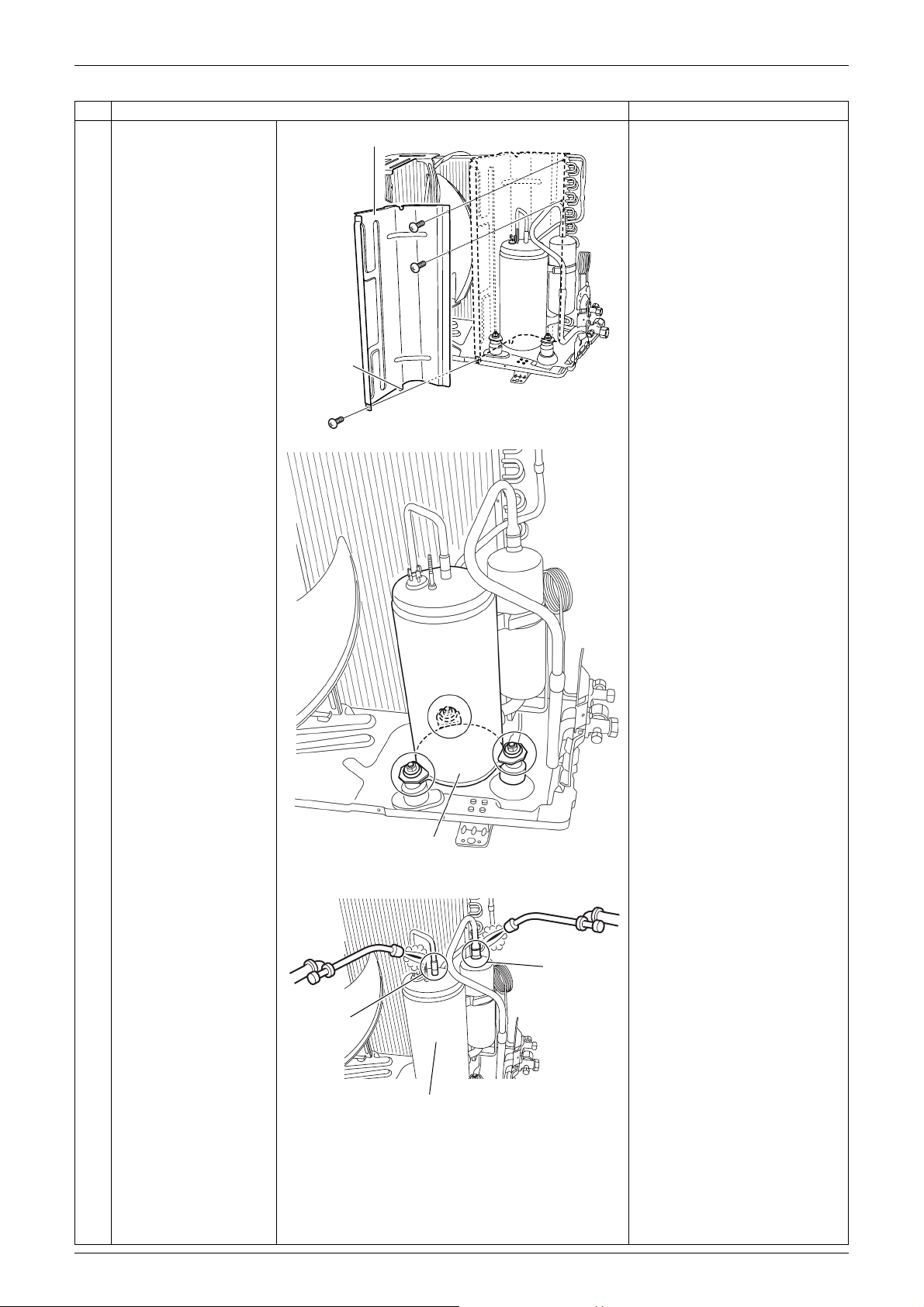

5 Remove the 3 screws,
and then the partition
plate.
6 Remove the 3 nuts of
the compressor.
7
8
9
10
Remove the putties, if
any.
Heat up the brazed part
of the discharge side
pipe and disconnect.
Heat up the brazed part
of the suction side pipe
and disconnect.
Lift the compressor
ASSY up and remove it.
Step Procedure Points
Partition plate
(R19499)
Hook
(R19501)
Compressor
Compressor ASSY (R19502)
Suction side
Discharge
side

Revision History
Month / Year Version Revised contents
11 / 2013 Si011360E First edition
10 / 2014 Si011360EA Model addition: RF50/60PRV16
12 / 2015 Si011360EB Model addition: RC50/60QRV16, RC50/60QRV161, RCA50/60QRV161,
RCD50/60QRV16, RF50/60QRV16, RF50QRV161, RFA50/60QRV16,
RFD50/60QRV16, RQ50/60QRV16, RQA50/60QRV16,
RQD50/60QRV16
06 / 2016 Si011360EC Model addition: RC50/60QRV1615, RC42/50/60RRV162, RC50RRV161,
RC42/60RRV1625, RC50RRV1615, RCA42/50/60RRV162,
RCA50RRV161, RCD42/50/60RRV162, RCD50RRV161,
RF50/60QRV1625, RF50/60RRV161, RF50/60RRV1615,
RFA50/60RRV161, RFD50/60RRV161, RQ50/60RRV162,
RQ50/60RRV1625, RQA50/60RRV162, RQD50/60RRV162,
RUF50/60RRV161

Head Office:
Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,
Kita-ku, Osaka, 530-8323 Japan
Tokyo Office:
JR Shinagawa East Bldg., 2-18-1, Konan,
Minato-ku, Tokyo, 108-0075 Japan
http://www.daikin.com/products/ac/
All rights reserved
c
Warning
zDaikin products are manufactured for export to numerous countries throughout the world. Prior to
purchase, please confirm with your local authorised importer, distributor and/or retailer whether this
product conforms to the applicable standards, and is suitable for use, in the region where the product
will be used. This statement does not purport to exclude, restrict or modify the application of any local
legislation.
zAsk a qualified installer or contractor to install this product. Do not try to install the product yourself.
Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion.
zUse only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or
contractor to install those parts and accessories. Use of unauthorised parts and accessories or
improper installation of parts and accessories can result in water or refrigerant leakage, electrical
shock, fire or explosion.
zRead the user's manual carefully before using this product. The user's manual provides important
safety instructions and warnings. Be sure to follow these instructions and warnings.
If you have any enquiries, please contact your local importer, distributor and/or retailer.
Cautions on product corrosion
1. Air conditioners should not be installed in areas where corrosive gases, such as acid gas or alkaline gas, are produced.
2. If the outdoor unit is to be installed close to the sea shore, direct exposure to the sea breeze should be avoided. If you need to install
the outdoor unit close to the sea shore, contact your local distributor.
Dealer
zSpecifications, designs and other content appearing in this brochure are current as of June 2016 but subject to change without notice. Si011360EC
06/2016 AK.B
