Daikin FXHQ-MAVE Series Instruction manual

technical data

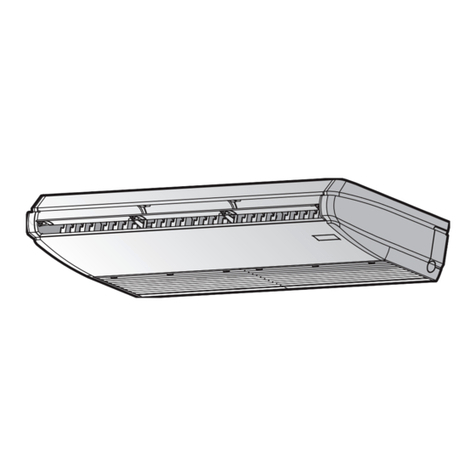

Ceiling Suspended Unit
FXHQ-MAVE
air conditioning systems

•VRV
®Systems • Indoor Units 1
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
TABLE OF CONTENTS
FXHQ-MAVE
1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications (50Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical Specifications (60Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Control systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . 8
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sound level data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
10 Air flow pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
•VRV
®Systems • Indoor Units
2

• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
•VRV
®Systems • Indoor Units
3
1 Specifications
3
1
1
IndoorUnit VRV
®
Systems FXHQ-MAVE CeilingSus
1-1 TECHNICAL SPECIFICATIONS FXHQ32MAVE FXHQ63MAVE FXHQ100MAVE
Capacity Cooling kW 3.6 7.1 11.2
Heating kW 4.0 8.0 12.5
Power Input (50Hz) Cooling kW 0.111 0.115 0.135
Heating kW 0.111 0.115 0.135
Power Input (60Hz) Cooling kW 0.142 0.145 0.199
Heating kW 0.142 0.145 0.199
Casing Colour White (10Y9/0,5)
Dimensions Unit Height mm 195 195 195
Width mm 960 1,160 1,400
Depth mm 680 680 680
Weight Unit kg 24 28 33
Heat Exchanger Dimensions Nr of Rows 2 3 3
Fin Pitch mm 1.75 1.75 1.75
Face Area m² 0.182 0.233 0.293
Nr of Stages 12 12 12
Fan Type Sirocco fan
Cooling High m³/min 12 17.5 25
Low m³/min 10 14 19.5
Fan Motor Model 3D12K1AA1 4D12K1AA1 3D12K2AA1
Output (high) W 62 62 130
Drive Direct drive
Refrigerant Name R-410A
Cooling Sound Pressure High dBA 36 39 45
Low dBA 31 34 37
Piping connections Liquid (OD) Type Flare connection
Diameter mm 6.35 9.52 9.52
Gas Type Flare connection
Diameter mm 12.7 15.9 15.9
Drain Diameter mm VP20 (I.D. 20/O.D. 26)
Heat Insulation Glass wool
Air Filter Resin net with mold resistance
Refrigerant control Electronic expansion valve
Temperature control Microprocessor thermostat for cooling and heating
Safety devices Fuse
Fan motor thermal protector
Standard Accessories Operation manual
Installation manual
Drain hose
Paper pattern for installation
Clamp metal
Insulation for fitting
Clamps
Washer
Notes Nominal cooling capacities are based on : indoor temperature : 27°CDB, 19°CWB, outdoor temperature
: 35°CDB, equivalent refrigerant piping : 7.5m (horizontal)
Nominal heating capacities are based on : indoor temperature : 20°CDB, outdoor temperature : 7°CDB,
6°CWB, equivalent refrigerant piping : 7.5m (horizontal)
Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.

• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
•VRV
®Systems • Indoor Units
4
1 Specifications
3
1
1
1-2 ELECTRICAL SPECIFICATIONS (50HZ) FXHQ32MAVE FXHQ63MAVE FXHQ100MAVE
Power Supply Name VE
Phase 1~
Frequency Hz 50
Voltage V 220-240
Current Minimum circuit amps (MCA) A 0.8 0.8 0.9
Maximum fuse amps (MFA) A 15 15 15
Full load amps (FLA) A 0.6 0.6 0.7
Voltage range Minimum V -10%
Maximum V +10%
Notes Voltage range : units are suitable for use on electrical systems where voltage supplied to unit terminals
is not below or above listed range limits.
Maximum allowable voltage range variation between phases is 2%.
MCA/MFA : MCA = 1.25 x FLA
MFA is smaller than or equal to 4 x FLA
Next lower standard fuse rating minimum 15A
Select wire size based on the MCA
Instead of a fuse, use a circuit breaker
1-3 ELECTRICAL SPECIFICATIONS (60HZ) FXHQ32MAVE FXHQ63MAVE FXHQ100MAVE
Power Supply Name VE
Phase 1~
Frequency Hz 60
Voltage V 220
Current Minimum circuit amps (MCA) A 0.9 0.9 1.3
Maximum fuse amps (MFA) A 15 15 15
Full load amps (FLA) A 0.7 0.7 1.0
Voltage range Minimum V -10%
Maximum V +10%
Notes Voltage range : units are suitable for use on electrical systems where voltage supplied to unit terminals
is not below or above listed range limits.
Maximum allowable voltage range variation between phases is 2%.
MCA/MFA : MCA = 1.25 x FLA
MFA is smaller than or equal to 4 x FLA
Next lower standard fuse rating minimum 15A
Select wire size based on the MCA
Instead of a fuse, use a circuit breaker

• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
•VRV
®Systems • Indoor Units
5
2 Safety device settings
3
1
23 Options
4 Control systems
3D034597C
FXHQ32MA FXHQ63MA FXHQ100MA
PC BOARD FUSE 250V 5A
FAN MOTOR THERMAL PROTECTOR °COFF:130
±5/ ON: 80±20
4D040446A
FXHQ32MA FXHQ63MA FXHQ100MA
DRAIN PUMP KIT KDU50M60VE KDU50M125VE KDU50M125VE
REPLACEMENT LONG-LIFE FILTER Resin net KAFJ501D56 KAFJ501D80 KAFJ501D112
L-TYPE PIPING KIT FOR UPWARD DIRECTION KHFP5M35 KHFP5M63 KHFP5M63
Individual control systems
Centralised control systems
Others
3D034600C
NOTES
1 Installation box is necessary for each adapter marked with #
2 Only 1 installation box can be installed per indoor unit
FXHQ32MA FXHQ63MA FXHQ100MA
WIRED REMOTE CONTROL BRC1D52
INFRARED REMOTE CONTROL Heat pump BRC7E63W
Cooling only BRC7E66
FXHQ32MA FXHQ63MA FXHQ100MA
CENTRALISED REMOTE CONTROL DCS302C51
UNIFIED ON/OFF CONTROL DCS301B51
SCHEDULE TIMER DST301B51
FXHQ32MA FXHQ63MA FXHQ100MA
WIRING ADAPTER KRP1B3
WIRING ADAPTER FOR ELECTRICAL APPENDICES (1) KRP2A62 #
WIRING ADAPTER FOR ELECTRICAL APPENDICES (2) KRP4A52 #
REMOTE SENSOR KRCS01-1
INSTALLATION BOX FOR ADAPTER PCB KRP1C93 (2)
ELECTRICAL BOX WITH EARTH TERMINAL (3 BLOCKS) KJB311A
ELECTRICAL BOX WITH EARTH TERMINAL (2 BLOCKS) KJB212A
NOISE FILTER (FOR ELECTROMAGNETIC INTERFACE USE ONLY) KEK26-1A
EXTERNAL CONTROL ADAPTER FOR OUTDOOR UNITS (INSTALLATION ON INDOOR UNIT) DTA104A62 #

•VRV
®Systems • Indoor Units 6
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
5 Capacity tables
5 - 1 Cooling capacity tables
3
1
5
FXHQ-MA
CA03A095
TC: Total capacity;kW – SHC: Sensible capacity;kW
Unit size Nominal
capacity
Outdoor
air temp.
Indoor air temperature
14.0WB 16.0WB 18.0WB 19.0WB 20.0WB 22.0WB 24.0WB
20.0DB 23.0DB 26.0DB 27.0DB 28.0DB 30.0DB 32.0DB
CDBTCSHCTCSHCTCSHCTCSHCTCSHCTCSHCTCSHC
32 3.6 10.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.3 3.0 4.7 3.1
12.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.3 3.0 4.7 3.0
14.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.3 3.0 4.6 3.0
16.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.3 3.0 4.6 3.0
18.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.3 3.0 4.5 2.9
20.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.3 3.0 4.4 2.9
21.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.3 3.0 4.4 2.9
23.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.2 3.0 4.3 2.8
25.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.2 2.9 4.3 2.8
27.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.1 2.9 4.2 2.8
29.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.1 2.9 4.2 2.7
31.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 4.0 2.8 4.1 2.7
33.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.8 2.9 3.9 2.8 4.0 2.7
35.0 2.4 2.3 2.9 2.6 3.4 2.8 3.62.93.82.93.92.84.02.7
37.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.7 2.9 3.8 2.8 3.9 2.7
39.0 2.4 2.3 2.9 2.6 3.4 2.8 3.6 2.9 3.7 2.9 3.8 2.7 3.8 2.6
63 7.1 10.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.5 5.5 9.3 5.6
12.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.5 5.5 9.2 5.5
14.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.5 5.5 9.1 5.4
16.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.5 5.5 9.0 5.3
18.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.5 5.5 8.8 5.3
20.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.5 5.5 8.7 5.2
21.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.5 5.5 8.7 5.2
23.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.4 5.4 8.5 5.1
25.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.3 5.4 8.4 5.1
27.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.1 5.3 8.3 5.0
29.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 8.0 5.2 8.2 5.0
31.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 7.9 5.1 8.1 4.9
33.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.6 5.3 7.8 5.1 7.9 4.9
35.0 4.8 4.1 5.7 4.6 6.6 5.1 7.15.27.55.37.75.17.84.8
37.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.4 5.2 7.5 5.0 7.7 4.8
39.0 4.8 4.1 5.7 4.6 6.6 5.1 7.1 5.2 7.2 5.1 7.4 5.0 7.6 4.7
100 11.2 10.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.4 8.5 14.7 8.7
12.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.4 8.5 14.5 8.5
14.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.4 8.5 14.4 8.4
16.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.4 8.5 14.2 8.3
18.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.4 8.5 14.0 8.2
20.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.4 8.5 13.8 8.1
21.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.4 8.5 13.7 8.0
23.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.2 8.3 13.5 7.9
25.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 13.0 8.2 13.3 7.8
27.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 12.8 8.1 13.1 7.7
29.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 12.6 8.0 12.9 7.6
31.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 12.4 7.9 12.7 7.6
33.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.9 8.1 12.2 7.8 12.5 7.5
35.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.8 8.1 12.1 7.7 12.3 7.4
37.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.6 8.0 11.9 7.7 12.2 7.3
39.0 7.6 6.2 9.0 6.9 10.5 7.8 11.2 8.0 11.4 7.9 11.7 7.6 12.0 7.2

•VRV
®Systems • Indoor Units 7
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
5 Capacity tables
5 - 2 Heating capacity tables
3
1
5
FXHQ-MA
CA03A095
Unit Size Nominal capacity
Outdoor
air temperature
Indoor air temperature CDB
16.0 18.0 20.0 21.0 22.0 24.0
CDB CWBkWkWkWkWkWkW
32 4.0 -19.8 -20.0 2.4 2.4 2.3 2.3 2.3 2.3
-18.8 -19.0 2.4 2.4 2.4 2.4 2.4 2.4
-16.7 -17.0 2.6 2.6 2.6 2.6 2.6 2.5
-14.7 -15.0 2.7 2.7 2.7 2.7 2.7 2.7
-12.6 -13.0 2.9 2.8 2.8 2.8 2.8 2.8
-10.5 -11.0 3.0 3.0 3.0 3.0 3.0 3.0
-9.5 -10.0 3.1 3.1 3.1 3.1 3.0 3.0
-8.5 -9.1 3.1 3.1 3.1 3.1 3.1 3.1
-7.0 -7.6 3.2 3.2 3.2 3.2 3.2 3.2
-5.0 -5.6 3.4 3.4 3.4 3.4 3.4 3.4
-3.0 -3.7 3.5 3.5 3.5 3.5 3.5 3.5
0.0 -0.7 3.7 3.7 3.7 3.7 3.7 3.5
3.0 2.2 3.9 3.9 3.9 3.9 3.7 3.5
5.0 4.1 4.1 4.1 4.0 3.9 3.7 3.5
7.0 6.0 4.2 4.2 4.0 3.9 3.7 3.5
9.0 7.9 4.3 4.3 4.0 3.9 3.7 3.5
11.0 9.8 4.5 4.3 4.0 3.9 3.7 3.5
13.0 11.8 4.5 4.3 4.0 3.9 3.7 3.5
15.0 13.7 4.5 4.3 4.0 3.9 3.7 3.5
63 8.0 -19.8 -20.0 4.7 4.7 4.7 4.7 4.7 4.7
-18.8 -19.0 4.9 4.9 4.8 4.8 4.8 4.8
-16.7 -17.0 5.1 5.1 5.1 5.1 5.1 5.1
-14.7 -15.0 5.4 5.4 5.4 5.4 5.4 5.4
-12.6 -13.0 5.7 5.7 5.7 5.7 5.7 5.7
-10.5 -11.0 6.0 6.0 6.0 6.0 6.0 5.9
-9.5 -10.0 6.1 6.1 6.1 6.1 6.1 6.1
-8.5 -9.1 6.3 6.3 6.2 6.2 6.2 6.2
-7.0 -7.6 6.5 6.5 6.4 6.4 6.4 6.4
-5.0 -5.6 6.8 6.7 6.7 6.7 6.7 6.7
-3.0 -3.7 7.0 7.0 7.0 7.0 7.0 7.0
0.0 -0.7 7.5 7.4 7.4 7.4 7.4 7.0
3.0 2.2 7.9 7.8 7.8 7.7 7.5 7.0
5.0 4.1 8.1 8.1 8.0 7.7 7.5 7.0
7.0 6.0 8.4 8.4 8.0 7.7 7.5 7.0
9.0 7.9 8.7 8.5 8.0 7.7 7.5 7.0
11.0 9.8 8.9 8.5 8.0 7.7 7.5 7.0
13.0 11.8 9.0 8.5 8.0 7.7 7.5 7.0
15.0 13.7 9.0 8.5 8.0 7.7 7.5 7.0
100 12.5 -19.8 -20.0 7.4 7.4 7.3 7.3 7.3 7.3
-18.8 -19.0 7.6 7.6 7.6 7.5 7.5 7.5
-16.7 -17.0 8.0 8.0 8.0 8.0 8.0 8.0
-14.7 -15.0 8.5 8.5 8.4 8.4 8.4 8.4
-12.6 -13.0 8.9 8.9 8.9 8.9 8.9 8.8
-10.5 -11.0 9.4 9.3 9.3 9.3 9.3 9.3
-9.5 -10.0 9.6 9.6 9.5 9.5 9.5 9.5
-8.5 -9.1 9.8 9.8 9.7 9.7 9.7 9.7
-7.0 -7.6 10.1 10.1 10.1 10.1 10.1 10.0
-5.0 -5.6 10.6 10.5 10.5 10.5 10.5 10.5
-3.0 -3.7 11.0 11.0 10.9 10.9 10.9 10.9
0.0 -0.7 11.6 11.6 11.6 11.6 11.6 10.9
3.0 2.2 12.3 12.3 12.2 12.1 11.7 10.9
5.0 4.1 12.7 12.7 12.5 12.1 11.7 10.9
7.0 6.0 13.1 13.1 12.5 12.1 11.7 10.9
9.0 7.9 13.5 13.3 12.5 12.1 11.7 10.9
11.0 9.8 14.0 13.3 12.5 12.1 11.7 10.9
13.0 11.8 14.1 13.3 12.5 12.1 11.7 10.9
15.0 13.7 14.1 13.3 12.5 12.1 11.7 10.9

•VRV
®Systems • Indoor Units 8
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
6 Dimensional drawing & centre of gravity
6 - 1 Dimensional drawing
3
1
6
FXHQ32MA
3D038855
Hanging bolt
4 - M8~M10
30 or more
(Service space)
30 or more
(Service space)
(Hanging position)
The front Brand name plate
(Note 2)
Drain pipe connection VP20
(For left piping)
Position slit hole for taking out in piping back
Position: hole of wall
for taking out in piping back
(View from the front)
(Required space)
(Hanging position)
(Required space)
(Required space)
300 or more
For height installation
From the floor side 2500 or more
Floor side
Obstacle
(View from the front)
NOTES
1 Location of unit’s name plate: bottom of fan housing inside the suction
grille.
2 In case of using infrared remote control, this position will be a signal
receiver. Refer to the drawing of infrared remote control, in detail.
3 The remote control code is standard (about 3m outside the machine)
attached. (0.5mm2x 2 wicks x O.D. ø 5.4) (It is not attached to VRV)
Nr Part name Description
1 Air discharge grille
2 Air suction grille
3Airfilter
4 Gas pipe connection ø 12.7 flare
5 Liquid pipe connection ø 6.4 flare
6 Drain pipe connection VP20
7 Earth terminal (inside the electric components box) M4
8 Suspension bracket
9 Backward piping and wiring connection opening lid
10 Upward piping and wiring connectiojn opening lid
11 Right side pipe connection Slit hole
12 Left back drain pipe connection Slit hole
13 Left side drain pipe connection Slit hole
14 Right side drain pipe connection Slit hole
15 Hole of wall for taking out in piping back ø 100
16 Upward drain pipe connection ø 60
17 Upward gas pipe connection ø 36
18 Upward liquid pipe connection ø 26
FXHQ63MA
3D038856
Hanging bolt
4 - M8~M10
30 or more
(Service space)
30 or more
(Service space)
(Hanging position)
The front Brand name plate
(Note 2)
Drain pipe connection VP20
(For left piping)
Position slit hole for taking out in piping back
(View from the front)
Position: hole of wall
for taking out in piping back
(View from the front)
(Required space)
(Hanging position)
(Required space)
(Required space)
300 or more
For height installation
From the floor side 2500 or more
Floor side
Obstacle
NOTES
1 Location of unit’s name plate: bottom of fan housing inside the
suction grille.
2 In case of using infrared remote control, this position will be a signal
receiver. Refer to the drawing of infrared remote control, in detail.
3 The remote control code is standard (about 3m outside the
machine) attached. (0.5mm2x 2 wicks x O.D. ø 5.4) (It is not
attached to VRV)
Nr Part name Description
1 Air discharge grille
2 Air suction grille
3 Air filter
4 Gas pipe connection ø 15.9 flare
5 Liquid pipe connection ø 9.5 flare
6 Drain pipe connection VP20
7 Earth terminal (inside the electric components box) M4
8 Suspension bracket
9 Backward piping and wiring connection opening lid
10 Upward piping and wiring connection opening lid
11 Right side pipe connection Slit hole
12 Left back drain pipe connection Slit hole
13 Left side drain pipe connection Slit hole
14 Right side drain pipe connection Slit hole
15 Hole of wall for taking out in piping back ø 100
16 Upward drain pipe connection ø 60
17 Upward gas pipe connection ø 36
18 Upward liquid pipe connection ø 26

•VRV
®Systems • Indoor Units 9
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
6 Dimensional drawing & centre of gravity
6 - 1 Dimensional drawing
3
1
6
FXHQ100MA
3D038857
Hanging bolt
4 - M8~M10
30 or more
(Service space)
30 or more
(Service space)
(Hanging position)
The front
Brand name plate
(Note 2)
Drain pipe connection VP20
(For left piping)
Position slit hole for taking out in piping back
(View from the front)
Position: hole of wall
for taking out in piping back
(View from the front)
(Required space)
(Required space)
(Required space)
300 or more
For height installation
From the floor side2500 or more
Floor side
Obstacle
NOTES
1 Location of unit’s name plate: bottom of fan housing inside the
suction grille.
2 In case of using infrared remote control, this position will be a signal
receiver. Refer to the drawing of infrared remote control, in detail.
3 The remote control code is standard (about 3m outside the
machine) attached. (0.5mm2x 2wicks x O.D. ø 5.4) (It is not
attached to VRV)
Nr Part name Description
1 Air discharge grille
2 Air suction grille
3 Air filter
4 Gas pipe connection ø 15.9 flare
5 Liquid pipe connection ø 9.5 flare
6 Drain pipe connection VP20
7 Earth terminal (inside the electric components box) M4
8 Suspension bracket
9 Backward piping and wiring connection opening lid
10 Upward piping and wiring connection opening lid
11 Right side pipe connection Slit hole
12 Left back drain pipe connection Slit hole
13 Left side drain pipe connection Slit hole
14 Right side drain pipe connection Slit hole
15 Hole of wall for taking out in piping back ø 100
16 Upward drain pipe connection ø 60
17 Upward gas pipe connection ø 36
18 Upward liquid pipe connection ø 26

•VRV
®Systems • Indoor Units 10
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
7 Piping diagram
3
1
7
FXHQ-MA
4D034245A
Gas pipe
connection port
Liquid pipe
connection port
Filter Filter
Electronic
expansion valve
Heat exchanger
Fan

• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
•VRV
®Systems • Indoor Units
11
8 Wiring diagram
8 - 1 Wiring diagram
3
1
8
FXHQ-MA
3D039801D
Power supply
220-240 V
~
50Hz
220 V
~
60Hz
Note 2
Receiver/display unit
(Infrared remote control)
Note 4
Note 3
Input from
outside Note 1
Transmission
wiring centralised
remote control
Wired remote control
(optional accessory)
Electric parts box
NOTES
1 In case of using centralised remote control, connect it to the unit in accordance with the attached instruction manual.
2 X23A is connected when the infrared remote control kit is being used.
3 When connecting the input wires from the outside, forced off or on/off control operation can be selected by remote control. In details, refer to the installation manual attached to the unit.
4 In case of installing the drain pump, remove the short circuit connector of X8A and execute the additional wiring for float switch and drain pump.
5 Use copper conductors only.
Indoor unit Receiver/display unit (Attached to infrared remote control)
A1P Printed circuit board T1R Transformer (220-240V/22V) A2P Printed circuit board
C1R Capacitor (M1F) X1M Terminal block (Power) A3P Printed circuit board
F1U Fuse (훾, 5A, 250V) X2M Terminal block (Control) BS1 Push button (On/off)
HAP Light emitting diode (Service monitor-green) Y1E Electronic expansion valve H1P Light emitting diode (On red)
KAR Magnetic relay (M1S) PC Phase control circuit H2P Light emitting diode (Timer green)
KPR Magnetic relay (M1P) H3P Light emitting diode (Filter sign-red)
M1F Motor (Indoor fan) Optional parts H4P Light emitting diode (Defrost orange)
M1S Motor (Swing flap) M1P Motor (Drain pump) SS1 Selector switch (Main/sub)
Q1M Thermo switch (M1F embedded) SS2 Selector switch (Wireless address set)
R1T Thermistor (Air) Wired remote control Connector for optional parts
R2T Thermistor (Coil liquid) R1T Thermistor (Air) X8A Connector (Float switch)
R3T Thermistor (Coil gas) SS1 Selector switch (Main/sub) X18A Connector (Wiring adapter for electrical appendices)
S1Q Limit switch (Swing flap) X23A Connector (Infrared remote control)
COLORS : BLK : Black RED : Red
BLU : Blue WHT : White
ORG : Orange YLW : Yellow
PNK : Pink
: Terminal
: Connector
: Short circuit connector
: Field wiring
,

•VRV
®Systems • Indoor Units 12
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
9 Sound data
9 - 1 Sound level data
3
1
9
FXHQ-MA
NOTES
1 Reference acoustic pressure 0 dB = 0.0002 μbar.
2 Measuring place: anechoic chamber.
3 Operating noise differs with operation and ambient conditions.
* Data were not available at time of publication.
Model Sound pressure level - 220V Sound power level
H L Measuring location
FXHQ32MA 36 31 *
FXHQ63MA 39 34 *
FXHQ100MA 45 37 *

•VRV
®Systems • Indoor Units 13
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
9 Sound data
9 - 2 Sound pressure spectrum
3
1
9
FXHQ32MA 4D035301
Octave band sound pressure level dB (0dB = 0.0002m bar)
Octave band center frequency (Hz)
Approximate threshold
hearing for continuous
noise
FXHQ63MA 4D035302
Octave band sound pressure level dB (0dB = 0.0002m bar)
Octave band center frequency (Hz)
Approximate threshold
hearing for continuous
noise
FXHQ100MA 4D035303
Octave band sound pressure level dB (0dB = 0.0002m bar)
Octave band center frequency (Hz)
Approximate threshold
hearing for continuous
noise

•VRV
®Systems • Indoor Units 14
• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
10 Air flow pattern
3
1
10
FXHQ100MA
Heating Air velocity distribution
center air blow
Heating Temperature distribution
center air blow
2.5m/sec
1.5m/sec
0.5m/sec

Daikin Europe N.V. is approved by LRQA for its Quality
Management System in accordance with the ISO9001
standard. ISO9001 pertains to quality assurance regarding
design, development, manufacturing as well as to services
related to the product.
Daikin units comply with the European regulations that
guarantee the safety of the product.
Printed in Belgium by Lannoo (www.lannooprint.be), a company whose concern for the environmont is set in the EMAS and ISO 14001 systems. Responsible Editor: Daikin Europe N.V., Zandvoordestraat 300, B- 8400 Oostende
The present publication is drawn up by way of information only and does not
constitute an offer binding upon Daikin Europe N.V.. Daikin Europe N.V. has
compiled the content of this publication to the best of its knowledge. No
express or implied warranty is given for the completeness, accuracy,
reliability or fitness for particular purpose of its content and the products and
services presented therein. Specifications are subject to change without
prior notice. Daikin Europe N.V. explicitly rejects any liability for any direct or
indirect damage, in the broadest sense, arising from or related to the use
and/or interpretation of this publication. All content is copyrighted by Daikin
Europe N.V..
VRV®products are not within the scope of the Eurovent
certification programme.
Naamloze Vennootschap
Zandvoordestraat 300
B-8400 Oostende, Belgium
www.daikin.eu
BTW: BE 0412 120 336
RPR Oostende
Daikin’s unique position as a manufacturer of air
conditioning equipment, compressors and
refrigerants has led to its close involvement in
environmental issues. For several years Daikin has
had the intension to become a leader in the provision
of products that have limited impact on the
environment. This challenge demands the eco design
and development of a wide range of products and an
energy management system, resulting in energy
conservation and a reduction of waste.
ISO14001 assures an effective environmental
management system in order to help protect human health
and the environment from the potential impact of our
activities, products and services and to assist in
maintaining and improving the quality of the environment.
