Daikin RXG-E2V1B Instruction manual

technical data
RXG-E2V1B
Outdoor Units,
Pair Application
air conditioning systems
Split
Sky Air

• Split Sky Air • Outdoor Units 1
• Outdoor Units • R-410A • RXG-E2V1B
TABLE OF CONTENTS
RXG-E2V1B
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Nominal Capacity and Nominal Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cooling/Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

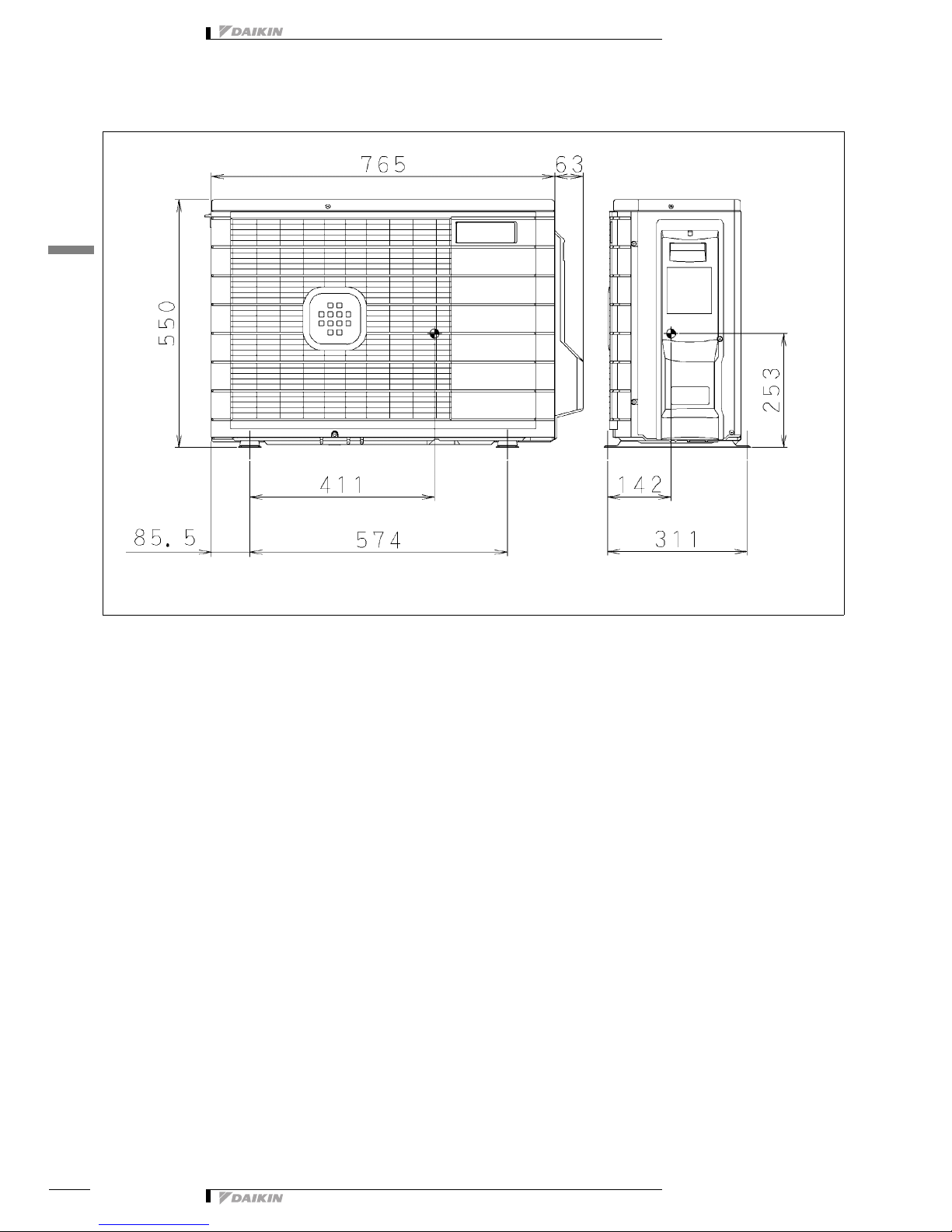

5 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . 9
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
9 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

• Outdoor Units • R-410A • RXG-E2V1B
1
• Split Sky Air • Outdoor Units
2

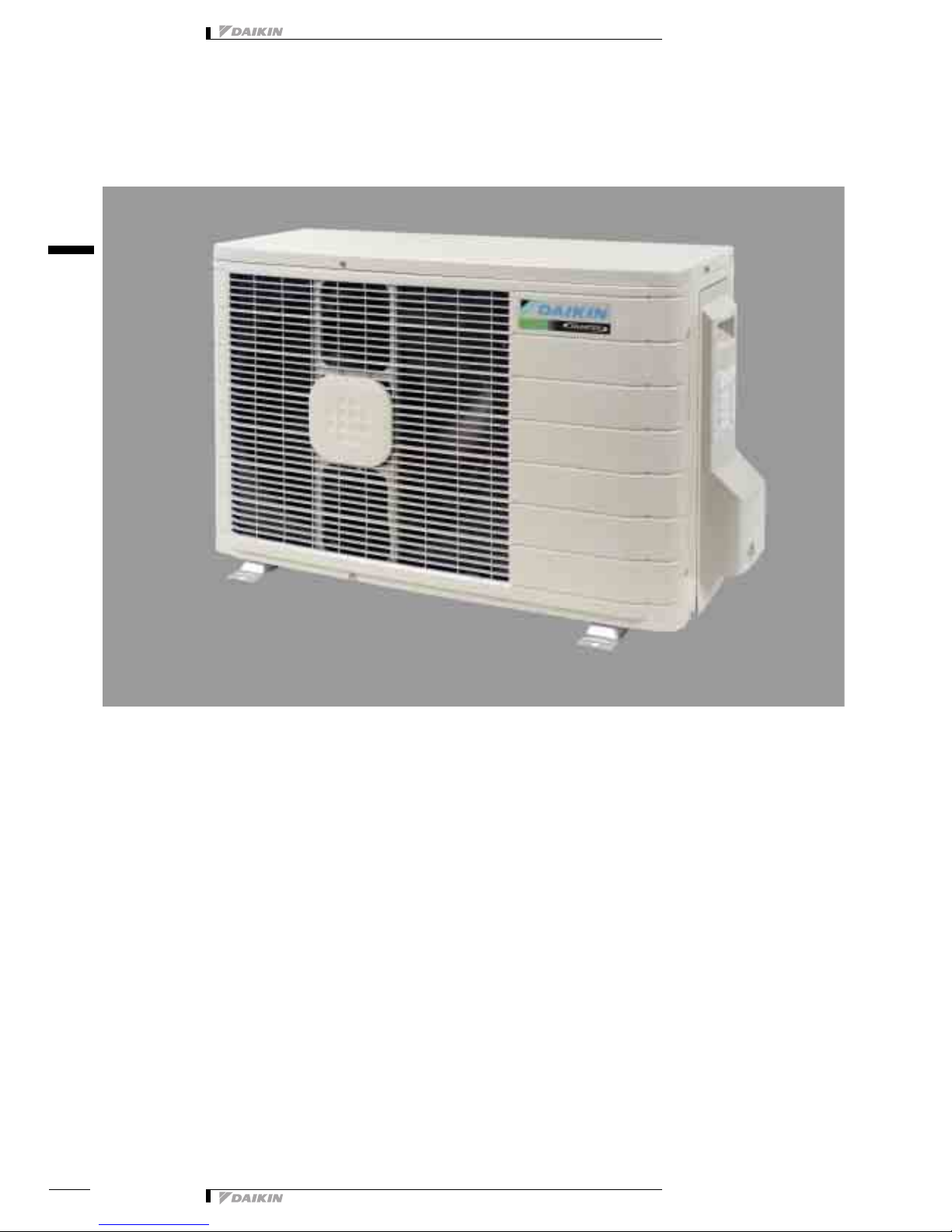

1 Features
OutdoorUni SplitSky RXG-E2V1B R-410A • Outdoor units for pair application
• Outdoor units are fitted with a swing compressor, renowned for its low
noise and high energy efficiency
• Daikin outdoor units are neat and sturdy and can be mounted easily
on a roof or terrace or simply placed against an outside wall.

3
2
• Split Sky Air • Outdoor Units 3
• Outdoor Units • R-410A • RXG-E2V1B
2 Specifications
2-1 NOMINAL CAPACITY AND
NOMINAL INPUT RXG25E2V1B RXG35E2V1B
For
combination
indoor units +
outdoor units
Indoor Units FTXG25EV1BW FTXG35EV1BW
Nominal
Capacity
Cooling Minimum kW 1.3 1.4
Standard kW 2.5 3.5
Maximum kW 3.0 3.8
Heating Minimum kW 1.3 1.4
Standard kW 3.4 4.2
Maximum kW 4.5 5.0
For
combination
indoor units +
outdoor units
EER Cooling 4.03 3.30
COP Heating 4.15 3.72
Energy
Labeling
Directive
Cooling A
Heating A
Annual energy consumption kWh 310 530
Indoor Units FTXG25EV1BS FTXG35EV1BS
Nominal
Capacity
Cooling Minimum kW 1.3 1.4
Standard kW 2.5 3.5
Maximum kW 3.0 3.8
Heating Minimum kW 1.3 1.4
Standard kW 3.4 4.2
Maximum kW 4.5 5.0
For
combination
indoor units +
outdoor units
EER Cooling 4.03 3.30
COP Heating 4.15 3.72
Energy
Labeling
Directive
Cooling A
Heating A
Annual energy consumption kWh 310 530
2-2 TECHNICAL SPECIFICATIONS RXG25E2V1B RXG35E2V1B
Casing Colour Ivory White
Dimensions Unit Height mm 550 550
Width mm 765 765
Depth mm 285 285
Packing Height mm 589 589
Width mm 882 882
Depth mm 363 363
Weight Unit kg 32 32
Packed Unit kg 38 38
Heat
Exchanger
Dimensions Length mm 805 805
Nr of Rows 2 2
Fin Pitch mm 1.40 1.40
Nr of Stages 24 24
Tube type Hi-Xa(7)
Fin Type WH fin
Fan Type Propeller
Quantity 1 1
Air Flow Rate
(nominal at
230V)
Cooling m³/min 31.30 31.3
Heating m³/min 28.10 28.1
Motor Quantity 1 1
Model D23A-28
Motor Speed
(nominal)
Cooling rpm 810 810
Heating rpm 810 810
Fan Motor Output W 35 35

• Outdoor Units • R-410A • RXG-E2V1B
2
• Split Sky Air • Outdoor Units
4
2 Specifications
Compressor Quantity 1 1
Motor Model 1YC23NXD#A
Type Hermetically sealed swing compressor
Motor
Output
W 600 600
Operation
Range
Cooling Min °CDB 10.0 10.0
Max °CDB 46.0 46.0
Heating Min °CWB -15.0 -15
Max °CWB 20.0 20
Sound Level
(nominal)
Cooling Sound
Power
dBA 61.0 62.0
Sound
Pressure
dBA 46.0 47.0
Heating Sound
Pressure
dBA 47.0 48.0
Refrigerant Type R-410A
Charge kg 1.00 1.0
Control Motor operated expansion valve
Refrigerant Oil Type FVC50K
Charged Volume l 0.4 0.4
Piping
connections
Liquid (OD) Diameter
(OD)
mm 6.35 6.35
Gas Diameter
(OD)
mm 9.5 9.5
Drain Diameter
(OD)
mm 18 18
Piping Length Maximum m 20 20
Additional Refrigerant
Charge
kg/m 0.02/>10
Max. internunit level
difference
m 15.0 15.0
Heat Insulation Both liquid and gas pipes
Standard
Accessories
Item Installation manual
Quantity 1 1
Item Drain plug
Quantity 1 1
Notes Nominal cooling capacities are based on : indoor temperature : 27°CDB, 19°CWB, outdoor temperature : 35°CDB,
equivalent refrigerant piping : 7.5m, level difference : 0m.
Nominal heating capacities are based on : indoor temperature : 20°CDB, outdoor temperature : 7°CDB, 6°CWB,
equivalent refrigerant piping : 7.5m, level difference : 0m
Sound levels are measured in an anechoic room
Sound pressure level is a relative value, depending on the distance and acoustic environment. For more details,
please refer tosound level drawings of this chapter.
The sound power level is an absolute value indicating the power which a sound source generates.
2-3 ELECTRICAL SPECIFICATIONS RXG25E2V1B RXG35E2V1B
Power Supply Name V1
Phase 1 1
Frequency Hz 50 50
Voltage V 230 230
Current Nominal
running current
(RLA)
Cooling
(A)
A 3.26 4.76
Heating
(A)
A 4.36 5.06
Starting current (cooling/
heating)
A4.5 5.2
Wiring
connections
For Power
Supply
Quantity 3 3
For connection
with indoor
Quantity 4 4
Remark included earth wiring
Power Supply Intake Outdoor unit only
2-2 TECHNICAL SPECIFICATIONS RXG25E2V1B RXG35E2V1B

3
• Split Sky Air • Outdoor Units 5
• Outdoor Units • R-410A • RXG-E2V1B
3 Electrical data
RXG+FTXG-E
Representative unit combination Power supply Comp. OFM IFM
Indoor unit Outdoor unit Hz-volts Voltage range MCA MFA RHz RLA W FLA W FLA
FTXG25EV1BW RXG25E2V1B
50 - 220 Max. 50Hz 264V
Min. 50Hz 198V 12 15 49
3.3
35
0.23
40
0.52
50 - 230 3.2 0.22 0.50
50 - 240 3.1 0.21 0.48
FTXG25EV1BS RXG25E2V1B
50 - 220 Max. 50Hz 264V
Min. 50Hz 198V 12 15 49
3.3
35
0.23
40
0.52
50 - 230 3.2 0.22 0.50
50 - 240 3.1 0.21 0.48
3D045220B
SYMBOLS
MCA : Min. Circuit Amps (A)
MFA : Max. Fuse Amps (A)
RLA : Rated Load Amps (A)
OFM : Outdoor Fan Motor
IFM : Indoor Fan Motor
FLA : Full Load Amps (A)
W : Fan Motor Rated Output (W)
RHz : Rated operating frequency(Hz)
NOTES
1 RLA is based on the following conditions:
Indoor temperature 27°CDB/19°CWB
Outdoor temperature 35°CDB
2 Maximum allowable voltage variation between phases is 2%
3 Select wire size based on the larger value of MCA.
4 Instead of fuse, use circuit breaker
5 For more details concerning conditional connections, see
http://extranet.daikineurope.com, select ’’E-Data Books’’.
Finally, click on the document title of your choice.

• Outdoor Units • R-410A • RXG-E2V1B
3
• Split Sky Air • Outdoor Units
6
3 Electrical data
RXG+FTXG-E
Representative unit combination Power supply Comp. OFM IFM
Indoor unit Outdoor unit Hz-volts Voltage range MCA MFA RHz RLA W FLA W FLA
FTXG35EV1BW RXG35E2V1B
50 - 220 Max. 50Hz 264V
Min. 50Hz 198V 12 15 80
4.9
35
0.23
40
0.52
50 - 230 4.7 0.22 0.50
50 - 240 4.5 0.21 0.48
FTXG35EV1BS RXG35E2V1B
50 - 220 Max. 50Hz 264V
Min. 50Hz 198V 12 15 80
4.9
35
0.23
40
0.52
50 - 230 4.7 0.22 0.50
50 - 240 4.5 0.21 0.48
3D045221B
SYMBOLS
MCA : Min. Circuit Amps (A)
MFA : Max. Fuse Amps (A)
RLA : Rated Load Amps (A)
OFM : Outdoor Fan Motor
IFM : Indoor Fan Motor
FLA : Full Load Amps (A)
W : Fan Motor Rated Output (W)
RHz : Rated operating frequency(Hz)
NOTES
1 RLA is based on the following conditions:
Indoor temperature 27°CDB/19°CWB
Outdoor temperature 35°CDB
2 Maximum allowable voltage variation between phases is 2%
3 Select wire size based on the larger value of MCA.
4 Instead of fuse, use circuit breaker
5 For more details concerning conditional connections, see
http://extranet.daikineurope.com, select ’’E-Data Books’’.
Finally, click on the document title of your choice.

3
4
• Split Sky Air • Outdoor Units 7
• Outdoor Units • R-410A • RXG-E2V1B
4 Capacity tables
4 - 1 Cooling/Heating capacity tables
RXG + FTXG25E
Cooling 50Hz 220-240V
60Hz 220-230V
AFR 7.4
BF 0.18
Indoor Outdoor temperature (°C)
EWB EDB 20 25 30 32 35 40
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
14.0 20 2.50 1.84 0.46 2.44 1.82 0.52 2.33 1.76 0.57 2.28 1.74 0.59 2.21 1.70 0.61 2.10 1.64 0.66
16.0 22 2.68 1.84 0.48 2.56 1.79 0.52 2.44 1.73 0.57 2.40 1.71 0.59 2.33 1.68 0.62 2.21 1.63 0.66
18.0 25 2.79 1.93 0.48 2.68 1.88 0.53 2.56 1.82 0.57 2.51 1.80 0.59 2.44 1.77 0.62 2.33 1.72 0.66
19.0 27 2.85 2.03 0.48 2.73 1.98 0.53 2.62 1.93 0.57 2.57 1.91 0.59 2.50 1.88 0.62 2.38 1.83 0.67
22.0 30 3.02 1.95 0.49 2.91 1.91 0.53 2.79 1.87 0.58 2.74 1.85 0.60 2.67 1.82 0.62 2.56 1.78 0.67
24.0 32 3.14 1.90 0.49 3.02 1.86 0.54 2.90 1.82 0.58 2.86 1.81 0.60 2.79 1.78 0.63 2.67 1.74 0.67
Heating 50Hz 220-240V
60Hz 220-230V
AFR 7.7
Indoor Outdoor temperature (°CWB)
EDB -10 -5 0 6 10
(°C) TC PI TC PI TC PI TC PI TC PI
16.0 2.27 0.70 2.65 0.74 3.03 0.77 3.49 0.81 3.80 0.84
18.0 2.22 0.71 2.60 0.74 2.99 0.78 3.45 0.82 3.75 0.84
20.0 2.17 0.72 2.56 0.75 2.94 0.78 3.40 0.83 3.71 0.85
21.0 2.15 0.72 2.53 0.75 2.92 0.79 3.38 0.83 3.68 0.86
22.0 2.12 0.72 2.51 0.76 2.89 0.79 3.35 0.83 3.66 0.86
24.0 2.08 0.73 2.46 0.77 2.85 0.80 3.31 0.84 3.61 0.87
3D045218B
SYMBOLS
AFR : Air flow rate (m
3
/min)
BF : Bypass factor
EWB : Entering wet bulb temp. (°CWB)
EDB : Entering dry bulb temp. (°CDB)
TC : Total cooling capacity (kW)
SHC : Sensible heating capacity (kW)
PI : Power input (kW)
NOTES
1 Ratings shown are net capacities which include a deduction for
indoor fan motor heat
2 shows nominal (rated) capacities and power input.
3 TC, PI and SHC must be calculated by interpolation using the figures
in the above tables. (Figures out of the tables should not be used for
calculation.)
4 SHC is based on each EWB and EDB
SHC1 for any indoor dry-bulb temperatures (EDB1) shall be
calculated by the following formula.
SHC*: Correction value of SHC matched with the differential of EDB
and EDB1.
SHC*=0.02 X AFR(m
3
/min.) X (1-BF) X (EDB1-EDB)
The calculation value of SHC1 = SHC + SHC*
5 Capacities are based on following conditions:
Corresponding refrigerant piping length: 7.5 m
Level difference: 0 m
6 Air flow rate (AFR) and Bypass factor (BF) are taburated above.

• Outdoor Units • R-410A • RXG-E2V1B
4
• Split Sky Air • Outdoor Units
8
4 Capacity tables
4 - 1 Cooling/Heating capacity tables
RXG + FTXG35E
Cooling 50Hz 220-240V
60Hz 220-230V
AFR 7.9
BF 0.18
Indoor Outdoor temperature (°C)
EWB EDB 20 25 30 32 35 40
(°C) (°C) TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
14.0 20 2.67 1.97 0.56 2.67 1.97 0.65 2.67 1.97 0.74 2.67 1.97 0.79 2.67 1.97 0.86 2.67 1.97 0.99
16.0 22 3.39 2.23 0.72 3.39 2.23 0.83 3.39 2.23 0.96 3.36 2.21 1.01 3.26 2.17 1.05 3.10 2.08 1.13
18.0 25 3.91 2.49 0.82 3.75 2.41 0.90 3.58 2.34 0.98 3.52 2.31 1.01 3.42 2.26 1.06 3.26 2.18 1.14
19.0 27 3.99 2.60 0.82 3.83 2.52 0.90 3.66 2.44 0.98 3.60 2.41 1.01 3.50 2.37 1.06 3.34 2.30 1.14
22.0 30 4.23 2.49 0.83 4.07 2.42 0.91 3.90 2.36 0.99 3.84 2.33 1.02 3.74 2.29 1.07 3.58 2.23 1.15
24.0 32 4.39 2.42 0.84 4.23 2.35 0.91 4.07 2.29 0.99 4.00 2.27 1.02 3.90 2.23 1.07 3.74 2.17 1.15
Heating 50Hz 220-240V
60Hz 220-230V
AFR 7.9
Indoor Outdoor temperature (°CWB)
EDB -10 -5 0 6 10
(°C) TC PI TC PI TC PI TC PI TC PI
16.0 2.80 0.96 3.27 1.01 3.75 1.06 4.32 1.11 4.70 1.15
18.0 2.74 0.98 3.21 1.02 3.69 1.07 4.26 1.12 4.64 1.16
20.0 2.68 0.99 3.16 1.03 3.63 1.08 4.20 1.14 4.57 1.17
21.0 2.65 0.99 3.13 1.04 3.60 1.08 4.17 1.14 4.43 1.14
22.0 2.62 1.00 3.10 1.04 3.57 1.09 4.14 1.15 4.30 1.12
24.0 2.57 1.01 3.04 1.05 3.51 1.10 4.02 1.14 4.02 1.06
3D034219B
SYMBOLS
AFR : Air flow rate (m
3
/min)
BF : Bypass factor
EWB : Entering wet bulb temp. (°CWB)
EDB : Entering dry bulb temp. (°CDB)
TC : Total cooling capacity (kW)
SHC : Sensible heating capacity (kW)
PI : Power input (kW)
NOTES
1 Ratings shown are net capacities which include a deduction for
indoor fan motor heat
2 shows nominal (rated) capacities and power input.
3 TC, PI and SHC must be calculated by interpolation using the figures
in the above tables. (Figures out of the tables should not be used for
calculation.)
4 SHC is based on each EWB and EDB
SHC*: Correction value of SHC matched with the differential of EDB
and EDB1.
SHC*=0.02 X AFR(m
3
/min.) X (1-BF) X (EDB1-EDB)
The calculation value of SHC1 = SHC + SHC*
5 Capacities are based on following conditions:
Corresponding refrigerant piping length: 7.5 m
Level difference: 0 m
6 Air flow rate (AFR) and Bypass factor (BF) are taburated above.

5
• Split Sky Air • Outdoor Units 9
• Outdoor Units • R-410A • RXG-E2V1B
5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
RXG25-35E unit (mm)
3D041800F
Minimum space for air passage
Wall height on air outlet side = less
than 1200
Drain outlet
(I.D. J15.9 hose for connection) 4 x holes for anchor bolts (M8 or M10)
Name plate
Terminal strip with earth
terminal
Wiring inlet
Gas stop valve
(J9.5 CuT)
Liquid stop valve
(J6.4 CuT)
Service port
Outdoor air thermistor
Brand name label
In case of removing
stop valve cover
Handle

• Outdoor Units • R-410A • RXG-E2V1B
5
• Split Sky Air • Outdoor Units
10
5 Dimensional drawing & centre of gravity
5 - 2 Centre of gravity
RXG25-35E
4D044107F

3
6
• Split Sky Air • Outdoor Units 11
• Outdoor Units • R-410A • RXG-E2V1B
6 Piping diagram
3D045139D
RXG25-35E
Outdoor temperature thermistor
Heat exchanger
Propeller fan
Liquid stop valve
Field piping
Field piping
Accumulator
Compressor
Muffler
Refrigerant flow
Cooling
Heating
Discharge pipe
thermistor
Heat exchanger thermistor
Muffler with
filter
Muffler
Motor operated valve
Four way valve
on : heating
Outdoor unit
Gas stop valve
Muffler with
filter
Filter

• Outdoor Units • R-410A • RXG-E2V1B
7
• Split Sky Air • Outdoor Units
12
7 Wiring diagram
7 - 1 Wiring diagram
3D042576H
RXG25-35E
R: Protective earth
C74, C75
C94, C95, C100 : Capacitor
DB1, DB2 : Diode bridge
FU1, FU2, FU3 : Fuse
LC11 : Solid state relay
LPM1 : Intelligent power module
L : Live
L1 : Coil
L1R : Reactor
M1C : Compressor motor
M1F : Fan motor
MRCW,
MRM10, MRM20 : Magnetic relay
N : Neutral
PCB1, PCB2 : Printed circuit board
Q1L : Overload protector
R1T, R2T, R3T, S10 : Thermistor
S11, S20, S30, S40
S70, S80, S90, S91
HC3, HC4, HL3, HN3 : Connector
SA1 : Surge arrester
Z1C, Z2C : Ferrite core
X1M : Terminal strip
V1, V2, V3 : Varistor
Y1E : Electronic expansion valve coil
Y1R : Reversing solenoide valve coil
g
Field wiring
Indoor
Outdoor
(outdoor)
(Condenser)
(discharge)
In case of heat pump
type
In case of cooling
only type
Note
1. Refer to the name plate for the power requirements.

3
8
• Split Sky Air • Outdoor Units 13
• Outdoor Units • R-410A • RXG-E2V1B
8 Sound data
8 - 1 Sound pressure spectrum
Octave band sound pressure level
Octave band center frequency (Hz)
RXG25E (Cooling)
3D044103D
approximate
threshold hearing for
continuous noise
NOTES
1 Measure in anechoic room
2 Operation noise differs with operation and
ambient conditions.
3 The operation noise measuring method is in
accordance with JISC9612
Legend
50/60Hz, 220-240V
Location of microphone
Octave band sound pressure level
Octave band center frequency (Hz)
RXG25E (Heating)
3D044103D
approximate
threshold hearing for
continuous noise
NOTES
1 Measure in anechoic room
2 Operation noise differs with operation and
ambient conditions.
3 The operation noise measuring method is in
accordance with JISC9612
Legend
50/60Hz, 220-240V
Location of microphone
Octave band sound pressure level
Octave band center frequency (Hz)
RXG35E (Cooling)
3D044104D
approximate
threshold hearing for
continuous noise
NOTES
1 Measure in anechoic room
2 Operation noise differs with operation and
ambient conditions.
3 The operation noise measuring method is in
accordance with JISC9612
Legend
50/60Hz, 220-240V
Location of microphone
Octave band sound pressure level
Octave band center frequency (Hz)
RXG35E (Heating)
3D044104D
approximate
threshold hearing for
continuous noise
NOTES
1 Measure in anechoic room
2 Operation noise differs with operation and
ambient conditions.
3 The operation noise measuring method is in
accordance with JISC9612
Legend
50/60Hz, 220-240V
Location of microphone

• Outdoor Units • R-410A • RXG-E2V1B
9
• Split Sky Air • Outdoor Units
14
9 Operation range
RXG25-35E
3D045140C
Outdoor temp. (°CDB)
Pull-down period
Indoor temp. (°CWB)
Notes:
The graphs are based on the following conditions:
+Equivalent piping length 7.5 m
+Level difference 0 m
+Air flow rate high
Cooling Heating
Indoor temp. (°CDB)
Outdoor temp. (°CWB)
Continuous operation
Continuous operation

ISO14001 assures an effective environmental
management system in order to help protect
human•health•and the environment from the potential
impact of our activities, products and services and to
assist in maintaining and improving the quality of
the•environment.
Daikin Europe N.V. is approved by LRQA for its Quality
Management System in accordance with the ISO9001
standard. ISO9001 pertains to quality assurance regarding
design, development, manufacturing as well as to services
related to the product.
Daikin units comply with the European
regulations that guarantee the safety of
the product.
Zandvoordestraat 300
B-8400 Ostend - Belgium
www.daikineurope.com
EEDE06-1/3 • 05/2006 Prepared in Belgium by Lannoo
The present publication is drawn up by way of
information only and does not constitute an offer
binding upon Daikin Europe N.V.. Daikin Europe N.V.
has compiled the content of this publication to the
best of its knowledge. No express or implied warranty
is given for the completeness, accuracy, reliability or
fitness for particular purpose of its content and the
products and services presented therein. Specifications
are subject to change without prior notice. Daikin
Europe N.V. explicitly rejects any liability for any direct
or indirect damage, In the broadest sense, arising from
or related to the use and/or interpretation of this
publication. All content is copyrighted by Daikin
Europe N.V..
ÉEEDE06-1/3ÇËÍ
Split - Sky Air
Daikin Europe N.V. is participating in the
EUROVENT Certification Programme.
Products are as listed in the EUROVENT
Directory of Certified Products.
