Daikin BAG User manual

INSTALLATION
MANUAL
BMS Gateway (BAG)
Installation Manual
BMS Gateway (BAG)
English
CVR IM-5WMYJ-0113(2)DAIKIN-EN.in1 1CVR IM-5WMYJ-0113(2)DAIKIN-EN.in1 1 6/9/14 3:57:00 PM6/9/14 3:57:00 PM

English
1
All dimensions are in mm
Dimension
Model A B C D E F G H I J K
BAG 33.5 118.4 183.4 33.5 46.0 154.0 1.5 43.0 114.0 1.5 179.0
OUTLINE AND DIMENSIONS
Original Instruction
TOP VIEW
SIDE VIEW
FRONT VIEW
1 IM-5WMYJ-0113(2)DAIKIN_EN.indd1 11 IM-5WMYJ-0113(2)DAIKIN_EN.indd1 1 6/10/14 10:07:23 AM6/10/14 10:07:23 AM
A
B
C
D
E
F
G
H
I
J
K

2
1 IM-5WMYJ-0113(2)DAIKIN_EN.indd4 41 IM-5WMYJ-0113(2)DAIKIN_EN.indd4 4 6/10/14 10:07:24 AM6/10/14 10:07:24 AM
English
!WARNING !CAUTION
Installation and maintenance should be performed by qualified
persons who are familiar with local code and regulation, and
experienced with this type of appliance.
Con firm that the unit has been switched OFF before
installing or servicing the unit.
Risk of electric shock, can cause injury or death. Disconnect all
remain electric power supplies before servicing.
DO NOT pull out the power cord when the power is ON.
This may cause serious electrical shocks which may result
in fire hazards.
•
•
•
•
Please take note of the following important points when
installing.
• Do not install the unit where leakage of flammable gas may
Improper connection or fastening can
cause fire or electrical shock.
Do not handle with wet hands/ wash the unit with water.
Electrical shock may occur.
Do not operate any heating apparatus too close to the
gateway or use in room where mineral oil, oil vapor or oil
steam exist, this may cause plastic part to melt or
deform as a result of excessive heat or chemical reaction.
Don’t use joined and twisted wires for incoming power
supply.
The equipment is not intended for use in a potentially
explosive atmosphere.
•
•
•
SAFETY PRECAUTIONS
INSTALLATION MANUAL
This manual provides the procedures of installation to ensure a safe and good standard of
operation for the BMS Access Gateway. Special adjustment may be necessary to suit local
requirement.
Before using your gateway, please read this instruction manual carefully and keep it for future
reference.
This appliance is intended to be used by expert or trained users in shops, in light industry and
on farms, or for commercial use by lay persons.
This appliance is not intended for use by persons, including children, with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by aperson responsible for their
safety.
Children should be supervised to ensure that they do not play with the appliance.
•
•
Use only the recommended cables for wiring. The
connections must be firm but without tensioning
the terminals.

English
3
1 IM-5WMYJ-0113(2)DAIKIN_EN.indd5 51 IM-5WMYJ-0113(2)DAIKIN_EN.indd5 5 6/10/14 10:07:24 AM6/10/14 10:07:24 AM
COMPATIBILITY
Main Board Controller
BAG can only be used in conjunction with O.Y.L. Manufacturing produced Split type and
SQMB type air conditioner units with communication protocol N2.2 and N2.4 only.
Display Wired Panel
BAG can be used in conjunction with SLM8 (BRC51A), SQSLM8 (BRC51A64), SLM9,
SQSLM9 or SQLCD wired panel.
CONFIRMATION OF PARTS
The following parts are contained in the carton box together with this manual.
Please check to make sure that everything is included.
1. BMS Gateway (BAG)
2. Casing (top & bottom)
3. 5-way shield wire (1 meter) to/from mainboard controller.
4. Mounting screws
Procure the following parts locally:
1. Communication wires to/from SQMB mainboard controller and SQLCD wired panel.
Compatibility
Interface
SLM8 (BRC51A)/ SQSLM8
(BRC51A64)/ SLM9/ SQSLM9
SQLCD (with RS-485)
None of the interface above
Yes
Yes
No
Supported Configuration:

1 IM-5WMYJ-0113(2)DAIKIN_EN.indd6 61 IM-5WMYJ-0113(2)DAIKIN_EN.indd6 6 6/10/14 10:07:24 AM6/10/14 10:07:24 AM
English
UNIT CONFIGURATION
1 BOARD DESCRIPTIONS
Descriptions
Option setting dip switch, DIP_Option
Input control dip switch, DIP_InputCtrl
Dry contact outputs
Y1: On/ Off status output
Y2: Heat/ Cool or Dry or Fan operating mode output
Y3: Unit faulty status output
Resistance input
X5: Set temperature control
Input Contacts
X1: Force Off
X2: On/ Off control
X3: Cool/ Heat Operating mode
X4: Hi/ Low Fan speed control
Terminal block for connection to SQLCD (with RS-485)
Terminal block for connection to SQMB (with RS-485)
Connector for connection to mainboard controller
Connector for connection to SLM8 (BRC51A)/ SQSLM8 (BRC51A64)/
SLM9/ SQSLM9
4

English
5
1 IM-5WMYJ-0113(2)DAIKIN_EN.indd71 IM-5WMYJ-0113(2)DAIKIN_EN.indd7 6/10/14 10:07:24 AM6/10/14 10:07:24 AM
2
3 Adjust the dip switch to “ON” position enables the assigned input contacts.
Configure the Option Setting Dip Switch (DIP_Option) according to operating option
preferences and refer to the table below:
Adjust the dip switch to “ON” position enables the function assigned to it.
UNIT CONFIGURATION
Configure the Input Control Setting Dip Switch (DIP_InputCTRL) according to the
configurations required and refer to the table below:
Dip_InputCtrl
Dip Position
Force Off
On/Off Heat/Cool
Mode
Hi
Fan Speed Resistance
Input
(Reserved )
2345678
X1 X3
X2 X4 X5 X6 X7
Low -
Dip_Option
Dip Position
Setting Handset On/Off Override SQ Mode
Reserved
Terminal Block Designator
Description
1
Cool
Heat
On
Off
Off
Unchanged
On
Off
Setting
12345678
X8

6
1 IM-5WMYJ-0113(2)DAIKIN_EN.indd8 81 IM-5WMYJ-0113(2)DAIKIN_EN.indd8 8 6/10/14 10:07:25 AM6/10/14 10:07:25 AM
English
UNIT INSTALLATION

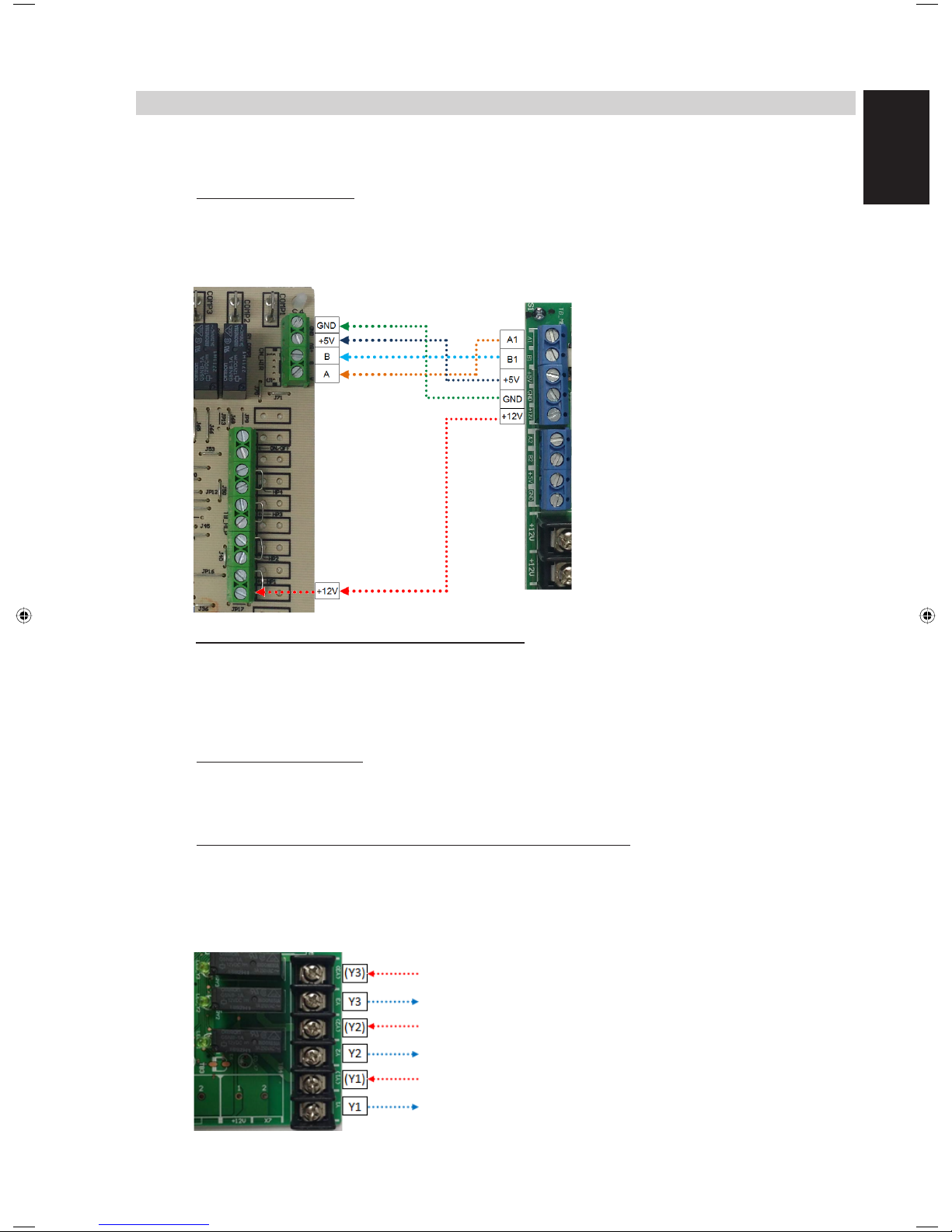

1 Make connections from BAG to mainboard controller.
SQMB (with RS-485):
Make connections from TB_MB (BMS Gateway) to TB_WIR (SQMB) accordingly (A to A,
B to B, +5V to +5V, GND to GND).
* Note that +12V on BAG to be connected to HP1 at position shown in the
figure below:
Other mainboard controllers (without RS-485):
Plug in the provided 5-way harness wires to the connector, CN_MB on BAG and plug
the other end of the wire to CN_WIR on mainboard controller.
2 Make connections from BAG to wired panel.
SQLCD (with RS-485):
Make connections from TB_WIR (BAG) to TB (SQLCD) accordingly (A to A, B to B,
+5V to +5V, GND to GND).
SLM8 (BRC51A)/ SQSLM8 (BRC51A64)/ SLM9/ SQSLM9:
Plug in the wire harness provided in SLM8 (BRC51A)/ SQSLM8 (BRC51A64)/ SLM9/
SQSLM9 package to CN_MB on wired panel and connects the other end of the wire to
the connector (CN_WIR) on BAG.
3 Make connections from dry contact output terminal blocks to BMS system as shown below:
Voltage Supply
Unit faulty output
Voltage Supply
Operating mode output
Voltage supply
On/ Off status output

7
1 IM-5WMYJ-0113(2)DAIKIN_EN.indd9 91 IM-5WMYJ-0113(2)DAIKIN_EN.indd9 9 6/10/14 10:07:2 5 AM6/10/14 10:07:2 5 AM
English
UNIT INSTALLATION
4 Make connections from input contacts terminal blocks to BMS system as shown below:
5 Make connections from resistance input terminal block to BMS system as shown
below:
6 Adjust and align all wires to wire clips as shown in the image shown below:
7 Decide the location to install the BAG.
Please consider the following precautions in your decision:
Do not install the unit in location that is:
• Exposed to direct sunlight.
• Susceptible to humidity and moisture.
• Near to heat source.
• Near to machines that emits high frequency wave.
• Near to high current switching devices.
Caution:
• Over-tightening the screws can cause deformation or/and crack at the casing.
• Mount the bottom casing on a wall with flat surface. Unit mounted on an uneven surface
can cause cracks at the casing.
S1: Force off control switch
S2: On/ Off control switch
S3: Operating mode control switch
S4: Fan speed control switch

1 IM-5WMYJ-0113(2)DAIKIN_EN.indd10 101 IM-5WMYJ-0113(2)DAIKIN_EN.indd10 10 6/10/14 10:07:25 AM6/10/14 10:07:25 AM
8
English
UNIT INSTALLATION
8 Mount the complete unit onto the wall.
9 Close the top casing to the bottom casing and tighten the screws.

9
1 IM-5WMYJ-0113(2)DAIKIN_EN.indd11 11 6/10/14 10:07:25 AM
English
BAG to mainboard
controller
BAG to BMS

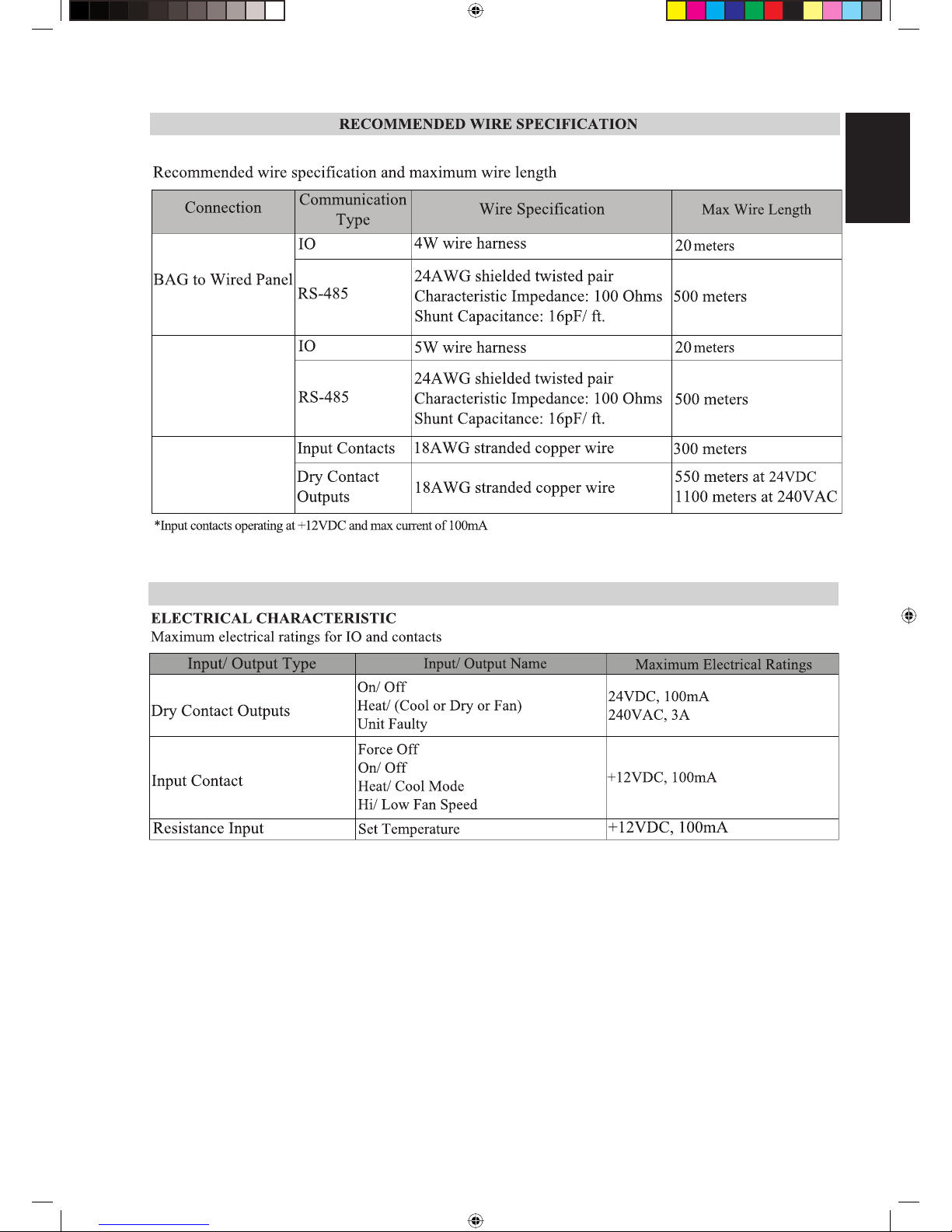

*The maximum wire length for IO communication type between BAG-Wired Panel and BAG-mainboard controller shall
not exceed 30 meters

English
OPERATING &
INSTALLATION
MANUAL
BMS Gateway (BAG)
Operating &
Installation Manual
BMS Gateway (BAG)

OPERATING
MANUAL
English
CVR-OM-SLM9-0911(1)DAIKIN-EN.ind1 1CVR-OM-SLM9-0911(1)DAIKIN-EN.ind1 1 5/6/14 9:56:15 AM5/6/14 9:56:15 AM
BMS Gateway (BAG)
Operating Manual
BMS Gateway (BAG)

ENGLISH
1
Original Instruction
1-OM-SLM9-0911(1)DAIKIN-EN.indd 11-OM-SLM9-0911(1)DAIKIN-EN.indd 1 5/6/14 9:57:08 AM5/6/14 9:57:08 AM
BAG interfaces the air conditioner unit to BMS system via input contacts, dry contacts
outputs and resistance input allowing monitoring and controlling of operating
parameters.
Resistance Input allows BMS system to control the set temperature of the air
conditioner unit according to resistance table below:
BMS Access Gateway (BAG)
Resistance Input
*The accuracy of Resistance to Set Temperature conversion is subject to the stability
of the input voltage (+12V) from the main controller and may differ at site application.
Resistance Set Temperature (⁰C)
18
19
20
21
22
23
24
25
26
27
28
30
16
17
29
140
200
260
320
380
440
500
560
620
680
740
800
860
920
1000

ENGLISH
2
1-OM-SLM9-0911(1)DAIKIN-EN.indd 31-OM-SLM9-0911(1)DAIKIN-EN.indd 3 5/6/14 9:57:09 AM5/6/14 9:57:09 AM
Input Contacts allow BMS system to control the operation of the air conditioner unit.
Dry Contact Outputs allow BMS system to monitor the operation of the air conditioner
unit.
Input Contacts
Dry Contact Outputs
X1
X2
X3
X4
Force Off
On/ Off
Operating Mode
Fan Speed
Handset On/ Off
Override Disabled
Handset On/ Off
Override Enabled
Force unit Off
Turn unit Off
User
Controllable
Cool
Low
-
Turn unit
On
Turn unit
On
Heat
High
Dry
Contact Function Contact
OPEN
Contact
CLOSED
Y1
Y2
Y3
Dry
Contact Function Contact Contact
CLOSED
Unit On
Heat
Unit Faulty
Operating Mode
Unit Error Indicator
On/ Off
OPEN
Unit Off
Cool/Dry/Fan
Normal

1-OM-SLM9-0911(1)DAIKIN-EN.indd 71-OM-SLM9-0911(1)DAIKIN-EN.indd 7 5/6/14 9:57:09 AM5/6/14 9:57:09 AM
