Daikin BRC1D61 User manual

OPERATION MANUAL
Remote controller
BRC1D61

DAIKIN
BRC1D61 Remote controller
Operation manual
THANK YOU FOR PURCHASING THIS
A CONTROLLER. READ THE MANUAL
ATTENTIVELY BEFORE USING THE
INSTALLATION. AFTER READING THE
MANUAL, STORE IT IN A SAFE PLACE
FOR FUTURE USE.
Before initial operation, contact your dealer
A to obtain all details concerning your air
conditioning installation.
WARNING
Never let the remote controller get wet, this may
cause an electric shock or fire,
Never press the buttons of the remote controller
with a hard, pointed object. The remote controller
may be damaged.
Never inspect or service the remote controller
yourself, ask a qualified service person to do this.
Contents
1, Features and fUnctions......cscrses ai
2. Name and function of switches and icons
3. Setting up the controller
4. Description of the operation modes
5. Operation.
6. Programming the schedule timer ee ord |
4. Features and functions
The BRC1D61 is a state of the art remote controller
that offers full control over your installation.
| BASIC REMOTE CONTROLLER
The basic remote controller functions are:
. ON/OFF,
operation made change-over,
temperature adjustment,
air volume adjustment
air flow direction adjustment.
2 CLOCK FUNCTION
The clock functions are:
. 24 hours real time clock,
. day of the week indicator.
3 SCHEDULE TIMER FUNCTION
The schedule timer functions are:
. a maximum of 5 actions can be programmed
for each day of the week (totalling 35 actions),
. schedule timer can be enabled/disabled at any
time,
. linked to a set temperature or a LIMIT
operation or an OFF operation,
. “last command” overrules previous command
untit next scheduled command,
4 LIMIT OPERATION
Limit operation provides thermostat control within the
range of the set minimum and maximum temperature.
The minimum temperature setting will trigger heating,
the maximum temperature setting will trigger cooling.
Operation manual
i
DAIKIN BRC1D61
Remote controller
3P107422-3D

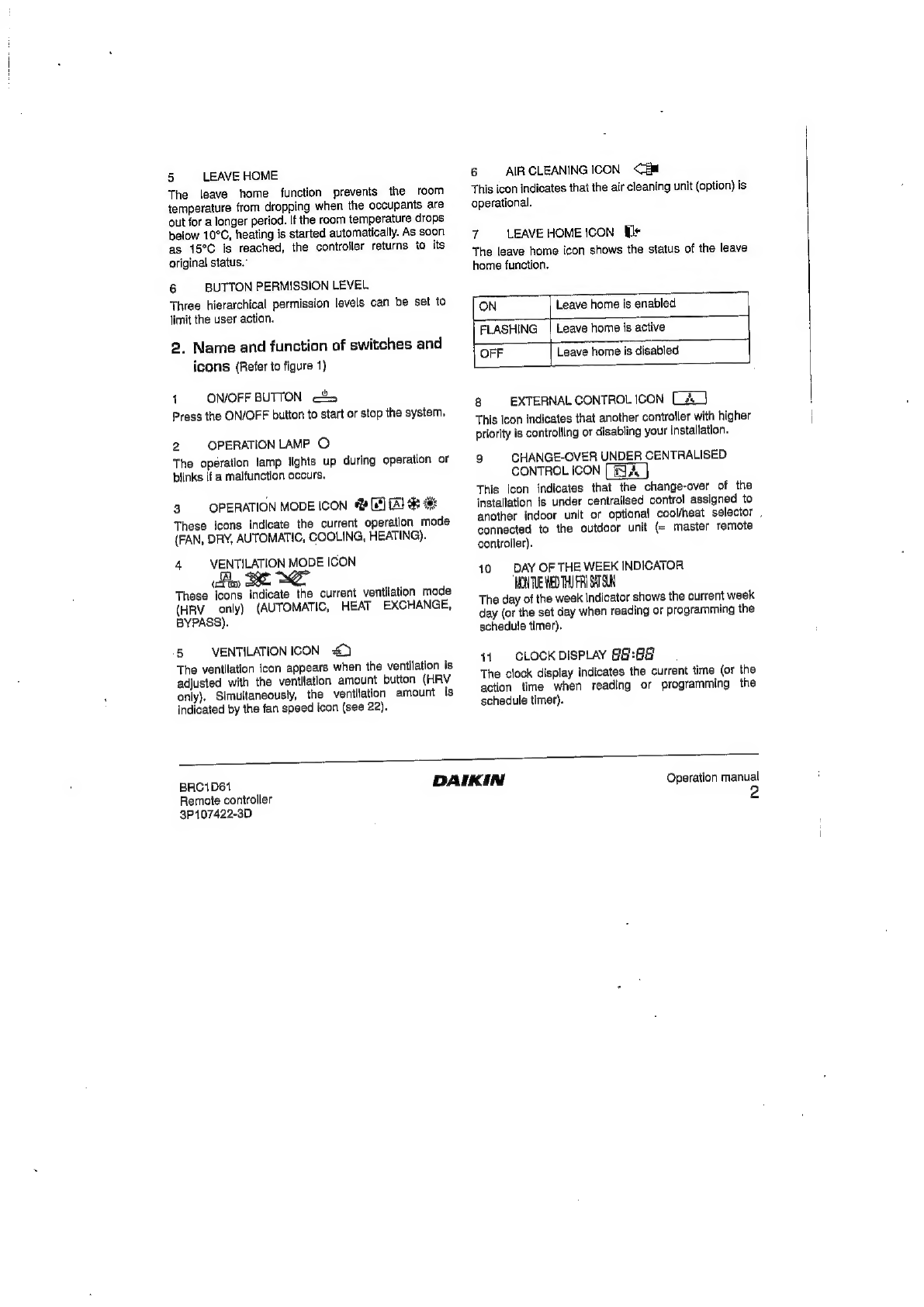

5 LEAVE HOME
The
leave
home
function
prevents
the
room
temperature
from
dropping
when
the
occupants
are
out
for
a
longer
period.
If
the
room
temperature
drops
below
10°C,
heating
is
started
automatically.
As
soon
as
15°C
is
reached,
the
controller
returns
to
its
original
status.”
6
BUTTON
PERMISSION
LEVEL
Three
hierarchical
permission
levels
can
be
set
to
limit
the
user
action.

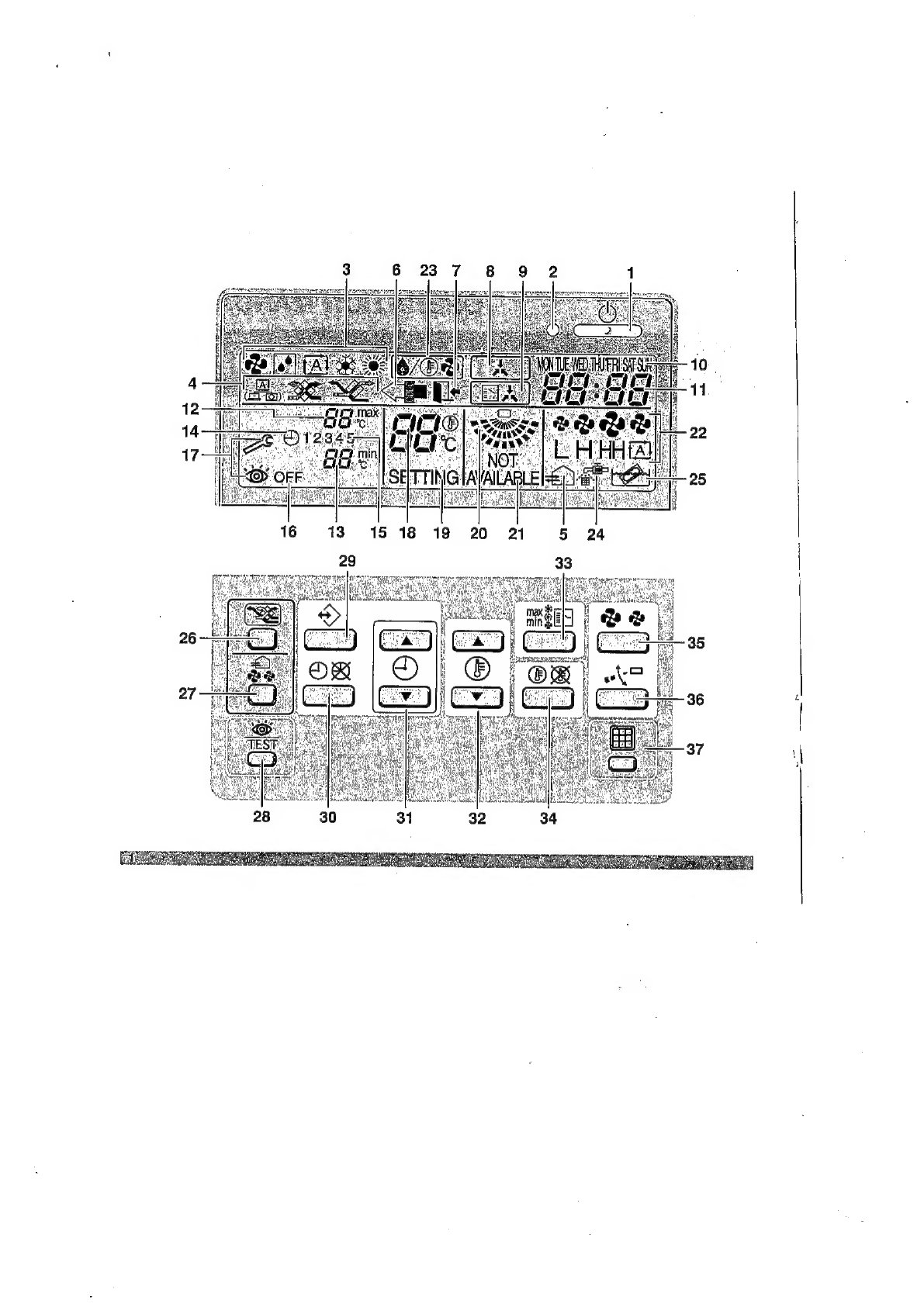

2.
Name
and
function
of
switches
and
icons
(Refer
to
figure
1)
1
ON/OFF
BUTTON
<&>
Press
the
ON/OFF
button
to
start
or
stop
the
system.
2 OPERATION LAMP O
The
operation
tamp
lights
up
during
operation
or
blinks
if
a
malfunction
occurs.
3.
OPERATION
MODE
ICON
«
(65)
(Al
These
icons
indicate
the
current
operation
mode
(FAN,
DRY,
AUTOMATIC,
COOLING,
HEATING).
4
VENTILATION
MODE
ICON
ty BBE ME
These
icons
indicate
the
current
ventilation
mode
(HRV
only)
(AUTOMATIC,
HEAT
EXCHANGE,
BYPASS).
‘5
VENTILATION
ICON
=€)
The
ventilation
icon
appears
when
the
ventilation
is
adjusted
with
the
ventilation
amount
button
(HRV
only).
Simultaneously,
the
ventilation
amount
is
indicated
by
the
fan
speed
ican
(see
22).
6 AIR CLEANING ICON <E@
This
icon
indicates
that
the
air
cleaning
unit
(option)
is
operational.
7 LEAVE HOME ICON Wr
The
leave
home
icon
shows
the
status
of
the
leave
home
function.
ON
Leave
home
is
enabled
FLASHING
|
Leave
home
is
active
OFF
Leave
home
is
disabled
8
EXTERNAL
CONTROL
ICON
[_A_}
This
icon
indicates
that
another
controller
with
higher
priority
is
controlling
or
disabling
your
installation.
9
CHANGE-OVER
UNDER
CENTRALISED
CONTROL
ICON
[
NA
a
This
icon
indicates
that
the
change-over
of
the
installation
is
under
centralised
control
assigned
to
another
indoor
unit
or
optional
cool/heat
selector
.
connected
to
the
outdoor
unit
(=
master
remote
controller).
10.
DAY
OF
THE
WEEK
INDICATOR
HONTVE
WED
THU
FRI
SATS
The
day
of
the
week
indicator
shows
the
current
week
day
(or
the
set
day
when
reading
or
programming
the
schedule timer).
41
CLOCK
DISPLAY
G&:G8
The
clock
display
indicates
the
current
time
(or
the
action
time
when
reading
or
programming
the
schedule
timer).
BRC1D61
Remote controller
3P107422-3D
DAIKIN
Operation manual

12 MAXIMUM SET TEMPERATURE 9&9 &™
The maximum set temperature indicates the
maximum set temperature when in limit operation.
18 MINIMUM SET TEMPERATURE @@ &"
The minimum set temperature indicates the minimum
set temperature when in limit operation.
14. SCHEDULE TIMER ICON ©
This icon indicates that the schedule timer is enabled.
15 ACTIONICONS 12345
These icons indicate the actions for each day of the
schedule timer.
16 OFFICON OFF
This icon indicates that the OFF action is selected
when programming the schedule timer.
17 INSPECTION REQUIRED ~ and <y
These icons indicate that inspection is required.
Consult your installer.
18 SET TEMPERATURE DISPLAY &§
This indicates the current set temperature of the
installation (not shown in LIMIT operation or in FAN or
DRY mode),
19 SETTING SETTING
Not used, for service purposes only.
20 AIR FLOW DIRECTION ICON x
This icon indicates the air flow direction {only for
installations with motorised air flow flaps).
21 NOT AVAILABLE 4G
aioe is displayed whenever a non-installed option
is addressed or a function is not available.
a
22 FANSPEEDICON S222
This icon indicates the set fan speed. .
23 DEFROST/HOTSTART MODE ICON [@/®:
This icon indicates that ihe defrost/hotstart mode is
active.
24 AIR FILTER CLEANING TIME ICON
This icon indicates the air filter must be cleaned.
Refer to the manual of the indoor unit.
25 ELEMENT CLEANING TIME ICON ty
This icon indicates the element must be cleaned
(HRV only).
26 VENTILATION MODE BUTTON [8]
The ventilation mode button operates the HRV; refer
jo the HRV manual for more details.
27 VENTILATION AMOUNT BUTTON a
This button sets the ventilation amount; refer to the
HRV manual for more details.
28 INSPECTION/TEST OPERATION BUTTON 4,
Not used, for service purposes only.
29 PROGRAMMING BUTTON >)
This button is a multi-purpose button,
Depending on the previous manipulations of the user,
the programming button can have various functions.
Operation manual
3
BRC1D61
Remote controller
3P107422-3D

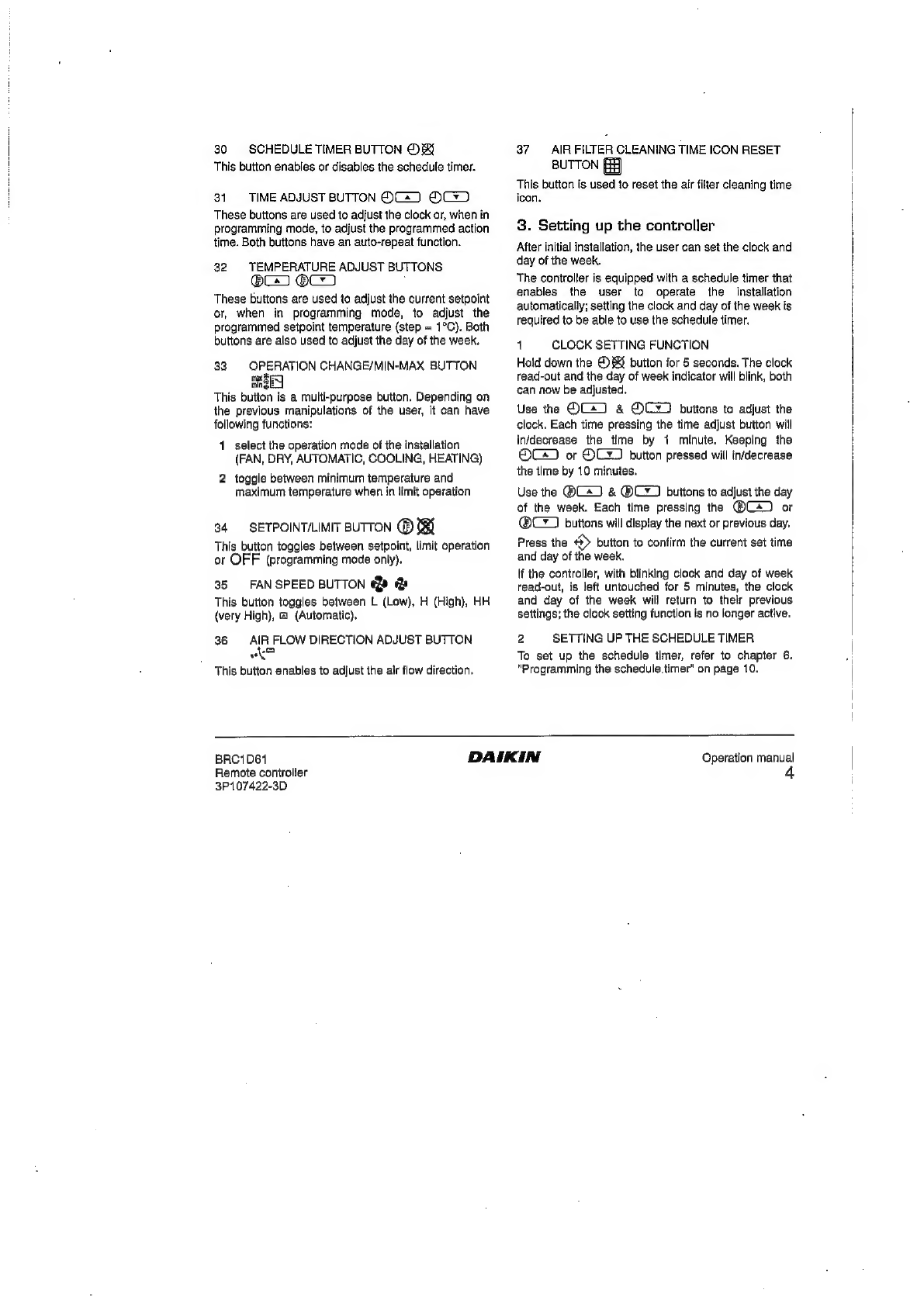

30 SCHEDULE TIMER BUTTON OR
This button enables or disables the schedule timer.
31 TIME ADJUST BUTTON OG) OC)
These buttons are used to adjust the clock or, when in
programming mode, to adjust the programmed action
time. Both buttons have an auto-repeat function.
32 TEMPERATURE ADJUST BUTTONS
@GD @G) ;
These buttons are used to adjust the current setpoint
or, when in programming mode, to adjust the
programmed setpoint temperature (step = 1°C). Both
buttons are also used to adjust the day of the week,
33 OPERATION CHANGE/MIN-MAX BUTTON
max
ming)
This button is a multi-purpose button. Depending on
the previous manipulations of the user, it can have
following functions:
1 select the operation mode of the installation
(FAN, DRY, AUTOMATIC, COOLING, HEATING)
2 toggle between minimum temperature and
maximum temperature when in limit operation
34 SETPOINT/LIMIT BUTTON ® gy
This button toggles between setpoint, limit operation
or OFF (programming mode only).
35 FAN SPEED BUTTON ep ee
This button toggles between L (Low), H (High), HH.
(very High}, G (Automatic).
36 AIR FLOW DIRECTION ADJUST BUTTON
This button enables to adjust the air flow direction.
37 AIR FILTER CLEANING TIME ICON RESET
BUTTON
This button is used to reset the air filter cleaning time
icon.
3. Setting up the controller
After initial installation, the user can set the clock and
day of the week.
The controller is equipped with a schedule timer that
enables the user to operate the installation
automatically; setting the clock and day of the week is
required to be able to use the schedule timer.
1 GLOCK SETTING FUNCTION
Hold down the ©& button for 5 seconds. The clock
read-out and the day of week indicator will blink, both
can now be adjusted.
Use the OGD & MCX buttons to adjust the
clock. Each time pressing the time adjust button will
in/decrease the time by 1 minute. Keeping the
©C) or OCT) button pressed will in/decrease
the time by 10 minutes.
Use the ®CAD & @CZ7) buttons to adjust the day
of the week. Each time pressing the @C&) or
@®CZ) buttons will display the next or previous day.
Press the > button to confirm the current set time
and day of the week.
[f the controller, with blinking clock and day of week
read-out, is left untouched for 5 minutes, the clock
and day of the week will return to their previous
settings; the clock setting function is no longer active.
2 SETTING UP THE SCHEDULE TIMER
To set up the schedule timer, refer to chapter 6.
"Programming the schedule.timer" on page 10.
BRC1D61 DAIKIN Operation manual
Remote controller
3P107422-3D
4

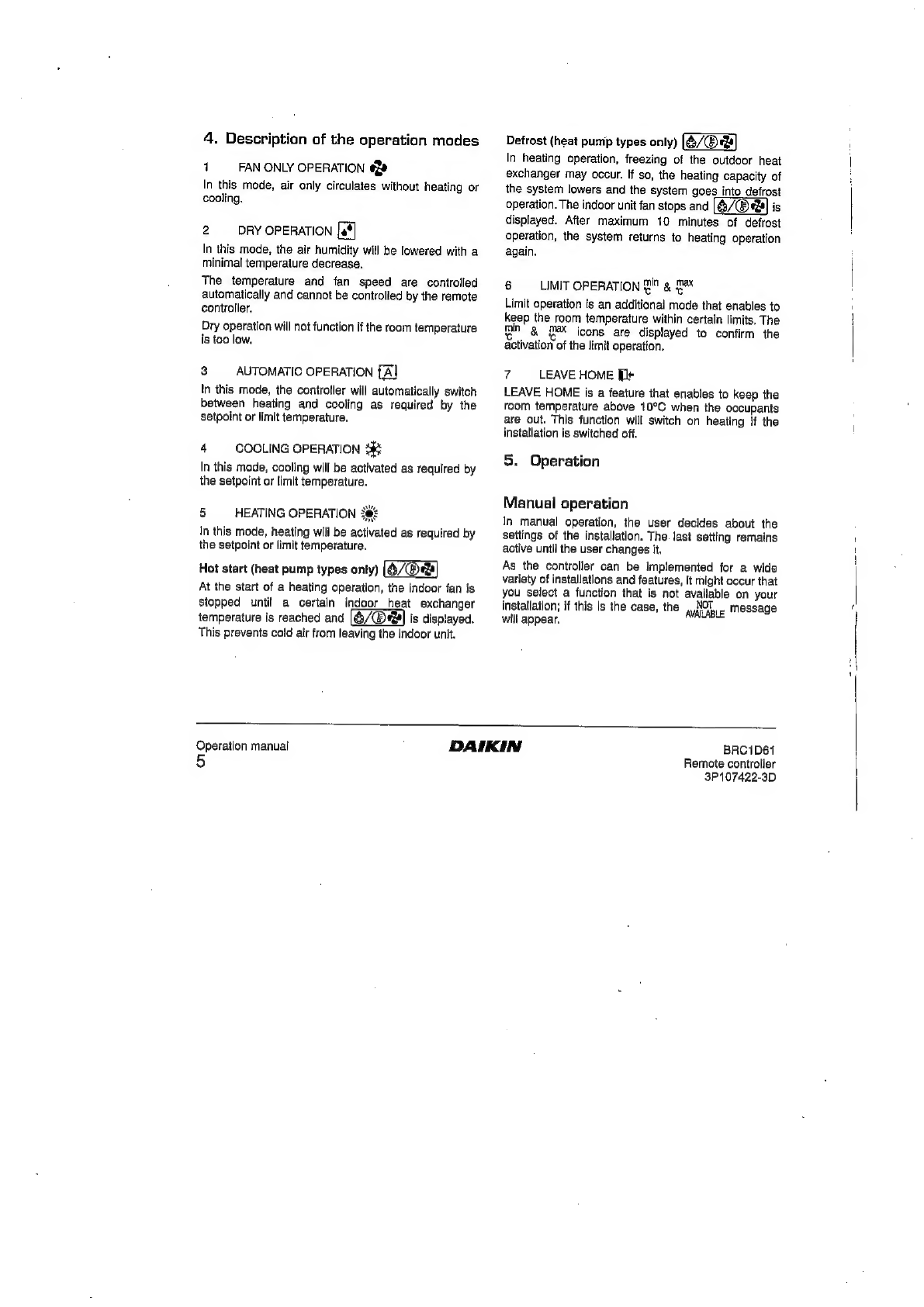

4. Description of the operation modes
1 FAN ONLY OPERATION C2)
In this mode, air only circulates without heating or
cooling.
2 DRY OPERATION [44]
In
this
mode,
the
air
humidity
will
be
lowered
with
a
minimal
temperature
decrease.
The temperature and fan speed are controlled
automatically and cannot be controlled by the remote
controller,
Dry operation will not function if the room temperature
is too low.
3 AUTOMATIC OPERATION {Al
In this mode, the controller will automatically switch
between heating and cooling as required by the
setpoint or limit temperature.
4 COOLING OPERATION Ft
In this mode, cooling will be activated as required by
the setpoint or limit temperature.
5 HEATING OPERATION
In this mode, heating will be activated as required by
the setpoint or limit temperature.
Hot start (heat pump types only)
At the start of a heating operation, the indoor fan is
stopped until a certain indoor heat exchanger
temperature is reached and is displayed.
This prevents cald air from leaving the indoor unit.
Defrost (heat pumip types only)
In
heating
operation,
freezing
of
the
outdoor
heat
exchanger
may
occur.
If
so,
the
heating
capacity
of
the
system
lowers
and
the
system
goes
into
defrost
operation.
The
indoor
unit
fan
stops
and
[6/(@®
ea]
is
displayed.
After
maximum
10
minutes
of
defrost
operation,
the
system
returns
to
heating
operation
again.
6 LIMIT OPERATION i" g max
Limit
operation
is
an
additional
made
that
enables
to
keep
the
room
temperature
within
certain
limits.
The
Rn
&
MX
icons
are
displayed
to
confirm
the
activation
of
the
limit
operation,
7 LEAVE HOME We
LEAVE
HOME
is
a
feature
that
enables
to
keep
the
toom temperature above 10°C when the occupants
are out. This function will switch on heating if the
installation is switched off.
5. Operation
Manual operation
In
manual
operation,
the
user
decides
about
the
settings
of
the
installation.
The.
last
setting
remains
active
until
the
user
changes
it,
As the controller can be implemented for a wide
variety of installations and features, it might occur that
you select a function that is not available on your
installation; if this Is the case, the WARE message
will appear.
Operation manual
5
DAIKIN
BRC1D61
Remote controller
3P107422-3D

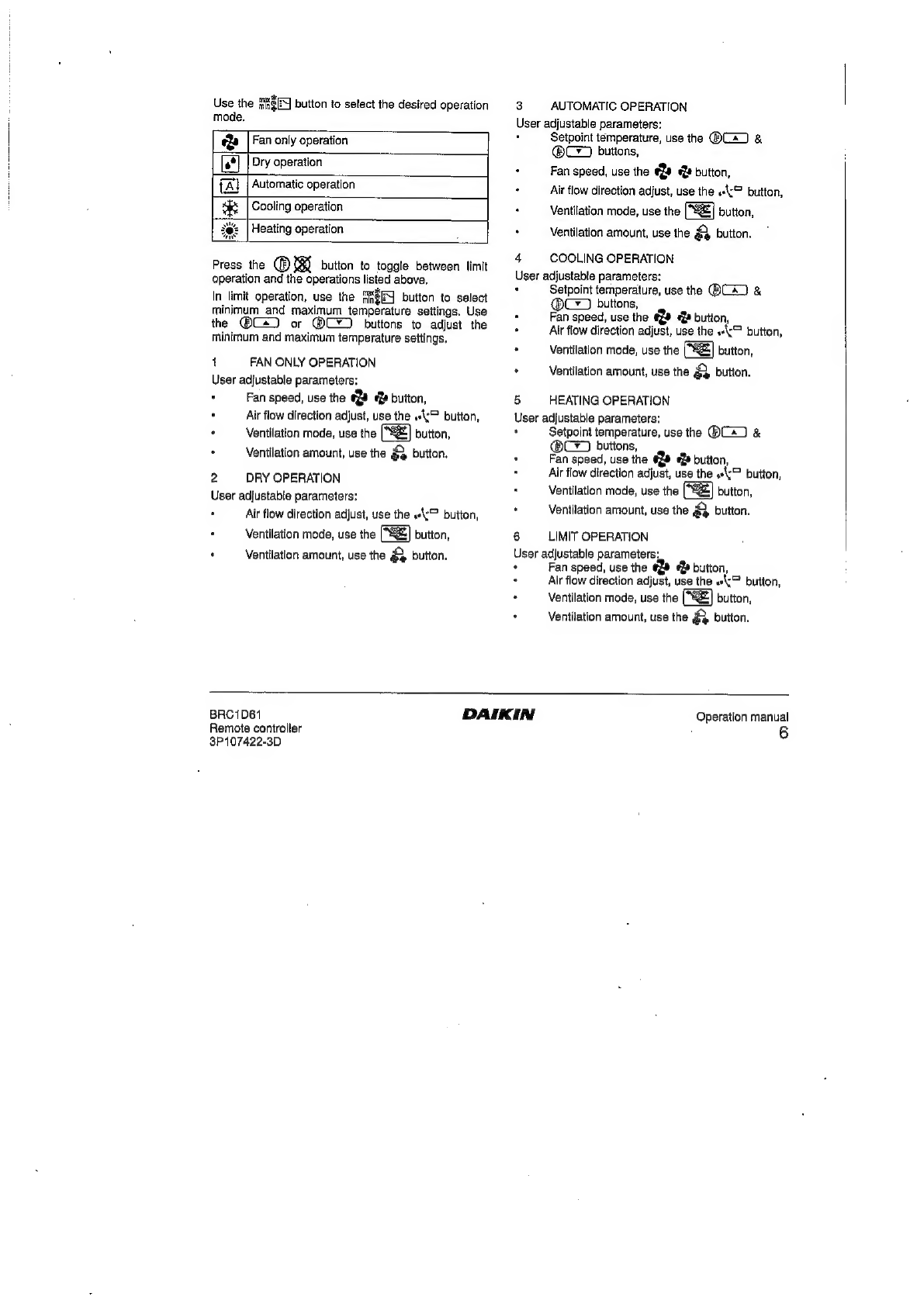

Use
the
rae
EN
button
to
select
the
desired
operation
3
AUTOMATIC
OPERATION
mode.
User
adjustable
parameters:
Fan
only
operation
.
oS
panera,
use
the
@CAD
&
Dry
operation
-
Fan
speed,
use
the
#28
«28
button,
Automatic
operation
:
Air
flow
direction
adjust,
use
the
«(>
button,
Cooling
operation
.
Ventilation
mode,
use
the
["=
button,
Heating
operation
;
.
Ventilation
amount,
use
the
&
button.
4 COOLING OPERATION
Press thi bi lo toggle b limit
accra Oe eon. tb, toggle between lint User adjustable parameters:
operation and the operations listed above. 7
a ne oP rex . Setpoint temperature, use the @CAD &
In limit operation, use the mngE-] button to select ®CD buttons,
minimum _and maximum temperature settings. Use . Fan speed, use the @ «2 button,
the
®C40
or
®C)
buttons
to
adjust
the
.
Air
flow
direction
adjust,
use
the
«(>
button,
minimum
and
maximum
temperature
settings.
wee
.
Ventilation
mode,
use
the (*88]
button,
: CAN ONLY OPERATION . Ventilation amount, use the 3 button.
User adjustable parameters;
.
Fan
speed,
use
the
Cs)
®
button,
5
HEATING
OPERATION
.
Air
flow
direction
adjust,
use
the
«(>
button,
User
adjustable
parameters:
: Ventilation mode, use the [SS] button, : Setpoint temperature, use the @C2) &
+
Ventilation
amount,
use
the
&
button.
é
Ce
eas
€22
button,
. Air flow direction adjust, use the «(> button,
2 DRY OPERATION
. Ventilation mode, use the (“82) button,
User adjustable parameters:
. lati Fal
. Air flow direction adjust, use the «> button, Ventilation amount, use the g@ button.
.
Ventilation
mode,
use
the
[S88]
button,
6
LIMIT
OPERATION
. Ventilation amount, use the 4 button. User adjustable parameters;
. Fan speed, use the @2® es button,
. Air flow direction adjust, use the »™ button,
. Ventilation mode, use the button,
. Ventilation amount, use the a button.
BRC1D61 Operation manual
Remote controller 6
3P107422-3D

ADDITIONAL FEATURES OF THE CONTROLLER
1 LEAVE HOME
Press the OC and ©C2) _ buttons
simultaneously
to
enable
the
LEAVE
HOME
function.
MUST BE OFF TO GUARANTEE
TRIGGERING
OF
THE
LEAVE
HOME
FUNCTION.
2 Adjusting the air flow direction
Use
the
«(©
button
to
adjust
the
air
flow
direction.
Press
the
button
to
switch
between
fixed
or
variable
air
flow
direction.
Use
the
8°
icon
to
determine
the
fixed
air
tlow
direction
by
pressing
the
«\7
button
when
the
icon
indicates
the
desired
direction.
()
KEEP
IN
MIND
THAT
THE
-&5
BUTTON
NOTE
Even
'if
fixed
air
flow
direction
is
selected,
mm
variable
air
flow
direction
can
be
enabled
qe
automatically
to
preserve
proper
operation
of
your
installation.

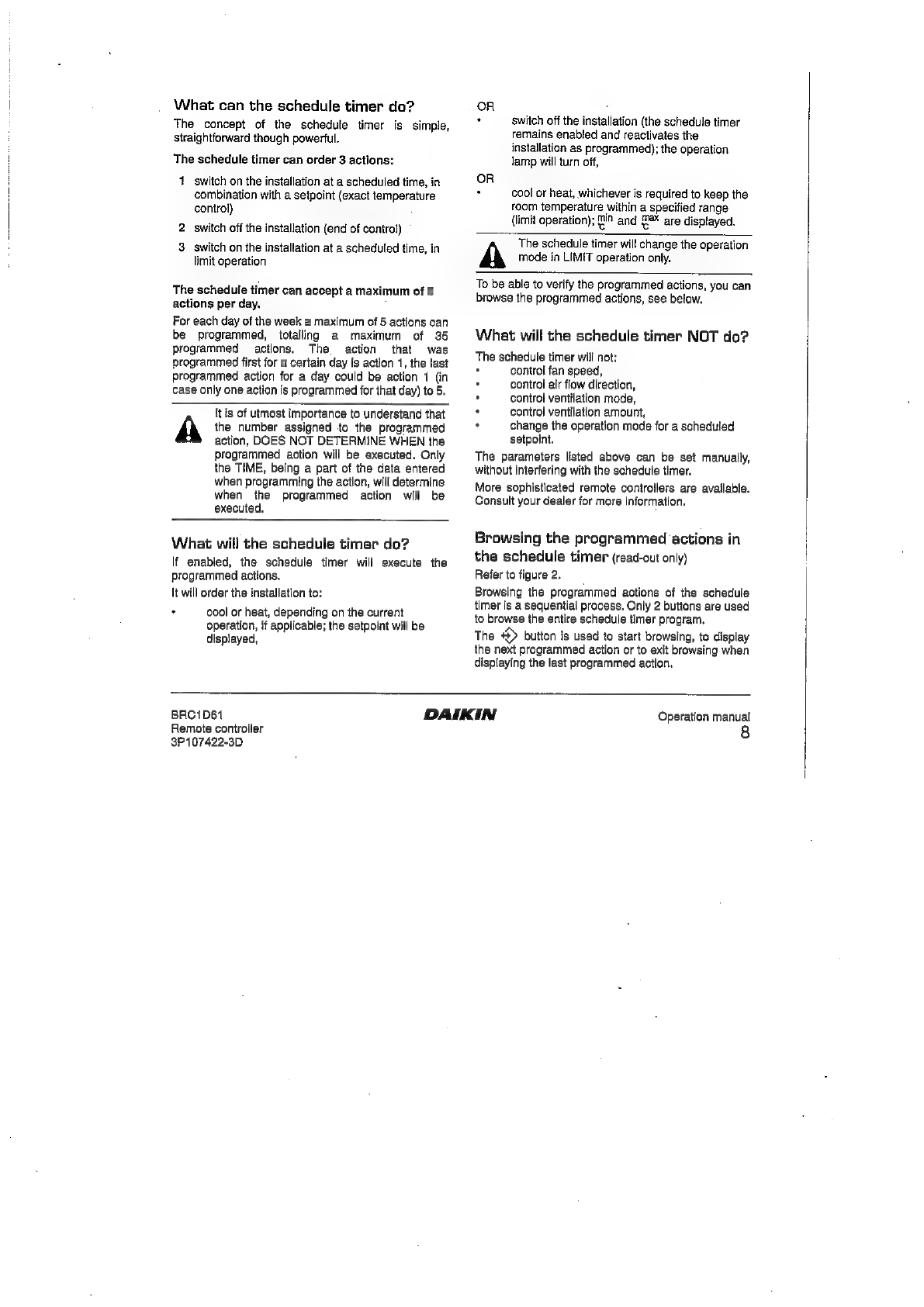

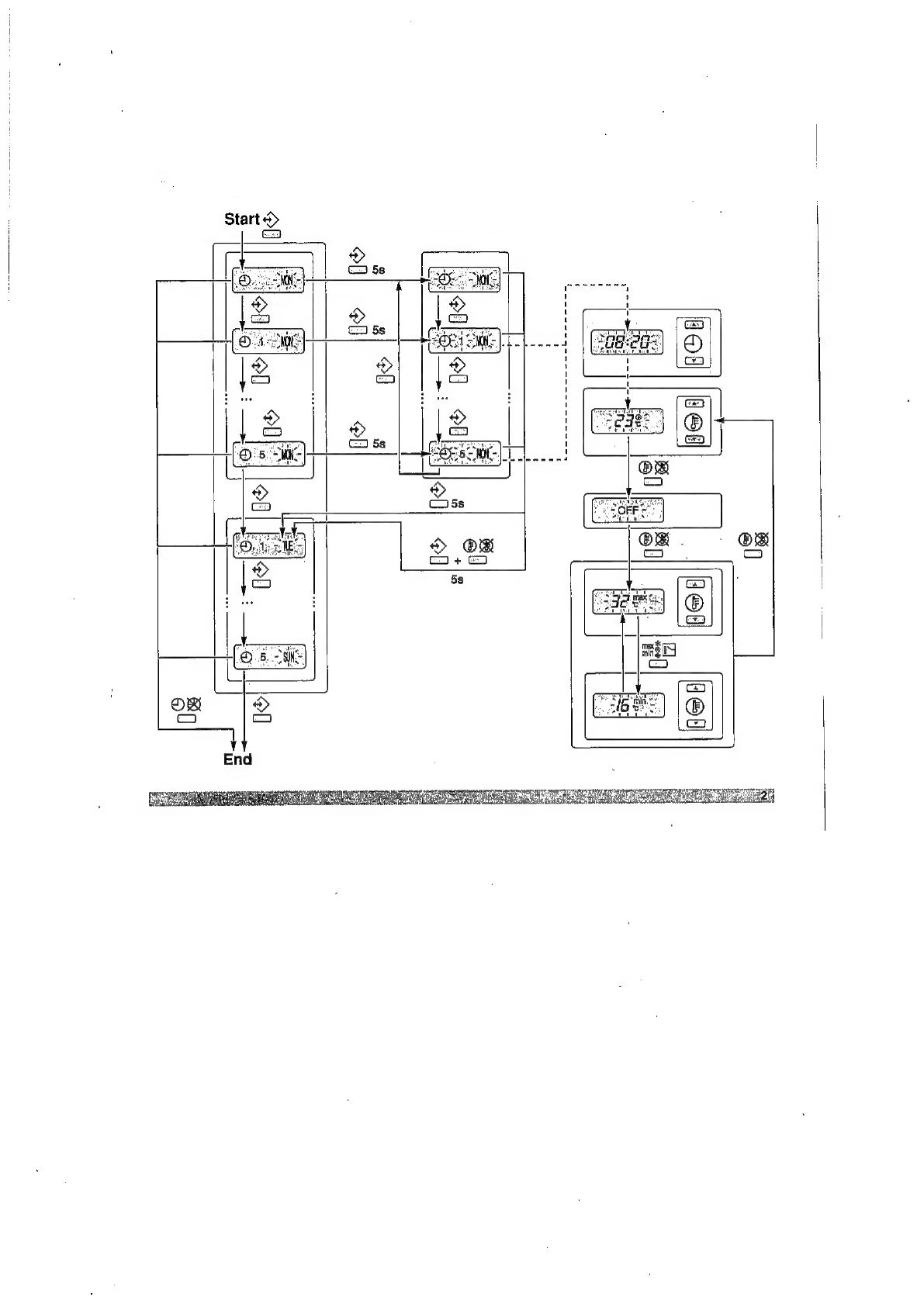

3 SCHEDULE TIMER
All
features
and
operation
and
programming
of
the
schedule
timer
are
described
below.
Schedule timer operation
In
schedule
timer
operation,
the
installation
is
also
controlled
by
the
schedule
timer.
The
actions
programmed
in
the
schedule
timer
will
be
executed
automatically,
The
schedule
timer
always
executes
the
last
command;
this
means
the
user
can
temporarily
overrule
the
last
executed
programmed
action.
Refer
to
"Manual
operation"
on
page
5,
The
next
programmed
action
(in
the
schedule
timer)
will
return
control
to
the
schedule
timer.
Use
the
©%&
button
to
enable
or
disable
the
schedule
timer.
NOTE The schedule timer overrules the -25
C- button, only use the © button to
= enable or disable the schedule timer. The
schedule timer is enabled when the ©
icon is visible. The <® button only
overrules the schedule timer until the next
programmed action.
The programmed schedule is time driven.
A Make sure that the clock and day of the week
are set correctly. Refer to "CLOCK SETTING
FUNCTION" on page 4.
Manually adjust the clock for summertime
A
and
wintertime,
Refer
to
"CLOCK
SETTING
FUNCTION’ on page 4.
A
power
failure
exceeding
1
hour
will
reset
A
the
clock
and
the
day
of
the
week,
Refer
to
"CLOCK ‘SETTING FUNCTION" on page 4
to
adjust
the
clock
and
the
day
of
the
week.
The actions programmed in the schedule
timer will not be lost after a power failure;
reprogramming the schedule timer is not
required.
To
set
up
the
SCHEDULE
TIMER
refer
to
chapter
6.
"Programming
the
schedule
timer"
on
page
10.
Operation manual
7
DAIKIN
BRC1D61
Remote controller
3P107422-3D
