Dairy Tech Matilda User manual

© DAIRY TECH, INC [Version FEB 2020]
OWNERS MANUAL
WARNING
Read and fully understand
owner’s manual before
using this machine.
Failure to follow operating
instructions could result in
death or serious injury.

The Perfect Udder® App
Our simple, easy-to-use app keeps accurate colostrum management in the palm
of your hand. View all process data and be 100% confident that your equipment is
working properly.
Use the Perfect Udder® App to check:
•Is Matilda® being used properly by all of your employees?
•Is the last batch ready for use? The Perfect Udder® App can alert you so you can stay focused on other
tasks.
•Do you have a question about proper use of Matilda®? Open the owner manual directly from the app - in
different languages!
•Need help from our service team? With the Perfect Udder® App, you can send us critical Matilda® data
that will help us sort through any issues.
•Give Matilda® a nickname and keep track of multiple machines on your farm all from your handheld
device.
•Matilda® upgrades can be sent directly to your equipment with the press of a button.
Want to make colostrum
management even easier?
Call Dairy Tech, Inc. today
and ask for more
information about how
the Perfect Udder® app
can work for your
operation.
More features to come as
Matilda® matures ... get in
on the App today for
lifelong support!

1
Owner Manual
For parts list and ordering
visit www.dairytechinc.com
Contact Dairy Tech, Inc.
Dairy Tech, Inc.
34824 CR 29
Greeley, CO 80631
Toll Free: 1-866-384-2697
Local: 1-970-674-1888
Fax: [phone]
Hours: M – F
7am – 4pm, MST
Web: www.DairyTechInc.com
email: [e-mail]
Table of Contents
CE Declaration of Conformity 2
Introduction 3
Disclaimers 3
Product Warranty 4
Product Registration 4
Did you know? 4
Important Safety Instructions 5
Receiving Your Pasteurizer 6
Installation 6
Choosing and Preparing a Location 6
Criteria for Selecting a Location 6
Connecting the Hoses for Water-Cooling 7
Cleaning The System 8
Water Quality 9
Electrical Requirements 10
International Installations: 10
External Circuit Breakers 11
Internal Fusing 11
Energy and Time Saving Tips 12
When Service Is Required 12
Using And Programming The Touchscreen Controller 13
Controller Legend 13
First Use Of Matilda® 14
Adjusting Settings 15
Operating Matilda® 22
Pasteurize 23
Warm 24
Cancel Program 25
Quality Control And System Monitoring 26
Time & Temp For Proper Pasteurization 26
Helpful Hints For Successful Pasteurization 26
Trouble Shooting Matilda® 27
Screen Calibration Error 31
Screen Calibration 31
Error Symbols 32
Matlida Wiring diagram 34
Wiring Options 35
Components 36
Accessories 37

2

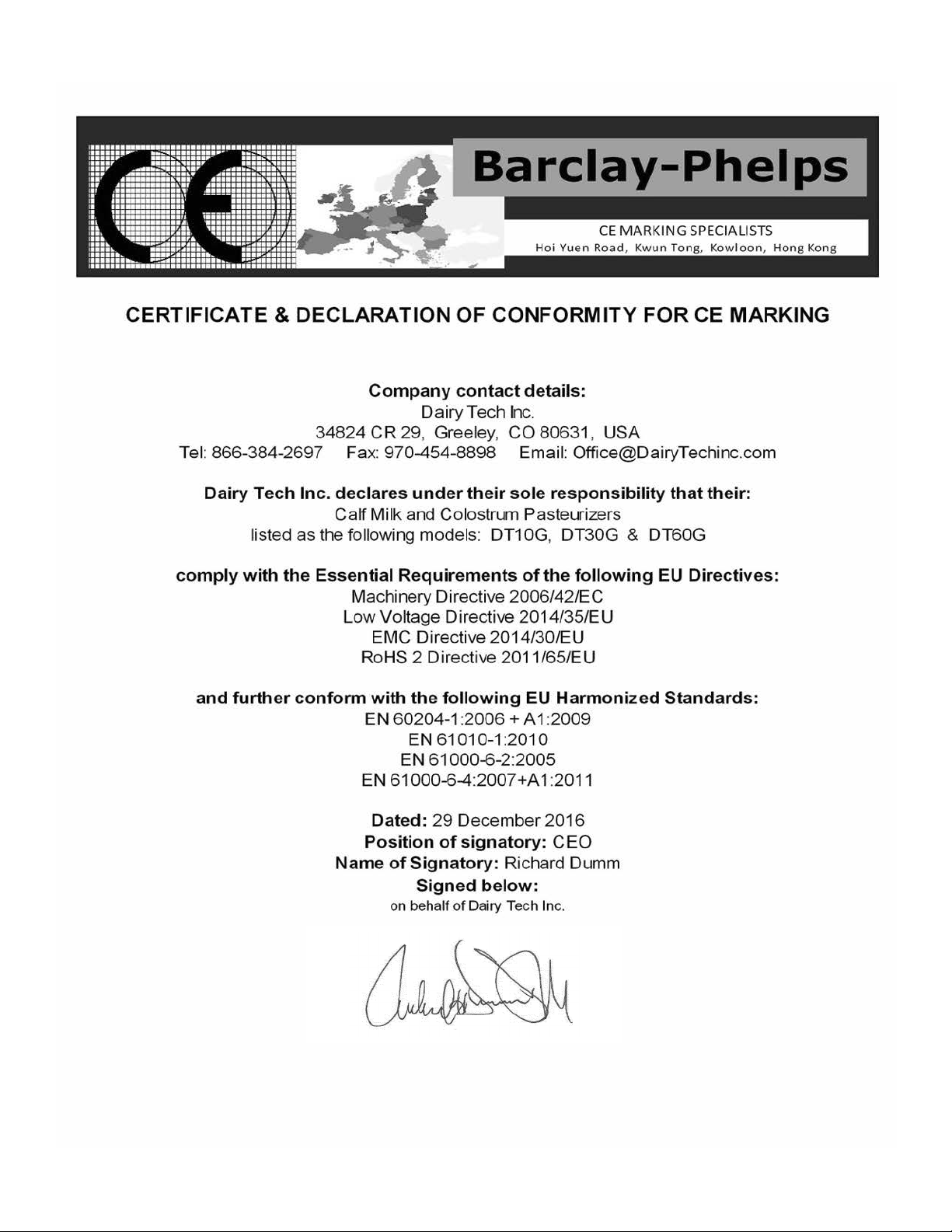

CE DECLARATION OF CONFORMITY

3
INTRODUCTION
Thank you for purchasing Matilda®, a colostrum pasteurizer and warmer specifically engineered to maximize the efficiency
of Dairy Tech’s Perfect Udder® bags and our proven pasteurization technology. Your satisfaction with this product is very
important to us. This guide will help you understand how your pasteurizer operates, and how to get the most benefit from
it for you and your dairy operation.
DISCLAIMERS
THIS PASTEURIZER IS INTENDED TO BE USED IN THE MANNER DESCRIBED IN THIS USE AND CARE GUIDE. IT IS NOT
INTENDED TO PASTEURIZE MILK OR OTHER GOODS FOR HUMAN CONSUMPTION.
Dairy Tech, Inc. has provided this use and care guide to assist you in the assembly, installation, and maintenance of your
Matilda® Model Pasteurizer (the “Pasteurizer”). Serious injury and even death to persons and livestock can occur from
improper installation and use of the Pasteurizer. Serious property damage can result from improper installation and use of
the Pasteurizer. We recommend professional installation by qualified plumbers and electricians familiar with such devices.
DAIRY TECH, INC. RECOMMENDS THAT INSTALLATION OF ANY ELECTRICAL, MECHANICAL, GAS OR PLUMBING DEVICES
REQUIRED FOR THE INSTALLATION, OPERATION AND MAINTENANCE OF THE DAIRY TECH PASTEURIZERS BE DONE ONLY
BY QUALIFIED INDIVIDUALS.
It is your responsibility, or the responsibility of the electrician, plumber or other qualified installation expert, to obtain all
necessary permits and certifications required by your town, county, state or other jurisdiction before installation of the
Pasteurizer. It is your responsibility to read and understand the operational requirements of the pasteurizer before using it
and to observe all safety precautions. It is also your responsibility to see that your personnel are properly trained to operate
and maintain the Pasteurizer.
DAIRY TECH, INC. PROVIDES YOU WITH INSTRUCTIONS AND WARNINGS IN THIS USE AND CARE GUIDE, BUT WE ARE
UNABLE TO COVER ALL POSSIBLE CONDITIONS AND SITUATIONS THAT MAY OCCUR IN YOUR DAIRY OPERATION. IT MUST
BE UNDERSTOOD THAT COMMON SENSE, CAUTION AND CAREFULNESS ARE FACTORS WHICH CANNOT BE BUILT INTO
THE PASTEURIZER. THESE FACTORS MUST BE SUPPLIED BY THE PERSON(S) INSTALLING, MAINTAINING OR OPERATING
THE PASTEURIZER.
Under no circumstances is Dairy Tech, Inc., its directors, officers, shareholders or employees responsible for damage to
property or injury to persons or livestock resulting from the improper installation or use of the Pasteurizer. Installation by
an unqualified individual and improper use and improper maintenance may also void any equipment warranty that Dairy
Tech, Inc. offers.
This use and care guide is based on information and data considered to be accurate; however, no warranty is expressed or
implied regarding the accuracy of the information or data herein or the results to be obtained from the use of this data or
information.

4
PLEASE READ THIS GUIDE CAREFULLY AND
THOROUGHLY BEFORE INSTALLING AND OPERATING
THE PASTEURIZER.
If you believe the pasteurizer is operating incorrectly,
please refer to the trouble shooting guide included with
these instructions before calling our service department.
If you still have questions, contact your local
representative or call 1-866-384-2697 and we will help
you to address your needs.
This unit contains HIGH VOLTAGE electricity
that can cause serious harm or death.
Warning:
Hot Surface
Warning:
High Voltage
Caution:
Important
Information
This is the safety alert symbol. It is used to alert you to
potential physical injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
For your safety, the recommendations and information
in this manual must be followed to minimize the risk of
serious burn or electrocution, as well as to prevent
property damage, personal injury, or death.
If you are burned by the heating coil, hot water, steam
or hot colostrum: Contact a physician, or other medical
personnel for expert advice, or go to an emergency
treatment facility.
Do not feed pasteurized colostrum to calves without first
cooling it back down so that it is no hotter than 110°F
(43°C). Colostrum hotter than 110° can cause severe
burns to the calves.
PRODUCT WARRANTY
This product is warranted to be free of manufacturing
defects for up to 12 months from the date of purchase.
All parts will be covered by a free replacement guarantee
not including shipping or service. This warranty is
intended for equipment in use under normal operating
conditions and does not cover damages incurred by
improper use or unforeseen acts of nature.
Determination of covered defects, damages or repairs is
at the discretion of Dairy Tech, Inc. This warranty covers
only the cost of replacement parts at Dairy Tech, Inc.
current pricing. Service is not covered by this warranty.
Parts replaced under warranty must be returned to:
Dairy Tech, Inc.
34824 CR 29
Greeley, CO 80631
or an Authorized Dairy Tech, Inc. Dealer.
Parts not returned will be charged to customer at retail
pricing.
PRODUCT REGISTRATION
If this product was purchased directly from Dairy Tech in
Greeley, CO, it has already been registered and no
further action is required. If the product was purchased
through a distributor or other representative, please call
Dairy Tech, Inc. at 866-384-2697 within 10 days of receipt
to register the Pasteurizer.
Failure to do so may result in a decreased or voided
warranty period for your unit. When calling, please have
the serial number which can be found on the back side of
the Pasteurizer.
You may also register on-line at www.dairytechinc.com
where you can “Contact Us”, fill in your information and
in the notes type the product model and serial number
and the word “Register”.
DID YOU KNOW?
On site visits are also available to more thoroughly
investigate any problems you may be encountering with
calf health. Additional charges may apply for on-farm
consultations

5
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of electric shock, burns, serious injury or death to persons when
using the Pasteurizer, follow these basic precautions:
1. Read all instructions before using the Pasteurizer.
2. Do not operate the pasteurizer without water covering the heating elements at all times.
3. Always disconnect the electrical power before attempting service. All power sources must be
disconnected before the cover is removed for repair.
4. Do not allow children to operate or play around the Pasteurizer. Close observation of children is necessary
when the unit is used with children nearby.
5. Do not reach into the Pasteurizer when the power is on and the paddle is turning as this can cause serious
harm.
6. Hot Surfaces include the water, baskets, motor, propeller, Perfect Udder bags, electrical fixtures, hoses,
heating elements, draining water and the colostrum. Touching these surfaces during operation may result
in severe burns. Do not touch hot surfaces.
7. This equipment is designed to operate in an ambient temperature range of 35°F - 104°F (2°C - 40°C),
altitude up to 6560 ft (2000 m), maximum relative humidity 80% for temperatures up to 88°F (31°C)
decreasing linearly to 50% RH at 104°F (40°C), for indoor use only.
8. Do not try to change unavailable settings in the pasteurizer controller without consulting a technical
expert at Dairy Tech, Inc.
9. Do not repair or replace any part of the Pasteurizer or attempt any servicing unless specifically
recommended in the trouble-shooting portion of this manual. Any modifications made to the unit beyond
these instructions will void all warranties.
10. Always clean the unit immediately after each use, according to the instructions in the “Cleaning of your
Pasteurizer” section of this manual. Build-up of residue on the propeller or tank will decrease heating and
cooling efficiency, as well as harbor potentially harmful pathogens.
11. During the heating cycle, always make certain the Pasteurizer lid is closed.
12. Use the pasteurizer only for its intended purpose. DO NOT use for milk intended for human consumption
as this product has not been approved for such use.
13. Do not touch the motor, hoses, lid, handle or brass fittings while the unit is hot and working.
14. Do not attempt to tilt the machine while it is full. It is extremely heavy and can cause severe injury to the
operator.
15. To prevent severe burns to employees or calves, always allow the colostrum to cool completely before
handling or feeding to calves.
16. The Pasteurizer must be electrically grounded. DO NOT modify the plug that is provided with the
Pasteurizer. Always have a certified electrician confirm proper power supply and connections.
17. The pasteurizer must be installed on a level surface to evenly distribute weight to all the support
structures.

6
RECEIVING YOUR PASTEURIZER
Use care when unpacking your Matilda® Model pasteurizer. It will have arrived in one box or crate.
Please make a note of any cautionary labels that are used on the carton suggesting orientation, where
to cut with a knife, fragile, etc.
INSTALLATION
WARNING: INSTALL THE UNIT ACCORDING TO THE INSTALLATION INSTRUCTIONS. TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, SERIOUS INJURY OR DEATH TO PERSONS, READ THE IMPORTANT SAFETY INSTRUCTIONS BEFORE
OPERATING THIS PASTEURIZER.
BEFORE USING THIS UNIT FOR THE FIRST TIME, WASH OUT THE INSIDE OF THE SINK WITH HOT SOAPY WATER AND RINSE
CLEAN.
Choosing and Preparing a Location
Criteria for Selecting a Location
a) Choose an indoor spot that will be protected from the elements. Extreme heat and freezing
temperatures will damage the unit.
b) Cold water is required to be connected to the unit for water cooling the Perfect Udder bags. A
hot water source is not necessary for use of the equipment, it makes its own hot water.
c) Floor drains will allow for proper cleaning and rinsing of the product as well as to clean up
colostrum spills.
d) Power requirements are single-phase, 240 VAC, 30 A circuit breaker rated for use as branch
circuit protection. Three-phase connections are also available.
e) Floor space or shelf space requirements are approximately 24” (60 cm) wide x 36” (90 cm) deep.
f) Avoiding extremely drafty areas will improve heating efficiency of the unit.
g) Always have 2 people lift and carry the unit grasping with both hands on the sides of the unit.
Never attempt to move the unit while it is full of water.
h) Operating weight of Matilda® is approximately 250 lb (113 kg). Be certain that tables, shelves or
other surfaces can support the weight.

7

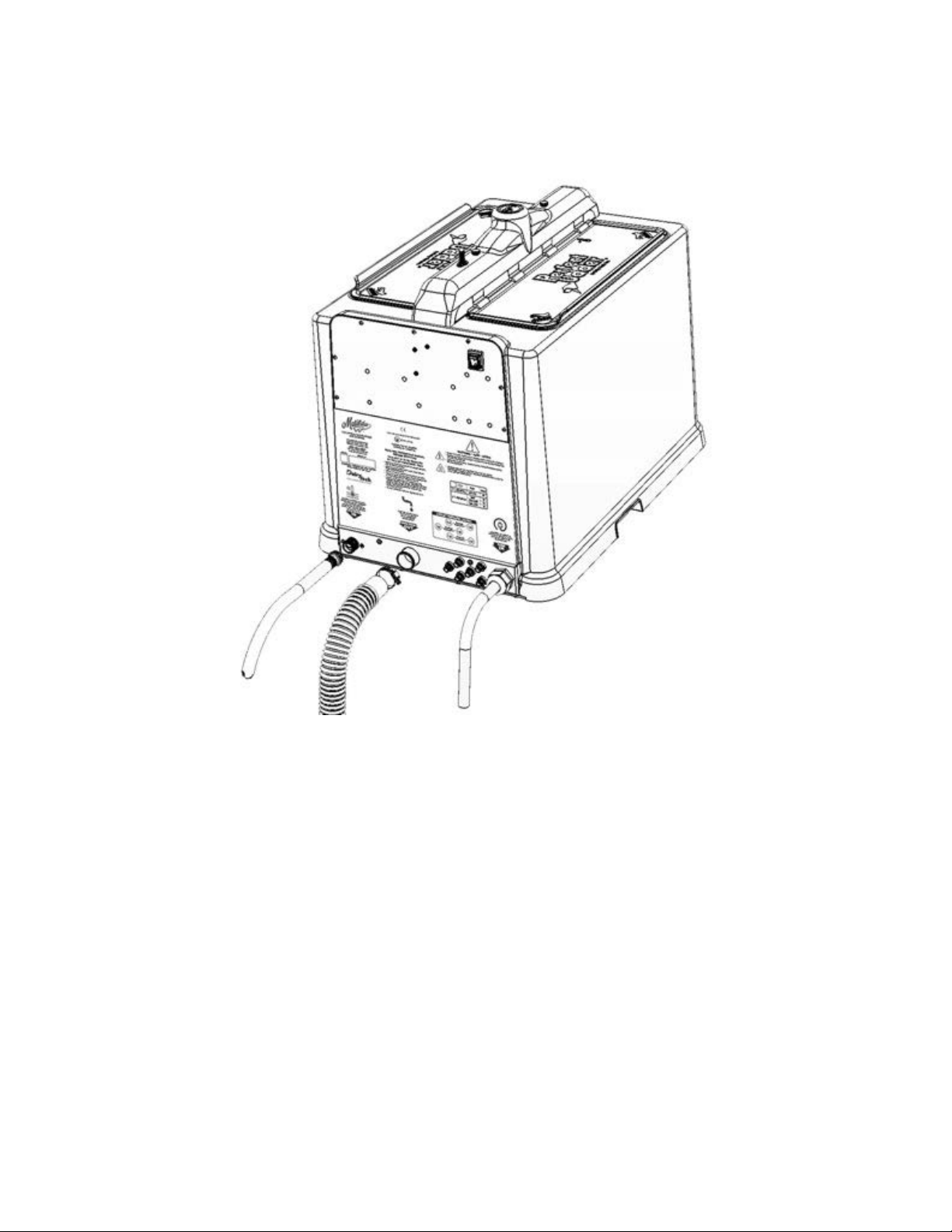

CONNECTING THE HOSES FOR WATER-COOLING

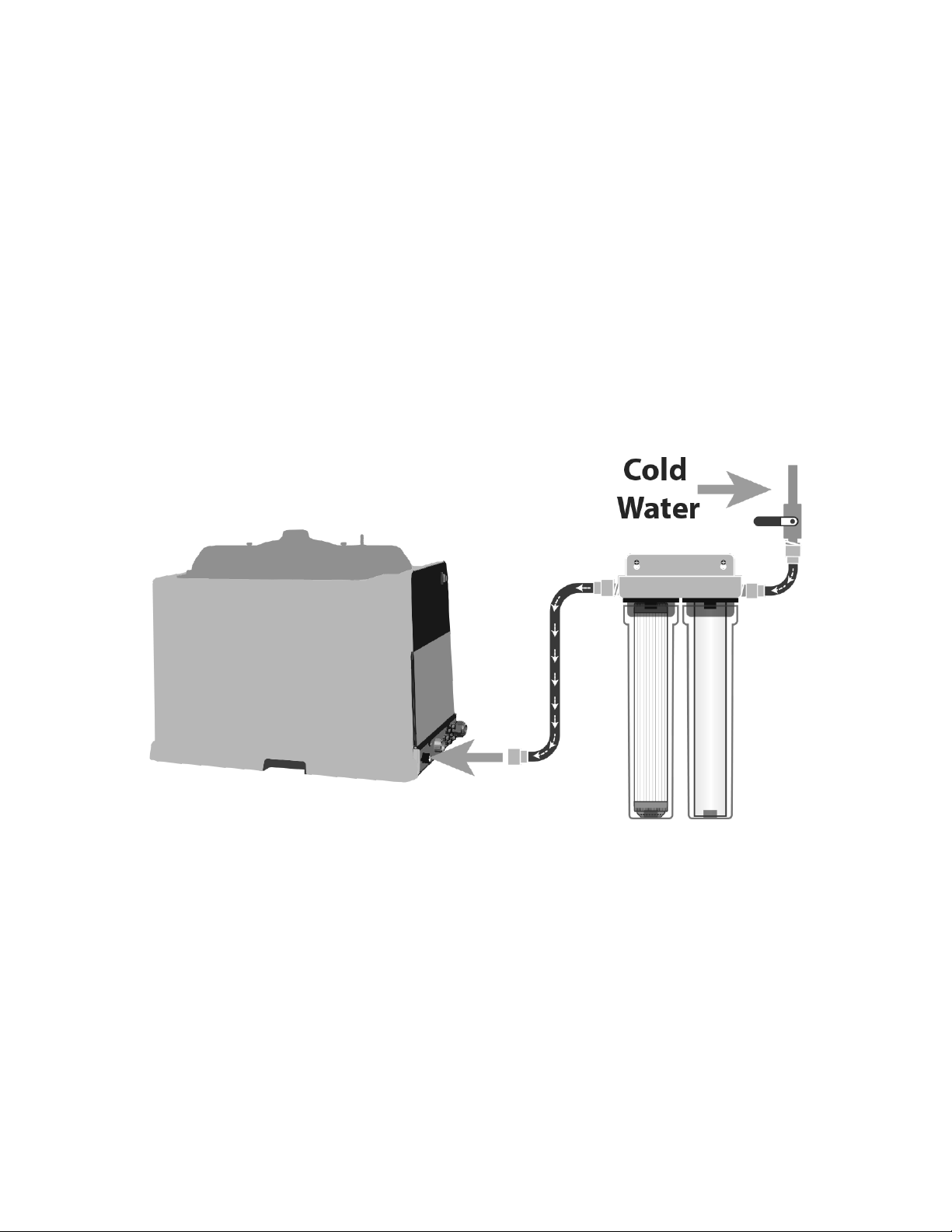

Cold Water Connection: A 6’ (1.8 m) black supply hose is supplied with the machine. This hose with
factory ends supplies all the cold water to cool the product when pasteurization is finished. It can
connect to any normal domestic pressure cold water source including a hose, but it MUST BE ON AT
ALL TIMES DURING OPERATION. Using the supplied hose, attach one end to the threaded solenoid
valve on the back of the unit, with the other end going to a regular hose bib supply. NOTE: If water
pressures exceed 80psi (5.5BAR), install a pressure reducer.
WATER DRAIN: This 4’ black hose must be connected to the back of Matilda® as shown in the image
using the provided clamp. It should be directed to a drain, cistern, stock tank or other collection
system. Do not connect the drain hose to another hose or to any system that can create back-
pressure. This will prevent proper cooling and will cause the machine to overflow which may damage
sensitive electrical components and void your warranty. If you wish to salvage the waste water direct
the drain line to a 5-gallon bucket and place an inexpensive sump pump in that bucket to send water
where it needs to go.
It is important to keep water turned on anytime the pasteurizer is in operation to prevent damage to
the heating elements.

8
CLEANING THE SYSTEM
NOTE: NEVER SPRAY MATILDA® WITH WATER!! Serious Electrical System Damage can
occur and will void your warranty.
Be sure to DISCONNECT FROM POWER BEFORE cleaning.
HELPFUL TIP: Always keep the doors closed to prevent flies, insects, Matilda® must
be cleaned periodically. We recommend every few days, but it depends on
contamination due to dirty bags, broken bags and poor water quality.
Do not use abrasive cleaning pads or solutions. Do not use cleaners containing ammonia, organic
solvents, or potassium hydroxide
1. Begin by lifting both lids and remove the wire baskets from each side. The baskets can then be
cleaned outside of the unit with a soft brush and disinfectants.
2. Lift the drain handle, turn it 90°, then lower it into the collar to lock it open while the contents
drain out the back of the machine.
3. Perform a warm water rinse to remove dirt and grime.
4. Once the surfaces have been cleaned, perform a final hot water rinse.
5. Periodically, but at least monthly, utilize a sanitizing/disinfecting product like Effercept® to
destroy any biofilm that may be developing on the surfaces of the equipment. Make sure that
the product is safe for plastic surfaces. Spray generously and allow to air dry.
Air Filters
Matilda® has 4 air filters that are located in her
bottom enclosure panel. We recommend that you
clean these filters when you clean Matilda®.
1. After you have finished cleaning Matilda®,
and BEFORE filling her with water, tip her up
to reveal the Bottom Enclosure Panel.
2. Remove the 4 air filters and remove
anything that restricts air flow.
3. Rinse the air filters with clean water and re-
install.
Once the unit is dry and clean, lower the drain and
turn the machine on so it can once again fill with
water and prepare itself for use.
Terminal Blocks
Annually have a qualified electrician inspect and
tighten the screws in the terminal blocks in the
back of Matilda. Make sure power is completely
disconnected before opening the electrical access panel.

9
WATER QUALITY
POOR WATER QUALITY WILL HAVE AN ADVERSE EFFECT ON HEATING ELEMENT LONGEVITY AS WELL AS THE OTHER
COMPONENTS OF THIS EQUIPMENT THAT ARE IN CONTACT WITH WATER OF POOR QUALITY.
Dairy Tech Inc is not responsible for your water quality and the effects that it may have on our equipment.
If you have poor water, dirty water or hard water, purchase and install a water filtration/softener system.
DAIRY TECH RECOMMENDS THE FOLLOWING STEPS:
1. Test a sample of water that will be used with the Dairy Tech equipment. Local experts will be able to tell you if
your water quality will be detrimental to electric heating elements and other components of our system.
a. If the starting water quality is acceptable, take additional samples at monthly intervals to help determine
how often to replace the cartridges in your system
b. If your water quality is NOT acceptable, install the water filtration/softener system and replace cartridges
every 3 months or anytime they are visibly dirty, or if water flow is compromised.
THIS SYSTEM WILL NOT REMOVE CHEMICALS OR DISINFECT WATER AND IS NOT INTENDED FOR DRINKING WATER.

10
ELECTRICAL REQUIREMENTS
The electrical supply cord is not included with your purchase due to many jurisdictions that require
installation only by certified electricians. It may be purchased separately and installed on your farm.
Local ordinances and electrical codes will dictate wire sizing, lengths and connections including the
need for power kill switches in some locations. Always check with your local electrician for installation
assistance. Carefully review the decal on the inside of the rear panel to see which power supply your
Matilda® is prepared for per your ordering instructions. Instructions and a wiring diagram are provided
for your benefit but always call our service department for additional assistance. Failure to meet these
requirements will void the warranty and could result in serious damage to the unit, bodily injury or
death. The receptacle may need to be fitted with a water-resistant cover for added protection.
ALL CONNECTIONS SHOULD BE PERFORMED
BY AN ELECTRICIAN OR OTHER TRAINED PERSONNEL.
•The receptacle should be sharing minimal usage with other equipment to avoid unexpected outages and tripping of the
breaker. If the power is lost, but returns within 1 hour, the cycle will resume automatically in most instances.
•Check your electrical system to make certain it is properly grounded to avoid the possibility of electrical shock.
International Installations:
Matilda® can utilize a variety of power sources. Consult the wiring options diagram in this owner
manual (page 35) as well as those on the machine for further instruction and options. Follow the labels
attached to the back of the machine for specific wiring instructions in these instances.

11
External Circuit Breakers
The unit is equipped with 6 external circuit breakers on the back of the unit. These circuit breakers
protect both sides of the heating elements from internal and external damage. The layout of the circuit
breakers is shown below, as well as on the unit itself. Refer to Trouble Shooting for further
information.
Internal Fusing
There are 2 internal fuses that protect the internal power supply. They are located in DIN mounted
holders labeled F1 and F2 as shown in this image.

12
ENERGY AND TIME SAVING TIPS
1. Pasteurize the colostrum as quickly as possible after collection. This will prevent the excessive growth of bacteria in
the colostrum and also take advantage of the heat to improve energy efficiency.
2. Avoid placing the unit in an area of high drafts to prevent convection heat losses while pasteurizing.
3. Colostrum can be stored in the refrigerator for 24-48 hours if it is handled cleanly once it has been pasteurized.
Filling Perfect Udder® Colostrum management bags allows for a disposable system that makes it easy to keep track
of dates and colostrum quality. These bags also allow the product to be warmed more quickly when they are
needed for the newborn and can then be fed without recontamination of the product. Order more bags from your
local veterinary supply dealer or online at www.perfectudder.com
4. Do not try to use plastic calf bottles in Matilda®. It is impossible to transfer heat across the thick plastic to ensure
adequate pasteurization.
5. Always wear nitrile or latex gloves when handling the colostrum to prevent the spread of pathogens from your skin
surface.
6. Keep the lids closed on Matilda® when not in use. This will keep the heat inside and also prevent contamination
with dirt and insects.
7. Water quality is very important. The heating elements will be inefficient if deposits begin to build up and they will
also experience early failure. If signs of poor water quality exist, we recommend a filter and water softener
combination (part no. K-WaterFiltration-System) available at www.dairytechinc.com
8. Matilda® can be turned off during non-busy times to conserve energy.
WHEN SERVICE IS REQUIRED
If you purchased Matilda® from an authorized dealer, contact them directly with inquiries or repair questions.
For prompt service, work through the troubleshooting guide in this manual to give an accurate description of
the problem.
The Dairy Tech, Inc. service department can also assist when needed 1-866-384-2697 extension 2
Repair by an unauthorized service technician will void the warranty.

13
USING AND PROGRAMMING THE TOUCHSCREEN CONTROLLER
Be sure the pasteurizer is charged with water using the instructions on page 14 prior to the first use of
your pasteurizer.
FUNCTION INDICATORS
ALERT SYMBOL
IDLE TEMP:
GREEN = set Idle
Temperature is
reached.
WHITE = Inactive
BLUETOOTH
SYMBOL
HEAT:
RED = Heating
WHITE = Inactive
MOTOR:
YELLOW = motor is
turning stir rod.
WHITE = Inactive
SETTINGS
WATER:
BLUE = water is being
added to the sink.
WHITE = Inactive
SOFTWARE
VERSION
CONTROLLER LEGEND
Back
HOME
Forward
Adjust DOWN
Adjust UP
Adjustable Setting
Locked
(Requires Password)
Unlocked
Yes
Cancel
No
ERROR SYMBOLS
See page 32 for detailed explanations.
Hardware
Heat
Lid Open
Motor
Temperature
Water
XXX.XX

14
FIRST USE OF MATILDA®
NEVER START A CYCLE UNLESS THE UNIT HAS FILLED WITH WATER. FAILURE TO DO SO WILL RESULT
IN DAMAGE TO THE UNIT AND VOID THE WARRANTY.
BEFORE USING THIS UNIT FOR THE FIRST TIME, WASH OUT THE INSIDE OF THE SINK WITH HOT SOAPY WATER
AND RINSE CLEAN. INITIAL CLEANING OF THE SINK IS NECESSARY TO REMOVE DIRT AND CONTAMINATION
FROM TRANSIT. SEE CLEANING INSTRUCTIONS ON PAGE 8.
Matilda® Set-Up Menu
Step 1. Plug in the unit to the power source
Step 2. Connect the water and turn water on. Also connect the drain tube and direct it to the floor
drain.
Step 3. Now, turn on rear power switch. Matilda® should immediately begin to fill with water.
Once she has filled to the level of the float switch, she will begin heating the water bath to the preset
maintenance temperature (IDLE TEMP).
Power Switch
Cold Water
Connection
Drain Tube
External Circuit
Breaker
Power Cord
You are now ready to make adjustments to Matilda’s Settings.

15
ADJUSTING SETTINGS
*** IMPORTANT WARNING***
DO NOT ALTER SETTINGS IN THE CONTROLLER WITHOUT CONSULTING A DAIRY TECH REPRESENTATIVE. ANY
UNAUTHORIZED ADJUSTMENTS WILL VOID THE PRODUCT WARRANTY AND MAY LEAD TO SERIOUS HEALTH
CONSEQUENCES FOR THE CALVES.
Settings Categories
01: Language
02: Temperature Scale (Fahrenheit or Celsius)
03: Electricity (3 Phase or 1 Phase)
04: Alert (ON or OFF)
05: Bluetooth (ON or OFF)
06: Feeding Temperature
07: Feed Dwell
08: Cool Temperature
09: Cool Dwell
10: Idle Temperature
11: Test
The following settings require a password to modify.
12: Temperature Calibration
13: Pasteurization Temperature
14: Pasteurization Dwell
15: Change Password
16: Factory Reset
To Access “Settings”
Select “SETTINGS” icon on home screen
This will open the first adjustable setting
“LANGUAGE”. Use the arrow buttons to scroll
through the Settings Categories until you arrive
at the setting you wish to adjust. Follow the on-
screen prompts to customize your controller
settings.

16
01: Language
LANGUAGE is the first category. English is the default language.
1. To change the language, simply touch the Plus (+) or Minus (-)
buttons to scroll to language you prefer.
2. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.
02: Temperature Scale
Temp Scale is the second category.
1. Touch the FORWARD button to get to this category. Fahrenheit is
the default Temperature Scale. To change the scale, simply touch
the Celsius button. Now all of the information will be in the
language you chose.
2. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.
03: Electricity
Electricity is the third category.
1. Touch the FORWARD button to get to this category. 1P is the
default setting. To change, simply touch the 3P button.
2. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.
04: Alert
ALERT is the third category and it determines whether or not you will hear
audible alarms made by the machine
1. Touch the FORWARD button to get to this category. ALERT ON is the
default setting. To turn off the alert, simply touch the ALERT OFF
button.
2. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.

17
05: Bluetooth
BLUETOOTH is the fifth category. This option must be “ON” if you want to be
able to communicate with Matilda® with the Perfect Udder phone app. You
will need the Perfect Udder™ app if you wish to change the name of your
machine.
1. Touch the FORWARD button to get to this category. Bluetooth “ON”
is the default setting.
2. To change the scale, simply touch the “Bluetooth OFF” button. Now
all of the information will be in the language you chose.
3. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.
06: Feeding Temperature
FEED TEMP is the sixth category. The default feeding temperature is 105°F
(40°C). Only increase this temperature in extremely cold conditions.
1. Touch the FORWARD button to get to this category.
2. Use the (-) or (+) buttons to decrease or increase this setting to your
desired feeding temperature.
3. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.
07: Feeding Dwell Time
FEED DWELL is the seventh category. This setting dictates how long the cycle
will hold the final feeding temperature once a cycle is complete. This is useful
if you expect delays between cycle completion and feeding time. Remember
that when a cycle is complete, Matilda® will return to her Dwell
Temperature. If this is different than your intended feeding temperature,
then increase this FEED DWELL time to hold where you like.
1. Touch the FORWARD button to get to this category. The default
feeding dwell time is 60 minutes.
2. Use the (-) or (+) buttons to decrease or increase this setting to your
desired Feeding Temperature Dwell time.
3. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.

18
08: Cool Temperature
COOL TEMP is the eighth category. This is the temperature that the unit will
COOL to when a cycle has completed pasteurization. Choose a temperature
that is within reach of your water supply. Example: If you water is 50°F
(10°C), then choose 60°F (16°C) as your cool temp. This will prevent excessive
water loss but also take some work away from your freezer.
1. Touch the FORWARD button to get to this category. The default
“COOL” temperature is 80°F (27°C).
2. Use the (-) or (+) buttons to decrease or increase this setting to your
desired feeding temperature.
3. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.
09: Cool Dwell
COOL DWELL is the ninth category. This setting is important. Matilda® cannot
see the temperature inside of the bag, only the water bath; therefore, we
must ask her to continue to hold at the Cool Temp for a period of time to
make certain that excess heat is removed from the Perfect Udder® bags.
1. Touch the FORWARD button to get to this category. The default
feeding dwell time is 60 minutes.
2. Use the (-) or (+) buttons to decrease or increase this setting to your
desired Cool Dwell time.
3. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.
10: Idle Temperature
IDLE TEMPERATURE is the tenth category. This is the temperature that
Matilda® maintains until a program is selected. Dwell Temp is the setting
that dictates what temperature the water bath will climb to as Matilda®
prepares for work
1. Touch the FORWARD button to get to this category. The default
IDLE TEMPERATURE is 100°F.
2. Use the (-) or (+) buttons to decrease or increase this setting to your
desired temperature.
3. If you are satisfied with your selection, press “HOME” to save or
press “FORWARD/BACK” to make other modifications.
