Dalla Pria Fun Sandbag II User manual

- 0 -
《Fun Sandbag II》
Instruction manual

- 1 -
Safety Precautions
Attention
DO NOT put the machine on places uneven, sloping and easily be shaken.
Check wires and cables regularly
Protect wires from damage by rats.
DO Not put the machine under the direct sunlight, it will damage the inside parts.
Warning
Always plug into a ground circuit.
The power must be turned OFF before any movement.
DO NOT let the machine fall down or be hit.
DO NOT put pour any liquid to the machine or put it them leaking or any wet location.
DO NOT put the machine near fire.
Danger
DO NOT touch the power cable with wet hand.
DO NOT put heavy objects on the power cable.
DO NOT use any damaged power cable.
DO NOT let Non-professionals check or repair the machine.
DO NOT repair or do maintenance on this machine with the power on.
Contents
I. Specification and Parameter..........................................................................2
II. Placing, Fixing, Moving..............................................................................3
III. Machine Introduction.................................................................................4
IV. How to play................................................................................................6
V. Game Setting, IO board...............................................................................7
VI. Assemble Instruction................................................................................13
VII. Maintenance............................................................................................15

- 2 -
I. Specification and Parameter
(1)．Voltage：AC 220V±10% 50Hz±3 Hz；AC 110V±10% 50Hz±3 Hz；
(2)．Power：300 W（MIN）500 W（MAX）；
(3)．Size：L3150*W1800mm*H3280mm；
(4)．Weight: 350KGS
Parts:
After unpacked the machine, please check the parts:
(1) main board 2 pieces;
(2) other parts as follows：
Item
Size
QTY
Unit
Notes
1
Power plug
1.5nm
2
pieces
2
Fuse
Φ6-20mm
2
pieces
110V/220V/10A
3
Manual
A4
1
piece
4
Key
6086
4
pieces
5
Sandbag
20
pieces

- 3 -
II. Placing, Fixing, Moving
1) put in a certain place:
Warning: This machine is suitable for indoor use, outdoor use will affect the
performance of the machine, and will shorten the service life of the machine.

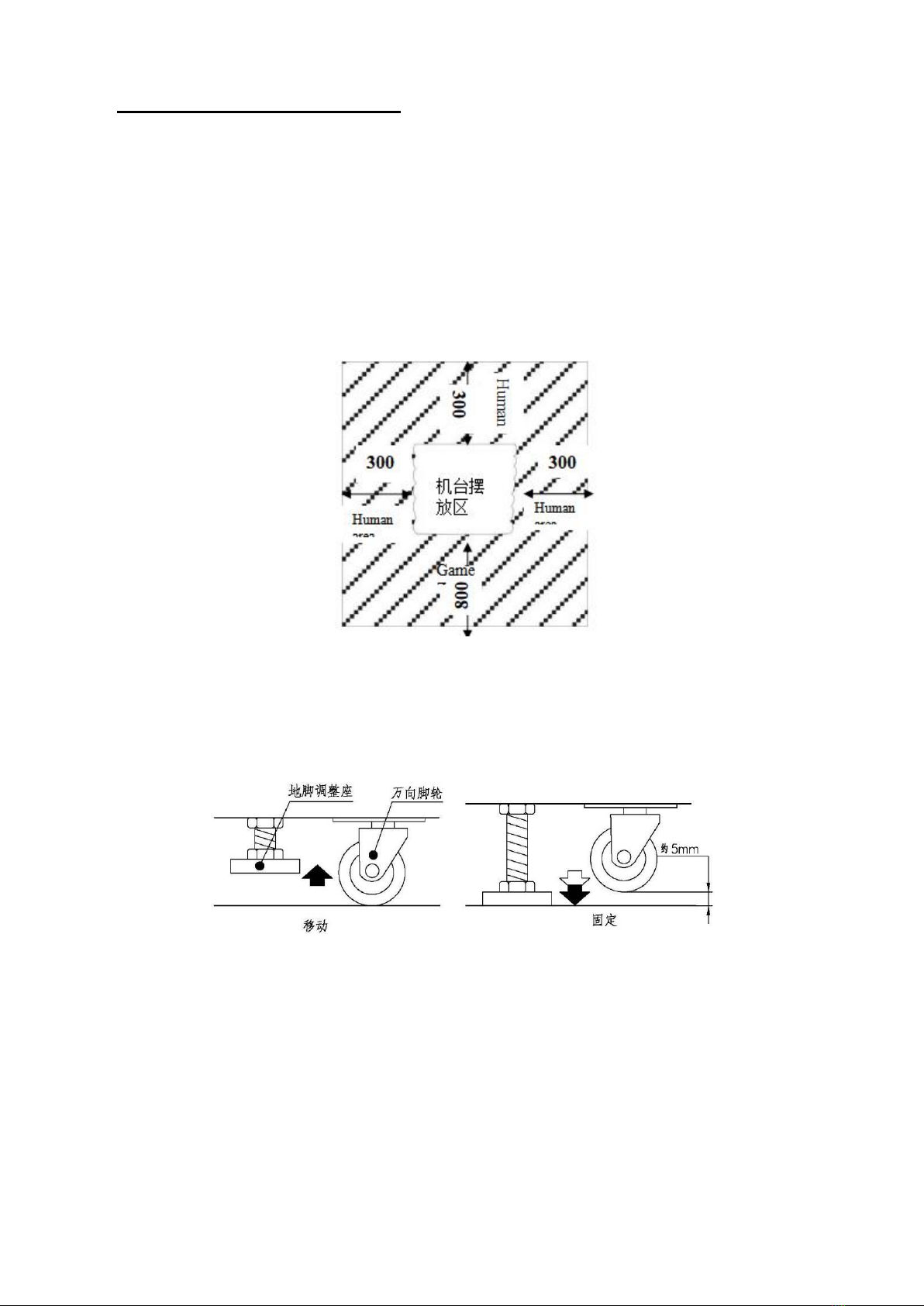

Setting range size: Company（mm）
The machine should be placed in the following dimensions, so that there is enough
space for the machine to run and ensure the safety of the customers.
2) Fixed and mobile methods
The machine must be placed on a flat surface. Put the top foot down longer than the
sliding caster, then put it steadily. If you want to move it, turn the top foot down to the
caster and move it with the pulley.
3) Handling method
When remotely handling, packing or binding, the surface requires a layer of cushion to
avoid embellishing machine, packaging requirements according to the specific
requirements of moving. The top organic sheet can be removed and wrapped separately
to save space. When the machine is working, it will be installed.

- 4 -
III. Machine Instruction:

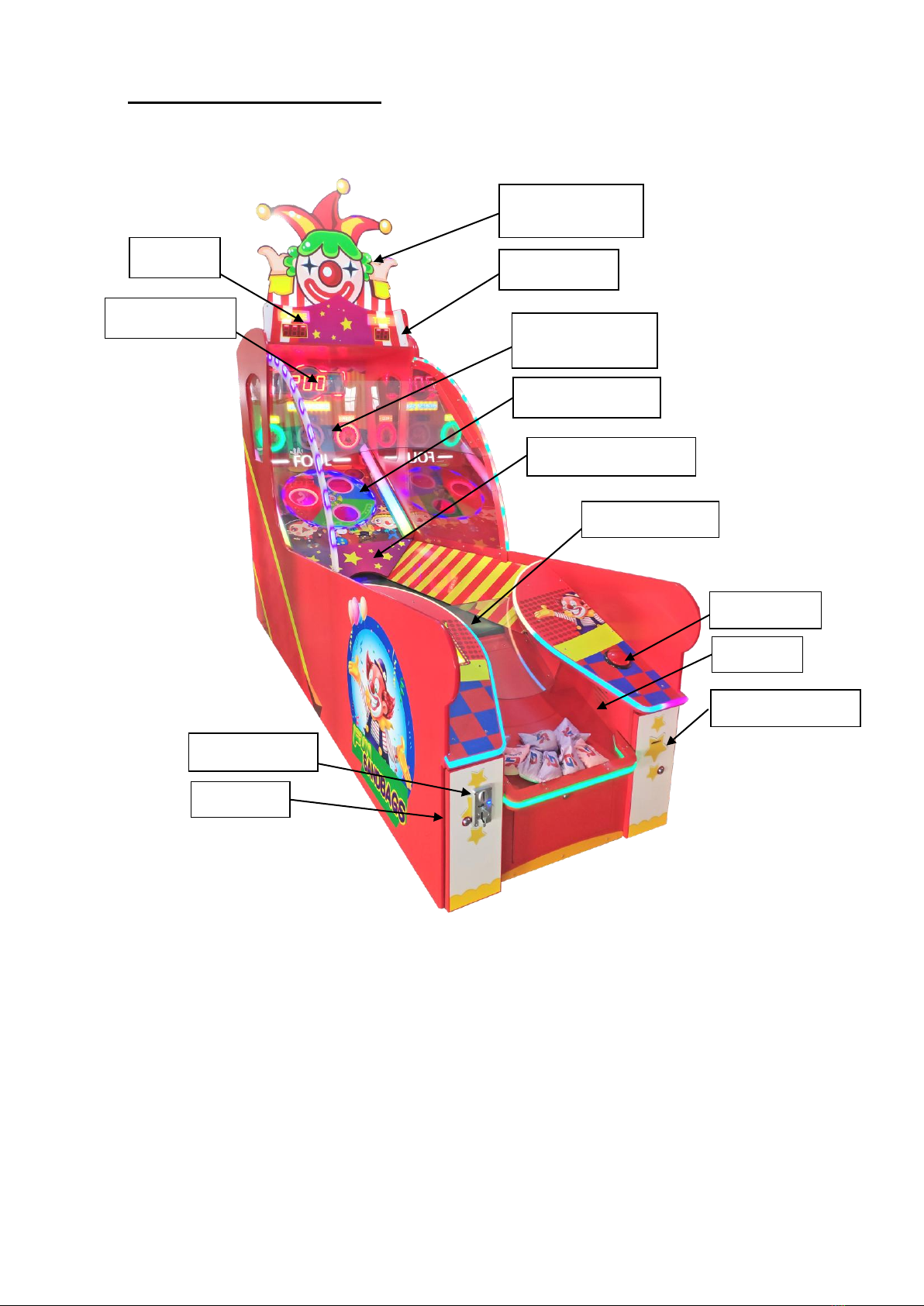

3-1. appearance：
Top decoration
board
Score
Score light ring
Start button
Conveyor belt
Score light ring
blinking
Key 6086
Highest score
Score
Sandbag slip board
Coin selector
Ticket dispenser
Speaker

- 5 -

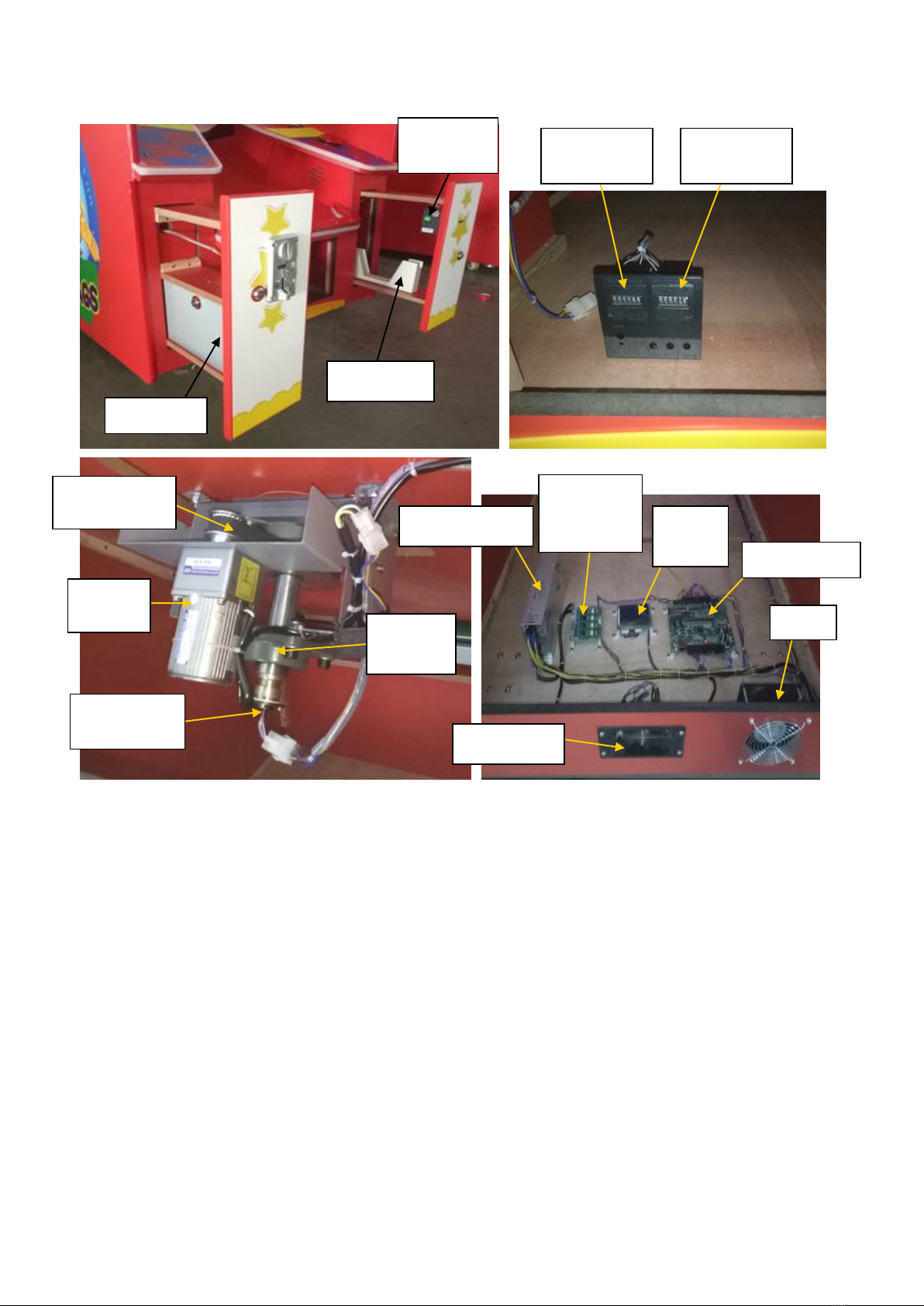

3-2. Inside：
3-3 Inside parts:
1) Coin code table: look at the value of the coin code table to know the operating
income.
2) Ticket code table: can see the value of the ticket code table to know the
operating income.
3) Main board: control all signal of the machine. If find that there is an trouble in
the input or output light on the main board, we can find out that which part has a
problem with the line corresponding to the trouble light on the main board.
Ticket box
Coin box
Ticket
dispenser
Ticket code
table
Coin code
table
Synchronous
belt
F206
bearing
Conducting
ring
Wheel
motor
Power supply
Control
board for
motor
LCD
screen
Main board
Fan
220V plug

- 6 -

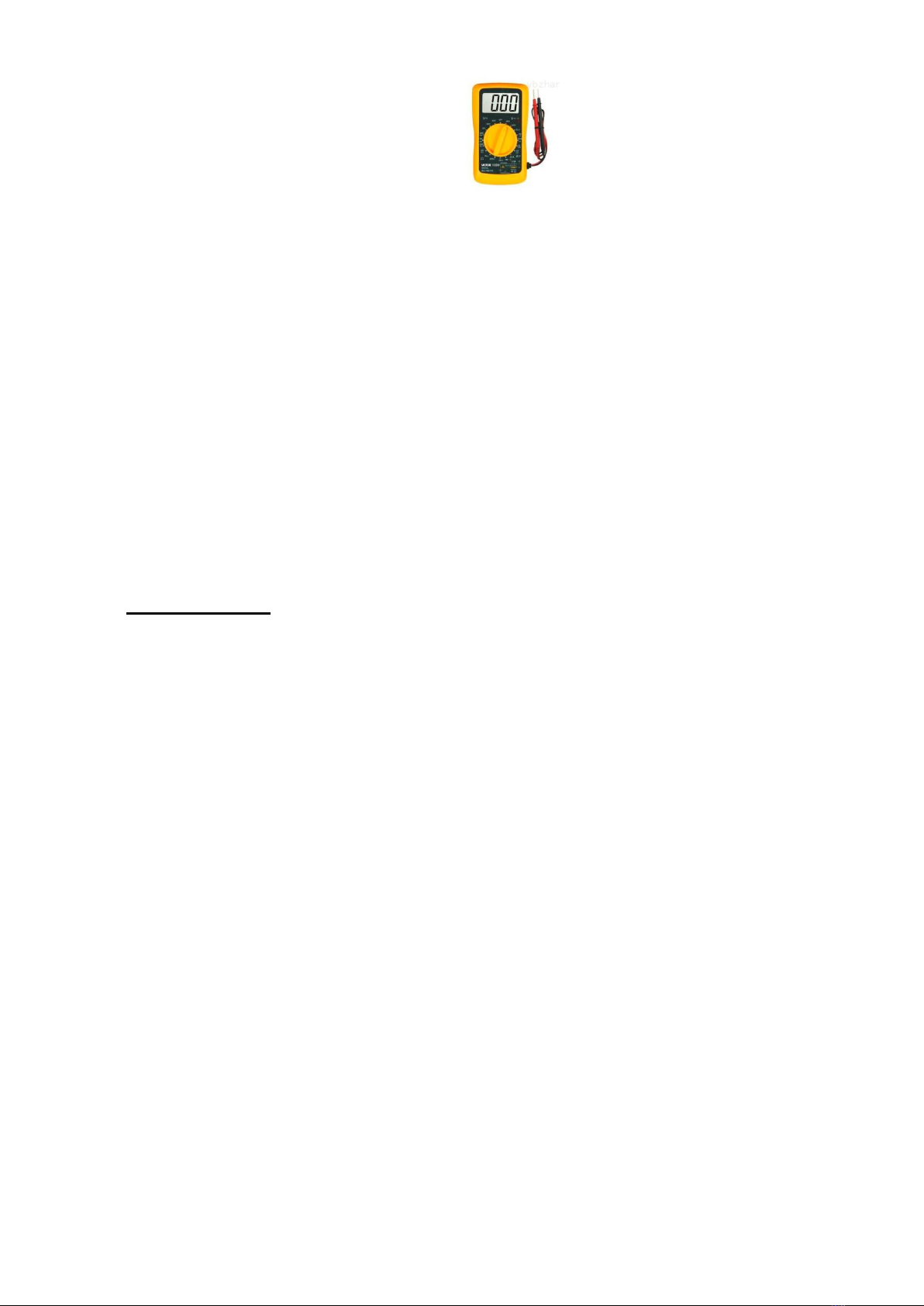

The best way is to use a multi-meter to measure. In addition, the
mother board can test all the components and lights are working.
Test step: press main board “TEST”button 10 second enter test.
Tips: press “SERVER”button, until LCD light blinking 3 times, then go to next
step.
Three buttons on main board:
1. TEST button
2. SERVER button, for selecting
3. RESET
IV. How to play
1. Power on, if no coin, will stay at demo; have coins, will enter game play.
2. Press start button, or enter play automatically after 10 seconds; game count
down time can be setting.
3. Throw the sandbag to the ring while light blinking, if goes into the ring
without light on, will cut score(this score can be setting), wheel turning right or left
at random; if into the FOUL ring, cut 100 points.
4. Game over, get score, compare with Bonus score; if same as Bonus, can win
big prize; less than Bonus, get tickets out.

- 7 -
V. Game setting, IO board

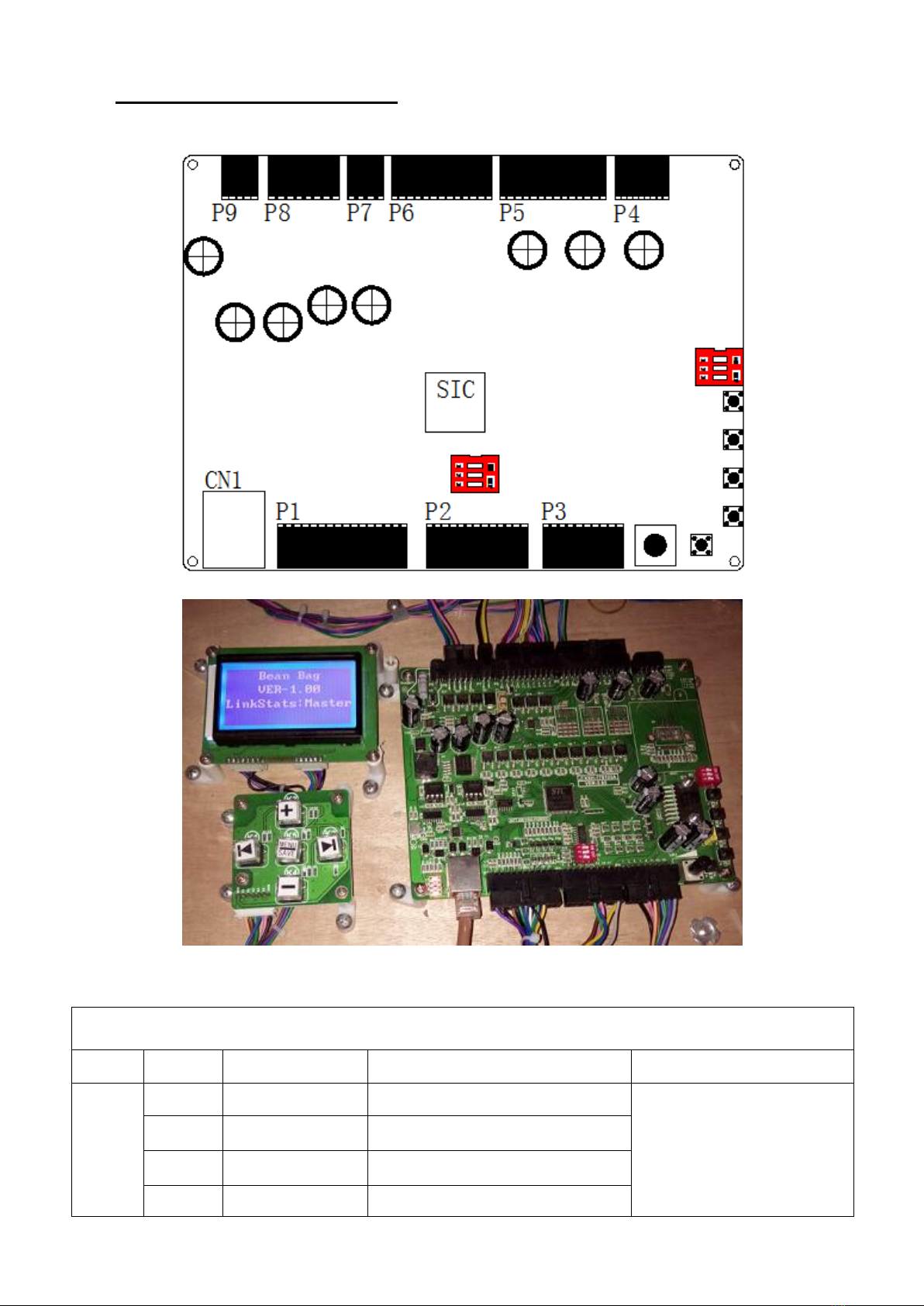

1) Main board
Main board signal input/output
Circuit board
Function
Signal
CN1
1
A+
Connect main board P5-3:B+
568B wire
2
A-
Connect main board P5-6:B-
3
B+
Connect main board P5-1:A+
6
B-
Connect main board P5-2:A-

- 8 -
4\5\7\8
Connect main board 4\5\7\8
P1
1\2
5V
5V
<500mA
3\4
GND
5
LCD-CS1
6
LCD-CS2
7
LCD-CS3
8
LCD-CS
Screen RS
Connect to screen
9
LCD-SID
Screen R/W
Connect to screen
10
LCD-SCK
Screen E
Connect to screen
11
XIN1
Input #1
Coin signal output
12
XIN2
Input #2
Ticket dispenser signal
13
XIN3
Input #3
14
XIN4
Input #4
Start button test
15
XO1
Output #1
Coin code table
16
XO2
Output #2
Ticket code table
17
XO3
Output #3
Ticket dispenser driver
signal
18
XO4
Output #4
Start button light
19\20
GND
21\22
12V
12V output
<200mA
P2
1\2
5V
5V output
3\4
GND
5
XTX1
Data launching
6
RX1-3
Data receiving
7
RS232-RX1
RS232 data receiving
8
RS232-TX1
RS232 data launching
9
XIN5
Input #5
Wheel ring #1 test
10
XIN6
Input #6
Wheel ring #2 test
11
XIN7
Input #7
Wheel ring #3 test
12
XIN8
Input #8
Foul ring test
13
XIN9
Input #9
14
XIN10
Input #10
15
XIN11
Input #11
16
XIN12
Input #12
17
GND
18
12V
12V output
P3
1
5V
5V output

- 9 -
2
12V
12V output
3\4
GND
5
XIN13
Input #13
6
XIN14
Input #14
7
XIN15
Input #15
8
XIN16
Input #16
9
XIN17
Input #17
+(K2)
10
XIN18
Input #18
-(K3)
11
XIN19
Input #19
Next (K1)
12
XIN20
Input #20
Set&Save button(K4)
13
SP-L
Left speaker
Speaker
14
GND
15
SP-R
Right speaker
16
GND
P4
1
PHA-
Motor A-
2
PHA+
Motor A+
3\4
VDD-STEP
Motor power input
5\6
GND
7
PHB-
Motor B-
8
PHB+
Motor B+
P5
1\2
MT1+
DC motor #1+
3\4
MT1-
DC motor #1-
5\6
MT2+
DC motor #2+
7\8
MT2-
DC motor #2-
9\10
MT3+
DC motor #3+
11\12
MT3-
DC motor #3-
13\14
VDD-DCM
DC motor
15\16\1
7\18
GND
19\20
VDD-1
PWM
22
W1OUT
21
RO1
PWM#1
Green light
23
GO1
PWM#2
Blue light
24
BO1
PWM#3
Red light
P6
1
XO5
Output #5
Ring #1 green light
2
XO6
Output #6
Ring #2 blue light

- 10 -
3
XO7
Output #7
Ring #3 red light
4
XO8
Output #8
Foul right light
5
XO9
Output #9
Streak light signal
6
XO10
Output #10
Conveyor motor
7
XO11
Output #11
Wheel motor positive
rotating
8
XO12
Output #12
Wheel motor reverse
rotating
9
XO13
Output #13
10
XO14
Output #14
11\12
12V
12V
13\14\1
6
GND
15
XLED-SDO1
Receive LED data
Main board-red one digit
LED-blue one digit,
LED-green one digit,
LED-Streak 4 digit,
LED-ticket score 3 digit,
LED-score 4 digit,
LED-time 2 digit
17
XLED-SCK1
Receive LED clock
18
XLED-LAT1
Receive LED latch
19\20
5V
P7
1
12V
12V/5A
For main board
2
12V
12V/5A
3
GND
4
GND
P8
1
12V
12V
2\4\6
GND
3
S1OUT
1 light signal output
5
RO2
Light #1
Wire red color
7
GO2
Light #2
Wire green color
9
BO2
light #3
Wire blue color
8\10
VDD-LED
Light power input
P9
1
AC220V-N
AC220V neutral line
2
AC220V-L
AC220V fire line

- 11 -
2) Direction/reverse motor control board:
3) LCD screen:
Front Back
4) Setting data:
The DIP button: left is OFF, right is ON.
Parameter table

- 12 -
VI. Assemble instruction:
Code
Content
Range
Factory
setting
Content description
Parameter
setting
P00
Language selection
0-1
0
0: Chinese 1: English
P01
The number of money
required for each bureau
1-99
1
The amount of money needed
for a game
P02
Whether to win the lottery
0-1
1
0: No lottery 1: lottery
P03
Whether the number of
tickets and the number of
money are preserved
0-1
0
0: not save 1: save
P04
The aging state of the
machine
0-1
0
0: need coins 1: no need
coins
P05
Whether the background
sound of the game is open
0-1
1
0: OFF 1: ON
P06
Show whether the
background sound is open
0-1
1
0: OFF 1: ON
P07
Add and subtract fraction
state when scorecard lamp
is extinguishing
0-2
1
0: Do not add or subtract
1: Plus 2:Reduction
P08
Run time setting
0-99
6
This parameter x10
P09
Streak Fractional line
setting
0-99
50
This parameter x100
P10
Achieve
“Streak” ticket number
setting
0-99
50
This parameter x 10
P11
How many score/ticket
1-100
50
The score required for 1
ticket
P12
Factory Reset
0-1
0
0: No operation 1: Restore
factory settings
Usage: the machine parameter setting button when the power press K4 button to enter the parameter
setting, K1 button to select the sub project, according to a move down, to determine a good sub project,
when you press K2 can add value (press rapid increase), K3 (long press the fast numerical reduction),
set up by K4 exit parameter setting function, enter the presentation or game state

- 13 -

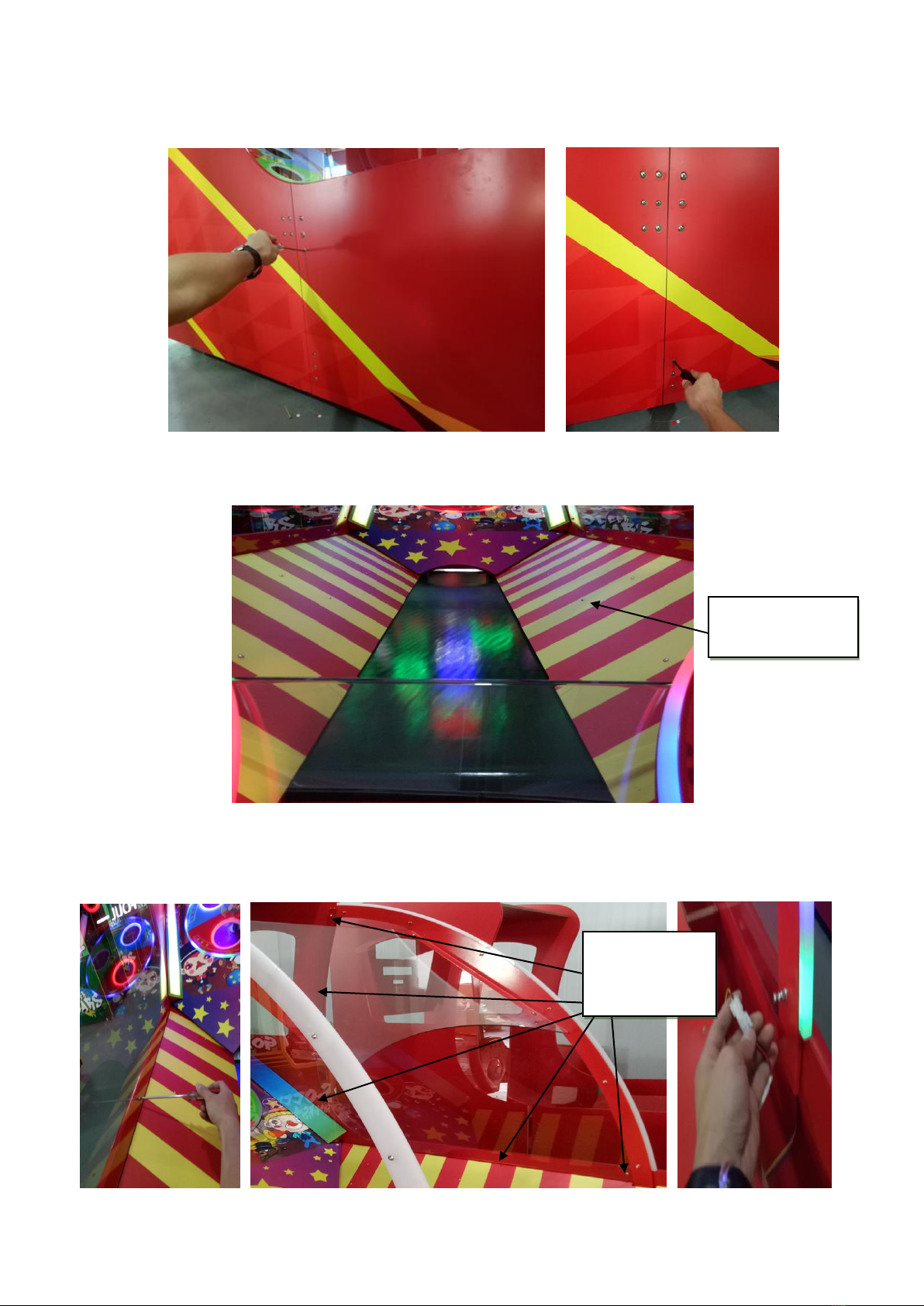

1) First put the front part with the conveyor part together, use M6*16 screws to fix it
tight (12 pcs screw), like below picture:
2) Then use M4*12 screws to fix (16 pcs screw), as below pictures:
3) Use M5*16 screw to fix the 2 side transparent acrylic (14 pcs screw), must plug
the colorful light, like below picture:
Screw position
16 pieces screw
Screw
position 14pcs
screw

- 14 -

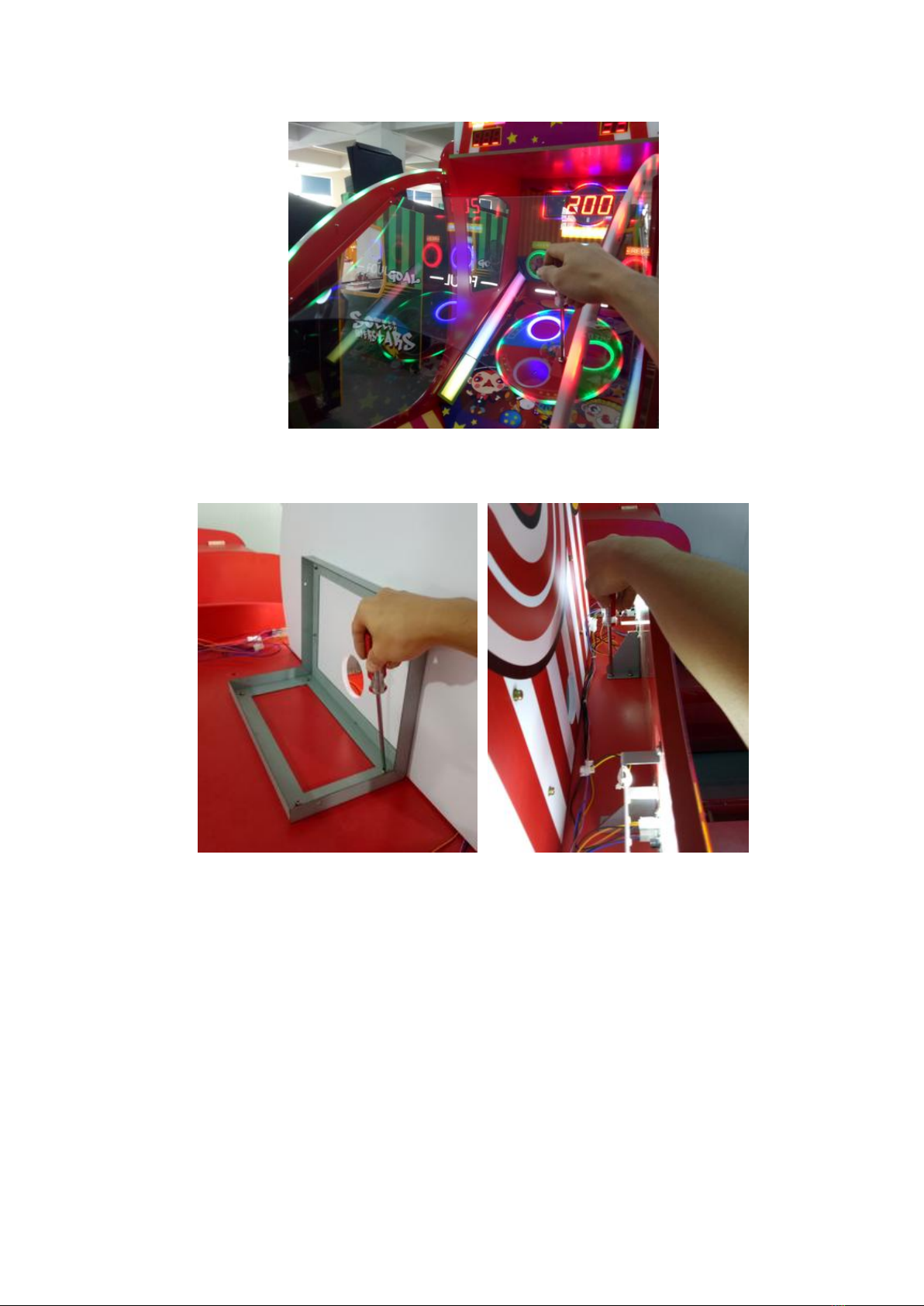

4) Use M6*10 screw, fix the middle transparent acrylic with the 2 side acrylic (4
pcs screw), as below:
5) Last use M5*16 screw, fix the metal well, then put and fix the top decoration
board(12 pcs screw), as below:
VII. Maintenance
When machine appearance is dirty, clean it with a soft dry cloth. If it is very dirty, clean
it with a soft cloth(detergent/water, 1: 5) , and then dry it with a dry cloth.
Never use alcohol or volatile solvent-based liquids, which will cause damage to the
machine paint; don’t clean with chemical-containing cloth or put it on the machine
for a long time.
