Damall D-2304 and Elastix Server
Setup Guide
http://www.elastix.org
Damall D-2304 and Elastix Server
Setup Guide
http://www.elastix.org
Damall D-2304 and Elastix Server
Setup Guide

PaloSanto Solutions
Damall D-2304 Server Setup Guide
2
1.0 Setup Diagram
Figure 1-1 is a setup diagram for a single IP Phone Damall D-2304
configuration. The phone is setup as a SIP telephony device.
Figure 1-1. Setup Diagram
2.0 Host PC Environment
Table 2-1. Host Server Environment Details
Description
Hardware Type
Elastix Appliance ELX-Series
Hardware Version
ELX-3000
Software Type
Elastix
Software Version
2.3
3.0 Test Setup Equipment
Table 3-1. Test Setup Equipment
Equipment
Model
Version
IP (SIP) Phone
N/A
N/A
Damall
D-2304
IP_Phone_D2304_V2.10.2.24
Switch
N/A
N/A
PaloSanto Solutions
Damall D-2304 Server Setup Guide
2
1.0 Setup Diagram
Figure 1-1 is a setup diagram for a single IP Phone Damall D-2304
configuration. The phone is setup as a SIP telephony device.
Figure 1-1. Setup Diagram
2.0 Host PC Environment
Table 2-1. Host Server Environment Details
Description
Hardware Type
Elastix Appliance ELX-Series
Hardware Version
ELX-3000
Software Type
Elastix
Software Version
2.3
3.0 Test Setup Equipment
Table 3-1. Test Setup Equipment
Equipment
Model
Version
IP (SIP) Phone
N/A
N/A
Damall
D-2304
IP_Phone_D2304_V2.10.2.24
Switch
N/A
N/A
PaloSanto Solutions
Damall D-2304 Server Setup Guide
2
1.0 Setup Diagram
Figure 1-1 is a setup diagram for a single IP Phone Damall D-2304
configuration. The phone is setup as a SIP telephony device.
Figure 1-1. Setup Diagram
2.0 Host PC Environment
Table 2-1. Host Server Environment Details
Description
Hardware Type
Elastix Appliance ELX-Series
Hardware Version
ELX-3000
Software Type
Elastix
Software Version
2.3
3.0 Test Setup Equipment
Table 3-1. Test Setup Equipment
Equipment
Model
Version
IP (SIP) Phone
N/A
N/A
Damall
D-2304
IP_Phone_D2304_V2.10.2.24
Switch
N/A
N/A

PaloSanto Solutions
Damall D-2304 Server Setup Guide
3
4.0 Setup Procedure
To set up the Elastix Server for the Damall D-2304,
1. Go to the web address of the Elastix Server Login page. The web address is
determined by the customer, for this guide we have used the IP address 192.168.5.186
2. On the Login page, type the username and password for an administrative user into
the Username and Password fields, see Figure 4-1. The username and password are
determined by the customer.
Figure 4-1. Login
3. Press Enter or click on the Submit button to go to Elastix’s Dashboard
4. Once inside, click on the PBX tab on the menu at the top of the screen
Figure 4-2. Dashboard

PaloSanto Solutions
Damall D-2304 Server Setup Guide
4
5. Click on the Submit button to add an extension, see Figure 4-3. This will take you to
the Add SIP Extension page.
Figure 4-3. Add an Extension
6. On the Add SIP Extension page (Figure 4-4), fill in the following information:
•User Extension (301 in this example)
•Display Name (‘DamallD2304’in this example)
•secret (‘h7Dka3Rf9si0t’in this example)
Figure 4-4. Add SIP Extension
7. Click on the ‘Submit’ button at the end of the page. The extension will be created and
you will see the page on Figure 4-5 displaying the “Apply Configuration Changes Here”
pink ribbon on top of the screen.
PaloSanto Solutions
Damall D-2304 Server Setup Guide
4
5. Click on the Submit button to add an extension, see Figure 4-3. This will take you to
the Add SIP Extension page.
Figure 4-3. Add an Extension
6. On the Add SIP Extension page (Figure 4-4), fill in the following information:
•User Extension (301 in this example)
•Display Name (‘DamallD2304’in this example)
•secret (‘h7Dka3Rf9si0t’in this example)
Figure 4-4. Add SIP Extension
7. Click on the ‘Submit’ button at the end of the page. The extension will be created and
you will see the page on Figure 4-5 displaying the “Apply Configuration Changes Here”
pink ribbon on top of the screen.
PaloSanto Solutions
Damall D-2304 Server Setup Guide
4
5. Click on the Submit button to add an extension, see Figure 4-3. This will take you to
the Add SIP Extension page.
Figure 4-3. Add an Extension
6. On the Add SIP Extension page (Figure 4-4), fill in the following information:
•User Extension (301 in this example)
•Display Name (‘DamallD2304’in this example)
•secret (‘h7Dka3Rf9si0t’in this example)
Figure 4-4. Add SIP Extension
7. Click on the ‘Submit’ button at the end of the page. The extension will be created and
you will see the page on Figure 4-5 displaying the “Apply Configuration Changes Here”
pink ribbon on top of the screen.

PaloSanto Solutions
Damall D-2304 Server Setup Guide
5
8. Click in the “Apply Configuration Changes Here” link
Figure 4-5. Apply Configuration Changes Here
9. With this you have just finished creating a SIP extension that will be used by the
Damall D-2304 to register with the Elastix Server. Repeat Steps 5 through 8 to similarly
create another extension (different values on Step 6) to be used by the IP (SIP) Phone to
register as well (extension 302 in this example). Once finished you will see something
similar to Figure 4-6
Figure 4-6. Damall and IP Phone extensions successfully created
10. To register the Damall Phone, you will need to enter the information from the
extension created on the Elastix Server into the Damall Phone by logging into the
Damall D-2304 WebUI.
Log into the Damall D-2304 WebUI by pointing your browser to the Damall Phone’s IP
address.
For the initial configuration, refer to the Damall D-2304 User Manual found in the
product box.
Factory default settings
IP Address
192.168.0.179
Phone interface password
123
Web Access User Name
admin
Web Access Password
admin
11. When prompted, enter the Web Access Username and Web Access Password to
access the Damall D-2304 WebUI (Figure 4-7).

PaloSanto Solutions
Damall D-2304 Server Setup Guide
6

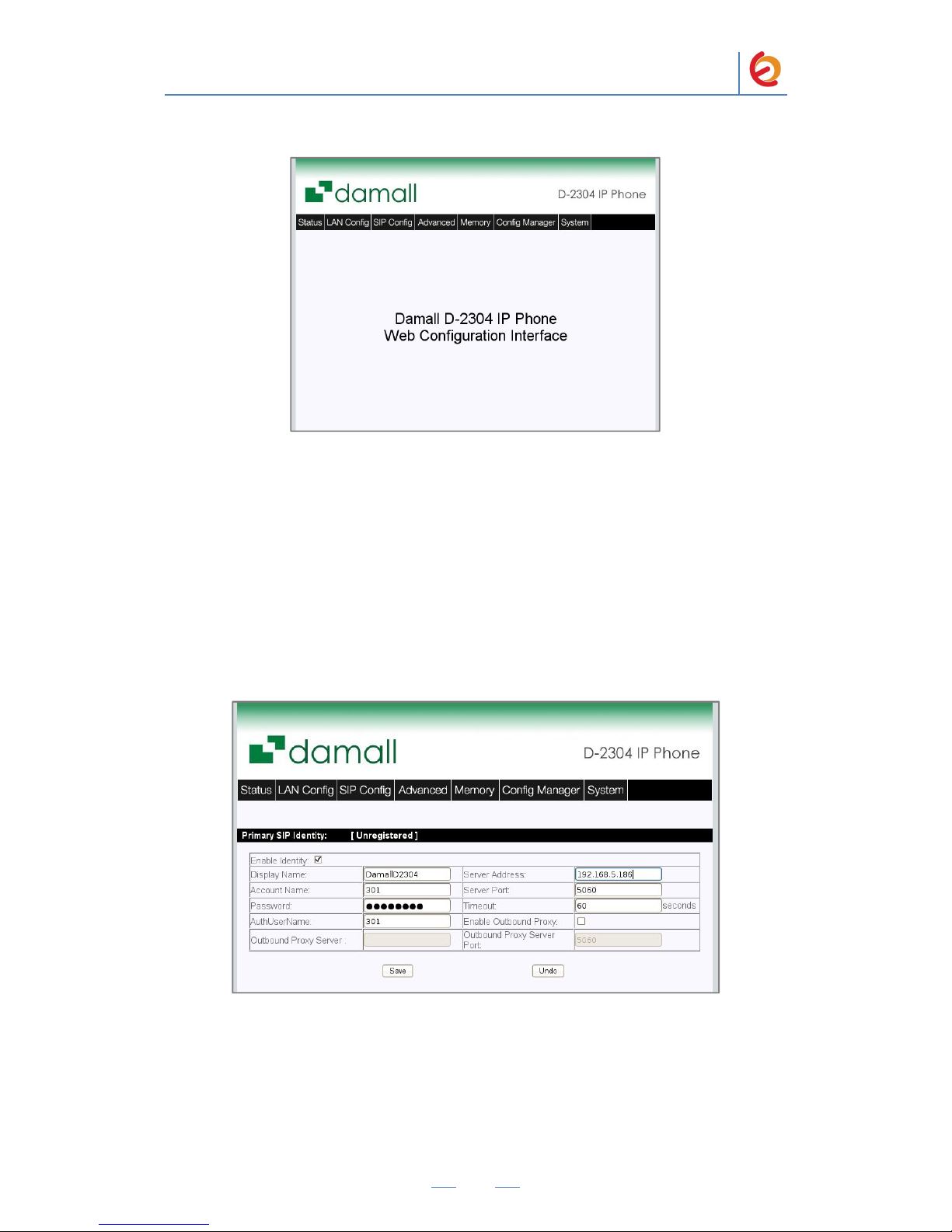

Figure 4-7. Damall D-2304 WebUI
12. Use the information from the Add SIP Extension page (Figure 4-4) to enter the
following necessary information on “SIP Config“ section of the Damall Phone WebUI:
Enable Identity: Checked
Display Name: The local phone name showed on others phones when calling
(DamallD2304 in this example)
Account Name: (301 in this example)
Password: (‘h7Dka3Rf9si0t’ in this example)
AuthUserName: (301 in this example)
Server Address: Elastix Server’s IP Address (192.168.5.186 in this example)
Server Port: 5060
Figure 4-8. Account Configuration
13. Once you have entered the required information, click on ‘Save’ button. To check
the correct registration of the account, go to “Status” section (Figure 4-9). If it´s not
registered, make sure you’ve entered the correct information.
Figure 4-9. Status

PaloSanto Solutions
Damall D-2304 Server Setup Guide
7
14. Configure the other IP (SIP) Phone with the correct parameters.
15. To test the Damall D-2304, pick up the previously configured IP (SIP) Phone and
call the Damall D-3204’s extension number (301 in this example). When the call is
established, speak into the phone and verify that the other IP (SIP) Phone can hear your
voice. Check this by calling from both ends.
This step completes the procedure.
