damian SNACK EUROPA Manual

X
INSTALLATION AND SERVICE
PROGRAMMING
This manual is for skilled service personnel only
DAMIAN S.R.L.-VIA RAGAZZI DEL ‘99 N°30 -21053 CASTELLANZA (VA) -ITALY
Rev. M - 01 Vers. Software 0.5b or follow.

Serie "EUR7"
Page 18
Rev. M - 01

Serie "EUR7"
Page 2
Rev. M - 01
IMPORTANT:
This automatic vending machine is not intended for use by persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they are
supervised or instructed on the use of the vending machine by a person responsible for their
safety. Children should be supervised to make sure that they do not play with the vending
machine.
IDENTIFICATION,USE AND TECHNICAL DATA
This manual refers to EUR7 series SNACK EUROPA automatic spiral vending machines,
with number of drawers, number and type of vending spirals varying from model to model.
The intended use for EUR7 series SNACK EUROPA automatic spiral vending machines
consists of automatically distributing solid products or products in solid package; pre-
packaged foods (snacks, bottled drinks, etc.) and non-food items.
For food products, make sure that the package is whole and that the products are in a good
state of preservation in conformity with the current applicable regulations concerning the
preservation of sold products.
The sale of toxic products (e.g. detergents) with food products is not allowed in the same
vending machine.
The vending machine may not be used to sell explosive material or material at risk of fire.
FIGURE 1
FIGURE 2
MAIN
SWITCH
KEYBOARD
MARKING PLATE /
SERIAL NUMBER
MARKING PLATE / SERIAL NUMBER
Max 70cm.
FOOD ZONE
(Variable)
REFRIGERATION UNIT
MARKING PLATE

Serie "EUR7"
Page 3
Rev. M - 01
These models are manufactured in variations “-A” without refrigeration unit, “-R” with
Standard refrigeration unit, “-S” with Super refrigeration unit and “-L” with Super L
refrigeration unit with the characteristics shown in the following table:
(*) Food Zone = Variable height zone (up to a maximum of 70 cm) containing the drawers placed in the
lowest position in the vending machine (See Fig. 1).
- LEGEND OF SYMBOLS USED
Symbol
Meaning
1
WARNING: NECESSARY OPERATION TO KEEP PEOPLE SAFE
2
CAUTION: THE OPERATION CAN DAMAGE THE MACHINE OR CAUSE IT TO
MALFUNCTION
Characteristics
Variation
EUR7B/x/xx-A
EUR7B/x/xx-R
EUR7P/x/xx-S
EUR7L/x/xx-L
Power supply
Voltage
220-230V~
Frequency
50Hz
Rated power
160 W
460 W
490 W
490 W
Max. Rated power
260 W
620 W
650 W
650 W
Protection
IP24
(Only suitable for covered and protected places where it cannot be
rained on or sprinkled by water jets)
Refrig. System version
Assente
Standard
Super
Super L
Minimum internal
operating temperature
--
10 °C
2 °C
(*) Food zone only
3 °C ±2
Environment
Storage temperature
0 45 °C
Working temperature
5 32 °C
Max. relative humidity
65 %
Dimensions and Weights
Height
185 cm +/- 1 cm
Width
80 +/- 1 cm
Depth
85 +/- 1 cm
Maximum empty weight
230Kg
250Kg
250Kg
250Kg
Noise level
The vending machine emits an A-weighted sound pressure level below 70 dB.

Serie "EUR7"
Page 4
Rev. M - 01
WARNINGS/CAUTIONS
The appliance should be be started up by skilled service personnel ONLY.
All operations described in this manual, especially all maintenance operations concerning the electrical
part, should be carried out by skilled technical service personnel ONLY.
The vending machine is equipped with a safety switch that allows powering up all electrical parts only
when the door is closed. With this switch it is possible to power up the vending machine even with the
door open, for example to perform the test procedure on the vending motors. Be careful that all moving
parts (spirals, sliding anti-theft panel, etc.) are not accidentally activated.
This automatic vending machine is not intended for use by persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they are supervised or instructed on
the use of the vending machine by a person responsible for their safety. Children should be supervised
to make sure that they do not play with the vending machine.
Before checking any electrical part, move the main switch of the vending machine (See Figure
2) to the “OFF” position.
UNPACKING
Unpack the vending machine as follows:
Cut the clear plastic wrapped around the packing box and remove the various protective corners.
Free the keys that are tied together with the power cord on the lower rear part of the vending machine.
To remove the wood supports, lift the vending machine using a suitable forklift truck ( with a lifting
capacity of at least 350 Kg and lifting height of 25 cm from the ground) and remove the metal brackets
blocking the vending machine‟s feet by removing the fixing screws.
ASSEMBLY OF BASE PLATE (COVERING FEET)
There is a large package containing the base plate of the vending machine, inside the machine.
Remove the base plate from its packaging and position it under the door in front of the feet, pressing
against the base of the vending machine.
The base plate will remain fixed to the base thanks to the magnetic hooks it comes with.
It is possible, using 2 self tapping screws, attach further the base plate to the the vending machine.
1
BASE PLATE
SELF-TAPPING SCREWS

Serie "EUR7"
Page 5
Rev. M - 01
INSTALLATION
Install the vending machine in covered and protected places where it is not exposed to
inclement weather and cannot be rained on or sprinkled with jets of water.
Place the vending machine in the point where it is to be installed, making sure that the minimum
distances shown in Figure 3 are guaranteed.
Also make sure that air can circulate freely in the rear and upper part; the room should be ventilated
regularly.
The vending machine must operate in a room that is in conformity with the information given in the table
on page 3.
Using the vending machine outside of these conditions could cause it to malfunction.
Adjust the height and alignment of the vending machine by means of the support feet with a 19 mm
open end wrench, making sure that all four of them rest correctly on the ground. When the vending
machine is not levelled properly it can be difficult to close the door.
With the “wall anchoring bracket kit” accessory it is possible to anchor the vending machine to the wall
with two special spacers (See Fig. 4), as follows:
Screw the two “wall anchoring brackets” on the top of the vending machine (see figure) with the screw
from above and a nut from inside the machine; remove the first drawer at the top to reach the position
easily.
- Place the vending machine in the desired position and mark the position of the brackets on the wall.
- Drill the wall and fasten the brackets using expansion bolts, making sure that the brackets are
positioned correctly.
- Position the vending machine inside the brackets and fasten it firmly with the screws from above and
the self-locking nuts from below (inside the machine).
2
Wall anchoring brackets
Drill and fasten to wall
Nut from inside vending
machine
Screws from
above
FIGURE 4
MIN 8 CM
MIN 40
CM
MAX ±2°
FIGURE 3

Serie "EUR7"
Page 6
Rev. M - 01
POWER SUPPLY
The vending machine should only be connected to earthed electrical systems.
Before connection to the supply mains, make sure that the earthing system is present, that the supply
voltage is 220-230 Volt~, that the outlet to which the machine will be connected is in good condition and
approved for at least 10 Amp and that an omnipolar switch is installed upstream of it, i.e. that switches
off both power supply conductors with a single opening action (except for the earth conductor), with an
opening of the contacts of at least 3 mm. (It is recommended that the outlet have an insulated residual
current breaker).
Install the vending machine so that the power-supply plug is easily accessible after you install it.
Check the appearance of the power cord to detect possible abrasions or other defects of the sheath or
of the plug on the cord and replace it if necessary as described further on in this manual.
-POWER CORD REPLACEMENT
If it should become necessary to replace the vending machine‟s power cord, the H05VV-F replacement
cord, which is in conformity with standard CENELEC EN 60 335-1, is available from Damian; the
replacement should ONLY be carried out by skilled service personnel.
Before all operations on the power cord, make sure that the power-supply plug is disconnected
from its outlet.
Remove the rear grille of the cabinet by unscrewing its fixing screws, remove the cable gland from the
grille, open the cable gland and remove the cable.
Disconnect the cable socket from the electrical box and remove the cable to be replaced.
Repeat the operations described above in reverse order to install the new cable.
Check that the main switch found on the lower part of the cabinet (See Fig. 2) is in the “OFF” position
and insert the plug into the power-supply outlet, then move the main switch to the “ON” position.
When the vending machine door is closed, all of its electrical parts will be powered owing to the
pressure exercised by the door on the safety switch (black switch located on the right of the electrical
box. See Figure 2).
USING THE SAFETY SWITCH
The vending machine is equipped with a safety switch (See Figure 2) that allows powering up all of its
electrical parts only when the door is closed. When it is necessary to power up the vending machine
with the door open (for example, for loading products or programming), the safety switch can be armed
by inserting the special key and turning it 90°. To disarm the safety switch (in order to cut off power to
the electrical parts), turn the switch key 90° and remove it from the switch.
1
1
GRILLE
CABLE GLAND CABLE

Serie "EUR7"
Page 7
Rev. M - 01
INSTALLATION OF PAYMENT SYSTEMS
The payment system installation and removal operations must be carried out with the power
supply switched off, moving the main switch to the “OFF” position.
-MDB PAYMENT SYSTEMS
Connect the payment system to the CPU card (2) being careful to connect the cable on the proper MDB
connector on the CPU card (See Figure 5).
Turn the vending machine on and programme it for operation in MDB mode (as described in
Attachment A, “Programming Sheet”); also refer to the documentation relative to the system itself for
the MDB payment system settings.
Enter the selling prices and any other programming data (Refer to Attachment A, “Programming
Sheet”).
The vending machine is now ready for use.
-EXECUTIVE PAYMENT SYSTEMS (OPTIONAL KIT)
The Executive Kit (optional) must be installed for operation of the executive payment systems.
Connect the Molex 15-pin female power connector of the vending machine to the corresponding
connector on the payment system (Refer to the payment system documentation).
Connect the serial connector of the payment system to the CPU card (2) using the special adapter
cable, being careful to connect the adapter cable on the proper connector (See Figure 5).
Turn the vending machine on and programme it for operation in Executive mode (as described in
Attachment A, “Programming Sheet”); turn the vending machine off and then on again and wait from 10
seconds to 2 minutes for communication with the payment system to be established. Remember to
programme the “value of each step" parameter (also called "coin scaling factor" or "minimum coin") to
the same value already entered during programming of the payment system (Refer to the payment
system documentation).
Enter the selling prices and any other programming data (Refer to Attachment A, “Programming
Sheet”).
The vending machine is now ready for use.
1

Serie "EUR7"
Page 8
Rev. M - 01

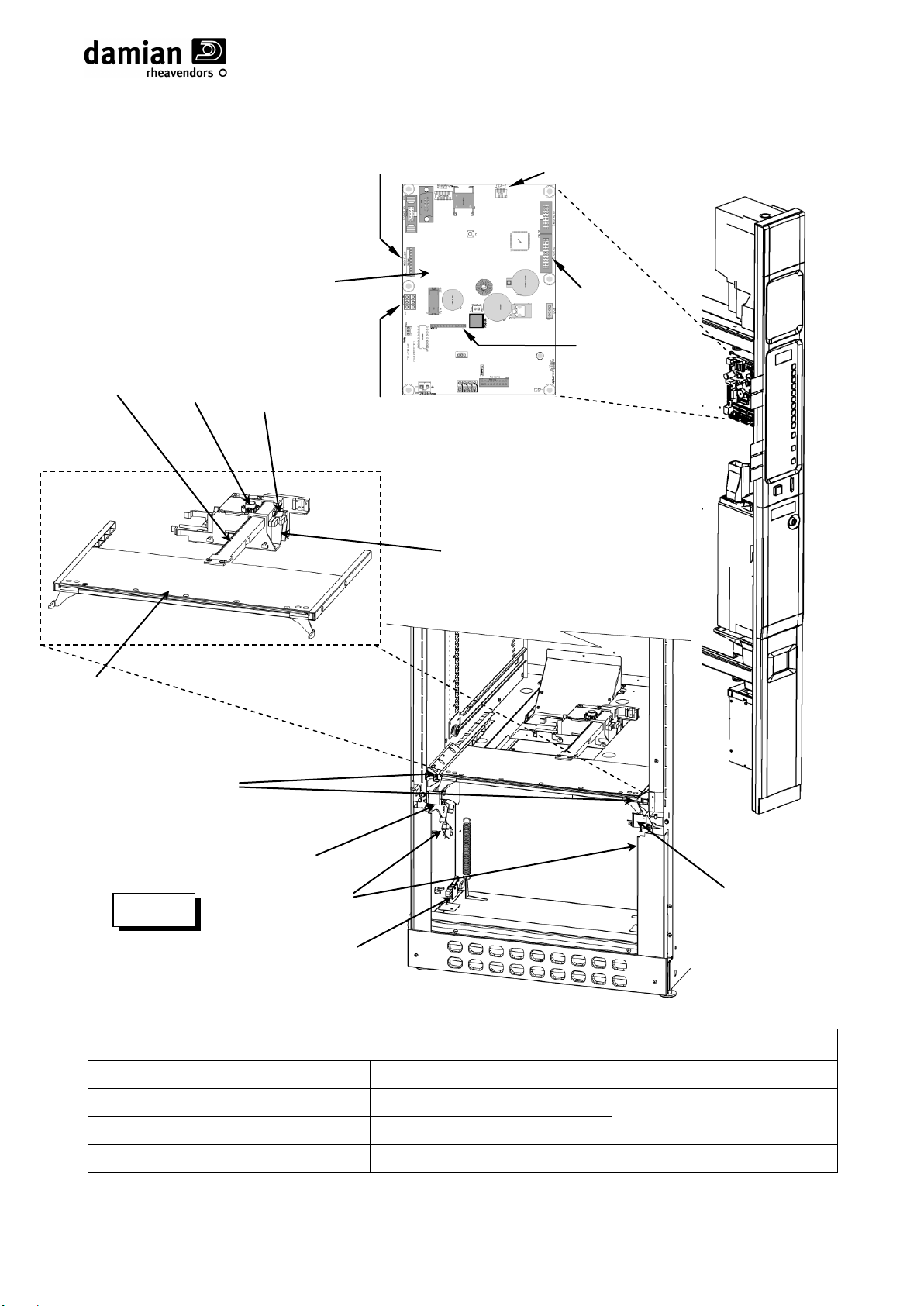

CIRCUIT BOARDS,SLIDING PANEL,PRODUCT DOOR.
Legenda
( 2) CL1 CPU circuit board
( 7) Closing control microswitch
( 17 ) Sliding panel rack
( 3) FTCA sensor bars
( 10 ) Anti-theft sliding panel
( 18 ) Sliding panel motor pinion
( 5 ) Levers for locking the 'Push' door
( 11 ) Sliding panel motor
( 6 ) Two microswitches of the „Push‟ locking
( 13 )Beginning/end stroke microswitches
( 3)
( 2 )
( 10)
FIGURE 5
FTCA connector
KEYBOARD
connector
DISPLAY
connector
EXECUTIVE connector
MDB connector
PS1
( 11 )
( 17 )
( 18 )
( 13 )
( 6)
( 5)
( 5)
( 7 )

Serie "EUR7"
Page 9
Rev. M - 01
OVERTEMPERATURE CONTROL (ONLY MODELS EUR7P/X/XX-S)
In order to guarantee the preservation of the products for sale, the vending machine controls that the
internal temperature does not exceed a given threshold, called safety temperature, for a period longer
than the overtemperature time;
The overtemperature control function is managed through 3 parameters:
- (A) Safety temperature
- (B) Overtemperature time (Set).
- (C) Restocking time
The overtemperature is only controlled in mode operating of the refrigeration unit = „Food & Snack‟,
setting the (A) Safety temperature parameter to a value below 40 °C
During normal vending machine operation, if the internal temperature exceeds the “Safety temperature”
(A) for a period longer than the “Overtemperature time” (B), the “ERR L09” error will be generated,
which will put the drawers set in the „Food zone‟ of the vending machine out of order.
The period of time in which the vending machine is off is always considered beyond the “Safety
temperature” (A).
If the vending machine is turned off and then on again (e.g. after restocking), the “Overtemperature
time” (B) is prolonged by a value equal to the one set in the “Restocking time” (C) parameter.
Each time it is turned back on, if the internal temperature exceeds the “Safety temperature” (A) but the
conditions for generating the “ERR L09” error have not occurred (see above), the following message
will appear on the display for approx. 15 sec.:
XXX = Missing minutes,
YY,Y = Internal temperature,
ZZ,Z = Safety temperature.
(by missing minutes (XXX) we mean the minutes within which the internal temperature (YY,Y) must go
below the safety temperature (ZZ,Z) to prevent generation of the “ERR L09” error).
If the “ERR L09” error has been generated, entering into programming you will be asked if you wish to
reset the out of order by zeroing the error.
Press key 1 to reset the error
Press key 2to NOT reset the error
IMPORTANT: the values of these three parameters should be set in accordance with the current
regulations applicable to the preservation of sold products. See the programming parameters in
Attachment "A" for how to set them.
N.B. To prevent false out of order indications following prolonged operator intervention, it is possible to
initialise the counters through the “Overtemperature counter reset” function (Refer to Attachment A,
“Programming Sheet”).
Reset ERR L09
(1):YES (2):NO
Overtemp XXXMin
YY,Y --> ZZ,Z °C
(1):SI (2):NO

Serie "EUR7"
Page 10
Rev. M - 01
ANSWERS TO PROBLEMS THAT MIGHT ARISE
-ERROR MESSAGES THAT APPEAR ON THE DISPLAY
The following table shows the OFF messages that appear on the display when the vending machine is
out of order.

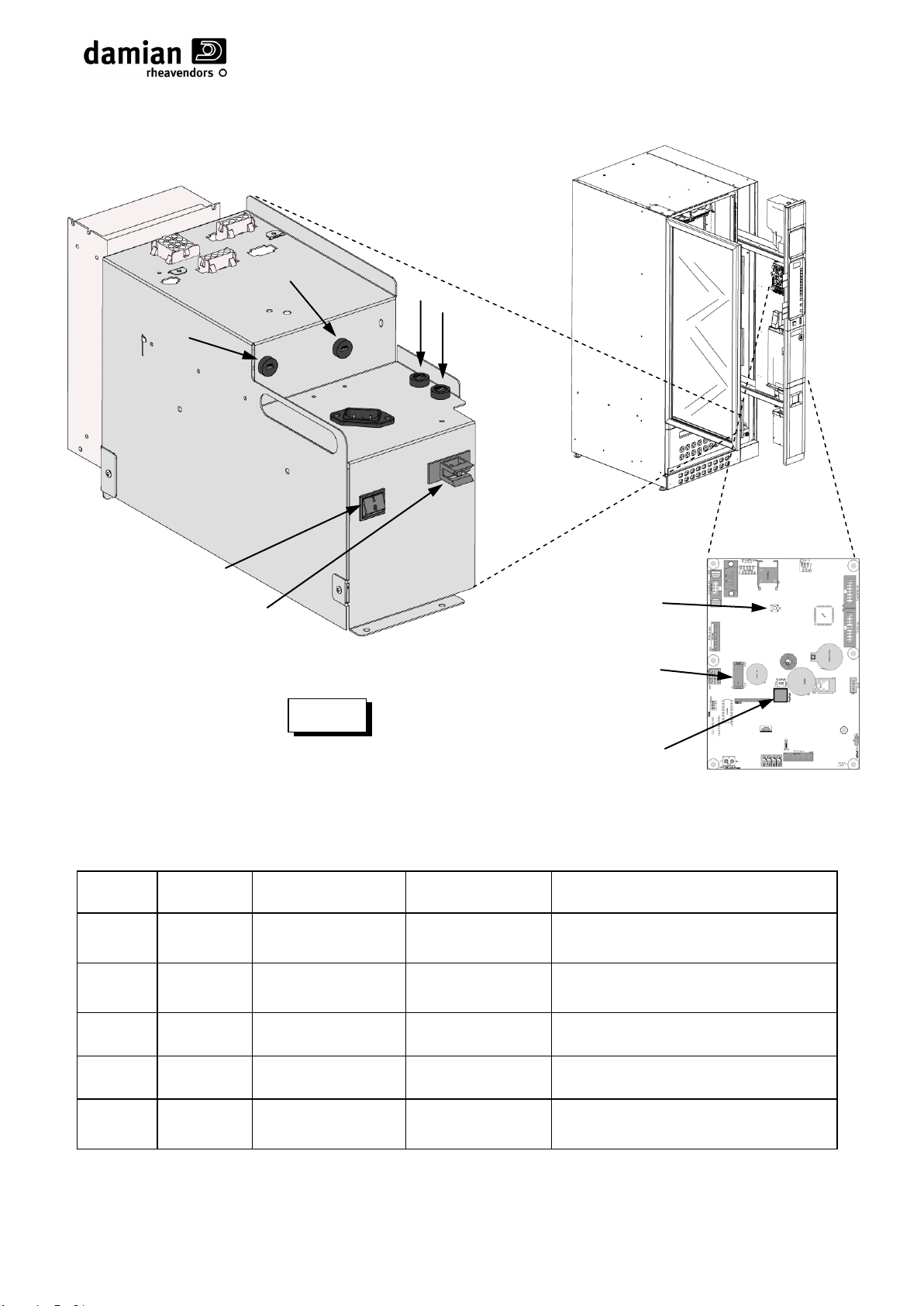

See Figure 5 for the numerical references in parentheses.
- Press key “1” to display further details about the type of out of order reported in the error
specification in parentheses.
- When any other key is pressed, automatic operation restoration will be attempted again, if
possible.
Message
code
Message text
Problem description / solution
OFF L01...
Temperature probe 1 error –These messages indicate a problem with the probe that measures the
temperature inside the vending machine. This probe is located on the inner right wall, near the 1st low
drawer towards the bottom of the vending machine.
Note: Probe operation is only checked at the moment the vending machine is turned on.
OFF L01a
Probe 1 defective
(Disconnected) –Probe 1 disconnected error.
- Turn the vending machine off and then on again, verify in programming that the
temperature value read by probe 1 is correct (see programming sheet). Try
touching the probe; if the value shown on the display does not change, check the
wiring and replace the probe if necessary.
- If, once the probe has been replaced, the problem is repeated, the fault might be
due to the CLP1 power board located in the electrical box.
OFF L01b
(Short-circuit) - Probe 1 short-circuited error.
- Turn the vending machine off and then on again, verify in programming that the
temperature value read by probe 1 is correct (see programming sheet). Try
touching the probe; if the value shown on the display does not change, check the
wiring and replace the probe if necessary.
- If, once the probe has been replaced, the problem is repeated, the fault might be
due to the CLP1 power board located in the electrical box.
OFF L02….
Temperature probe 2 error –These messages indicate a problem with the probe that measures the
temperature of the refrigeration unit evaporator. This probe is located in the refrigeration unit located
under the central plane of the machine. The refrigeration unit must be removed to access the probe (see
specific chapter).
Note: Probe operation is only checked at the moment the vending machine is turned on.
OFF L02a
Probe 2 defective
(Disconnected) –Probe 2 disconnected error.
- Turn the vending machine off and then on again, verify in programming that the
temperature value ready by probe 2 is correct and that the probe is not immersed
in ice; otherwise check the probe wiring and replace the probe if necessary.
- Check the vending machine configuration to verify if this probe should be
present. If not, carry out a new self-learning procedure as indicated in the
programming sheet attachment.
- If, once the probe has been replaced, the problem is repeated, the fault might be
due to the CLP1 power board located in the electrical box.
OFF L02b
(Short-circuit) - Probe 1 short-circuited error.
- Turn the vending machine off and then on again, verify in programming that the
temperature value read by probe 2 is correct or that the temperature of the room
is not above 45 °C. If the error is not reset, check the probe wiring and replace
the probe if necessary.
- If, once the probe has been replaced, the problem is repeated, the fault might be
due to the CLP1 power board located in the electrical box.
OFF L04
Executive OFF
(Executive OFF) - No communication with the Executive system.
- Check the 24Vac power supply coming from the transformer and the connection
of the relative wiring with the 15-pin connector.
- Check the Executive signal wiring.
- If the problem is not resolved, check CPU card operation.

Serie "EUR7"
Page 11
Rev. M - 01
Message
code
Message text
Problem description / solution
OFF L10…
FTCA vending sensor error –These error messages may appear when the vending machine is turned
on or right before a sale.
OFF L10a
OFF L10b
OFF L10c
FTCA sensors OFF
(Chk cable, Chang) –FTCA bars not connected
- Check the condition of the wiring and of the connections of the FTCA bars (3)
and replace wiring if necessary.
- If the problem persists, replace the FTCA bars (3) one at a time, starting from the
one on the right.
- If the problem is not resolved, check CPU card operation.
OFF L10e
(Check LeftSensor) - Left hand FTCA bar error
- Check the condition of the wiring and of the connection of the left hand FTCA bar
(3) and replace it if necessary.
- If the problem is not resolved, check CPU card operation.
OFF L10f
(Check RightSens.) - Right hand FTCA bar error
- Check the condition of the wiring and of the connection of the right hand FTCA
bar (3) and replace it if necessary.
If the problem is not resolved, check CPU card operation.
OFF L10g
(High Light) - FTCA bars blinded error
- Perform the vending sensor test.
- Attenuate the possible source of external light that bothers the FTCA bars.
- If the problem persists, replace the FTCA bar/s (3).
OFF L10h
(Low Light ) - FTCA bar darkened error
- Perform the vending sensor test.
- Check the state of cleanliness of the FTCA bars (3), eliminating any elements
that might obstruct passage of the light emitted by the LEDS.
- If the problem persists, replace the FTCA bar/s (3).
OFF L13…
Sliding anti-theft panel errors. These error messages concern failures of the sliding anti-theft panel
(10) closing/opening system.
For a quicker check, perform the “Sliding door test” as explained further on.
OFF L13a
Sliding Panel
(S.D. Mot. Fault) - Sliding panel motor short-circuited
- Check the operation of the sliding panel motor (11) and the relative wiring; replace
it if necessary.
OFF L13b
(SD Mot. Disconn.) - Sliding panel motor disconnected
- Check the motor (11) of the sliding panel (10) and the relative wiring. Replace it if
necessary.
OFF L13e
(Lock Pos.TimeOut) –Sliding panel motor movement error
At the end of an opening / closing cycle, the sliding panel does not close completely
or is not detected to be closed, or not open completely or is not detected to be open;
You are trying to make the sliding panel (10) work but the motor (11) idles or is
blocked.
- Check that the sliding panel (10) can slide freely, that the guides are clean and that
there is nothing preventing complete closing.
- Check that the motor gear (11) works correctly.
- Check the operation of the opening microswitch (13) and the relative wiring.
Replace it if necessary.
OFF L13k
OFF L13l
(Levers not down) –Error movement locking lever product removal door
During a cycle of opening / closing of the sliding panel (10) is not detected lowering
of the locking levers (5) of the door product.
- Check that the two lock levers (5) of the door product can move freely.
- Check that the two microswitches (6) of lock levers are correctly connected and
adjusted; make sure that the wiring is in good condition and replace them if
necessary..

Serie "EUR7"
Page 12
Rev. M - 01
Message
code
Message text
Problem description / solution
OFF L20…
CL1 CPU (2) circuit board errors. These error messages concern failures of the vending machine‟s
circuit board.
OFF L20a
OFF L20b
CL1 CPU Error
(Restart - Change) - CPU card error
- Turn the vending machine off and then on again; if the problem persists, replace the
CPU card (2).
OFF L20f
OFF L20g
CL1 CPU SW Error
(Reinstall SoftW.) - CPU card software error
- Turn the vending machine off and then on again; if the problem persists, update the
software.
- If the problem is not resolved after the update, replace the CPU card (2).
OFF L50 (xxxx)
Unforeseen generic error.
- Turn the vending machine off and then on again; if the problem persists, contact
the technical assistance service, providing the number in parentheses.
OTHER ANSWERS TO PROBLEMS THAT MIGHT ARISE
Before checking any electrical part, move the main switch to the “OFF” position (See Figure 7).
-MESSAGES RELATIVE TO MOTOR ANOMALIES.
During the selections or Diagnostic tests some motor anomaly messages might appear on the display;
these messages are listed below with the relative explanation, as well as some possible solutions to the
problem:
“Motor xx Disconnected” (NR)*: The motor is not connected to the CPU.
Check the connections and that the motor wiring is not interrupted.
Check correct operation of the motor microswitch and of the motor itself.
Try replacing, one at a time, the motor; the CPU card; the drawer and cabinet wiring.
“Motor xx Short Circuit” (NR)*: The motor is short-circuited.
Check the good condition of the motor itself.
Check that the motor and its connections are not wet.
Check the connections and that the motor wiring is not short-circuited.
Try replacing, one at a time, the motor; the CPU card; the drawer and cabinet wiring.
“Motor xx blocked” (R)*: The motor is blocked or absorbs too much current.
Check the correct assembly of the vending spiral.
Check the motor connections, especially the correct polarity of the power supply (+/-).
Check that the spiral or motor are not blocked by poorly arranged products or various residues.
Try replacing, one at a time, the motor; the CPU card.
“Motor xx Time Out Error” (R)*: The motor appears to work but the microswitch does not work correctly.
Check correct operation of the microswitch, of the motor and the good condition of the motor itself.
Check the motor connections, especially the correct polarity of the power supply (+/-).
Try replacing, one at a time, the motor; the CPU card.
“Motor xx Mot. Switch Err.” (NR)*: The motor appears to work but functions anomalously.
Even if the error can be reset and the motor appears to work, if this error is repeated it is advisable to
replace the motor.
If the error is repeated even once the motor has been replaced, the wiring must be checked;
“Motor xx Max 3 Selec Err.” (R)*: The motor has been put out of order after three consecutive sales of
the same motor without detecting that the product has dropped (See “FTCA Parameters” chapter).
Check that the spiral is hooked correctly to the motor.
Check the operation of the product drop control sensors (See “Diagnostics” chapter).
* = The error is automatically reset (R) or not reset (NR) upon turning on.
1

Serie "EUR7"
Page 13
Rev. M - 01
-UPON TURNING ON “WARNING OUT OF ORDERS DETECTED”IS DISPLAYED.
During normal vending machine operation, some malfunctions of some motors may occur. These
malfunctions generate errors that can be automatically reset by the vending machine (R)* or that can be
"not resettable" (NR)* and put the selection out of order (see above).
Even if operation of the selection has been automatically reset when the machine was turned on, the error
remains stored and must be deleted manually in diagnostics to keep the message from reappearing.
To check which motors and which problems have been stored, enter into “Diagnostic” in the “out of order
motors ” menu (see relative chapter).
-WHEN MAKING A SELECTION “SELEC.X-X IN OVERTEMPERATURE”IS INDICATED
If some selections are out of order indicated by the “Selection xx in Overtemperature” message, this is due
to the intervention of the “refrigerator safety control” (ERR L09 refrigeration unit timeout error) which has
put the drawers set in the vending machine „Food zone‟ out of order (see Overtemperature control”
section).
Entering in programming, you will be asked if you wish to restore operation by resetting the error.
Press key 1to reset the error
Press key 2to NOT reset the error
When key 1is pressed the selections will be active again.
-WHEN MAKING A SELECTION “SELECTION X-X NOT ACTIVE”IS INDICATED
If some selections are out of order indicated by the “Selection x-x not active” message, this indicates a
problem relative to the storing of the configuration, because the selection made is not stored as active by
the vending machine.
Make sure that you have made the correct selection.
Carry out the “Motor Verify” procedure found in the diagnostic menu.
Carry out a new self-learning procedure of the motors through the reset of the circuit board.
If the motor is not recognised during the self-learning procedure, see the relative error further on.
-WHEN MAKING A SELECTION “SELECTION X-X OUT OF ORDER”IS INDICATED
If some selections are out of order, indicated by the “Selection x-x out of order” message, this indicates the
presence of a problem relative to the motor.
For a detailed analysis of the type of error that generated the out of order condition, use the “Diagnostic”
menu, “out of order motors” submenu and the preceding chapter “Motor anomaly messages”.
NOTE: It is possible to cancel the “Out of Order” condition of the motors without entering into programming
by pressing the PS2 key found on the CPU card for approx. 3 seconds (See Fig. 7).
-SOME MOTORS ARE NOT DETECTED DURING THE SELF-LEARNING PROCEDURE.
Check the wiring and good condition of the unrecognised motors, as well as the good condition and correct
insertion of the connectors on the bottom of the vending drawers.
After performing the above, carry out the procedure indicated for the “Disconnected motor” error.
-SEVERAL MOTORS RUN SIMULTANEOUSLY
When making a selection, two or more motors, even far apart, run simultaneously.
Check that a motor connection was not inverted following a maintenance operation. The motor with the
inverted wiring might not be among those that rotate simultaneously.
Check the good condition of the wiring of the motors of the vending spirals.
Replace the motor and/or connection wiring if necessary.
Make sure that the “Twin motors” function is not activated.
If the problem persists, make sure that the CPU card works and replace it if necessary.
Reset ERR L09
(1):YES (2):NO

Serie "EUR7"
Page 14
Rev. M - 01
-THE MACHINE DOES NOT REACH THE REQUIRED TEMPERATURE
Before carrying out any operation on the refrigeration unit and, in particular, before checking
any electrical part, move the main switch to the “OFF” position (See Figure 7).
Check the condition of the fuses (See the “Fuse check” chapter).
Make sure that dust and foreign materials do not block the refrigeration unit air passage.
Check that the condenser cooling fins are not blocked by dirt or foreign bodies and clean them if necessary
(to access the refrigeration unit, see the “Refrigeration unit disassembly and reassembly” chapter.
Check that the set temperature is neither too high nor too low, referring to the programming sheet.
Check that the internal air circulation fan works correctly.
Check that the refrigeration unit compressor works and that the cooling fan (located between the
compressor and the condenser of the refrigeration unit) works properly. If the compressor does not start
working when the LED on the card indicates that it is activated, check and if necessary replace the electric
starting capacitor, the Clicson or the amperometric relay located in the box mounted close to the
compressor.
With the compressor operating, check that the evaporator actually gets cold.
Check that the two evaporator fastening hooks located on the shelf under the first drawer are closed and
the evaporator properly hooked.
If it is not possible to identify the cause of the problem, contact an authorised service centre.
1

Serie "EUR7"
Page 15
Rev. M - 01
-FUSES
The vending machine is equipped with fuses mounted as shown in the following table:
POSITION
INSCRIPTION
TYPE
PROTECTED
CIRCUITS
CHECK WHEN
A
F1
5x20 T6.3
( 6.3 A delayed 250 V )
Refrigeration unit
The vending machine does not
refrigerate
B
F2
5x20 T6.3
( 6.3 A delayed 250 V )
General
24-28V
The vending machine does not
work
C
F3
5x20 T6.3
( ( 6.3 A delayed 250 V )
General 230V
The vending machine does not
work
D
F4
5x20 T6.3
( ( 6.3 A delayed 250 V )
General 230V
The vending machine does not
work
E
F5
5x20 F1
( 1A rapid 250 V )
CPU power
supply
The vending machine does not
work, the display does not turn on.
Figure 7
E
Press to enter into
programming
Press to cancel motors
“OUT OF ORDER”
PS1
F5
MAIN
SWITCH
SAFETY SWITCH
F1
F2
F3
F4
LED
A
C
D
B

Serie "EUR7"
Page 16
Rev. M - 01
ROUTINE MAINTENANCE AND LUBRICATION
During the maintenance and lubrication operations, do not perform any operation other than
those indicated.
See Figure 5 for the references in parentheses.
Symbol
Periodicity
Check
Lubricate

1 month
-Correct operation of the door safety switch

3 months
- Correct operation of the sliding panel closing
and opening microswitches
- Check/cleaning of vending sensors (FTCA)

1 year
- Check/cleaning of the refrigeration unit
condenser fins.
N.B. (cut the periodicity by half for installations in
especially dusty locations)
-SAFETY SWITCH CHECK ()
During the safety switch check, do not perform any operations other than those indicated.
Check correct operation of the safety switch (15) by opening and reclosing the door with the
vending machine on; make sure that the vending machine turns off when the door is being
opened and that it turns on again only after it has been closed completely.
-SLIDING PANEL CHECK ()
Sliding panel (10) operation can be checked by performing a door closing and opening test
(see: programm.-> diagnostics ->Sliding panel test).
-CHECK/CLEANING OF „FTCA‟ VENDING SENSORS ()
To clean the LED barriers of the FTCA system (3), which are protected/hidden by the
sliding anti-theft panel during normal operation, it is necessary to open it, performing a
sliding panel (10) opening test (see: programm.-> diagnostics ->Sliding panel test). After
opening the sliding panel (10), use a brush to gently clean the LEDS (3), removing dust or
dirt that might obstruct passage of the light emitted by the LEDS.
-CHECK/CLEANING OF THE REFRIGERATION UNIT CONDENSER ()
Turn the vending machine off using the main switch, access the refrigeration, inspect the
condenser and clean it if necessary, removing any residues with a brush or
suctioning/blowing air. Make sure that dust is not raised during these operations; turn the
vending machine back on only after having replaced the refrigeration unit in its normal work
position.
1
1

Serie "EUR7"
Page 17
Rev. M - 01
ENVIRONMENTAL PROTECTION
Dispose of the cleaning and lubrication materials used in conformity with the regulations in
force.
Do not dispose of the equipment with domestic waste. Recycle this equipment to reduce
pollution and to guarantee maximum environmental protection; the materials must be
recycled in conformity with local, regional and state laws.
It is preferable to recover raw materials than to dispose of waste: equipment and packing
should be ecologically recycled.
Illegal disposal of the product by the holder involves the application of the administrative
sanctions provided for by the regulations in force.
1. In the European Union
If the equipment is marked on the outside with this symbol, it should not be
disposed of with normal household waste.
Contact your local dealer for further information regarding disposal.
2. In countries outside the EU
If you wish to get dispose of this product, please contact the local authorities for
information on the correct disposal method.
WARRANTY
Damian S.r.l. provides a warranty for its own products that is in conformity with the specific
national laws.
The warranty begins on the date shown on the sales document.
The warranty does not include damage caused by natural wear, overload, improper use or
any other breakdown not caused by a manufacturing defect.
The warranty conditions are given at the end of this manual.

X
Attachment “A”
PROGRAMMING SHEET
This attachment is an integral part of the manual
and must remain with it
DAMIAN S.R.L.-VIA RAGAZZI DEL ‘99 N°30 -21053 CASTELLANZA (VA) -ITALY
Rev. M - 01 Vers. Software 0.5b or follow.

Serie "EUR7"
Pagina A - 2
Rev. M - 01
PROGRAMMING METHOD
TO ENTER INTO PROGRAMMING
Open the vending machine, power it up using the special key on the safety switch and press the pushbutton
(P) found on the CPU card of the vending machine (see the above figure) for about 2 seconds; avoid
reclosing the vending machine so as not to damage the safety switch.
When the safety switch is armed with the special key, do not perform any operations other
than those described.
TO CHOOSE THE PARAMETER THAT YOU WISH TO PROGRAMME
Select the menu using keys 1(A)or 2(C), the messages relative to the various menus will appear on the
second line of the display.
When the message relative to the desired menu appears, press the 3(Enter)key to confirm.
The parameter name will appear on the first line of the display, the currently set value on the second line.
Select the menu parameter using the 1(A)or 2(C)keys; the messages relative to the various menu
parameters will appear in sequence on the first line of the display, until it starts again from the first
parameter.
When the message relative to the desired parameter appears, press the 3(Enter) key to confirm.
TO CHANGE THE PROGRAMMED VALUE OF THE SELECTED PARAMETER
If “***>” appears on the second line followed by the current value.
Using the keyboard, write the desired value or press the 1(A)key to increase or the 2(C)key to decrease
the current value.
Press the 3(Enter)key to confirm and return to the previous point or press the 6(Esc)key to exit typing
without modifying the previous value.
Press the 4(D)key to reset the proposed number.
In some cases press the 4(D)key to move one digit to the left, until starting again from the first on the
right. Once all of the digits have been entered, press the 3(Enter) key to confirm and return to the previous
point or press the 6(Esc)key to exit typing without modifying the previous value.
TO EXIT PROGRAMMING
Press the 6(Esc)key to return to the selection of the menus.
Press the “Programming key” (P) found on the CPU card of the vending machine for about 4 seconds or
press the 6(Esc)key for a few seconds.
In any case, if no key is pressed for more than 120 seconds you will automatically exit the programming
phase.
1
(P) Programming key
PS1 key
PS1
Enter
Esc
