Danby Silhouette DWC512BLS-1 User manual

OWNER’S MANUAL
MANUEL D'UTILISATION
MANUAL DEL PROPIETARIO
Model • Modele • Modeio
DWC512BLS-1
CAUTION:
Read and follow all safety rules and
operating instructions before first
use of this product.
PRECAUTION:
Veuillez lire attentivement les
consignes de securite et les
instructions d'utilisation avant
('utilisation initiale de ce produit.
PRECAUCION:
Lea y observe todas las reglas de
seguridad y las instrucciones de
operacion antes de usar este
producto por primera vez.
DELUXE WINE COOLER
Owner’s Manual .
• Safety Instructions
• Installation
• Operation
• Care and Maintenance
REFROIDISSEUR DE VIN
Manuel d'utilisation.
• Consignes de securite
• Installation
• Fonctionnement
• Soins et entretien
.6-10
REFRIGERADOR PARA VINOS
Manual del propietario.
• Instrucciones de seguridad
• Instalacion
• Operacion
• Cuidado y Mantenimiento
.11-15
Danby Products Limited, PO Box 1778, Ontario, Canada N1H 6Z9
Danby Products Inc., PO Box 669, Findlay, Ohio, USA 45839-0669

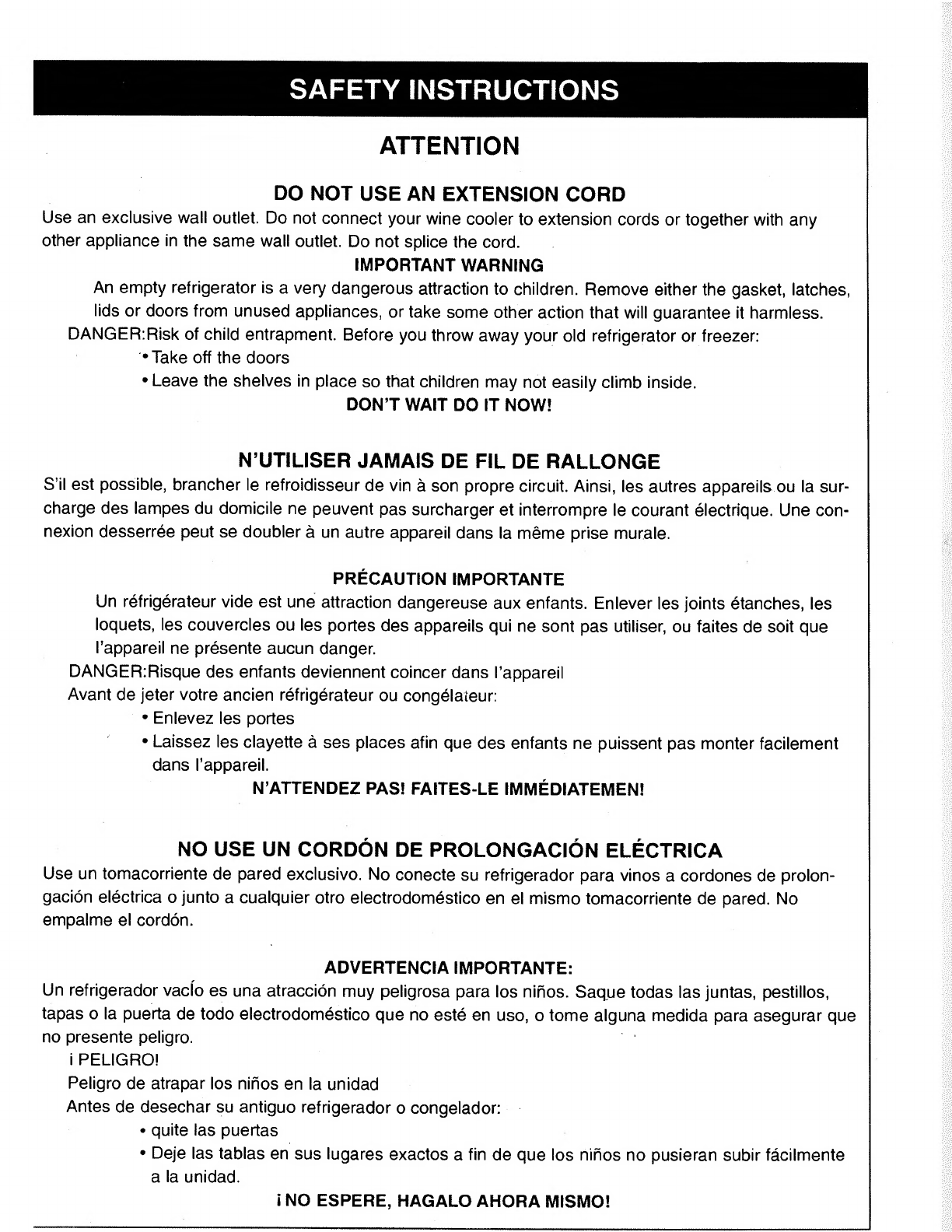

SAFETY INSTRUCTIONS
ATTENTION
DO NOT USE AN EXTENSION CORD
Use an exclusive wall outlet. Do not connect your wine cooler to extension cords or together with any
other appliance in the same wall outlet. Do not splice the cord.
IMPORTANT WARNING
An empty refrigerator is a very dangerous attraction to children. Remove either the gasket, latches,
lids or doors from unused appliances, or take some other action that will guarantee it harmless.
DANGER:Risk of child entrapment. Before you throw away your old refrigerator or freezer:
• Take off the doors
• Leave the shelves in place so that children may not easily climb inside.
DON’T WAIT DO IT NOW!
N’UTILISER JAMAIS DE FIL DE RALLONGE
S’il est possible, brancher le refroidisseur de vin a son propre circuit. Ainsi, les autres appareils ou la sur¬
charge des lampes du domicile ne peuvent pas surcharger et interrompre le courant electrique. Une con¬
nexion desserree peut se doubler a un autre appareil dans la meme prise murale.
PRECAUTION IMPORTANTE
Un refrigerateur vide est une attraction dangereuse aux enfants. Enlever les joints etanches, les
loquets, les couvercles ou les portes des appareils qui ne sont pas utiliser, ou faites de soit que
I’appareil ne presente aucun danger.
DANGER:Risque des enfants deviennent coincer dans I’appareil
Avant de jeter votre ancien refrigerateur ou congelateur:
• Enlevez les portes
• Laissez les clayette a ses places afin que des enfants ne puissent pas monter facilement
dans I’appareil.
N’ATTENDEZ PAS! FAITES-LE IMMEDIATEMEN!
NO USE UN CORDON DE PROLONGACION ELECTRICA
Use un tomacorriente de pared exclusivo. No conecte su refrigerador para vinos a cordones de prolon-
gacion electrica o junto a cualquier otro electrodomestico en el mismo tomacorriente de pared. No
empalme el cordon.
ADVERTENCIA IMPORTANTE:
Un refrigerador vaclo es una atraccion muy peligrosa para los ninos. Saque todas las juntas, pestillos,
tapas o la puerta de todo electrodomestico que no este en uso, o tome alguna medida para asegurar que
no presente peligro.
i PELIGRO!
Peligro de atrapar los ninos en la unidad
Antes de desechar su antiguo refrigerador o congelador:
• quite las puertas
• Deje las tablas en sus lugares exactos a fin de que los ninos no pusieran subir facilmente
a la unidad.
i NO ESPERE, HAGALO AHORA MISMO!

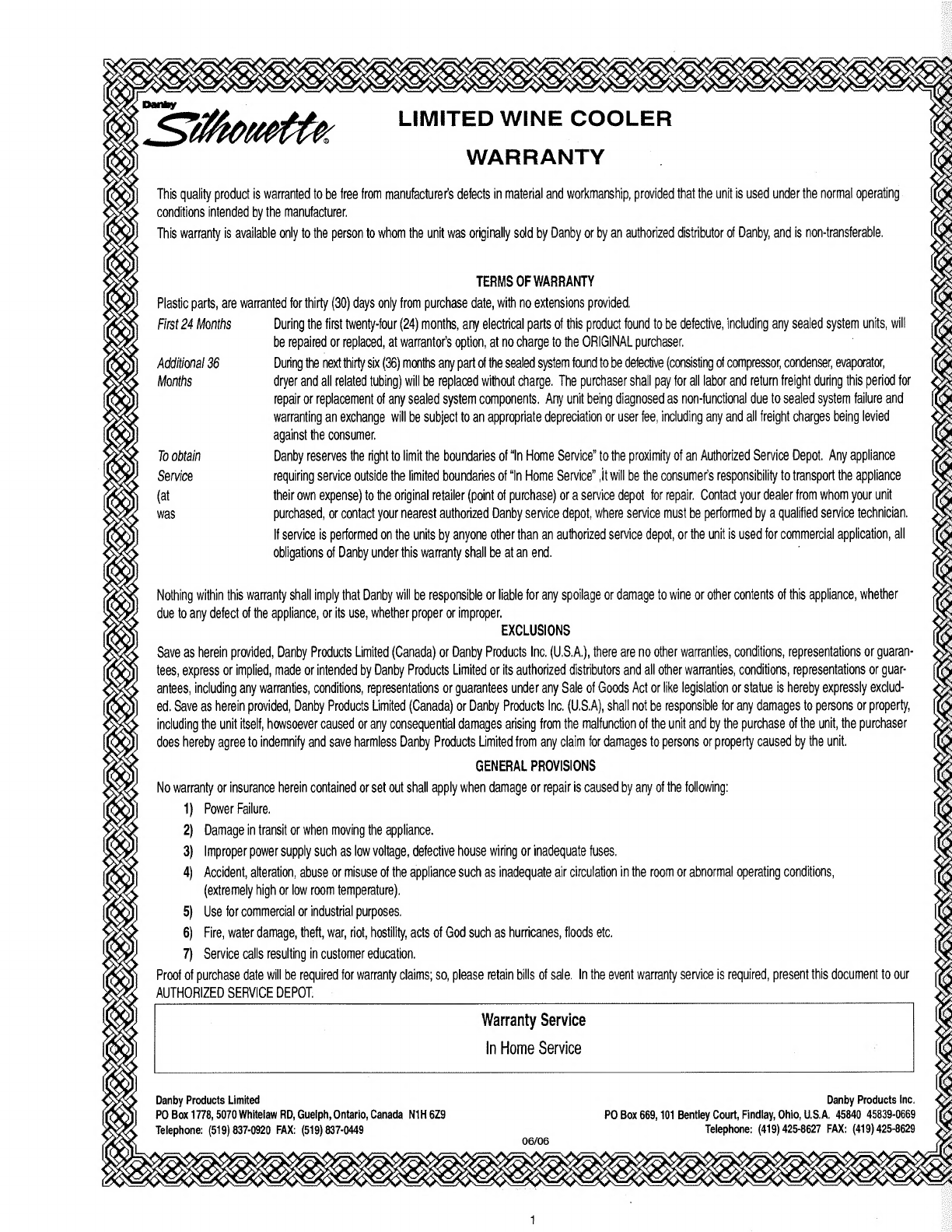

LIMITED WINE COOLER
WARRANTY
This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating
conditions intended by the manufacturer.
This warranty is available only to the person to whom the unit was originally sold by Danby or by an authorized distributor of Danby, and is non-transferable.
TERMS OF WARRANTY
Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.
First 24 Months
Additional 36
Months
To obtain
Service
(at
was
During the first twenty-four (24) months, any electrical parts of this product found to be defective, including any sealed system units, will
be repaired or replaced, at warrantor’s option, at no charge to the ORIGINAL purchaser.
During the next thirty six (36) months any part of the sealed system found to be defective (consisting of compressor, condenser, evaporator,
dryer and all related tubing) will be replaced without charge. The purchaser shall pay for all labor and return freight during this period for
repair or replacement of any sealed system components. Any unit being diagnosed as non-functional due to sealed system failure and
warranting an exchange will be subject to an appropriate depreciation or user fee, including any and all freight charges being levied
against the consumer.
Danby reserves the right to limit the boundaries of “In Home Service" to the proximity of an Authorized Service Depot. Any appliance
requiring service outside the limited boundaries of “In Home Service" ,it will be the consumer’s responsibility to transport the appliance
their own expense) to the original retailer (point of purchase) or a service depot for repair. Contact your dealer from whom your unit
purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician.
If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial application, all
obligations of Danby under this warranty shall be at an end.
Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to wine or other contents of this appliance, whether
due to any defect of the appliance, or its use, whether proper or improper.
EXCLUSIONS
Save as herein provided, Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.), there are no other warranties, conditions, representations or guaran¬
tees, express or implied, made or intended by Danby Products Limited or its authorized distributors and all other warranties, conditions, representations or guar¬
antees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statue is hereby expressly exclud¬
ed. Save as herein provided, Danby Products Limited (Canada) or Danby Products Inc. (U.S.A), shall not be responsible for any damages to persons or property,
including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser
does hereby agree to indemnify and save harmless Danby Products Limited from any claim for damages to persons or property caused by the unit.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power Failure.
2 ) Damage in transit or when moving the appliance.
3 ) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4 ) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions,
(extremely high or low room temperature).
5 ) Use for commercial or industrial purposes.
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7 ) Service calls resulting in customer education.
Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our
AUTHORIZED SERVICE DEPOT.
Warranty Service
In Home Service
Danby Products Limited
PO Box 1778,5070Whitelaw RD, Guelph, Ontario, Canada N1H 6Z9
Telephone: [phone] FAX: [phone]
06/06
Danby Products Inc.
PO Box 669,101 Bentley Court, Findlay, Ohio, U.S.A. 45840 45839-0669
Telephone: [phone] FAX: [phone]

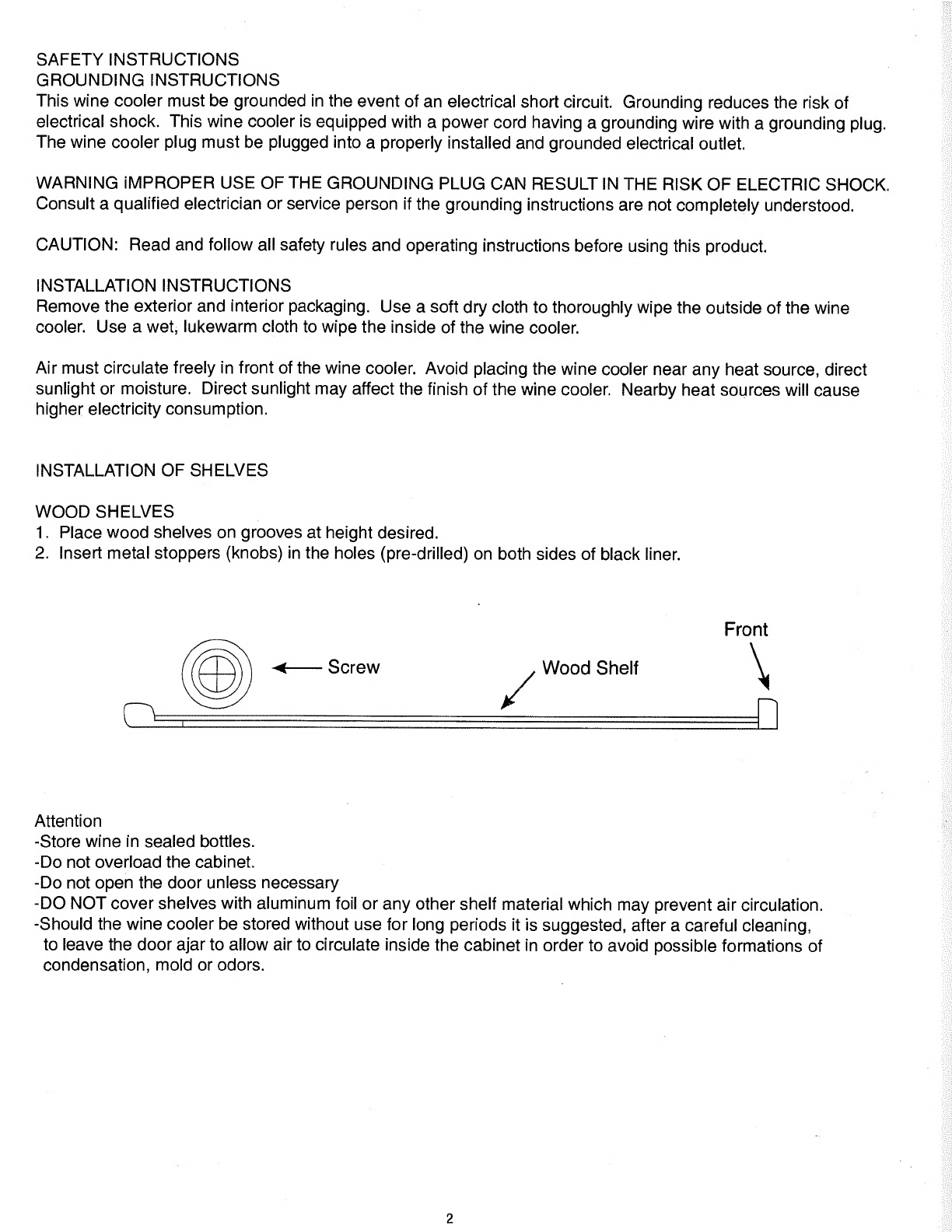

SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
This wine cooler must be grounded in the event of an electrical short circuit. Grounding reduces the risk of
electrical shock. This wine cooler is equipped with a power cord having a grounding wire with a grounding plug.
The wine cooler plug must be plugged into a properly installed and grounded electrical outlet.
WARNING iMPROPER USE OF THE GROUNDING PLUG CAN RESULT IN THE RISK OF ELECTRIC SHOCK.
Consult a qualified electrician or service person if the grounding instructions are not completely understood.
CAUTION: Read and follow all safety rules and operating instructions before using this product.
INSTALLATION INSTRUCTIONS
Remove the exterior and interior packaging. Use a soft dry cloth to thoroughly wipe the outside of the wine
cooler. Use a wet, lukewarm cloth to wipe the inside of the wine cooler.
Air must circulate freely in front of the wine cooler. Avoid placing the wine cooler near any heat source, direct
sunlight or moisture. Direct sunlight may affect the finish of the wine cooler. Nearby heat sources will cause
higher electricity consumption.
INSTALLATION OF SHELVES
WOOD SHELVES
1. Place wood shelves on grooves at height desired.
2. Insert metal stoppers (knobs) in the holes (pre-drilled) on both sides of black liner.
Front
Attention
-Store wine in sealed bottles.
-Do not overload the cabinet.
-Do not open the door unless necessary
-DO NOT cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
-Should the wine cooler be stored without use for long periods it is suggested, after a careful cleaning,
to leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible formations of
condensation, mold or odors.
2

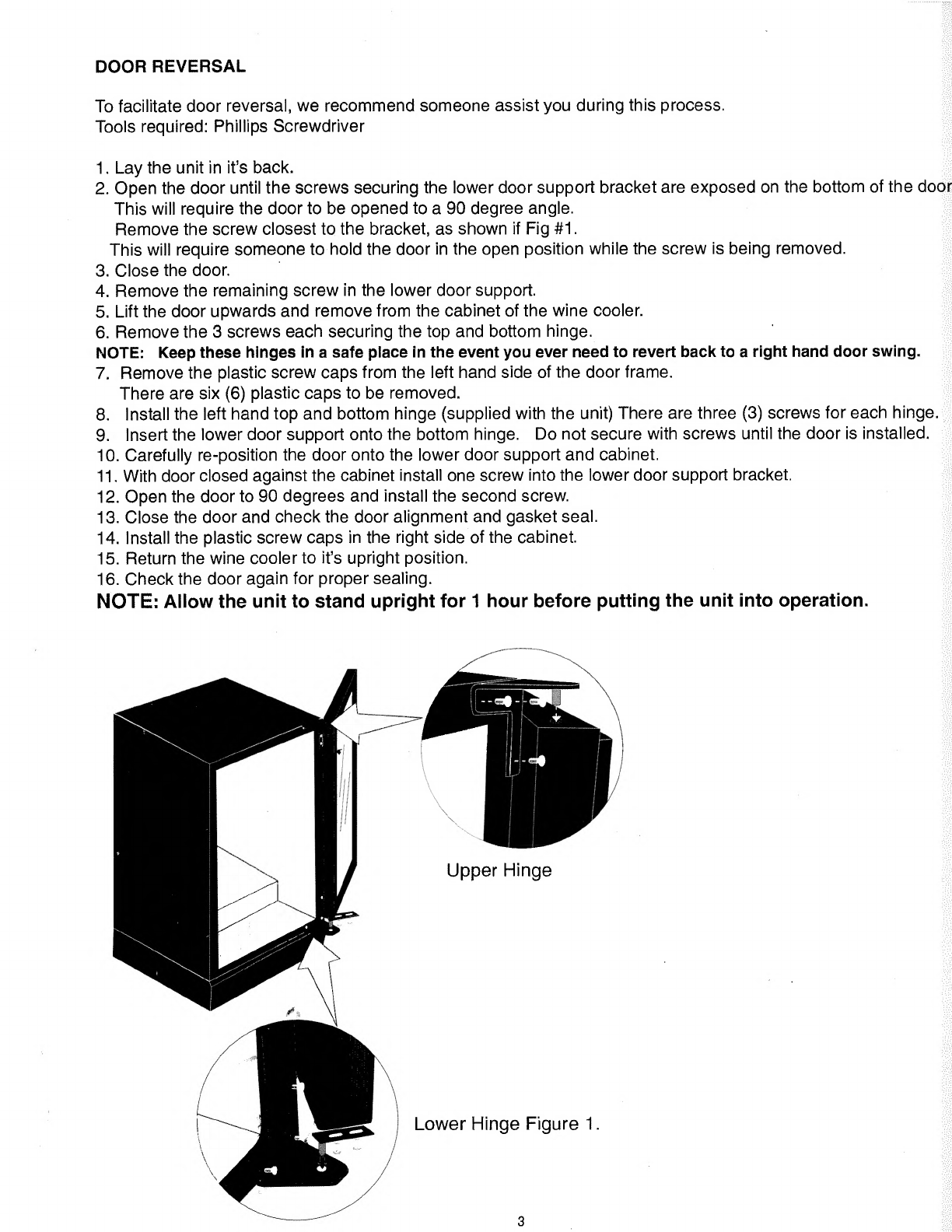

DOOR REVERSAL
To facilitate door reversal, we recommend someone assist you during this process.
Tools required: Phillips Screwdriver
1. Lay the unit in it’s back.
2. Open the door until the screws securing the lower door support bracket are exposed on the bottom of the door
This will require the door to be opened to a 90 degree angle.
Remove the screw closest to the bracket, as shown if Fig #1.
This will require someone to hold the door in the open position while the screw is being removed.
3. Close the door.
4. Remove the remaining screw in the lower door support.
5. Lift the door upwards and remove from the cabinet of the wine cooler.
6. Remove the 3 screws each securing the top and bottom hinge.
NOTE: Keep these hinges in a safe place in the event you ever need to revert back to a right hand door swing.
7. Remove the plastic screw caps from the left hand side of the door frame.
There are six (6) plastic caps to be removed.
8. Install the left hand top and bottom hinge (supplied with the unit) There are three (3) screws for each hinge.
9. Insert the lower door support onto the bottom hinge. Do not secure with screws until the door is installed.
10. Carefully re-position the door onto the lower door support and cabinet.
11. With door closed against the cabinet install one screw into the lower door support bracket.
12. Open the door to 90 degrees and install the second screw.
13. Close the door and check the door alignment and gasket seal.
14. Install the plastic screw caps in the right side of the cabinet.
15. Return the wine cooler to it’s upright position.
16. Check the door again for proper sealing.
NOTE: Allow the unit to stand upright for 1 hour before putting the unit into operation.
3

OPERATION:
Before turning on the wine cooler, ensure that the cabinet is level. This will eliminate any vibrations.
NOTE: The power (RUN) indicator light is located on the LED control panel inside the unit and will illuminate
when the compressor (cooling) cycle is operational. Set the desired cooling temperature by pressing the
buttons adjacent to the “upVdown” arrows. Each depression of the buttons will increase/decrease the set
temperature in increments of 1 degree. The set temperature will be displayed in the LED (TEMPSET) window.
It is possible to display temperatures in either Celsius or Fahrenheit. To change the setting, press and hold
both buttons simultaneously for approximately 5 seconds. The blue pilot light adjacent to the mode
selection will illuminate the selection made.
r
TEMP.SET
DISPLAY
RUN
o
Activation
i
°C
°F
* OA
ov
REGLAGE DE TEMP.
AFFICHAGE
To temporarily disconnect the cooling cycle, unplug the wine cooler. When disengaging the cooling function
for long periods of time, disconnect the plug and leave the door partially open.
NOTE: Wait 3 to 5 minutes before restarting the wine cooler if operation has been interrupted.
INTERIOR LIGHT
The interior light can operate “manually” or “automatically”. The light automatically comes on with the opening
of the door and goes out when the door is closed. To operate the light manually, press the light/toggle switch
located at the bottom right of the wine cooler exterior cabinet to the “on” position. To turn the light off, toggle
the switch to the “off” position.
DEFROSTING/CONDENSATION
Your wine cooler is designed with an “Auto-Cycle” defrost system. During the “Off Cycle” the refrigerated
surfaces of the wine cooler defrost automatically. Defrost water from the wine cooler storage compartment
drains automatically, and is channeled into a condensate drain pan which is located in the back of the wine
cooler next to the compressor. The heat transferred from the compressor evaporates any condensation that
has collected in the pan.
CARE & MAINTENANCE
Upon receiving your wine cooler, leave the door open for 24 hours. When cleaning the inside of the wine
cooler you can use a solution of a tablespoon of baking soda to one (1) quart of water, or a mild soap suds
solution, or some mild detergent. Wood shelving does not require cleaning. To clean the exterior cabinet of
your wine cooler, use a soft damp cloth with mild detergent or appliance cleaner.
4

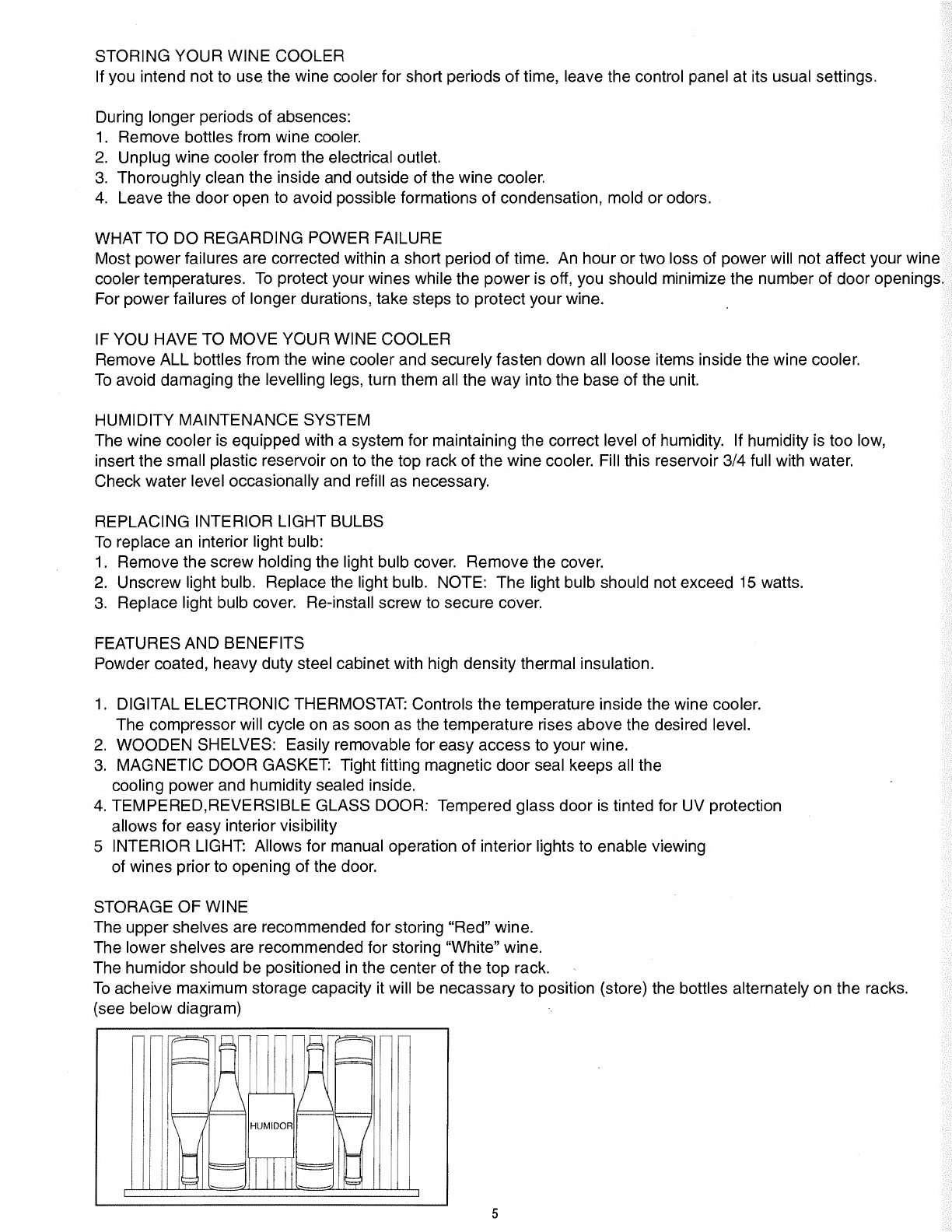

STORING YOUR WINE COOLER
If you intend not to use, the wine cooler for short periods of time, leave the control panel at its usual settings.
During longer periods of absences:
1. Remove bottles from wine cooler.
2. Unplug wine cooler from the electrical outlet.
3. Thoroughly clean the inside and outside of the wine cooler.
4. Leave the door open to avoid possible formations of condensation, mold or odors.
WHAT TO DO REGARDING POWER FAILURE
Most power failures are corrected within a short period of time. An hour or two loss of power will not affect your wine
cooler temperatures. To protect your wines while the power is off, you should minimize the number of door openings.
For power failures of longer durations, take steps to protect your wine.
IF YOU HAVE TO MOVE YOUR WINE COOLER
Remove ALL bottles from the wine cooler and securely fasten down all loose items inside the wine cooler.
To avoid damaging the levelling legs, turn them all the way into the base of the unit.
HUMIDITY MAINTENANCE SYSTEM
The wine cooler is equipped with a system for maintaining the correct level of humidity. If humidity is too low,
insert the small plastic reservoir on to the top rack of the wine cooler. Fill this reservoir 3/4 full with water.
Check water level occasionally and refill as necessary.
REPLACING INTERIOR LIGHT BULBS
To replace an interior light bulb:
1. Remove the screw holding the light bulb cover. Remove the cover.
2. Unscrew light bulb. Replace the light bulb. NOTE: The light bulb should not exceed 15 watts.
3. Replace light bulb cover. Re-install screw to secure cover.
FEATURES AND BENEFITS
Powder coated, heavy duty steel cabinet with high density thermal insulation.
1. DIGITAL ELECTRONIC THERMOSTAT: Controls the temperature inside the wine cooler.
The compressor will cycle on as soon as the temperature rises above the desired level.
2. WOODEN SHELVES: Easily removable for easy access to your wine.
3. MAGNETIC DOOR GASKET: Tight fitting magnetic door seal keeps all the
cooling power and humidity sealed inside.
4. TEMPERED,REVERSIBLE GLASS DOOR: Tempered glass door is tinted for UV protection
allows for easy interior visibility
5 INTERIOR LIGHT: Allows for manual operation of interior lights to enable viewing
of wines prior to opening of the door.
STORAGE OF WINE
The upper shelves are recommended for storing “Red” wine.
The lower shelves are recommended for storing “White” wine.
The humidor should be positioned in the center of the top rack.
To acheive maximum storage capacity it will be necassary to position (store) the bottles alternately on the racks.
(see below diagram)
5

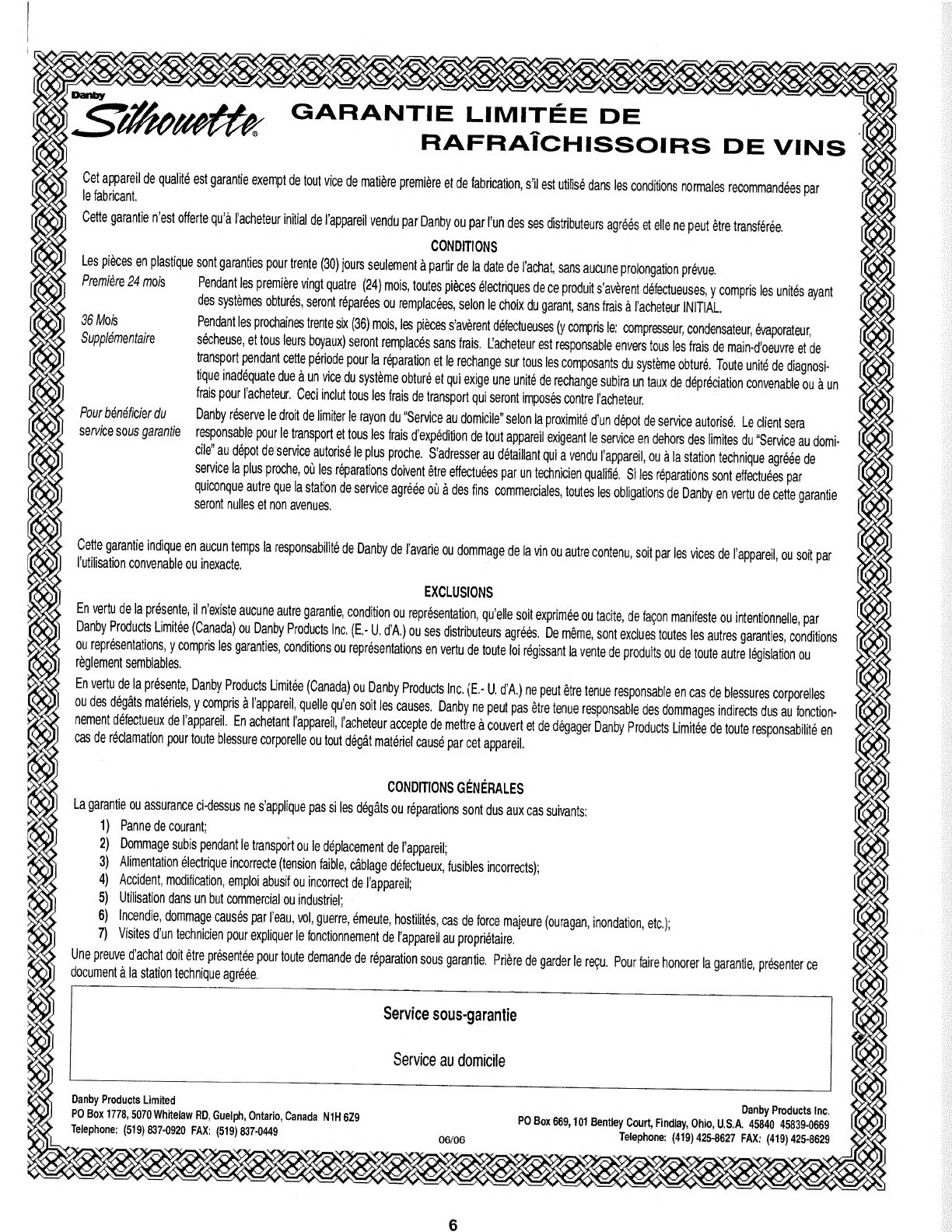

garantie limitee de
RAFRAICHISSOIRS DEVINS
lefabricant' 1 ^ ^ 9arantie exempt de *° Ut vice de mati ® re premi ® re et de febrication, s’il est utilise dans les conditions normales recommandees par
Cette garantie n est offerte qu a I acheteur initial de I'appareii vendu par Danby ou par I’un des ses distributees agrees et elle ne peut etre transferee.
CONDITIONS
Les pieces en plastique sont garanties pour trente (30) jours seulement a partir de la date de I’achat, sans aucune prolongation prevue.
Premiere 24 mois Pendant les premiere vingt quatre (24) mois, toutes pieces electriques de ce produit s’averent defectueuses, y compris les unites ayant
des systemes obtures, seront reparees ou rempiacees, selon le choix du garant, sans frais a I’acheteur INITIAL,
36 Mois Pendant les prochaines trente six (36) mois, les pieces s’averent defectueuses (y compris le: compresseur, condensateur, evaporateur
Supplementaire secheuse, et tous leurs boyaux) seront remplaces sans frais. L’acheteur est responsable envers tous les frais de main-d'oeuvre et de
transport pendant cette periode pour la reparation et ie rechange sur tous les composants du systeme obturd, Toute unite de diagnosi-
tique inadequate due a un vice du systeme obture et qui exige une unite de rechange subira un taux de depreciation convenable ou a un
frais pour I’acheteur. Ceci inclut tous les frais de transport qui seront imposes contre I’acheteur.
Pour beneficier du Danby reserve le droit de limiter le rayon du “Service au domicile” selon la proximite d’un depot de service autorise. Le client sera
seme sous garantie responsable pour le transport et tous les frais d’expedition de tout appareil exigeant le service en dehors des limites du “Service au domi¬
cile au depot de service autorise le plus proche. S’adresser au detaillant qui a vendu I’appareii, ou a la station technique agreee de
service la plus proche, oil les reparations doivent etre effectuees par un technicien qualifie. Si les reparations sont effectuees par
quiconque autre que la station de service agreee ou a des fins commerciales, toutes les obligations de Danby en vertu de cette qarantie
seront nulles et non avenues.
Pour beneficier du
service sous garantie
Cette garantie indique en aucun temps la responsabilite de Danby de I’avarie ou dommage de la vin ou autre contenu, soit par les vices de I’appareii ou soit par
I utilisation convenable ou inexacte. v H
EXCLUSIONS
En vertu de la presente, illn existe aucune autre garantie, condition ou representation, qu’elle soit exprimee ou tacite, de fagon manifeste ou intentionnelle par
Danby Products Limitee (Canada) ou Danby Products Inc. (E.- U. d’A.) ou ses distributeurs agrees. De meme, sont exclues toutes les autres garanties, conditions
ou representations, y compris les garanties, conditions ou representations en vertu de toute loi regissant la vente de produits ou de toute autre leaislation ou
reglement semblables. M
En vertu de la presente, Danby Products Limitee (Canada) ou Danby Products Inc. (E.- U. d’A.) ne peut etre tenue responsable en cas de blessures corporelles
ou des degats matenels, y compris a I’appareii, quelle qu’en soit les causes, Danby ne peut pas etre tenue responsable des dommages indirects dus au fonction-
nement de ectueux de I appareil. En achetant I’appareii, I’acheteur accepte de mettre a couvert et de degager Danby Products Limitee de toute responsabilite en
cas de reclamation pour toute blessure corporelle ou tout degat materiel cause par cet appareil.
CONDITIONS GENERALES
La garantie ou assurance ci-dessus ne s’applique pas si les degats ou reparations sont dus aux cas suivants:
1) Panne de courant;
2) Dommage subis pendant le transport ou le deplacement de I’appareii;
3) Alimentation electrique incorrecte (tension faible, cablage defectueux, fusibles incorrects);
4) Accident, modification, emploi abusif ou incorrect de I’appareii;
5) Utilisation dans un but commercial ou industriel;
6) Incendie, dommage causes par I’eau, vol, guerre, emeute, hostilites, cas de force majeure (ouragan, inondation, etc.);
7) Visites d’un technicien pour expliquer le fonctionnement de I’appareii au proprietaire.
Une preuve d’achat doit etre presentee pour toute demande de reparation sous garantie. Priere de garder le regu. Pour faire honorer la garantie presenter ce
document a la station technique agreee.
Service sous-garantie
Service au domicile
Danby Products Limited
PO Box 1778,5070 Whitelaw RD, Guelph, Ontario, Canada N1H 629
Telephone: [phone] FAX: [phone]
Danby Products Inc.
PO Box 669,101 Bentley Court, Findlay, Ohio, U.S.A. 45840 45839-0669
Telephone: [phone] FAX: [phone]

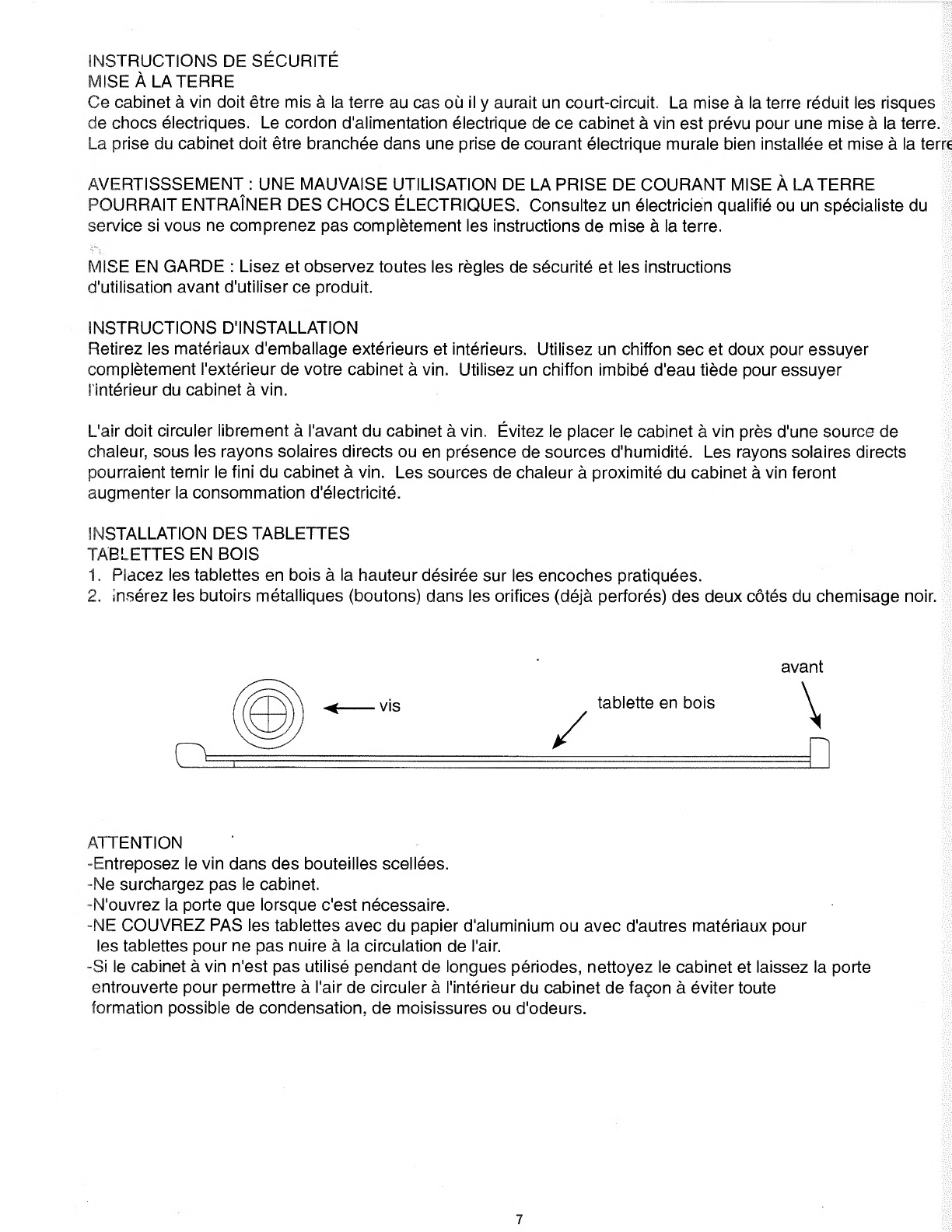

INSTRUCTIONS DE SECURITE
MISE A LA TERRE
Ce cabinet a vin doit etre mis a la terre au cas ou it y aurait un court-circuit. La mise a la terre reduit les risques
de chocs electriques. Le cordon d'alimentation electrique de ce cabinet a vin est prevu pour une mise a la terre.
La prise du cabinet doit etre branchee dans une prise de courant electrique murale bien installee et mise a la terre
AVERTISSSEMENT : UNE MAUVAISE UTILISATION DE LA PRISE DE COURANT MISE A LA TERRE
POURRAIT ENTRAINER DES CHOCS ELECTRIQUES. Consultez un electricien qualifie ou un specialise du
service si vous ne comprenez pas completement les instructions de mise a la terre.
MISE EN GARDE : Lisez et observez toutes les regies de securite et les instructions
d'utilisation avant d'utiliser ce produit.
INSTRUCTIONS D'INSTALLATION
Retirez les materiaux d'emballage exterieurs et interieurs. Utilisez un chiffon sec et doux pour essuyer
completement I'exterieur de votre cabinet a vin. Utilisez un chiffon imbibe d'eau tiede pour essuyer
l interieur du cabinet a vin.
L'air doit circuler librement a I'avant du cabinet a vin. Evitez le placer le cabinet a vin pres d'une source de
chaleur, sous les rayons solaires directs ou en presence de sources d'humidite. Les rayons solaires directs
pourraient ternir le fini du cabinet a vin. Les sources de chaleur a proximite du cabinet a vin feront
augmenter la consommation d'electricite.
INSTALLATION DES TABLETTES
TABLETTES EN BOIS
1. Placez les tablettes en bois a la hauteur desiree sur les encoches pratiquees.
2. Inserez les butoirs metalliques (boutons) dans les orifices (deja perfores) des deux cotes du chemisage noir.
avant
ATTENTION
-Entreposez le vin dans des bouteilles scellees.
-Ne surchargez pas le cabinet.
-N'ouvrez la porte que lorsque c'est necessaire.
-NE COUVREZ PAS les tablettes avec du papier d'aluminium ou avec d'autres materiaux pour
les tablettes pour ne pas nuire a la circulation de l'air.
-Si le cabinet a vin n’est pas utilise pendant de longues periodes, nettoyez le cabinet et laissez la porte
entrouverte pour permettre a l'air de circuler a I'interieur du cabinet de fagon a eviter toute
formation possible de condensation, de moisissures ou d'odeurs.
7
