User Guide
Intelligent Purging System (IPS 8)
Ammonia
ir.danfoss.com148R9653
Info for UK customers only
Danfoss Ltd. Oxford Road, UB9
4LH Denham, UK
230 V AC, 60 Hz
Other IPS 8 User Guide languages

User Guide |Intelligent Purging System (IPS 8) Ammonia
2 | BC344024774466en-000401 © Danfoss | DCS (ms) | 2021.04
Legal notice...................................................................................................................................................................................................................3
Technical data..............................................................................................................................................................................................................4
Ordering..........................................................................................................................................................................................................................4
Introduction..................................................................................................................................................................................................................5
Features ...........................................................................................................................................................................................................................5
Working principle .....................................................................................................................................................................................................6
Working cycle ..............................................................................................................................................................................................................7
Air traps............................................................................................................................................................................................................................8
Connection locations..............................................................................................................................................................................................9
Connection points.................................................................................................................................................................................................11
Installation ..................................................................................................................................................................................................................12
Electrical wiring ......................................................................................................................................................................................................14
Light Indicators........................................................................................................................................................................................................16
Quick Startup ............................................................................................................................................................................................................17
General display.........................................................................................................................................................................................................17
Configuring using the LCD...............................................................................................................................................................................18
Modbus RTU..............................................................................................................................................................................................................20
Maintenance/Service/Disposal......................................................................................................................................................................27
Contents

User Guide |Intelligent Purging System (IPS 8) Ammonia
© Danfoss | DCS (ms) | 2021.04 BC344024774466en-000401 | 3
Legal notice This product information is a part of the documentation for the Danfoss scope of delivery and serves
as product presentation and customer advisory service. It contains important information and
technical data regarding the product.
This product information should be supplemented with the information about the industrial safety
and health related regulations at the site of installation of the product. The regulations vary from
place to place as a result of the statutory regulations applicable at the site of installation and are
therefore not considered in this product information.
In addition to this product information and the accident prevention regulations applicable for the
respective country and area where the product is used, the technical regulations for safe and
professional work must also be observed.
This product information has been written in good faith. However, Danfoss cannot be held responsible
for any errors that this document may contain or for their consequences.
Danfoss reserves the right to make technical changes during the course of further development of the
equipment covered by this product information.
Illustrations and drawings in this product information are simplified representations. As a result of
the improvements and changes, it is possible that the illustrations do not exactly match the current
development status. The technical data and dimensions are subject to change. No claims will be
accepted on the basis of them.
Date: YYYY.MM.DD
Place of issue:
Issued by Date: YYYY.MM.DD
Place of issue:
Approved by
Signature:
Name: Su Cheong Ho
Title: Lead Design Engineer
Signature:
Name: Behzad Parastar
Title: Product Manager
Danfoss only vouches for the correctness of the English version of this declaration. In the event of the declaration being translated into any other
language, the translator concerned shall be liable for the correctness of the translation
ID No: 084R9456
This doc. is managed by 500B0577
Revision No:AA Page 1 of
Danfoss A/S
6430 Nordborg
Denmark
CVR nr.: 20 16 57 15
Telephone: [phone]
Fax: [phone]
EU DECLARATION OF CONFORMITY
Danfoss A/S
Refrigeration & Air Conditioning Controls
declares under our sole responsibility that the
Product category:Intelligent Purger System (Air Purger)
Type designation(s):IPS 8
Covered by this declaration is in conformity with the following directive(s), standard(s) or other normative
document(s), provided that the product is used in accordance with our instructions.
Machine Directive 2006/42/EC
EN 378-2:2016 Refrigerating systems and heat pumps - Safety and environmental requirements - Part 2: Design,
construction, testing, marking and documentation
IEC 60204-1:2018 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 1:
General requirements
Pressure Equipment Directive 2014/68/EU (PED)
EN 378-2:2016 Refrigerating systems and heat pumps - Safety and environmental requirements - Part 2: Design,
construction, testing, marking and documentation
Ammonia side (R717): Category A4P3. Fluid group: 1. PS = 40 bar. TS: -40 C to 60 C
R452A side: Category 1. Fluid group: 2. PS = 28 bar. TS: -40 C to 60 C
Ambient temperature: -10 C to 43 C
Electromagnetic Compatibility Directive 2014/30/EU (EMC)
IEC 61000-6-2 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity standard for industrial
environments (IEC77/488/CDV:2015)
EN 61000-6-4 Electromagnetic compatibiliy (EMC) - Part 6-4: Generic standards - Emission standard for industrial
environments
Note: EMC test performed with cable length < 30m.
1

User Guide |Intelligent Purging System (IPS 8) Ammonia
4 | BC344024774466en-000401 © Danfoss | DCS (ms) | 2021.04
Ordering Unit Code number
Danfoss Intelligent Purging System IPS 8 60Hz unit 084H5002
Accessories/Spare parts Accessory Spare part Code
Flange blind blank incl Bolts, nuts and Gaskets* x 084H5053
SV3 Float Valve x 027B2023
ICF 15-4 solenoid, DIN Butt weld 15mm ½ inch x 027L4543
ICF 15-4 solenoid, ANSI Socket weld 15mm ½ inch x 027L4538
ICF 15-4 solenoid, ANSI Butt weld 15mm ½ inch x 027L4602
Welding Flange incl Bolts, nuts and Gaskets x 084H5061
Purger solenoid kit (Armature, tube, Sealing, Orifice, Filter insert) x 084H5051
Solenoid coil, 24V DC for AKV x x 018F6757
PSU, 24V DC - optional for powering purge points x x 080Z0055
Restrictor, purge line x 084H5054
Compressor Cranck case heater x 084H5058
Condenser coil assy incl screws x 084H5059
Fan motor for condenser Incl fan grid and screws x 084H5060
Extraction Fan x 084H5056
Air grid with filter (1 piece) x 084H5057
Pre-programmed MCX 15 x 084H5052
Pressure transmitter evaporator, soldered (AKS 32R) x 060G3552
Compressor including Start relay box and Start and Run Capacitor x 123B2156
Compressor Hi-temp sensor x 084N2003
Expansion valve, R452A x 068U3881
Sight glass x 014-0191
Pressure transmitter - R717, Threaded, AKS2050 x 060G5750
Thermostat for crankcase heater control x 060L111166
Temperature sensor - R717, AKS 21M x 084N2003
Pressure switch for Fan x Contact Danfoss
Pressure safety switch x Contact Danfoss
* For closing system flange during system pressure testing
Technical data Supply voltage 230V AC, 1ph, 60Hz
Current 5.7 A (max. 6.5 A)
Power consumption max. 1.3 kW
Short-circuit current rating Icc 10kA
Temperature range ambient -10 °C to +43 °C (14 °F to 109 °F)
Temperature range transport/storage -30 °C to +60 °C (-22 °F to 140 °F)
Enclosure IP55
Weight max. 100 kg (221 lbs)
Dimensions (LxWxH) 1051 x 441 x 703 mm (41.4 x 17.4 x 27.7 inches)
Purger refrigerant R452A 900 gram (31.7 oz)
Max. operating pressure (PS) R452A 28 bar (406 psi)
System refrigerant R717
Min. operating pressure R717 6.5 bar (94 psi)
Max. operating pressure R717 40 bar (580 psi)
Operating temperature R717 -40 °C to +60 °C (-40 °F to 140 °F)
Note:
All Spare part items are parts already built into
the IPS 8 All accessories are not.

User Guide |Intelligent Purging System (IPS 8) Ammonia
© Danfoss | DCS (ms) | 2021.04 BC344024774466en-000401 | 5

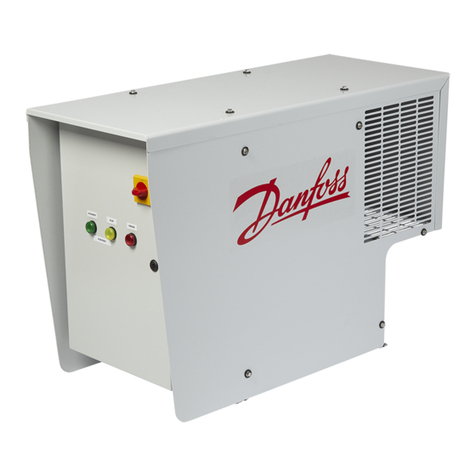

The Danfoss Intelligent Purging System (IPS 8)
is a stand-alone, self-contained purging unit
designed to remove non-condensable gases
(NC gases = air and other unwanted foreign
gases) from industrial ammonia refrigeration
systems.
The IPS control can handle up to 8 purge points
automatically.
The ingress of NC gases into a refrigeration
system is inevitable, regardless of the refrigerant,
pressures, or temperatures. NC gases in the
system will result in a decrease in system
efficiency, both in terms of an increase in power
consumption and reduced cooling capacity.
Due to having a different density than ammonia,
the ingressed air will accumulate in specific areas
of the system, where it can be removed using the
Danfoss IPS 8.
The accumulation areas are identified in the
Connection locations section, along with
recommended connection principles.
The purger unit is an electronically controlled,
self-contained R452A refrigerant system that runs
independent of the main ammonia system and
with only one flange connection to the ammonia
plant.
The flanged opening allows the ammonia gas/
NC gas mix access to the purger’s heat exchanger,
where it is split into ammonia condensate and NC
gases. The ammonia condensate is returned by
gravity to the main plant, while the NC gases are
purged to the atmosphere through e.g. a water
bath.
Through the flanged opening, the purger unit
has access to the parameters from the ammonia
plant required for full electronic control.
The unit runs automatically in 24-hour cycles,
checking for the presence of NC gases and, if
present, removes the NC gases.
To regain and retain the design capacity of the
main ammonia system and prevent future air
accumulation, it is highly recommended to install
the Danfoss IPS 8.
Introduction
Features • State-of-the-art electronically controlled unit
based on the Danfoss MCX controller platform
• Reduced power consumption of the ammonia
plant
• Automatic purging response to NC gases in the
refrigeration system
• Continuous and smart monitoring of
differential pressure between the system
refrigerant and the purger’s refrigerant
• Smart purging that minimizes refrigerant
(ammonia) release to the environment
• Self-contained unit operation, which functions
independently from the main plant
• An operation log for easy purging cycle data
monitoring
• Industry standard Modbus RTU
communication for remote monitoring and
system integration
• Reduced purging unit power consumption
compared to other units due to on-demand
operation only
• Self-diagnostics for both unit and system
operation to shut down in the event of
malfunctions
• Cost-effective installation with few mechanical
and electrical connections
• A fully brazed and leak-tested R452A cooling
system, minimizing leakage risks
• A plug-and-play stand-alone design, which
simplifies installation and commissioning while
reducing potential errors
• No need for advanced settings
• A compact and easy-to-handle design
• Patent pending on IPS 8
