Installation Guide
Modbus TCP Module
VLT®Compact Starter MCD 201/MCD 202
VLT®Soft Starter MCD 500
vlt-drives.danfoss.com

Contents
1 Introduction 3
1.1 Purpose of the Manual 3
1.2 Additional Resources 3
1.3 Product Overview 3
1.4 Approvals and Certications 3
1.5 Disposal 3
1.6 Symbols, Abbreviations, and Conventions 3
2 Safety 4
2.1 Qualied Personnel 4
2.2 General Warnings 4
3 Installation 6
3.1 Installation Procedure 6
4 Connection 7
4.1 Soft Starter Connection 7
4.2 Network Connection 8
4.2.1 Ethernet Ports 8
4.2.2 Cables 8
4.2.3 EMC Precautions 8
4.2.4 Network Establishment 8
4.3 Addressing 8
5 Device Conguration 9
5.1 Conguration Overview 9
5.2 On-board Web Server 9
5.3 Ethernet Device Conguration Tool 9
6 Operation 11
6.1 Device Classication 11
6.2 Conguration 11
6.3 LEDs 11
7 Modbus Registers 12
7.1 Compatibility 12
7.2 Ensuring Safe and Successful Control 12
7.3 Conguring Soft Starter Parameters 12
7.4 Standard Mode 12
7.4.1 PLC Conguration 12
7.4.2 Command and Conguration Registers (Read/Write) 13
Contents Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 1

7.4.3 Status Reporting Registers (Read Only) 13
7.4.4 Examples 14
7.5 Legacy Mode 15
7.5.1 PLC Conguration 15
7.5.2 Registers 15
7.5.3 Examples 16
7.6 Trip Codes 17
7.6.1 Internal Fault X 17
8 Network Design 18
8.1 Star Topology 18
8.2 Line Topology 18
8.3 Ring Topology 18
8.4 Combined Topologies 19
9 Specications 20
Index 21
Contents Modbus TCP Module
2 Danfoss A/S © 10/2017 All rights reserved. MG17N102

1 Introduction
1.1 Purpose of the Manual
This installation guide provides information for the instal-
lation of the Modbus TCP module for VLT®Compact Starter
MCD 201/MCD 202 and VLT®Soft Starter MCD 500.
The installation guide is intended for use by qualied
personnel.
Users are assumed to be familiar with:
•VLT®soft starters.
•Ethernet protocols.
•PC or PLC that is used as a master in the system.
Read the instructions before installation and ensure that
the instructions for safe installation are observed.
VLT®is a registered trademark.
1.2 Additional Resources
Resources available for the soft starter and optional
equipment:
•The VLT
®
Compact Starter MCD 200 Operating
Instructions provide the necessary information for
getting the soft starter up and running.
•The VLT
®
Soft Starter MCD 500 Operating Guide
provides the necessary information for getting
the soft starter up and running.
Supplementary publications and manuals are available
from Danfoss. See drives.danfoss.com/knowledge-center/
technical-documentation/ for listings.
1.3 Product Overview
1.3.1 Intended Use
This installation guide relates to Modbus TCP Module for
VLT®soft starters, ordering number 175G9904.
The Modbus TCP Module is intended for use with:
•VLT®Compact Starter MCD 201/MCD 202,
24 V AC/V DC and 110/240 V AC control voltage.
•VLT®Soft Starter MCD 500, all models.
NOTICE
The Modbus TCP Module is NOT suitable for use with the
MCD 201/MCD 202 compact starters using 380/440 V AC
control voltage.
The Modbus TCP Module allows a Danfoss soft starter to
connect to an Ethernet network and be controlled or
monitored using an Ethernet communication model.
Familiarity with Ethernet protocols and networks is
required to operate the device successfully. If there are
diculties when using this device with third-party
products, including PLCs, scanners, and commissioning
tools, contact the relevant supplier.
1.4 Approvals and Certications
More approvals and certications are available. For more
information, contact a local Danfoss partner.
1.5 Disposal
Do not dispose of equipment containing
electrical components together with
domestic waste.
Collect it separately in accordance with
local and currently valid legislation.
1.6 Symbols, Abbreviations, and
Conventions
Abbreviation Denition
DHCP Dynamic host conguration protocol
EMC Electromagnetic compatibility
IP Internet protocol
LCP Local control panel
LED Light-emitting diode
LOP Local operation panel
PC Personal computer
PLC Programmable logic controller
Table 1.1 Symbols and Abbreviations
Conventions
Numbered lists indicate procedures.
Bullet lists indicate other information and description of
illustrations.
Italicized text indicates:
•Cross-reference.
•Link.
•Parameter name.
•Parameter group name.
•Parameter option.
Introduction Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 3
11

2 Safety
The following symbols are used in this manual:
WARNING
Indicates a potentially hazardous situation that could
result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation that could
result in minor or moderate injury. It can also be used to
alert against unsafe practices.
NOTICE
Indicates important information, including situations that
can result in damage to equipment or property.
2.1 Qualied Personnel
Correct and reliable transport, storage, installation,
operation, and maintenance are required for the trouble-
free and safe operation of the soft starter. Only qualied
personnel are allowed to install or operate this equipment.
Qualied personnel are dened as trained sta, who are
authorized to install, commission, and maintain equipment,
systems, and circuits in accordance with pertinent laws and
regulations. Also, the qualied personnel must be familiar
with the instructions and safety measures described in this
installation guide.
2.2 General Warnings
WARNING
ELECTRICAL SHOCK HAZARD
VLT®Soft Starter MCD 500 contains dangerous voltages
when connected to mains voltage. Only a qualied
electrician should carry out the electrical installation.
Improper installation of the motor or the soft starter can
cause death, serious injury, or equipment failure. Follow
the guidelines in this manual and local electrical safety
codes.
Models MCD5-0360C ~ MCD5-1600C:
Treat the busbar and heat sink as live parts whenever
the unit has mains voltage connected (including when
the soft starter is tripped or waiting for a command).
WARNING
PROPER GROUNDING
Disconnect the soft starter from mains voltage before
carrying out repair work.
It is the responsibility of the person installing the soft
starter to provide proper grounding and branch circuit
protection according to local electrical safety codes.
Do not connect power factor correction capacitors to the
output of the VLT®Soft Starter MCD 500. If static power
factor correction is employed, it must be connected to
the supply side of the soft starter.
WARNING
IMMEDIATE START
In auto-on mode, the motor can be controlled remotely
(via remote inputs) while the soft starter is connected to
mains.
MCD5-0021B ~ MCD5-0961B:
Transportation, mechanical shock, or rough handling
may cause the bypass contactor to latch into the On
state.
To prevent the motor from starting immediately on rst
commissioning or operation after transportation:
•Always ensure that the control supply is applied
before the power.
•Applying control supply before power ensures
that the contactor state is initialized.
WARNING
UNINTENDED START
When the soft starter is connected to AC mains, DC
supply, or load sharing, the motor can start at any time.
Unintended start during programming, service, or repair
work can result in death, serious injury, or property
damage. The motor can start with an external switch, a
eldbus command, an input reference signal from the
LCP or LOP, via remote operation using MCT 10 Set-up
Software, or after a cleared fault condition.
To prevent unintended motor start:
•Press [O]/[Reset] on the LCP before
programming parameters.
•Disconnect the soft starter from mains.
•Completely wire and assemble the soft starter,
motor, and any driven equipment before
connecting the soft starter to AC mains, DC
supply, or load sharing.
Safety Modbus TCP Module
4 Danfoss A/S © 10/2017 All rights reserved. MG17N102
22

WARNING
SAFETY OF PERSONNEL
The soft starter is not a safety device and does not
provide electrical isolation or disconnection from the
supply.
•If isolation is required, the soft starter must be
installed with a main contactor.
•Do not rely on the start and stop functions for
safety of personnel. Faults occurring in the
mains supply, the motor connection, or the
electronics of the soft starter can cause
unintended motor starts or stops.
•If faults occur in the electronics of the soft
starter, a stopped motor may start. A temporary
fault in the supply mains or loss of motor
connection can also cause a stopped motor to
start.
To provide safety of personnel and equipment, control
the isolation device through an external safety system.
NOTICE
Before changing any parameter settings, save the current
parameter to a le using MCD PC Software or the Save
User Set function.
NOTICE
Use the autostart feature with caution. Read all the notes
related to autostart before operation.
The examples and diagrams in this manual are included
solely for illustrative purposes. The information contained
in this manual is subject to change at any time and
without prior notice. Responsibility or liability is never
accepted for direct, indirect, or consequential damage
resulting from the use or application of this equipment.
Safety Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 5
22

3 Installation
3.1 Installation Procedure
CAUTION
EQUIPMENT DAMAGE
If mains and control voltage are applied when installing
or removing options/accessories, it may damage the
equipment.
To avoid damage:
•Remove mains and control voltage from the
soft starter before attaching or removing
options/accessories.
Installing the Modbus TCP Module:
1. Remove control power and mains supply from
the soft starter.
2. Fully pull out the top and bottom retaining clips
on the module (A).
3. Line up the module with the communication port
slot (B).
4. Push in the top and bottom retaining clips to
secure the module to the soft starter (C).
5. Connect Ethernet port 1 or port 2 on the Modbus
TCP Module to the network.
6. Apply control power to the soft starter.
177HA528.13
ABC
Illustration 3.1 Installing the Modbus TCP Module
Remove the module from the soft starter:
1. Remove control power and mains supply from
the soft starter.
2. Disconnect all external wiring from the module.
3. Fully pull out the top and bottom retaining clips
on the module (A).
4. Pull the module away from the soft starter.
177HA378.12
A
Illustration 3.2 Removing the Modbus TCP Module
Installation Modbus TCP Module
6 Danfoss A/S © 10/2017 All rights reserved. MG17N102
33

4 Connection
4.1 Soft Starter Connection
The device is powered from the soft starter.
VLT®Compact Starter MCD 201/MCD 202
For the Modbus TCP Module to accept eldbus commands,
t a link across terminals A1–N2 on the soft starter.
VLT®Soft Starter MCD 500
If the MCD 500 has to be operated in auto-on mode, input
links are required across terminals 17 and 25 to terminal
18. In hand-on mode, links are not required.
NOTICE
FOR MCD 500 ONLY
Control via the eldbus communication network is
always enabled in local control mode and can be
enabled or disabled in auto-on mode (parameter 3-2
Comms in Remote). See the VLT
®
Soft Starter MCD 500
Operating Guide for parameter details.
Modbus TCP Module connections
MCD 201/202 MCD 500
N2
177HA620.12
1
2
3
A1
17
18
25
177HA621.11
1
2
3
1 A1, N2: Stop input 1 (Auto-on mode)
17, 18: Stop input
25, 18: Reset input
2 Modbus TCP Module 2 Modbus TCP Module
3 RJ45 Ethernet ports 3 RJ45 Ethernet ports
Table 4.1 Connection Diagrams
Connection Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 7
44

4.2 Network Connection
4.2.1 Ethernet Ports
The device has 2 Ethernet ports. If only 1 connection is
required, either port can be used.
4.2.2 Cables
Suitable cables for EtherNet/IP Module connection:
•Category 5
•Category 5e
•Category 6
•Category 6e
4.2.3 EMC Precautions
To minimize electromagnetic interference, Ethernet cables
should be separated from motor and mains cables by
200 mm (7.9 in).
The Ethernet cable must cross the motor and mains cables
at an angle of 90°.
1
2
≥ 200 mm
90°
177HA653.10
1 3-phase supply
2 Ethernet cable
Illustration 4.1 Correct Running of Ethernet Cables
4.2.4 Network Establishment
The controller must establish communication directly with
each device before the device can participate in the
network.
4.3 Addressing
Each device in a network is addressed using a MAC
address and an IP address and can be assigned a symbolic
name associated with the MAC address.
•The device can be assigned a static IP address
during conguration or can be congured to
accept a dynamic IP address (via DHCP).
•The symbolic name is optional and must be
congured within the device.
•The MAC address is xed within the device and is
printed on a label on the front of the module.
ProfiNet
MAC: 00-02-A2-25-DC-B3
1 2
TX/RX 2
TX/RX 1
Link 2 Link 1 Error Status Power
177HA622.10
Illustration 4.2 MAC ID Location
Connection Modbus TCP Module
8 Danfoss A/S © 10/2017 All rights reserved. MG17N102
44

5 Device Conguration
5.1 Conguration Overview
NOTICE
The error LED ashes whenever the device is receiving
power but is not connected to a network. The error LED
ashes throughout the conguration process.
5.2 On-board Web Server
Ethernet attributes can be congured directly in the device
using the on-board web server.
NOTICE
The web server only accepts connections from within the
same subnet domain.
To congure the device using the on-board web server:
1. Attach the module to a soft starter.
2. Connect Ethernet port 1 or port 2 on the Modbus
TCP Module to the network.
3. Apply control power to the soft starter.
4. Start a browser on the PC and enter the device
address, followed by /ipcong. The default
address for a new Modbus TCP Module is
192.168.1.2.
e77ha639.10
Illustration 5.1 Entering Network Settings
5. Edit the settings as required.
6. Click Submit to save the new settings.
7. Tick Static to store the settings permanently in
the device.
8. If prompted, enter username and password.
8a Username: danfoss
8b Password: danfoss
NOTICE
If an IP address is changed and its record is lost, use the
Ethernet Device Conguration Tool to scan the network
and identify the module.
NOTICE
If changing the subnet mask, the server is unable to
communicate with the module after the new settings are
saved.
5.3 Ethernet Device Conguration Tool
If the IP address is unknown, or if the subnet mask of the
web server does not match, use the Ethernet Device
Conguration Tool to connect to the Modbus TCP Module.
Changes made via the Ethernet Device Conguration Tool
cannot be stored permanently in the module and are lost
when control power is cycled. Use the Ethernet Device
Conguration Tool to change the IP address settings
temporarily. After that, use the new address to connect to
the module using the on-board web server to save the
settings permanently.
Download the Ethernet Device Conguration Tool. To
install the software, administrator privileges are required
on the PC.
Downloading the tool:
1. Go to drives.danfoss.com/downloads/pc-tools/ to
nd the tool.
2. Make sure to have administrator privileges on the
PC before starting the installation.
3. Accept the End-User License Agreement.
4. Click Yes on the User account control dialog box.
NOTICE
If the PC has a rewall enabled, add the tool to the list
of authorized programs.
Device Conguration Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 9
55

Conguring the device using the Ethernet Device
Conguration Tool:
1. Attach the module to a soft starter.
2. Connect Ethernet port 1 or port 2 on the module
to the network.
3. Apply control power to the soft starter.
4. Start the Ethernet Device Conguration Tool.
177HA623.10
Illustration 5.2 Starting the Tool
5. Click Search Devices.
5a The software searches for connected
devices.
177HA641.10
Illustration 5.3 The Tool Shows the Connected Devices
6. To set a static IP address, click Congure and
select Set IP Address.
177HA642.10
Illustration 5.4 Setting a Static IP Address
Device Conguration Modbus TCP Module
10 Danfoss A/S © 10/2017 All rights reserved. MG17N102
55

6 Operation
The Modbus TCP Module must be controlled by a Modbus
client (such as a PLC) which complies with the Modbus
Protocol Specication. For successful operation, the client
must also support all functions and interfaces described in
this manual.
6.1 Device Classication
The Modbus TPC Module is a Modbus server managed by
a Modbus client over Ethernet.
6.2 Conguration
Congure the device directly in the PLC. No additional les
are required.
6.3 LEDs
LED name LED status Description
1 2
TX/RX 2
TX/RX 1
Link 2
Link 1
Error
Status
Power
177HA627.10
Power O The module is not powered up.
On The module receives power.
Error
O No error.
Flashing System error.
On Communication error.
Status
O Not ready.
Slow ash Ready, but not congured.
Fast ash Congured and waiting for communication.
On Communication has been established.
Link x O No network connection.
On Connected to a network.
TX/RX x Flashing Establishing connection.
On Normal operation.
Table 6.1 Feedback LEDs
Operation Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 11
66

7 Modbus Registers
NOTICE
All references to registers mean the registers within the
module unless otherwise stated.
7.1 Compatibility
The Modbus TCP Module supports 2 modes of operation:
•In standard mode, the module uses registers
dened in the Modbus Protocol Specication.
•In legacy mode, the module uses the same
registers as the Modbus Module from Danfoss.
Some registers dier from those specied in the
Modbus Protocol Specication.
The values of bit 15 in register 40001 determine the
operating mode.
•Standard mode: Set bit 15 = 1. Bits 0–7 of register
40001 are used for command.
•Legacy mode: Set bit 15 = 0. The remaining bits
of register 40001 are reserved.
Examples
10000000 00000001 = Start the motor (standard mode).
10000000 00000000 = Stop the motor (standard mode).
00000000 xxxxxxxx = Switch to legacy mode. The module
ignores the remaining bits in register 40001 and checks
the value in register 40002.
7.2 Ensuring Safe and Successful Control
Data written to the Modbus TCP Module remains in its
registers until the data is overwritten or the module is
reinitialized. The Modbus TCP Module does not transfer
successive duplicate commands to the soft starter.
•If the soft starter is started via eldbus communi-
cations but stopped via the LCP or a remote
input, an identical start command cannot be used
to restart the soft starter.
•If the soft starter may also be controlled via the
LCP or the remote inputs (and via eldbus
communications), a control command should be
immediately followed by a status query to
conrm that the command has been actioned.
7.3 Conguring Soft Starter Parameters
Parameter management is always multiple write of the
entire parameter block.
When conguring parameters in the soft starter, the PLC
must be programmed with the correct values for all
parameters. The card updates every parameter in the soft
starter to match the values in the PLC.
CAUTION
UNPREDICATABLE BEHAVIOR
Do not change the default values of parameter group 20-
** Factory Parameters. Changing these values may cause
unpredictable behavior in the soft starter.
7.4 Standard Mode
7.4.1 PLC Conguration
The PLC must be congured to map registers within the
module to addresses within the PLC.
e77ha632.10

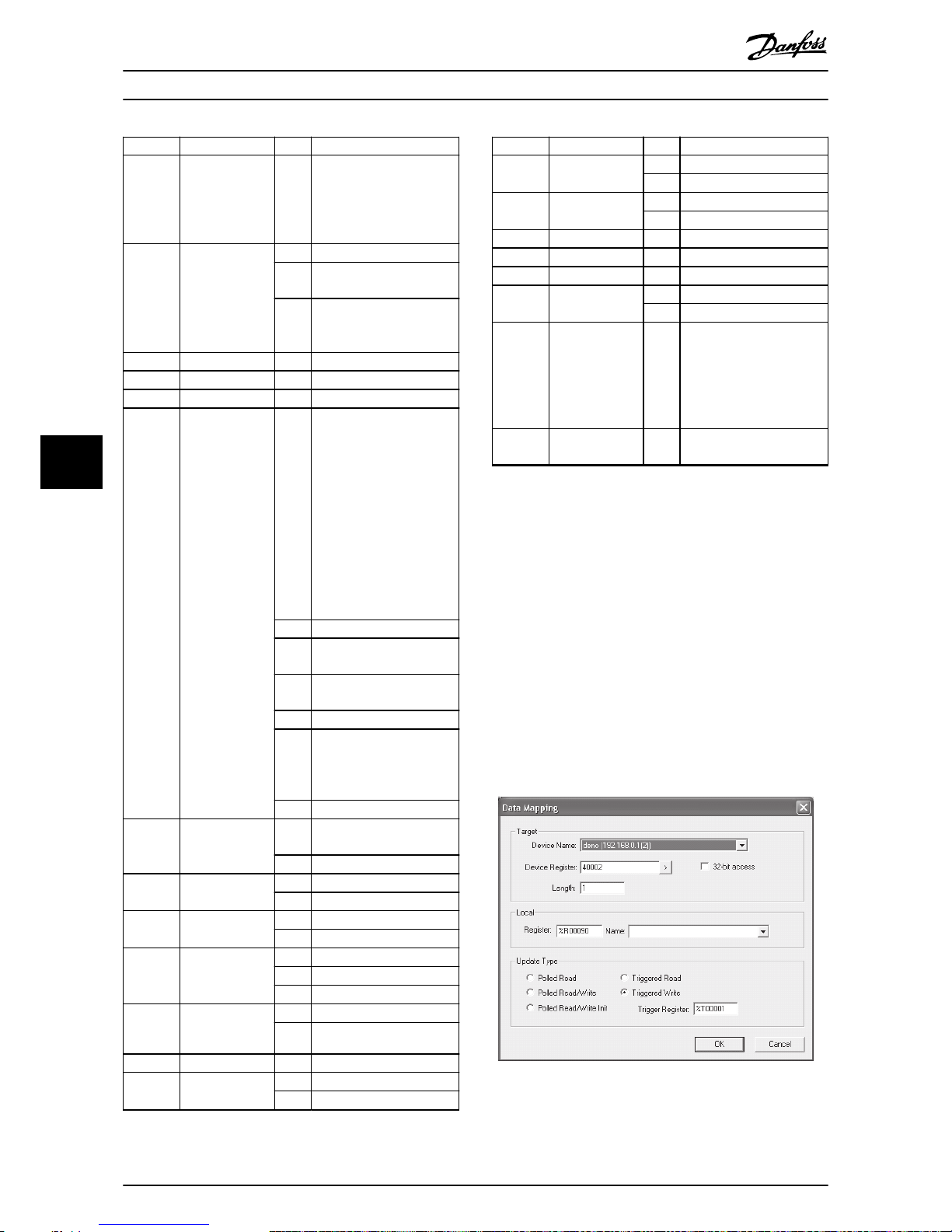

Illustration 7.1 Example Mapping of PLC Registers to Registers
within the Modbus TCP Module (Target)
Modbus Registers Modbus TCP Module
12 Danfoss A/S © 10/2017 All rights reserved. MG17N102
77

7.4.2 Command and Conguration
Registers (Read/Write)
Register Description Bits Details
40001 Command (single
write)
0–7 To send a command to the
soft starter, write the
required value:
00000000 = Stop
00000001 = Start
00000010 = Reset
00000100 = Quick stop
(coast to stop)
00001000 = Forces
communication trip
00010000 = Start using
Parameter Set 11)
00100000 = Start using
Parameter Set 21)
01000000 = Reserved
10000000 = Reserved
8–14 Reserved
15 Must = 1
40002 Reserved
40003 Reserved
40004 Reserved
40005 Reserved
40006 Reserved
40007 Reserved
40008 Reserved
400092)–
40200
Parameter
management
(single/multiple
read or multiple
write)
0–15 Manage soft starter
programmable parameters
Table 7.1 Command and Conguration Registers
1) Ensure that the programmable input is not set to Motor Set Select
before using this function.
2) See the relevant soft starter manuals for a complete parameter list.
The rst product parameter is always allocated to register 40009. The
last product parameter is allocated to register 40XXX, where XXX =
008 plus total number of available parameters in the product. The
Modbus TCP Module can read or write a maximum of 125 registers in
1 operation. These registers support multiple write (Modbus function
code 16). Attempting to write a single register returns a fault code 01
(illegal function code).
7.4.3 Status Reporting Registers (Read
Only)
NOTICE
For models MCD5-0053B and smaller (soft starter model
ID 1–4), the current reported via communication
registers is 10 times greater than the actual value.
NOTICE
The following functions are only available with MCD 500
soft starters:
•Parameter management
•Dual motor control
•Digital inputs
•Jog
•Current measurement in amperes
•Power information
•Warnings
MCD 201 open-loop soft starters do not support motor
current and motor temperature information.
Register Description Bits Details
30240 Soft starter state 0–3 1 = Ready
2 = Starting
3 = Running
4 = Stopping (including
braking)
5 = Restart delay (including
temperature check)
6 = Tripped
7 = Programming mode
8 = Jog forward
9 = Jog reverse
4 1 = Positive phase sequence
(only valid if bit 6 = 1)
5 1 = Current exceeds FLC
6 0 = Uninitialized
1 = Initialized
7–15 Reserved
30241 Trip code 0–7 See chapter 7.6 Trip Codes
8–15 Reserved
30242 Motor current 0–7 Average 3-phase motor
current [A]
8–15 Reserved
30243 Motor
temperature
0–7 Motor thermal model (%)
8–15 Reserved
30244–
30249
Reserved
Modbus Registers Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 13
77

Register Description Bits Details
30250 Version 0–5 Reserved
6–8 Product parameter list
version
9–15 Product type code:
4 = MCD 200
7 = MCD 500
30251 Model number 0–7 Reserved
8–15 Soft starter model ID
30252 Reserved
30253 Reserved
30254 Soft starter state 0–4 0 = Reserved
1 = Ready
2 = Starting
3 = Running
4 = Stopping
5 = Not ready (restart delay,
restart temperature check)
6 = Tripped
7 = Programming mode
8 = Jog forward
9 = Jog reverse
5 1 = Warning
6 0 = Uninitialized
1 = Initialized
7 0 = Local control
1 = Remote control
8Reserved
9 0 = Negative phase
sequence
1 = Positive phase sequence
10–15 See chapter 7.6 Trip Codes
30255 Current 0–13 Average rms current across
all 3 phases
14–15 Reserved
30256 Current 0–9 Current (% of motor FLC)
10–15 Reserved
30257 Motor
temperature
0–7 Motor thermal model (%)
8–15 Reserved
302581) Power 0–11 Power
12–13 Power scale
14–15 Reserved
30259 % power factor 0–7 100% = power factor of 1
8–15 Reserved
30260 Reserved
30261 Current 0–13 Phase 2 current (rms)
14–15 Reserved
30262 Current 0–13 Phase 2 current (rms)
14–15 Reserved
30263 Current 0–13 Phase 3 current (rms)
14–15 Reserved
30264 Reserved
30265 Reserved
30266 Reserved
Register Description Bits Details
30267 Parameter list
version number
0–7 Parameter list minor version
8–15 Parameter list major version
30268 Digital input
state
0–15 For all inputs, 0 = open, 1 =
closed (short-circuited)
0 = Start
1 = Stop
2 = Reset
3 = Input A
4–15 = Reserved
30269–
30281
Reserved
Table 7.2 Status Reporting Registers
1) Power scale functions as follows:
0 = Multiply power by 10 to get W.
1 = Multiply power by 100 to get W.
2 = Power (kW).
3 = Multiply power by 10 to get kW.
7.4.4 Examples
e77ha633.10
Illustration 7.2 Send Start Command (Register 40001)
Modbus Registers Modbus TCP Module
14 Danfoss A/S © 10/2017 All rights reserved. MG17N102
77

e77ha634.10
Illustration 7.3 Get Status (Starting at Address 30240)
e77ha635.10
Illustration 7.4 Get Parameter Values (Starting Register 40009)
7.5 Legacy Mode
7.5.1 PLC Conguration
The PLC must be congured to map registers within the
module to addresses within the PLC.
e77ha636.10
Illustration 7.5 Example Mapping of PLC Registers to Registers
within the Modbus TCP Module (Target)
7.5.2 Registers
NOTICE
For models MCD5-0053B and smaller (soft starter model
ID 1–4), the current reported via communications
registers is 10 times greater than the actual value.
NOTICE
Some soft starters do not support some functions.
Register Description Bits Details
40001 Reserved 0–14 Reserved
15 Must be 0.
40002 Command
(single write)
0–2 To send a command to the
soft starter, write the
required value:
1 = Start
2 = Stop
3 = Reset
4 = Quick stop (coast to
stop)
5 = Forced communication
trip
6 = Start using Parameter
Set 1
7 = Start using Parameter
Set 2
3–15 Reserved
40003 Soft starter state 0–3 1 = Ready
2 = Starting
3 = Running
4 = Stopping (including
braking)
5 = Tripped
6 = Programming mode
7 = Jog forward
8 = Jog reverse
4 1 = Positive phase
sequence (only valid if bit 6
= 1)
5 1 = Current exceeds FLC
6 0 = Uninitialized
1 = Initialized
7–15 Reserved
40004 Trip code 0–7 See chapter 7.6 Trip Codes
8–15 Reserved
40005 Motor current 0–7 Average 3-phase motor
current [A]
8–15 Reserved
40006 Motor
temperature
0–7 Motor thermal model (%)
8–15 Reserved
40007 Reserved
40008 Reserved
Modbus Registers Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 15
77

Register Description Bits Details
400091)–
40200
Parameter
management
(single/multiple
read or multiple
write)
0–15 Manage soft starter
programmable parameters
40600 Version 0–5 Binary protocol version
6–8 Parameter list version
number
9–15 Product type code:
4 = MCD 200
7 = MCD 500
40601 Reserved
40602 Reserved
40603 Reserved
40604 Soft starter state 0–4 0 = Reserved
1 = Ready
2 = Starting
3 = Running
4 = Stopping
5 = Not ready (restart
delay, restart temperature
check)
6 = Tripped
7 = Programming mode
8 = Jog forward
9 = Jog reverse
5 1 = Warning
6 0 = Uninitialized
1 = Initialized
7 0 = Hand on
1 = Auto on
8Reserved
9 0 = Negative phase
sequence
1 = Positive phase
sequence
10–15 Reserved
40605 Current 0–13 Average rms current across
all 3 phases
14–15 Reserved
40606 Current 0–9 Current (% motor FLC)
10–15 Reserved
40607 Motor
temperature
0–7 Motor thermal model (%)
8–15 Reserved
406082) Power 0–11 Power
12–13 Power scale
14–15 Reserved
40609 % power factor 0–7 100% = power factor of 1
8–15 Reserved
40610 Reserved
40611 Current 0–13 Phase 1 current (rms)
14–15 Reserved
Register Description Bits Details
40612 Current 0–13 Phase 2 current (rms)
14–15 Reserved
40613 Current 0–13 Phase 3 current (rms)
14–15 Reserved
40614 Reserved
40615 Reserved
40616 Reserved
40617 Parameter list
version number
0–7 Parameter list minor version
8–15 Parameter list major version
40618 Digital input
state
0–15 For all inputs, 0 = open, 1
= closed (short-circuited)
0 = Start
1 = Stop
2 = Reset
3 = Input A
40619–
40631
Reserved
Table 7.3 Legacy Mode Registers
1) See the relevant soft starter manual for a complete parameter list.
The rst product parameter is always allocated to register 40009. The
last product parameter is allocated to register 40XXX, where XXX =
008 plus total number of available parameters in the product. The
Modbus TCP Module can read or write a maximum of 125 registers in
1 operation. These registers support multiple write (Modbus function
code 16). Attempting to write to a single register returns a fault code
01 (illegal function code).
2) Power scale functions as follows:
0 = Multiply power by 10 to get W.
1 = Multiply power by 100 to get W.
2 = Power (kW).
3 = Multiply power by 10 to get kW.
7.5.3 Examples
e77ha637.10
Illustration 7.6 Send Start Command (Register 40002)
Modbus Registers Modbus TCP Module
16 Danfoss A/S © 10/2017 All rights reserved. MG17N102
77

e77ha638.10
Illustration 7.7 Get Status (Starting at Register 40003)
e77ha635.10
Illustration 7.8 Get Parameter Values (Starting at Register
40009)
7.6 Trip Codes
Trip codes are reported in registers 30241 and 30254
(standard mode) and register 40604 (legacy mode).
Trip
code
Description MCD
201
MCD
202
MCD
500
0 No trip ✓✓✓
1 Excess start time ✓ ✓
2 Motor overload ✓ ✓
3 Motor thermistor ✓ ✓
4 Current imbalance ✓ ✓
5 Frequency ✓✓✓
6 Phase sequence ✓ ✓
7 Instantaneous overcurrent ✓
8 Power loss ✓✓✓
Trip
code
Description MCD
201
MCD
202
MCD
500
9 Undercurrent ✓
10 Heat sink overtemperature ✓
11 Motor connection ✓
12 Input A trip ✓
13 FLC too high ✓
14 Unsupported option
(function not available in
inside delta)
✓
15 Soft starter communication
(between device and soft
starter)
✓✓✓
16 Network communication
(between device and soft
starter)
✓✓✓
17 Internal fault x (where x is
the fault code detailed in
Table 7.5)
✓
23 Parameter out of range ✓
25 Bypass fail (bypass
contactor)
✓
26 L1 phase loss ✓
27 L2 phase loss ✓
28 L3 phase loss ✓
29 L1-T1 short-circuited ✓
30 L2-T2 short-circuited ✓
31 L3-T3 short-circuited ✓
331) Time-overcurrent (bypass
overload)
✓ ✓
35 Battery/clock ✓
36 Thermistor circuit ✓
Table 7.4 Trip Codes
1) For MCD 500, time-overcurrent protection is only available on
internally bypassed models.
7.6.1 Internal Fault X
Internal fault Message shown on the LCP
70–72 Current Read Err Lx
73 ATTENTION! Remove Mains Volts
74–76 Motor Connection Tx
77–79 Firing Fail Px
80–82 VZC Fail Px
83 Low Control Volts
84–98 Internal fault x
Contact the local supplier with the fault code (X).
Table 7.5 Internal Fault Code Associated with Trip Code 17
Modbus Registers Installation Guide
MG17N102 Danfoss A/S © 10/2017 All rights reserved. 17
77

8 Network Design
The device supports star, line, and ring topologies.
8.1 Star Topology
In a star network, all controllers and devices connect to a
central network switch.
177HA628.10
Illustration 8.1 Star Network Topology
8.2 Line Topology
In a line network, the controller connects directly to 1 port
of the 1st module. The 2nd Ethernet port connects to
another module, which in turn connects to another device
until all devices are connected.
177HA629.10
Illustration 8.2 Line Network Topology
NOTICE
The device has an integrated switch to allow data to
pass through in line topology. The device must be
receiving control power from the soft starter for the
switch to operate.
NOTICE
If the connection between 2 devices is interrupted, the
controller cannot communicate with devices after the
interruption point.
NOTICE
Each connection adds a delay to communication with the
next device. The maximum number of devices in a line
network is 32. Exceeding this number may reduce the
reliability of the network.
8.3 Ring Topology
In a ring topology network, the controller connects to the
1st module via a network switch. The 2nd Ethernet port of
the module connects to another device, which in turn
connects to another device until all devices are connected.
The nal device connects back to the switch.
The device supports beacon-based ring node congu-
ration.
177HA630.10
Illustration 8.3 Ring Network Topology
NOTICE
The network switch must support loss of line detection.
Network Design Modbus TCP Module
18 Danfoss A/S © 10/2017 All rights reserved. MG17N102
88
