Decon wheel Panthera S2 User manual

2016-05-10
Page: 1
Assembly instructions for Panthera S2/U2, S2 Swing
MEM6003-20 and MEM6004-20
Type 20
1. Check that you have the correct model.
2. Remove wheels and brakes.

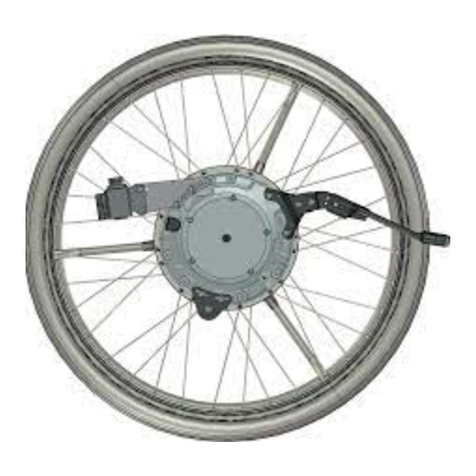

3. Check the correct placement for the eMove and assemble with
axle Ø12,7-46 with part number: X0E-2530E-00.

2016-05-10
Page: 2
4. Assembly the plate (left side) according to picture.
Parts pair for mounting on left side.
Item No. Part Number Qty Description
1 HW069 1 Hub Sleeve
2 405239 1 Nordlock Washer
3 XSM8ML 2 Lock Nut M8
4 XSM8BR 2 Plain Washer 8,4
5 XSM8X20 1 Screw M8x20
6 XSM8X50 1 Screw M8x50
7 290010 1 Clamp
8 100 400 001 1 Spacer
9 100 400 002 1 Spacer
10 300020 1 Bracket
11 XOE-22274-BO 1 Bracket
Note! If you only order the mounting set, the axle it’s not included, for replacement
see the service manual.

2016-05-10
Page: 3
5. Assemble the under placed battery bag or if have order a Lithium battery place the
battery holder as the picture bellow.
Assemble instruction for MEM5000 Rev6 on Panthera wheelchairs
Item No. Part Number Qty Description
1 MEM5002 1 Hoop
2 MEM5003 2 Clamp
3 MEM5004 2 Clamp
4 XSFM5X12 2 Screw Countersunk M5 x12
5 XSM5ML 2 Nut Self-Locking M5
6 XSSM8X16 4 Bolt Round-Square M8 x16
7 XSM8ML 4 Nut Self-Locking M8
8 MED5001 Rev3 1 Battery plate eDrive/ eMove
9 XSFM6X12 4 Screw Countersunk M6 x12
10 XSM6ML 4 Nut Self-Locking M6
11 MEM5011 1 Bracket
6. Special assemble for the battery box under the chair. (Bambino is not included.)
This mounting set are the same for all models but it is possible that the rear axle on the
picture is from a different model.
