1.0 DISCLAIMER & WARNING
2.0 SAFETY GUIDELINES
2.1 Check Before Use
1. Please read this Disclaimer & Warning and Safety Guidelines carefully
before using our product. This product is not recommended for people
under the age of 14. You now agree to this disclaimer and signify that you
have read it thoroughly by using this product. You agree that you are
responsible for your conduct, any damage caused while using this product,
and any consequence. You agree to only use this product for its designed
purposes and under the local laws, regulations, and applicable policies and
guidelines that DEERC may provide.
2. When using this product, please strictly abide by the specication
requirements and safety guidelines stated in this document. Any personal
injury, property damage, legal disputes, and other adverse events caused
by violating any safety instructions or due to any other factor WILL NOT be
DEERC's responsibility.
① This product is a high-precision drone that integrates various electronic
stability and control mechanisms. Please be sure to congure this drone
carefully and correctly to ensure safe, accident-free operation.
② Ensure that the batteries of the drone and transmitter are clean, undam-
aged, and fully charged before every use.
③ Ensure that all the propellers are intact and are installed in the correct
orientation.
-02-
2.2 Flight Environment

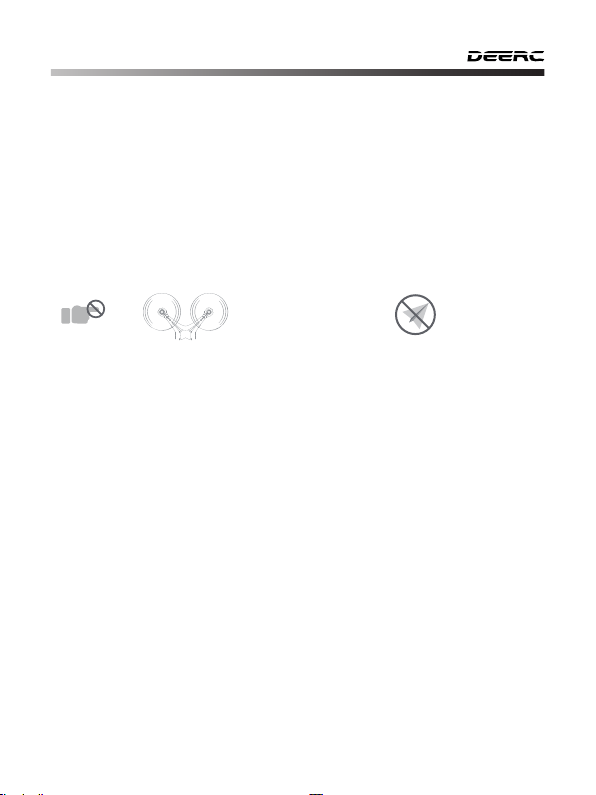

Fly in Open Areas Keep in Sight Fly Below
197feet (60m)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
④Please perform a thorough check of the product before each use.
Inspect the integrity of the parts, any signs of cracks and wear o on the
propellers, battery power and eectiveness of the indicator, etc. If there is
any problem found after checking the drone, please refrain from using it
until the problem is resolved.
Avoid ying over or near obstacles, crowds, high voltage power lines, trees,
airports, or bodies of water.
DO NOT y near strong electromagnetic sources such as power lines and
base stations, aecting the onboard compass.
DO NOT use this drone in adverse weather conditions like rain, snow, fog,
and wind.
-03-
2.3 Operation Requirements
2.4 Use of Battery
⑥Stay away from the rotating
propellers and motors.
⑦ DO NOT y in any spaces where
drones are prohibited. Please respect
people's right to privacy by not ying
your drone close to others.
①DO NOT use this product to follow any moving vehicles.
②During the ight, turn o the motors only in an emergency.
③When the battery runs low, return the drone to your starting point.
④DO NOT use this product if you feel tired, take medicine or feel unwell
and drink alcohol.
⑤Be aware of the volume of noise that the drone produces. Please ensure
to keep your distance to avoid ear damage.
①Please ensure batteries are tted in the correct orientation as shown in
the instruction manual.
②Avoid short circuits by tting the batteries correctly and do not crush or
squeeze the batteries as this could cause the risk of a re or explosion.
③DO NOT mix new and old batteries as this can lead to poor performance
of the product.
④Please dispose of used batteries carefully, do not litter, and recycle
where ever possible.
⑤DO NOT expose dead batteries to heat or re, or they may explode.
⑥If the device is not going to be used for an extended period of time,
please remove batteries to prevent potential damage to the drone from
battery leakage.
-04-
Li-Po Battery Disposal & Recycling
Waste Lithium-polymer batteries must not be placed with household trash.
Please contact local environmental or waste agency or the waste agency
or the supplier of your model or your nearest Li-Po battery recycling center.
⑦Only use the USB charging cable that comes with the drone to charge
the battery.
⑧DO NOT connect the battery directly to wall outlets or car cigarette
-lighter sockets as this will damage your battery since they have dierent
voltages.
⑨DO NOT attempt to disassemble or modify the battery in any way
⑩DO NOT use the battery if it gives o an odor, generates heat, becomes
discolored, deformed, or appears abnormal in any way. If any of these
situations occur while the battery is in use or being charged, remove it from
the device or charger immediately and discontinue use.
DO NOT pierce the battery casing with a nail or any other sharp object.
Break it open with a hammer, or step on it! Dispose or recycle this battery as
it may cause personal injury or damage to your drone.
Always charge the batteries on a reproof surface and away from
combustible materials. DO NOT charge on surfaces that can catch re,
which includes: wood, cloth, carpet.
DO NOT immerse the battery in water or get it wet.
DO NOT solder battery terminal in any way.
Keep batteries out of reach of children or pets.
DO NOT short-circuit the battery by connecting wires or any other metal
object to the positive(+) and negative(-) terminals.
12
13
14
15
16
11
-05-
3.0 MAINTENANCE
①Clean the drone after each use with a clean, soft cloth.
②Avoid prolonged exposure to direct sunlight and avoid heat buildup on
the drone or batteries.
③This device is not waterproof and must not be submerged or subjected
to water under any circumstance. Failure to keep the device completely dry
will result in failure and permanent damage to the unit. Be aware that
although it might be dry where you are, droplets of rain or mist from a river
or waterfall could damage your drone where it is ying.
④Frequently check the charging plug and other accessories for signs of
damage. If any part of the device or cables is damaged, avoid use or
charging until the damaged parts are replaced.
-06-
4.0 PACKAGE CONTENTS
Drone Transmitter Drone Battery
Spare Propellers
USB Charging
Cable
Instructions For Use
Screwdriver
V 1.0
Instructions For Use
Gebrauchsanweisung
D60
+1(855)777-8866
-07-

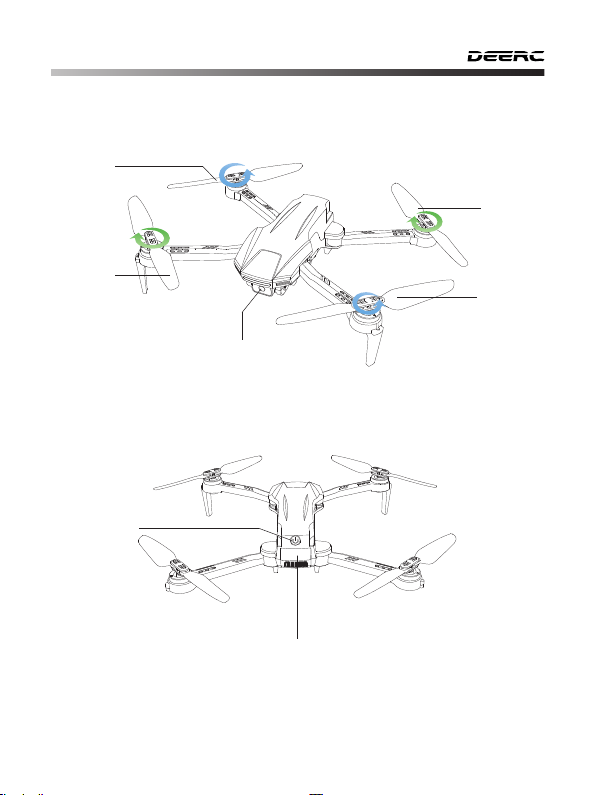

5.0 DRONE DETAILS
Propeller A
HD Camera
Propeller B
Propeller A
Propeller B
Drone Battery
Power Switch
(Long Press)
-08-
6.0 TRANSMITTER DETAILS
Phone Holder
Speed Switch
(Short Press)/
Circle Fly
(Long Press)
Headless Mode
(Short Press)/
Calibrate the Gyro
(Long Press)
Left Joystick
High-Speed Rotation
(Short Press)/
Trimmer
(Long Press)
Power Switch
Right Joystick
One Key Takeo/
Landing
Power Indicator
Camera Angle
Adjustment
Take Photo
(Short Press)/
Record Video
(Long Press)
-09-
7.0 JOYSTICK MODE
7.1 MODE 2 (Left hand throttle MODE 2 will be the default setting.)
Right Joystick
Left Joystick
Up
Down
Ascend
Descend
Up
Down
Forward
Backward
Left Right Rotate
Left Rotate
Right
Left Right Fly to
Left
Fly to
Right
Up
Down
Forward
Backward
7.2 MODE 1
To enter Mode 1, long press the Speed Switch button while turning on the
transmitter. (Please do not release the Speed Switch button until the
transmitter is powered on.)
Up
Down
Ascend
Descend
Left Right Left Right
Right Joystick
Left Joystick
Rotate
Left
Rotate
Right
Fly to
Left
Fly to
Right
-10-
8.0 INSTALLATION
8.1 Propellers
A B
BA
HEAD
Pic. 2Pic. 1
The propeller and the motor shaft marked with the same letter should be
connected together (both are marked with the letter either A or B). Then lock
the propeller to the motor shaft with a screw.
• Install the propellers carefully to prevent accidental scratches.
• Please check that the propellers are properly installed and tightened
before each ight.
-11-
Pic. 3
Pic. 4
Pic. 5
Pic. 6
1. Pull out the phone holder upwards
completely (Pic. 3).
2. Tilt the holder 30 degrees towards
you,and then you will hear a click
sound (Pic. 4).
3. Rotate and x the support board in
place (Pic. 5).
4. Adjust the phone holder upward or
downward according to the size of
your phone (Pic. 6).
8.2 Phone Holder
-12-
8.3 Drone Battery
8.4 Transmitter Battery
2 x 1.5V AA
(Not included)
Battery Cover
Pic. 8Pic. 7
Open the battery cover on the back of the transmitter, insert the two AA
batteries (Not included) into the battery compartment, and close the
battery cover to complete the installation.
Installation: Push the battery correctly into the drone battery compart-
ment. Make sure the battery is rmly installed. (Pic. 7)
Removal: Press the lock button on the battery, and pull the battery out
from the fuselage. (Pic. 8)
①
②
· When installing the batteries, please pay attention to the positive and
negative polarity of the battery to ensure the correct installation of the
batteries.
· Do not mix old and new batteries.
· When the batteries of the transmitter run low, the transmitter will start
beeping, and its indicator light will blink.
-13-
9.0 CHARGING
USB Adapter
(5V/1A)
Power Bank
1) When the drone battery runs low, the indicator lights on the drone will
blink continuously.
2) Connect the battery with the USB charging cable.
3) Plug the USB charging cable into a USB charging port on a power bank
or a USB adapter (5V/1A).
4) When the battery is charging, the indicator light on the USB charging
cable is red.
When the battery is charged, the indicator light on the USB charging
cable turns green.
5) The charging time is about 160 minutes.
· Before charging, please read the instructions in the “Use of Battery”
section of the “Safety Guidelines” carefully!
· DO NOT charge a battery immediately after a ight as the temperature
may be too high. Please wait until it cools down to room temperature
before charging again.
-14-
10.2 Connect to Wi-Fi
Connect your phone to the Wi-Fi network created by the drone. You can
check the drone’s status on the Deerc FPV App.
①Make sure to turn o Bluetooth, Mobile Data, and VPN. Enter your
phone’s Wi-Fi settings and click Wi-Fi to search for the Wi-Fi of the drone.
(Make sure to turn on the drone before going to the Wi-Fi settings on your
phone)
②Select the Wi-Fi network: DeercFPV-******.
③Wait for a couple of seconds for your phone to connect to the drone’s
Wi-Fi.
④Enter the Deerc FPV application.
> The connection between your phone and the drone is established
automatically.
Attention: The Wi-Fi network created by the drone does not access the
Internet.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
iOS Android APP on Google play
Scan the QR code, corresponding to either App Store™ or Google Play™
Store, and download the Deerc FPV app for free.
Required Operating Systems: iOS 12.0 or later/Android 4.4 or later.
10.1 Download APP
10.0 USING THE APP
-15-
11.1 Pairing
④Push the left joystick up then
down to pair the drone with the
transmitter. The indicator lights on
the drone and the transmitter will
turn solid if the drone is paired
successfully.
③ Short press the power switch
button on the transmitter to turn it
on, and you will hear a “Di” sound,
then the indicator lights on the
transmitter will ash.
HEAD
All of the following operations on this manual uses MODE 2.
②Place the drone on a at and level
surface with the head forward and
the tail facing towards the pilot.
①Long press the power switch to
turn on the drone.The indicator
lights of the drone will keep ashing.
11.0 OPERATION GUIDE
Long press
-16-
11.2 Calibrating the Gyro
Long press the button on the transmitter to calibrate the gyro. The
indicator lights on the drone will blink, then turn solid, and the transmitter
will send out a long “Di” sound, which indicates that the calibration is
Tip:
To ensure a stable ight, we suggest that the pilot calibrates the gyro
every time after pairing the drone and after a crash.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
11.3 Unlocking/Locking the Motors
Long press
Unlocking: Simultaneously push the left joystick to the bottom right corner
and the right joystick to the bottom left corner. The motors will rotate, and
the drone is unlocked.
Locking: Repeat the operation, the motors will stop rotating immediately
and the drone locks.
Table of contents
Other Deerc Drone manuals
