DeFelsko PosiTector IRT User manual

Instruction Manual v. 1.0
Infrared Thermometer

1
Introduction
Introduction
The PosiTector Infrared Thermometer (IRT) is a hand-held,
electronic instrument that measures surface temperature quickly
and accurately. t consists of a body (Standard or Advanced) and
probe (pg. 2).
This Quick Guide summarizes the basic functions of the Gage.
Download the full instruction manual at:
www.defelsko.com/manuals.
The PosiTector IRT powers-up when the center navigation button
is pressed. Readings are updated automatically each second.
To preserve battery life, the instrument powers down after
approximately 5 minutes of no activity. All settings are retained.
Basic Operation
Basic Operation
1.Remove the protective rubber cap from the probe.
2.Power-up Gage by pressing the center navigation button.
Typical Display
The infrared temperature sensor immediately begins measuring.
Press the (+) button to pause the measurement. Press (+) again to
resume.
SmartTrend Indicator -
Appears when surface
temperature is rising or
falling. Does not appear
when measurement is
stable.
Emissivity (pg.5)
Battery Indicator
Surface
Temperature
Temperature Unit

Scroll through
Trend Charts
(Advanced only)
Access the Menu
Pause / Resume
Activate Laser Pointer
(Down Button)

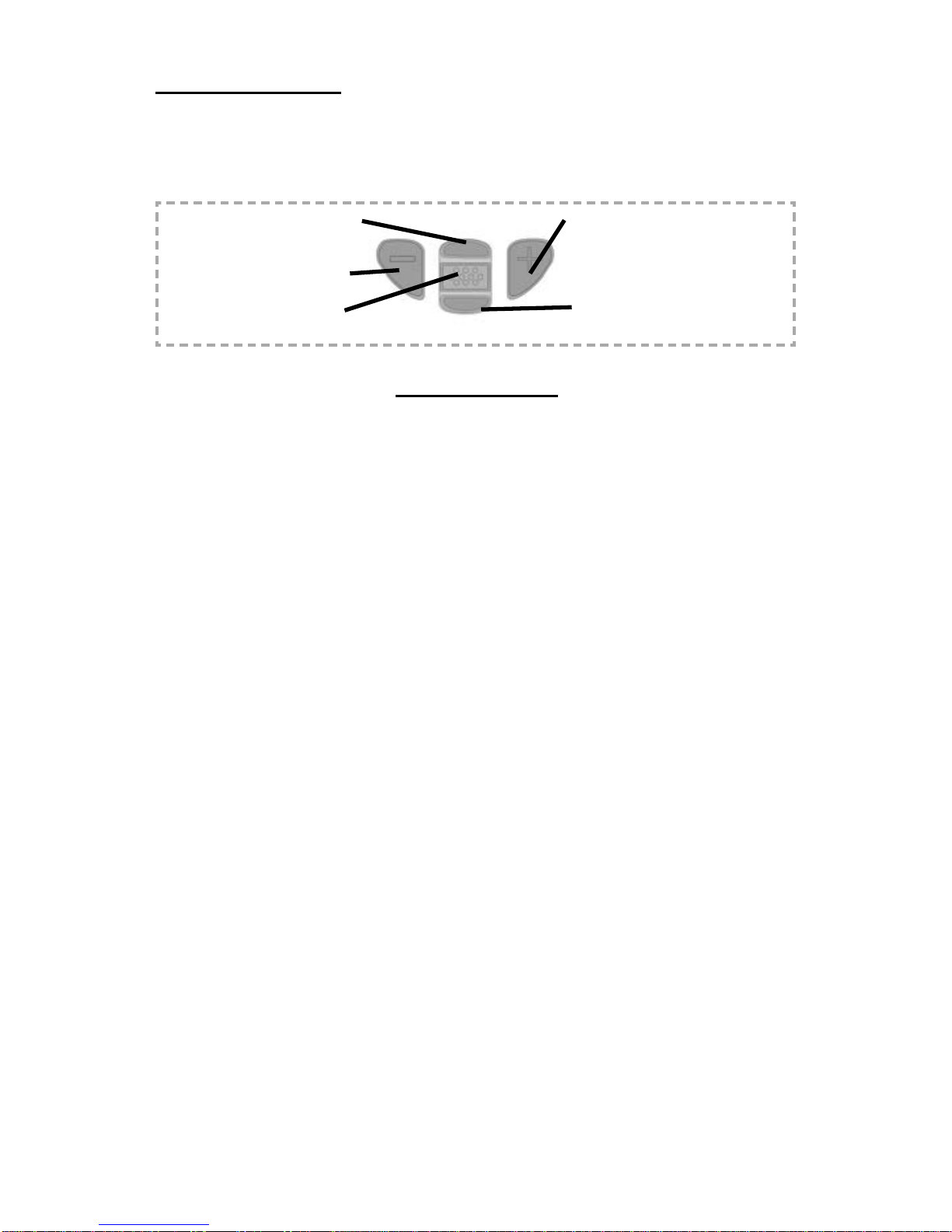

Button Functions — Normal Operation
Laser Pointer

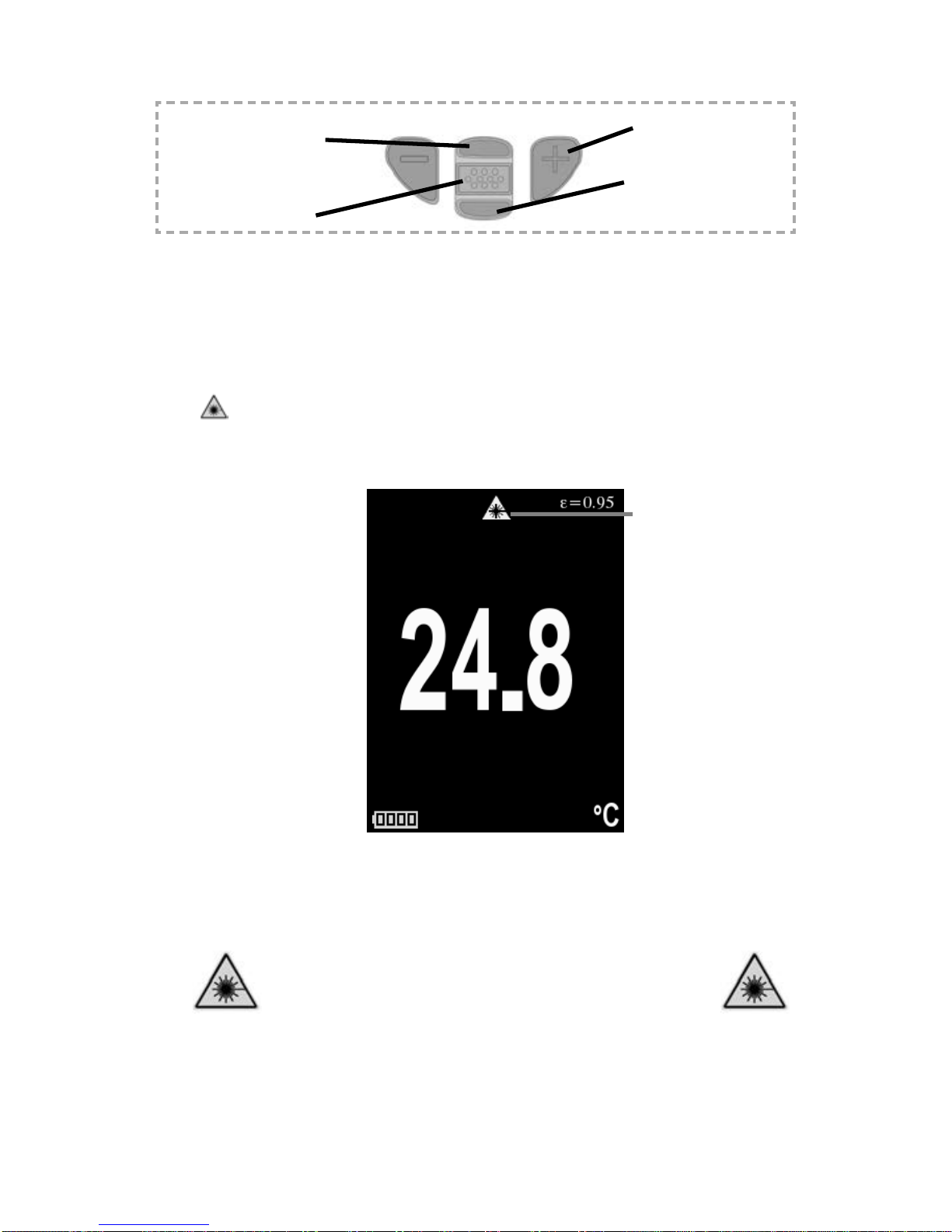

Press and hold the Down button to activate the laser pointer. The
laser helps aim the infrared temperature sensor. Release the but-
ton to deactivate laser. The symbol is displayed on the screen
when the laser is active.
2
Laser Active
Laser Radiation. Do not stare into beam. Class 2 laser product.
Laser Parameters:
Wavelength: 652 nm
Laser power for classification: <1.0 mW
Beam diameter: <2mm at aperture
Divergence: 1 mRad
Mode of operation: CW
EN/ EC 60825-1:2014 (2007 USA)

3
When powered-up, the PosiTector automatically
determines which probe is attached and does a self-
check.
To disconnect a probe from a body, slide the plastic
probe connector horizontally (in the direction of the
arrow) away from the body. Reverse these steps to
attach a different probe. t is not necessary to power-
down the Gage when switching probes.
The PosiTector gage body accepts a wide variety of probe types
including magnetic, eddy current and ultrasonic coating thickness,
environmental, surface profile, shore hardness durometer, salt
contamination and ultrasonic wall thickness probes. See
www.defelsko.com/probes
Probes
Probes
Menu Operation
Menu Operation
Gage functions are menu controlled. To access the Menu, power-up
the Gage, then press the center navigation button.
To navigate, use the Up and Down buttons to scroll vertically and
to SELECT.
Press the (+)button to switch
pages in a multipage menu.
Press the (
- )button to return to
the previous menu or page.
Select Exit to exit from any menu.
Previous Page
(Exit) Up Next Page
Access the Menu
(Center/Select)
Down

4
Emissivity refers to a material’s ability to emit infrared energy,
compared to an ideal black surface at the same temperature. The
ratio varies from 0 to 1, and each material has a specific emissivity
associated with it. The PosiTector IRT has built in emissivity
settings for certain materials as well as a user-adjustable
emissivity option (pg. 6).
Most organic and painted surfaces have an emissivity of around
0.95, and are ideal surfaces for accurate infrared temperature
readings. Shiny or reflective surfaces can be difficult to measure
with an infrared thermometer, as they tend to reflect ambient
infrared energy instead of their own. To compensate for this, cover
such surfaces with flat paint or a piece of electrical tape. Allow the
paint or tape to acclimate to the surface’s temperature, and take a
measurement over the paint or tape.
Emissivity
Emissivity
Distance to Spot atio (D:S)
Distance to Spot atio (D:S)
The distance to spot ratio refers
to the relationship between the
diameter of the area being
measured compared to the
instrument’s distance from the
area. As the distance (D) from
the target increases, the spot
size (S) of the area being
measured by the unit becomes
larger. The D:S ratio of the
PosiTector IRT is 5.7:1. For
example, when the instrument is
100 cm (40 inches) from the
target, the spot size will be about
18 cm (7 inches) in diameter.
Distance
Spot Size

5
Setup Menu
Setup Menu
eset
eset (menu reset) restores factory settings and returns the Gage
to a known condition. The following occurs:
- All batches and stored readings, batch names and screen
captures are erased.
- Menu settings are returned to the following:
Memory = OFF
Statistics = OFF
HiLo Alarm = OFF
Trend Chart = None
Auto Dim = ON
Bluetooth & Stream = OFF
WiFi & Access Point = OFF
Display = None
Units
Converts the displayed units for temperature. Celsius (°C) or
Fahrenheit (°F)
Perform a more thorough Hard eset as follows:
1 Power down the Gage and wait 5 seconds.
2 Simultaneously press and hold the (+) and center
buttons until the eset symbol appears.
This returns the Gage to a known, “out-of-the-box” condition.
t performs the same function as a menu eset with the addition of:
- Bluetooth pairing info is cleared.
- Alarm settings are set to defaults.
- Menu settings are returned to the following:
NOTE:
Units = Celsius
Flip Lock = OFF
Auto Sync .net = ON
Sound = ON
Language = English
Emissivity = 0.95
Battery Type = Alkaline
Backlight = Normal
Bluetooth Smart = OFF
USB Drive= ON
Date, Time and WiFi settings are not affected by either eset.

6
Emissivity
Select to disable the auto rotate display feature.
Flip Lock
Turns the trend chart on. The trend chart can also be turned on by
pressing the Up navigation button from the main screen.
Trend Chart
Displays information on the gage body and attached probe.
Gage Info

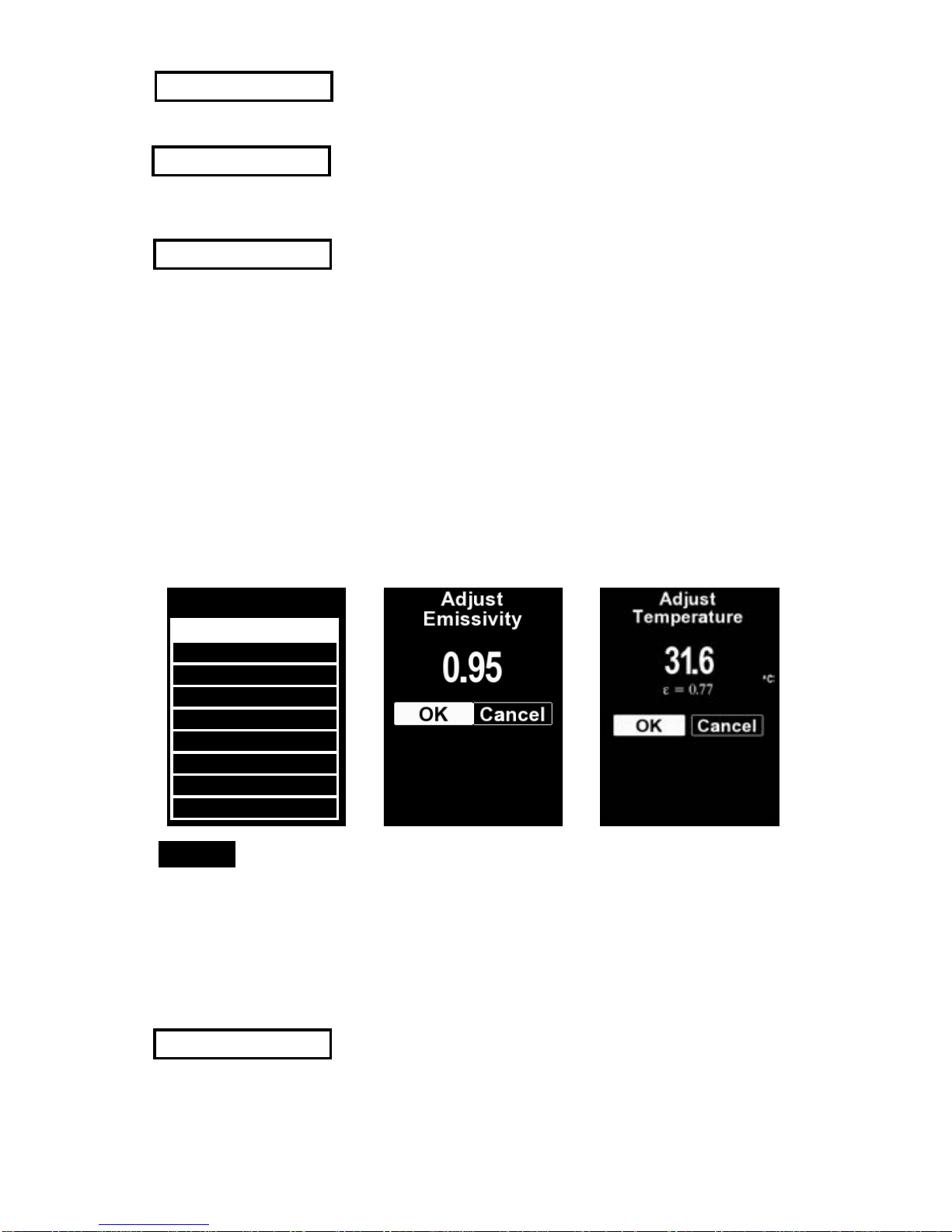

Sets the emissivity ratio for the PosiTector IRT infrared
temperature sensor.
Select Custom to manually adjust the emissivity value or to adjust
to a known temperature. Emissivity is automatically calculated
when adjusting to a temperature. See NOTE below.
Alternatively, use one of the following preset options:
Aluminum (rough) = 0.07 Plastics = 0.94
Zinc (Galvanized) = 0.25 Steel (Oxidized) = 0.95
Concrete = 0.54 Wood = 0.95
Paint = 0.96
NOTE:
Depending on surface treatment, metals such as blasted steel can
have a broad range of emissivity values. Adjusting to a known
temperature (measured by a direct contact surface temperature
probe) on a representative sample will assist in obtaining an
accurate emissivity value.
Zinc Galv. 0.25
Steel Ox. 0.95
Al ough 0.07
Concrete 0.54
Wood 0.95
Paint 0.96
Plastics 0.94
Custom
Exit
Emissivity

7
Memory Management
Memory Management
The PosiTector IRT has internal memory storage for recording
measurement data. Stored readings can be reviewed on-screen or
accessed via computers, tablets and smart phones. Each reading
is date and time-stamped. Press the (+) button to store a
measurement.
The symbol appears when the Gage is set to store readings.
Standard models store up to 250 readings in one batch.
Selects the type of batteries used in the Gage from a choice of
“Alkaline”, “Lithium” or “NiMH” (Nickel-metal hydride
rechargeable). f NiMH is selected, the gage will trickle charge the
batteries while connected via USB to a PC or optional AC charger.
The battery state indicator icon is calibrated for the selected
battery type. No damage will occur if the wrong battery type is
selected.
Battery Type
A statistical summary will appear on the
display. Reset Statistics by pressing the
(
-
)
button. Press (+)to pause statistics.
Statistics
HiLo Alarm
Allows Gage to visibly and audibly alert the
user when readings exceed user-specified
limits.
–Average
–Maximum Value
–Standard Deviation
–Minimum Value
X
X
Statistics Mode
Statistics Mode

8
Accessing Stored Measurements Data
Accessing Stored Measurements Data
DeFelsko offers the following free solutions for viewing, analyzing
and reporting data:
PosiSoft USB Drive - Connect the Gage to a PC/Mac using the
supplied USB cable. View and print readings and graphs using
universal PC/Mac web browsers or file explorers. No software or
internet connection required. USB Drive must be selected in the
Gage’s “Connect > USB” menu (pg. 9).
PosiSoft Desktop - Powerful desktop software (PC/Mac) for
downloading, viewing, printing and storing measurement data.
ncludes a customizable, templated PDF Report Generator. No
internet connection required.
PosiSoft.net - Web-based application offering secure, centralized
storage of measurement data. Access your data from any web
connected device.
PosiTector App - (Advanced models only, s/n 784000+) App for
compatible iOS and Android smart devices. Permits users to create,
save and share professional PDF reports. Add images and notes
using the smart device’s camera and keyboard.
Advanced models store 100,000 readings in up to 1,000 batches.
“New Batch” closes any open batch and creates a new batch name
using the lowest available number. New batch names are date
stamped when they are created.
Screen Capture
Press both (-)(+) buttons at any time to capture and save an image
copy of the current display. The last 10 screen captures are stored
in memory and can be accessed when connected to a computer
(see PosiSoft USB Drive below).
Scroll through display
modes (Advanced only)
Delete last reading
Access the Menu
Store a reading in memory
(Advanced only)
Activate Laser Pointer
(pg. 2)

9
The above WiFi, USB and Bluetooth menus contain a Sync .net
Now option. When selected, the Gage immediately synchronizes
stored measurement data via its respective communication
method (internet connection required). Alternatively, select Auto
Sync .net from within the USB connect menu to automatically
synchroniz e upon connection to a PC. Additional measurements
added to memory while connected are synchronized only when the
USB cable is disconnected and reconnected, or when the Sync
.net Now option is selected. WiFi connected gages automatically
attempt synchronization upon power-up.
Sync .net Now
Connect Menu
Connect Menu
When USB Drive is checked , the PosiTector gage uses a USB
mass storage device class which provides users with a simple
interface to retrieve stored data in a manner similar to USB flash
drives, digital cameras and digital audio players. USB Drive is also
required to import stored measurements into PosiSoft Desktop
software (pg. 8).
When connected, power is supplied through the USB
cable. The batteries are not used and the body will not
automatically power down. f rechargeable (NiMH) batteries are
installed, the instrument will trickle charge the batteries.
Allows individual readings to be sent to a computer, printer or
compatible device as they are taken using Bluetooth wireless
technology. See www.defelsko.com/bluetooth
Bluetooth (Advanced models only)
Allows connection to your local wireless network or mobile hot
spot. deal for using your network’s internet connection for
synchronizing stored measurements with PosiSoft.net (pg. 8).
See www.defelsko.com/wifi
WiFi (Advanced models only)
NOTE:
USB
PosiSoft Desktop is required when using a USB
connection to synchronize measurements with PosiSoft.net.
NOTE:

10
Sync Batches
Select batches to flag them for synchronization to the
PosiTector App. New batches created while Bluetooth Smart is
enabled are automatically selected.
With Bluetooth Smart enabled, select Sync Batches to transfer
selected batches to the PosiTector App. This is useful when
switching between smart devices, as only datasets and batches
that have yet to be synchronized with any smart device are
synchronized automatically.
The Gage will perform a Hard eset (pg. 5) after an
update. All stored measurements will be erased from memory.
Updates
Determine if a software update is available for your Gage.
See www.defelsko.com/update
WARN NG:
When Enabled , allows communication with a smart device
running the PosiTector App (pg. 8) via auto-pairing Bluetooth
Smart (BLE) wireless technology.
Bluetooth Smart
(Advanced models only, s/n 784000 and greater)
Send Batches
Transfers selected batches to the PosiTector App (useful
when switching between devices).
The Send Batches option is visible in the menu when the Gage
is connected to a smart device running the PosiTector App.
f Bluetooth Smart is disabled, data from batches
selected in the Sync Batches menu are held in a queue until
communication with the PosiTector App is re-established.
NOTE:

11
Technical Data
Technical Data
Conforms to: ISO 8502-4, BS7079-B and ASTM D3276
Returning for Service
Returning for Service
Before returning the instrument for service…
1. Install new atteries in the proper alignment as shown within
attery compartment.
2. Examine the surface temperature sensor for dirt or damage.
3. Perform a Hard Reset.(see pg. 5)
4. If issue is not resolved, Updates (pg. 10) your PosiTector
gage ody and re-attempt measurements.
IMPORTANT:
If you must return the Gage for service, please fill out and include
the Service Form located at www.defelsko.com/support with the
Gage. Be sure to also include the pro e, your company name,
company contact, telephone num er and fax num er or email
address.
Laser Pointer Class 2 < 1mW
Distance to Spot Ratio (D:S) 5.7:1
Emissivity Adjustable
Response Time <500 µs (95% respo se)
Spectral Response 2 - 14 µm
Specifications Range Acc racy Resol tion
Temperat re
Range
–70˚ to 380˚ C ±1˚C + 1%
@ 23˚ C ambie t
0.1˚ C
–94˚ to 716˚ F 0.1˚ F

12
LASER L GHT DO NOT STARE NTO BEAM
Class 2 laser product
652 nm < 1mW CW
EN/ EC 60825-1-2014 (2007 USA)
serial number
Manufacturer’s Identification
and certification label
Complies with FDA
performance standards for
laser products except for
deviations pursuant
to Laser Notice No. 50,
dated June 24, 2007
DeFelsko Corporation
800 Proctor Avenue
Ogdensburg, New York
13669-2205 USA
Hazard Warning and
Explanatory Label Aperture
Product Model
Product Labeling
Product Labeling

13
Laser Precautions:
Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
Do not open or modify the product. There are no user service
components within the product; any service or repair is to be
performed only by DeFelsko Corporation personnel. No scheduled
maintenance is necessary to maintain product in compliance with
laser safety standards.
To prevent eye damage and personal injury:
nRead all safety information before you use the product.
nDo not use the product if it operates incorrectly.
nDo not use the product if the housing appears cracked
or otherwise damaged.
nUse the product only as specified.
nDo not look into the laser. Do not point the laser directly
or indirectly (off reflective surfaces) at persons.
CAUT ON:
DeFelsko Corporation
800 Proctor Avenue
Ogdensburg, New York 13669-2205 USA
[phone]

Manual de Instrucciones v. 1.0
Termómetro Infrarrojo

1
Introducción
Introducción
El termómetro infrarrojo PosiTector Infrared Thermometer (IRT)
es un instrumento electrónico, portátil que mide la temperatura
superficial con precisión y rapidez. Consiste de un cuerpo
(Standard o Advanced) y una sonda (pg. 2).
Esta guia rápida recoge las funciones básicas del dispositivo.
Descargue el manual de instrucciones en:
www.defelsko.com/manuals.
El PosiTector IRT se enciende al pulsar el botón central .
Para conservar las baterías, el Medidor se apaga después de
aproximadamente 5 minutos de inactividad. Se conservarán
todas las configuraciones.
Inicio rápido
1.Retire la goma de la tapa protectora roja de la sonda si la lleva.
2.Encienda el Medidor pulsando el botón central.
Pantalla típica
El sensor de temperatura infrarrojo mide de manera continua
inmediatamente. Presione la tecla (+) para interrumpir la medición
a tiempo real. Presione la tecla (+) nuevamente para continuar
midiendo.
Indicador inteligente
de Tendencia –
Aparece cuando la tem-
peratura superficial esta
incrementando o decre-
mentando. No aparece
cuando la temperatura
es estable.
Emisividad (pg.5)
Indicador de
batería
Temperatura
Superficial
Unidad de Temperatura

Desplazamiento
por los gráficos de
tendencia (sólo
Avanzado)
Acceso al menú
Pausa / Reinicio
Activar Laser
(Abajo)
Funciones de los botones - Funcionamiento normal
Apuntador Laser
Pulse y mantenga presionado el botón de desplazamiento hacia
abajo para activar el apuntador laser. El laser permite orientar el
sensor de temperatura infrarrojo a una ubicación determinada.
Libere el botón para desactivar el laser. El indicador de (adverten-
cia) laser aparece en la pantalla todo el tiempo que el laser
está activo.
2
Laser Activo
Radiación láser. NO M RE D RECTAMENTE. Producto laser Clase 2
Parámetros láser:
Longitud de onda: 652 nm
Potencia láser para clasificación: <1.0 mW
Diámetro del haz: <2mm at aperture
Divergencia : 1 mRad
Modo de operación: CW
EN/ EC 60825-1:2014 (2007 USA)

3
Una vez encendido, el PosiTector determinará
automáticamente el tipo de sonda conectado y
realizará una comprobación automática.
Para desconectar una sonda de la base del PosiTector
deslice el conector de la sonda de plástico
horizontalmente (en la dirección de la flecha)
separándola de la base PosiTector. nvierta los pasos
para conectar una sonda diferente. No es necesario
apagar el medidor cuando se cambia la sonda.
La base del medidor PosiTector acepta una amplia variedad de
tipos de sonda incluyendo las necesarias para medir espesor de
recubrimientos tipo magnético, de corrientes de Foucault y de
ultrasonido; sondas para perfiles de superficie, ambiental, dureza
Shore y sondas de espesor de pared por ultrasonidos. Consulte
www.defelsko.com/probes
Sondas
Sondas
Menú Operación
Menú Operación
Las funciones del medidor se controlan con un menú. Para acceder
al menú encienda el medidor y pulse el botón central.
Para desplazarse utilice los botones Arriba y Abajo y para
SELECCIO AR.
Página Anterior
(Salir) Arriba Siguiente Página
Acceso al Menú
(Centro/Seleccione)
Abajo
Presione el botón (+) para
cambiar de página en el
menú formado de varias
páginas.
Presione el botón (
- )para
regresar al menú o página
anterior.
Seleccione Salir para cerrar
el menú del medidor.
