Perfect Prime TM0300 User manual

Infrared Thermometer
TM0300
Instruction Manual

CONTENTS
P. 1
1. SAFETY REGULATIONS
2. FUNCTIONS/APPLICATIONS
3. TECHNICAL SPECIFICATIONS
4. PRODUCT DESCRIPTION
4.1 Display
4.2 Keyboard
4.3 INSTALL/REPLACE BATTERIES
4.4 SWITCH ON/OFF
5. SETTINGS
6. MEASUREMENT
7. EMISSIVITY
8. SWITCH ON THE DEVICE
9. OPTICA0L RESOLUTION
10. CARE AND MAINTENANCE
10. UTILIZATION
11. WARRANTY
......................................................... 2
.................................................. 3
............................................. 4-5
...................................................... 6
........................................................................... 7
........................................................................ 8
............................................. 8
.............................................................. 8
........................................................................... 9
.................................................................10
....................................................................... 11
..................................................... 12
..................................................... 12
................................................. 12
................................................................... 13
..................................................................... 14

1. SAFETY REGULATIONS
P. 2
Aenon! This user manual is an essenal part of this product. The user
manual should be read carefully before you use the product for the rst
me. If the product is given to someone for temporary use, be sure to
enclose user manual to it.
• Do not misuse the product.
• Do not remove warning signs and protect them from abrasion,
because they contain informaon about safe operaon of the product.
• Do not look into the laser beam or its reecon, with unprotected eye or
through an opcal instrument. Do not point the laser beam at people or
animals without the need. You can dazzle them.
• To protect your eyes close them or look aside.
• Do not let unauthorized people enter the zone of product operaon.
• Store the product beyond reach of children and unauthorized people.
• It is prohibited to disassemble or repair the product yourself. Entrust
product repair to qualied personnel and use original spare parts only.
• Do not use the product in explosive environment, close to ammable
materials.
• Avoid heang the baeries to avoid the risk of explosion and electrolyte
leakage. In case of liquid contact with skin, wash it immediately with
soap and water. In case of contact with eyes, ush with clean water
during 10 minutes and consult the doctor.
Laser radiaon!
Do not stare into beam Class 2 laser
<1 mW 635-670nm
EN60825-1: 2007-03

2. FUNCTIONS/APPLICATIONS
P. 3
IR-thermometer TMO300 is designed for non-contact measurement
of surface temperature of various objects. Ergonomic, shockproof
housing, small size and weight, intuive interface, laser spot marking,
connuous measurement mode provide simple and convenient
measurement of temperature of dangerous, moving, hard-to-reach
distant objects at less than 1 second at just one touch of the trigger.
The principle of non-contact temperature measurement is based on
measuring of the intensity of infrared radiaon of the object’s surface.
DELIVERY PACKAGE
Infrared thermometer – 1pc.
Baery (1,5V LR6 AA) – 1 pc.
User manual – 1 pc.

P. 4
3. TECHNICAL SPECIFICATIONS
Display
Measuring range
Accuracy
Smallest unit displayed
Opcal resoluon
Response me
Spectral sensivity
Emissivity
Operang temperature
Storage temperature
30*30mm LCD with backlight
-50 °C …600 °C
-58 °F …1112 °F
-50 °C…-20 °C
(-58 °F…-4 °F)
-20 °C…0 °C
(-4 °F…32 °F)
0 °C…600 °C
(32 °F…1112 °F
0.1 °C/°F
12:1
0,1 sec
8...14 µm
0.1…1.00 adjustable
0 °С …50 °С (32 °F…122 °F)
-10°С…60°С (-14 °F…140 °F)
±3 °C (±6 °F)
±2 °C (±4 °F)
±1,5 °C (±3 °F)
or ±1,5%

3. TECHNICAL SPECIFICATIONS
P. 5
Relave humidity for operaon
and storage
Power supply
Battery life
Automatic Shutdown
Laser
Dimensions
Weight
<95%
1,5V LR6 АА alkaline
~6 hours
30 sec.
Class II, 635-670nm, <1mW
165*47*59mm
135 g

4. PRODUCT DESCRIPTION
P. 6
Display
Keybord
Trigger
Laser spot marking exit window
Infrared sensor
Battery cover
4 1
2
3
6
5
2
3
4
5
6
1

4. PRODUCT DESCRIPTION
P. 7

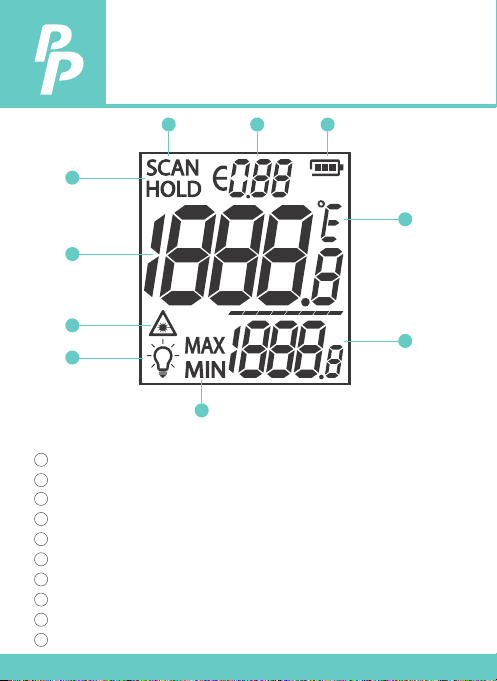

Indication of continuous measurement
Emissivity value
Indication of battery charge level
Measuring units (°С or °F)
Maximal/minimal measurement value
Indication of maximal/minimal value
Indication of display backlight
Indication of activated laser spot marking
Measurement result
Indication of data hold on the display
2
3
4
5
6
7
8
9
10
1
1 2 3
4
5
6
7
8
9
10
Display

4. PRODUCT DESCRIPTION
P. 8
• Check max/min values/adjust emissivity degree.
• Switch on/o display backlight and laser spot
marking.
• Select measuring unit (°С or °F)/adjust emissivity
degree.
Keyboard
INSTALL/REPLACE BATTERIES
Remove the battery cover. Install the
battery observing correct polarity.
Put the battery cover back and push it
until a click is heard.
If the symbol of low battery change level
appears on the display, replace the
battery by a new one.
SWITCH ON/OFF
Short press the trigger to switch on the device. The device is ready to
work. The device switches o automatically in 30 seconds after the last
pressing on any button.

5. SETTINGS
P. 9
1) Measuring units
Short press button to select the measuring unit:
2) Laser spot marking
°C – degrees Celsius;
°F – degree Fahrenheit.
Short press button to select the measuring unit.
Short press button to activate laser spot marking*. Symbol
will appear on the display. To disable laser spot marking short
press button several times until symbol disappears. Laser spot
marking is only used for aiming and can be switched o when
working at short distance to save battery power.
*Laser spot marking is on as long as the trigger is pressed.
3) Display backlight
Short press button to switch on display backlight. Symbol
will appear on the display.
To switch o the backlight short press button several until
backight is switched o and symbol disappears.

P.10
6. MEASUREMENT
Short press the trigger to switch on the device. Press corresponding
buttons to set the measuring unit, activate laser sport marking, display
backlight if needed.
Aim the device against the object of measurement and press the trigger.
Measurement result will appear on the display.
Long press the trigger to activate continuous measurement. Indication
SCAN will appear on the display. To nish continuous measurement
release the trigger. Indication of data hold HOLD will appear on the
display. Measurement result as well as the minimum/maximum value will
also be displayed. Short press button several times. The minimum
and maximum values are displayed alternately on the display.

7. EMISSIVITY
P.11
All objects emit thermal energy. Emitted energy quantity depends on the
surface temperature and object emissivity. The product can measure
emission on the surface of object and calculate object temperature.
Objects with dierent surfaces but with the same temperature can emit
dierent quantity of thermal energy. Many objects (e.g. coated metal,
wood, water, skin and texture) possess high emissivity (0,9 and more), and
emit more energy than glossy surfaces and uncoated metal, because their
emissivity is less than 0,6. Adjustment of emissivity helps to take this
feature into consideration and minimize inaccuracy of temperature
measurement.
Material Emissivity Material Emissivity
Asphalt 0.90~0.98 Black cloth 0.98
Concrete 0.94 Human skin 0.98
Cement 0.96 Bubble 0.75~0.80
Sand 0.90 Charcoal dust 0.96
Soil 0.92~0.96 Paint 0.80~0.95
Water 0.92~0.96 Mae paint 0.97
Ice 0.96~0.98 Black rubber 0.94
Snow 0.83 Plasc 0.85~0.95
Glass 0.90~0.95 Wood 0.90
Ceramic 0.90~0.94 Paper 0.70~0.94
Marble 0.94 Chromic oxide 0.81
Gypsum 0.80~0.90 Copper oxide 0.78
Mortar 0.89~0.91 Ferric oxide 0.78~0.82
Brick 0.93~0.96 Texture 0.90

8. SWITCH ON THE DEVICE / 9. OPTICAL
RESOLUTION / 10. CARE AND MAINTENANCE
P.12
OPTICAL RESOLUTION
As the distance from the device to the object
increases, the size of the measured spot on
object surface increases accordingly To
determine the size of the spot (S) divide the
distance from the device to the target (D) by 12.
CARE AND MAINTENANCE
Attention! The product is an accurate optical mechanic device and
requires careful handling. Maintenance of the following recommenda-
tions will extend the life of the device:
• Keep the product clean and protect it from any bumps, dust and
dampness; do not allow moisture, dust or other dirt get inside of the
product.
• Do not expose the product to extreme temperatures.
• If liquids get inside the product rst remove the batteries, then contact a
service center.
• Do not store or use the product under high humidity conditions for a
long time.
• Clean the product with soft wet cloth.
• Keep the device optics clean and protect it from mechanical impact.
Failure to observe the following rules may result in leakage of electrolyte
from the batteries and damage the device.
• Remove the batteries from the product if you do not use it for a long
time.
• Do not leave discharged batteries in the device.
Switch on the device.
Press and hold the trigger, then long press button .Symbol will
start ashing on the display. Release the trigger. Value 0.95 is set by
default. Press buttons and to adjust the emission degree will be
xed on the display, symbol will stop ashing.
1’’ 3’’ 5’’
@12’’ @ 36’’ @60’’
D:S = 12:1 at Focal Point

10. UTILIZATION
P.13
Expired tools, accessories and package should be passed for waste
recycle. Please send the product to the following address for proper
recycle:
Do not throw the product in municipal waste!According to
European directive 2002/96/ЕC expired measuring tools and
their components must be collected separately and
submitted to environmentally friendly recycle of wastes.

11. WARRANTY
P.14
All PerfectPrime products go through post-production control and are
governed by the following warranty terms. The buyer’s right to claim about
defects and general provisions of the current legislation do not expire.
• PerfectPrime agrees to eliminate all defects in the product, discovered
while warranty period, that represent the defect in material or workman-
ship in full volume and at its own expense.
• The warranty period is 24 months and starts from the date of purchase by
the end customer (see the original supporting document).
• The warranty doesn’t cover defects resulting from wear and tear or
improper use, malfunction of the product caused by failure to observe the
instructions of this user manual, untimely maintenance and service and
insucient care, the use of non-original accessories and spare parts.
Modications in design of the product relieve the seller from responsibili-
ty for warranty works. The warranty does not cover cosmetic damage, that
doesn’t hinder normal operation of the product.
• PerfectPrime reserves the right to decide on replacement or repair of
the device.
• Other claims not mentioned above, are not covered by the warranty.
• After holding warranty works by PerfectPrime warranty period is not
renewed or extended.
PerfectPrime is not liable for loss of prot or inconvenience associated
with a defect of the device, rental cost of alternative equipment for the
period of repair.In warranty case please return the product to retail seller
or send it with description of defect to the following address:
[email protected]

CUSTOMER SERVICE INQUIRIES
Your emails are important to us so we strive to reply all
inquiries and emails within 24 hours. In exceptional cases,
we may require more time to respond.
Thank you for your understanding.
For more information about our products and services,
please send us an email:
[email protected]
For B2B or project-based application, please send an email:
[email protected]
FOR MORE INFORMATION ABOUT PERFECTPRIME PLEASE VISIT
OUR ABOUT US PAGE AND FEEL FREE TO BROWSE.
Scan QR Code for the Product
Manual page (Multi-Language
available for certain products)
Scan QR Code for the Youtube
channel for video manual
Scan QR Code to register the
product for 1 year warranty

HORMES LIMITED
[email protected]
G/F UNIT 3, 61 GLENTHORNE ROAD,
LONDON W6 0LJ UNITED KINGDOM
[phone]
Retailer
Email
Address
Telephone
