DEL Moove'O Operation and maintenance manual

moove’O
SAFETY SLATTED AUTOMATIC COVER
INSTALLATION NOTICE Installation / Use / Maintenance / Safety Advice
SWIMMING POOL DEVELOPMENT AND INNOVATION

PARTS INCLUDED IN THE DELIVERY
TRANSPORT
PACKING LIST
Description
THIS NOTICE MUST BE GIVEN TO THE POOL OWNER
PLEASE READ CAREFULLY AND KEEP IN A SAFE PLACE
Moove’O
69 mm Slats « number of boxes according to your order »
Safety kit (1 box ) - OPTION
example - for a 5 x 10 m pool with Ø3 m step unit
Moove’o + safety kit : 1 box of 0.80 x 0.70 x 5.50 m --- 90Kg
Slats : 5 box of 5 x 0.25 x 0.20 m --- 190 Kg
Peso weight : 280 Kg
In any event the consignment must be checked by the recipient upon receipt of the
delivery. Any damage or shortage should be reported to the supplier within 24 hours.
x1
Quick-Lock
3 fitting models: surface mounted - insert mounted- hanging mounted
Strap locking kit Push-lock
2
A battery charger
A handle

INFORMATION/PLACE/AXLE HEIGHT
The cover is made of watertight PVC slats that float on the water. The openning and closing
of the cover is made with the use of the key situated on one of the support of Moove’O.
Information
NECESSARY TOOLS - (INSTALLATION - 2 PERSONS)
THE COVER
Ø8 - 12 - 20
OPTION
Safety locking kits
Moving roller
Gap between the
wall and the cover
PVC slats
3
42 + reeling diameter / 2
Cover width (m)
Reeling Ø of the cover (cm) Measures in
cm
4
mini
4
mini
15
15
75,4
51,5
57,9
42
Measure between wheels
Measure between wheels + 30
pool width
To date, covers for overflow pools and covers with removable step unit on the side are not
conform with NF P 90-308 French safety norm.
Unless indicated by the manufacturer, immersion alarms are not compatible with DEL automatic
covers.

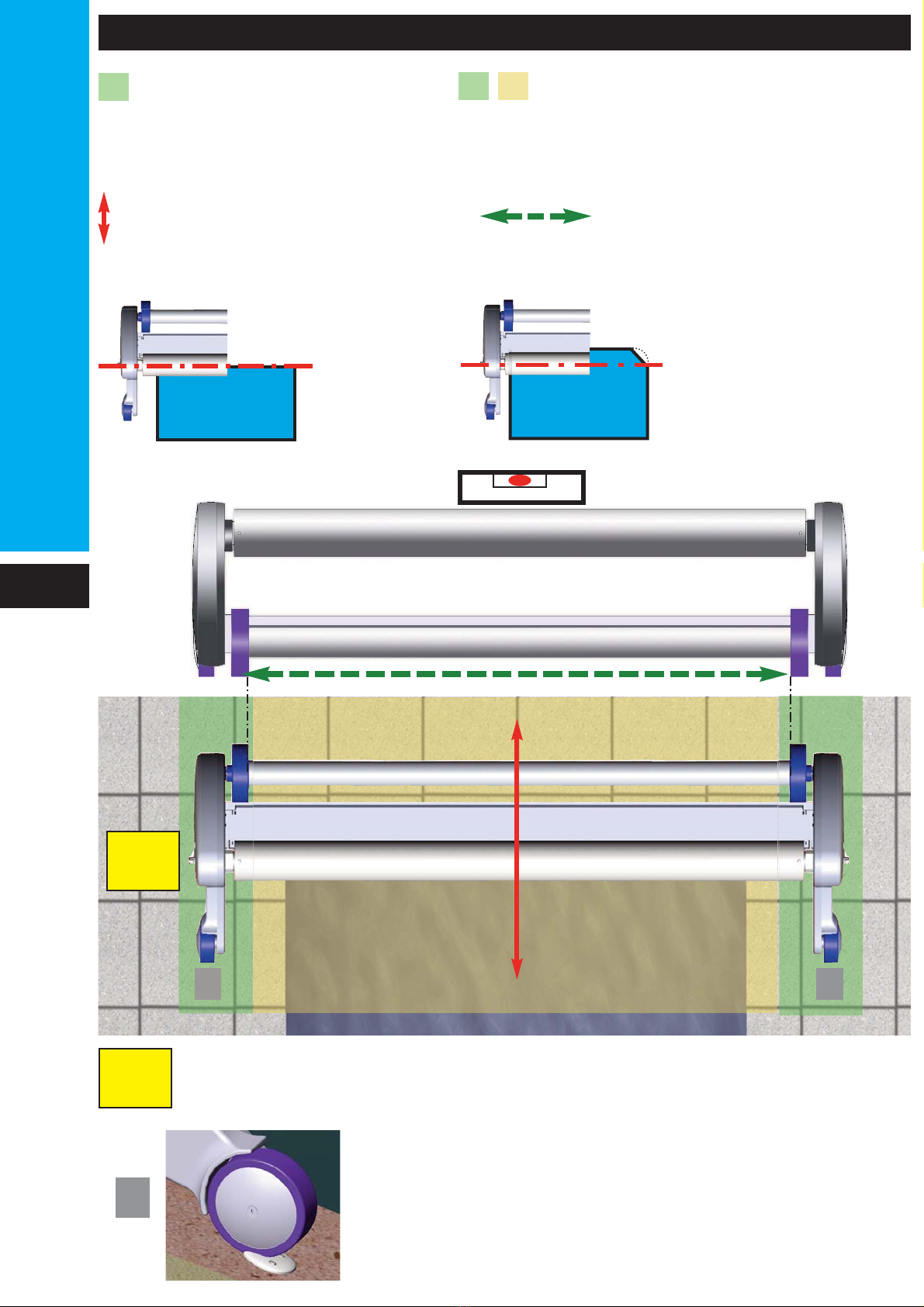

INSTALLATION
Installation
4
This surface must be flat and
resistant enough to bear the weight
and move of the Moove’O (not
recommended on lawns)
Maximum weight 340kg
These surfaces must not have any
obstacles over 6.5cm high. Mind the
filtration unit and shapes of the coping
stones
Moove’O can be moved in straight
lines only
The Moove’O is centered on the pool
Position of use
Pm .To carry out closing and opening manoeuvres, install the Moove’O
on the largest width of the pool
Blocking of the front wheels – enables to know easily the exact
position where the opening and closing of the pool have to be
Pm
Pm
The Moove’O must be installed according to the corners of the pool
Straight
corners
rounded or
cut corners

WIRING
Installation
5
If necessary, cut the coping
stones to ease the cover and
avoid rubbing.
With free shaped pools or pools
with big radius (drawing on the
left handside), a bigger cut
might be necessary.
35 cm
Solar
panels
1
2
4
3
-
-
+
+

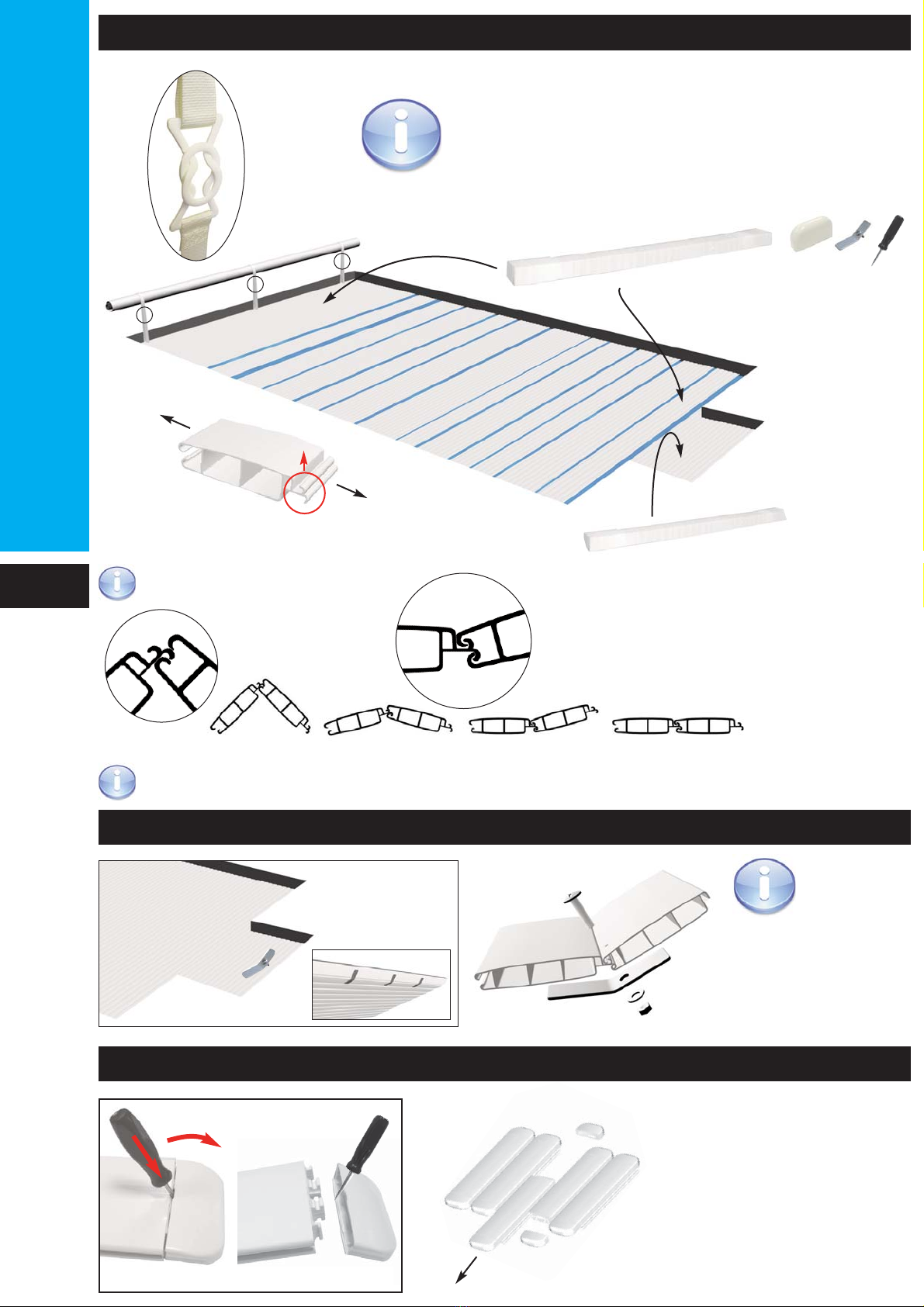

COVER INSTALLATION
SKI INSTALLATION
paquete «escalier»
Box stickered «début de volet» / «fin de volet»
Install the slats on the water
and clip them together.
Take care with the direction
of the cover over the pool.
Skis are
always
mounted on
the last slat. They
stop the cover
«diving» when closing
over the pool.
+
Last slat
Box stickered
«fin de volet»
“CLAC”
Fit the slats along
the whole length.
Repeat wiggling/handling of the slats may be needed.
HOW TO TAKE OFF A SLAT AND END CAPS ?
69 mm slats
with a small screw driver
female
male
12
Installation
6

Installation
7

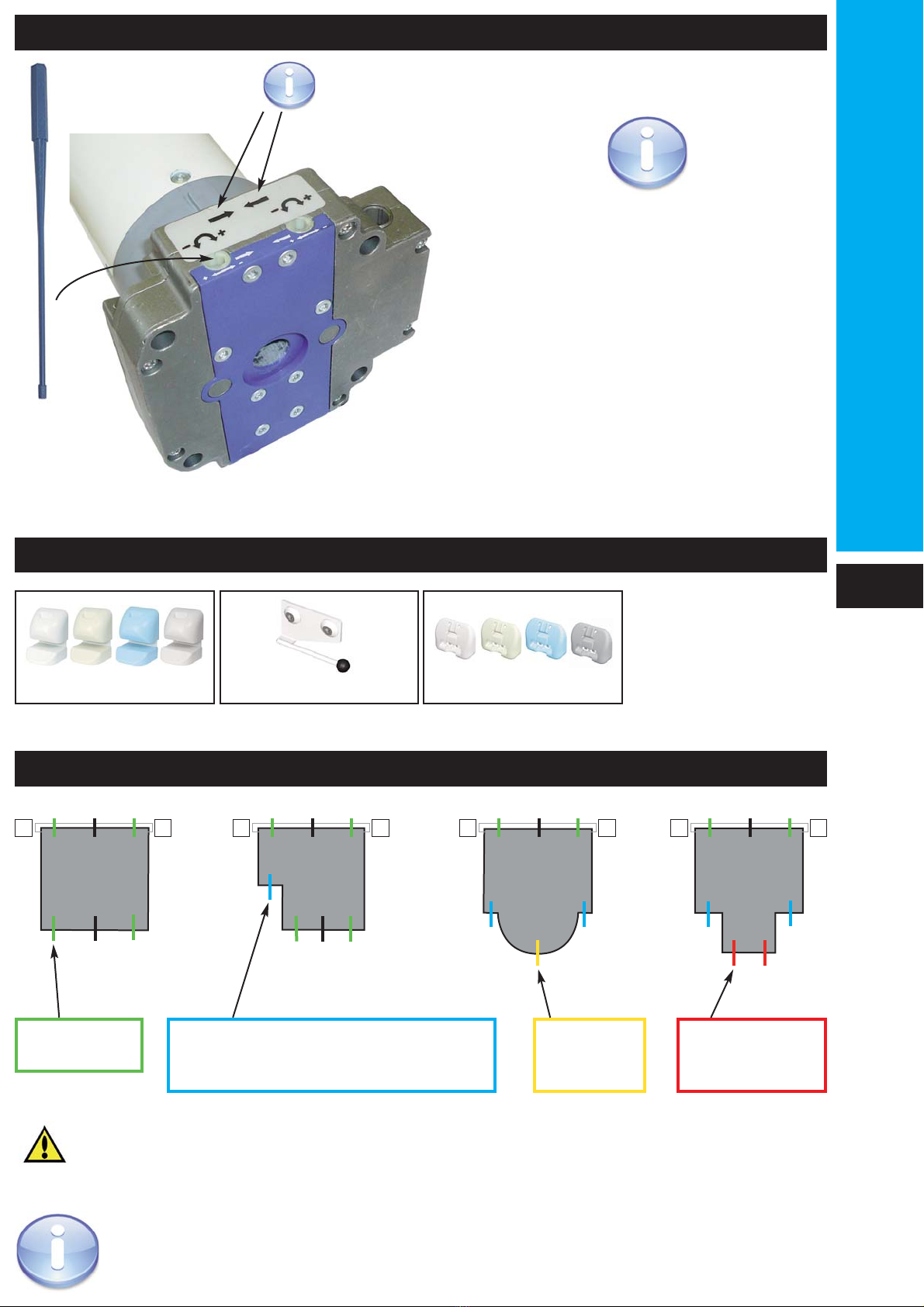

AUTOMATIC STOP ADJUSTMENT
Key
Red arrows indicate the direction of the cover.
Turn the key in the + direction to increase
the movement in the direction of the arrow.
Turn the key in the - direction to decrease
the movement in the direction of the arrow.
SAFETY KIT (OPTION)
Quick-Lock Strap locking kit Push-lock
LOCKING KIT POSITIONING
Quick Lock and Lock it cannot be installed on cut sides and rounded shapes,
except for the Roman end step unit.
Without step
unit With Roman
step unit
kit at the
end of the
step unit
2 kits at 50 cm
from the edge
kit at 50 cm
from the edge
1 kit centred if < 1 m
1 kit at 50 cm from the edge if < 2 m
2 kits if > 2 m
* X must not exceed 2 m
x* x x x
xxxx xxxx
x
With side step
unit With straight
or diagonal
step unit

Installation
8
A water top level is mandatory
5 cm
min
5 cm
min
For concrete and panel pools
Screw VBA TF Z pozi
inox A4 Ø6 x 60
Screw cap
Screw cap
Washer Ø16
Wall unit
PUSH-LOCK INSTALLATION
For concrete pools
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
Hanging support Washer
Ø10
Screw
Inox A4
M10 x 60
Sleeve
nylon Ø12
Bolt A4 M10
Ø12
Ø8
5 cm
Sleeve 8 x 40
Screw VBA TF Z pozi
inox A4 Ø6 x 60
Washer Ø16
60 mm “minimum”
Sleeve
Washer
Do not tighten the
screws after the
resistance point, you
could damage the
installation.
Concrete
Once the resistance
point has been
reached, turn the
screw 3 times to finish
the installation.
Washer
Concrete blocks
Screw cap
For concrete pools and pools with a wall thicker than 8mm.
Surface mounted model
Hanging mounted model
Insert mounted model

Installation
9

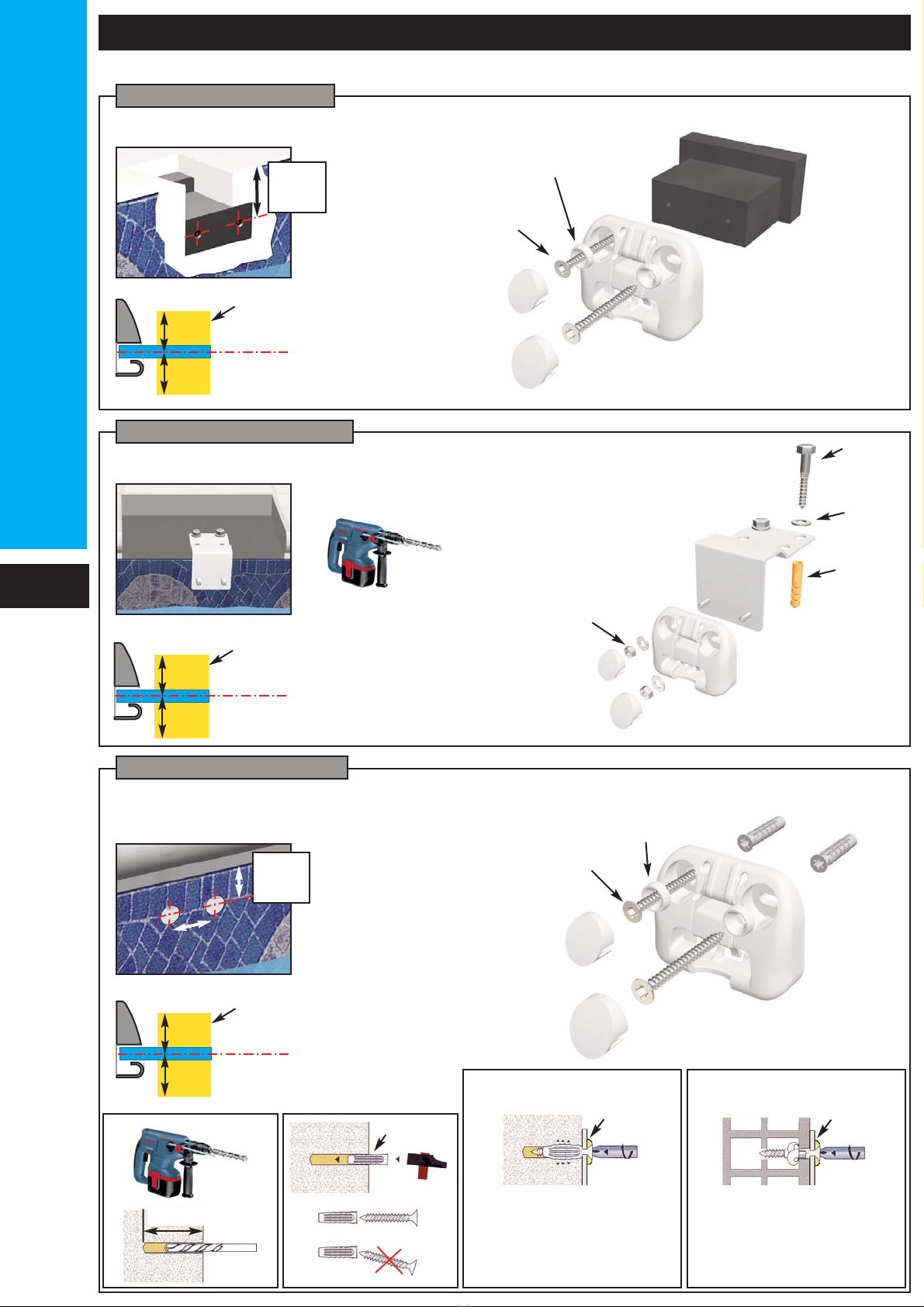

QUICK-LOCK INSTALLATION
A water top level is mandatory.
5 cm
min
5 cm
min
For concrete and panel pools
Screw VBA TF Z pozi
inox A4 Ø6 x 60
Washer Ø16
Wall unit
Adjustment
For concrete pools
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
Hanging support Washer
Ø10
Screw
A4
M10 x 60
Sleeve
nylon Ø12
Bolt A4 M10
Adjustment
Ø12
Ø8
For concrete pools and pools with a wall thicker than 8mm.
Sleeve 8 x 40
Adjustment
Screw VBA TF Z pozi
inox A4 Ø6 x 60
Washer Ø16
60 mm “minimum”
Sleeve
Washer
Do not tighten the
screws after the
resistance point, you
could damage the
installation.
Concrete
Once the resistance
point has been
reached, turn the
screws 3 times to
finish the installation.
Washer
Concrete blocks
Surface mounted model
Hanging mounted model
Insert mounted version
5 cm

Installation
10

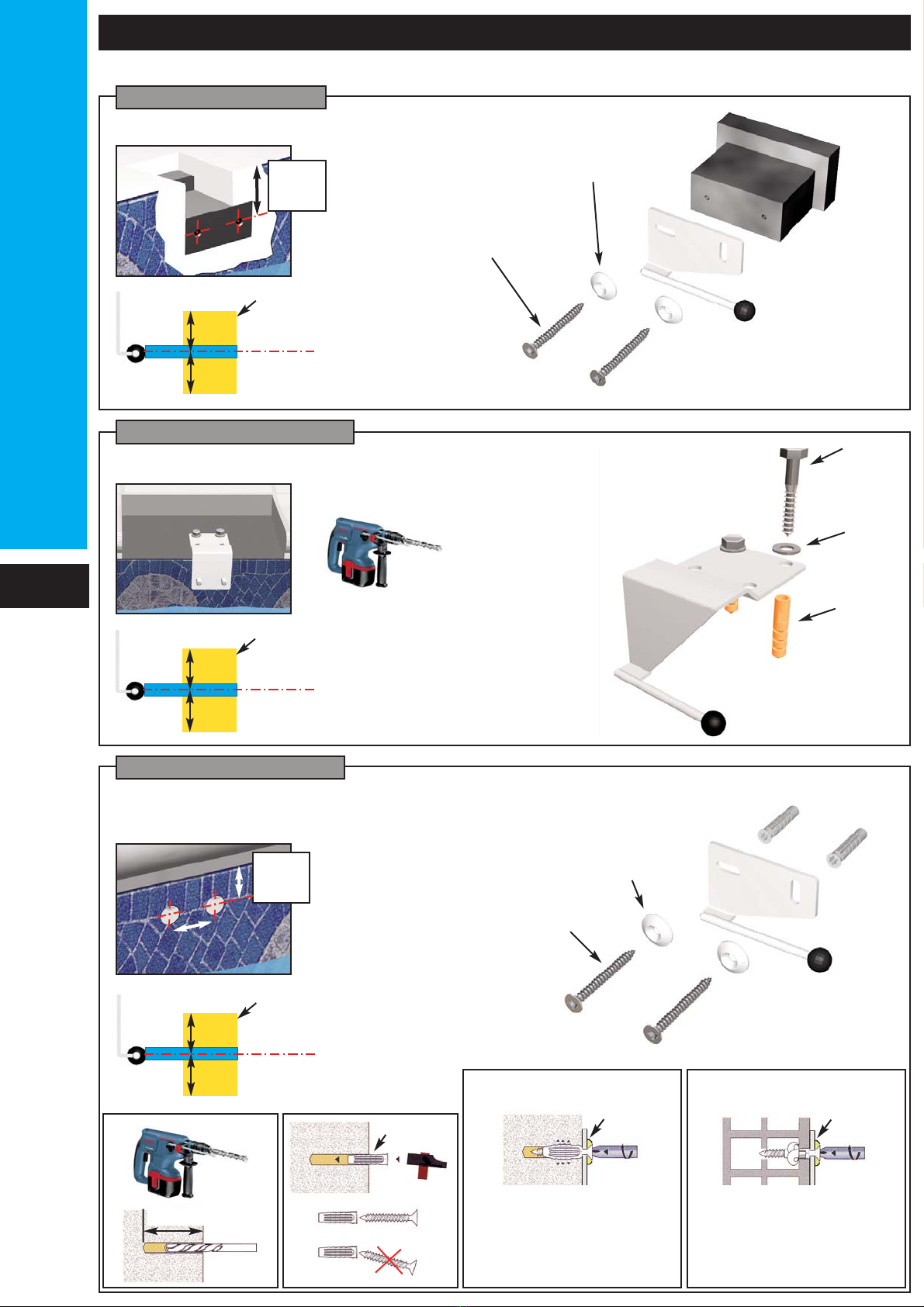

STRAP INSTALLATION
A water top level is mandatory.
5 cm
min
5 cm
min
For concrete and panel pools
Screw VBA TF Z
pozi inox A4 Ø6 x 60
Washer Ø16
Wall unit
For concrete pools
Washer
Ø10
Screw
Inox A4
M10 x 60
Sleeve
nylon Ø12
Ø12
Ø8
For concrete pools and pools with a wall thicker than 8mm.
Surface mounted model
Hanging mounted model
Insert mounted model
Sleeve 8 x 40
Screw VBA TF Z pozi
inox A4 Ø6 x 60
Washer Ø16
60 mm “minimum”
Sleeve
Washer
Do not tighten the
screws after the
resistance point, you
could damage the
installation.
Concrete
Once the resistance
point has been
reached, turn the
screws 3 times to
finish the installation.
Washer
Concrete blocks
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
recommended
5 cm
Acceptable limit of
level variation
water level
5 cm
5 cm

Installation
11
INSTALLATION OF THE STRAP ANCHOR
INSTALLATION OF THE STRAP
Middle of the bracket
between 25
and 40 cm
Anchor for concrete deck
Anchor for wood deck
Ø20
Depth: 5 cm
Ø20
Depth : 4,5 cm
The anchor head
must be higher than
the pool deck surface
Do not force the anchor in a hole where
the diameter is smaller.
Screw Ø4 x 25
Sheath
Single strap
Strap
Sheath
Hook
Buckle
Tense the strap
The cover must be under the
bracket.
Install the hook after the buckle and tighten.
2 thicknesses of the strap go through the hook.
Double strap
tube side
HookBuckle
or
+++
1
1
2
Install the sheath around the hook and
heat with a hot air gun.
thermostat 5 to 6
Do not burn the strap.
3

- Make sure there is no bather or foreign bodies in the pool before and during the closing action.
- When using an automatic cleaner under the cover, check that the hose does not affect the
movement of the slats when opening and closing the cover.
- It is essential to remove floating objects when opening and closing the cover.
- Do not resist the cover when opening and closing it.
- Do not activate the automatic cover when it is frozen / stuck.
- The cover can be opened and closed by one person. (3 minutes)
Openning :
- Position the Moove’o (in line with the shape of the pool) and tie the cover to the roller
(straps with removable connection)
- Release all safety locking kits
- Turn the key switch.
- Move the Moove’o back
- Keep away the items required to activate the cover (e.g. the key) out of children’s reach.
Closing :
- Position the Moove’o (in line with the shape of the pool)
- Turn the key switch «maintained contact during the closing»
- Lock all safety locking kits.
- Untie the cover with the Moove’o
- Move the Moove’o back.
- Keep away the items required to activate the cover (e.g. the key) out of children’s reach.
ALWAYS KEEP AN EYE ON THE POOL DURING OPENING OR CLOSING OF
THE COVER.
OPENING/ CLOSING OF THE POOL
Always release the cover before starting the motor
Use
12

Use
13

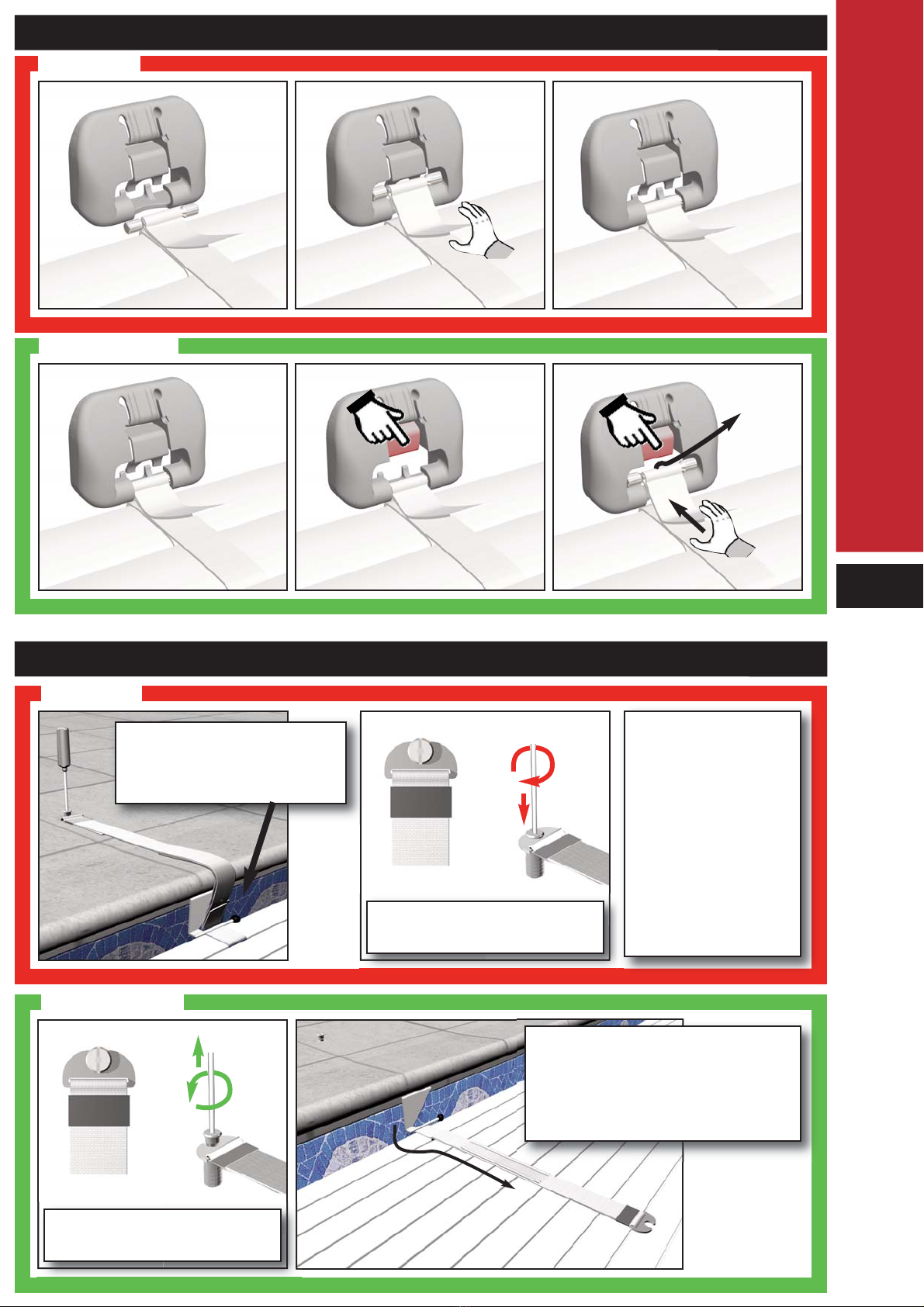

LOCKING AND RELEASING PUSH-LOCK
Locking
Releasing
LOCKING AND RELEASING STRAP SAFETY KIT
Locking
Releasing
Install the strap
between the wall
and the bracket
Lock the anchor
The strap must
be under
tension and
must be
through
the bracket
Release the anchor
Remove the strap from
around the bracket and
put it on the cover

Use
Upkeep
14
FILTRATION
- Program the filtration during sunlight hours and run it continuously as soon as the water reaches
25ºC.
WATER LEVEL OF THE POOL
- The water level has to be maintained at the correct level to avoid damage and repeated activa-
tion of the torque limiter device .(For more comfort, use a water level regulator).
- If the water level is too high, it might come from leaves in the skimmer.
- If the water level is too low, it might cause malfunction of the cover.
- In case of hand rails, the pool must be equipped with a water level.
MANUAL HANDLE
Its use does not change the automatic stops adjustment.

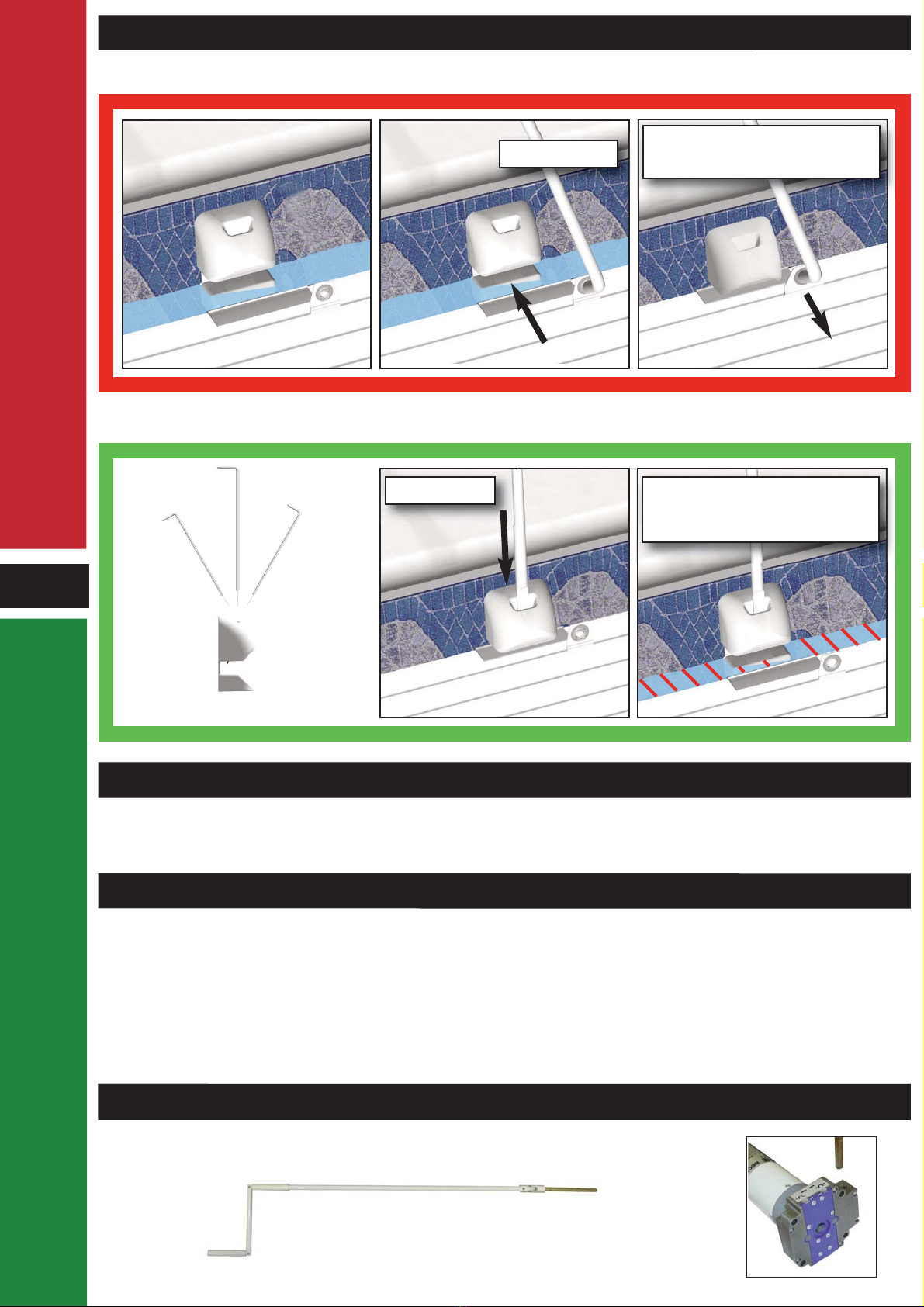

LOCKING AND RELEASING QUICK-LOCK
Locking
Releasing
with tool check the system is
locked
with tool The cover must not exit the
Quick Lock before you activate
the key switch.
+
+

Upkeep
15
Maintenance
MAINTENANCE
- All work must be carried out by a professional who will contact the manufacturer if necessary.
- All spare parts must be originals.
- Inspect the whole cover for damage/wear and tear.
- It is necessary to check at the start of every season and in the case of accidents (dropping
something on it, hail on the cover, abnormal force on the cover, etc.) that the slats have not been
visibly damaged in such as way as to affect the cover’s operation (slats with cracks, holes,
deformations, etc.). Change the slats or the whole cover if necessary.
- In both summer and winter, do not cover the slats with a debris winter cover. “There is a risk of
damaging the slats due to a rise in temperature.”
- Check the straps (sewing) and the anti-abrasion sheath. Replace the strap or sheath if
necessary.
WINTER
- Prepare the pool for winter according to its geographic location
- Close the cover in safety position.
- Place the battery in a dry and airy place.
UPKEEP
- Clean your cover fully twice a year (start of season and start of winter).
This is even more important if you have hard water. If this is the case, use a high pressure cleaner
with warm water and a descaling product.
- Take the same care to clean the locking systems regularly.
- It is advisable to inspect the whole system, in the event of abnormal force on the cover.
(e.g. somebody falling)
- Check the straps every year.
BATTERIES
AT FIRST SIGHT OF LACK OF POWER RECHARGE THE BATTERIES.
NEVER DISCHARGE BATTERIES COMPLETELY.
For security reasons, remove the batteries from the roller to recharge
them in a dry place.
Remove batteries from Moove’O (in the support with key switch)
Connect the battery to the charger (be careful with polarity). It starts automatically with appropriate
voltage and charging begins. The red LED indicates the batteries are being charged. Charging is
completed when the red LED is off. (see charger notice).
Note: Keep the charger in dry place.

DEAR CUSTOMERS :
THANK YOU FOR CHOOSING A DEL AUTOMATIC COVER.
PLEASE READ CAREFULLY THE RECOMMENDATIONS BELOW
ZA La basse croix rouge 35530 Brécé FRANCE - tel : [phone] - fax : [phone] - E-mail : [email protected]r
SWIMMING POOL BUILDER
SAFETY NOTICE
REMEMBER AND POST CLOSE TO THE SWIMMING POOL THE FIRST AID NUMBERS
- Fire station :
- Ambulance :
- Poisons centre:
CHILDREN CLOSE TO A SWIMMING POOL REQUIRE YOUR CONSTANT VIGILANCE AND YOUR ACTIVE MONITORING, EVEN IF
THEY CAN SWIM.
THE PHYSICAL PRESENCE OF A RESPONSIBLE ADULT IS ESSENTIAL WHEN THE POOL IS OPEN.
LEARN LIFE SAVING TECHNIQUES.
. THIS COVER DOES NOT REPLACE THE GOOD SENSE NOR WITH THE INDIVIDUAL LIABILITY. THE PURPOSE OF THIS COVER
DOES NOT REPLACE THE VIGILANCE OF THE PARENTS AND/OR THE RESPONSIBLE ADULTS WHICH REMAINS THE ESSENTIAL
FACTOR FOR YOUNG CHILDREN PROTECTION.
. BEWARE: SAFETY IS ASSURED ONLY WITH ONE CLOSED COVER, LOCKED AND CORRECTLY INSTALLED IN ACCORDANCE
WITH THE INSTRUCTIONS OF THE MANUFACTURER.
. THE COVER MUST BE SYSTEMATICALLY INSTALLED IN THE EVENT OF EVEN TEMPORARY ABSENCE OF THE RESIDENCE.
. MAKE SURE THERE IS NO BATHERS OR FOREIGN BODIES IN THE POOL BEFORE AND DURING CLOSING.
. PLACE THE NECESSARY TOOLS TO OPEN THE COVER OUT OF REACH CHILDREN. (THE KEY FOR EXAMPLE)
. THE OPENING ACTION OF THE MECHANISM SHOULD ONLY BE UNDERTAKEN BY A RESPONSIBLE ADULT.
. IT IS FORBIDDEN TO WALK OR JUMP ON THE SLATTED COVER.
. TAKE ALL MEASURES IN ORDER TO PREVENT THE ACCESS OF THE POOL TO YOUNG CHILDREN AND THIS UNTIL REPAIR OF
THE COVER OR WHEN NOTICING A DYSFUNCTION PREVENTING CLOSING AND THE SECURITY OF THE POOL.
. A CHILD MIGHT DROWN IN LESS THAN 3 MINUTES, AT LEAST ONE ADULT MUST SUPERVISE THE POOL WHEN IT IS OPEN.
Y/NOT20057 - 2011_04
