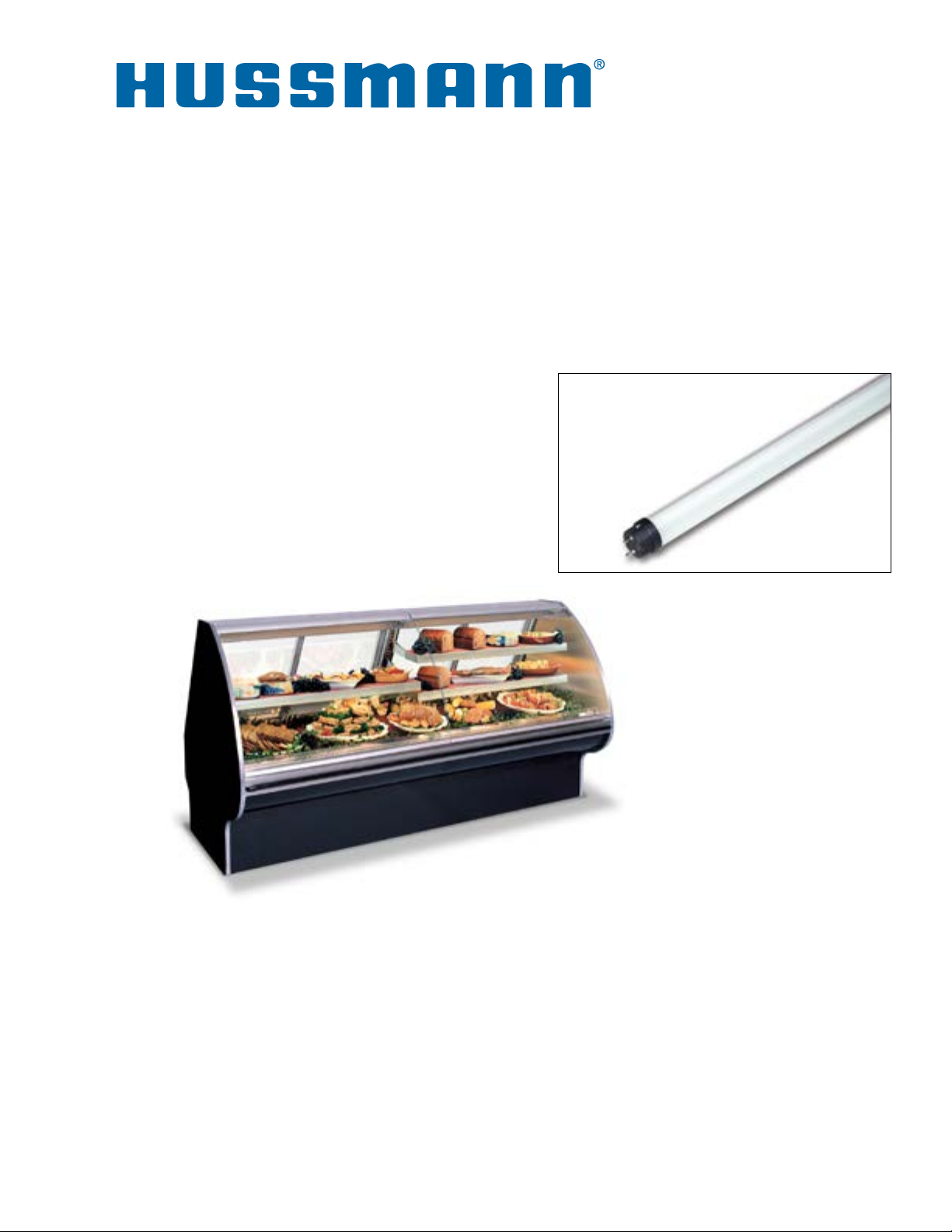

Hussmann 547701 User manual

®
Æ
EcoShine Quick Connect
LED Lights
for Service Cases
Canopy and Shelf Lights
Upgrade
Installation Manual
P/N 0547701
October 2014
Spanish 0547702
French 0547703
MANUAL- INSTALLATION QUICK CONNECT LED

REVISION HISTORY
REVISION A — Original Issue August 2014
IMPORTANT
KEEP IN STORE FOR FUTURE REFERENCE
Quality that sets industry standards!
12999 St. Charles Rock Road • Bridgeton, MO 63044-2483
U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900
www.hussmann.com
© 2014 Hussmann Corporation
BEFORE YOU BEGIN
Read these instructions completely and carefully.
RISK OF FIRE OR ELECTRICAL SHOCK.
INSPECT ALL LIGHTING COMPONENTS SUCH AS
TOMBSTONES, WIRE LEADS, ELECTRICAL
WIRING AND CONNECTIONS BEFORE
REPLACING LED LIGHTING.
RISK OF FIRE OR ELECTRIC SHOCK. LED
RETROFIT KIT INSTALLATION REQUIRES
KNOWLEDGE OF LUMINAIRES’ ELECTRICAL
SYSTEMS. IF NOT QUALIFIED, DO NOT
ATTEMPT INSTALLATION. CONTACT A
QUALIFIED ELECTRICIAN.
RISK OF FIRE OR ELECTRICAL SHOCK. INSTALL
THIS KIT ONLY IN THE LUMINAIRES THAT
HAVE THAT HAVE THE CONSTRUCTION
FEATURES AND DIMENSIONS SHOWN IN THE
PHOTOGRAPHS AND / OR DRAWINGS.
TO PREVENT WIRING DAMAGE OR ABRASION,
DO NOT EXPOSE WIRING TO EDGES OF SHEET
METAL OR OTHER SHARP OBJECTS.
* * * * * * * * * * * * * * * * * * * * * * * * * *
ANSI Z535.5 DEFINITIONS
• DANGER – Indicate[s] a hazardous situation
which, if not avoided, will result in death or
serious injury.
• WARNING –Indicate[s] a hazardous
situation which, if not avoided, could result in
death or serious injury.
• CAUTION –Indicate[s] a hazardous
situation which, if not avoided, could result in
minor or moderate injury.
• NOTICE – Not related to personal injury –
Indicates[s] situations, which if not avoided, could
result in damage to equipment.

Hussmann Corporation • Bridgeton, Missouri 63044-2483 U.S.A.
Quick Connect Lighting for Service Cases P/N 0547701
3
There are two main hazard areas that service
technicians may encounter on a day-to-day
basis. They are: working within close proximity
to the public and personal safety. Before
starting work, review these hazards by
completing the following checklist:
Working near the Public
Keeping the public out:
The following techniques reduce the risk of
injury to third parties (shoppers, store
employees, etc.):
Cordon off all work areas with cones,
caution tape, warning signs and/or barricades.
Maintain a work area of at least ve feet from
the public. Is a second person required to
prevent the public from entering the work area
when the work area cannot be adequately
cordoned off?
hazardous materials
Can the public be exposed to any chemicals,
refrigerants or fumes? If yes, can steps be taken
to eliminate or reduce the risk of exposure?
to guard against accidental release of refrig-
erants, make sure the work area is adequately
cordoned off (instead of posting a wet floor
sign, use caution tape to prevent the public
from entering the area).
Are wet oors going to create a slip hazard for
pedestrians? If yes, be sure to post wet floor
signs and establish a schedule for clean up as
soon as the work is complete.
electrical hazards
Are all live electrical hazards protected from
public access; i.e., de-energized/locked out or
cordoned off? Is proper signage in place?
Do light bulbs need to be replaced: If yes, will
high work be conducted from a ladder or a
scissor lift? Make sure the work area is
cordoned off as shown below.
Personal safety
Over 90% of accidents are due to human error
or from complacency about the job. This
checklist is provided to remind you of the
potentially hazardous conditions at the jobsite.
WorKing at height
Will you be working more than six feet off the
ground? If yes, have you received appropriate
training (i.e., ladder, scissor lifts and personal
fall-arrest systems)?
Do you have the appropriate personal
protective equipment (PPE) for working at
height (safety harness/lanyard)?
Will you be working on roofs with unprotected
edges? If yes, make sure actions are taken to
prevent a fall (i.e., identication of adequate
anchor points for safety harnesses).
confined space WorK
Will you be working in any conned spaces? If
yes, have you received appropriate training?
A conned space has limited means of entry/
egress, is not designed for human occupancy,
and is large enough for bodily entry.
Is permit-required conned space entry
required? If yes, have appropriate steps been
taken for safe entry, such as permit issuance.
If in doubt, DO NOT ENTER and inform the
client.
SAFETY

U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM
P/N 0547701
4
This instruction explains how to remove
uorescent lamp xtures and replace them
with Hussmann LED light bars for service
and specialty merchandisers.
FOR YOUR SAFETY
• Read and observe all CAUTIONS and
WARNINGS shown throughout these
instructions.
• Each person working on or near the
installation described must wear safety glasses
or goggles..
• Block access to the work area by customers
or other personnel to prevent injury.
• Read and follow all industry safety
recommendations and established procedures.
• Wiring must be 2 wire with ground and rated
for 75°C (176°F).
ELECTRICAL CONNECTIONS
All wiring must be in compliance with NEC
and local codes. All electrical connections are
to be made in the wireway at the power supply.

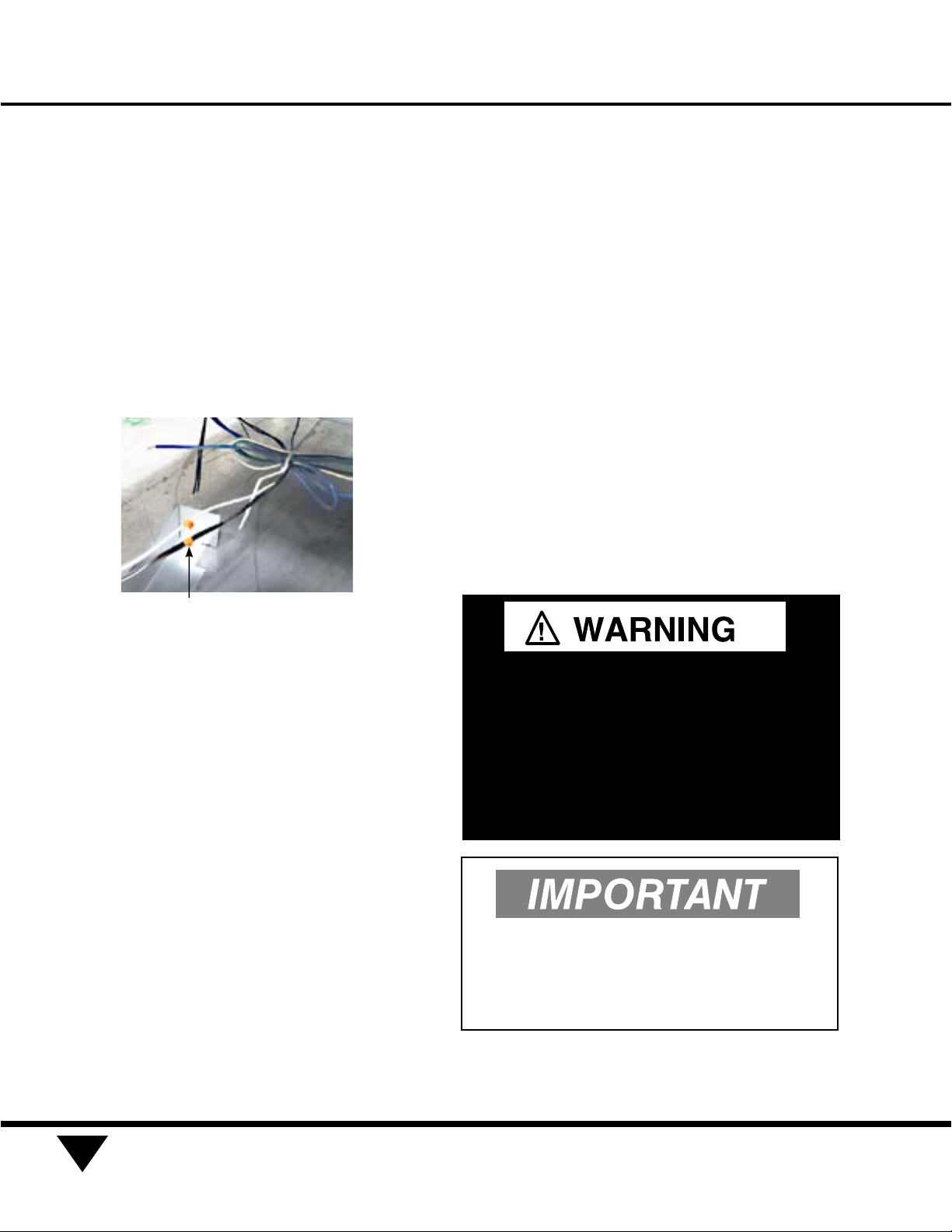

IDENTIFICATION OF WIRING
Leads for all electrical circuits are identied by
colored plastic bands. These bands correspond
to the color code sticker (shown below) locat-
ed inside the merchandiser’s wireway cover.
Anthony doors may not conform to this chart.
Refer to the manufacturer’s manual for their
information.
WIRING COLOR CODE
Leads for all electrical circuits are identied by a colored plastic band:
neutral wire for each circuit has either White insulation or a White
plastic sleeve in addition to the color band.
Pink ........... RefRig. TheRmosTaT Low TemP. oRange oR
LighT BLue . RefRig. TheRmosTaT noRm TemP. Tan .........LighTs
DaRk BLue . DefRosT TeRm. TheRmosTaT maRoon ..RecePTacLes
PuRPLe ....... conDensaTe heaTeRs YeLLow ...DefRosT heaTeRs 120V
BRown ....... fan moToRs ReD ........DefRosT heaTeRs 208V
gReen*....... gRounD *eiTheR coLoReD sLeeVe oRcoLoReD insuLaTion
ELECTRICIAN NOTE: Use copper conductor wire only.
CASE MUST BE GROUNDED
GENERAL
These aRe maRkeR coLoRs wiRes maY VaRY.

Hussmann Corporation • Bridgeton, Missouri 63044-2483 U.S.A.
Quick Connect Lighting for Service Cases P/N 0547701
5
Fluorescent lamps contain mercury vapor.
Mercury exposure at high levels can harm
the brain, heart, kidneys, lungs, and immune
system of people of all ages. Do not break
or puncture fluorescent lamps. Dispose of,
or store, all fluorescent lamps in accordance
with Federal (40 CFR 273), State, and local
hazardous waste requirements. Refer to
http://www.epa.gov/mercury/about.htm
SHIPPING DAMAGE
All equipment should be thoroughly examined
for shipping damage before and during unloading.
This equipment has been carefully inspected at
our factory. Any claim for loss or damage must
be made to the carrier. The carrier will provide
any necessary inspection reports and/or claim
forms.
Apparent Loss Or Damage
If there is an obvious loss or damage, it must
be noted on the freight bill or express receipt
and signed by the carrier’s agent; otherwise,
carrier may refuse claim.
Fluorescent Lamp Disposal: The United States
Environmental Protection Agency has
information regarding environmentally-safe
uorescent lamp waste management programs.
On the Net: EPA Web site:
http://www.epa.gov/osw/hazard/wastetypes/
universal/lamps/recycle.htm
Concealed Loss Or Damage
When loss or damage is not apparent until after
equipment is uncrated, retain all packing materials
and submit a written request to the carrier for
inspection, within 15 days.
Missing Parts
Every effort is made to ship all parts for the
kit. The Hussmann Service Center can be
reached by calling
• from U.S. & Canada 1-800-922-1919
• from Mexico 01-800-890-2900 •
— LOCK OUT / TAG OUT —
To avoid serious injury or death from electri-
cal shock, always disconnect the electrical
power at the main disconnect when servicing
or replacing any electrical component. This
includes, but is not limited to, such items as
doors, lights, fans, heaters, and thermostats.
Lighting
IP65 Rated:
These bulbs are IP65 rated. IP stands for ingress
protection. The lights are totally protected from dust
ingress — (6) and from the effects of uid immersion
between 5.9 in (15cm) and 3.28 ft (1m) — (7).
Color Temperature:
Color temperature is measured in kelvins (K). Higher
color temperatures produce bright, white light hues.
Neutral White (4000K) has a cooler hue than Warm
Neutral (3500K) or Warm White 3000K.

U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM
P/N 0547701
6

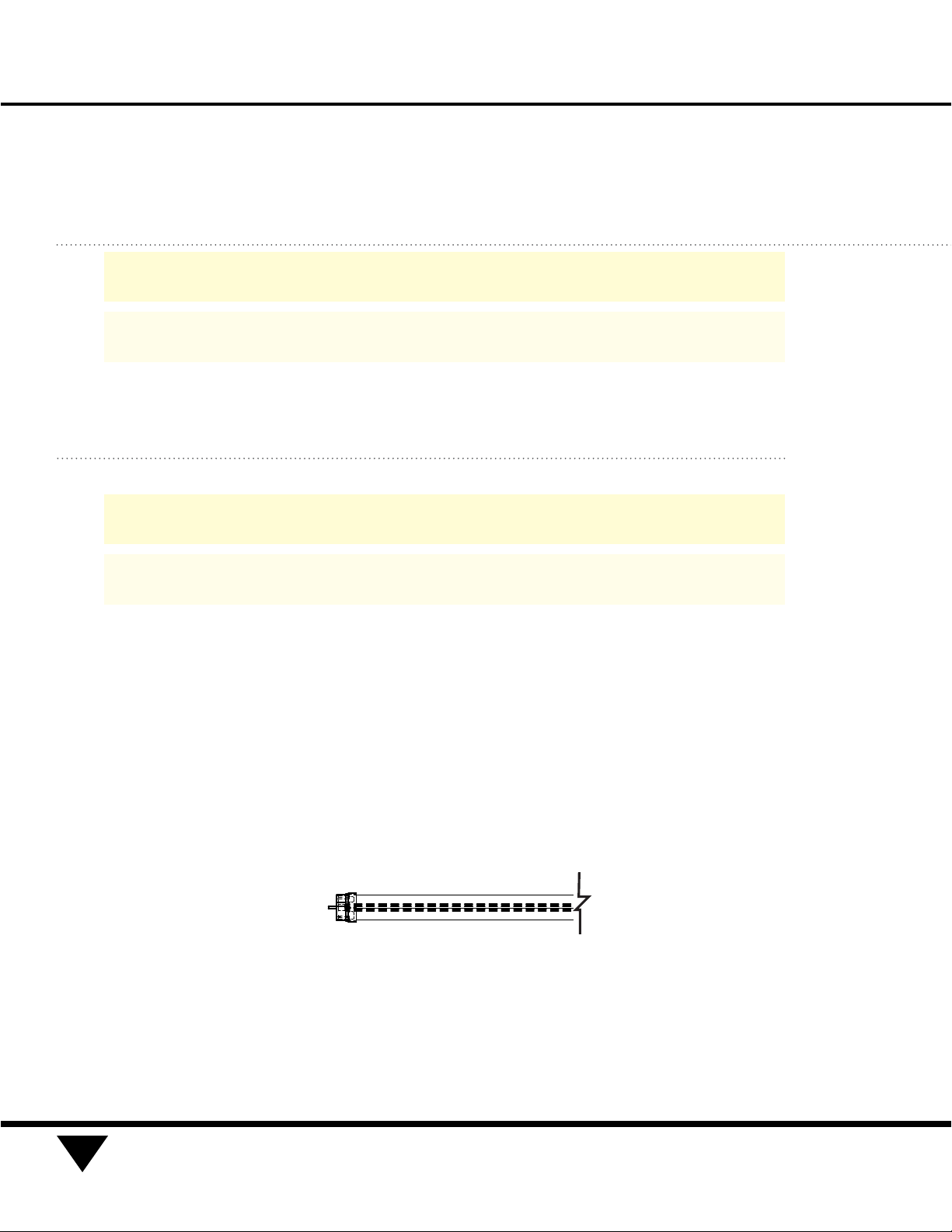

A B
DETAIL A DETAIL B
QUICK CONNECT LED
CANOPY LIGHT LENGTHS
36 in. (914 mm) 48 in. (1219 mm)
EcoShine Quick Connect LEDs Canopy for Service Cases
Energy Light
Watts CRI Output
Hussmann (DC) Rating Length (Lumens)
Part Number Description Per Bulb (typical) (inches) Typical
0547053 ES Quick Connect LED Canopy 3000K 36 in 6.7 93 36 600
0547059 ES Quick Connect LED Canopy 3000K 36 in. 13.3 93 36 1200
0547054 ES Quick Connect LED Canopy 3500K 36 in 6.7 93 36 600
0547060 ES Quick Connect LED Canopy 3500K 36 in. 13.3 93 36 1200
0547055 ES Quick Connect LED Canopy 4000K 36 in 6.7 93 36 600
0547062 ES Quick Connect LED Canopy 4000K 36 in. 13.3 93 36 1200
0547056 ES Quick Connect LED Canopy 3000K 48 in. 8.9 93 48 800
0547063 ES Quick Connect LED Canopy 3000K 48 in. 17.8 93 48 1600
0547057 ES Quick Connect LED Canopy 3500K 48 in. 8.9 93 48 800
0547064 ES Quick Connect LED Canopy 3500K 48 in. 17.8 93 48 1600
0547058 ES Quick Connect LED Canopy 4000K 48 in. 8.9 93 48 800
0547065 ES Quick Connect LED Canopy 4000K 48 in. 17.8 93 48 1600
WARM
WHITE
WARM
NEUTRAL
NEUTRAL
WHITE
Upgrade Parts
WARM
WHITE
WARM
NEUTRAL
NEUTRAL
WHITE
EcoShine II Plus LED lights are covered by a limited 5 year parts and labor warranty.
See Hussmann warranty policy for additional details.
Color Temperature:
Color temperature is measured in kelvins (K). Higher color temperatures produce bright, white light
hues. Neutral White (4000K) has a cooler hue than Warm Neutral (3500K) or Warm White 3000K.

Hussmann Corporation • Bridgeton, Missouri 63044-2483 U.S.A.
Quick Connect Lighting for Service Cases P/N 0547701
7
QUICK CONNECT LED
SHELF LIGHT LENGTHS
36 in. (914 mm) 48 in. (1219 mm)
WARM
WHITE
WARM
NEUTRAL
NEUTRAL
WHITE
Energy Light
Watts CRI Output
Hussmann (DC) Rating Length (Lumens)
Part Number Description Per Bulb (typical) (inches) Typical
0547066 ES Quick Connect LED Shelf 3000K 36 in 6.7 93 36 600
0547067 ES Quick Connect LED Shelf 3500K 36 in 6.7 93 36 600
0547068 ES Quick Connect LED Shelf 4000K 36 in 6.7 93 36 600
0547069 ES Quick Connect LED Shelf 3000K 48 in. 8.9 93 48 800
0547070 ES Quick Connect LED Shelf 3000K 48 in. 8.9 93 48 800
0547072 ES Quick Connect LED Shelf 3000K 48 in. 8.9 93 48 800
Upgrade Parts
EcoShine Quick Connect LEDs Shelves for Service Cases
WARM
WHITE
WARM
NEUTRAL
NEUTRAL
WHITE
A B
DETAIL A DETAIL B
EcoShine II Plus LED lights are covered by a limited 5 year parts and labor warranty.
See Hussmann warranty policy for additional details.
Color Temperature:
Color temperature is measured in kelvins (K). Higher color temperatures produce bright, white light
hues. Neutral White (4000K) has a cooler hue than Warm Neutral (3500K) or Warm White 3000K.

U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM
P/N 0547701
8
REMOVE EXISTING FLUORESCENT
LIGHTING (if previously installed)
1. Remove product from the merchandiser and
store at appropriate product temperature.
2. Lock out and tag out the circuit breaker for
the lighting circuit of the case where the LEDs
are to be installed.
3. Remove the existing uorescent lamps from
luminaire.
4. Remove the uorescent tubes.
5. Keep the end covers.
6. Remove and discard the lenses covering the
uorescent tubes.
Hussmann uorescent lamps are furnished
with moisture resistant lamp holders, shields
and end caps. Whenever a Quick Connect
LED is replaced, be certain to reinstall the
lamp shields and end caps.

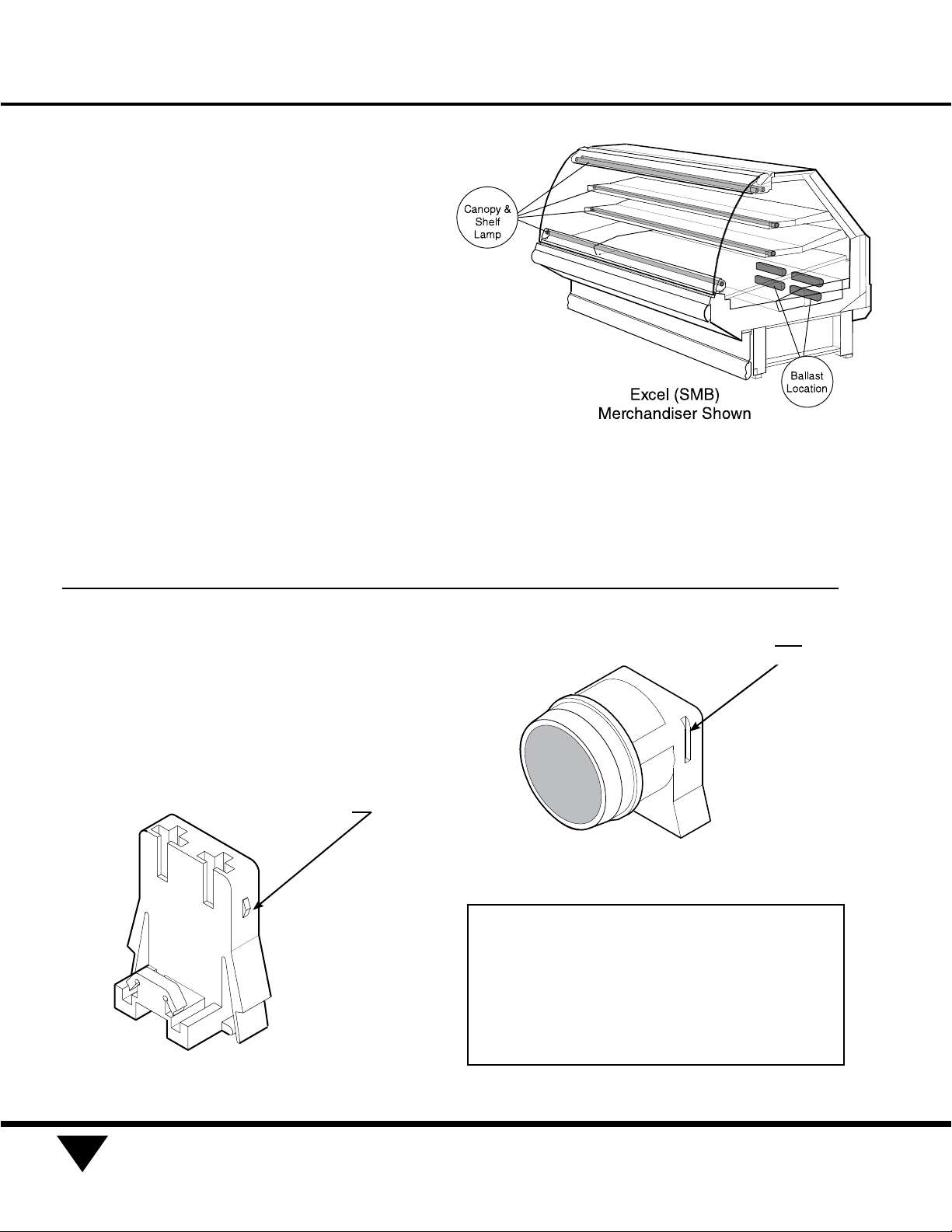

Lamp Holder
Nub
End-Cap Groove
IMPORTANT!
Always replace lamp holders and end caps with
Hussmann lamp holders and end caps.
Use of non-Hussmann parts may result in poor electri-
cal contact and short lamp life.

Hussmann Corporation • Bridgeton, Missouri 63044-2483 U.S.A.
Quick Connect Lighting for Service Cases P/N 0547701
9
Locate and Remove BaLLasts — PoweR suPPLys:
1. disconnect PoweR to the meRchandiseR.
2. LED power supplies are installed in the
same location as existing ballasts. The ballast
location is specic to the case model. If retrofitting a
Hussmann case, refer to the technical data sheet
for ballast location.
3. Disconnect wires from shelf and canopy ballasts.
Note the color of power source wires.
4. Locate and remove the ballasts. Mount the
LED power supply(s) in a secure location near
where the ballast was located. Power supply has
a 120V 50/60 Hz input and a 24VDC output.
24 VDC
UL Class 2 Power Unit
18 AWG (100W)120V-250VAC,
50-60Hz (for all lights)
Power Supply Standard Part Number: 0547639
Slimline Part Number: 04483262

U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM
P/N 0547701
10
CONNECT WIRING TO POWER SUPPLY
1. Use existing ballast wiring to connect the
leads to the power supply. Connect the original
load (2 red wires) and ground (brown) to LED
power supply input, Secure all wiring with
approved wiring connectors.
2. Additional wiring may be needed to
connect the power supply to existing wiring
in the wireway. Use conductors of proper
size and rating.
NOTE: Orange or tan band indicates light
wiring for Hussmann cases. The photo above
shows Hussmann Elite uorescent shelf wiring.
Canopy wiring has a separate outlet for these
merchandisers.
3. The power supply case is grounded. Attach
power supply to a ground point in the refriger-
ated merchandiser, either directly with a screw,
or by using a green wire to attach to a remote
ground point.
Donot leave any exposed Wire nuts or
connectors.
4. Place supplied sticker that states the case(s) has
been upgraded with LED lighting.
Ensure that all connection points are sealed
for damp location using the appropriate
method per the NEC or local electrical
code.
— LOCK OUT / TAG OUT —
To avoid serious injury or death from
electrical shock, always disconnect the
electrical power at the main disconnect
when servicing or replacing any electri-
cal component. This includes, but is not
limited to, such items as doors, lights,
fans, heaters, and thermostats.
Orange Band

Hussmann Corporation • Bridgeton, Missouri 63044-2483 U.S.A.
Quick Connect Lighting for Service Cases P/N 0547701
11
INSTALL QUICK CONNECT LEDs
Install Quick Connect LED lighting is to be
installed in place of all uorescent bulbs, one
for each uorecent lamp removed. Follow the
Steps below to install LEDs.
1. An ESQC LED bulb will be replaced for
each T8 bulb that was removed in each assembly.
a. Insert the bulb into the shield.
b. Insert an end cap into one end of the
shield.
c. Insert ESQC bulb, verify pins are located
correctly and pass through the end cap.
d. Verify correct installed direction of
LED (white lens facing product display
area).
e. Insert second end cap in same orientation
as rst end cap.
f. Reinstall to case lamp holders
5. Turn on and verify operation
after all lamps are retrotted.
Quick Connect Shelf
Quick Connect Canopy
Service
QUICK CONNECT LED LIGHT
SIDE VIEW
0.98 in. (25 mm)
A B
DETAIL A DETAIL B
A B
DETAIL A DETAIL B
A
B
Canopy Orientation Shelf Orientation
OPPPP

U.S. & Canada 1-800-922-1919 • Mexico 01-800-890-2900 • WWW.HUSSMANN.COM
P/N 0547701
12
Light Circuits
for Two Rows of Canopy LED
(Typical Hussmann Service Case Canopy Lighting Wiring Diagram)
If working on a case from a different manufacturer, refer to that models wiring diagrams.
Hussmann wiring diagrams for specific models are located in the technical data sheets
at Hussmann.com.
(Typical Hussmann Service Case Canopy Lighting Wiring Diagram)
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
Grayed componets in 12 foot models only
R = Red Y = Yellow G = Green BL = Blue BK = Black W = White
WARNING
If working on a case from a different manufacturer, refer to that models wiring diagrams.
Hussmann wiring diagrams for specific models are located in the technical data sheets
at Hussmann.com.
120V NEUTRAL
ORANGE OR TAN BAND
ORANGE OR
TAN BAND
Light
Switch
BK
BK BL
RR
R
R
R
R
W
W
BL
BL
BL
BL
BL
120V POWER
Optional Lighting 1 Row Ledge or 1 Row Rail
120V NEUTRAL
120V NEUTRAL
Orange or Tan Band
Orange or
Tan Band
Light
Switch
BK
BL RRR
W
BL
BL
120V POWER
120V POWER FIELD GROUND CASE GROUND
P/N 0453527_C 7 of 8
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
These aRe maRkeR coLoRs wiRes maY VaRY.
These aRe maRkeR coLoRs wiRes maY VaRY.
