Owner's Manual Page 1
Pressure Washers
and Accessories
COBALT BIG BRUTE
PN: C984040V
Operators Manual
and Parts Lists
Delco Pressure Washers LIT-EQBBrute-DEL

Owner's Manual Page 2
INTRODUCTION
Thank you for selecting a high pressure power washer from Delco Pressure Washers.
Your pressure washer has been manufactured using the most advanced components in the
pressure industry.
When operated properly, our equipment has been designed and manufactured to give you years
of trouble free, reliable use, with a minimal amount of regular maintenance.
Your pressure washer is mechanical, as with all mechanical equipment it requires proper
installation, operation and maintenance as outlined in this manual.
The Operators Manual has been written for your benefit. For your safety and the safety of
others, we recommend you and all operators read and understand the contents.
Should you experience any difficulty with your Delco pressure washer, please contact your
nearest Delco Distributor immediately.
We are aware of your investment in an Delco pressure washer, therefore, our prime concern is
that you become one of our “satisfied” owners. Please feel free to send us your comments and
ideas.
THANK YOU!!!

Owner's Manual Page 3
PRESSURE WASHER LIMITED WARRANTY
1. DELCO®Cleaning Systems, LLC warrants its products for a period of one year from the date of
purchase, against defects in material and/or workmanship. The warranty covers parts and labor,
but excludes transportation.
2. Normal wear and tear items such as valves, seals, etc., are warranted for the initial 30 days
following purchase by the end-user.
3. The high-pressure hose and accessories (trigger gun, extension/lance/wand and cleaning
nozzles) are warranted for the initial 30 days following purchase by the end-user.
4. The burner coil on all DELCO®Cleaning Systems, LLC, hot water pressure washers and steam
cleaners is warranted for five (5) years, excluding abuse due to leaving unit in unheated building,
causing coil to freeze and burst.
5. Parts repaired or replaced under this warranty (except wear items) are warranted for the balance
of the original warranty period or ninety (90) days, whichever is longer. Defective parts replaced
under this warranty are the property of DELCO®Cleaning Systems, LLC.
6. All warranty service will be performed by a trained technician employed by an Phoenix Cleaning
Systems, LLC distributor/dealer. Servicing distributor/dealer will abide by the DELCO®Cleaning
Systems, LLC, Service Center Warranty Policy.
7. Warranty does not cover damage caused by freezing, abuse or chemicals. Abuse includes but is
not limited to unauthorized repair, alterations carried out by any entity or individuals other than
DELCO®Cleaning Systems, LLC, authorized service personnel, damage caused by
contaminants in the water supply or operation in a manner which conflicts with instructions found
in the Owners Manual.
8. DELCO®Cleaning Systems, LLC, and its distributors/dealers disclaim responsibility for any loss
of time, use of equipment, loss of income, or any incidental or consequential damages.
9. Settlement of any warranty claim will be at the sole discretion of DELCO®Cleaning Systems,
LLC.
Thank You for Purchasing our Products!
Effective January, 2005, and supersedes all other warranties.

Owner's Manual Page 4
IMPORTANT SAFETY PRECAUTIONS
IMPORTANT:
Please read the following instructions before installing and operating this equipment.
DANGER
THIS EQUIPMENT CAN BE HAZARDOUS TO OPERATOR SAFETY AND ONLY AUTHORIZED
PERSONNEL WHO HAVE READ AND UNDERSTAND THE INSTALLATION AND OPERATION
MANUAL SHOULD
BE PERMITTED TO OPERATE THIS EQUIPMENT. DO NOT LEAVE WAND UNATTENDED
WHILE EQUIPMENT IS RUNNING.
Failure to follow all cautionary warnings and procedures may result in serious or fatal injury and/or
property damage including, but not limited to: fire, severe burns, concussion from explosion,
electrocution, scalding, penetration by pressurized water, chemical reaction, asphyxiation, cuts,
contusions, laceration, and loss of body parts and/or life.
DO’S
1. ALWAYS WEAR SAFETY GLASSES, GOGGLES or FULL FACE SHIELD; GLOVES, and when
spraying acids WEAR RAIN GEAR. NEVER RUN ACIDS THROUGH THE PUMP ON THIS
EQUIPMENT.
2. USE ONLY THE SAME SIZE NOZZLE SUPPLIED WITH THIS EQUIPMENT.
3. CHECK YOUR BATTERY FOR WATER LEVELS AND MAINTAIN A GOOD CHARGE.
4. USE ¾" (inch) x 50' (foot) GARDEN HOSE FOR WATER SUPPLY-.
5. USE A CLEAN FUEL CAN FOR REFUELING UNIT.
6. USE CLEAN DIESEL FUEL OR KEROSENE. NO ADDITIVES. Fill fuel tank each evening. This
will help minimize condensation in fuel tank, and prolong fuel pump life.
7. Always follow chemical manufacturer’s recommendations in use of chemicals with this
equipment. Immediately after using chemical solutions through this equipment, flush thoroughly
with clear water.
8. Disconnect all electrical power before performing any maintenance on this equipment.
9. Make sure positive is always positive and negative is always negative to keep from shorting out.
10. When storing this equipment in freezing weather conditions, this equipment must be drained
thoroughly; and the plumbing system charged with a 50% solution of permanent type antifreeze.
Antifreeze should be used when the equipment is not in service for prolonged periods or is being
transported in freezing weather. NOTE: Antifreeze must be flushed out of equipment thoroughly
before any cleaning project begins. Failure to do so could result in damage to paint or chemical
attack on painted surfaces.
11. Use a water softener on your water system if it is high in mineral content (HARDNESS). Failure
to do so will result in lime build-up in plumbing systems.
12. Use only manufacturer approved components when replacing parts on this equipment. Failure
to do so may create operating conditions that are hazardous to personal health, safety, and will
void the warranty.
13. Use only recommended oil in pump.

Owner's Manual Page 5
14. Always cool down coil.
DO NOT’S
DO NOT - UNDER ANY CIRCUMSTANCES - POINT THE HIGH PRESSURE NOZZLE AT
YOURSELF, OTHER PEOPLE, OR ANIMALS!
1. DO NOT use an undersized discharge nozzle.
2. DO NOT disconnect the pressure hoses or wand while the equipment is HOT, PRESSURIZED or
RUNNING.
3. DO NOT operate this equipment without sufficient water supply to the pump.
4. DO NOT operate this equipment without proper ventilation or in a closed space.
5. DO NOT use any type of fuel other than # 2 diesel, kerosene or # 1 home heating oil.
6. DO NOT leave wand unattended while equipment is running.
7. DO NOT point the stream of water from nozzle toward any person or animal (including the
operator).
8. DO NOT touch exhaust stack, metal wand and hose on HOT WATER UNIT. THEY GET VERY
HOT!
9. DO NOT obstruct the exhaust stack.
10. DO NOT run engine or burner within 25 feet of flammable materials or dust.
11. DO NOT use this equipment around or near explosive environment of any kind. (Gas, paint,
solvents, etc.)
12. DO NOT screw the pop-off valve all the way in to prevent leaking or dripping.
13. DO NOT adjust the unloader-regulator valve (on trigger control units) to a pressure in excess of
200 PSI of equipments motor or pump rating.
14. DO NOT secure trigger gun in the open position (ON). Operate ONLY with your hand during
operation to prevent injury.
15. DO NOT allow air into the water system through soap valve or loose fittings.
16. DO NOT operate the machine if the water pressure drops or is low.
17. DO NOT continue to operate this machine if burner fails to shut off when trigger is released
(closed).
18. DO NOT continue to operate this machine if burner fails to light.
19. DO NOT smoke or operate this machine while filling or emptying fuel tank(s), or
connecting/disconnecting tanks and fittings.
20. DO NOT operate this machine if coil becomes clogged or soothed.
21. DO NOT alter machine from manufacturer’s design.
22. DO NOT attempt to pull beyond normal length.
23. DO NOT attempt to service this machine without first disconnecting the electrical service. Failure
to do so may cause severe or fatal electrical shock.
24. DO NOT BY-PASS ANY SAFETY DEVICE ON THIS MACHINE!

Owner's Manual Page 6
INSTALLATION
1. LOCATION
Avoid operating units in small areas or near exhaust fans. Adequate oxygen is needed for combustion
or dangerous carbon monoxide will result. Stationary units should be installed in accordance with local
plumbing and heating codes.
2. FUEL SUPPLY
Oil Fired Units: Fill fuel tank with clean kerosene, No. 1 home heating fuel, or diesel fuel (without
anti-gel additives.)
3. VENTING THE UNITS -
If the unit is to be used in an enclosed area it must be vented out.
The Draft Regulator (on oil-fired units) and chimney must be
same size as the stack on the cleaner unit. Poor draft will cause
the unit to soot-up and not operate efficiently. When installing
the machine so the stack will be as straight as possible,
protruding through the roof at a sufficient height to eliminate
down-draft and to comply with local codes.
Always disconnect the battery when servicing your cleaner.

Owner's Manual Page 7
OPERATING THE MACHINE
PRE-OPERATING INSTRUCTIONS
1. Connect the swivel end of the discharge hose to the cleaning gun.
2. Attach the hose to the machine outlet.
3. Check the fuel level in the fuel tank. Add fuel if required. It is best to keep fuel tank full during
nonworking conditions.
4. Attach an ordinary garden hose to the float tank inlet. Turn on the water supply and let the float
tank fill.
5. Place the end of the soap line into your soap solution container.
OPERATING INSTRUCTIONS
NOTE: On initial start up, or if machine has not been operated for several days, it is advisable to
remove the nozzle from the cleaning gun and flush out any foreign material. Open the water supply.
Turn on the engine and let the unit run until clear water flows through the cleaning gun.
1. Turn on the water supply.
2. Add fuel if required. Check oil levels in pump and engine before starting.
3. Install the nozzle tip into the cleaning gun.
4. Close the soap valve. (turn fully clockwise)
5. Securely hold the cleaning gun and turn the switch to position 1(pump).
6. The recommended method of cleaning is:
A. Wet entire surface and remove the loose dirt with water only,
B. Turn on the soap by opening the soap valve (turn the handle counterclockwise). NOTE: The
operating pressure of the machine will drop to nearly zero until the soap line is primed.
C. Cover the entire surface to be cleaned with soap/water solution by applying from the bottom
up. Allow the soap to stay on surface four to five minutes.
D. Close the soap valve and wash at high pressure with water only from the top down.
NOTE: Soap will flush from the coil and discharge hose within a minute or two of operation.
E. For hot water washing, turn the switch to position 2 (burner). CAUTION: If there is a sudden loss
of pressure while washing with hot water, turn the burner off immediately and attempt to locate
the problem while running cold water only. Failure to turn the burner off could cause excessive
temperature and pressure build-up in the heating coil.

Owner's Manual Page 8
SHUT DOWN INSTRUCTIONS
1. If the burner is on turn control switch to position 1(pump).
2. Run water through the pump until cool water flows from the cleaning gun. Failure to do this could
result in increased coil scaling.
3. Turn the control switch to off.
4. Turn off the water supply.
5. If the machine will be exposed to freezing temperatures, see winterizing procedure.
THINGS TO CHECK DAILY
1. Check oil level in pump.
2. Fill fuel tank at the end of each day’s use to prevent condensation build-up in fuel system.
3. Fill soap container.
4. Check oil level in engine.
THINGS TO CHECK WEEKLY
1. Check and clean water float tank and pump inlet screen.
2. Check all hoses for leaks and damage. Repair or replace as needed.
3. Check pressure nozzle for wear. Replace if needed.
4. Check all nuts and bolts. Tighten as needed (DO NOT OVER TIGHTEN.)
5. Check all water connections for leaks. Tighten if loose.
6. Check belts and pulleys for wear and tightness. (DO NOT CHECK WHILE MACHINE IS
RUNNING.)

Owner's Manual Page 9
MAINTENANCE OF COMPONENTS
PUMPS
1. Refer to pump section in this manual for your model of equipment.
2. Change pump oil after the first 25 hours of use. Subsequent changes should be every 250
hours or 3 months, whichever comes first.
A. Disconnect power supply.
B. Remove drain plug on pump and drain oil.
C. If the oil has water in it, it is important to flush out the pump with oil before refilling
pump with the proper oil.
3. Refilling: Replace drain plug and fill slowly to the dot in the center of sight glass, or the proper
level on dip stick. Do not over fill.
4. Use high quality 30 wt. non-detergent oil.
OIL BURNERS
1. BLOWER FAN: Clean blower fan in burner housing once a year or as often as needed. Dirt and
deposits will reduce air delivery and affect combustion.

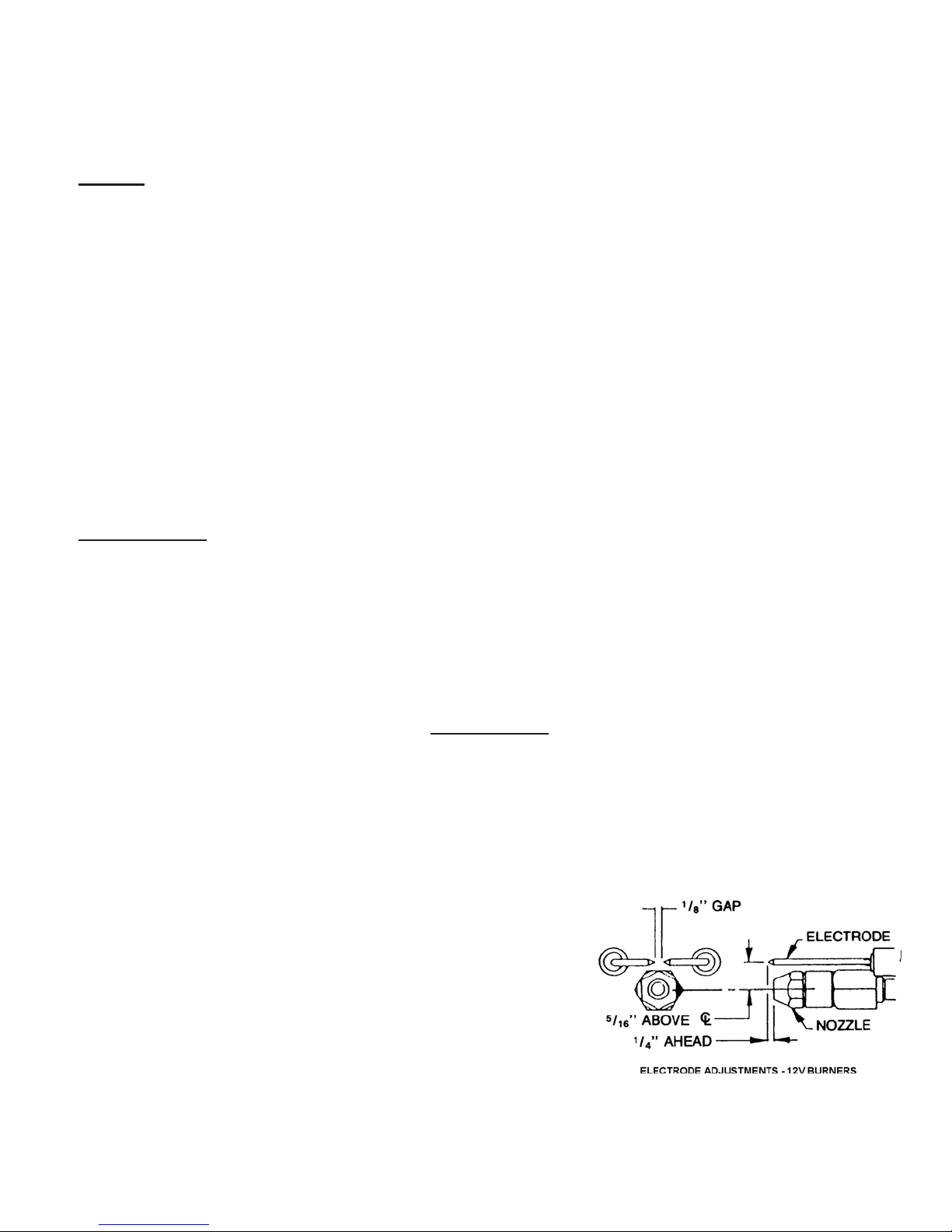

2. FUEL NOZZLE: Keep tip free of surface deposits wiping with a clean, solvent saturated, cloth rag.
The nozzle should be changed once a year for maximum heating and emission control.
3. FUEL FILTER: Clean or replace every 400 hours or 3 months, whichever comes first (or as
needed). This will help prolong fuel pump life and burner efficiency.
DESCRIPTION
Racor Water Separator
4. FUEL TANK: Drain one pint of fuel from bottom of fuel tank every 50 hours of use or every two
weeks, whichever comes first. Check for water or contaminates in fuel. If any are present, drain
and flush fuel tank then refill with clean fuel. This will prolong fuel pump life and burner efficiency.
5. ELECTRODES: Clean off carbon deposits on electrodes. To adjust electrodes refer to figure and
these instructions:
A. TO REMOVE THE GUN ASSEMBLY: Disconnect the oil
line at the burner fan housing. Remove gun holding nut
on outside of housing. Loosen transformer hold-down
screw and swing open transformer on hinges. Gun
assembly can now be removed by turning 1/4 turn and
lifting out and pulling down through this opening.
B. SPACING OF ELECTRODES: The electrodes should be
spaced 1/8 inch apart, 5/16 inch above the top of fuel
nozzle and 1/4 inch from the center of fuel nozzle tip, to the electrodes.

Equalizer 4300PG Manual Page 10

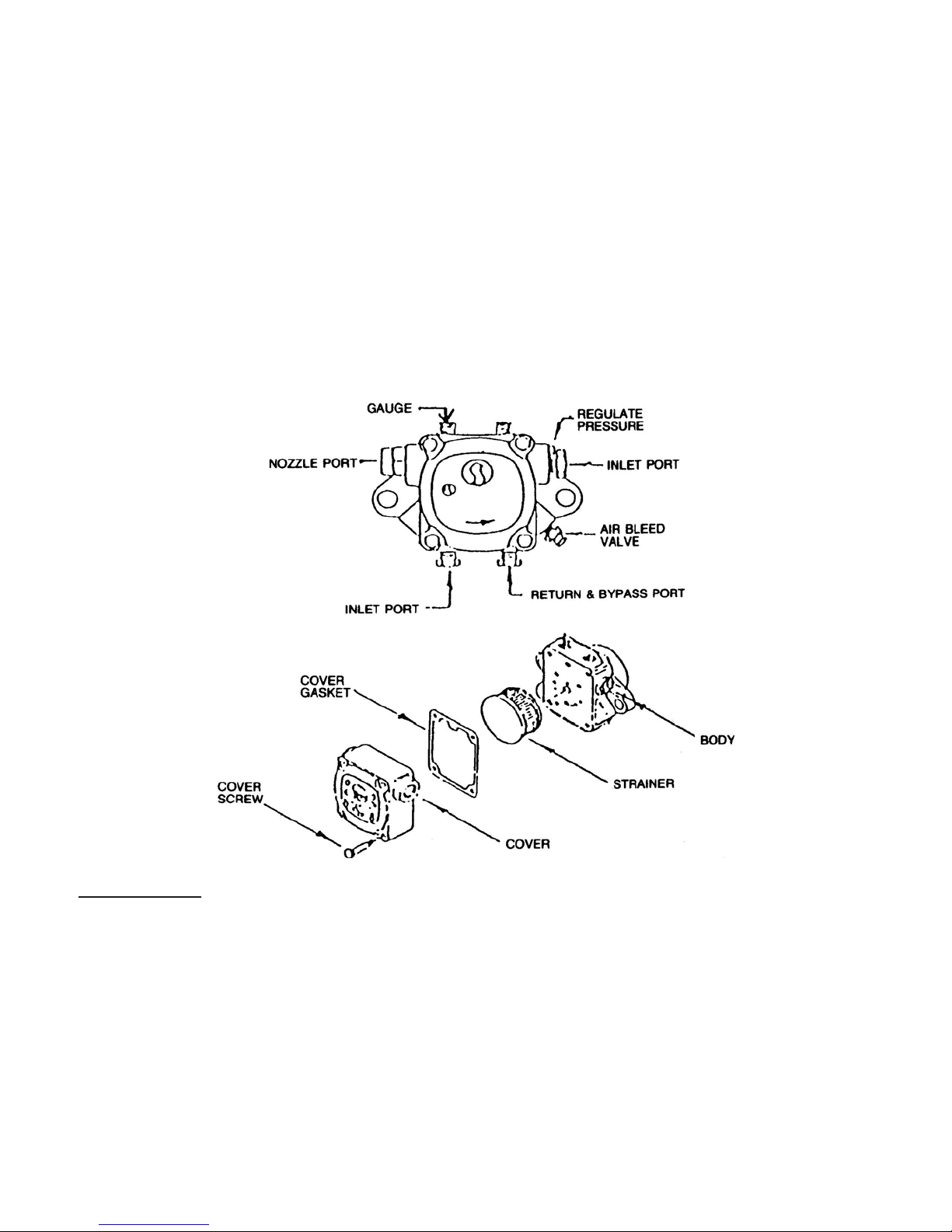

6. FUEL PUMP: To bleed air out of fuel pump, open air bleed valve on side of fuel pump. Turn
machine and burner ON. When fuel looks clear (NOT FOAMING), close air bleeding valve. Air is out
of fuel lines and fuel pump.
A. To check fuel pressure, plumb a 200 PSI gauge into the port marked gauge. DO NOT USE
BLEED VALVE PORT TO CHECK FUEL PUMP PRESSURE.
B. To adjust fuel pressure, insert a small flat screwdriver into pressure regulator slot and turn
clockwise to increase pressure and counter clockwise to decrease pressure. One full turn is about
10 PSI. Use a pressure gauge. normal operating pressure is 140 PSI. DO NOT EXCEED 150
PSI.
C. Service the fuel pump once every 50 hours or 3 months by cleaning the fuel strainer screen.
A clogged strainer or fuel filter will cause fuel pump starvation and dry the fuel pump up.
The ONLY lubrication the fuel pump has is the fuel that runs through it. KEEP IT CLEAN for
longer fuel pump life.
WINTERIZING
1. Shut off and disconnect the water supply.
2. Drain float tank.
3. Install antifreeze kit (available through local dealer.)
4. Remove nozzle from wand, and insert pick up hose and soap line into a bucket of 50% solution of
antifreeze. Pump antifreeze through machine. Open and close trigger gun a few times to
winterize unloader system. When antifreeze flows from the wand, shut the pump off. Disconnect
antifreeze kit.
NOTE: BEFORE attempting to wash ANY painted surface, pump anti-freeze out of machine into a
clean bucket and save for next use.

Owner's Manual Page 11
DE-SOOTING COIL
Poor grades of fuel oil or inadequate combustion air will cause heavy soot build up on the outside
surface of the heating coil. This will insulate the coil and restrict air flow through the coil, further
aggravating the soot build up.
To clean off soot, add Red Devil Soot Remover, using manufactures mixing instructions, or remove coil
and clean thoroughly, or Call a Factory Authorized DELCO Dealer.
DE-LIMING OR DE-SCALING OF COIL
In hard water areas, or when using the wrong kind of soap, lime build-up inside the coil pipe will occur.
Lime build-up will decrease the water temperature, water flow may eventually plug the coil.
It is recommended that a low pressure auxiliary pump be used if de-liming or de-scaling is needed.
To install low pressure auxiliary pump.
1. Disconnect high pressure hose that goes between high pressure pump and coil inlet.
2. Connect about four feet of hose with screen to suction side of a low pressure auxiliary pump.
3. Connect a discharge hose between the low pressure auxiliary pump discharge side and the inlet.
4. Disconnect high pressure discharge hose from coil outlet.
5. Connect another 5-6 feet of hose to the coil outlet and run to a 5 gallon bucket.
6. Stick low pressure auxiliary pump suction hose w/screen into 5 gallon bucket.
7. Mix 2 gallons of water with 1 container of Coil Doctor.
8. Turn on pump and circulate the acid mixture through the coil system for about 40 minutes or until
discharge solution stops foaming.
After cleaning, remove low pressure auxiliary pump assembly and connect all plumbing. Remove
pressure tip from end of wand. Turn on pressure washer and run clean water through machine for
about 5 minutes. This flushes out the coil and neutralizes any remaining acid. Replace pressure tip.
OR, call your Factory Authorized DELCO®Distributor.
WARNING :
COIL DOCTOR IS ACID AND IS HARMFUL TO SKIN AND EYES.
ALWAYS FOLLOW MANUFACTURERS LABEL DIRECTIONS.

Owner's Manual Page 12
DIAGNOSIS AND MAINTENANCE
PROBLEM PROBABLE CAUSE SOLUTION
Low Pressure Worn nozzle Replace nozzle of proper size.
Belt slippage. Tighten or replace; use correct belt.
Air leak in inlet plumbing. Use PTFE liquid or tape.
Pressure gauge inoperative or not
registering accurately. Check pressure with new gauge and replace as needed.
Relief valve stuck partially plugged or
improperly adjusted. Clean and reset relief valve to system pressure and correct by- pass. Check supply tank for contamination.
Worn seat or valves. Clean or replace with valve kit.
Inlet suction strainer clogged or improperly
sized. Use adequate size for inlet pump connection and fluid being pumped. Clean frequently.
Worn seals. Abrasives in pumped fluid,
severe cavitation; inadequate water
supply, stressful inlet conditions.
Install and maintain proper filter, check line size and flow available
to pump. Install a C.A.T.
Fouled or dirty inlet or discharge valves. Clean inlet and discharge valve assemblies.
Worn inlet or discharge valves. Replace with valve kit.
Leaky discharge hose. Replace hose. Check connections.
Pulsation, pump runs
extremely rough, pressure
low.
Faulty Pulsation Dampener Check precharge (should be 30-50%) of system pressure or
replace as needed.
Restricted inlet or air entering inlet
plumbing. Check filters and clean as needed. Check fittings and use PTFE liquid or tape for air tight connection.
Stuck inlet or discharge valve Clean or replace valve. Check supply tank for contamination.
Water leakage from under
the manifold Worn seals Replace with seal kit, check inlet pressure and system temperature, use Thermo Valve in by- inlet pressure regulator in
inlet line.
Oil leak between crankcase
and pumping section *Slight
leakage.
Worn crankcase seals Replace crankcase seals
Oil leaking in area of
crankshaft Worn crankshaft seal Bad bearing Replace damaged seals. Replace bearing.
Excessive play in the end of
the crankshaft. Worn bearing Replace bearing.
Water in crankcase inside of
the crankcase Humid air condensing into water Change oil every 3 months or 500 hours intervals using premium grade 10W30 Non-detergent hydraulic oil, (other approved oil
every month or 200 hours.)
Leaking of crankcase seals or seals
installed backward Replace seals. Follow proper installation procedure. Contact Cat Pumps supplier for crankcase servicing.
Oil leaking at the rear
portion of the crankcase Damaged or improperly installed oil gauge, crankcase cover, or drain plug o-ring Replace oil gauge, crankcase cover or drain plug o-ring. Thread in oil gauge and drain plug hand tight to avoid extruding o-ring.
Loud knocking noise in
pump Pulley loose on crankshaft Check key and tighten screw
Worn bearing, connecting rod or
crankshaft. Consult Cat Pumps supplier for crankcase servicing.
Stressful inlet conditions. Install C.A.T.
Frequent or premature
failure of the packing Cracked or scored plungers Abrasive material in the fluid being pumped Check
supply tank for contamination.
Replace plungers Install proper filtration on pump inlet plumbing.
Excessive pressure and/or temperature of
fluid being pumped. Check pressure and fluid inlet temperature; be sure they are within specified range.
Over pressure of inlet or discharge Reduce pressure per specifications.
Running pump dry. DO NOT RUN PUMP WITHOUT WATER!
Strong surging at the inlet
and low pressure at the
discharge side.
Foreign particles in the inlet or discharge
valve or worn inlet or discharge valves. Check for smooth surfaces on inlet and discharge valve seats. Replace with kit if pitted or worn. Check supply tank for
contamination, Install and regularly clean filter. Do not pump
abrasive fluids.

Owner's Manual Page 13

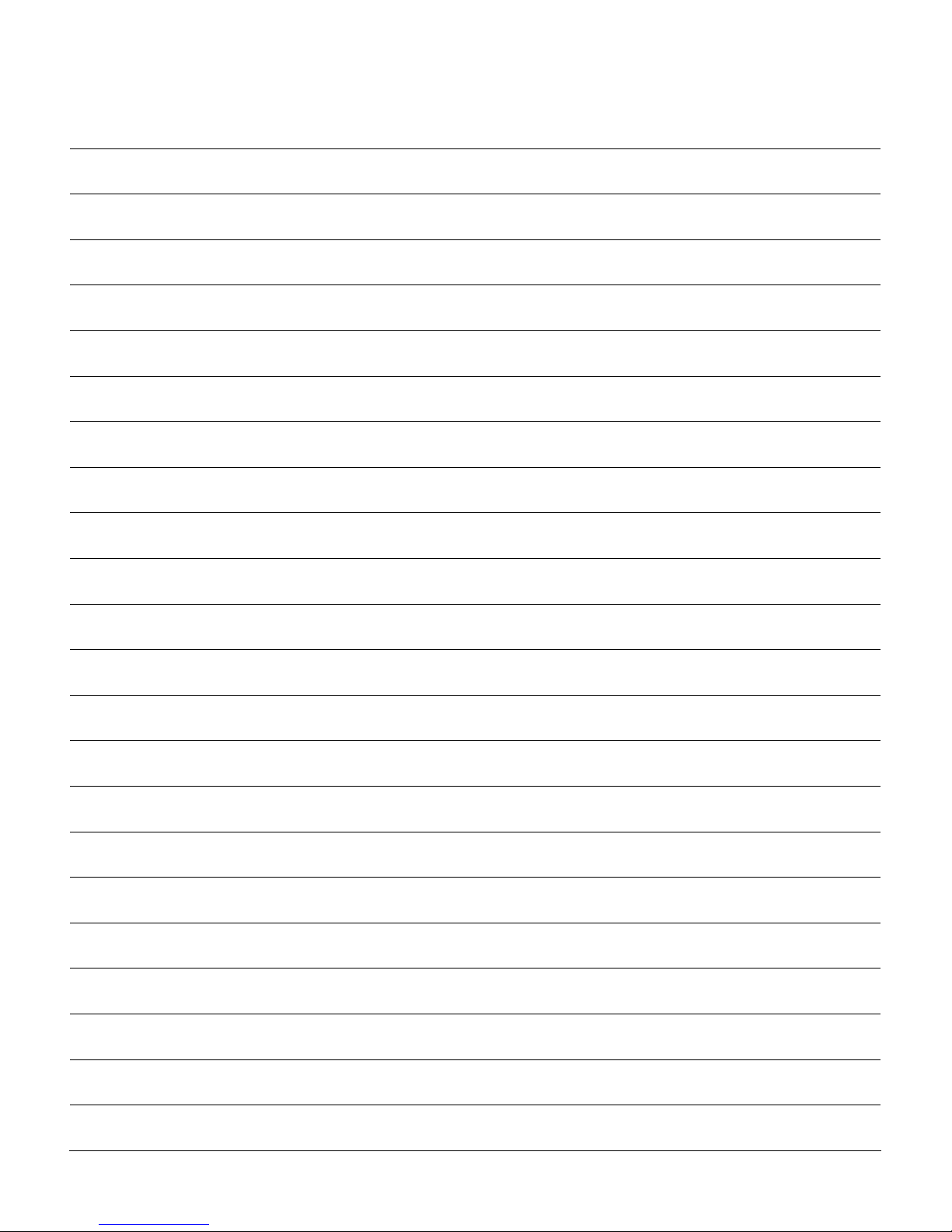

Notes:

Owner's Manual Page 14
EZ4040G PUMP COMPONENT LOCATOR

Owner's Manual Page 15
EZ4040G PUMP COMPONENT LOCATOR PARTS LIST
Ref. No. Qty. Part No. Description
1. 1 44.1200.41 Manifold (15 mm) / Collector
2. 8 99.3175.00 Screw / Tornillo
3. 8 96.7014.00 Washer / Arandela
4. 6 90.3841.00 O-Ring (Kit No.123) / Empaque-O (Kit No.123)
5. 6 36.2003.66 Valve Seat (Kit No. 123) / Asiento de Válvula
6. 6 36.2001.76 Valve (Kit No. 123) / Válvula
7. 6 94.7376.00 Spring (Kit No. 123) / Resorte
8. 6 36.2025.51 Valve Cage (Kit No. 123) / Jaula de Válvula
9. 6 90.3847.00 O-Ring (Kit No. 124) / O-Anillo
10. 6 98.2226.00 Cap Screw (Kit No. 124) / Capuchón de la Muelle
11. 6 36.7115.01 Valve Assembly (Kit No. 123) / Ensamblaje de Válvula
12. 4 99.1807.00 Screw / Tornillo
13. 1 50.1500.74 Bearing Cover / Protección de Cojinete
14. 1 44.2118.01 Spacer / Espaciador
15. 1 90.4097.00 O-Ring / Empaque-O
16. 1 91.8328.00 Ball Bearing / Cojinete de Bolas
17. 3 90.1614.00 Oil Seal (Kit No. 23) / Sello del Aceite
18. 1 44.0100.22 Crankcase / Cárter
19. 1 98.2103.00 Oil Dip Stick / Varilla del Nivel de Aceite
22. 3 44.0501.66 Plunger Guide / Guía de Émbolo Buzo
23. 3 44.0300.22 Connecting Rod / Biela de Conexión
24. 1 90.3920.00 O-Ring / Empaque-O
25. 1 44.1600.22 Rear Cover / Revestimiento Trasero
26. 5 99.1837.00 Screw / Tornillo
27. 1 90.3585.00 O-Ring / Empaque-O
28. 1 98.2041.00 Cap Screw /
29. 3 97.7340.00 Pin / Pasador
30. 3 99.6967.00 Washer / Arandela
31.
32.
33. 3 44.0402.66 Plunger, 13mm /
34.
35.
40. 3 90.3612.00 O-Ring (Kit No’s.152, 156) / O-Anillo
41. 3 44.0803.70 Packing Retainer (Kit No’s.152, 156) / Retenedor de Junta
42. 3 44.2162.70 Intermediate Ring (Kit No.’s 154, 156) / Anillo Intermedio
43. 3 90.5076.00 Packing (Kit No’s. 153, 156) / Junta
44. 3 90.2602.00 Packing (Kit No’s. 153, 156) Junta
45. 3 44.1002.51 Head Ring (Kit No’s. 155, 156) /
46. 1 98.2100.00 Cap Screw / Capuchón del Tornillo
47. 1 98.2176.00 Cap Screw / Capuchón del Tornillo
48. 1 96.7380.00 Washer / Arandela
49. 1 96.7514.00 Washer / Arandela
50. 1 98.1966.00 Cap Screw / Capuchón de la Tornillo
51. 3 90.2603.00 Seal, Low Press. (Kit No’s. 153, 156) /
75. 1 90.0635.00 Retaining Ring / Anillo de la Retencion
76. 1 44.0221.65 Crankshaft (EZ3040G) / Cigüeñal
77. 1 91.8568.00 Roller Bearing / Cojinete
78. 1 90.4097.00 O-Ring / Empaque-O
79. 4 99.2755.00 Screw, 5/16x1 / Tornillo, 5/16x1
99. 4 99.3345.00 Screw, 3/8x1 / Tornillo, 3/8x1
80. 4 96.7020.00 Washer, Ø8 mm / Arandela, Ø8 mm
96. 4 96.7104.00 Washer, Ø10 mm / Arandela, Ø10 mm
81. 1 10.0518.22 Gas Flange / Brida
82. 1 90.1690.00 Oil Seal / Sello del Aceite
83. 4 96.6938.00 Washer / Arandela
84. 4 99.1912.00 Screw / Tornillo
Kit No. 23 inlcudes Ref. No’s: 17 Kit No. 153 includes Ref. No’s: 43, 44, 51
Kit No. 89 includes Ref. No’s: 42 Kit No. 152 includes Ref. No’s: 40, 41
Kit No. 123 includes Ref No’s: 4,5,6, 7, 8, (11) Kit No 154 includes Ref. No’s: 42
Kit No. 124includes Ref No’s: 9, 10Kit No. 156 includes Ref. No’s: 40, 41, 42, 43, 44, 45, 51

Owner's Manual Page 16
UNLOADER COMPONENT LOCATOR

Owner's Manual Page 17
UNLOADER VALVE COMPONENT LOCATOR PARTS LIST
Pos. Nr. Designation Denominación Pos. Nr. Designation Denominación
Ref. No. Désignation Bezeichnung 8002470 Ref. No. Désignation Bezeichnung 8002470
Ball Housing
Fitting
O-Ring, 1.78 x 18.77mm
1 8002625 Conexión de Carcasa de Bola 1 18* UV-921-
50 O-Anillo, 1.78 x 18.77mm 1
Raccord pour Bâche de Sphérique O-Anneau, 1.78 x 18.77mm
Kugel-Gehäuse-Anschluss O-Ring, 1.78 x 18.77mm
O-Ring, 1.78 x 17.17mm Injector Nozzle, 2.1mm
2 UV-921-
12* O-Anillo, 1.78 x 17.17mm 2 19 8002637 Boquilla de Inyector, 2.1mm 1
O-Anneau, 1.78 x 17.17mm Buse d’Injecteur, 2.1mm
O-Ring, 1.78 x 17.17mm Einspritzduese, 2.1mm
Ball (SS), 13/32 in. Hose Barb, 5/16 in.
3 8001103* Bola (Acero Inoxidable), 13/32 in 1 20 8002638 Conducto en Tubo Flexible, 5/16 in 1
Sphérique (Acier Inoxydable), 13/32 in Raccord pour Tuyau, 5/16 in
Kugel (Nichtrostende), 13/32 in Schlauchverbindung, 5/16 in
Seat O-Ring, 1.78 x 5.28mm
4* UV-921-
48 Asiento 1 21 8002639 O-Anillo, 1.78 x 5.28mm 1
Siège O-Anneau, 1.78 x 5.28mm
Sitz O-Ring, 1.78 x 5.28mm
O-Ring Ball (SS), 7/32 in.
5* UV-921-
46 O-Anillo 1 22 8002640 Bola (Acero Inoxidable), 7/32 in 1
O-Anneau Sphérique (Acier Inoxydable), 7/32 in
O-Ring Kugel (Nichtrostende), 7/32 in
Plug (Brass), 3/8 in. NPT Conical Spring (SS)
6 8002626 Tapón (Latón), NPT 3/8 in 1 23 8002641 Muelle Cónico (Acero Inoxidable) 1
Bouchon (Laiton), NPT 3/8 in Ressort Conique (Acier Inoxydable)
Stopfen (Messing), 3/8 in NPT Konische-Feder (Nichtrostende)
Body (Brass) Injector Body, 3/8 in. BSPP
7 8002627 Cuerpo (Latón) 1 24 8002642 Cuerpo de Inyector, BSPP 3/8 in 1
Corps (Laiton) Corps d’Injecteur, BSPP 3/8 in
Gehäuse (Messing) Injektorgehäuse, 3/8 in BSPP
Piston Rod (SS) Cap
8 8002628 Vástago de Émbolo (Acero Inoxidable) 1 25 8002643 Funda 1
Tige de Poussoir (Acier Inoxydable) Couvercle
Kolbenstange (Nichtrostende) Kappe
O-Ring, 2.62 x 7.6mm Lock Nut, M8 (Zinc)
9* 8002629 O-Anillo, 2.62 x 7.6mm 1 26 8002644 Tuerca de Retención, M8 (Cinc) 1
O-Anneau, 2.62 x 7.6mm Écrou de Verrouillage, M8 (Zinc)
O-Ring, 2.62 x 7.6mm Lochmutter, M8 (Zink)
Back-Up Ring Nut, M8
10* 8002630 Anillo Antiextrusion 1 27 8002645 Tuerca, M8 1
Bague Anti-Extrusion Écrou, M8
Stuetzring Mutter, M8
Piston Housing (Brass) Knob
11 8002631 Carcasa de Émbolo (Latón) 1 28 8002646 Botón 1
Bâche de Poussoir (Laiton) Bouton
Kolbengehäuse (Messing) Knopf
Pin, 3 x 14mm Washer, 9 x 24mm
12 8002632 Pasador, 3 x 14mm 1 29 8002647 Arandela, 9 x 24mm 1
Axe, 3 x 14mm Rondelle, 9 x 24mm
Zapfen, 3 x 14mm Dichtungsring, 9 x 24mm
Back-Up Ring Nut, M8 x 1.25 x 4.5mm (Brass)
13* 8002633 Anillo Antiextrusion 2 30 8002648 Tuerca, M8 x 1.25 x 4.5mm (Latón) 2
Bague Anti-Extrusion Écrou, M8 x 1.25 x 4.5mm (Laiton)
Stuetzring Mutter, M8 x 1.25 x 4.5mm (Messing)
O-Ring, 2.62 x 10.77mm Spring, Blue
14* 8002634 O-Anillo, 2.62 x 10.77mm 1 31 8002649 Muelle, Azul 1
O-Anneau, 2.62 x 10.77mm Ressort, Bleu
O-Ring, 2.62 x 10.77mm Feder, Blau
O-Ring, 3 x 6mm Seat Assembly
15* 8002635 O-Anillo, 3 x 6mm 1 32 UV-921-
48 Ensamblaje de ASiento 1
O-Anneau, 3 x 6mm Ensemble de Siège
O-Ring, 3 x 6mm Sitz-Anordnung
Check Valve Cap Assembly
16 UV-921-
08 Válvula de Regulación 1 33 8002650 Ensamblaje de Funda 1
Robinet de Réglage Ensemble de Couvercle
Drosselventil Kappe-Anordnung
Check Valve Spring (SS) Repair Kit Includes: *2 - *5, *9, *10, *13 -
*15 & *18
17 8002636 Muelle de Válvula de Regulación (Acero
Inoxidable) 1 34 8002651 Conjunto de Reparaciones 1
Ressort de Robinet de Réglage (Acier
Inoxydable) Trousse de Réparation
Drosselventilfeder (Nichtrostende) Reparatur-Satz

Owner's Manual Page 18
BURNER (Beckett 12V) COMPONENT LOCATOR & PARTS LIST
Ref.No. Part No. Qty. Description
129601A 1Air Shutter
2 29602A 1 Air Band
3 29603A 1 Escutcheon Plate
4 29604A 1 Gasket, Square Plate
5 29605A 1 Air Tube Flange Assembly
6 193871 1 Flange Gasket
7 45027A 1 Motor
8 962139 1 Mounting Screws 1/4" - 20NC x 5/8
9 29606A 1 Blower Wheel (R.W.B. only)
10 29609A 1 Coupling
11 197216 1 Fuel Unit
12 962219 4 Mounting Screws 1/4" - 20 NC x 7/8"
13 193107 1 Pump Nozzle Port Fitting
14 29612A 1 Connector Tube Assembly
15 48415A** 1 Ignition Transformer Assembly with Interrupted Ignition
16 29641A 1 Nozzle Line Electrode Asm.
17 47000A 1 Oil Valve
18 51454A 1 Brushes, Replaceable Motor
19 962626 2 Mounting Screws 10 - 24NC x 5/16
20 NI 1 Transformer Gasket

Big Brute Owner’s Manual
"Big Brute" 12V ELECTRICAL SCHEMATIC

Manual Page 20

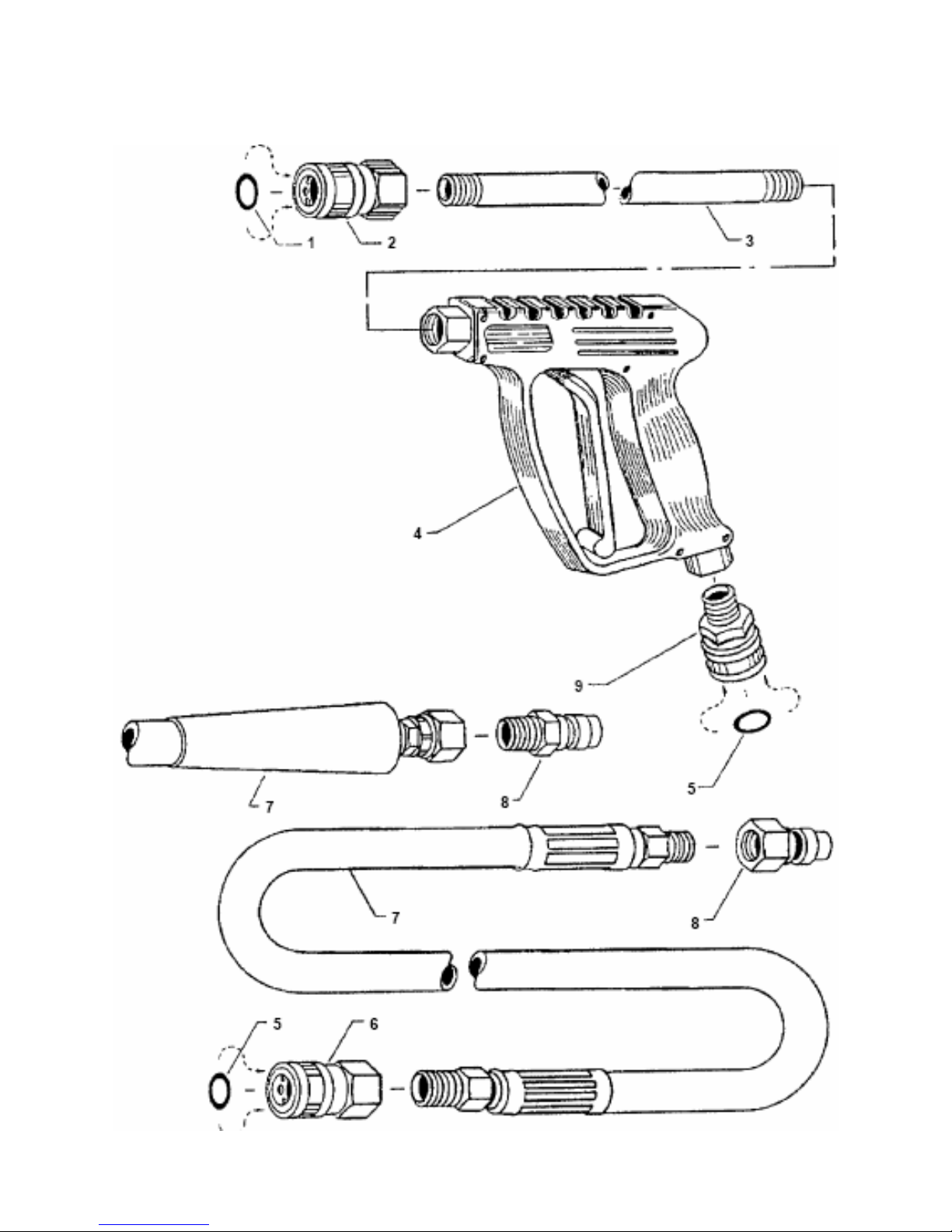

GUNVALVE AND HOSE ASSEMBLY COMPONENT LOCATOR
