Dell™Inspiron™1150ServiceManual
Before You Begin
System Components
Memory, CD or DVD Drive, Modem, and Mini PCI Card
Hard Drive

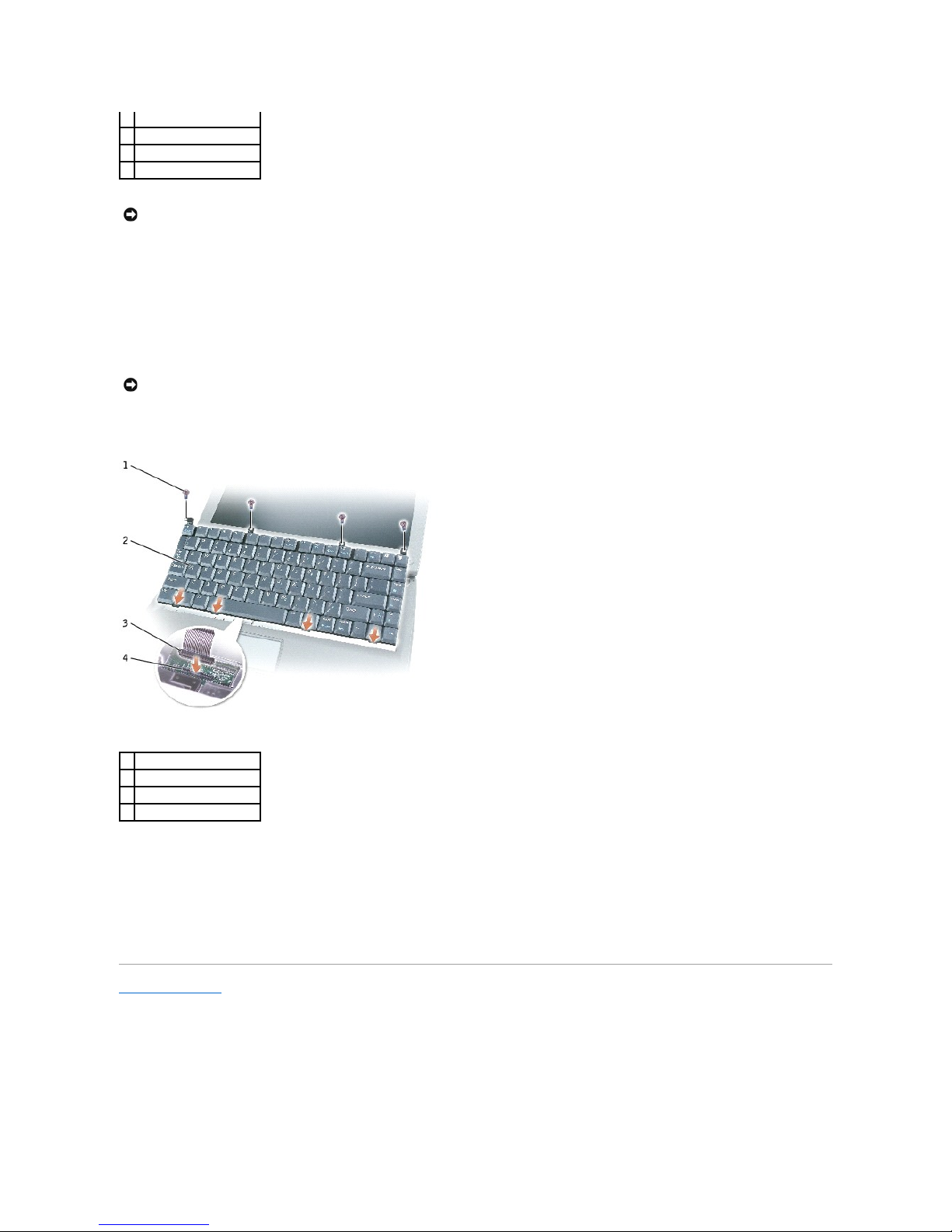

Keyboard
EMI Shield
Display
Palm Rest
Microprocessor Thermal-Cooling Assembly
Microprocessor Module
Speakers
System Board
Flashing the BIOS
Base Plastics
Pinout Assignments for I/O Connectors
Notes, Notices, and Cautions
Abbreviations and Acronyms
For a complete list of abbreviations and acronyms, see the Tell Me How help file.
IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.
Information in this document is subject to change without notice.
©2004DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.: Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP08L
March2004Rev.A00
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Base Plastics
Dell™Inspiron™1150ServiceManual


1. Follow the instructions in "Before Working Inside Your Computer."
2. Remove the hard drive.
3. Remove the CD or DVD drive.
4. Remove the memory module(s).
5. Remove the modem.
6. Remove the Mini PCI card.
7. Remove the keyboard.
8. Remove the EMI shield.
9. Remove the display assembly.
10. Remove the palm rest.
11. Remove the microprocessor thermal-cooling assembly.
12. Remove the microprocessor.
13. Remove the speakers.
14. Remove the system board.
Back to Contents Page

CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

Back to Contents Page

Before You Begin
Dell™Inspiron™1150ServiceManual
Computer Orientation
Screw Identification

This chapter provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in "Turning Off Your Computer" and "Before Working Inside Your Computer."
lYouhavereadthesafetyinformationinyourDell™Owner's Manual.
lA component can be replaced by performing the removal procedure in reverse order.

Recommended Tools

The procedures in this document may require the following tools:
lSmall flat-blade screwdriver
lPhillips screwdriver
lSmall plastic scribe
lHex nut driver
lFlash BIOS update program floppy disk or CD

Turning Off Your Computer

1. Shut down the operating system:
a. Save and close any open files, exit any open programs, click the Start button, and then click Turn Off Computer.
b. In the Turn off computer window, click Turn off.

The computer turns off after the operating system shutdown process finishes.
2. Ensure that the computer and any attached devices are turned off. If your computer and attached devices do not automatically turn off when you shut
down your operating system, press and hold the power button for 4 seconds.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.





NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Owner's Manual.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a processor by its edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector with
locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep
them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and
aligned.

1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.
2. Turn off your computer.
3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

4. Disconnect any telephone or telecommunication lines from the computer.
5. Disconnect your computer and all attached devices from their electrical outlets, and then press the power button to ground the system board.

6. Remove any installed PC Cards from the PC Card slot.
7. Close the display and turn the computer upside down on a flat work surface.

8. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.


9. Remove any installed modules, including a second battery, if installed.
10. Remove the hard drive.

Computer Orientation

NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
1
battery
2
battery-bay latch release




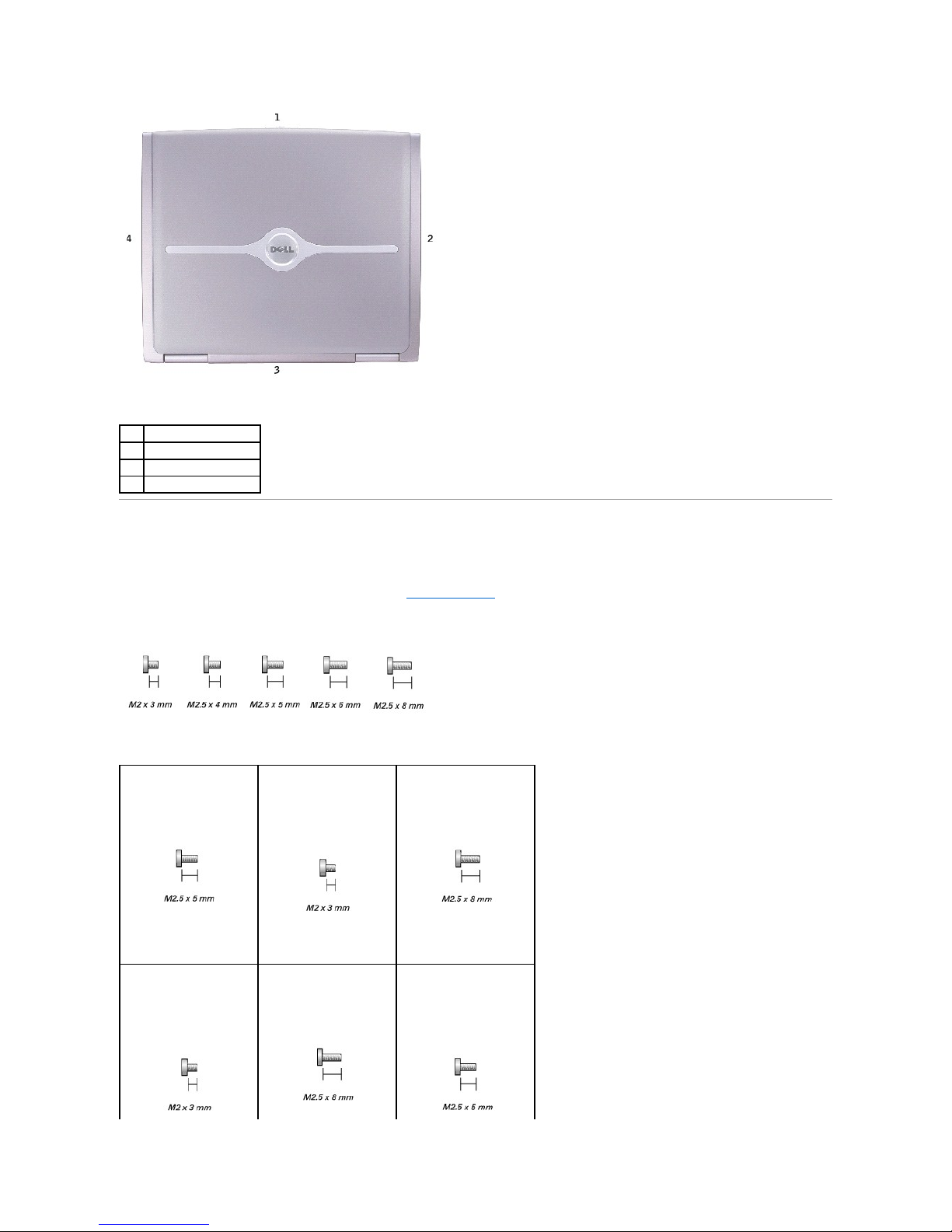

Screw Identification

When you are removing and replacing components, photocopy "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides
the number of screws and their sizes.


1
front
2
right
3
back
4
left
Hard Drive Door:
(2 each)


Modem to
System Board:
(2 each)


Optical Drive:
(1 each)


Keyboard
to Computer Base:
(4 each)

EMI Shield:
(1 each)

Display Assembly
to Back Panel:
(2 each)


Back to Contents Page




Hinge Bracket
to Computer Base:
(4 each)


Display Bezel:
(5 each)

Screw Covers (2 each)
Display Bumpers (3 each)
Display Panel:
(4 each)



Display Latch:
(2 each)


Top of Palm Rest to
Computer Base:
(2 each)


Palm Rest to
Base Plastics:
(12 each)


Palm Rest to
Battery Bay:
(1 each)



Battery Bay Shield
to System Board:
(2 each)


System Board to
Base Plastics:
(2 each, hard drive cage)
(2 each, optical drive cage)
(2 each, chipset heat sink)


Left Antenna
to Hard Drive and
Optical Drive Cages
(2 each)





Back to Contents Page

Flashing the BIOS
Dell™Inspiron™1150ServiceManual
Flashing the BIOS From a Floppy Disk or a CD
Flashing the BIOS From the Hard Drive

If a BIOS update program floppy disk or CD is provided with the new system board, see "Flashing the BIOS From a Floppy Disk or a CD." If you do not have a
BIOS update program floppy disk or CD, see "Flashing the BIOS From the Hard Drive."

Flashing the BIOS From a Floppy Disk or a CD
1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.

2. Insert the BIOS update program floppy disk or CD, and turn on the computer.

Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically reboot.
3. Press <F2> during POST to enter the system setup program.
4. Press <Alt> and <F> to reset the computer defaults.
5. Press <Esc>, select Save changes and reboot, and press <Enter> to save configuration changes.
6. Remove the flash BIOS update program floppy disk or CD from the drive and restart the computer.

Flashing the BIOS From the Hard Drive
1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.
2. Boot up the computer.
3. Locate the latest BIOS update file for your computer at support.dell.com.
4. Click Download Now to download the file.
5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.

The File Download window appears
6. Click Save this program to disk and then click OK.

The Save In window appears.
7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.

The file downloads to your desktop.
8. Click Close if the Download Complete window appears.

The file icon appears on your desktop and is titled the same as the as downloaded BIOS update file.
9. Double-click the file icon on the desktop and follow the instructions on the screen.


NOTE: If you use a BIOS update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.

Back to Contents Page


Back to Contents Page


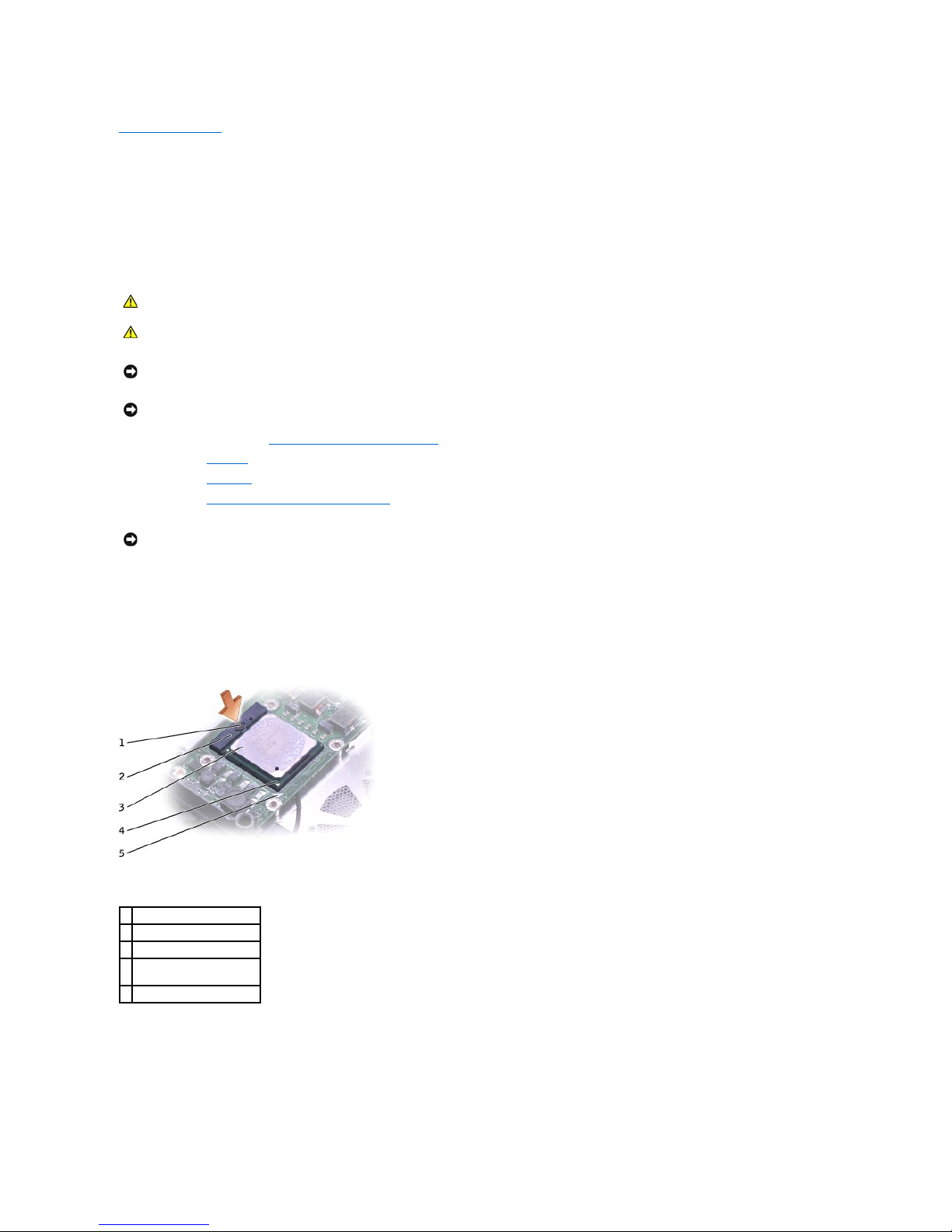

Microprocessor Module
Dell™Inspiron™1150ServiceManual

Removing the Microprocessor Module




1. Follow the instructions in "Before Working Inside Your Computer."
2. Remove the keyboard.
3. Remove the EMI shield.
4. Remove the microprocessor thermal-cooling assembly.

5. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.

The ZIF-socket cam screw secures the microprocessor to the system board. Take note of the arrow on the ZIF-socket cam screw.


6. Use a microprocessor extraction tool to remove the microprocessor module.

Installing the Microprocessor Module

CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTICE: Press and hold the microprocessor down by applying slight pressure to the center of the microprocessor while turning the cam screw to
prevent intermittent contact between the cam screw and microprocessor.
NOTICE: To avoid damage to the microprocessor, hold the screwdriver so that it is perpendicular to the microprocessor when turning the cam screw.
NOTICE: When removing the microprocessor module, pull the module straight up. Be careful not to bend the pins on the microprocessor module.
1
ZIF-socket cam screw
2
ZIF socket
3
microprocessor module
4
pin-1 corner of
microprocessor
5
triangle on system board


1. Align the pin-1 corner of the microprocessor module so that it points to the triangle on the system board, and insert the microprocessor module into the
ZIF socket.

When the microprocessor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher
than the others, the module is not seated correctly.

2. Tighten the ZIF socket by turning the cam screw clockwise to secure the microprocessor module to the system board.
3. Wipe the thermal grease off of the microprocessor thermal-cooling assembly with a clean paper towel.
4. Squeeze all of the contents of the thermal grease packet (provided with the kit) on to the microprocessor thermal-cooling assembly.
5. Replace the microprocessor thermal-cooling assembly.
6. Replace the EMI shield.
7. Replace the keyboard.
8. Update the BIOS using a flash BIOS update program CD.
Back to Contents Page

NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in
the ZIF socket does not require force.
NOTICE: A microprocessor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and
ZIF socket.
NOTICE: Hold the microprocessor down while turning the cam screw to prevent intermittent contact between the cam screw and microprocessor.

Back to Contents Page

Display
Dell™Inspiron™1150ServiceManual
Display Assembly
Display Bezel
Display Panel
Display Latch Assembly


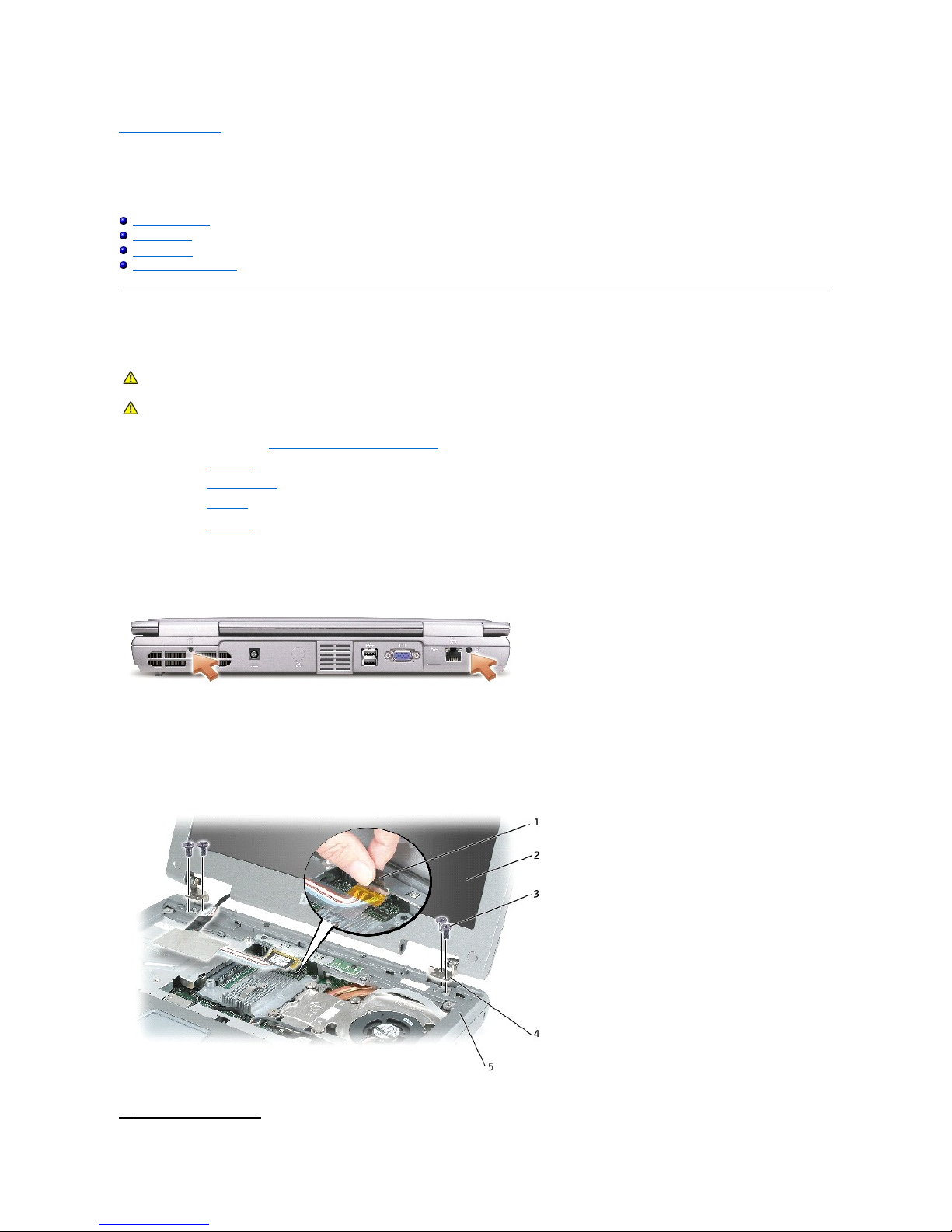

Display Assembly


1. Follow the instructions in "Before Working Inside Your Computer."
2. Remove the hard drive.
3. Remove the CD or DVD drive.
4. Remove the keyboard.
5. Remove the EMI shield.
6. Close the display.
7. From the back of the computer, remove the two M2.5 x 5-mm screws.

8. Open the display assembly approximately 180 degrees, and support the display assembly so that it does not open past this position.
9. Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cable from the system board.
10. Remove the two M2.5 x 5-mm screws from each hinge bracket.


CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

11. Lift the display assembly up and out of the computer base.

Display



Display Bezel


1. Follow the instructions in "Before Working Inside Your Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Use a plastic scribe to pry the two screw covers and three display bumpers out of the screw holes located on the front of the bezel.
5. Remove the five M2.5 x 5-mm screws located on the front of the bezel.
1
pull-tab
2
display assembly
3
M2.5 x 5-mm screws (4)
4
hinge brackets (2)
5
computer base
1
screw covers (2)
display bumpers (3)
2
M2.5 x 5-mm screws (5)
3
display bezel
4
display panel
5
M2 x 3-mm screws (8)
6
top cover
7
display-feed flex cable
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.


6. Starting at the bottom of the display panel, use your fingers to separate the bezel from the top cover and lift the inside edge of the bezel away from
the top cover.

Display Panel

Removing the Display Panel


1. Follow the instructions in "Before Working Inside Your Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Remove the display bezel.
5. Remove the two M2 x 3-mm screws on the each side of the display panel.
6. Lift the display panel out of the top cover.
7. Press in both sides of the top flex-cable connector, and pull the top flex-cable connector away from the display connector.


8. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.

Installing the Display Panel
NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
pull-tab on bottom flex-
cable connector
2
top flex-cable connector
3
display connector
4
inverter connector

1. Connect the top flex-cable connector to the display panel connector.
2. Connect the bottom flex-cable connector to the inverter connector.
3. Lay the display panel in the top cover.
4. Route the display-feed flex cable so that it rests in the notch located in the bottom edge of the top cover.
5. Replace the four M2 x 3-mm screws that secure the display panel to the top cover.
6. Replace the display bezel.


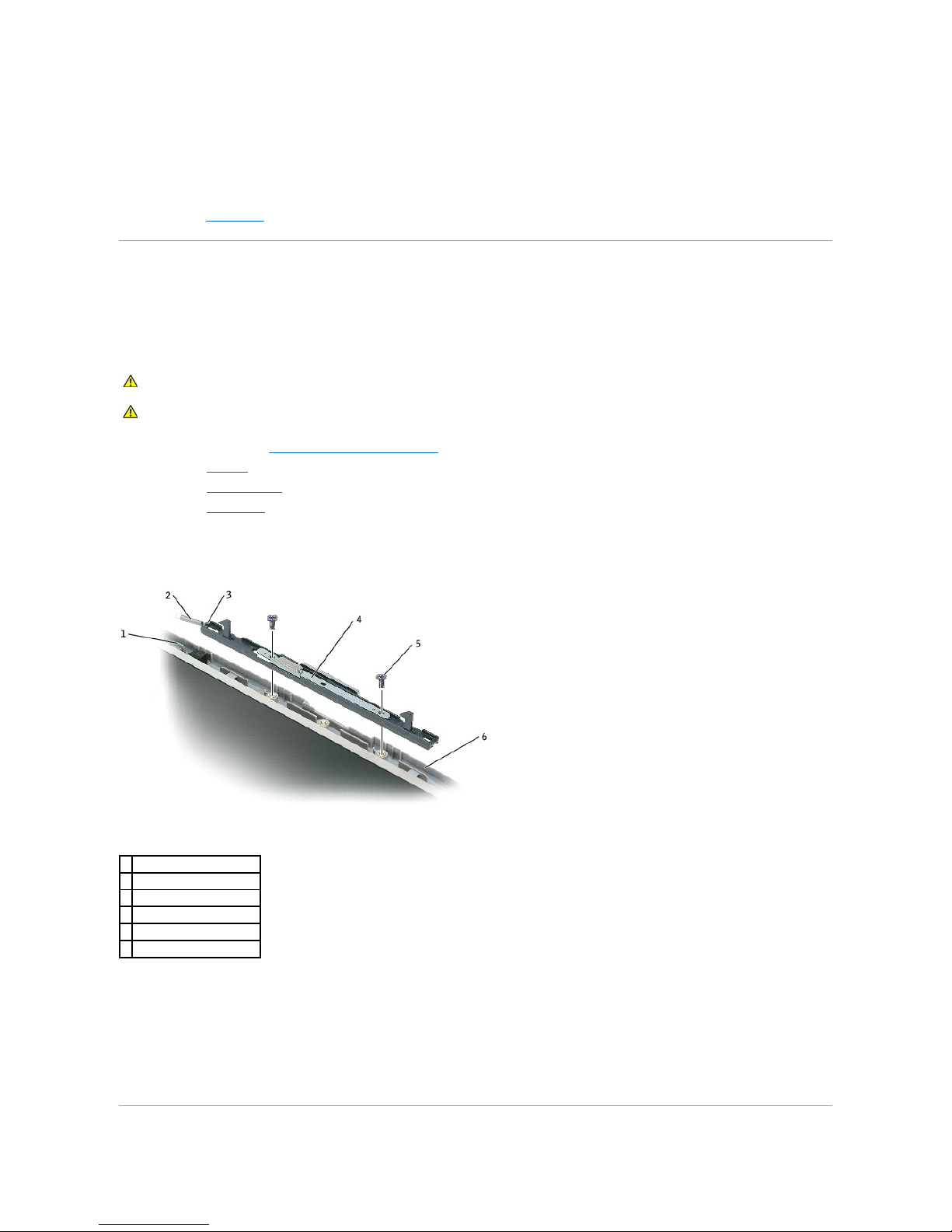

Display Latch Assembly

Removing the Display Latch Assembly


1. Follow the instructions in "Before Working Inside Your Computer."
2. Remove the keyboard.
3. Remove the display assembly.
4. Remove the display bezel.
5. Remove the two M2.5 x 5-mm screws that secure the display latch assembly to the top cover.
6. Lift the display latch assembly up and out of the top cover.



Installing the Display Latch Assembly
1. Attach one end of the spring to the spring hook on the left edge of the display latch, and attach the other end of the spring to the spring hook in the
top cover.
2. Align the screw holes in the display latch assembly with the screw holes in the top cover.
3. Replace the two M2.5 x 5-mm screws that secure the display latch assembly to the top cover.
CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
spring hook (top cover)
2
spring
3
spring hook (display latch)
4
display latch assembly
5
M2.5 x 5-mm screws (2)
6
top cover

Back to Contents Page


Back to Contents Page


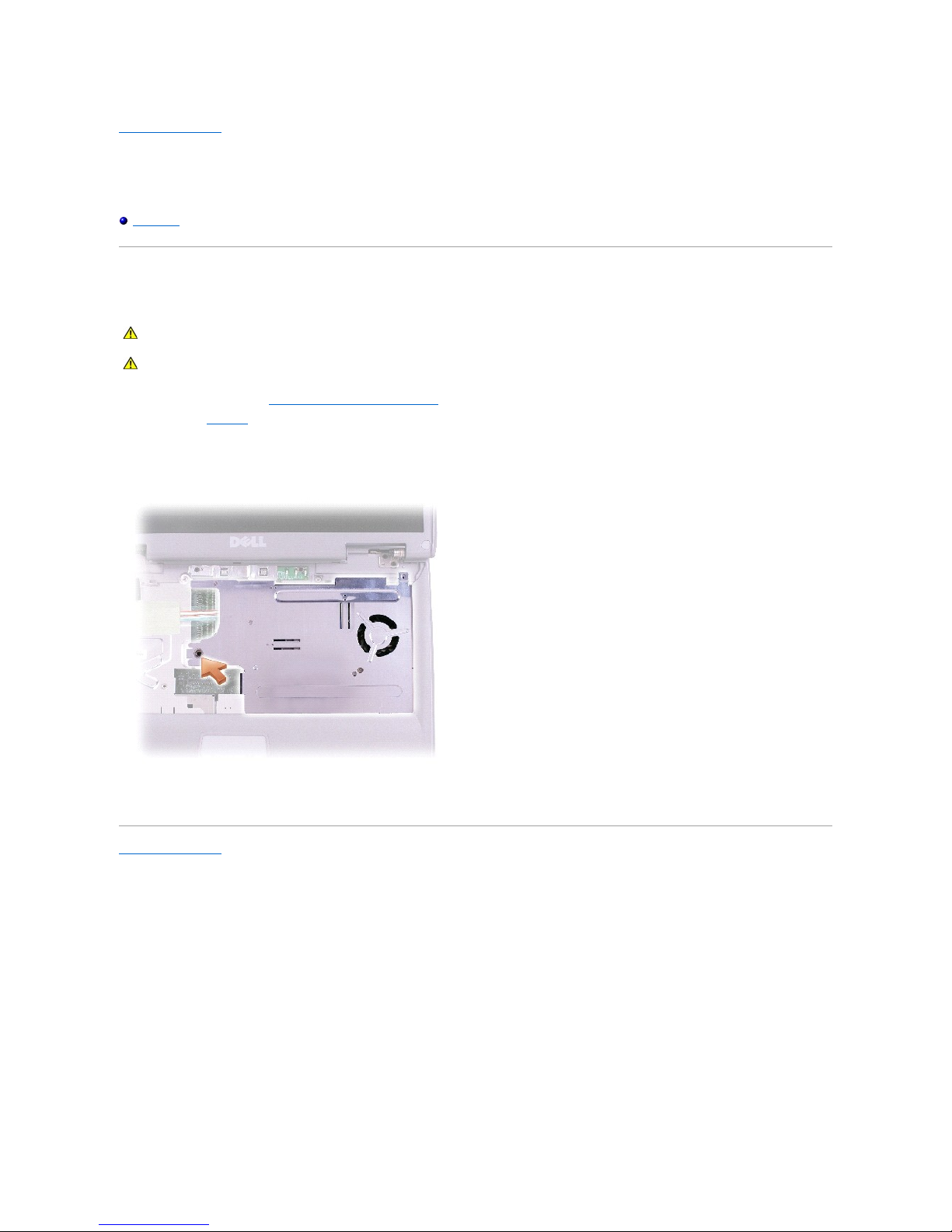

EMI Shield
Dell™Inspiron™1150ServiceManual
EMI Shield

EMI Shield


1. Follow the instructions in "Before Working Inside Your Computer."
2. Remove the keyboard.
3. Remove the one M2.5 x 8-mm screw (labeled "M2.5x8") that secures the EMI shield to the system board, and pull the EMI shield out of the computer
base.


Back to Contents Page

CAUTION: Before performing the following procedures, read the safety instructions in your Owner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

Back to Contents Page

Hard Drive
Dell™Inspiron™1150ServiceManual

Removing the Hard Drive





1. Follow the instructions in "Before Working Inside Your Computer."
2. Turn the computer over, and remove the two M2.5 x 5-mm hard drive screws.



3. Slide the hard drive out of the computer.

Installing the Hard Drive

1. Remove the new drive from its packaging.

Save the original packaging for storing or shipping the hard drive.

CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual.
NOTICE: To prevent data loss, shut down your computer before removing the hard drive. Do not remove the hard drive while the computer is on, in
standby mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
1
M2.5 x 5-mm screws (2)
2
hard drive
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging. See "Protecting Against Electrostatic Discharge" in your
Owner's Manual.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual.

2. Insert the drive into the bay, and push the hard drive until it is fully seated in the bay.
3. Replace and tighten the two M2.5 x 5-mm screws.
4. Use the Operating System CD to install the operating system for your computer.
5. Use the Drivers and Utilities CD to install the drivers and utilities for your computer.
Back to Contents Page

NOTICE: Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the connector.

Back to Contents Page

Keyboard
Dell™Inspiron™1150ServiceManual

Removing the Keyboard


1. Follow the instructions in "Before Working Inside Your Computer."
2. Use a small flat-blade screwdriver or plastic scribe to lift the notched right edge of the hinge cover, and pry the cover loose from the hinges and
computer base.


3. Lift the hinge cover up and away from the hinges and computer base.
4. Remove the four M2 x 3-mm keyboard screws.


CAUTION: BeforeworkinginsideyourDell™computer,readthesafetyinstructionsinyourOwner's Manual.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
hinge cover
2
notched edge


5. Lift the top of the keyboard out of the computer base, and pull the keyboard out at an angle (towards the display).
6. Grasp the keyboard flex cable near the connector, and pull up on the flex cable to disconnect it from the interface connector on the system board.
7. Remove the keyboard from the computer base.

Installing the Keyboard

1. Connect the keyboard connector of the replacement keyboard to the interface connector on the system board.


2. Insert the four securing tabs on the keyboard into their respective slots in the palm rest, and lower the keyboard into the computer base.

Ensure that all four securing tabs are engaged before trying to completely seat the keyboard.
3. Replace the four M2 x 3-mm keyboard screws.
4. To replace the hinge cover, first insert the left side of the hinge cover into the notches. Snap down the hinge cover, and ensure that it is flush with the
palm rest.
Back to Contents Page

1
M2 x 3-mm screws (4)
2
keyboard
3
keyboard connector
4
interface connector
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the
keyboard.
NOTICE: To avoid damage to the connector pins, press the keyboard connector evenly into the interface connector on the system board, and do not
reverse the keyboard connector.
1
M2 x 3-mm screws (4)
2
keyboard
3
keyboard connector
4
interface connector
