Dell™Vostro™1088ServiceManual
Notes, Cautions, and Warnings
IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of this material in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Vostroare trademarks of Dell Inc.; Intel, Pentium, Celeron, Intel Atom, and Core are either trademarks or registered trademarks of
Intel Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; TouchStrip is a trademark of Zvetco Biometrics, LLC; Blu-ray
Disc is a trademark of the Blu-ray Disc Association; Microsoft, Windows,Windows Server,MS-DOS, Aero, Windows Vista,and the Windows Vista start button are either trademarks or
registered trademarks of Microsoft Corporation in the United States and/or other countries; Adobe, the Adobe logo, and Adobe Flash Player are trademarks of Adobe Systems
Incorporated.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
September2009Rev.A00
Working on Your Computer
Adding and Replacing Parts
Specifications
Diagnostics
System Setup




NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Great user manuals database on UserManuals.info
Back to Contents Page

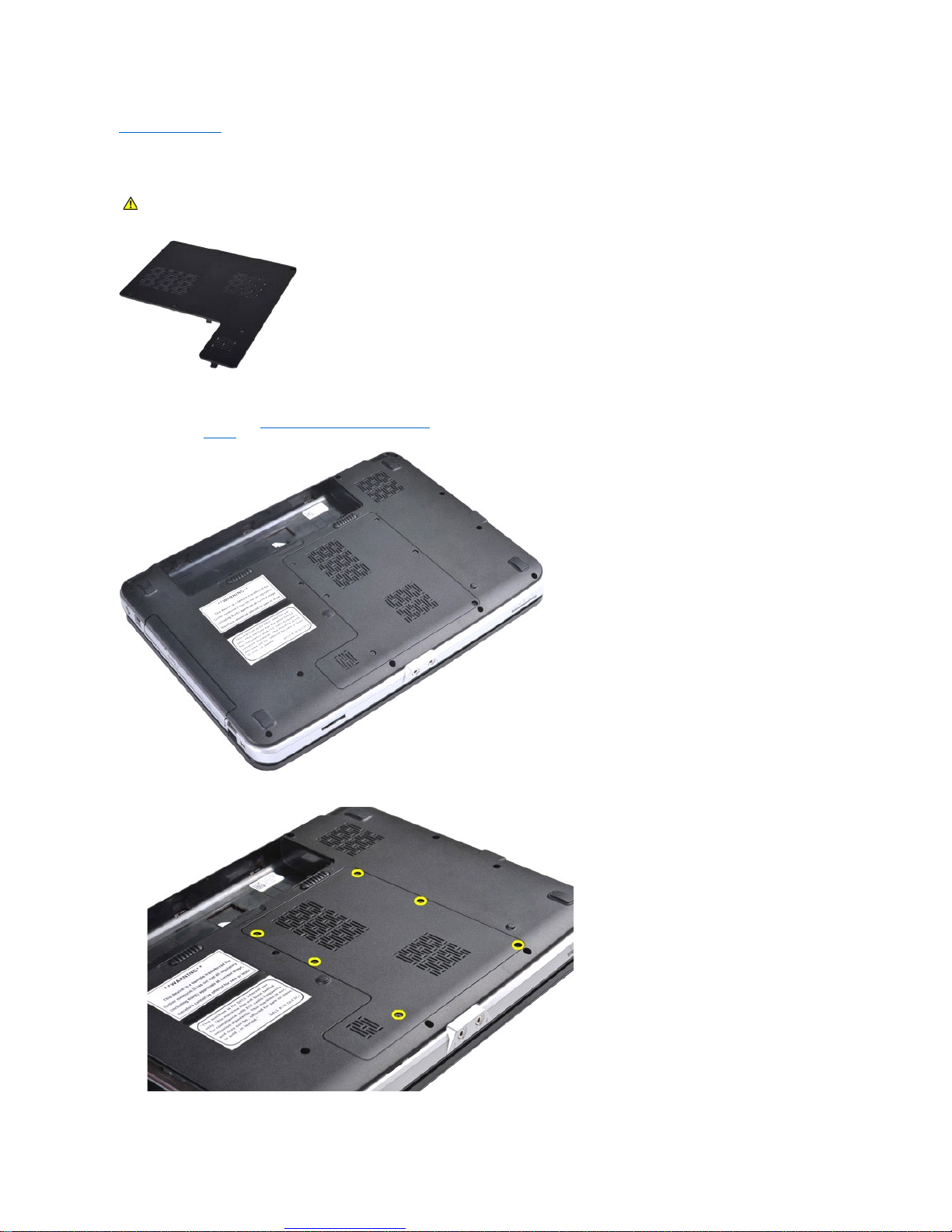

Access Panel
Dell™Vostro™1088ServiceManual
Removing the Access Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the six screws that secure the access panel to the computer.
4. Remove the access panel from the computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info
Replacing the Access Panel
Perform the steps described above in reverse order to replace the access panel on your computer.
Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page
Battery
Dell™Vostro™1088ServiceManual

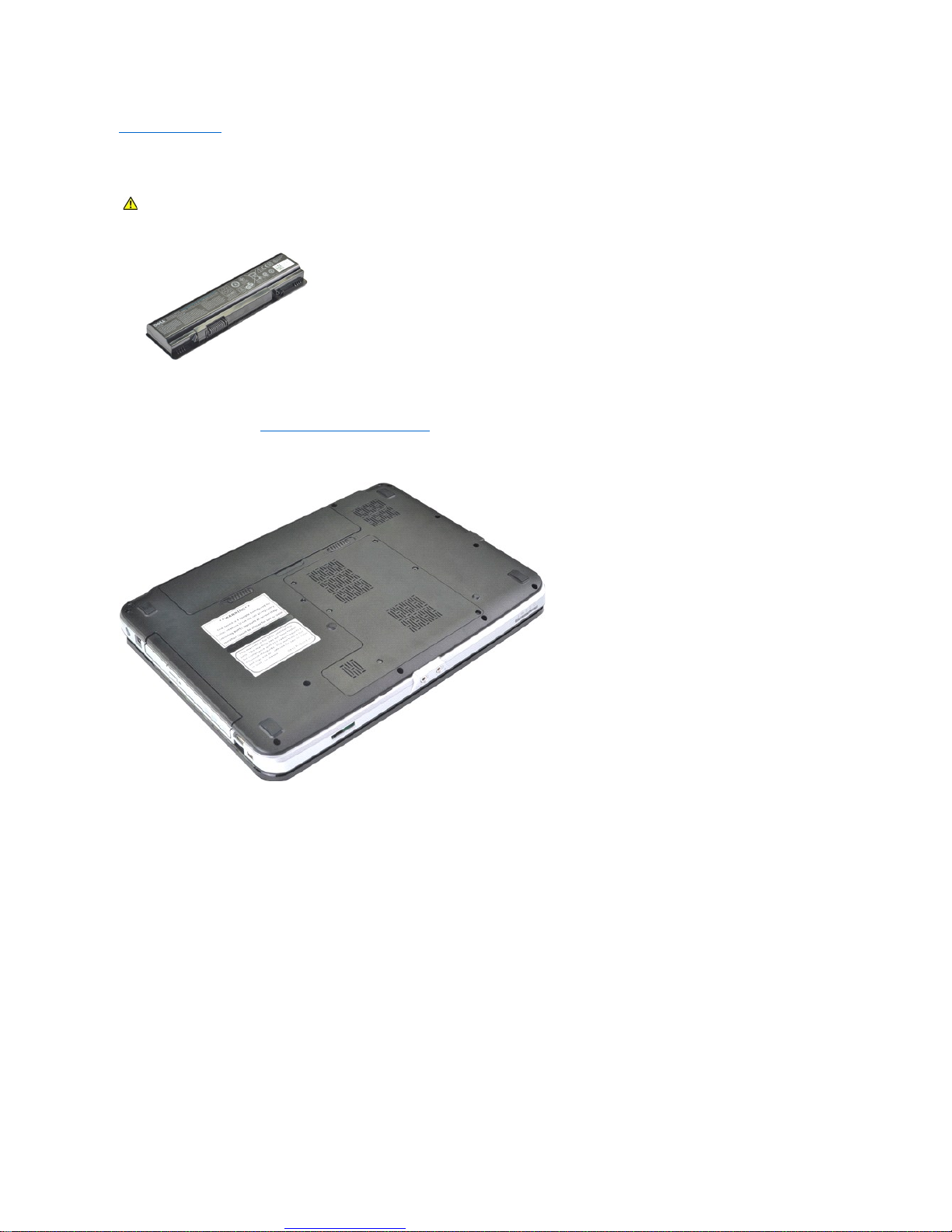

Removing the Battery
1. Follow the procedures in Before Working Inside Your Computer.

2. Slide the battery latches apart while at the same time slipping your forefingers into the groove at the center of the battery and pushing outward to
disengage the battery from the computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info
3. Lift the battery from the computer.
Replacing the Battery
Perform the steps described above in reverse order to replace the battery in your computer.
Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page
Internal Card With Bluetooth®Wireless Technology
Dell™Vostro™1088ServiceManual

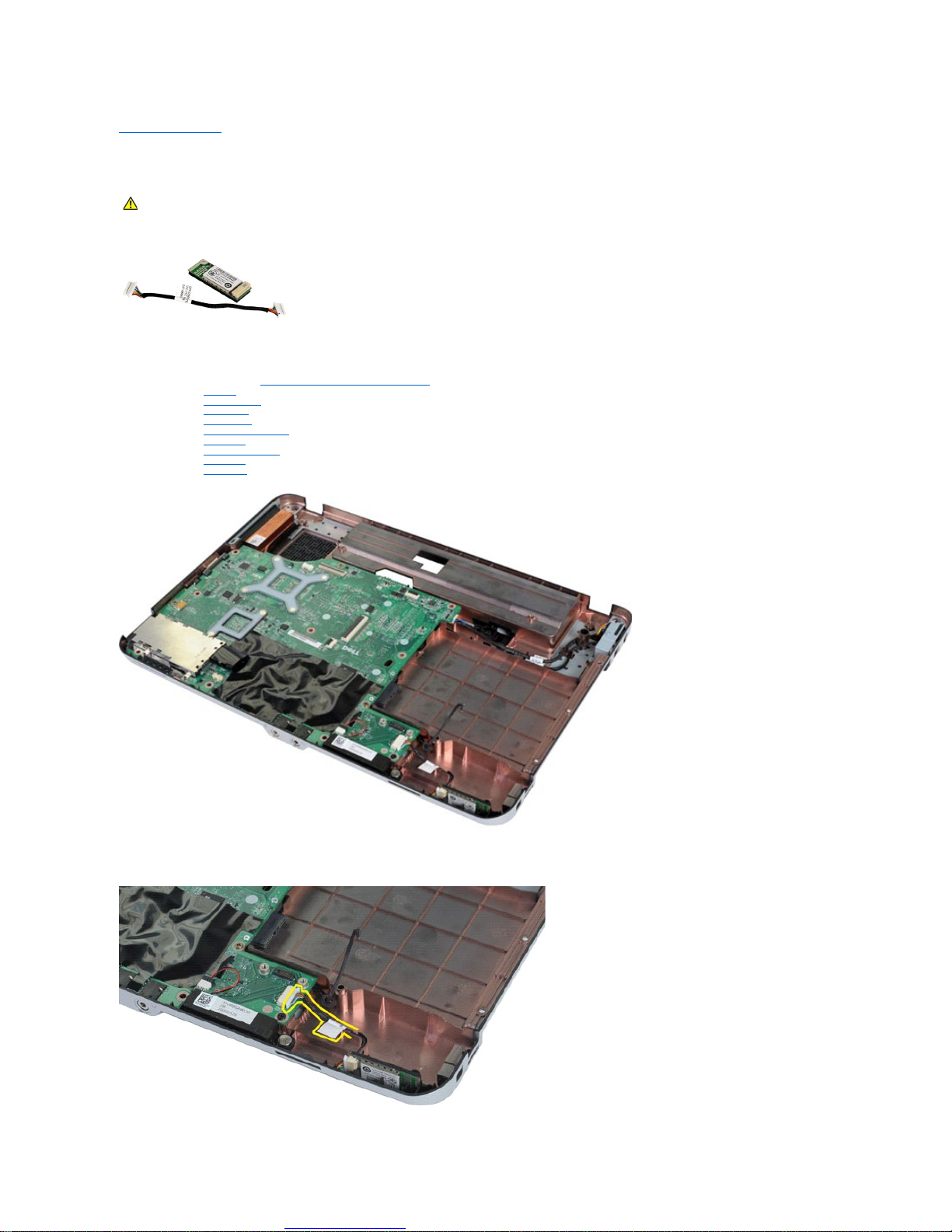

Removing the Internal Card With Bluetooth Wireless Technology
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hard drive from the computer.
5. Remove the WLAN card from the computer.
6. Remove the control panel cover from the computer.
7. Remove the keyboard from the computer.
8. Remove the display assembly from the computer.
9. Remove the palm rest from the computer.
10. Remove the I/O board from the computer.
11. Disconnect the Bluetooth card cable from the connector on the system board.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

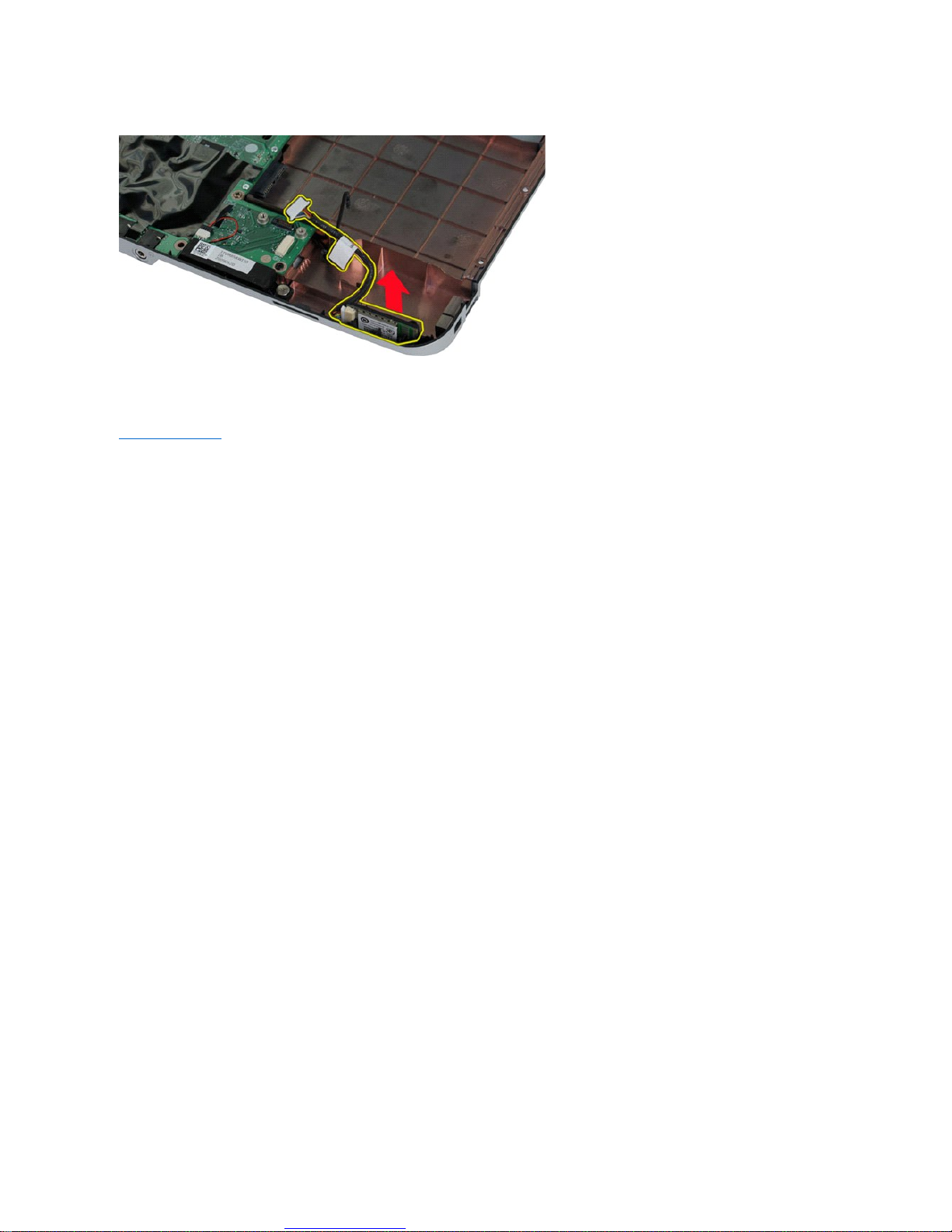

12. Disengage the Bluetooth card cable from its routing groove, then lift and remove the Bluetooth card from the computer.
Replacing the Internal Card With Bluetooth Wireless Technology
Perform the steps described above in reverse order to replace the Bluetooth card in your computer.
Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page

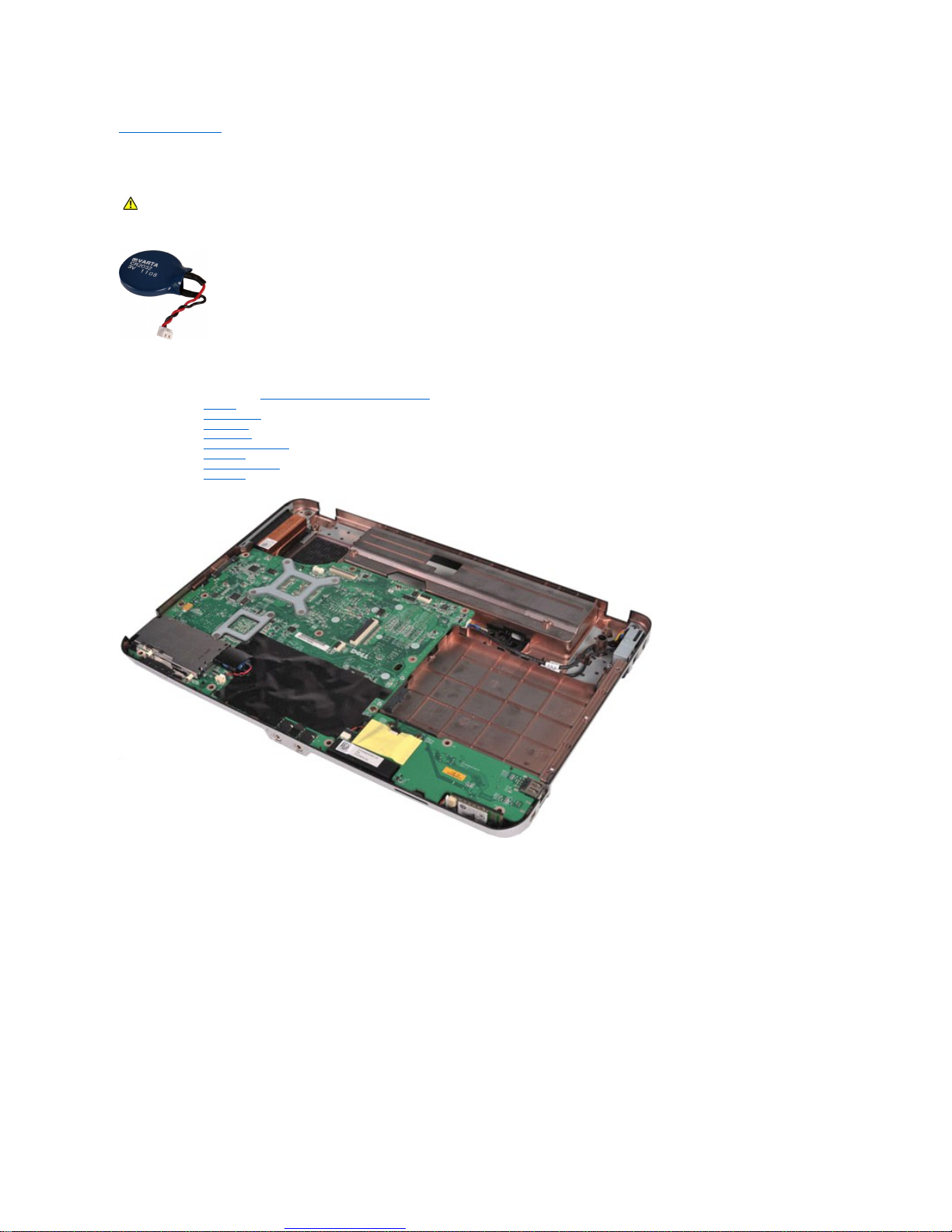

Coin-Cell Battery
Dell™Vostro™1088ServiceManual
Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hard drive from the computer.
5. Remove the WLAN card from the computer.
6. Remove the control panel cover from the computer.
7. Remove the keyboard from the computer.
8. Remove the display assembly from the computer.
9. Remove the palm rest from the computer.
10. Pull the coin-cell battery from the plastic sleeve.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

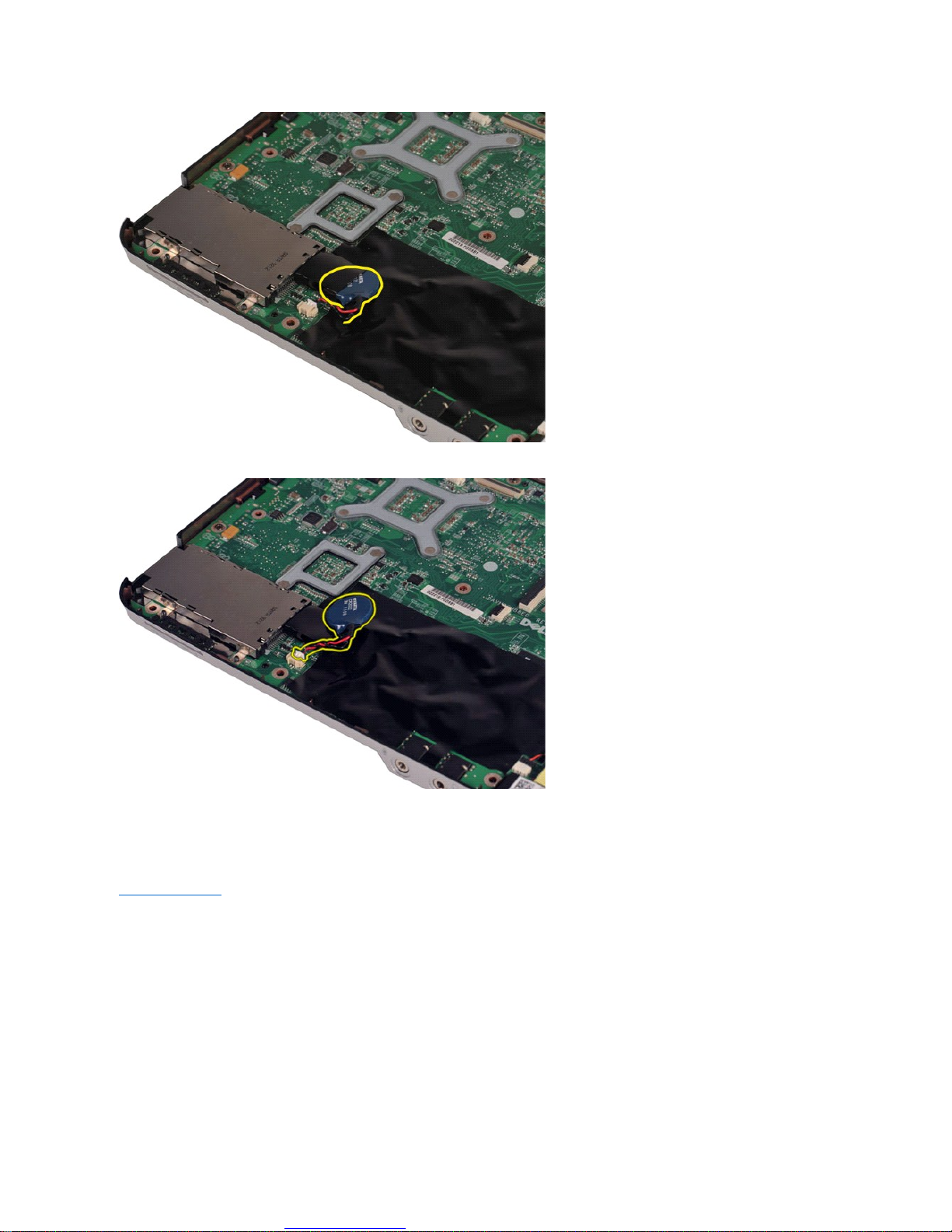

11. Disconnect the coin-cell battery cable from the connector on the system board, then lift and remove the coin-cell battery from the computer.

Replacing the Coin-Cell Battery
Perform the steps described above in reverse order to replace the coin-cell battery in your computer.
Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page

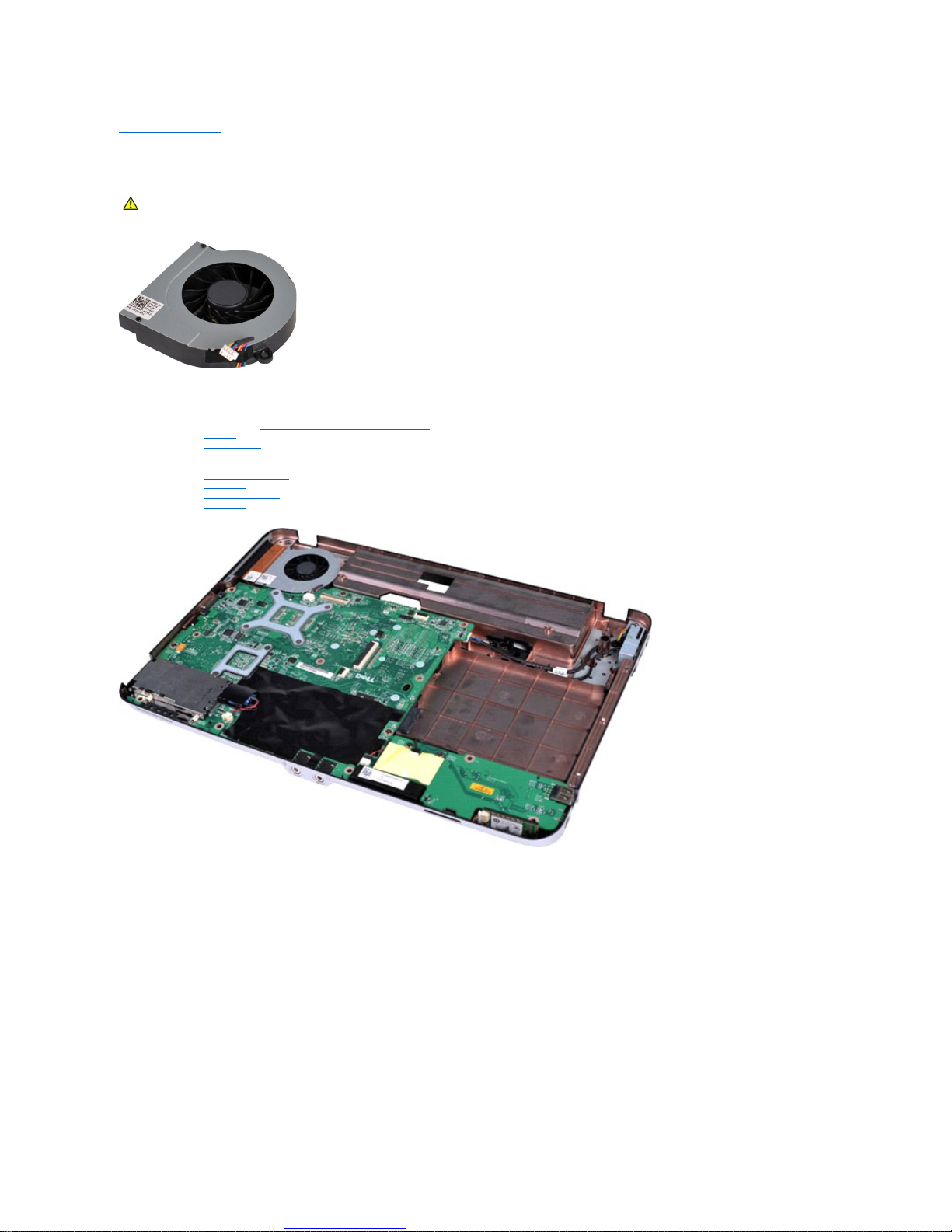

Processor Fan
Dell™Vostro™1088ServiceManual
Removing the Processor Fan
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hard drive from the computer.
5. Remove the WLAN card from the computer.
6. Remove the control panel cover from the computer.
7. Remove the keyboard from the computer.
8. Remove the display assembly from the computer.
9. Remove the palm rest from the computer.
10. Disconnect the processor fan cable from the connector on the system board.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info
11. Remove the screw that secures the processor fan to the computer.
12. Lift the processor fan from the computer.

Great user manuals database on UserManuals.info
Replacing the Processor Fan
Perform the steps described above in reverse order to replace the processor fan in your computer.
Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page

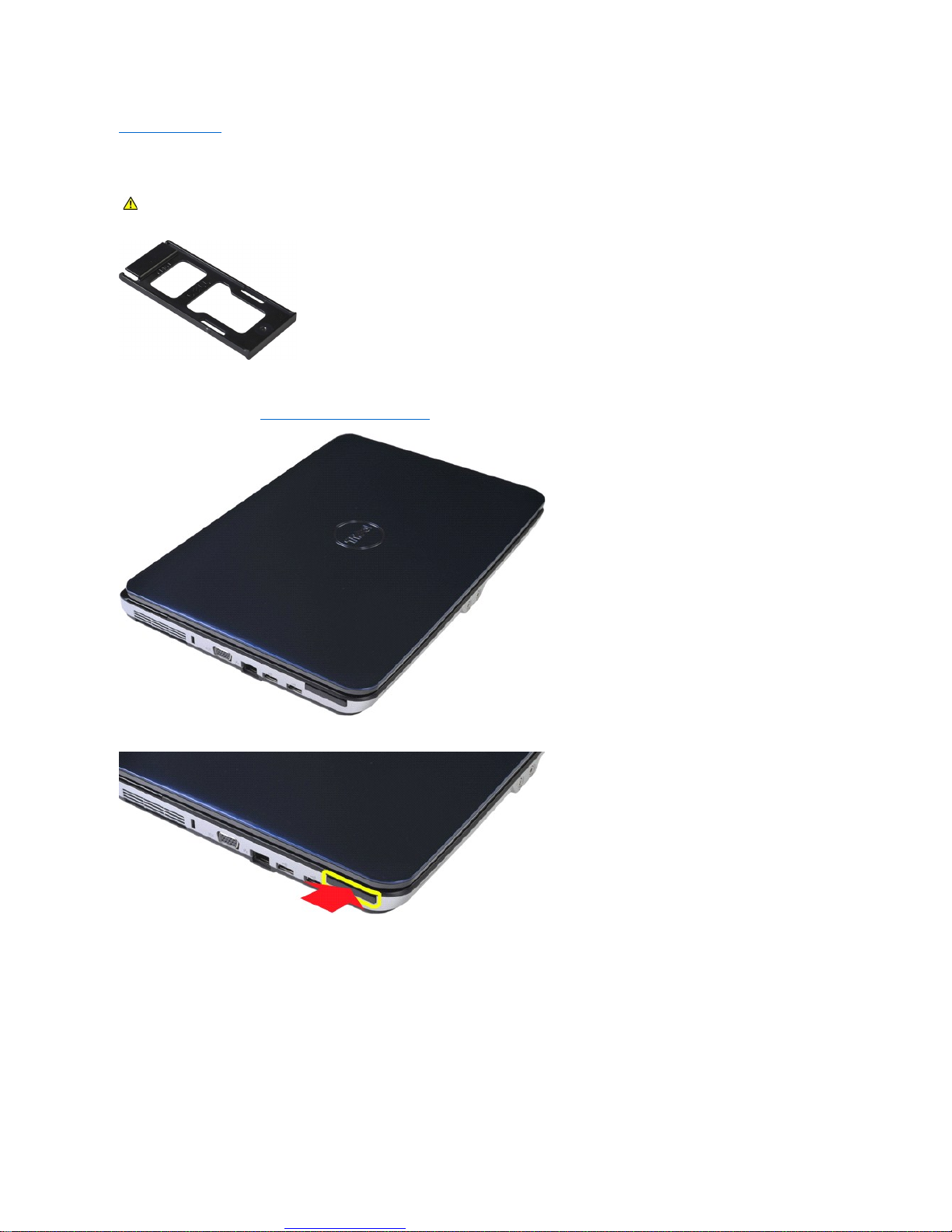

ExpressCard
Dell™Vostro™1088ServiceManual
Removing the ExpressCard
1. Follow the procedures in Before Working Inside Your Computer.
2. Press on the ExpressCard to release it from its slot in the computer.
3. Slide the ExpressCard from the computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info
Replacing the ExpressCard
Perform the steps described above in reverse order to replace the ExpressCard in your computer.
Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page

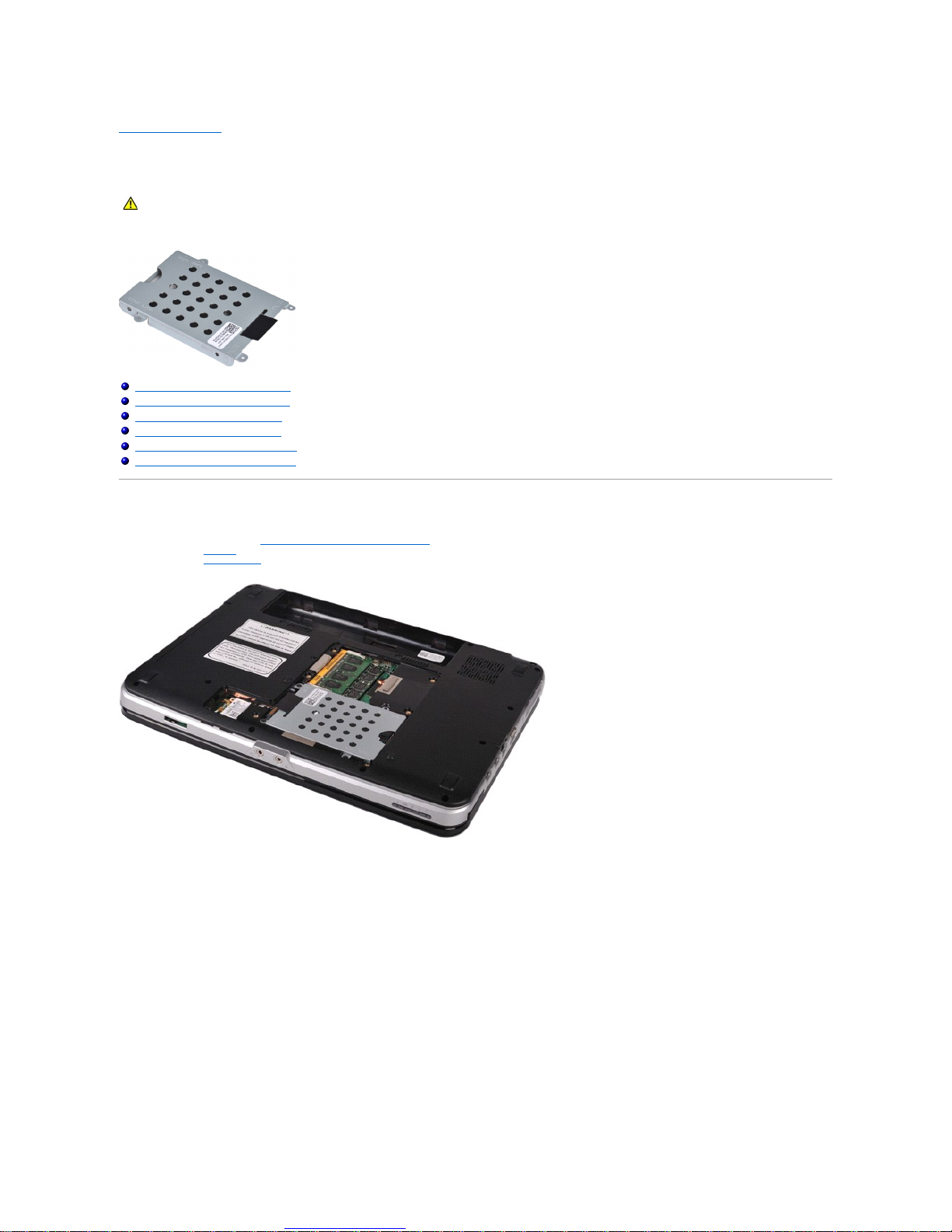

Hard Drive
Dell™Vostro™1088ServiceManual
Removing the Hard Drive Assembly
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the four screws that secure the hard drive assembly to the computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
Removing the Hard Drive Assembly
Replacing the Hard Drive Assembly
Removing the Hard Drive Bracket
Replacing the Hard Drive Bracket
Removing the Hard Drive Interposer
Replacing the Hard Drive Interposer


Great user manuals database on UserManuals.info

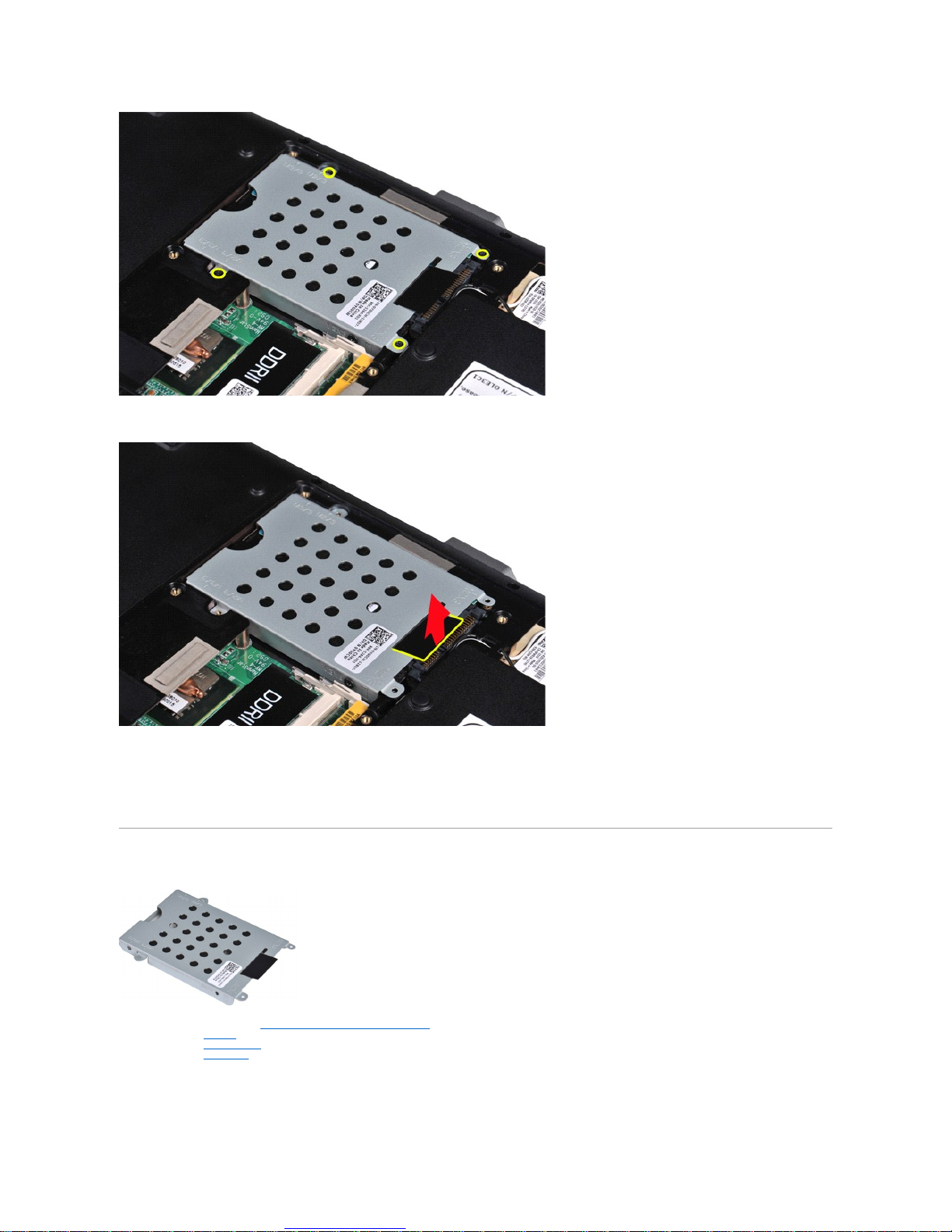

5. Pull the plastic tab toward the opposite end of the hard drive assembly to disengage the hard drive interposer from the connector on the system board,
then lift the hard drive assembly from the computer.

Replacing the Hard Drive Assembly
Perform the steps described above in reverse order to replace the hard drive in your computer.
Removing the Hard Drive Bracket
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hard drive from the computer.

Great user manuals database on UserManuals.info
5. Remove the four screws, two on either side of the bracket, that secure the hard drive to the hard drive bracket.
6. Lift the bracket from the hard drive.

Replacing the Hard Drive Bracket

Great user manuals database on UserManuals.info
Perform the steps described above in reverse order to replace the hard drive into the hard drive bracket.

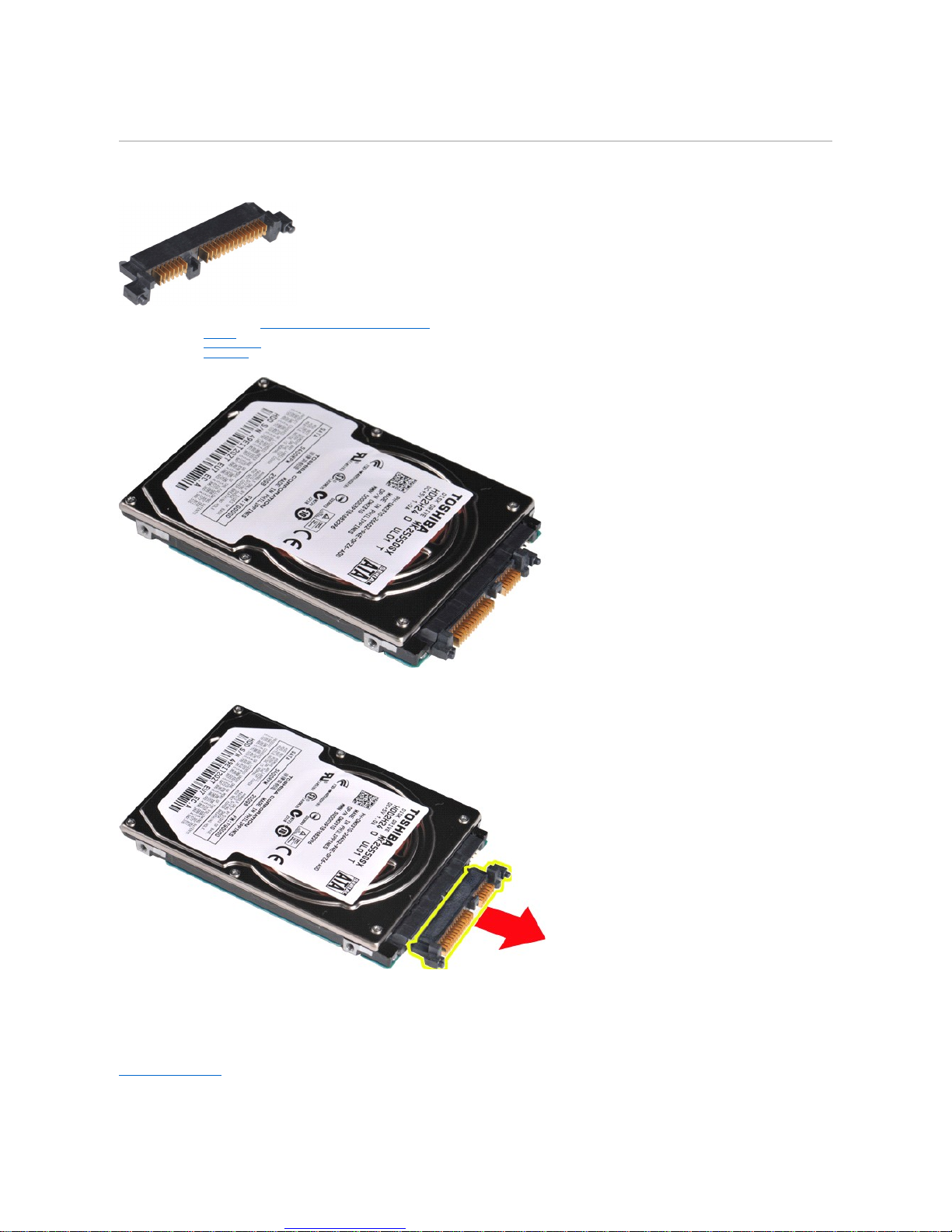

Removing the Hard Drive Interposer
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Remove the hard drive from the computer.
5. Tugging gently, remove the hard drive interposer from the hard drive.

Replacing the Hard Drive Interposer
Perform the steps described above in reverse order to replace the hard drive interposer on the hard drive.
Back to Contents Page

Great user manuals database on UserManuals.info
Back to Contents Page
Heat Sink
Dell™Vostro™1088ServiceManual

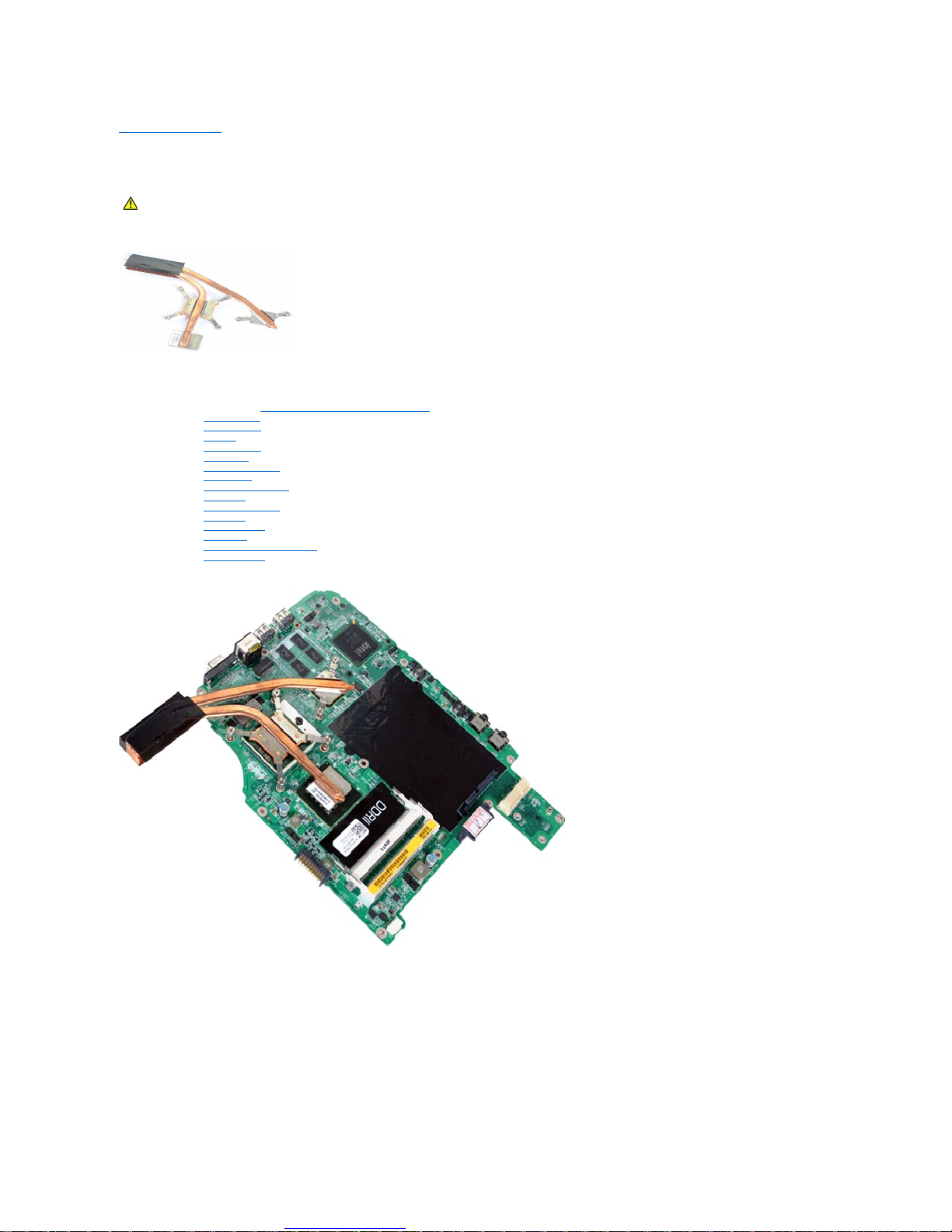

Removing the Heat Sink
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the ExpressCard from the computer if applicable.
3. Remove the memory card from the computer if applicable.
4. Remove the battery from the computer.
5. Remove the access panel from the computer.
6. Remove the hard drive from the computer.
7. Remove the memory modules from the computer.
8. Remove the WLAN card from the computer.
9. Remove the control panel cover from the computer.
10. Remove the keyboard from the computer.
11. Remove the display assembly from the computer.
12. Remove the palm rest from the computer.
13. Remove the processor fan from the computer.
14. Remove the I/O board from the computer.
15. Remove the Bluetooth®wireless card from the computer.
16. Remove the system board from the computer.
17. Set aside the computer chassis and place the system board on a clean, dry surface.
18. Loosen the six screws that secure the heat sink to the system board.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info
19. Remove the heat sink from the system board.
Replacing the Heat Sink
Perform the steps described above in reverse order to replace the heat sink onto your system board.
Back to Contents Page
