Dell™P2411HFlatPanelMonitorUser'sGuide
Notes, Notices, and Cautions




Information in this document is subject to change without notice.
©2010DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries, Intel is a registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices,
Inc. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model P2411Hb.
September 2010 Rev. A00
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
NOTE: A NOTE indicates important information that helps you make better use of your monitor.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury or death.

Back to Contents Page

About Your Monitor
Dell™P2411HFlatPanelMonitorUser'sGuide
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Universal Serial Bus (USB) Interface
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand setup guide for setup instructions.

lMonitor
lStand
lPower Cable
lVGA Cable


Product Features
The Dell™ProfessionalP2411H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD), and LED backlight. The monitor
features include:
■P2411H: 609.7 mm (24-inch)viewableareadisplay(Measureddiagonally).1920x1080 resolution, plus full-screen support for lower resolutions.
■Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.
■Tilt, swivel, vertical extension and rotate adjustment capability.
■RemovablepedestalandVideoElectronicsStandardsAssociation(VESA™) 100 mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media includes an information file (INF), Image color Matching File (ICM), PowerNap software application and product
documentation.
■Energy Saver feature for Energy Star compliance.
■Security lock slot.
■Asset Management Capability.
■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
■EPEAT Gold Rating.
■Halogen Reduced (BFR/CFR/PVC Free).
■Arsenic-Free glass and Mercury Free for Panel only.
■High Dynamic Contrast Ratio (2,000,000:1).
■0.15W standby power when in sleep mode.
■Energy Gauge shows the energy level being consumed by the monitor in real time.
■PowerNap Software included (comes in the CD attached with the monitor).
Identifying Parts and Controls

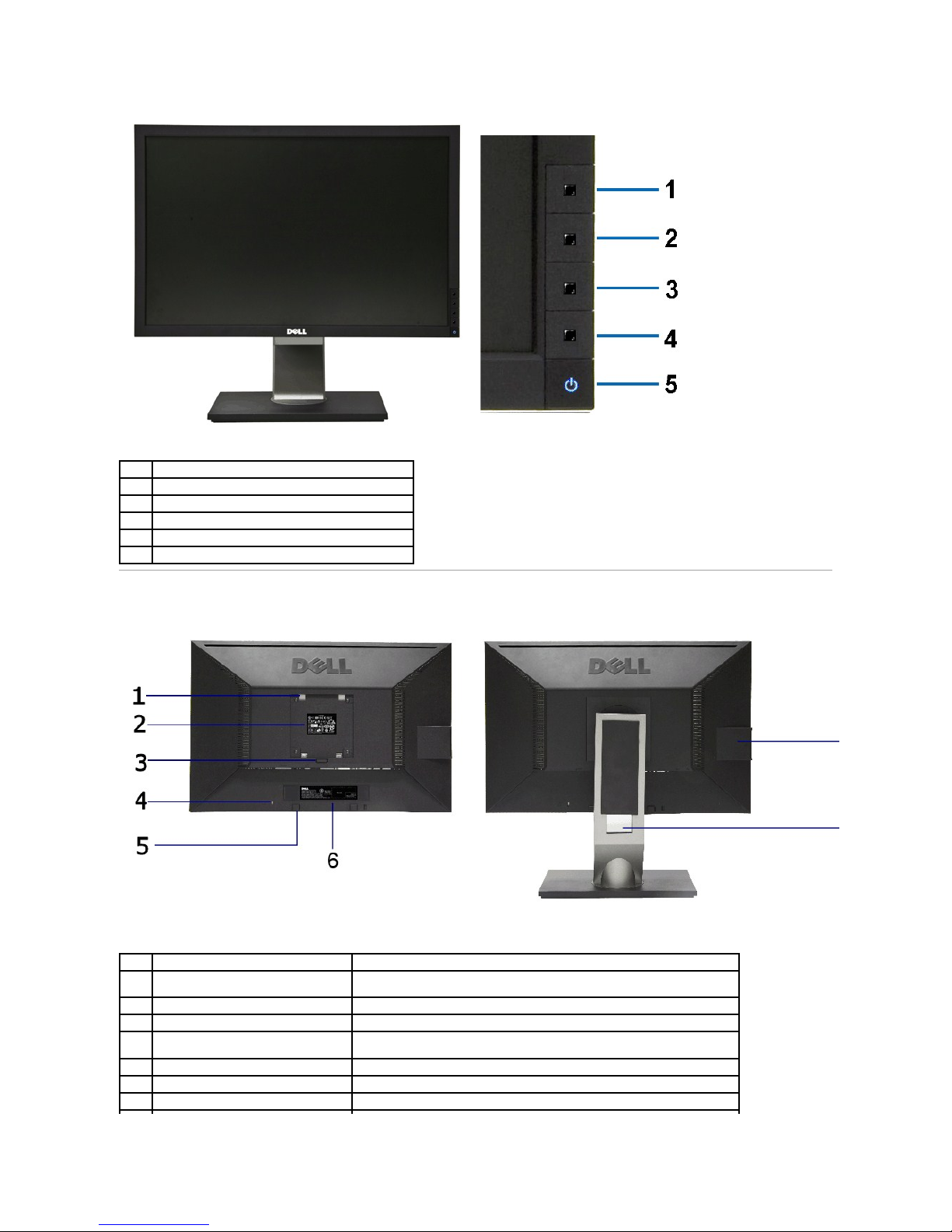

Front View
lDVI Cable
lUSB up stream cable (enables the USB ports on the monitor)
lDrivers and Documentation media
lQuick Setup Guide
lProduct and Safety Information Guide

Back View

Front View

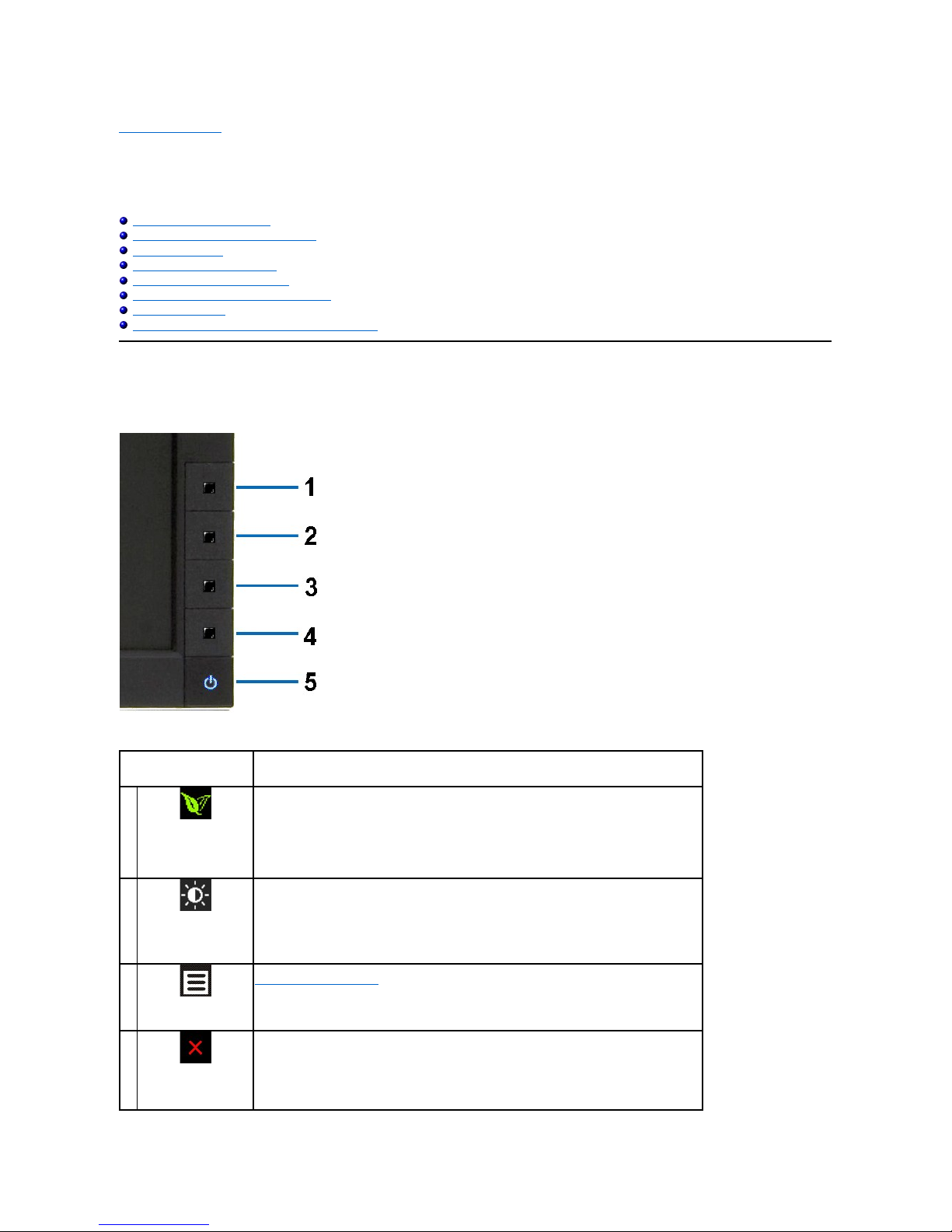

Front panel controls
Label
Description
1
Preset Modes (default, but configurable)
2
Brightness & Contrast (default, but configurable)
3
Menu
4
Exit
5
Power button (with power light indicator)
Back view
Back view with monitor stand
Label
Description
Use
1
VESA mounting holes (100 mm x 100 mm -
behind attached VESA Plate)
Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm)
2
Regulatory label
Lists the regulatory approvals.
3
Stand release button
Release stand from monitor.
4
Security lock slot
Secures monitor with security cable lock

5
Dell Soundbar mounting brackets
Attaches the optional Dell Soundbar.
6
Barcode serial number label
Refer to this label if you need to contact Dell for technical support.
7
USB downstream ports
Connect your USB devices.

Side View
Bottom View

8
Cable management slot
Use to organize cables by placing them through the slot.

Leftview

Right view
Bottom view
Bottom view with monitor stand
Label
Description
Use
1
AC power cord connector
Connect the power cable
2
DC power connector for Dell Soundbar.
Connect the power cord for the soundbar (optional)
3
DVI connector
Connect your computer DVI cable
4
VGA connector
Connect your computer VGA cable
5
USB upstream port
Connect the USB cable that came with your monitor to the monitor and the
computer. Once this cable is connected, you can use the USB connectors on
the side and bottom of the monitor.
6
Stand lock feature
To lock the Stand to the Monitor
Monitor Specifications
Flat Panel Specifications
Model
P2411H
Screen type
Active matrix -TFT LCD
Panel type
TN

*[P2411H] color gamut (typical) is based on CIE1976 (81%) and CIE1931 (68%) test standards.
Screen dimensions
609.7 mm (24 inches viewable image size)
Preset display area:
531.36 (H) X 298.89 (V) mm
Horizontal
531.36 mm (20.92 inches)
Vertical
298.89 mm (11.77 inches)
Pixel pitch
0.277 mm
Viewing angle
160°(vertical)typ,170°(horizontal)typ
Luminance output
250 cd/m ²(typ)
Contrast ratio
1000 to 1 (typ)
Dynamic contrast ratio
Up to 2,000,000 : 1 (typ)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
LED edgelight system
Response Time
5 ms typical
Color depth
16.7 million colors
Color gamut (Typical)
68%*
Resolution Specifications
Model
P2411H

Video Supported Modes
Horizontal scan range
30 kHz to 83 kHz (automatic)
Vertical scan range
56Hzto75Hz(automatic)
Maximum resolution
1920 x 1080 at 60 Hz
Model
P2411H
Video display capabilities (DVI playback)
480p, 480i, 576p, 576i, 720p, 1080p and 1080i
Preset Display Modes
P2411H

Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/Vertical)
720 x 400
31.5
70.0
28.3
-/+
640 x 480
31.5
60.0
25.2
-/-
640 x 480
37.5
75.0
31.5
-/-
800 x 600
37.9
60.0
40.0
+/+
800 x 600
46.9
75.0
49.5
+/+
1024 x 768
48.4
60.0
65.0
-/-
1024 x 768
60.0
75.0
78.8
+/+
1152 x 864
67.5
75.0
108.0
+/+
1280 x 1024
64.0
60.0
108.0
+/+
1280 x 1024
80.0
75.0
135.0
+/+
1920 x 1080
67.5
60.0
148.5
+/+

Electrical Specifications
Model
P2411H
Video input signals
Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance
Digital DVI-
D TMDS, 600mV for each differential line, positive polarity at 50 ohm input
impedance
Synchronization input signals
Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG
(Composite SYNC on green)
AC input voltage/frequency/current
100 to 240 VAC/50 or 60 Hz +3 Hz/1.5 A (Max.)
Inrush current
120V:30A (Max.)
240V:60A (Max.)
Physical Characteristics
Model
P2411H
Connector type
15-pin D-subminiature, blue connector; DVI-D, white connector
Signal cable type
Digital: Detachable, DVI-D, Solid pins, shipped detached from the monitor
Analog: Detachable, D-Sub, 15 pins, shipped attached to the monitor
Dimensions (with stand)
Height (extended)
478.3 mm (18.83 inches)
Height (compressed)
378.3 mm (14.89 inches)
Width
569.8 mm (22.43 inches)
Depth
184.1 mm (7.25 inches)
Dimensions (without stand)
Height
337.3 mm (13.28 inches)
Width
569.8 mm (22.43 inches)
Depth
61.5 mm (2.42 inches)
Stand dimensions
Height (extended)
370.5 mm (14.59 inches)
Height (compressed)
331.3 mm (13.04 inches)
Width
279.9 mm (11.02 inches)
Depth
184.1 mm (7.25 inches)
Weight
Weight with packaging
7.3 kg (16.09 lbs)

Weight with stand assembly and cables
5.8 kg (12.79 lbs)
Weight without stand assembly
(For wall mount or VESA mount considerations - no cables)
3.7 kg (8.16 lbs)
Weight of stand assembly
1.92 kg (4.23 lbs)
Environmental Characteristics
Model
P2411H
Temperature
Operating
0°to40°C
Non-operating
Storage: -20°to60°C(-4°to140°F)
Shipping: -20°to60°C(-4°to140°F)
Humidity
Operating
10% to 80% (non-condensing)


Non-operating
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Altitude
Operating
4,850 m (15,902 ft) max
Non-operating
12,192 m (40,000 ft) max
Thermal dissipation
170.72 BTU/hour (maximum)
92.19 BTU/hour (typical)
Power Management Modes
IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotinuse.Thisis
referred to as Power Save Mode
*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The
following table shows the power consumption and signaling of this automatic power saving feature:
P2411H

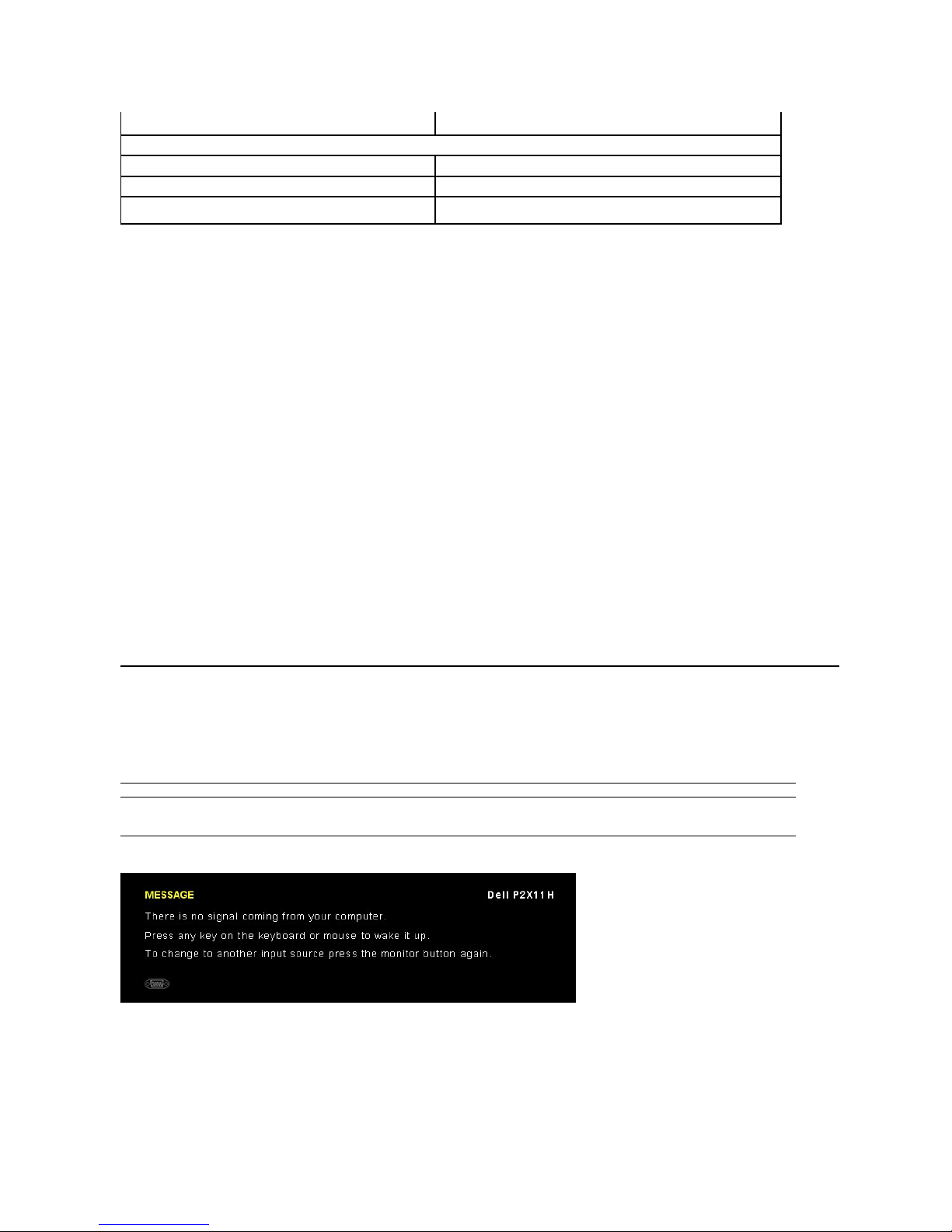

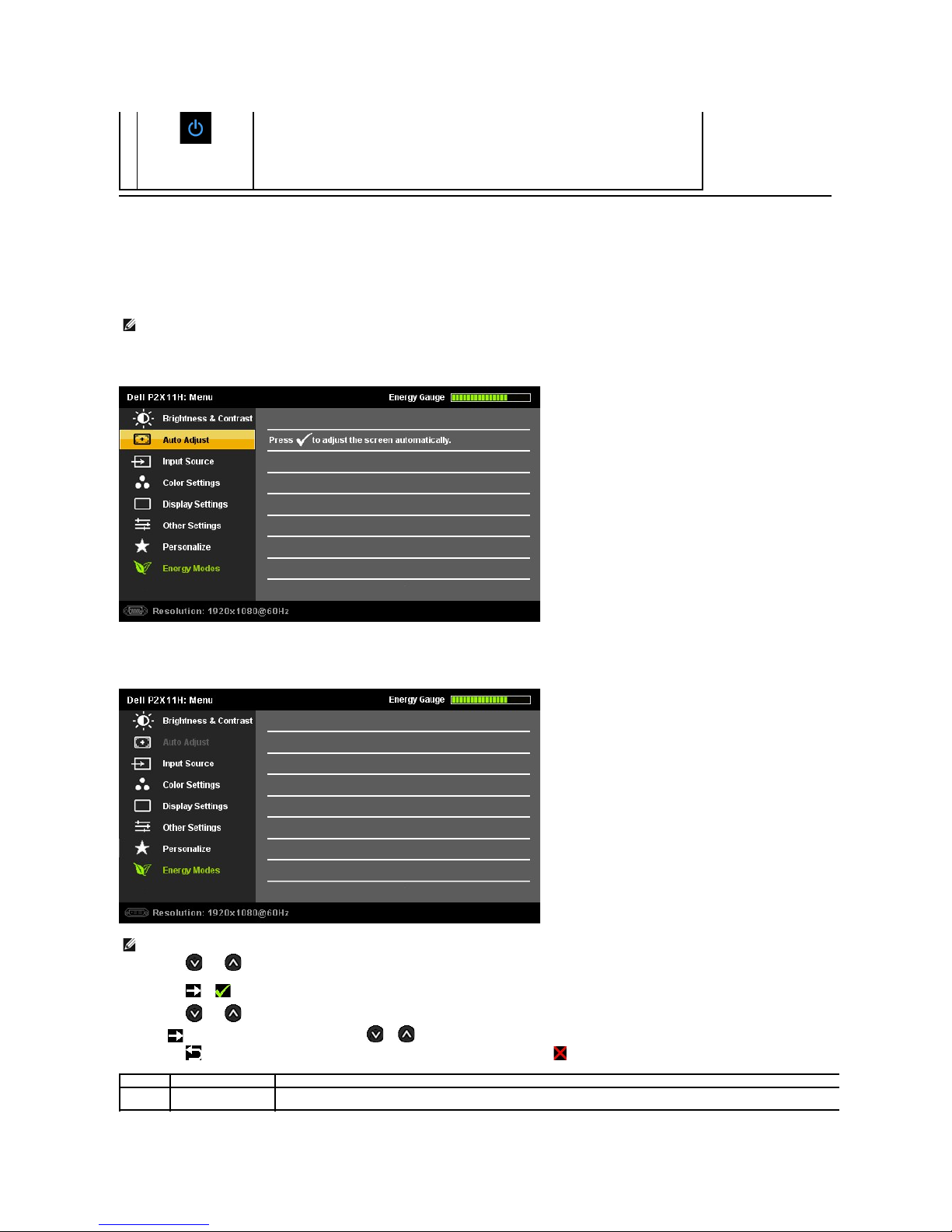

The OSD will only function in the normal operation mode. When any button is pressed in Active-off mode, one of the following messages will be displayed:
Activate the computer and the monitor to gain access to the OSD.
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation
Active
Active
Active
Blue
27 W (typical)/50 W (maximum)**
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 0.15 W
Switch off
-
-
-
Off
Less than 0.15 W
