Dell™TravelMouseWithBluetooth®Technology User's Guide
Overview
This user's guide contains information that will help you to setup and operate your mouse in a fast and easy manner.
Information in this document is subject to change without notice.
©2007 Dell Computer Corporation. All rights reserved.
Dell and the Dell logo are trademarks of Dell Computer Corporation; Bluetooth is a registered trademark owned by Blutooth SIG, Inc. and is used by Dell under
license.; Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell disclaims
any proprietary interest in trademarks and trade names other than its own.
Export Regulations
Customer acknowledges that these Products, which may include technology and software, are subject to the customs and export control laws and regulations
of the United States ("U.S.") and may also be subject to the customs and export laws and regulations of the country in which the Products are manufactured
and/or received. Customer agrees to abide by those laws and regulations. Further, under U.S. law, the Products may not be sold, leased or otherwise
transferred to restricted end-users or to restricted countries. In addition, the Products may not be sold, leased or otherwise transferred to, or utilized by an
end-user engaged in activities related to weapons of mass destruction, including without limitation, activities related to the design, development, production
or use of nuclear weapons, materials, or facilities, missiles or the support of missile projects, and chemical or biological weapons.
Initial Release : 8 June 2007
Setup
Mouse
Introduction
Usage
Troubleshooting
Specifications
Software
Introduction
Usage
Troubleshooting
Statutory Information
Warranty
Regulatory
Certifications

Back to Contents Page
Certifications:Dell™TravelMouseWithBluetooth®Technology
Microsoft WHQL Logo
Microsoft WHQL Logo
The Dell Travel Mouse With Bluetooth Technology has passed WHQL logo testing by Microsoft Windows Hardware Quality Labs.
WHQL Logo is a certification scheme operated by Microsoft Windows Hardware Quality Labs. In this case it ensures that hardware is compatible with Microsoft
Operating Systems. The mouse is qualified through the use of WHQL test kits and has been included on the Microsoft Hardware Compatibility List.
Back to Contents Page

Back to Contents Page
Introduction:Dell™TravelMouseWithBluetooth®Technology
Overview •Features
Overview
Dell Travel Mouse With Bluetooth Technology
Features
The Dell Travel Mouse With Bluetooth Technology enables you to:
lScroll up, down, left, and right in a document or web page. Navigate to a different page on the web, or to a different folder on your computer.
lPerform a range of common tasks such as launch, switch and close programs, cut, copy and paste information.
lZoom in and out of documents.
Back to Contents Page

Back to Contents Page
Specifications:Dell™TravelMouseWithBluetooth®Technology
General •Electrical •Physical •Environmental •Cordless
General
Electrical
Physical
Environmental
Cordless
Back to Contents Page
Manufacturer
Logitech Inc.
Model number
M-RCG-DEL6
Connection type
Wireless technology
Supported Operating Systems
Microsoft®Windows®XP,MediaCenterEditionorWindowsVista™.
Operating Voltage
1.9V to 3.3V
Power consumption
Battery life: approx. 4 months
Height
43.1 mm
Width
61.3 mm
Length
128.8 mm
Weight
90 g, without batteries
Operating temperature
0°Cto40°C
Storage temperature
-40°Cto65°C
Operating humidity
90%max Relative Humidity, non condensing
Storage humidity
90%max Relative Humidity, non condensing
Radio transmission
Bi-directional, Bluetooth technology
Range
10 m

Back to Contents Page
Troubleshooting:Dell™TravelMouseWithBluetooth®Technology
If you have problems with your mouse:
1. Verify that the batteries are new, properly placed, and that the mouse is turned on.
2. If you still have a problem, restart your computer.
3. If you still experience connection issues, verify if your computer's bluetooth LED is on (blue), and then proceed to the next step.
NOTE: If your computer’s Bluetooth LED is off, follow your computer’s user manual to enable the Bluetooth radio.
4. If you use the Microsoft®Windows®XP operating system on your system, verify that your Bluetooth software is installed properly on your notebook
computer and ensure that you have started Bluetooth.
5. In the Windows taskbar at the bottom of the screen, right-click the Bluetooth icon, click the Options menu, and then do the following to identify the
installed Bluetooth software:
¡If the About menu command appears, click it to identify Bluetooth stack for Windows by Toshiba.
¡If the Advanced Configuration menu command appears, click it to identify Widcomm Bluetooth Software.
6. Perform one of the following steps to be able to operate the mouse:
¡IfyouhavetheToshibaBluetoothSoftwareinstalledorusetheWindowsVista™operatingsystemonyournotebookcomputer,Click here.
¡If you have the Widcomm Bluetooth Software installed or use the Windows Vista operating system on your notebook computer, Click here.
¡If you do not have any Bluetooth software installed, but use the Windows Vista operating system on your notebook computer, Click here.
Back to Contents Page

Back to Contents Page

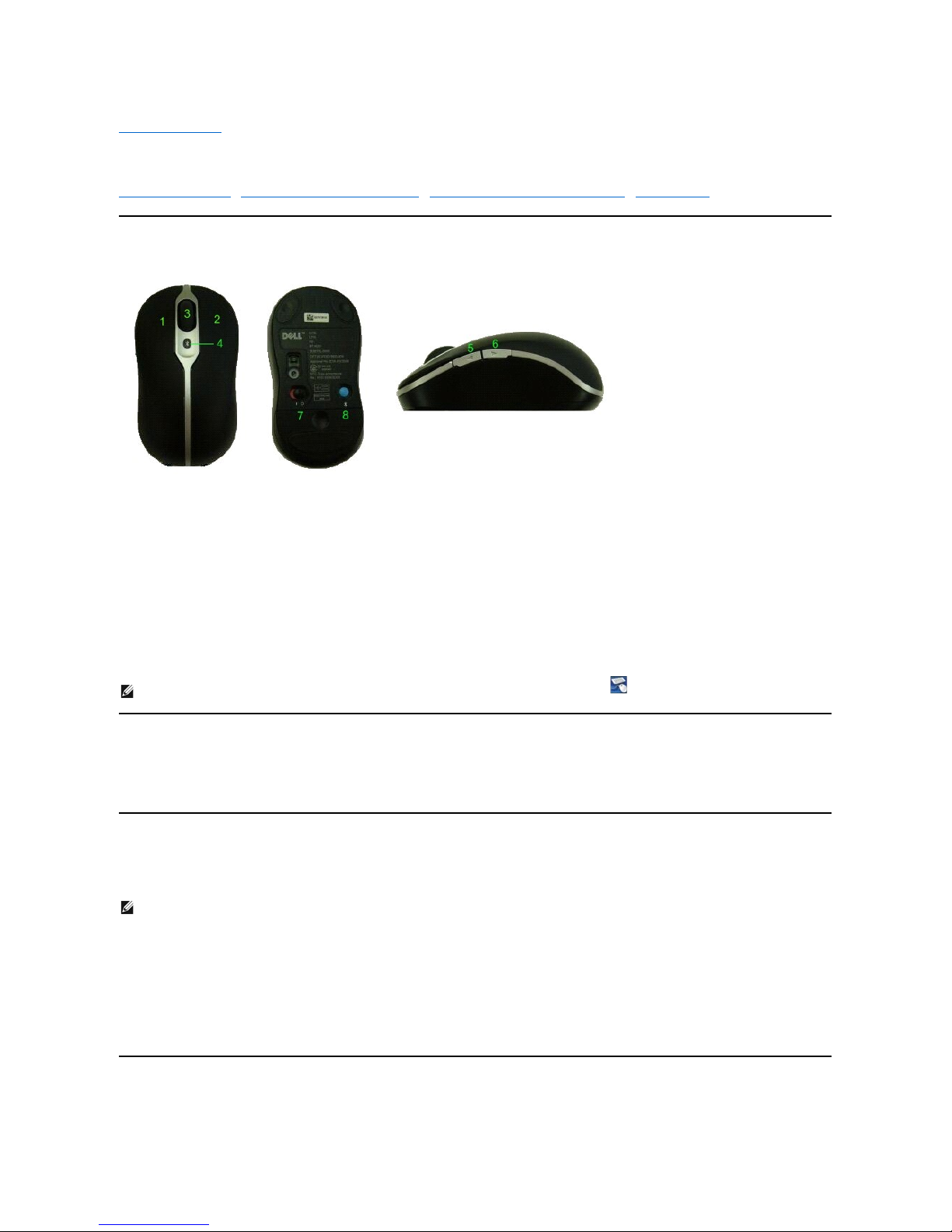

Usage:Dell™TravelMouseWithBluetooth®Technology
Mouse Buttons Overview •Using the Left and Right Mouse Buttons •Using the Forward and Back Mouse Buttons •Using the Wheel
Mouse Buttons Overview
Buttons assignments:
Using the Left and Right Mouse Buttons
Your mouse has traditional left and right mouse buttons. It is initially set up with the left-hand button assigned the standard 'Click/Select' task, and the
right-hand button assigned the 'Context Menu/Alternate Select' task. If you are left-handed you can reverse these basic functions to make your device more
comfortable to use.
Using the Forward and Back Mouse Buttons
The Forward and Back buttons can be customized depending on the Microsoft Office®application you are using. To do this, check the Application Specific
Settings box in the SetPoint software.
Forward and Back can navigate in the following ways:
Unchecking the Application Specific Settings box returns Forward and Back to their standard functions.
Using the Wheel
Using the scroll wheel instead of clicking the scroll bars within your applications makes it easier to focus on a document's content. Rolling the wheel forward
1
Main click
2
Contextual Menu
3
Roller & Wheel Button
4
Bluetooth Binding Indication LED (blue);
Low Battery Indication LED (amber)
5
Forward Button
6
Backward Button
7
Power On/Off Switch
8
Bluetooth Connection Button
NOTE: You can use SetPoint to customize button assignments. To launch SetPoint either double-click the icon, , in the Windows taskbar or click Start ®
Programs ® SetPoint ® Settings.
NOTE: This feature only works with some applications in Microsoft Office 2000, Office XP, and Office 2003 applications, as listed below.
Application
Forward/Back
MicrosoftInternetExplorer™
Nextpage/Previouspage
Microsoft Word
PageDown/PageUp
MicrosoftOutlook®, OutlookExpress
Nextmessage/Previousmessage
MicrosoftPowerPoint
Nextslide/Previousslide
Windows Explorer
Nextfolder/Previousfolder

scrolls up a document, and rolling it backward scrolls down.
Your mouse is equipped with a tilt wheel, so you can push it left and right if you want to scroll from side-to-side when you see horizontal scroll bars.
Your mouse also offers 'wheel-free scrolling', letting you scroll through pages more quickly without using the scroll wheel.
The scroll wheel can also be used as an extra button. You can click it like any other mouse button to carry out a task of your choice -for example to enable
zooming or a different feature.
Back to Contents Page

Back to Contents Page
Regulatory:Dell™TravelMouseWithBluetooth®Technology
Regulatory Information
Regulatory Information
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConsult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC
regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference
to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the
user's authority to operate this equipment.
The class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
As for the Agency Approval, this mouse is approved by:
Back to Contents Page
Region
Country
Approval type
AMERICAS
Canada
IC
AMERICAS
United States
FCC & UL
AMERICAS
Venezuela
CONATEL
ASIA
Australia / New Zealand
c-tick
ASIA
China
SRRC
ASIA
Indonesia
DGPT
ASIA
Japan
TELEC
ASIA
Malaysia
SIRIM
ASIA
Philippines
NTC
ASIA
Singapore
IDA
ASIA
South Korea
MIC
ASIA
Taiwan
DGT & /BSMI
EUROPE
EEC & EFTA
CE & TUV/GS
EUROPE
Egypt
TRA
EUROPE
Israel
MOC
EUROPE
Russia
GOST
EUROPE
Saudi Arabia
SASO & CITC
EUROPE
South Africa
ICASA
EUROPE
Ukraine
UKRSEPRO

Back to Contents Page
Setup:Dell™TravelMouseWithBluetooth®Technology
System Requirements
To install and operate your Dell Travel Mouse With Bluetooth Technology, either of the following operating systems is required:
lMicrosoft®Windows®XP, Media Center Edition
lWindowsVista™
Getting Started
Contents Of The Box •Inserting Batteries •Setting Up The Mouse
Contents Of The Box
The Dell Travel Mouse With Bluetooth Technology includes the following items:
lMouse
lAA Batteries (2)
lSoftware CD
lUser's Guide
Open the package and remove the contents to start the installation.
Inserting Batteries
Insert two AA batteries into the mouse. You must ensure that the batteries are placed properly. Then turn on the mouse using the On/Off switch on its base.
The optical sensor of the mouse will turn on (red) if the batteries are placed properly.
NOTE: Do not press the Connect button at this time.
Setting Up The Mouse
Setting Up Your Dell Travel Mouse With Bluetooth Technology (Part 1)
If you have the Toshiba Bluetooth Software installed on a Dell notebook computer, complete the following steps:
All the required mouse software is pre-installed on your notebook computer. If you must restore this software, insert the Setup CD, and then follow the on-
screen instructions.
NOTE: To uninstall the SetPoint program, click Start ® Settings ® Control Panel ® Add/Remove Programs. In the Add/Remove Programs window, select
SetPoint program, and then click Change/Remove.
1. You must turn off any other Bluetooth-enabled mouse. The receiver may detect a Bluetooth-enabled mouse in the range of 10 meters (30 feet).
2. Ensure that your computer's Bluetooth LED is on (blue), then proceed to the next step.
NOTE: If your computer’s Bluetooth LED is off, follow your computer’s user manual to enable the Bluetooth radio.
3. In the Windows taskbar at the bottom of the screen, right-click on the Bluetooth icon, click Start Bluetooth, and then follow the instructions to activate
Bluetooth.
4. In the Bluetooth Settings window, click New Connection.
5. D. When the Add New Connection wizard appears, press and hold the Bluetooth button on your mouse for 2 seconds, and then click Next in the Add
New Connection wizard.
NOTE: Ensure that you complete steps 6 and 7 within three minutes; otherwise, return to step 3.
6. When the Searching for Bluetooth Devices window appears, wait for a minimum of 20 seconds to allow your computer to connect with the mouse.
7. When the connection is complete and Dell Travel Mouse With Bluetooth Technology appears in the list, select the Dell Travel Mouse With Bluetooth
Technology from the list, and then click Next.
8. Close the Bluetooth Settings window.
NOTE: You must turn off any other Bluetooth-enabled mouse. The receiver may detect a Bluetooth-enabled mouse in the range of 10 meters (30 feet). If you
experience any issues, complete all the steps again.
NOTE: If you have the Widcomm Bluetooth Software installed or use the Windows Vista operating system on a Dell notebook computer, complete the steps in
part 2 or part 3.

Setting Up Your Dell Travel Mouse With Bluetooth Technology (Part 2)
If you have the Widcomm Bluetooth Software installed on a Dell notebook computer, complete the following steps:
All the required mouse software is pre-installed on your notebook computer. If you must restore this software, insert the Setup CD, and then follow the on-
screen instructions.
NOTE: To uninstall the SetPoint program, click Start ® Settings ® Control Panel ® Add/Remove Programs. In the Add/Remove Programs window, select
SetPoint program, and then click Change/Remove.
1. You must turn off any other Bluetooth-enabled mouse. The receiver may detect a Bluetooth-enabled mouse in the range of 10 meters (30 feet).
2. Ensure that your computer's Bluetooth LED is on (blue), then proceed to the next step.
NOTE: If your computer’s Bluetooth LED is off, follow your computer’s user manual to enable the Bluetooth radio.
3. In the Windows taskbar at the bottom of the screen, right-click on the Bluetooth icon, click Start Using Bluetooth, and then follow the instructions to
activate Bluetooth.
4. In the Bluetooth Settings window, click Next.
5. In the Bluetooth Service Selection window, select Human Interface Device, and then click Next.
6. When the Bluetooth Device Selection window appears, press and hold the Bluetooth button on your mouse for 2 seconds, and then wait for a
minimum of 20 seconds until Dell Travel Mouse With Bluetooth Technology appears in the list.
7. In the Bluetooth Device Selection window, double-click Dell Travel Mouse With Bluetooth Technology to let your computer connect with your mouse.
8. In the Confirmation Required window, Click here before the countdown reaches zero to confirm that the correct mouse is connected.
Setting Up Your Dell Travel Mouse With Bluetooth Technology (Part 3)
If you have the Windows Vista operating system installed on a Dell notebook computer, complete the following steps:
All the required mouse software is pre-installed on your notebook computer. If you must restore this software, insert the Setup CD, and then follow the on-
screen instructions.
NOTE: To uninstall the SetPoint program, click Start ® Settings ® Control Panel ® Add/Remove Programs. In the Add/Remove Programs window, select
SetPoint program, and then click Change/Remove.
1. You must turn off any other Bluetooth-enabled mouse. The receiver may detect a Bluetooth-enabled mouse in the range of 10 meters (30 feet).
2. Ensure that your computer's Bluetooth LED is on (blue), then proceed to the next step.
NOTE: If your computer’s Bluetooth LED is off, follow your computer’s user manual to enable the Bluetooth radio.
3. Click Start ®Settings ®Control Panel. Ensure that the Control Panel window is switched to Classic View, and then double-click Bluetooth devices.
4. In the Bluetooth Devices window, click Add.
5. Press and hold the Bluetooth button on your mouse for 2 seconds. The blue LED on the mouse starts blinking. Select the My device is set up and ready
to be found option, and then click Next.
6. When the Add Bluetooth Devices Wizard window appears, wait for a minimum of 20 seconds until Dell Travel Mouse with Bluetooth Technology
appears in the list. Select Dell Travel Mouse with Bluetooth Technology from the list and then click Next.
7. In the next page, check Don’t use a passkey, and click Next.
8. In the next page, click Finish to connect your computer to the mouse.
To confirm mouse functionality perform simple operations such as a button/key press and cursor motion.
For details about using your mouse, refer to Mouse: Usage.
If your mouse is NOT working, refer to Mouse: Troubleshooting.
Back to Contents Page
NOTE: If you have the Toshiba Bluetooth Software installed or use the Windows Vista operating system on a Dell notebook computer, complete the steps in part
1 or part 3.
NOTE: If you have the Widcomm Bluetooth Software or the Toshiba Bluetooth Software installed on a Dell notebook computer, complete the steps in part 1 or part
2.
NOTE: If you failed to setup the mouse, repeat the steps again.

Back to Contents Page
Introduction:Dell™TravelMouseWithBluetooth®Technology Software
Overview •Features
Overview
lThe SetPoint software provides power and intelligence to your devices, making it possible for the more advanced configurations.
Features
The SetPoint software is launched automatically when Windows®starts up, and must continue running for your device's unique features to work.
SetPoint runs silently in the background -you will not notice that it is running apart from the SetPoint icon, , in the Windows taskbar.
The SetPoint software lets you customize your devices to suit the way you work.
Back to Contents Page

Back to Contents Page
Troubleshooting:Dell™TravelMouseWithBluetooth®Technology Software
If SetPoint is not running, you can restart it by clicking Start ®Programs ®SetPoint ®Settings.
If you want to disable your SetPoint software, right-click the SetPoint icon, , in the Windows®taskbar and select Exit.
To uninstall the SetPoint software:
1. Click Start ®Settings ®Control Panel ®Add/Remove Programs.
2. Select SetPoint program, and then click the Change/Remove button.
3. Restart your computer when prompted.
Back to Contents Page
NOTE: The enhanced functions of your mouse do NOT work when SetPoint is not running.
NOTE: Uninstalling SetPoint and the Bluetooth software completely stops your Dell Travel Mouse With Bluetooth Technology from working. Dell does NOT
recommend it.

Back to Contents Page
Usage:Dell™TravelMouseWithBluetooth®Technology Software
Launching SetPoint •Customizing Your Mouse
Launching the SetPoint Software
SetPoint runs silently in the background, as indicated by the SetPoint icon, , in the Windows®taskbar.
If you want to customize your mouse settings, do either of the following:
lClick Start ®Programs ®SetPoint ®Settings.
lDouble-click the SetPoint icon in the Windows taskbar.
Customizing Your Mouse Using the SetPoint Software
To change your mouse settings, click the Mouse tab in the SetPoint software.
Refer to the SetPoint help for more information.
Back to Contents Page

Back to Contents Page
Warranty:Dell™TravelMouseWithBluetooth®Technology
For information about your Dell Travel Mouse With Bluetooth Technology warranty, see your system documentation.
Back to Contents Page
