1 Basic Appliance Information
This chapter contains information about the location and basic operation of the components in a Dell™
EqualLogic® FS7600 NAS appliance. This document also includes general operating procedures such as power
ON and power OFF operations, and how to return failed components.
Appliance Components
The only customer-replaceable components in the appliance are the bezel and the fans, on the front of the
appliance, and the controllers and power supplies, on the back of the appliance.
Appliance Front-Panel Features
Figure 1 and Figure 2 show the front panel of the FS7600 NAS appliance. Table 1 lists the front-panel LED
descriptions.

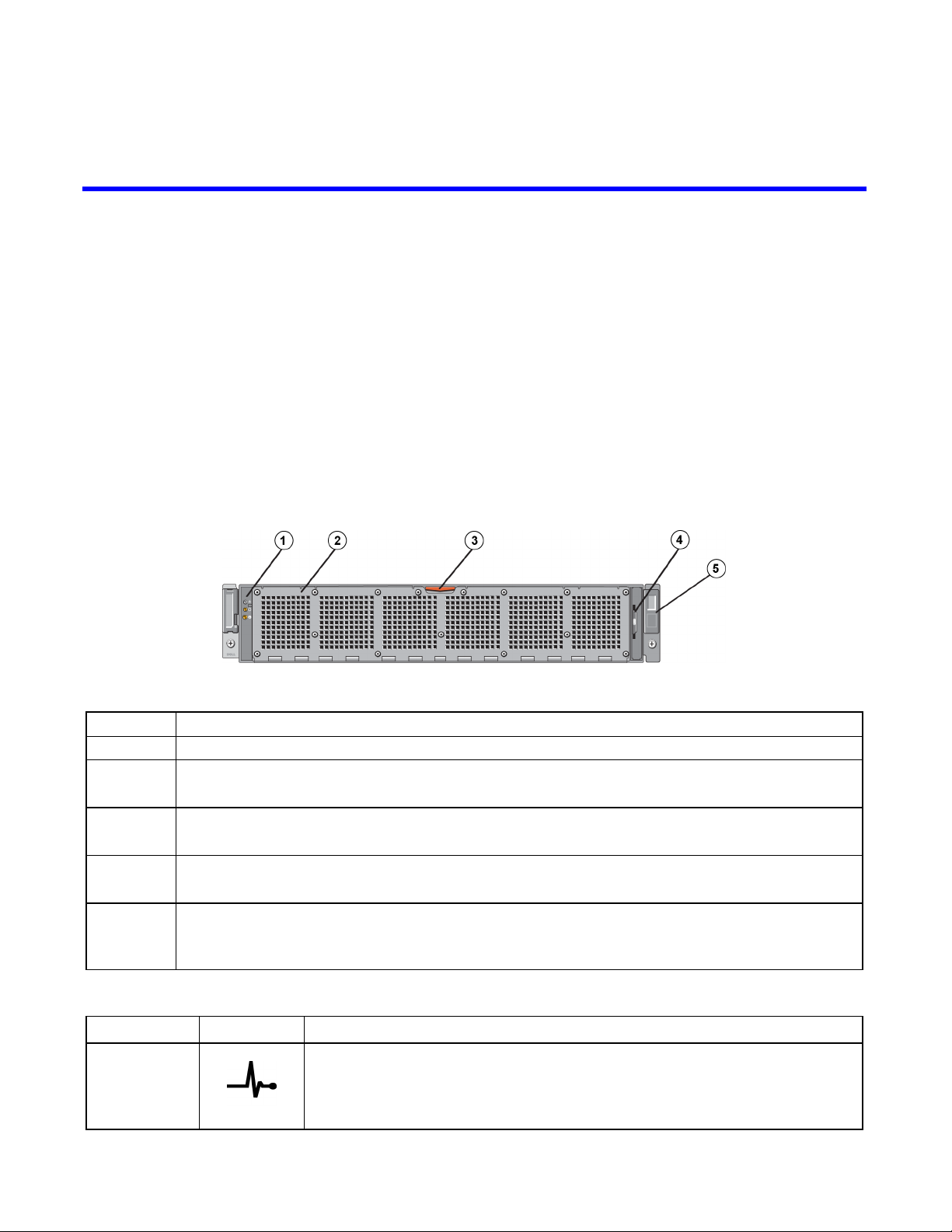

Figure 1: FS7600 Front Panel (Bezel Off, Cover Closed)
Table 1: FS7600 Front-Panel Components
Number Component
1 System health indicator, power, and system identification LEDs (see Table 2 for details)
2Cooling fan access door
Encloses and protects the six hot-swappable cooling fans.
3Cooling fan access door release latch
Press the access door release latch to expose the hot-swappable cooling fans.
4Information tag
A slide-out label panel listing the system NIC and BMC MAC addresses for both controllers
5
Service tag
Displays the appliance service tag information (identical to the service tag information on the
back panel). You might be asked for this information when you call technical support.

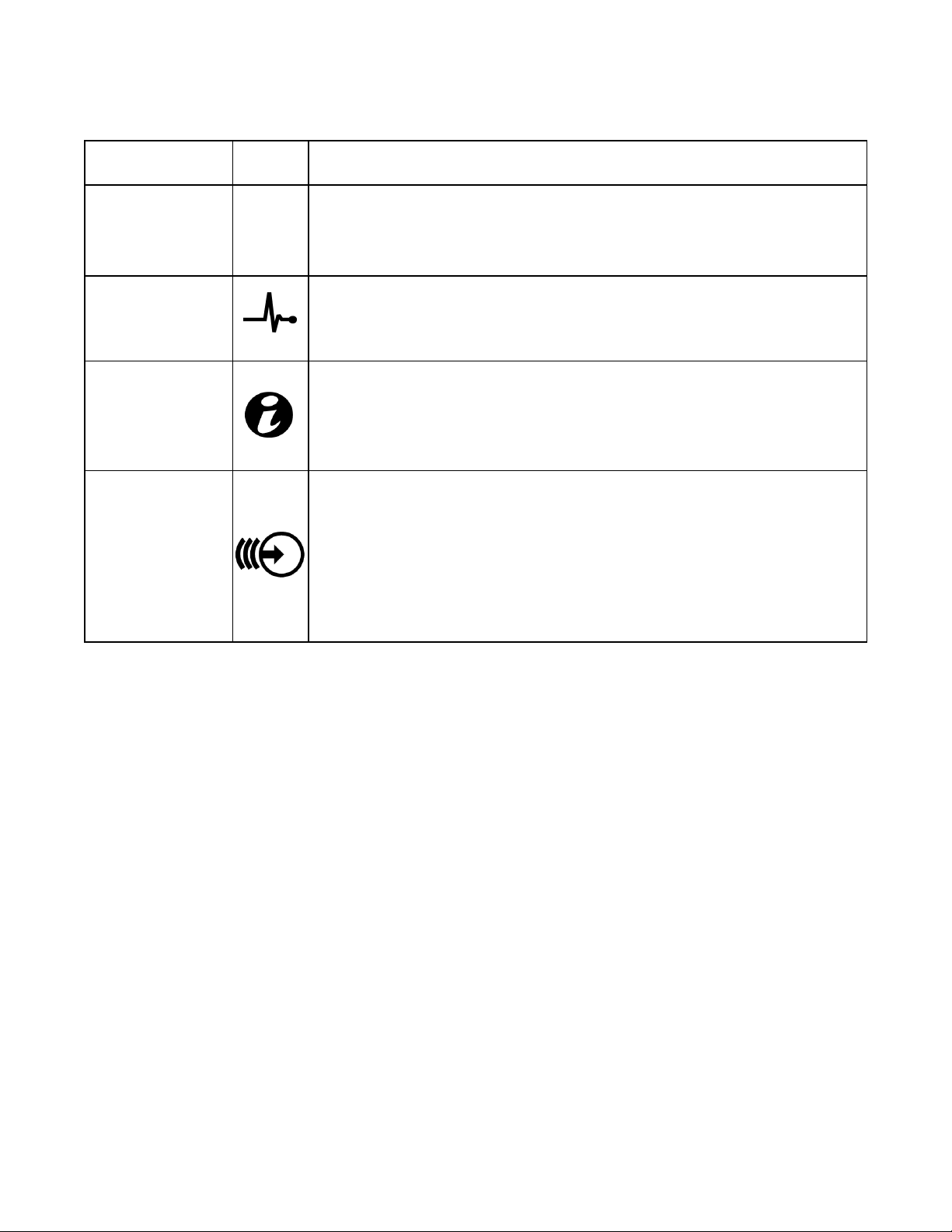

Table 2: Front-Panel LED Descriptions
LED Indicator Icon State and Description
System Health
Indicator
The system status LED lights only when the system power is on:
Solid blue—Normal operation.
Blinking amber—One of the controllers is reporting hardware errors, battery
errors, or a controller is missing.
1

LED Indicator Icon State and Description
Power-On
Indicator
The power LED lights green when at least one power supply is connected to a
power source and is supplying power to the system.
System
Identification
Button
Identification buttons on the front and back panels locate a particular system
within a rack. Press the front identification button and the system status
indicator on the back flashes until either button is pressed again.
Blinking blue—Identification on.
Solid blue—Identification off.

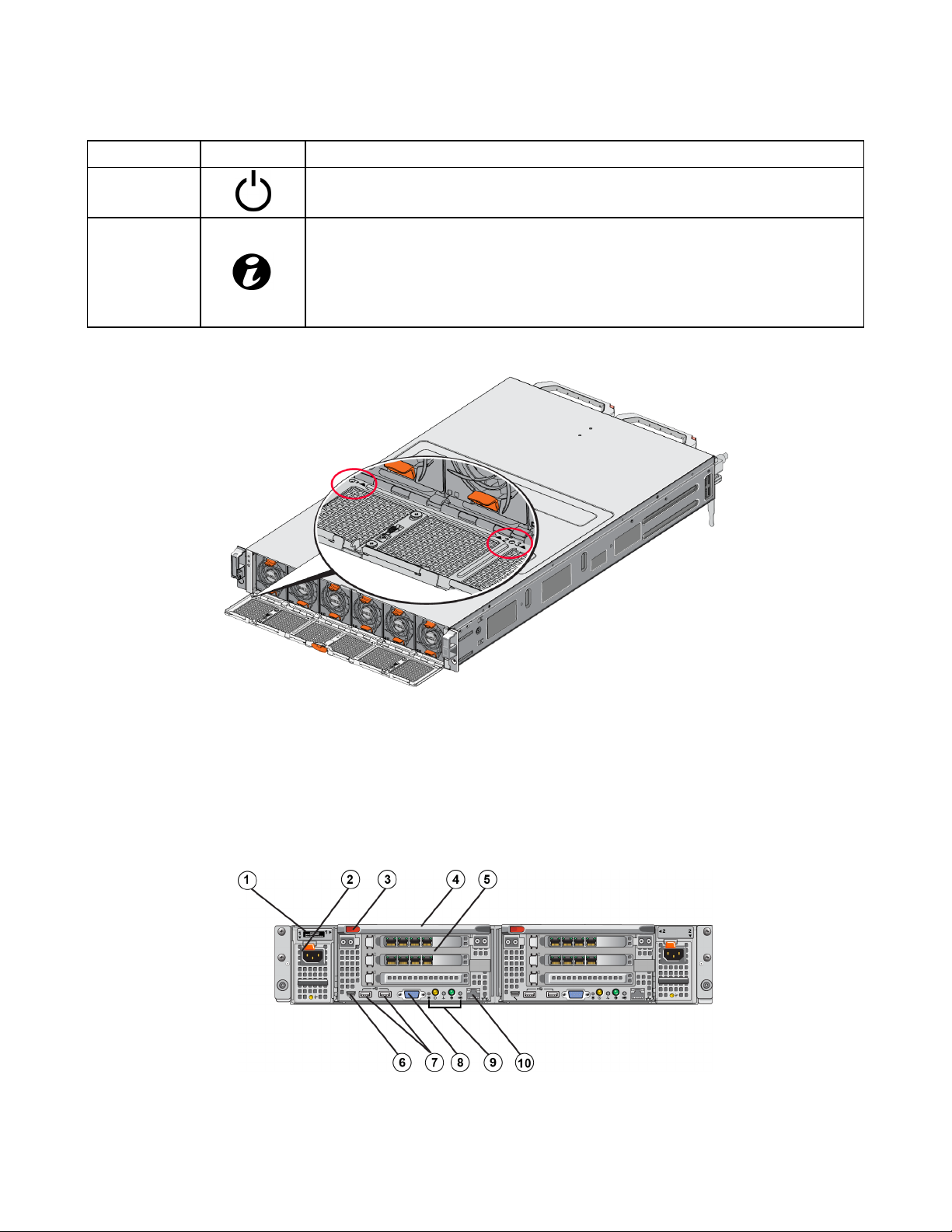

Figure 2: FS7600 Front Panel (Cover Open)
The fans are numbered 1 through 6, from left to right.
Appliance Back-Panel Features
Figure 3 and Table 3 describe the back panel of the FS7600 NAS appliance. Table 4 describes the LEDs for
each controller.
Figure 3: FS7600 Back Panel
2
Dell EqualLogic FS7600 Hardware Owner's Manual 1 Basic Appliance Information

Table 3: FS7600 Back-Panel Components
Number Component
1
Service tag
Displays the appliance service tag information (identical to the service tag information on the front
panel).
2Power supply (one of two)
Left: PSU1 Right: PSU2
3 Controller release latch
4 Controller handle
5Controller (one of two); redundant NAS processing unit, each containing a backup power supply (BPS)
Left: Controller 1 Right: Controller 2
6
Serial COM port (mini USB connector).
Allows you to connect a serial device to the system.
This connector is for service only. Use this connector only if asked to do so by Dell support.
7 USB port
8 Video port
9From left to right: Service Action Button, Power-On Indicator/Power Button, Controller Health
Indicator, System Identification Button, and Cache Active/Off-Load LED (see Table 4).
10 Remote KVM
Table 4: Controller LED States and Descriptions
LED Indicator/
Button Icon State and Description
Service Action
Button
Used for troubleshooting certain errors; press using the end of a paper clip.
Press and hold the button for 10 seconds to generate an SCI (System Control
Interrupt).
Use this button only if directed by qualified support personnel or after
consulting the operating system's documentation.
Controller State
Indicator/Power-On
Button
Controls the power supply to the appliance and indicates its state:
• When the controller is ON, press and release to shut down.
• When the controller is OFF, press and release to power the controller on.
Solid amber—The controller is ON and about to enter system power-on self-
test (POST). If the controller is ON but is not responding, the controller might
have a hardware failure that is not allowing it to start the BIOS POST.
Slowly blinking (flashes once every two seconds) amber—The controller is
currently in BIOS POST or option ROM load stage. If the controller is not
responding, it might indicate that a failure has occurred in either POST or
option ROM load phase.
Slowly blinking green (flashes once every two seconds)—The controller is
attempting to start the operating system. If the controller is not responding, slow
blinking green might indicate that the operating system did not load correctly.
Fast blinking green (flashes five times per second)—The controller is in
standby state waiting to be clustered.
3
Dell EqualLogic FS7600 Hardware Owner's Manual 1 Basic Appliance Information

LED Indicator/
Button Icon State and Description
Solid green—The controller is clustered and fully functional.
Alternating blinking amber/green—The expected hardware configuration does
not match the actual hardware.
Unlit—Controller is in power OFF mode.
Controller Health
Indicator
Indicates health of the controller.
Solid blue—Normal operation.
Blinking amber—One of the controllers is reporting hardware errors, battery
errors, or one controller is missing.
System
Identification Button
Identification buttons on the front and back panels locate a particular system
within a rack. Press the front identification button and the system status
indicator on the back flashes until either button is pressed again.
Blinking blue—Identification on.
Solid blue—Identification off.
Cache Active/Off-
Load LED
Indicates when the storage controller contains cached write data and is
transferring the cache from memory to the hard drive.
Solid green—One controller can be removed without losing cached data. Do
not remove both controllers.
Blinking amber—Cached data is being transferred from the memory to the hard
drive (moving from mirroring mode to journaling mode).
Off—Indicates that no write data is in the cache; it is safe to remove the
controller.
Connecting an Appliance to Power
1. Remove the power cables from the shipping box.
2. Plug the power cables into the appliance power supplies. Wrap the hook-and-loop strain relief around the
power cable, as shown in Figure 4.
3. Connect the appliance to a power source.
4
Dell EqualLogic FS7600 Hardware Owner's Manual 1 Basic Appliance Information

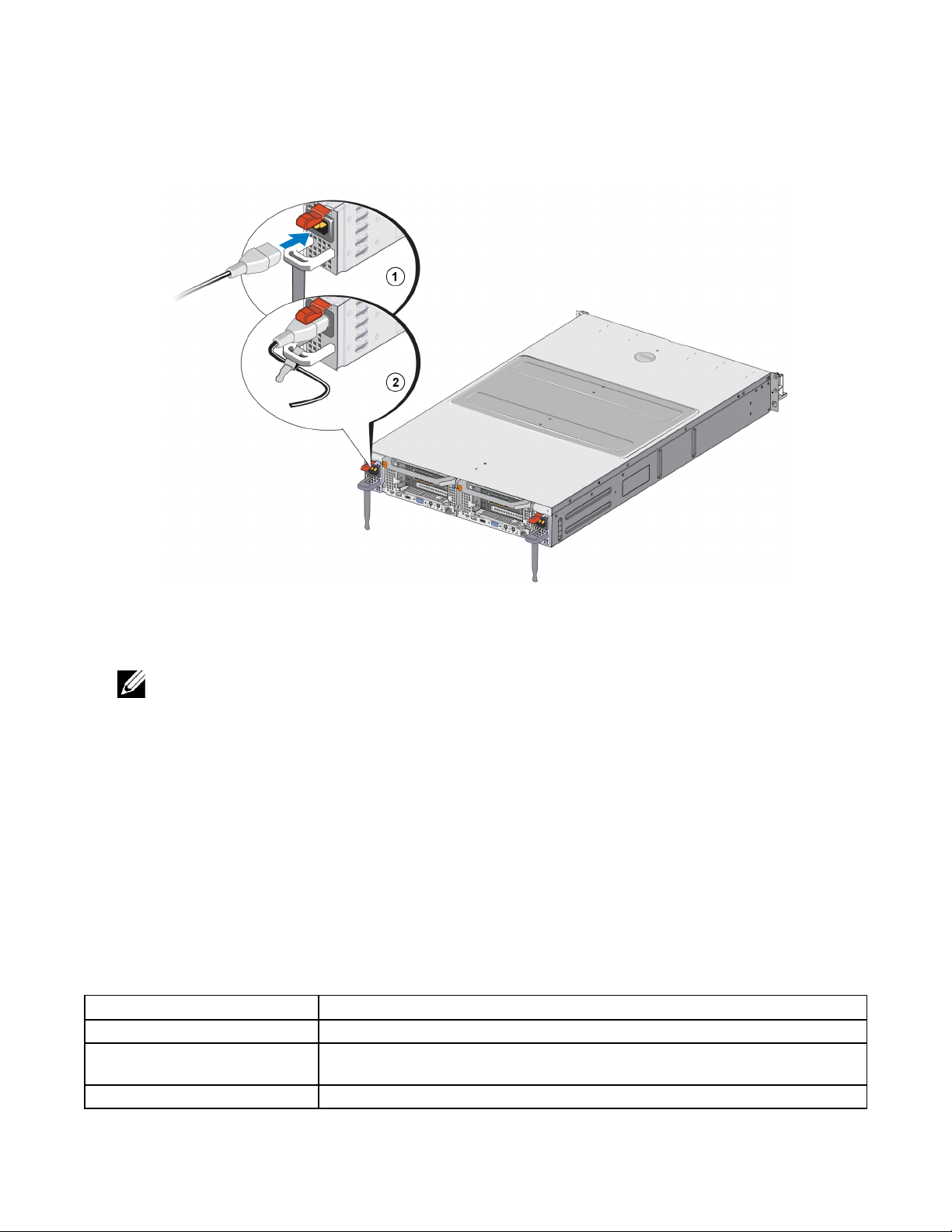

Figure 4: Secure the Power Cable with the Strain Relief
The appliance turns on as soon as the power supplies are connected to a live power source.
Each controller contains a backup power supply (BPS). The BPS batteries begin to charge when the
appliance is connected to power. A full charge takes up to eight hours to complete; the NAS
appliance is not fully redundant until the battery is fully charged. The BPS provides the clustered
solution enough time to write all cached data to disk if the controller experiences a loss of power.
4. Check the LED on the front panel to make sure the appliance is operational (see Figure 2).
Turning Power On and Off
Normally, the appliance turns on when the power cables are connected to a source of live power. An LED
indicator on the front of the appliance indicates if power is supplied to the appliance and if the appliance is
operational. However, each controller has a power button on its back (the power LED) that enables you to turn
off power to an individual controller for service purposes.
In addition, the power supplies have an LED that shows if power is present or if a power fault has occurred, as
described in Table 5.
Table 5: Troubleshooting – Power Supply LED
LED Color and Patterns Description
OFF Power is not connected
Green Indicates that a valid power source is connected to the power supply and that
the power supply is operational
Amber Indicates a problem with the power supply
5
Dell EqualLogic FS7600 Hardware Owner's Manual 1 Basic Appliance Information

Turning Controller Power Off
If you need to replace a controller, turn off the power to start a shutdown. Use a small, thin tool such as a #1
Phillips screwdriver to press and release the power LED button on the back of the controller you plan to remove.
See Figure 5.

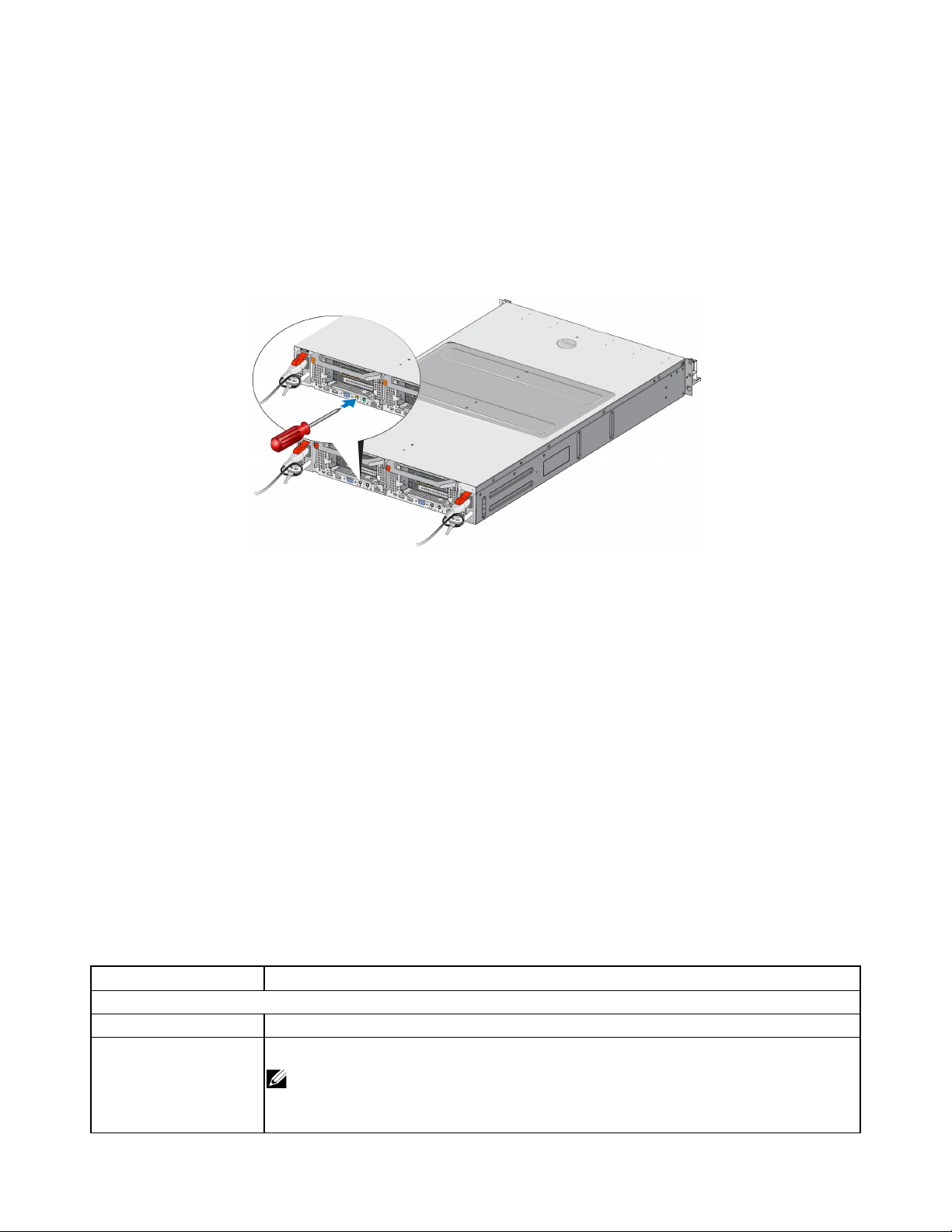

Figure 5: Turning the Controller Power On or Off
Turning Controller Power On
If you shut down power to a controller, or replace a failed controller, you might need to turn the power back on
manually. Use a small, thin tool such as a #1 Phillips screwdriver to press and release the power LED button on
the controller.
The power LED first appears solid amber, then slowly blinks to indicate that the controller is powering up. The
LED blinks green when the controller loads the operating system, and changes to solid green when the controller
is clustered and fully functional. See Table 5 for a description of all the power supply LED states.
Required Tools
If you are installing the appliance in a rack, you will need a #2 Phillips screwdriver (not supplied).
Technical Specifications
Table 6 lists the technical specifications for the NAS appliance.
Table 6: FS7600 NAS Appliance Technical Specifications
Category Rating
AC Power Supply (per power supply)
Wattage Output 717 W
Heat dissipation
2446 BTU/hr
The heat dissipation is calculated using the power supply wattage rating. The
heat dissipation values are for the entire system, which includes the chassis and two
controllers.
6
Dell EqualLogic FS7600 Hardware Owner's Manual 1 Basic Appliance Information

Voltage
90 VAC to 264 VAC, autoranging, 47 Hz/63 Hz
This system is also designed to be connected to IT power systems with a phase to
phase voltage not exceeding 230 V.
Battery Power Supply
Battery 12.8 V to 13.2 V, 4.8 Ah to 6 Ah, 63 Wh to 77 Wh
Physical
Height 86.4 mm (3.4 in.)
Width 481.5 mm (18.96 in.)—with rack flange
446.3 mm (17.6 in.)—without rack flange
Depth 813.0 mm (32.0 in.)—with bezel and handle
741.0 mm (29.2 in.)—without bezel and handle
Weight (maximum
configuration) 30.5 kg (67 lb.)
Weight (empty) 12.86 kg (28.36 lb.)
Environmental
Operating temperature Continuous operation: 5°C to 40°C (41°F to 104°F) with a maximum temperature
gradation of 20°C (68°F) per hour
Storage temperature –40°C to 60°C (–40°F to 140°F) with a maximum temperature gradation of 20°C per
hour
Operational relative
humidity
20% to 80% (non-condensing) with maximum humidity gradation of 10% per hour at
maximum wet bulb temperature of 29°C (89°F)
Storage relative
humidity
5% to 95% with a maximum humidity gradation of 10% per hour at a maximum wet
bulb temperature of 38°C (100°F)
Maximum operational
vibration 0.26 Grms (5 Hz – 350 Hz @ 0.0002G2/Hz) in operational orientation for 5 minutes
Maximum storage
vibration
1.88 Grms with the following PSD profile (all 6 sides tested for 15 minutes each side)
Frequency (Hz) G2/Hz
10 0.13
20 0.13
70 0.004
130 0.004
165 0.0018
500 0.0018
Maximum operational
shock
31G half-sine shock +/-5% with pulse duration of 2.6 ms +/-10% in the operational
orientation
Maximum storage
shock
Square wave shock of 27G, at 235 inches/second (596.90 cm/second) velocity
change (all six sides tested)
Operating altitude
-15.2 mto 3048 m (-50 to 10,000 feet)
For altitudes above 2950 feet, the maximum operating temperature is derated 1°F/550
feet.
Storage altitude –15.2 m to 10,668 m (–50 ft to 35,000 ft)
Airborne Contaminant
Level Class G1 as defined by ISA-S71.04-1985
7
Dell EqualLogic FS7600 Hardware Owner's Manual 1 Basic Appliance Information

8
Dell EqualLogic FS7600 Hardware Owner's Manual 1 Basic Appliance Information

2 Replacing Components
This chapter describes how to replace appliance components or the entire appliance.
Safety Recommendations
Follow these safety recommendations:
• Before you work on the EqualLogic FS7600 hardware, read and follow the safety instructions packaged with
your system.
• Use care when moving and opening the shipping box. Leave the components packaged until you are ready to
install them.
• Place the components in a protected area that has adequate airflow and is free of excessive humidity,
flammable gas, and corrosion.
• You need at least two people to install the hardware. Use proper lifting and carrying techniques when
unpacking and moving the components.
• Make sure each FS7600 NAS appliance is fully grounded at all times to prevent damage from electrostatic
discharge.
• When handling an FS7600 NAS appliance or any of its components, use an electrostatic wrist guard or a
similar form of protection. See Using an Electrostatic Wrist Strap on page 9.
• Hold the hardware level with the rack when you install it.
Required Tools
The following tools are needed to replace the appliance or its components; these are not provided.
• #2 Phillips screwdriver
• Electrostatic wrist strap or other form of ESD protection
Using an Electrostatic Wrist Strap
You must use an electrostatic wrist strap to protect sensitive hardware from electrostatic discharge.

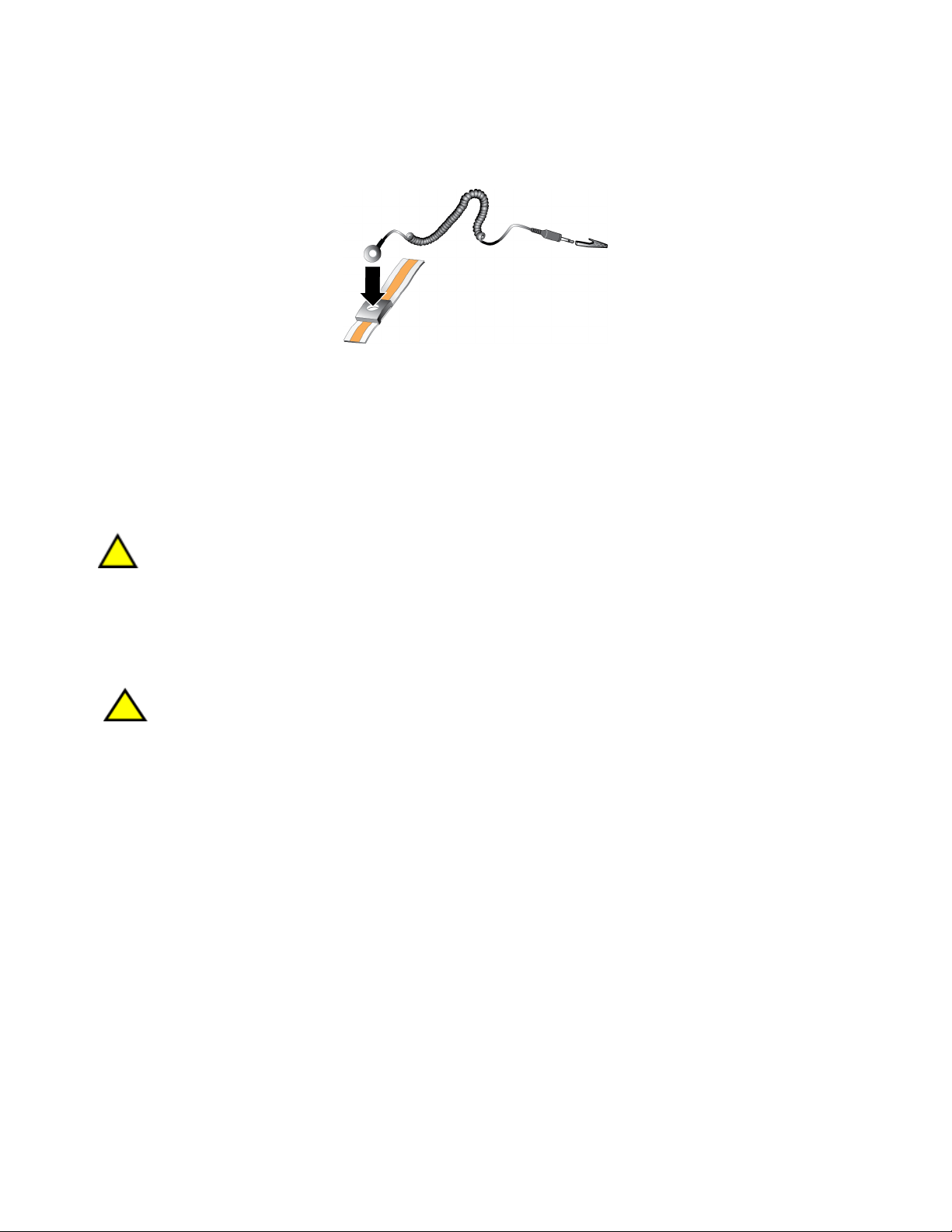

1. Connect the steel snap on the coiled cord to the stud on the elastic band. See Figure 6.
9

Figure 6: Using an Electrostatic Wrist Strap
2. Fit the band tightly around your wrist.
3. Connect the banana plug to ground, or attach the plug to the alligator clip and connect the clip to a grounded
device such as an ESD mat or the metal frame of a grounded piece of equipment.
Replacing a Controller
If a controller fails, you can replace it while the appliance is online.
Many repairs require a Dell-certified service technician. You should perform troubleshooting and simple
repairs only as authorized in your product documentation or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty.
Read and follow the safety instructions that came with the product.
Removing a Controller
Do not detach a controller without consulting with the owner of the group.
1. Log in to the Group Manager application or use the CLI and locate the group with the member you want to
detach.
2. Select the controller that you want to detach.
3. In the Activities panel for that controller, click Detach NAS Controller.
After the NAS controller has detached, the power to the controller automatically turns off.
4. Disconnect all network cables.

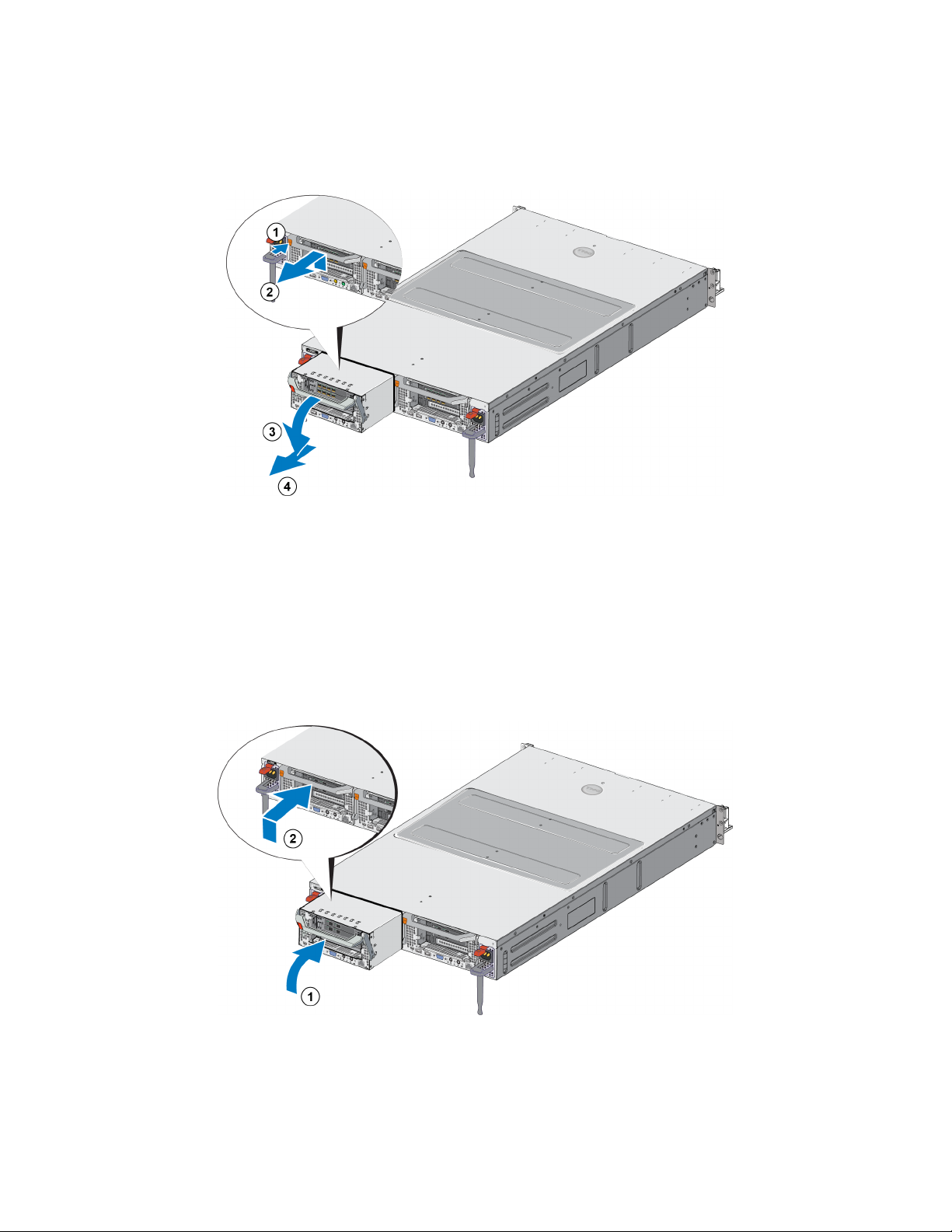

5. Press the release latch. See callout 1 in Figure 7.
10
Dell EqualLogic FS7600 Hardware Owner's Manual 2 Replacing Components

Figure 7: Removing a Controller
6. Pull the handle down and out. See callouts 2, 3, and 4 in Figure 7.
7. Support the controller with two hands, and place it on an antistatic surface.
Installing a Controller
1. Correctly orient the controller with the handle on top.

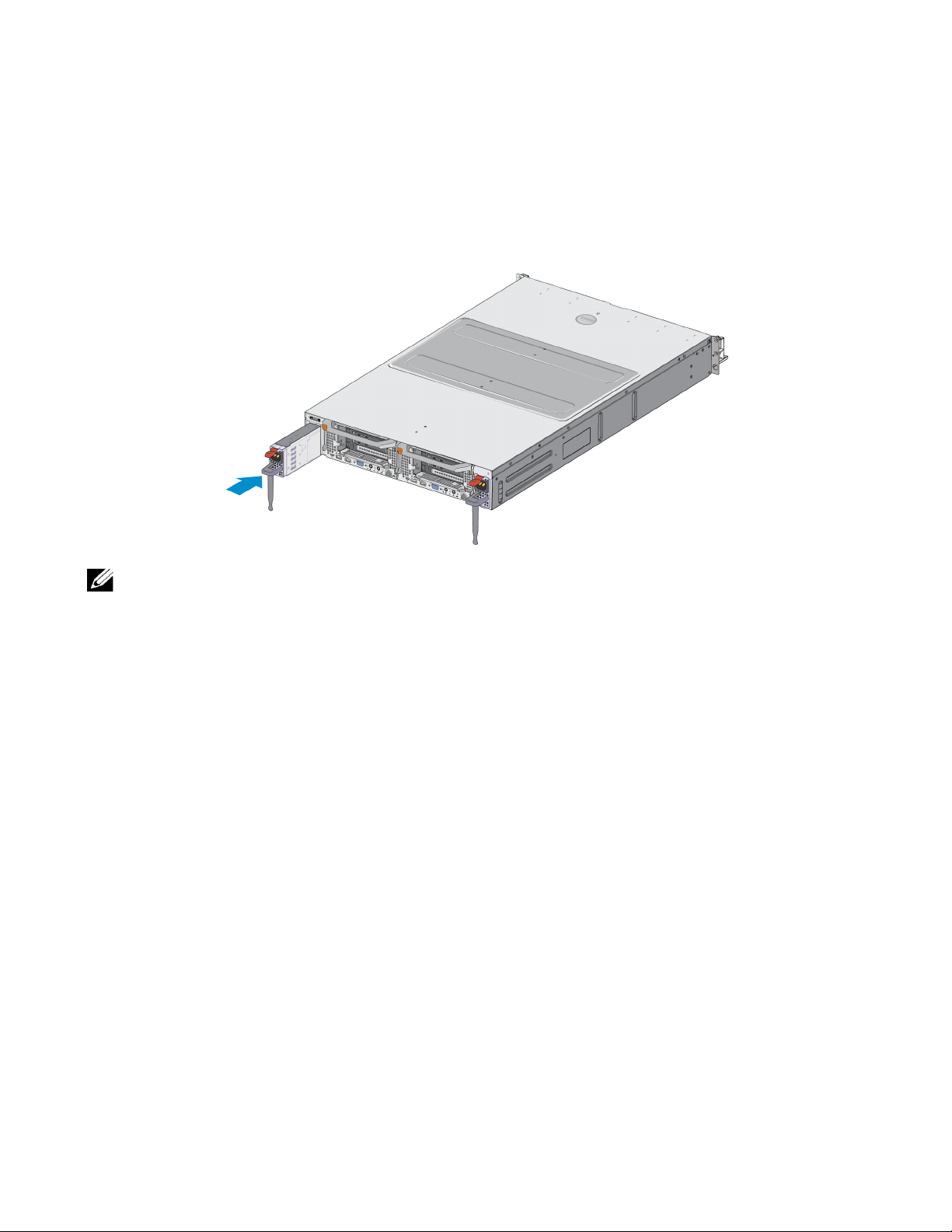

2. Push the controller into the slot until you feel resistance. See callout 1 in Figure 8.
Figure 8: Installing a Controller
3. Rotate the release latch up (callout 2) and push it in until you hear it click into place.
4. Make sure you cannot pull the controller out.
5. Reconnect all the network cables.
11
Dell EqualLogic FS7600 Hardware Owner's Manual 2 Replacing Components

The controller powers on automatically, which can take several minutes. (For LED states during power-on, see
Appliance Back-Panel Features on page 2). After the controller is powered on, reattach the controller through
the Group Manager GUI or CLI. For information, see the Dell EqualLogic Group Manager Administrator's
Manual.
Installing an SFP+ Tranceiver
1. Position the transceiver so that its key is oriented correctly to the port.
2. Gently insert the transceiver into the port until it is firmly seated and the latching mechanism clicks. If the
transceiver does not slide in easily, make sure the key is in the correct position.
3. Align a network cable with the transceiver port and insert the cable. Cables are keyed so they can only be
inserted correctly.
4. Bring the appliance back online to check the connections.
Replacing a Power Supply
The FS7600 NAS appliance contains two hot-swappable 717W AC power supply modules. If one supply fails,
you can replace it while the appliance remains online.
Although the appliance continues to function with only one working power supply, Dell recommends that
you replace a failed power supply as soon as possible. The second power supply ensures continued
operation and high availability in the event of a power or power supply failure.
Removing a Power Supply
1. Disconnect the power cord from the power source, then disconnect the other end from the failed power
supply. Remove the cord from the strain relief strap.
2. Press the release latch (callout 1 in Figure 9) and slide the power supply out of the appliance (callout 2).

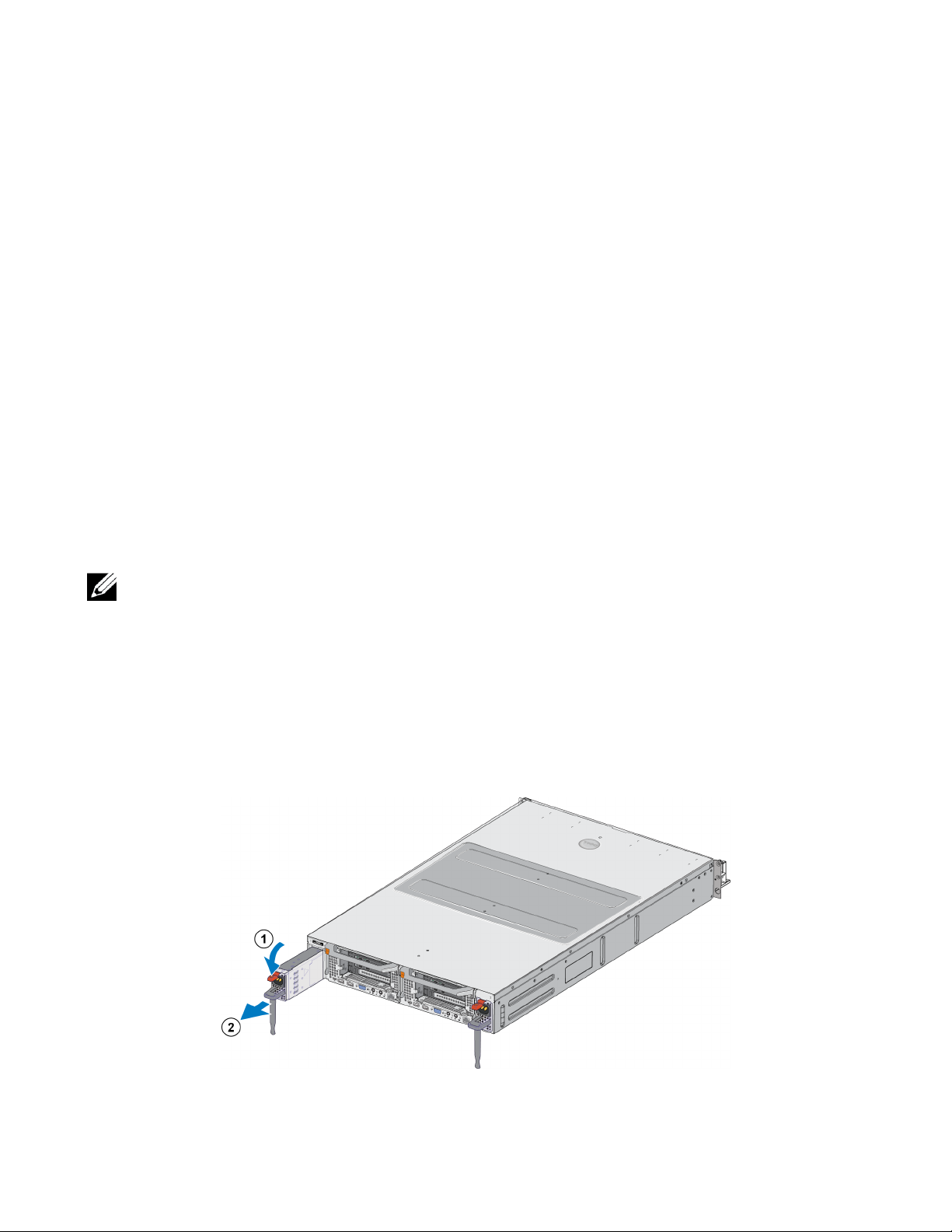

Figure 9: Removing a Power Supply
Installing a Power Supply
1. Slide the new power supply into the appliance until the release latch clicks into place. See Figure 10.
12
Dell EqualLogic FS7600 Hardware Owner's Manual 2 Replacing Components

2. Connect the power cord to the power supply, then connect the other end to the power source.
3. Secure the cord with the strain relief strap.
4. Make sure the power supply LED illuminates.
Figure 10: Installing a Power Supply
When installing a new power supply, allow several seconds for the system to recognize the power supply
and determine its status. The power-supply status indicator turns green to signify that the power supply is
functioning properly (see Table 5).
Removing the Bezel

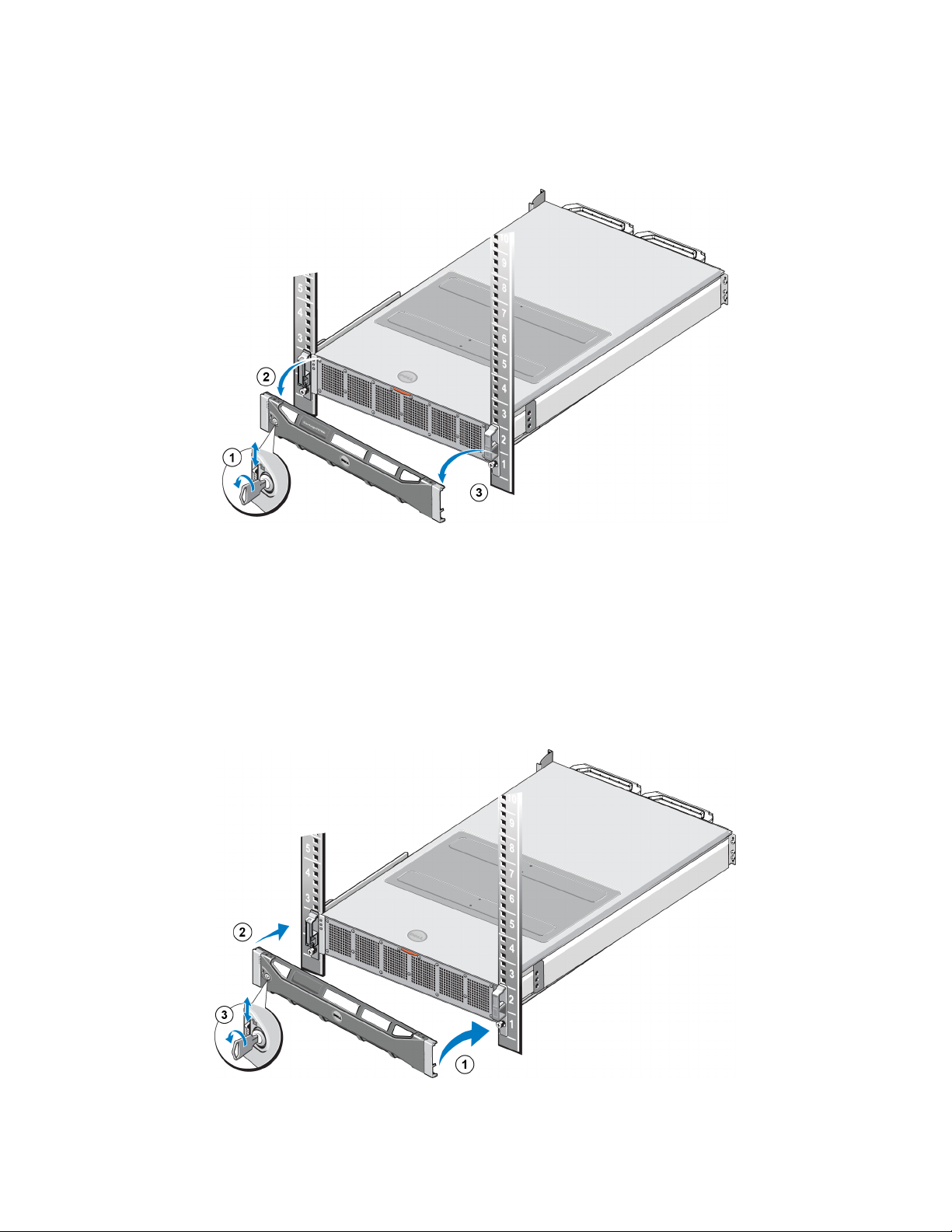

If you need to access fans, or remove the bezel for any other reason, see Figure 11 and follow these steps:
1. Use the key to unlock the bezel, if it is locked (callout 1).
2. Push up on the release latch on the left side of the bezel and carefully pull out the bezel from the left side of
the chassis (callout 1).
3. Move the bezel to the left to disengage it from the right side of the chassis (callouts 2 and 3).
13
Dell EqualLogic FS7600 Hardware Owner's Manual 2 Replacing Components

Figure 11: Removing the Bezel
Attaching the Bezel
To attach the bezel, see Figure 12 and follow these steps:
1. Insert the right side of the bezel into the slot on the right side of the chassis (callout 1).
2. Push the bezel toward the left side and engage the bezel with the left side of the chassis (callout 2).
3. Use the key to lock the bezel (callout 3).
Figure 12: Attaching the Bezel
14
Dell EqualLogic FS7600 Hardware Owner's Manual 2 Replacing Components
