Dell 7700 FullHD User manual

Dell™ 7700FullHD Projector
User’s Guide

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you
make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware
or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property
damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of
Dell Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS
INCORPORATED; Microsoft and Windows are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims
any proprietary interest in trademarks and trade names other than its own.
Model 7700FullHD
March 2012 Rev. A00

Contents 3
Contents
1 Your Dell Projector . . . . . . . . . . . . . . . . . . 7
About Your Projector . . . . . . . . . . . . . . . . . 8
2 Connecting Your Projector . . . . . . . . . . . . 10
Installing the Optional Wireless Dongle . . . . . . 11
Connecting to a Computer . . . . . . . . . . . . . . . . 12
Connecting a Computer Using a VGA Cable . . . . 12
Monitor Loop-Through Connection Using
VGA Cables . . . . . . . . . . . . . . . . . . . . . 13
Connecting a Computer Using a RS232 Cable . . . 14
Connecting a Computer by USB Cable . . . . . . . 15
Connecting a Computer Using Wireless Dongle
(Optional) . . . . . . . . . . . . . . . . . . . . . . 16
Connecting a DVD Player . . . . . . . . . . . . . . . . 17
Connecting a DVD Player Using an S-Video Cable . 17
Connecting a DVD Player Using a
Composite Video Cable . . . . . . . . . . . . . . . 18
Connecting a DVD Player Using a
Component Video Cable . . . . . . . . . . . . . . 19
Connecting a DVD Player Using a 3 RCA
Component Video Cable . . . . . . . . . . . . . . 20
Connecting a DVD Player Using an HDMI Cable . . 21
Connecting to Local Area Network . . . . . . . . . . . 22
To project an image and control the projector that is
connected to a network through a RJ45 cable. . . 22

4Contents
Professional Installation Options: Installation for
Driving Automatic Screen . . . . . . . . . . . . . 23
Connection With Commercial RS232 Control Box . 24
3 Using Your Projector . . . . . . . . . . . . . . . . 25
Turning Your Projector On . . . . . . . . . . . . . . . . 25
Turning Your Projector Off . . . . . . . . . . . . . . . . 25
Adjusting the Projected Image . . . . . . . . . . . . . 26
Raising the Projector Height . . . . . . . . . . . . 26
Lowering the Projector Height . . . . . . . . . . . 26
Adjusting the Projector Zoom and Focus . . . . . . . . 27
Adjusting Projection Image Size . . . . . . . . . . . . 28
Using the Control Panel . . . . . . . . . . . . . . . . . 30
Using the Remote Control . . . . . . . . . . . . . . . . 32
Installing the Remote Control Batteries . . . . . . . . 35
Operating Range With Remote Control . . . . . . . . . 36
Using the On-Screen Display . . . . . . . . . . . . . . 37
INPUT SOURCE . . . . . . . . . . . . . . . . . . . 37
AUTO ADJUST . . . . . . . . . . . . . . . . . . . 38
BRIGHTNESS/CONTRAST . . . . . . . . . . . . . 39
VIDEO MODE . . . . . . . . . . . . . . . . . . . . 39
VOLUME . . . . . . . . . . . . . . . . . . . . . . 40
AUDIO INPUT . . . . . . . . . . . . . . . . . . . . 40
ADVANCED SETTINGS . . . . . . . . . . . . . . . 40
LANGUAGE . . . . . . . . . . . . . . . . . . . . . 54
HELP . . . . . . . . . . . . . . . . . . . . . . . . 54

Contents 5
Wireless Networking Installation . . . . . . . . . . . . 55
Enable Wireless on the Projector . . . . . . . . . . 56
Install the Wireless Application Software on Your
Computer . . . . . . . . . . . . . . . . . . . . . . 58
Launch the Wireless Application . . . . . . . . . . 61
Presentation to Go (PtG) Installation . . . . . . . . . . 65
PtG Viewer . . . . . . . . . . . . . . . . . . . . . 66
Photo Viewer . . . . . . . . . . . . . . . . . . . . 66
PtG/Photo Function Introduction . . . . . . . . . . 67
PtG Overview . . . . . . . . . . . . . . . . . . . . 67
Photo Overview . . . . . . . . . . . . . . . . . . . 68
Buttons-Introduction . . . . . . . . . . . . . . . . 68
Install the PtG Converter Application Software on
Your Computer . . . . . . . . . . . . . . . . . . . 69
Using the PtG Converter . . . . . . . . . . . . . . 70
Audio Projection Installation . . . . . . . . . . . . . . 71
Enable Wireless or LAN on the Projector . . . . . 72
Install the Wireless Application Software on
Your Computer . . . . . . . . . . . . . . . . . . . 73
Launch the Wireless Application . . . . . . . . . . 74
Login . . . . . . . . . . . . . . . . . . . . . . . . 75
Video Stream Installation . . . . . . . . . . . . . . . . 76
Video Stream Support Format . . . . . . . . . . . 76
Enable Wireless or LAN on the Projector . . . . . 77
Install the Wireless Application Software on
Your Computer . . . . . . . . . . . . . . . . . . . 77
Launch the Wireless Application . . . . . . . . . . 77
Login . . . . . . . . . . . . . . . . . . . . . . . . 77
Managing the Projector From Web Management . . . . 78
Configuring the Network Setting . . . . . . . . . . 78

6Contents
Accessing Web Management . . . . . . . . . . . 78
Make Application Token . . . . . . . . . . . . . . . . 99
4 Troubleshooting Your Projector . . . . . . 101
Guiding Signals . . . . . . . . . . . . . . . . . . . . . 105
Changing the Lamp . . . . . . . . . . . . . . . . . . . 106
5 Specifications . . . . . . . . . . . . . . . . . . . . 108
6 Contacting Dell . . . . . . . . . . . . . . . . . . . 115
7 Appendix: Glossary . . . . . . . . . . . . . . . 116

Your Dell Projector 7
1
Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have all the
items, and contact Dell™ if anything is missing.
Package Contents
Power cable 1.8 m VGA cable (VGA to VGA)
1.8 m USB cable (USB-A to USB-B) Remote control
CD User’s Guide and Documentation AAA Batteries (2)
DOCOMENTATION
Dell
TM
7700FullHD Projector
Dell
TM
7700FullHD Projector
Quick Setup Guide
Informacion Importante
Dell
TM
Projectors
oduct Information Guide
AAA
AAA

8Your Dell Projector
About Your Projector
CAUTION: Safety Instructions
1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of dust. The
dust may cause the system to fail and the projector will automatically shut down.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures (5 ºC to 35 ºC).
1Control panel
2IR receivers
3Focus ring
4Lens
5Elevator button for height adjustments
6Lens cap
7Mounting holes for ceiling mount: Screw hole M3 x 6.5 mm depth.
Recommended torque <8 kgf-cm
8Mounting hole for tripod: Insert nut 1/4"*20 UNC
9Lamp cover
10 Tilt adjustment wheel
11 Elevator foot
1
5
2
4
3
6
Top View Bottom View
7
10 10
8
11 9
55.00 55.00
180.50
73.50
8.65
202.50

Your Dell Projector 9
6 Do not try to touch the ventilation outlet as it can become very hot after the
projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to your
eyes.
8 Do not place any objects near or in front of the projector or cover its lens while the
projector is on as the heat may cause the object to melt or burn.
9 Do not use the wireless projector near cardiac pacemakers.
10 Do not use the wireless projector near medical equipment.
11 Do not use the wireless projector near microwave ovens.
NOTE:
• Do not attempt to ceiling mount the projector yourself. It should be
installed by a qualified technician.
• Recommended Projector Ceiling Mount Kit (P/N: C3505). For more
information, see the Dell Support website at
support.dell.com .
• For more information, see the
Safety Information that shipped with your
projector.
• The 7700FullHD projector can only be used indoors.

10 Connecting Your Projector
2
Connecting Your Projector
1WiFi USB (Type A) connector 11 +12 V DC out connector
2USB Type B connector for USB
Display
12 Security cable slot
3USB Type A connector for USB
Viewer
13 Component Video input
connector
4RJ45 connector 14 Power cord connector
5S-Video connector 15 VGA-A output (monitor loop-
through) connector
6Composite Video connector 16 VGA-B input (D-sub) connector
7RS232 (D-sub) connector 17 VGA-A input (D-sub) connector
8Mini USB (Mini Type B)
connector for remote control
18 HDMI-B connector
9Audio output connector 19 HDMI-A connector
10 Audio input connector
3 4 5 6 7 8
14 12
12
13
910
19 15
161718
11

Connecting Your Projector 11
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 8.

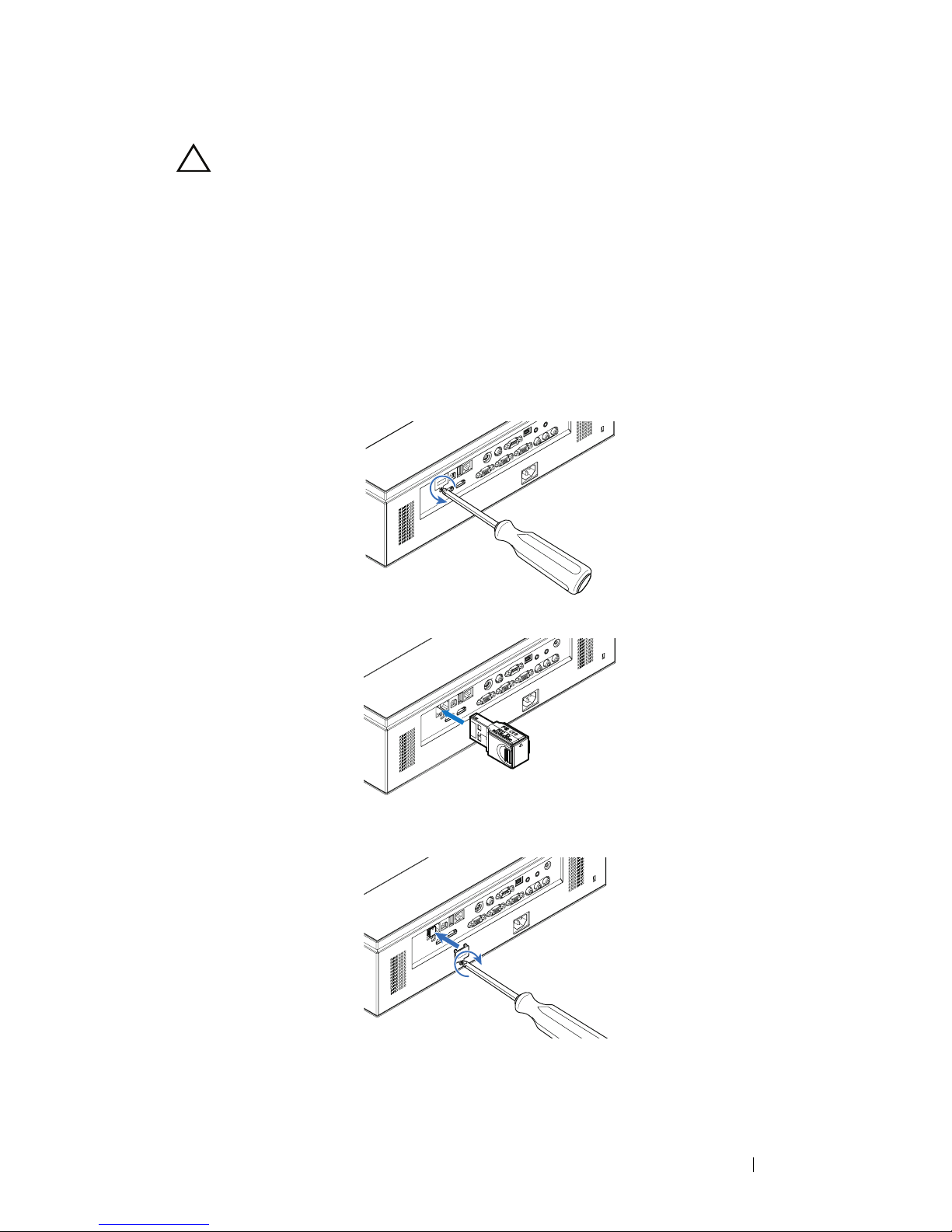

Installing the Optional Wireless Dongle
Your projector must be installed with a wireless dongle if you want to use the
wireless networking option. Refer to "Wireless Networking Installation" on
page 55. The wireless dongle is not shipped with your projector. You can
purchase it on the Dell website at
www.dell.com .
1 Unscrew and take off the wireless cover.
2 Plug in the wireless dongle.
3 Assemble the wireless cover.

12 Connecting Your Projector
Connecting to a Computer

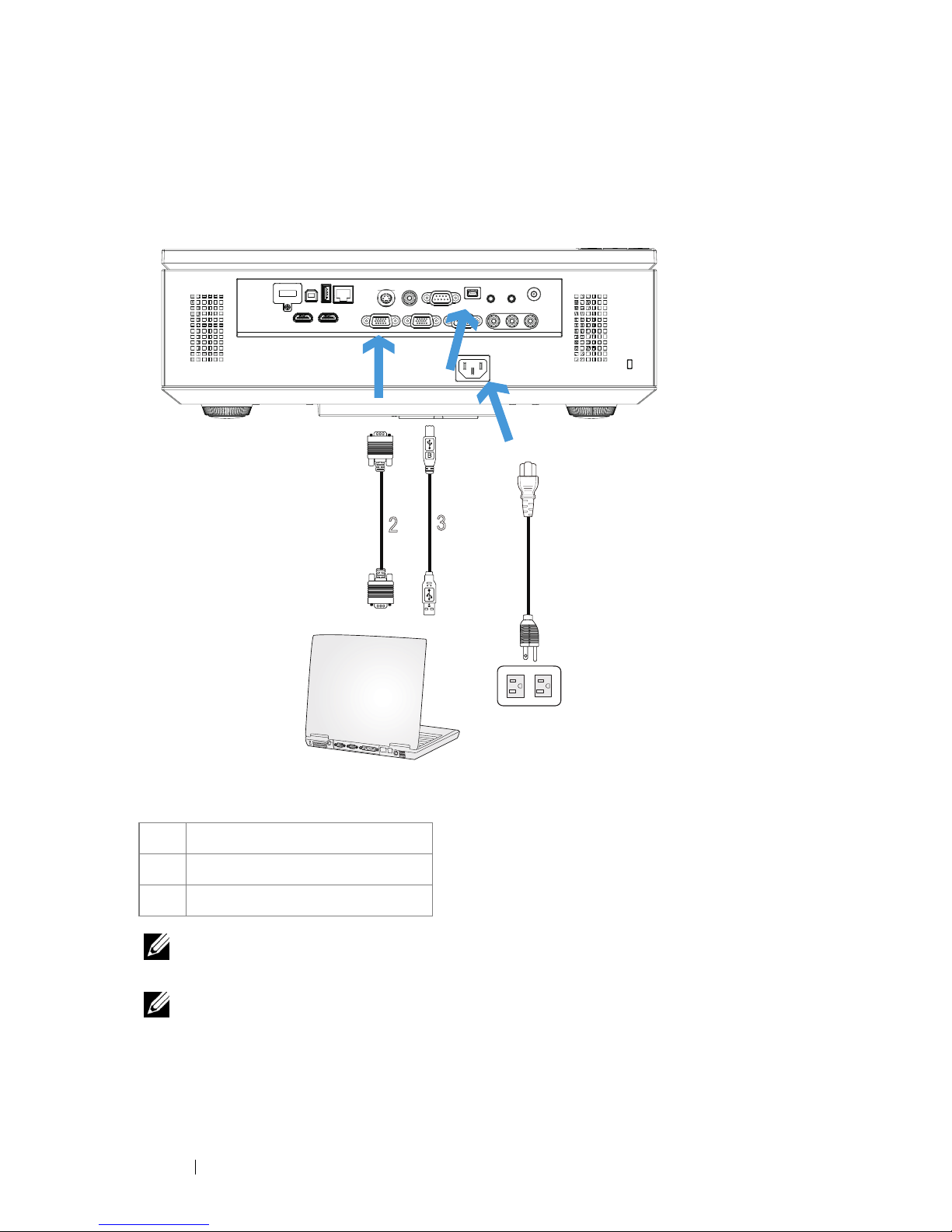

Connecting a Computer Using a VGA Cable
NOTE: The Mini USB cable must be connected if you want to use the Page Up
and Page Down features on the remote control.
NOTE: The Mini USB cable is not shipped with your projector. You can
purchase the Mini USB cable on the Dell website at www.dell.com.
1Power cord
2VGA to VGA cable
3USB-A to Mini USB-B cable
1
23
MOLEX

Connecting Your Projector 13
Monitor Loop-Through Connection Using VGA Cables
NOTE: Only one VGA cable is shipped with your projector. An additional VGA
cable can be purchased on the Dell website at www.dell.com.
1Power cord
2VGA to VGA cable
1
2
2

14 Connecting Your Projector
Connecting a Computer Using a RS232 Cable
NOTE: The RS232 (9-pin D-sub female to female pin2-3 swap) cable is not
shipped with your projector. Consult a professional installer for the cable and
RS232 remote control software.
1Powercord
2 RS232 (9-pin D-sub female to female
pin2-3 swap) cable
1
2

Connecting Your Projector 15

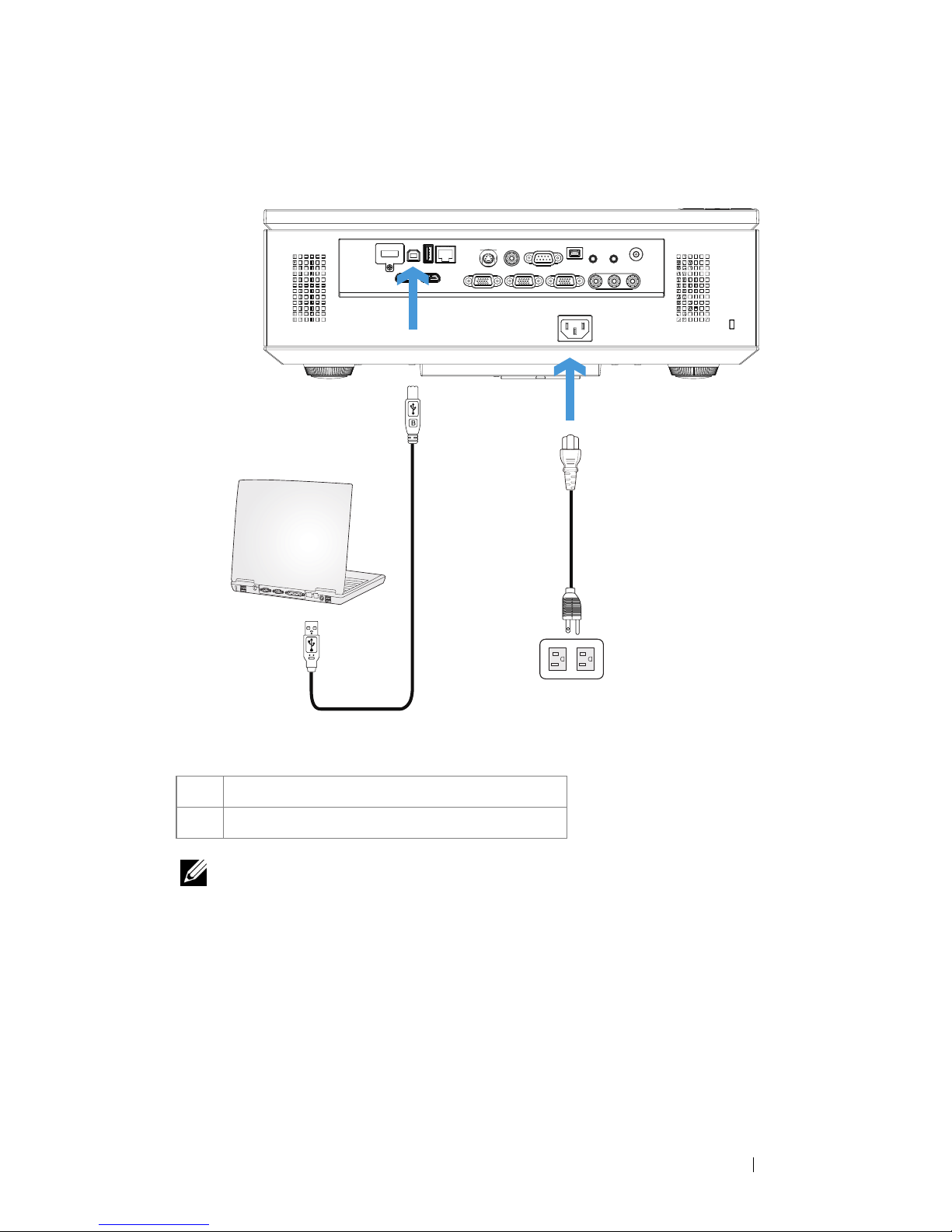

Connecting a Computer by USB Cable
NOTE: Plug and Play. Only one USB cable is shipped with your projector. An
additional USB cable can be purchased on the Dell website at www.dell.com.
1Powercord
2 USB-A to USB-B cable
2
MOLEX
1

16 Connecting Your Projector

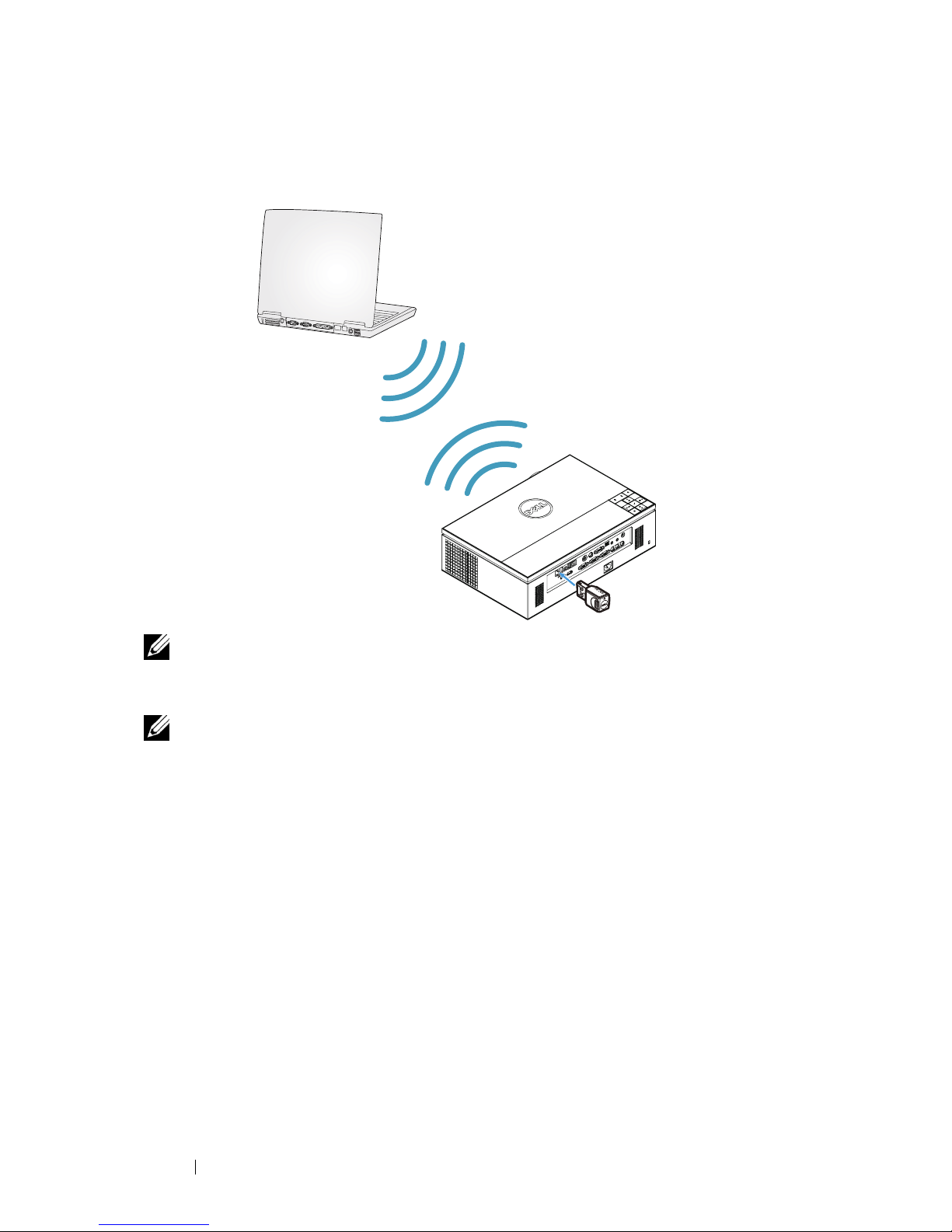

Connecting a Computer Using Wireless Dongle (Optional)
NOTE: Your computer should be equipped with a wireless connector and
properly configured to detect another wireless connection. Refer to your
computer’s documentation on how to configure a wireless connection.
NOTE: Your projector must be installed with a wireless dongle if you want to
use the wireless networking. Refer to "Wireless Networking Installation" on
page 55.
FCC ID:
SUZ-WU5205C

Connecting Your Projector 17
Connecting a DVD Player
Connecting a DVD Player Using an S-Video Cable
NOTE: The S-Video cable is not shipped with your projector. You can purchase
the S-Video extension (50 ft/100 ft) cable on the Dell website at www.dell.com.
1Power cord
2S-Video cable
1
2

18 Connecting Your Projector

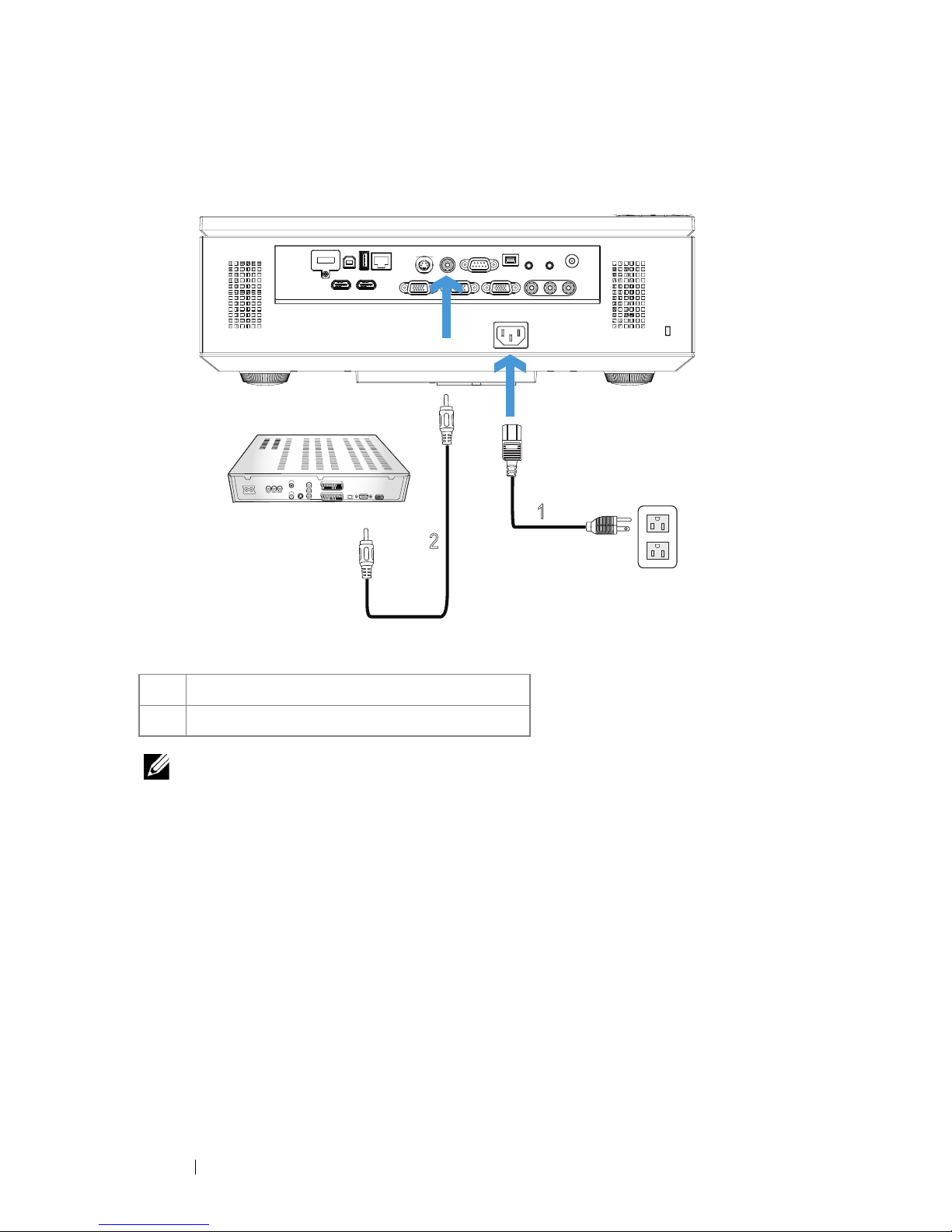

Connecting a DVD Player Using a Composite Video Cable
NOTE: The Composite Video cable is not shipped with your projector. You can
purchase the Composite Video Extension (50 ft/100 ft) cable on the Dell website
at www.dell.com.
1Power cord
2Composite Video cable
1
2

Connecting Your Projector 19
Connecting a DVD Player Using a Component Video Cable
NOTE: The VGA to Component Video cable is not shipped with your projector.
You can purchase the VGA to Component Video Extension (50 ft/100 ft) cable on
the Dell website at www.dell.com.
1Power cord
2VGA to Component Video cable
1
2

20 Connecting Your Projector
Connecting a DVD Player Using a 3 RCA Component Video Cable
NOTE: The 3 RCA to 3 RCA Component Video (Male to Male) cable is not
shipped with your projector. You can purchase the 3 RCA to 3 RCA Component
Video (Male to Male) cable Extension (50 ft/100 ft) cable on the Dell website at
www.dell.com.
1Powercord
2 3 RCA to 3 RCA Component Video (Male
to Male) cable
1
2
