Dell™ | Interactive Projector
S520
Laser Touch Setup Guide
S520 Laser Touch QSC_A02-APCC.book Page 1 Thursday, May 8, 2014 4:54 PM

About Notes
NOTE: A NOTE indicates important information that helps you make better use of your
projector.
______________ ____
Information in this document is subject to change without notice.
© 2014 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of
Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft,
Windows 7, and Windows Vista are trademarks or registered trademarks of Microsoft Corporation
in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities
claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in
trademarks and trade names other than its own.
June 2014 P/N 05PF0 Rev. A02
S520 Laser Touch QSC_A02-APCC.book Page 2 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
3
NOTE: You computer must have the
following minimum system requirements:
Operating System:
• Windows XP Professional service pack 3
32-bit, Windows 7 32-bit/64-bit, and
Windows 8 32-bit/64-bit
• Windows .NET Framework 4.0
installation is required (You can
download it from the Microsoft site)
• MacOS 10.6 and above
Minimum Hardware:
• Windows processor type: Intel Core i3
or above
• MAC processor type: Intel Core i2 duo
or above
• Windows/MAC RAM: 2 GB of RAM
required or more are recommended
• Windows/MAC Min. HDD space: 110 MB
of available hard-disk space
Part A: Install the Whiteboard
1Install the whiteboard.
NOTE: Refer to "whiteboard installation
instructions".
Set Up Laser Touch on Your Projector
S520 Laser Touch QSC_A02-APCC.book Page 3 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
4
Part B: Mount the Projector
2Install the wall mount and the projector.
NOTE: The wall mount is shipped with your
projector. Please refer "wall mount
installation instructions".
NOTE: Project at 87" for a maximum image
size projection or ~84" if you would like to
leave a border around the projector image
for optimal touch experience.
Part C: Attach Laser Curtain Kit
3Attach the laser curtain kit onto the
whiteboard.
NOTES:
aAttachment is aided with locating pin
and magnets.
bYou can also lock the kit in place with a
security screw.
cThere is a cover for the laser curtain kit.
(b) Screw
(a)
S520 Laser Touch QSC_A02-APCC.book Page 4 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
5
Part D: Connect Necessary
Cables
4Connect power, video, Mini USB, and DC-
to-DC cables to the projector.
5Connect the power cable to the power
outlet.
6Connect the DC-to-DC cable to the laser
curtain kit.
2m DC-to-DC cable
S520 Laser Touch QSC_A02-APCC.book Page 5 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
6
7Connect the VGA cable to your computer.
NOTE: You can also project the image
through VGA-B and HDMI. Press the left
button on your control panel for auto
searching and selecting the correct input
source.
8Connect the Mini USB cable to your
computer.
9Power on the projector by pressing the
power button on the remote control.
MOLEX
5 m Mini USB cable
S520 Laser Touch QSC_A02-APCC.book Page 6 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
7
Part E: Install the Touch Driver
on Your Computer
10 The TouchDriver install message will pop-
up automatically after you plug in the USB
cable to your computer. Follow the on-
screen instruction to complete setup.
The driver icon will appear in your
computer's notification area if the driver has
installed successfully.
If the Touch driver is not automatically installed,
go to My Computer and run "TouchDriver.exe".
NOTE: You may require administrator-level
access to install the driver. Contact your
network administrator for support.
Part F: Initialize the Touch
Control Function: Auto Adjust
Touch
This is recommended for first-time use, and
necessary when touch screen responds
inaccurately or erratically.
NOTE: You have to project in duplicate or
projector only modes.
11 When executing driver, click the icon.
The following menu appears on-screen.
S520 Laser Touch QSC_A02-APCC.book Page 7 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
8
Select "Auto adjust touch for this computer"
option to execute the auto "calibration and
touch area" procedure.
If the "auto adjust touch failed" message
prompts, please take the steps below for
troubleshooting, then do auto adjust touch
again.
aTurn lights off or reduce stray light to
whiteboard
bDo not walk in front of or move the
projector
cAdjust focus to sharpen the projected
If the "auto adjust touch still failed" message
appears on screen, please change to manual
calibrate touch and manual touch area.
Calibrate Touch by Manual:
Executing driver, click the icon, and go
to Advanced Settings menu, click the
Calibrate touch option to execute the
manual calibrate touch mode.
Touch the target marks on the screen.
(Press the "ESC" key to exit the calibration
process). After the 4th point of calibration
is finished, please wait for 2 seconds while
the calibration data is saved.
1
34
2
S520 Laser Touch QSC_A02-APCC.book Page 8 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
9
Touch Area by Manual:
Executing driver, click the icon, and go
to Advanced Settings menu, click the Set
touch area option to execute the manual
calibrate touch mode.
Touch area window will pop up.
Drag the 4 points, in the order of P1 to P4.
The green frame should lie slightly outside
the projected image area and there should
not be any reflected light spot within this
frame. Once you have completed this task,
click "Exit".
S520 Laser Touch QSC_A02-APCC.book Page 9 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
10
Part G: Touch Sensitivity
Adjust
When laser curtain has been operative for a
long period of time, the sensitivity might be
slightly reduced. Touch sensitivity functions to
re-sensitize the laser curtain by restoring the
initial setting.
Executing driver, click the icon, and go to
Advanced Settings menu, click the Set touch
Sensitivity option to re-sensitize laser curtain
by restoring the initial setting.
Default value for Touch Sensitivity is 4.
Increasing the value increases the Touch
Sensitivity and Decreasing the Touch Sensitivity
values reduces it.
S520 Laser Touch QSC_A02-APCC.book Page 10 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
11
Part H: Reset All Touch
Settings
When auto or manual "calibrate touch and
touch area" settings still are incorrect, you can
to execute the Reset all touch settings option
to reset all settings to its factory default.
Executing driver, click the icon, and go to
Advanced Settings menu, click the Reset all
touch settings option to re-sensitize laser
curtain by restoring the initial setting.
Part I: Touch Sensor Adjust
When your touch sensor setting is incorrect,
you can to execute the Adjust touch sensor
option to manual adjust touch sensor area.
Executing driver, click the icon, and go to
Advanced Settings menu, click the Adjust
touch sensor option to manual adjust touch
sensor area.
S520 Laser Touch QSC_A02-APCC.book Page 11 Thursday, May 8, 2014 4:54 PM

Set Up Laser Touch on Your Projector
12

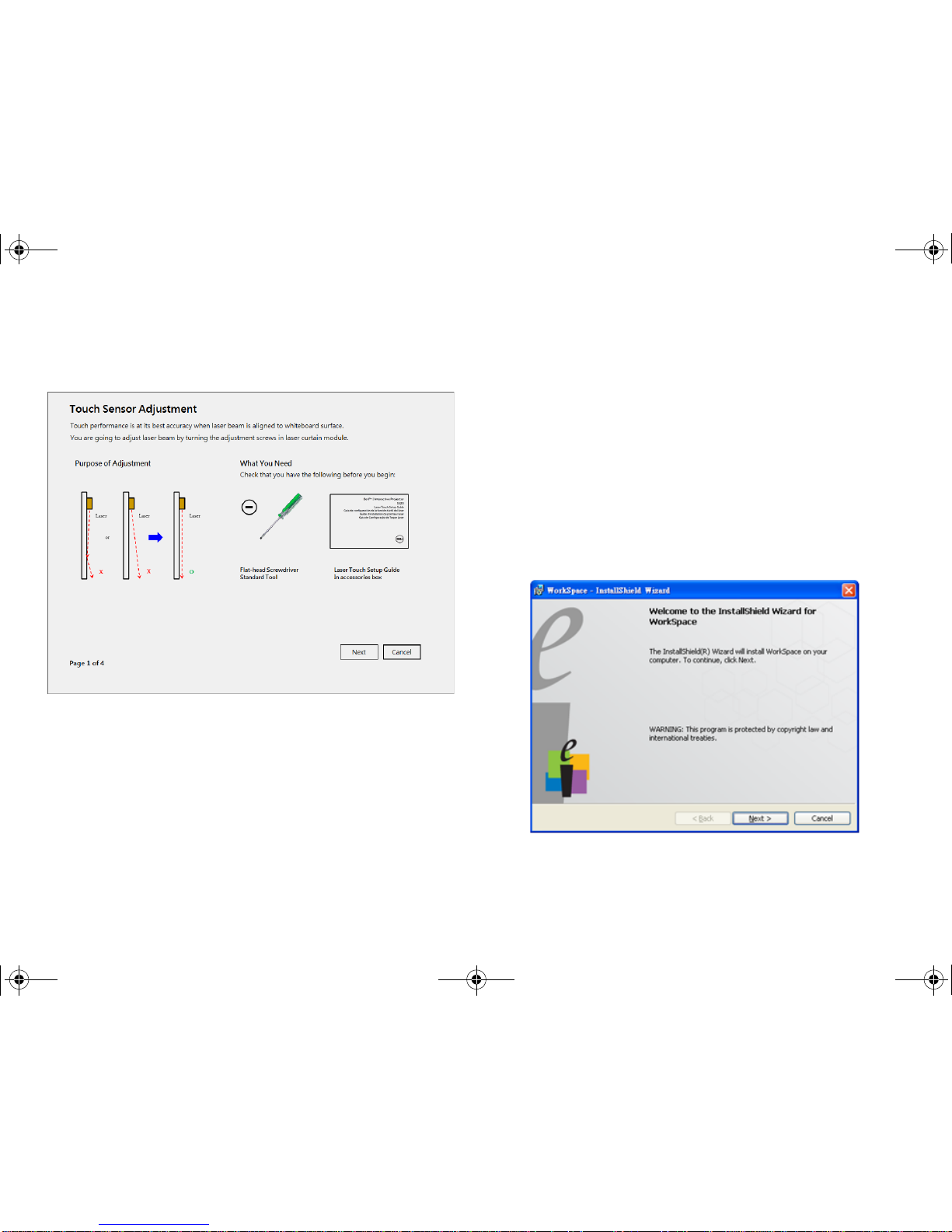

Touch sensor adjustment instruction screen
shown below appears, and follow the on-
screen instruction to complete settings.
Part J: Install the Workspace
Application Software on Your
Computer
The WorkSpace Application software is
bundled along with the CD that shipped with
your projector. Install the WorkSpace
Application Software and follow the on-screen
instructions to complete the setup. For more
instructions, refer to "WorkSpace Getting
Started Guide".
S520 Laser Touch QSC_A02-APCC.book Page 12 Thursday, May 8, 2014 4:54 PM

Troubleshooting
13
Troubleshooting
If you experience problems with Touch, see the following troubleshooting tips. If the problem
persists, contact Dell (see Projector User's Guide Contacting Dell on page 122).
Problem Possible Solution
The touch functionality on the edge or
corner of image is not working.
Please refer to Part F to execute the auto adjust
touch or touch area by manual or project at ~84" if
whiteboard bezel is affecting touch functionality on
the edge of the image.
If there is a big gap between the cursor
and touch point.
Please refer to Part F to execute the auto adjust
touch.
S520 Laser Touch QSC_A02-APCC.book Page 13 Thursday, May 8, 2014 4:54 PM

Troubleshooting
14
If the line drawn is not continuos, broken,
or if you encounter problems with the
Touch function in other areas of the
projected image.
1Check for presence of foreign objects on the
whiteboard.
2Please refer to Part I to execute the Adjust
touch sensor area.
3If there is halogen lamp near the projector and
whiteboard, light from the halogen lamp may
affect touch performance. If so,
aTurn off the halogen lamp.
bShielding the halogen lamp light to
whiteboard or camera.
cReduce Touch Sensitivity in driver. Doing so
may however affect touch performance at
whiteboard corners.
Problem (continued) Possible Solution (continued)
S520 Laser Touch QSC_A02-APCC.book Page 14 Thursday, May 8, 2014 4:54 PM

Dell™ | インタラクティブプロジェクタ
S520
レーザータ ッチセッ トア ッ プガイド
S520 Laser Touch QSC_A02-APCC.book Page 1 Thursday, May 8, 2014 4:54 PM

注について
メモ: 「メ モ」 は、 プ ロ ジ ェ ク タ の使用に際し て役立つ重要な情報です。
______________ ____
本書の内容は予告な く 変更 さ れ る こ と が あ り ま す。
© 2014 Dell Inc. All rights reserved.
Dell Inc. 社の 書面に よ る 許諾 を 受け る こ と な く 、 ど の よ う な形態で あ っ て も 、 本書 を 複製す る こ
とは固く禁じられています。
本書で使用 さ れ て い る 商標 :Dell および DELL ロゴは、Dell Inc の商標です。 Microsoft、
Windows 7、およびWindows Vista は、 米国お よ び /ま た はそ の他の国に おけ る Microsoft
Corporation の商標 ま た は登録商標 で す。
本書で使用 さ れ て い る そ の他の商標お よ び製品名は そ れ ぞ れ の所有者に帰属 し て い ま す。 Dell
Inc. は他社の所有す る 商標や製品名の所有権 を す べ て放棄 し ま す。
2014 年6月P/N 05PF0 Rev. A02
S520 Laser Touch QSC_A02-APCC.book Page 2 Thursday, May 8, 2014 4:54 PM

プロジェクタへのレーザータッチのセットアップ
3
メモ: コンピュータには以下の最低システ
ム要件を満た し て い る必要があ り ま す。
オペレーテ ィ ングシステム ：
• Windows XP Professional service pack 3
32 ビット、Windows 7 32 ビット/
64 ビット、Windows 8 32 ビット/
64 ビット
• Windows .NET Framework 4.0 をインス
トールする必要があります(Microsoft
サイトからダウンロードできます)
•MacOS10.6以上
最低ハ ー ド ウ ェ ア ：
•Windowsプロセッサータイプ :Intel
Core i3 以上
•MACプロセッサータイプ :Intel Core i2
duo 以上
• Windows/MAC RAM:RAM 2GB （必須）
以上推奨
• Windows/MAC の最小 HDD 容量 :
110 MB の空きハー ド デ ィ ス ク容量
パート A: ホワイトボードの
取り付け
1ホワイトボードを取り付けます。
メモ: 「ホ ワ イ ト ボー ド取 り付け手順」 を
参照 し て く だ さ い。
プロジェクタへのレーザータッチのセットアップ
S520 Laser Touch QSC_A02-APCC.book Page 3 Thursday, May 8, 2014 4:54 PM

プロジェクタへのレーザータッチのセットアップ
4
パート B ：プロジェクタの
取り付け
2ウォールマウントおよびプロジェクタを取
り付けます。
メモ: ウォールマウントはプロジェクタに
付属しています。 「ウォールマウント取り付
け手順」 を 参照 し て く だ さ い。
メモ: 最大画像投影 を 行 う 場合は 87 インチ
で投影し ま す。 最適な タ ッ チ体験のた め、
投影画像の 周囲に 境界 を 残す場合は、 84
インチ以下で投影します。
パート C ：レーザーカーテン
キットの取り付け
3ホワイトボード上にレーザーカーテン
キットを取り付けます。
注：
aア タ ッ チ メ ン ト は、 位置決め ピ ン お よ び
磁石で補助 さ れ ま す。
bまた、 セキュ リ ティネジでキッ トを
ロックすることができます。
cレーザーカーテンキッ ト用のカバーが
あります。
(b) ネジ
(a)
S520 Laser Touch QSC_A02-APCC.book Page 4 Thursday, May 8, 2014 4:54 PM
