Dell W-IAP270 Series User manual

Dell Networking W-IAP270 Series Outdoor Instant Access Point
Installation Guide
0511607-02 | August 2014 1
The Dell W-IAP274 and W-IAP275 Instant Access Point (IAP) are environmentally hardened, outdoor rated,
dual-radio IEEE 802.11ac wireless access points (AP). These Instant access points use MIMO (Multiple-Input,
Multiple-Output) technology and other high-throughput mode techniques to deliver high-performance, 802.11ac
2.4 GHz and 5 GHz functionality while simultaneously supporting existing 802.11a/b/g/n wireless services.
W-IAP270 Series Operations
Wireless transceiver
Wireless Instant access point (IEEE 802.11 a/b/g/n/ac)
Wireless air monitor (IEEE 802.11 a/b/g/n/ac)
Protocol-independent networking functionality
Compatibility with IEEE 802.3at PoE
Guide Overview
“W-IAP270 Series Hardware Overview” on page3provides a detailed hardware overview of the W-IAP274
and W-IAP275 Instant access points.
“Before You Begin” on page8provides key questions to ask and items to consider when deploying an outdoor
wireless network.
“Installing the IAP” on page9describes the multi-step process for successful installation and deployment of
the W-IAP274 and W-IAP275 Instant access points.
“Safety and Regulatory Compliance” on page13 provides an overview of safety and regulatory compliance
information.
Package Contents
W-IAP274 or W-IAP275 Instant Access Point
Cable Glands x2
Copper Lug x1
M4x6 Screw x1
USB Console Cable
Installation Guide (this document)
Professional Installation Guide Supplement (included with W-IAP274 only)
Quick Start Guide
Dell Safety, Environmental, and Regulatory Information
Dell Software License Agreement
Dell Warranty and Support Information
NOTE: The W-IAP270 Series Instant access point requires Dell Instant 4.1 or later.

2 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
NOTE: The weatherproof caps for Ethernet, Console, and power interfaces are connected to the IAP in the package.
NOTE: Mounting kits for use with the W-IAP270 Series Instant access points are sold separately. Contact your Dell sales
representative for details.
NOTE: Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the
original packing materials. Use these materials to repack and return the unit to the supplier if needed.

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 3
W-IAP270 Series Hardware Overview

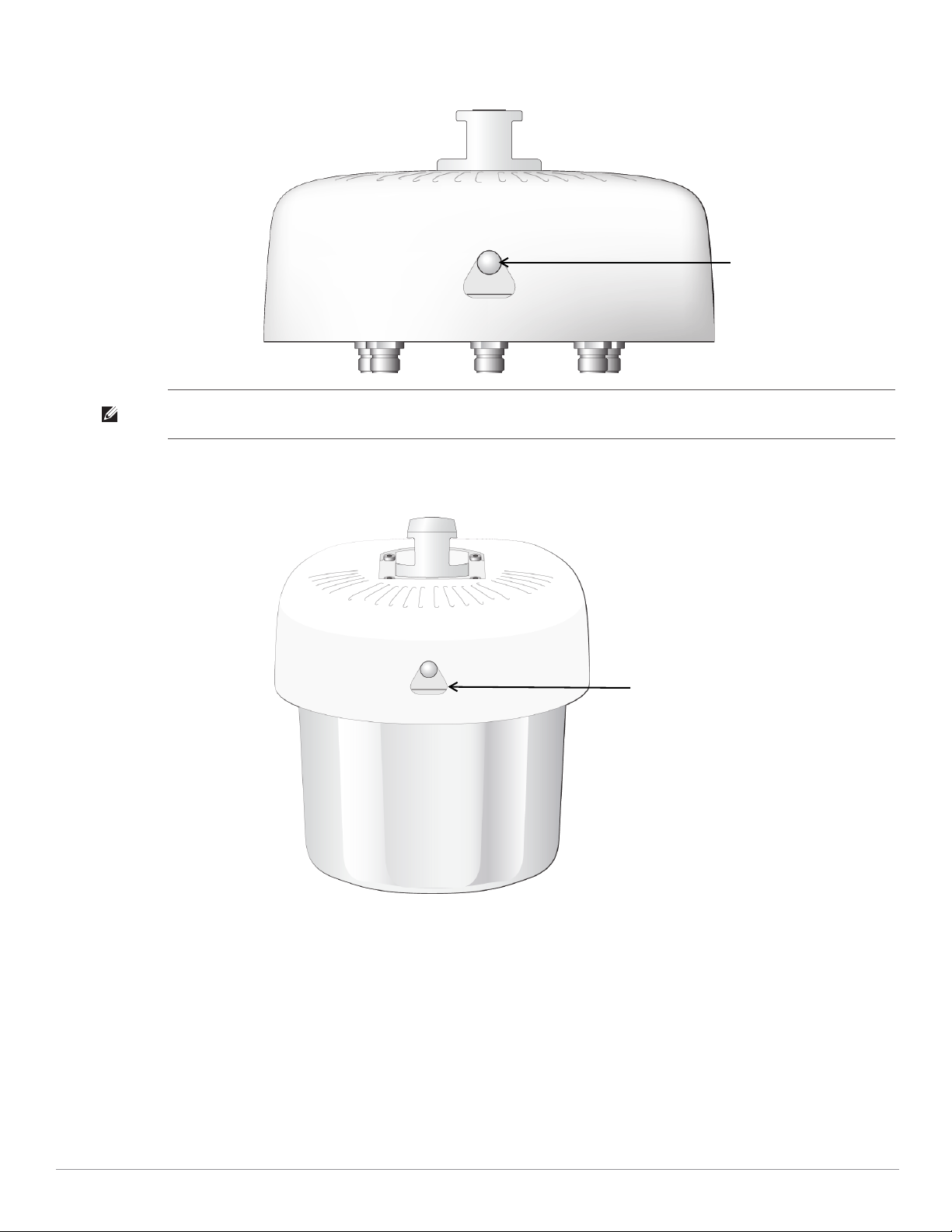

Figure 1 W-IAP274 Front View (Aesthetic Cover Removed)
Figure 2 W-IAP275 Front View
System LED
NOTE: The antenna connectors of W-IAP274 Instant access point are covered by an aesthetic cover in the package. The aesthetic
cover can be removed when necessary.
System LED

4 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
LED
The W-IAP270 Series Instant access point is equipped with one LED that indicates the system status of the IAP.
Table 2 W-IAP270 Series LED Status during Operation
Figure 3 W-IAP274 Rear View
Table 1 W-IAP270 Series LED Status during Boot Up
LED Color/State Meaning
System LED Off No power to IAP
Red Initial power-up
Green - Flashing IAP booting
Green - Steady IAP ready and 1000Mbps Ethernet link established. The
LED turns off after 1200 seconds
Green - Yellow, 6 seconds
period IAP ready and 10/100Mbps Ethernet link established. The LED turns off after 1200 seconds
LED Color/State Meaning
System LED Solid Red General fault
One blink off every 3 seconds Radio 0 fault (5 GHz)
Two quick blink off 0.5 seconds
apart cycled every 3 second Radio 1 fault (2.4GHz)
AC Power Interface
LAN Port
WAN Port
Grounding Point
USB Console Port and Reset button

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 5
Figure 4 W-IAP275 Rear View
USB Console Port
The USB Micro-B console port allows you to connect the IAP to a terminal or a laptop for direct local
management. Use the included USB console cable to connect the IAP. You can download the necessary driver for
USB-UART adapter from download.dell-pcw.com under the Tools & Resources tab.
Use the following setting to access the terminal:
Ethernet Ports
The W-IAP270 Series Instant access point is equipped with two 10/100/1000Base-T (RJ-45) Gigabit Ethernet
ports (WAN and LAN port) for wired network connectivity. The WAN port supports 802.3at Power over Ethernet
(PoE), accepting 48 VDC (nominal) as a standard defined Powered Device (PD) from a Power Sourcing
Equipment (PSE) such as a PoE midspan injector.
These ports have RJ-45 female connectors with the pin-outs shown in Figure 5.
Figure 5 Gigabit Ethernet port Pin-Out
Table 3 Console Settings
Baud Rate Data Bits Parity Stop Bits Flow Control
9600 8 None 1 None
AC Power Interface
LAN Port
WAN Port
Grounding Point
USB Console Port and Reset button

6 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
Reset Button
The reset button can be used to return the IAP to factory default settings. To reset the IAP:
1. Power off the IAP.
2. Press and hold the reset button using a small, narrow object, such as a paperclip.
3. Power-on the IAP without releasing the reset button. The system LED will flash within 5 seconds.
4. Release the reset button.
The system LED will flash again within 15 seconds indicating that the reset is completed. The IAP will now
continue to boot with the factory default settings.
AC Power Interface
The W-IAP270 Series Instant access point is capable of AC power in the range of 100 - 240 VAC. The power cord
or power connector kit is sold separately.
Grounding Point
Always remember to protect the IAP by installing grounding lines. The ground connection must be complete
before connecting power to the IAP enclosure.

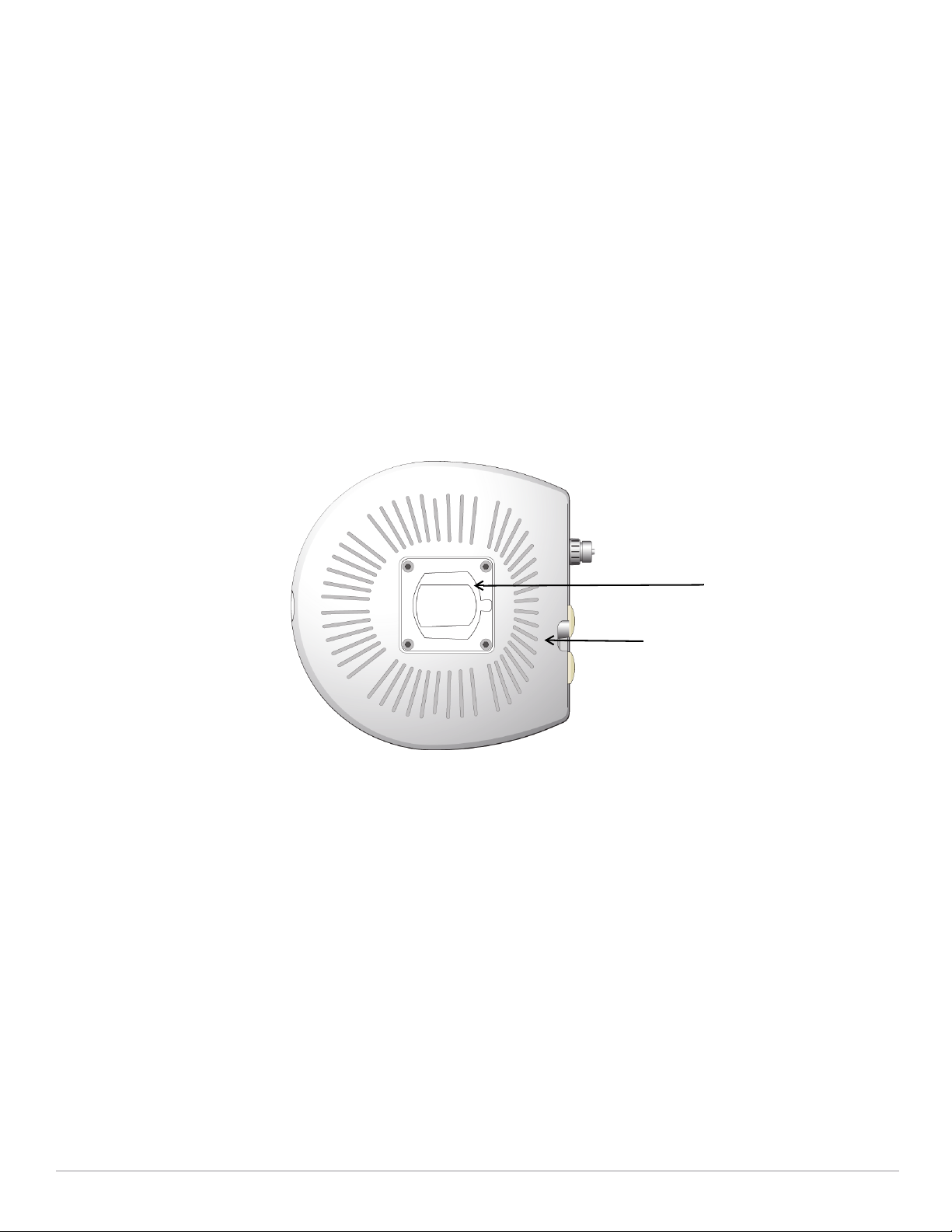

Figure 6 W-IAP274 and W-IAP275 Top View
The solar shield with the mounting holder is fixed onto the W-IAP270 Series Instant access point before shipping
from the factory.
Solar Shield
Mounting Holder

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 7
Figure 7 W-IAP274 Bottom View
Figure 8 W-IAP275 Bottom View
External Antenna Connectors
The W-IAP274 Instant access point is equipped with six N-type female connectors for external antenna. The
connectors are labeled 2G0, 2G1, 2G2, 5G0, 5G1 and 5G2, and correspond to 2.4/5Ghz radio chains 0,1, and 2 .
Air Vent
The bottom of the W-IAP270 Series Instant access point has an air vent to balance the pressure and humidity
inside and outside the IAP. It also allows air exchange between the IAP and the environment in a controlled way
that doesn’t allow water to get in.
With Aesthetic Cover Aesthetic Cover Removed
Air Vent
NOTE: Please install the external antennas according to the manufacturer’s instruction and connect the antennas to the N-type
female antenna connectors on the W-IAP274 Instant access point.

8 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
Before You Begin
Identifying Specific Installation Locations
You can mount the W-IAP270 Series Instant access point on a wall or pole. Use the IAP placement map
generated by Dell VisualRF Plan software tool to determine the proper installation location(s). Each location
should be as close as possible to the center of the intended coverage area and should be free from obstructions or
obvious sources of interference. These RF absorbers/reflectors/interference sources will impact RF propagation
and should have been accounted for during the planning phase and adjusted for in RF plan.
Identifying Known RF Absorbers/Reflectors/Interference Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field during the installation
phase is critical. Make sure that these sources are taken into consideration when you attach an IAP to its fixed
location. Examples of sources that degrade RF performance include:
Cement and brick
Objects that contain water
Metal
Microwave ovens
Wireless phones and headsets
CAUTION: FCC Statement: Improper termination of access points installed in the United States configured to non-US model
controllers will be in violation of the FCC grant of equipment authorization. Any such willful or intentional violation may result in a
requirement by the FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80).
CAUTION: EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Refer to the
Dell Networking W-Series Instant User Guide
for details on restrictions.
Produit réseau local radio basse puissance operant dans la bande fréquence 2.4 GHz et 5 GHz. Merci de vous referrer au
Dell
Networking W-Series
Instant User Guide pour les details des restrictions.
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet. Weitere Informationen bezlüglich Einschränkungen
finden Sie im
Dell Networking W-Series Instant User Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare riferimento alla Dell Networking W-Series Instant User
Guide per avere informazioni detagliate sulle restrizioni.
NOTE: Dell in compliance with governmental requirements, has designed the W-IAP270 Series Instant access point such that only
authorized network administrators can change configuration settings. For configuration information, refer to the Dell Networking
W-Series Instant Quick Start Guide and Dell Networking W-Series Instant User Guide .
CAUTION: Access points are radio transmission devices and as such are subject to governmental regulation. Network
administrators responsible for the configuration and operation of access points must comply with local broadcast regulations.
Specifically, access points must use channel assignments appropriate to the location in which the access point will be used.

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 9
Installing the IAP
Using the Mounting Kits
The W-IAP270 Series Instant access point can be installed on a wall or attached to a pole using one of the
following mounting kits:
Grounding the IAP
After the W-IAP270 Series Instant access point is installed using one of the mounting kits above, the grounding
must be completed before powering up the IAP. The grounding wire should be #8 AWG.
1. Peel the cover of one end of the grounding wire and place the bare grounding wire into the included copper
lug, and press firmly with the crimping pliers.
2. Fasten the copper lug to the grounding hole on the W-IAP270 Series Instant access point with the M4 x6
screw included in the IAP package as shown in Figure 9.
Figure 9 Grounding the IAP
NOTE: Service to all Dell Networking products should be performed by trained service personnel only.
Table 4 Mounting Kits for W-IAP270 Series Instant access point
Part Number Description
AP-270-MNT-V1 Long mounting kit for wall and vertical pole mounting, 300 mm from vertical mounting asset.
AP-270-MNT-V2 Short mounting kit for wall and vertical pole mounting, 75 mm from vertical mounting asset.
AP-270-MNT-H1 Mounting kit for hanging from inclined or horizontal structure.
NOTE: The W-IAP270 Series Instant access point does not ship with any mounting kits. These mounting kits are available as
accessories and must be ordered separately.
NOTE: For installation instructions on AP-270-MNT-V1, AP-270-MNT-V2 and AP-270-MNT-H1, please refer to the AP-270-MNT-V1
Installation Guide, AP-270-MNT-V2 Installation Guide and AP-270-MNT-H1 Installation Guide respectively .

10 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
Connecting the Ethernet Cable
To connect the Ethernet cable to the W-IAP270 Series Instant access point, perform the following steps using
the cable glands that were shipped with the IAP.

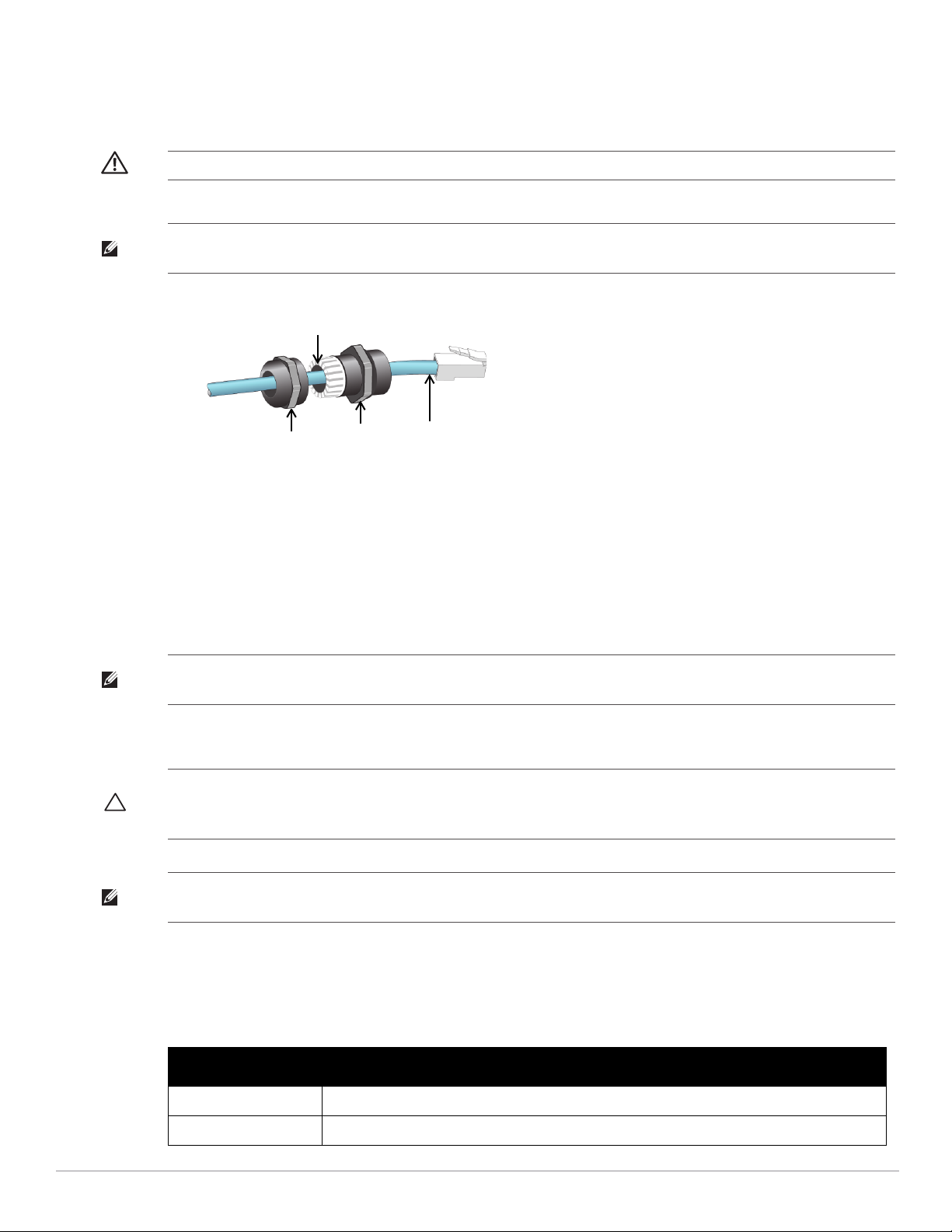

Figure 10 Installing a Cable Gland
1. Slide the sealing nut over the cable (without the RJ45 connector attached to the end).
2. Slide the clamping ring over the cable.
3. Using a crimping tool, attach the shielded RJ45 connector to the end of the cable.
4. Remove the weatherproof cap on the Ethernet port.
5. Insert the RJ45 connector to the Ethernet port.
6. Screw the clamping ring onto the Ethernet port.
7. Screw the sealing nut onto the clamping ring.
Connecting the Power Cable
The W-IAP270 Series Instant access point offers two ways to connect the unit to AC power. Two power cord
variants are available. THere is also a connector kit option that allows you to assemble your own cable if the
standard offering does not meet deployment needs.
WARNING: Failure to use the included Ethernet cable glands can lead to connectivity and PoE issues.
NOTE: The cable is not included and must be purchased separately. Purchase a suitable UV-resistant, outdoor rated, CAT 5E or
better RJ45 cable for use with the W-IAP270 Series Instant access point.
Sealing Nut Clamping Ring CAT 5E or Better Cable
Seals
NOTE: The seals inside the clamping ring by factory default is applicable for cables with 5-8.5 mm diameter. In the cable gland kit,
another seals is provided for use with the cables with 7-10 mm diameter.
CAUTION: Installation and service of Dell products should be performed by professional installers in a manner that is consistent
with the electrical code in force in the jurisdiction of deployment. In many countries this will require a licensed electrician to
perform this operation. In Japan, this is a Certified Electrician by Ministry of Economy, Trade, and Industry.
NOTE: The W-IAP270 Series Instant access point does not ship with any power cables. These are available as accessories and
must be ordered separately.
Table 5 SKUs for Powering Options
Part Number Description
PC-OD-AC-P-NA Weatherproof AC power cable(5m), North America version
PC-OD-AC-P-INT Weatherproof AC power cable(5m), International (EU) version

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 11
The difference between the NA and INTL part variants is the color coding of the conductors.
The North American cable uses Black (Hot), White (Neutral), and Green (Ground).
The INTL part follows the international schema of Brown (Hot), Blue (Neutral) and Yellow/Green (Ground)
Best Practice for Outdoor Connection to AC Mains
In all circumstances and with any outdoor infrastructure, the recommended practice is to connect to AC mains in
an order grade weather protected junction box. This needs to be implemented by a qualified resource in a manner
that is consistent with the electrical code in force in the jurisdiction of deployment. In many countries this will
require a licensed electrician to perform this operation.
In Japan, this would is a Certified Electrician by Ministry of Economy, Trade and Industry.
The use of plugs with infrastructure equipment is suitable only for temporary installs where nuisance tripping of
GFI plugs is considered tolerable. Should it be desired to attach a plug to the cable assemblies then the installer is
expected to follow all directions provided with the plug end in a fashion consistent with local electrical code.
Use of the CKIT-OD-AC-P
Assembly instructions for this part are shipped with the part. All instructions must be followed to ensure proper
assembly of the connector onto the cable.
The required specifications for third party cable used with the CKIT solution are as follows:
AC power cable specifications (when using AC connector kit and custom cable): minimum voltage/current
rating 250V/1A, diameter 6-12mm, rated for outdoor use and UV exposure
AC Power Cable Connector PIN OUT
Figure 11
AC power cable connector
Connecting the Power Cable to the IAP
1. Remove the weatherproof cap on the power interface.
2. Insert the power cable connector into the power interface and hand-fasten the locknut.
Verifying Post-Installation Connectivity
The integrated LEDs on the IAP can be used to verify that the IAP is receiving power and initializing successfully
(see Table 1and Table 2). Refer to the Dell Networking W-Series Instant Quick Start Guide for details on verifying
post-installation network connectivity.
CKIT-OD-AC-P Weatherproof connector kit for AC power interface
Table 5 SKUs for Powering Options
Part Number Description
HotNeutral
Ground

12 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
Product Specifications
Mechanical
Device Dimensions (HxWxD)
W-IAP274 (without aesthetic cover): 5.5 inches x 9 inches x 9.4 inches (14cm x 23cm x 24cm)
W-IAP274 (with aesthetic cover): 7.5 inches x 9 inches x 9.4 inches (19cm x 23cm x 24cm)
W-IAP275: 10.6 inches x 9 inches x 9.4 inches (27cm x 23cm x 24cm)
Weight
W-IAP274(without aesthetic cover): 5.3 lbs/2.4 kg
W-IAP274 (with aesthetic cover): 6lbs/2.7kg
W-IAP275: 5.3 lbs/2.4 kg
Electrical
Ethernet
2 x 10/100/1000Base-T auto-sensing Ethernet RJ-45 Interfaces
MDI/MDX
Power over Ethernet (IEEE 802.3at compliant), 48VDC/0.6A
Power
100-240 VAC 50/60 Hz from external AC power source
PoE support on WAN port: 802.3at-compliant PoE sourcing devices
Environmental
Operating
Temperature: -40ºC to 60ºC (-40ºF to 140ºF)
Humidity: 5% to 95% non-condensing
Storage
Temperature: -50ºC to 85ºC (-58ºF to 185ºF)
For additional specifications on this product, refer to the product data sheet on dell.com.

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 13
Safety and Regulatory Compliance
Regulatory Model Name
The following regulatory model names apply to the W-IAP270 Series Instant access points:
W-IAP274: APEX0101
W-IAP275: APEX0100
FCC
This device is electronically labeled. To view the FCC ID:
1. Log into the controller WebUI
2. Navigate to Maintenance > Controller > About.
FCC Class B Part 15
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the manufacturer’s instructions, may cause interference harmful to radio
communications.
If this equipment does cause interference, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio or TV technician for help.
Complies with the Class B limits for radio noise emissions as set out in the interference-causing equipment
standard entitled “Digital Apparatus,” ICES-003 of Industry Canada.
NOTE: For country specific restrictions and additional safety and regulatory information, refer to the multi-language Dell
Networking W-Series Safety, Environmental, and Regulatory Information document included with this product.
CAUTION: Dell access points must be installed by a professional installer. The professional installer is responsible for ensuring
that grounding is available and it meets applicable local and national electrical codes.
CAUTION: RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits. This equipment
should be installed and operated with a minimum distance of 13.78 inches (35 cm) between the radiator and your body for 2.4 GHz
and 5 GHz operations. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
When operated in the 5.15 to 5.25 GHz frequency range, this device is restricted to indoor use to reduce the potential for harmful
interference with co-channel Mobile Satellite Systems.
CAUTION: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.

14 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
Cet apareil numerique de la classe B respecte toutes les exigencies du Reglement sur le materiel brouilleur du
Canada.
Users are advised that high power Radars are allocated as primary users of the bands 5250-5350 MHz and 5650-
5850 MHz and these Radars could cause interference and/or damage to Licensed Exempt WLAN devices.
EU Regulatory Conformance
Dell, hereby declares that the APEX0101 and APEX0100 device models are in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC -CE(!). The Declaration of
Conformity made under Directive 1999/5/EC is available for viewing on dell.com.
Proper Disposal of Dell Equipment
For the most current information about Global Environmental Compliance and Dell products, visit dell.com.
Waste of Electrical and Electronic Equipment
Dell products at end of life are subject to separate collection and treatment in the EU
Member States, Norway, and Switzerland and therefore are marked with the symbol shown at
the left (crossed-out wheelie bin). The treatment applied at end of life of these products in
these countries shall comply with the applicable national laws of countries implementing
Directive 2002/96/EC on Waste of Electrical and Electronic Equipment (WEEE).
European Union RoHS
Aruba Networks Inc., hereby, being the manufacturer of this product, declares that all CE
marked Dell wireless controller and access point products are manufactured in accordance
to the provisional requirements set forth in the RoHS Directive 2011/65/EC.
A copy of the Aruba Declaration of Conformity may be obtained upon request from:
Aruba Networks International Ltd.
Building 1000,
Citygate Mahon
Cork Ireland
Please include the regulatory model number located on the product’s regulatory nameplate with the request.
China RoHS
Dell products also comply with China environmental declaration requirements and are labeled
with the “EFUP 10” label shown at the left.
10

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 15
India RoHS
This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling) Rules,
governed by the Ministry of Environment & Forests, Government of India.
Canadian Statement
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
Canadian Caution
This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by
Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this device.
Gain of antenna: 14.0dBi max/10dBi max;
Type of antenna: directional/ommi;
Impedance of antenna: 50ohm
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du
matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et
ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Gain d'antenne: 14.0dBi maximal/10dBi maximal;
Type d'antenne: 50 ohm, directionnel/ommi.
᳝↦᳝ᆇ⠽䋼ໄᯢ
Hazardous Materials Declaration
᳝↦᳝ᆇ⠽䋼៪ܗ㋴(Hazardous Substance)
䚼ӊৡ⿄
(Parts) 䪙
3E
∲
+J
䬝
&G
݁Ӌ䫀
&U
໮⒈㘨㣃
3%%
໮⒈Ѡ㣃䝮
3%'(
⬉䏃ᵓ
(PCA Boards) hƻƻ ƻ ƻ ƻ
ᴎẄ㒘ӊ
(Mechanical Sub-Assemblies)
hƻƻ ƻ ƻ ƻ
ƻ˖ 㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼ SJ/T11363-2006 󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is
below the relevant threshold of the SJ/T11363-2006 standard.
h˖ 㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎ6-7󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖DŽ
Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials
in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
ᇍ䫔ଂП᮹ⱘ᠔ଂѻકᴀ㸼ᰒ⼎կᑨ䫒ⱘ⬉ᄤֵᙃѻકৃ㛑ࣙ৿䖭ѯ⠽䋼DŽ
This table shows where these substances may be found in the supply chain of electronic information
products, as of the date of sale of the enclosed product.
ℸ󰵼ᖫЎ䩜ᇍ᠔⍝ঞѻકⱘ⦃ֱՓ⫼ᳳ󰵼ᖫᶤѯ䳊䚼ӊӮ᳝ϔϾϡৠⱘ⦃ֱՓ⫼ᳳ
՟བ⬉∴ܗ῵ഫ䌈೼݊ѻકϞ
ℸ⦃ֱՓ⫼ᳳ䰤া䗖⫼Ѣѻકᰃ೼ѻક᠟ݠЁ᠔㾘ᅮⱘᴵӊϟᎹ԰
The Environment- Friendly Use Period (EFUP) for all enclosed products and their parts are
per the symbol shown here. The Environment- Friendly Use Period is valid only when the
product is operated under the conditions defined in the product manual.

16 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
Philippines (W-IAP274)
Philippines (W-IAP275)
Hong Kong (W-IAP274)
Hong Kong (W-IAP275)
UAE (W-IAP274)
UAE (W-IAP275)
Type-Approval No.
ESD-1408699C
Type-Approval No.
ESD-1408698C
HK0011400885
HK0011400884
TRA
REGISTERED No:
DEALER No:
DA0039425/10
ER01290403/14
TRA
REGISTERED No:
DEALER No:
DA0039425/10
ER0129040/14

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 17
Singapore (W-IAP274 and W-IAP275)
DB101525

18 Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
This page is intentionally left blank.

Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide 19
This page is intentionally left blank.

Copyright
© 2014 Aruba Networks, Inc. Aruba Networks trademarks include , Aruba Networks®, Aruba Wireless Networks®, the registered Aruba the Mobile
Edge Company logo, and Aruba Mobility Management System®. Dell™, the DELL™ logo, and PowerConnect™ are trademarks of Dell Inc.
All rights reserved. Specifications in this manual are subject to change without notice.
Originated in the USA. All other trademarks are the property of their respective owners.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code subject to the GNU General Public License (GPL), GNU
Lesser General Public License (LGPL), or other Open Source Licenses. The Open Source code used can be found at this site:
http://www.arubanetworks.com/open_source
Includes software from Litech Systems Design. The IF-MAP client library copyright 2011 Infoblox, Inc. All rights reserved. This product includes software developed by Lars
Fenneberg, et al.
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate other vendors’ VPN client devices constitutes complete
acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against it
with respect to infringement of copyright on behalf of those vendors.
Dell Networking W-IAP270 Series Outdoor Instant Access Point | Installation Guide
Part Number 0511607-02 | August 2014
Contacting Dell
Website Support
Main Website dell.com
Contact Information dell.com/contactdell
Support Website dell.com/support
Documentation Website dell.com/support/manuals
