DE’LONGHI
COOKING
INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DE609MP
PYROLYTIC BUILT-IN OVEN
distributed by
DeLonghi Australia Pty Ltd
DeLonghi New Zealand Ltd

2
Dear Customer,
Thank you for having purchased and given your preferen-
ce to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They will
also provide a means by which to make full use of the fea-
tures offered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking fo-
odstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or illo-
gical use of the appliance or be faulty installation.
PRODUCT LABEL
This appliance has been designed and constructed in accordance with the following codes
and specications:
AS/NZS 60335.1 General Requirements for Domestic electrical appliances
AS/NZS 60335.2.6 Particular Requirements for Domestic electrical cooking appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements.

3
Important:
This appliance is designed and manufactured solely for the coo-
king of domestic (household) food and is not suitable for any non
domestic application and therefore should not be used in a com-
mercial environment.
The appliance guarantee will be void if the appliance is used within
a non domestic environment i.e. a semi commercial, commercial
or communal environment.
FIRST USE OF THE OVEN
It is advised to follow these instructions:
■Furnish the interior of the oven as described at chapters “USE
AND CARE” and “CLEANING AND MAINTENANCE”.
■Switch on the empty oven on max to eliminate grease from the
heating elements.
■Let the oven cool down and clean the interior of the oven with a
cloth soaked in water and neutral detergent, then dry carefully.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a se-
ries of fundamental rules. In particular:
■Never touch the appliance with wet hands or feet.
■Do not operate the appliance barefooted.
■ The appliance is not intended for use by young children or inrm
persons without supervision.
■Young children should be supervised to ensure they do not play
with the appliance.
The manufacturer cannot be held responsible for any damages cau-
sed by improper, incorrect or illogical use of the appliance.

4
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not
damaged and that the oven door closes correctly. In case of doubt,
do not use it and consult your supplier or a professionally qualied
technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing
straps, etc.) should not be left around within easy reach of children,
as these may cause serious injuries.
■ Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the ap-
pliance.
■Do not attempt to modify the technical characteristics of the ap-
pliance as this may become dangerous to use.
■Do not carry out cleaning or maintenance operations on the ap-
pliance without having previously disconnected it from the elec-
tric power supply.
■After use, ensure that the knobs are in the off position.
■Keep children away from the appliance when it is in use.
■WARNING: Accessible parts will become hot when in use. To
avoid burns and scalds, young children should be kept away.
■Young children should be supervised to ensure that they do not
play with the appliance.
■Children, or persons with a disability which limits their ability to
use the appliance, should have a responsible person to instruct
them in its use. The instructor should be satised that they can
use the appliance without danger to themselves or their surroun-
dings.
■During and after use of the appliance, certain parts will become
very hot. Do not touch hot parts. Care should be taken to avoid
touching heating elements inside the oven.
■Make sure that electrical cables connecting other appliances in
the proximity of the oven cannot become entrapped in the oven
door.
■WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the rear or the

5
underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges,
that may cause injury.
■Do not line the oven walls with aluminium foil. Do not place ba-
king trays or the drip tray on the base of the oven chamber.
■Fire risk! Do not store ammable material in the oven.
■Always use oven gloves when removing the shelves and food
trays from the oven whilst hot.
■Do not hang towels, dishcloths or other items on the appliance or
its handle – as this could be a re hazard.
■Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
■Do not stand on the open oven door.
■Always stand back from the appliance when opening the oven
door to allow steam and hot air to escape before removing the
food.
■Safe food handling: Leave food in the oven for as short a time
as possible before and after cooking. This is to avoid contamina-
tion by organisms which may cause food poisoning. Take parti-
cular care during warmer weather.
■Pyrolysis cycle - IMPORTANT! The pyrolysis cycle must
only be performed with the oven empty; so, before starting
the cycle take all the accessories (shelves, baking tray and
anti-grease lter) out of the oven cavity and dry any traces
of overowed liquid.
■The manufacturer declines all liability for injury to persons or da-
mage to property caused by incorrect or improper use of the ap-
pliance.
■WARNING: Taking care NOT to lift the oven by the door
handle.
■IMPORTANT NOTE: This appliance shall not be used as a
space heater, especially if installed in marine craft or cara-
vans.
■Do not operate your appliance by means of an external timer
or separate remote-control system.
■This appliance is for domestic use only.

6
INSTALLATION
CAUTION:
■This appliance must be installed in accordance with these installation instructions.
■This appliance shall only be serviced by authorised personnel.
■This appliance is to be installed only by an authorised person in compliance
with the current electrical regulations and in observation of the instructions
supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
■Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
■Always disconnect the appliance from mains power supply before carrying out
any maintenance operations or repairs.

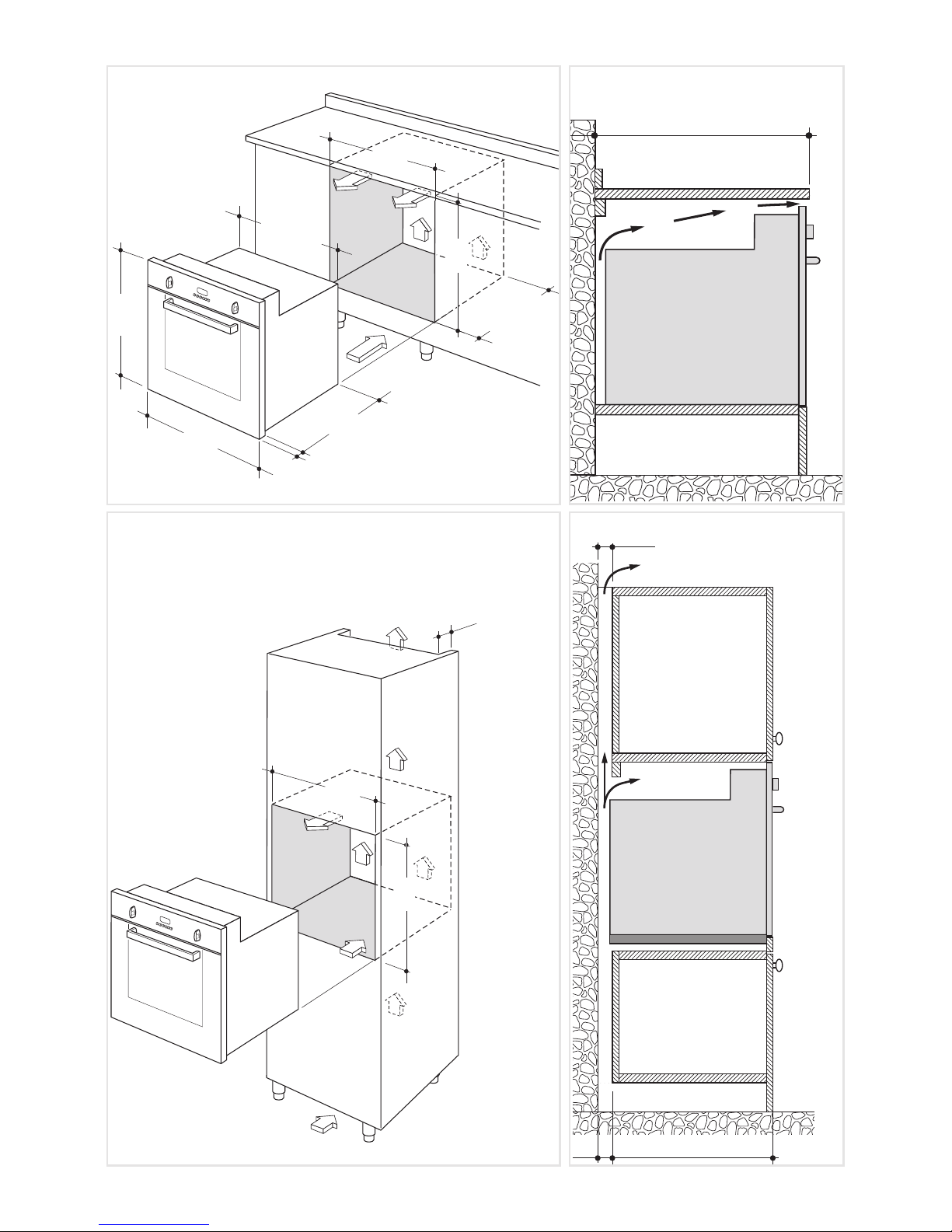

FITTING REQUIREMENTS
■ The oven can be tted in standard units, 60 cm width and depth.
■ Installation requires a compartment as illustrated in gures 1a and 2a.
■Fitting the oven into a base: Arrangements should be made for an adequate supply
of the air to the oven to avoid overheating (g. 1b).
■Fitting the oven into a column : It is necessary that the oven is provided with a chim-
ney as per g. 2b. If the column unit reaches the ceiling an outlet must be provided
through which air can ow to the outside
■On the lower side, the oven must lay on supports standing the oven weight.
■Remember the housing should not be free standing but be secured to the wall and/or
adjacent ttings.
■We would point out that the adhesive which bonds the plastic laminate to the fur-
niture must withstand temperatures not less than 150° C to avoid delamination.
■The walls of the units must be capable of resisting temperatures of 75 °C above
room temperature.
■Do not seal the oven into the cabinetry with silicone or glue; this makes future
servicing difcult. Delonghi will not cover the costs of removing the oven, or of
damage caused by this removal.
■The walls surrounding the oven must be made of heat-resistant material.
■WARNING: Taking care NOT to lift the oven by the door handle.
WARNING
When correctly installed, your product meets all safety requirements laid down for
this type of product category.
However special care should be taken around the rear or the underneath of the ap-
pliance as these areas are not designed or intended to be touched and may contain
sharp or rough edges, that may cause injury.
IMPORTANT
Some environmental factors and cooking habits can cause condensation in and
around the oven during use. To protect surrounding cabinetry from possible dama-
ge caused by frequent or excessive condensation, we recommend moisture-proo-
ng the oven cavity.

7
560
550 min
195
594
495
540
20
536 min
600
560
50
585
50 mm
50 550
Figure 2a Figure 2b
Figure 1a Figure 1b

8

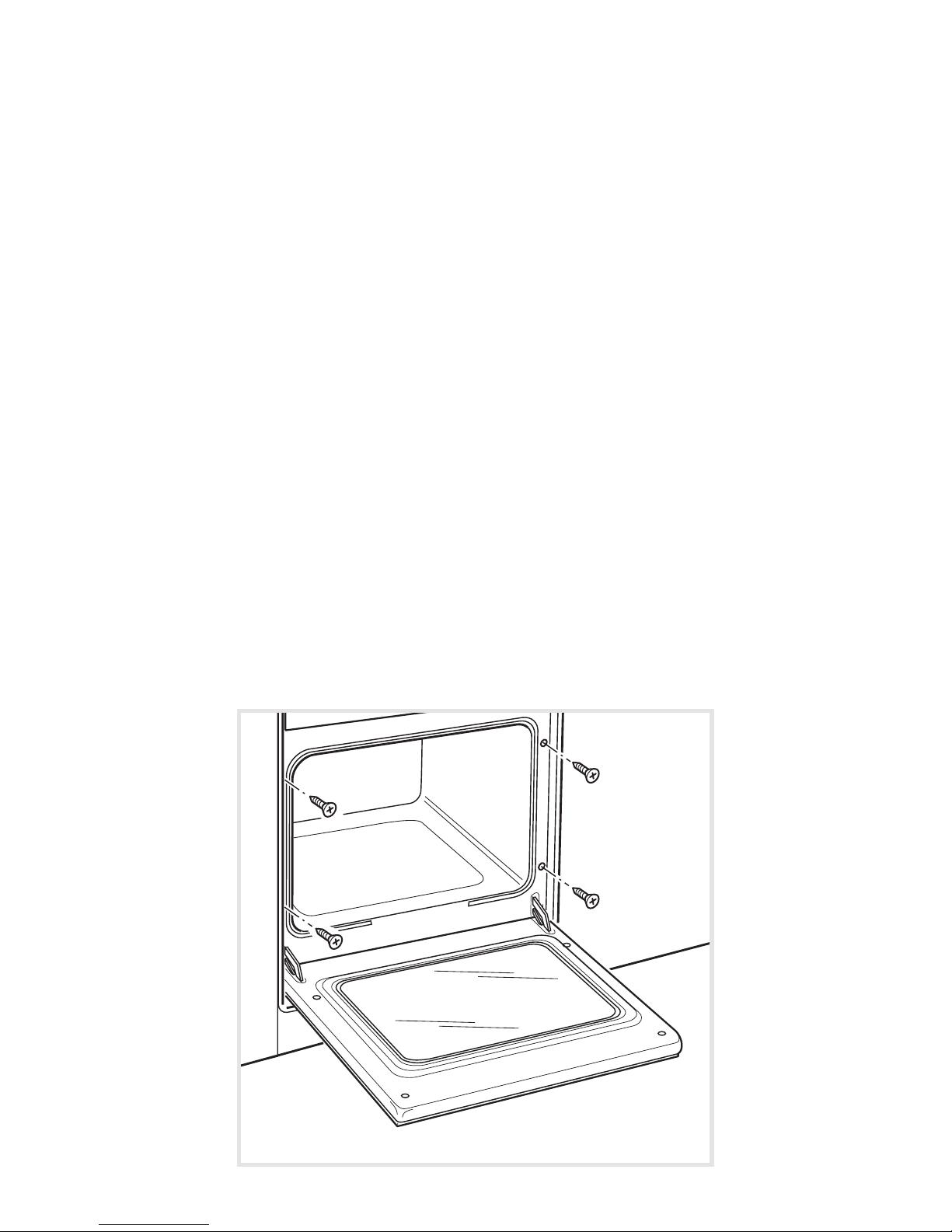

FIXING THE OVEN
Introduce the oven into the furniture opening and x it with 4 screws (not supplied) as gure
3. It is essential that the oven rests on a surface which will support its weight, as the screw
xing is only complementary.
Note
It is essential that when installing your oven adequate air circulation is allowed for within the
installation. See gures 1b - 2b.
Inadequate air circulation may greatly impair the performance of your oven and may effect
adjacent cabinets due to an increase in temperature.
Caution!
Do not lift this oven by the door handle.
Adjust the hinges of furniture doors adjacent to the oven to allow a 4-5 mm gap between
the furniture door and the oven frame.
Figure 3

9
IMPORTANT:
Please take extra care not to damage the lower trim of the oven.
Ensure the oven sits on wooden blocks or similar supports when it is removed from the
carton as shown in above diagram. This will prevent any damage to the lower trim.
Should the lower trim become damaged, straighten the trim and ensure the oven door
opens fully without obstruction from the lower trim.
After installation check the lower trim is still undamaged.
The space between the bottom of the door & the lower trim is important to allow proper air
circulation into the oven.
The oven door should be opened slowly to it’s fully open position ensuring there is adequa-
te clearance between the bottom of the door and the lower trim.
The manufacturer does not accept responsibility for any damage to the oven resul-
ting from incorrect installation.
OVEN DOOR
LOWER TRIM
AIR FLOW
Air Flow
Oven Door
Lower Trim
Figure 4

10

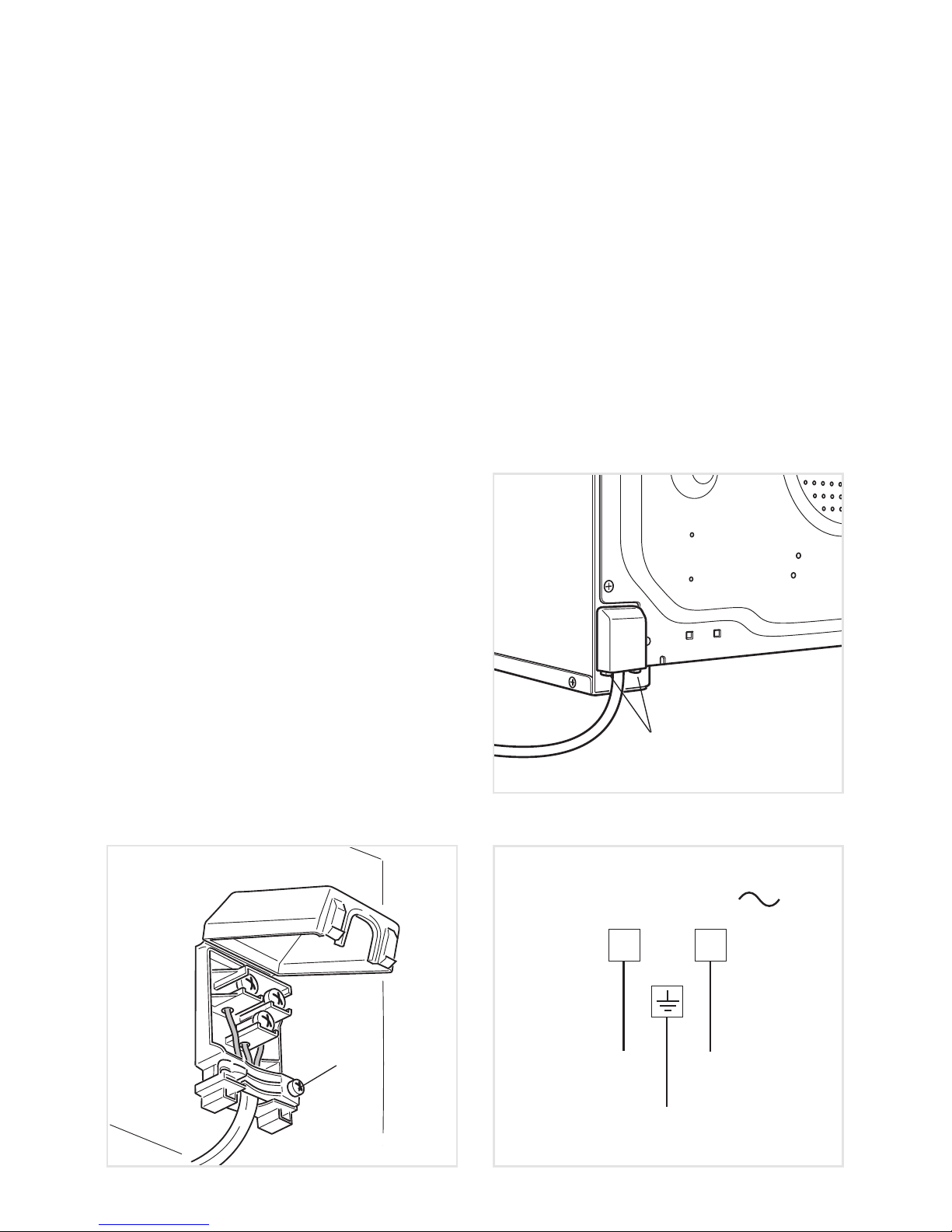

ELECTRICAL REQUIREMENTS
■The appliance must be connected to the mains checking that the voltage correspon-
ds to the value given in the rating plate and that the electrical cable sections can
withstand the load specied on the plate.
■A suitable isolating switch providing full disconnection from the mains power supply
shall be incorporated in the permanent wiring, mounted and positioned to comply with
the local wiring rules and regulations. The isolating switch must be of an approved
type and provide a 3 mm air gap contact separation in all poles (or in all active [phase]
conductors if the local wiring rules allow for this variation of the requirements).
■The isolating switch shall be easily accessible to the customer with the oven installed.
■The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 75°C above ambient.
■The oven is supplied without a power supply plug and therefore if you are not con-
necting directly to the mains, a standardized plug suitable for the load must be tted.
■The plug must be connected to an earthed socket in compliance with safety standards.
■To connect the appliance to the mains electricity supply, do not use adapters, reducers
or branching devices as they can cause overheating and burning.
■Once the appliance has been installed, the switch or socket must always be accessible.
■If the supply cord is damaged it must be replaced by the manufacturer or it’s Service
Agent or a similarly qualied person in order to avoid a hazard.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualied elec-
trician. He should also check that the domestic electrical system is suitable for the power
drawn by the appliance.
Replacing the power cord must be done by a qualied electrician in accordance with
the instructions supplied by the manufacturer and in compliance with established
electrical regulations.

11
REPLACING THE POWER SUPPLY CABLE
Important! This appliance must be connected to the electricity supply only by an
authorised person.
To connect the supply cable:
■Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (g. 5).
■Open the cable gland by unscrewing screw “F” (g. 6), unscrew the terminal screws
and remove the cable.
■The new supply cable, of suitable type and section, is connected to the terminal board
following the diagram g. 7.
■Close and hook again the terminal board cover.
N.B. The earth conductor must be left about 3 cm longer than the others.
VOLTAGE AND POWER CONSUMPTION
220-240 V ac 3095 W (13.45 A)
FEEDER CABLE SECTION
TYPE H05RR-F
3 x 1,5 mm2(*) (**)
(*) Connection possible with plug and outlet
(**) Connection with wall box connection.
F
A
E
N (L2)
L1
Figure 6
Figure 5
Figure 7
220 - 240 V

12
ELECTRIC DIAGRAM
1
9
9a
6
14
4
12
12a
3
11
8
16
16a
2
10
10a
7
15
15a
5
13
13a 1a 6a 3a 8a 2a 7a 5a
L N
F1
V
LF
GIR
ST1 ST3 ST4
CIR
G
C
S INT.
S EXT.
TH PR
CF
R
TL
DL
T
M
SL ST SD
TL1
1 2 3 4 5 6 7
34 33 4 3 2
Figure 8

13
ELECTRIC DIAGRAM KEY
F1 Oven switch
TH Safety thermostat
ST1 Oven temperature sensor
ST3 Oven door switch
ST4 Encoder switch
PR Oven programmer
TL Thermal overload
TL1 Thermal overload
DL Door locking safety device
CF Cooling fan motor
LF Oven lamp
R Resistance
V Oven fan motor
GIR Rotisserie motor
ST Thermostat pilot lamp
SL Line pilot lamp
SD Door locking pilot lamp
C Oven top element
G Oven grill element
S INT. Oven bottom element 1
S EXT. Oven bottom element 2
CIR Oven circular element
M Terminal block
T Earth connection

14
USE AND CARE
Figure 10
Safety catch
Figure 9
CAUTION:
■This appliance must be used only for the task it has explicitly been designed for, that
is for domestic cooking of foodstuffs. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
■Do NOT place combustible materials or products on this appliance at any time.
USING THE OVEN FOR THE FIRST TIME
Operate as follows:
■ Slide in the grease lter on the back of the oven as in g. 10.
■ Slide in, on the side formed runners, the shelves operating as per gure 9.
The oven shelves are provided with a security block to prevent accidental extraction.
Keep attention to insert the shelves correctly.
To pull them out operate in the inverse order.
■Introduce the grill tray in the oven; it shall be placed above the shelf and it should be
centered with the grill element (g. 11). The tray does not t into the side formed
runners.
■To eliminate traces of grease in manufacture it is necessary to pre-heat the oven at the
maximum temperature:
• For 60 minutes in the position, for 30 minutes in the position and for another 15
minutes in the position.
■Let the oven cool down, switch off the electrical supply, then clean the inside of the
oven with a cloth soaked in water and neutral detergent and dry thoroughly.
Important: Always use suitable protective gloves when inserting/removing the
baking/grill tray, shelves, pans on other cooking utensils from the oven.

15
GREASE FILTER
■A special screen is provided at the back of the oven to catch grease particles, mainly
when meat is being roasted.
■ Clean the lter after any cooking! The grease lter can be removed for cleaning and
should be washed regularly in hot soapy water (g. 10).
■ Always dry the lter properly before tting it back into the oven.
CAUTION: When baking pastry etc. this lter should be removed.
Figure 11
WRONG CORRECT
Baking tray
Grill tray (baking tray + grill
grid tted above)

16
MULTIFUNCTION PYROLYTIC OVEN
Temperature knob
(potentiometer)
Function
selector knob
Digital electronic
programmer
Temperature
pilot light
Line
pilot light
Door locked
pilot light
A
U
T
O
P
GENERAL FEATURES
This oven has special operating features.
Five different functions can be used to satisfy all cooking needs; it also has a pyrolytic
function which can clean the oven cavity at high temperature, a defrost and an oven light
function.
The functions are managed by an electronic programmer which keeps the temperature set
constant by means of a probe inside the oven cavity.
The oven has the following heating elements:
■Lower heating element (double) 500 + 1300 W (@230V)
■Upper heating element 1000 W (@230V)
■Grill heating element 2000 W (@230V)
■Circular heating element 2200 W (@230V)
WARNING:
The door is hot, use the handle.
During use the appliance becomes hot.
Care should be taken to avoid touching heating elements inside the oven.
Figure 12
Please note:
This appliance incorporates a safety cooling fan which you will hear operating whenever
the oven or grill are in use.
This fan may continue to run for several minutes after the appliance has been switched off.
This fan is to reduce the external temperature of the appliance and cool the internal com-
ponents.

17
OPERATING PRINCIPLES
Heating and cooking in the multifunction pyrolytic oven takes place as follows:
■by normal convection
The heat is produced by the upper and lower heating elements.
■by forced convection
A fan sucks in the air contained in the oven, which circulates it through the circular
heating element and then forced back into the oven by the fan.
Before the hot air is sucked back again by the fan to repeat the described cycle, it
envelops the food in the oven, provoking a complete and rapid cooking.
It is possible to cook several dishes simultaneously.
■by radiation
The heat is radiated by the radiant grill element.
■by double radiation and fan
The fan distributes the heat radiated by the grill heating element and the upper heating
element in the oven.
■by ventilation
The food is defrosted by using the fan only function without heat.
■by pyrolysis
The heat produced by the heating elements cleans the internal oven cavity removing
all residue of grease. THIS IS NOT A COOKING FUNCTION
NOTES ON OVEN WORKING
A cooling fan starts automatically when the temperature inside the oven cavity is
higher than 100°C and stops when the temperature drops below 100 °C.
For the pyrolytic function only, it starts immediately when the pyrolytic cycle starts.
The purpose of this fan is to reduce the temperature inside/outside the appliance.
Note: The rst time the oven is used or after a black-out the programmer must be started
by pressing keys 2 and 3 simultaneously. See the chapter “HOW TO USE THE ELECTRO-
NIC PROGRAMMER”.
Attention: The oven door becomes very hot during
operation. Keep children away.
23
IIIIII
I
I
I
I
I
I
IIIIIIIIII
I
I
I
I
I
I
IIII

18
SELECTING THE FUNCTIONS
The cooking function is selected by turning
the function selector knob and matching the
knob mark with the symbol printed on the
control panel.
Important: In all cooking functions the
oven must always be used with the DOOR
CLOSED.
If the door stays open
“door” appears on the
programmer display
and after ve minutes
an audible warning sounds for 30 secon-
ds and “door” ashes.
To silence the audible warning press any
programmer pushbutton.
NOTE: The heating elements work even with the door open and this signal just indi-
cates that energy is being wasted.
OVEN LIGHT
By turning the knob onto this setting we light the oven cavity.
The lamp is always on in all the cooking functions (not for the pyrolysis).
DEFROSTING FROZEN FOODS (this is not a cooking function)
Only the oven fan and the oven lamp switch on.
Defrosting takes place by fan, without heating.
The electronic programmer shows dEF.
Recommended for:
To rapidly defrost frozen foods; 1 kilogram requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.
HOT AIR COOKING
The circular heating element and the fan switch on. The heat is diffused by forced convec-
tion and the temperature can be set between 50 and 250 °C.
On selecting this function the electronic programmer starts cooking with a pre-heating time
set at 180 °C. To vary the temperature see the “SETTING THE COOKING” chapter.
Recommended for:
For foods that must be well done on the outside and tender or rare on the inside, i.e. lasa-
gna, lamb, roast beef, whole sh, etc.
IIIIII
I
I
I
I
I
I
IIIIIIIIII
I
I
I
I
I
I
IIII
Figure 13

19
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements switch on.
The heat is diffused by natural convection and the temperature must be set between 50
and 250 °C.
On selecting this function the electronic programmer starts cooking with a pre-heating time
set at 200 °C. To vary the temperature see the “SETTING THE COOKING” chapter.
Recommended for:
For foods which require the same cooking temperature both internally and externally, i. e.
roasts, spare ribs, meringue, etc.
FAN COOKING WITH DOUBLE GRILL
The radiant grill, the upper heating element and the fan switch on. The heat is mainly dif-
fused by radiation and the fan distributes it in the whole oven. The temperature can be set
between 50 and 250 °C.
On selecting this function the electronic programmer starts cooking with a pre-heating time
set at 240 °C. To vary the temperature see the “SETTING THE COOKING” chapter.
Recommended for:
Meats which are to be cooked at a high temperature but which must remain tender.
Fish remains more tender; turn it once during cooking.
GRILLING
The radiant heating element switches on. The heat is diffused by radiation.
The temperature can be set between 50 and 250 °C.
On selecting this function the electronic programmer starts cooking with a pre-heating
time set at 210 °C. To vary the temperature see the “SETTING THE COOKING” chapter.
Recommended for:
Intense grilling action for cooking with the broiler; browning, crisping, “au gratin”, toasting,
etc. For correct use see the “Grilling” chapter.
GRILLING WITH ROTISSERIE
The infrared grill switches on and the turnspit motor starts. The heat is diffused by radiation.
The temperature can be set between 50 and 250°C.
On selecting this function the electronic programmer starts cooking with a pre-heating time
set at 220°C. To vary the temperature see the “SETTING THE COOKING” chapter.
Recommended for:
Cooking on the spit.
For correct use see the “USE OF THE ROTISSERIE” chapter.

20
PYROLYSIS FUNCTION
GENERAL INFORMATION
■In this function the residual cooking greases on the inside walls of the oven cavity are
pulverised by the high temperature. The fumes produced during this process are lte-
red by a special catalyst in the upper part of the appliance.
■Smells and fumes produced during pyrolysis are not a cause of alarm. Adequate ven-
tilation should however be provided in the room where the oven is installed, e.g. by
opening a window.
 IMPORTANT: The health of some birds is extremely sensitive to the fumes given off
during the self-cleaning cycle. Exposure to the fumes may result in death to certain
birds. Always move birds to another closed and well ventilated room.
■Do not wait for the oven to be very greasy before performing this cleaning. It should
not be performed after every cooking, either, but only when the level of dirt justies it
(on average 1 – 2 times a month depending on oven use).
■For safety reasons (high temperature of the oven cavity), when the pyrolysis
starts the oven is automatically locked by an electronic device (on the control
panel the pilot light with key symbol lights up). The door can no longer be ope-
ned and is only unlocked at the end of the cleaning cycle or, stopping the cycle,
when the oven cavity has cooled to a temperature lower than 300 °C.
■When the pyrolytic function starts an internal fan starts automatically to cool the oven
walls. It only stops at the end of the cycle, when the oven cavity temperature has
dropped below 100 °C.
■The procedures for starting, stopping and completing the pyrolysis cycle and dealing
with any problems are described in the following chapters:
• “HOW TO START THE PYROLYSIS CYCLE”
• “PROBLEMS ON STARTING AND DURING THE PYROLYSIS CYCLE”
• “HOW TO STOP THE PYROLYSIS CYCLE”
• “WHAT TO DO WHEN THE PYROLYSIS CYCLE HAS FINISHED”
• “ABNORMAL SITUATIONS AND/OR OPERATING PROBLEMS”
■Caution: During the pyrolytic cycle the accessible parts may become hot. Keep
children away.
IMPORTANT NOTES:
This is not a cooking function but is only used to clean the oven.
Before starting the pyrolytic cycle:
■Take all the accessories out of the oven (baking/grill tray and shelves). If the
oven has an anti-grease lter unhook and remove it, as described on page 14.
■Clean any traces of liquid which have overowed.
■Close the oven door and make sure that it is closed properly.
If there are cracks or aws on the oven door glass (inside/outside) or if the ga-
skets are ruined or worn or if the door does not close perfectly, unplug the ap-
pliance and contact the After-Sales Service Centre.
