Delta RS2300 User manual

x1 — Single Pulley (Back)
x1 — Double Pulley (Front)
x7 — Screws
x2 — Pulley Hooks
x1 — Cord Cleat
x1 — Cord
x2 — Strap
Tool (s) Required
Parts
Phillips Head
Screwdriver Drill
AA
BB
CC
DD
EE
FF
GG
Assembly instructions RS2300Assembly instructions RS2300
NEVER EXCEED MAXIMUM TOTAL WEIGHT LIMIT OF 50 LBS (23 Kgs)
BEFORE USE THOROUGHLY TEST THE HOIST FULLY WEIGHTED WITH THE ITEM INTENDED TO BE STORED, ENSURING
THE UNIT HAS BEEN INSTALLED SECURELY AND IS FUNCTIONING PROPERLY.
NEVER EXCEED MAXIMUM TOTAL WEIGHT LIMIT OF 50 LBS (23 Kgs)
BEFORE USE THOROUGHLY TEST THE HOIST FULLY WEIGHTED WITH THE ITEM INTENDED TO BE STORED, ENSURING
THE UNIT HAS BEEN INSTALLED SECURELY AND IS FUNCTIONING PROPERLY.
MAKE SURE THAT THERE ARE NO OBSTRUCTIONS TO RESTRICT OPERATION OF THE HOIST ASSEMBLY AS WELL AS
THE HOISTED ITEM; FOR EXAMPLE: VEHICLES, GARAGE DOORS AND OTHER EQUIPMENT.
DO NOT CUT THE CORD.
MAKE SURE THAT THERE ARE NO OBSTRUCTIONS TO RESTRICT OPERATION OF THE HOIST ASSEMBLY AS WELL AS
THE HOISTED ITEM; FOR EXAMPLE: VEHICLES, GARAGE DOORS AND OTHER EQUIPMENT.
DO NOT CUT THE CORD.
IMPROPER INSTALLATION OR USE CAN RESULT IN PERSONAL INJURY AND/OR DAMAGE TO PROPERTY.IMPROPER INSTALLATION OR USE CAN RESULT IN PERSONAL INJURY AND/OR DAMAGE TO PROPERTY.
IMPORTANTIMPORTANT
IT IS RECOMMENDED THIS ITEM BE INSTALLED
BY A COMPETENT PROFESSIONAL
IT IS RECOMMENDED THIS ITEM BE INSTALLED
BY A COMPETENT PROFESSIONAL
Single Bike
Ceiling Hoist
With Straps
Tape Measure
Stud Locator
1/8” drill bit
(3mm)
DD
GG
BB
FF
CC
EE
AA
WARNING

1 2
3
56
4

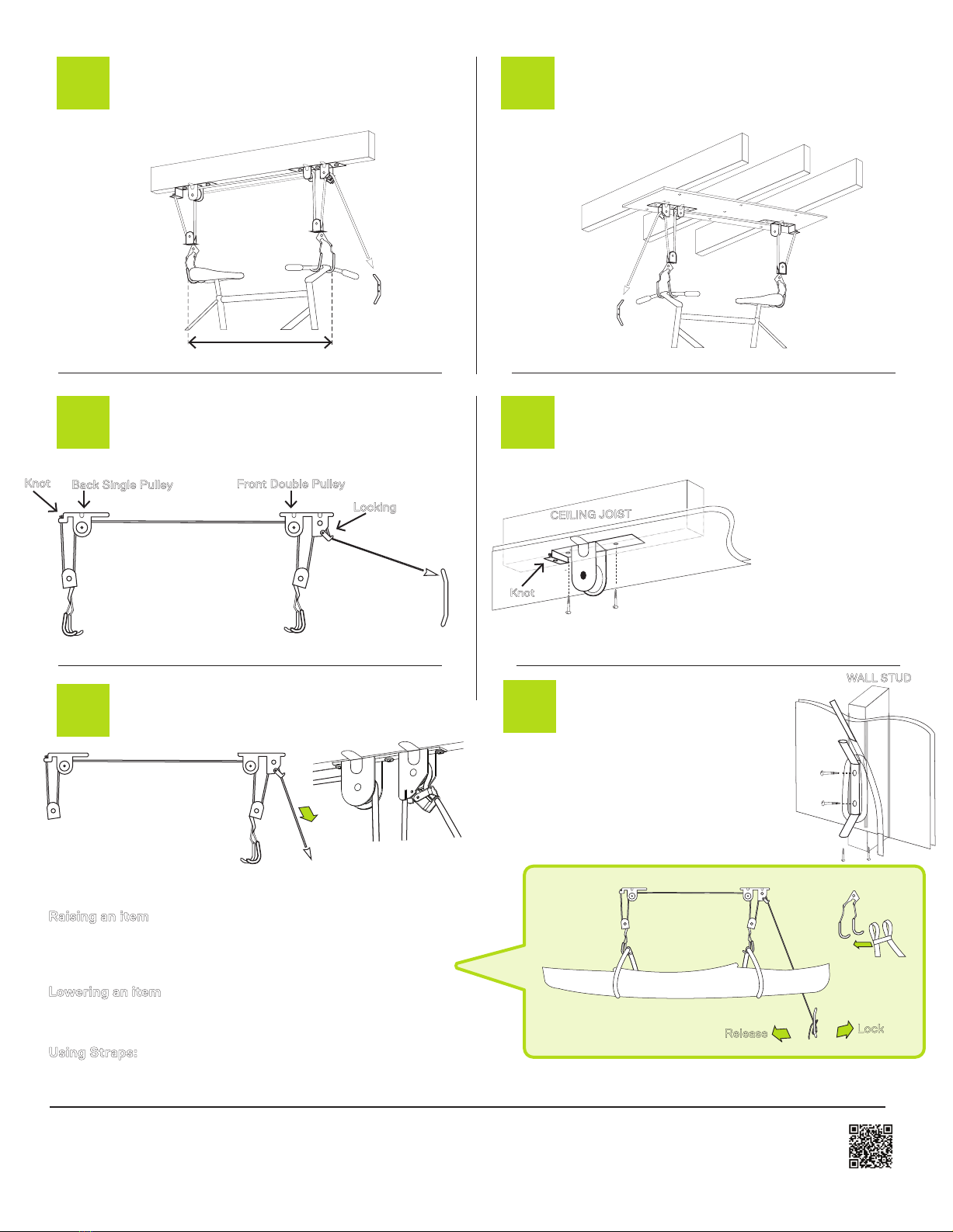

Determine the correct distance required between
the two pulley hooks
(e.g. handlebars to back of seat on a bicycle).
Securely tie a double knot in the end of the cord and feed the
remaining cord throught the hole on the end of the pulley unit
that does not have the cord locking mechanism. The knotted
end will then be between the ceiling and the pulley bracket.
Using screws provided, carefully mount each pulley into the
ceiling joist at the correct distance so the hooks will line up
(as measured in 1). Important; ensure that the 2 screws on
each pulley are securely mounted into the joist. Pre-drilling
1/8” pilot holes will make this job easier.
LockingLocking
Thread the cord through the pulleys as shown. Be sure to
carefully thread the cord down through both parts of the
locking mechanism.
Mount the cord cleat at a safe height
out of reach of small children and
screw directly into a stud using two
wood screws supplied. When item is
raised to the desired height, the excess
rope should be stored around the cleat
Do Not Cut Excess Cord.
Raising an itemRaising an item
Lowering an itemLowering an item
Keeping the tension in this direction, slowly let the cord out as the item
lowers. Once low enough, remove item from the hooks and wrap the cord
back on the cleat.
Using Straps:Using Straps:
First ensure the bulky item is properly secured, tightening the straps
as needed at the buckle. Secure the loops onto all of the hooks before
hoisting the item.
USAGE INSTRUCTIONS:
WALL STUDWALL STUD
CEILING JOISTCEILING JOIST
Back Single PulleyBack Single Pulley
KnotKnot Front Double PulleyFront Double Pulley
Ensure the hooks are properly secured on the item and the cord is not
twisted before pulling on the cord. The auto-locking device will hold the
item suspendedwith each pull. Once hoisted to the correct height, wrap
the excess cord securely around the cleat.
LockLock
ReleaseRelease
KnotKnot
Locate the ceiling joist. Transfer the distance measurement
(Step 1) so that the pulleys line up to the correct distance
along the joist (Note: It is also possible to mount the pulleys
rst onto a board which can then be securely mounted to
joists as illustrated).
Delta Cycle Corporation 36 York Avenue, Randolph, MA 02368 USA / 800-474-6615 / www.designbydelta.com
Need help?
Email us at [e-mail]
& we’ll help solve your issue.
Assembly video
Visit designbydelta.com/downloads
