DELTRAN BATTERY TENDER®WP800
Installation & Mounting Instructions
________________________________________________________________________________________________________
Page 1 of 2
LIKE POLARITIES MUST CONNECT TO BE SAFE.
Exposed Pin
is Negative
Quick Disconnect
same as used on
081-0069-6
Battery Tender Waterproof 800
Ex posed Pin
is Pos itive
Covered Soc ket
is Negative
Covered Soc ket
is Positive
Automotive Style Blade Fuse
3.0 or 7.5 A mp
Ring Terminals: A pprox
5/16" Ins ide Diameter
9/16" Outside Diameter
Fused Ring Terminals w ith
Quick Disconnect
PN 081-0069-6

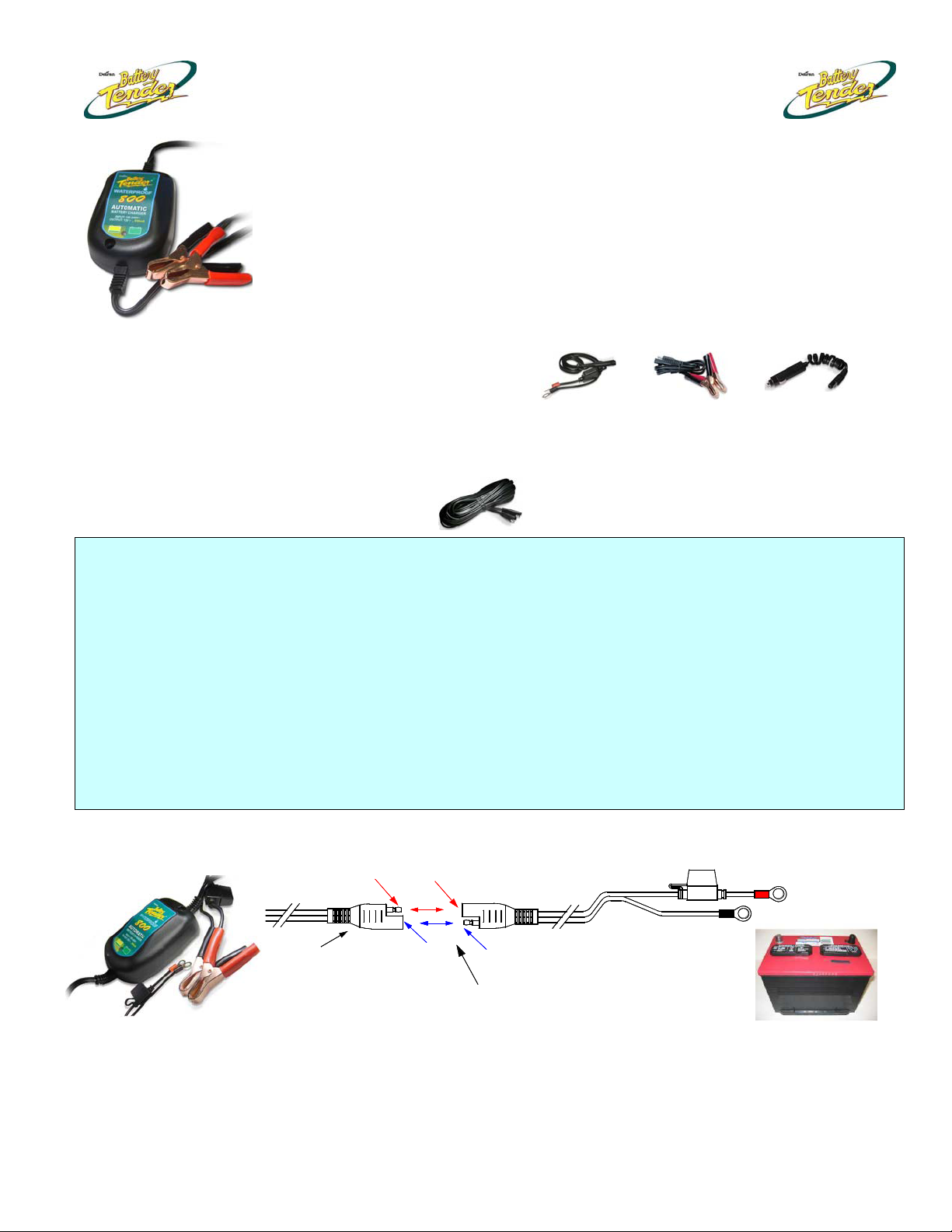

The Battery Tender® WP800 (Part # 022-0150-DL-WH) charger has an AC
power cord with a NEMA 1-15 plug (2-prong, no separate ground pin) that plugs
into a residential AC receptacle. The approximate AC power cord length is 6 feet.
There is no ON / OFF switch on the charger.
The DC output cord is a 2-wire, insulated cable assembly with a black, molded,
2 pin quick-disconnect plug on the end. That plug connects to a number of DC
output cable accessories.
The common DC output cable assembly accessories are: (Approx cable
lengths 18 inch min, 24 inch max.) Shown in order from left to right:
081-0069-6: Fused Ring Terminal Cable Assembly
081-0069-4: Fused Alligator Clip Cable Assembly
081-0069-5: Fused Cigarette Adapter Cable Assembly
Extension cables have the same cord configuration as the DC output cable connected to the
charger body. Each end of the cable extension has a black, molded, 2 pin quick-disconnect plug.
081-0148-25 Extension Cable, 25 ft long.
081-0148-12 Extension Cable, 12 ft long.
The following connection rule applies for DC cable assemblies and the black, molded, 2 pin quick-
disconnect plug.
If the DC cable is directly connected to the body of a charger, then the exposed pin is connected to
POSITIVE voltage at the charger output. The same will be true for the exposed pin on the end of an
extension cable when the other end of the extension cable is connected to the charger DC output cable.
DC cable assembly accessories are designed so that the rings, clips, or the cigarette adapter connect to a
battery. The exposed pin on a DC cable assembly accessory is connected to NEGATIVE OR
REFERENCE voltage at the battery.Again, the same will be true for the exposed pin on the end of
an extension cable when the other end of the extension cable is connected to a DC cable assembly
accessory.
For inquiries and orders, contact:
MICROBATTERY.COM 7350 NW 35th Terrace, Miami, Florida 33122
Customer Service: 1-866-999-2355 Phone [phone] FAX [phone]
www.microbattery.com

DELTRAN BATTERY TENDER®WP800
Installation & Mounting Instructions
________________________________________________________________________________________________________
Page 2 of 2
CONNECTING OPPOSITE POLARITIES
CAUSES A DANGEROUS SHORT CIRCUIT.
NEVER
CONNECT
THESE
2 PLUGS!!!
NEG POS
Battery
Cov ered Soc ket
is Positive
Exposed Pin
is Negative
NEG POS
Battery
Exposed Pin
is Negative
Cov ered Soc ket
is Pos itive
DANGER: NEVER CONNECT THE QUICK DISCONNECT
PLUGS TOGETHER ON TWO (2) DC CABLE ASSEMBLY
ACCESSORIES THAT ARE BOTH CONNECTED TO BATTERIES.
THESE CABLES ARE NOT JUMPER CABLES!!
EVEN A RELATIVELY SMALL 18 TO 22 AMP HOUR
BATTERY CAN GENERATE SEVERAL HUNDRED,
MAYBE EVEN MORE THAN ONE THOUSAND
AMPERES WHEN THE TERMINALS ARE SHORT
CIRCUITED!
Insulation will melt, and virtually vaporize. Conductors will
turn bright orange and any combustible material that is
nearby will very likely begin to burn.
THIS SITUATION IS EXTREMELY DANGEROUS.
!
