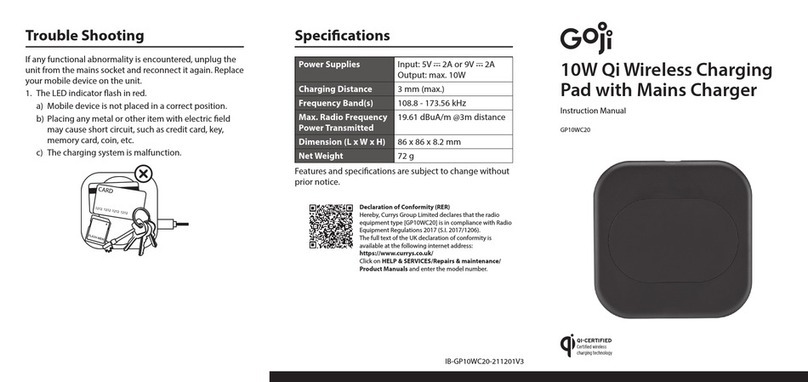

Goji GP10WC20 User manual

Specications
Power Supplies Input: 5V 2A or 9V 2A
Output: max. 10W
Charging Distance 3 mm (max.)
Frequency Band(s) 106.81 – 175.56 kHz
Max. Radio Frequency
Power Transmitted
22 dBuA/m @3m distance
Dimension (L x W x H) 86 x 86 x 8.2 mm
Net Weight 72 g
Features and specications are subject to change without
prior notice.
IB-GP10WC20-200115V1
Trouble Shooting
If any functional abnormality is encountered, unplug the
unit from the mains socket and reconnect it again. Replace
your mobile device on the unit.
1. The LED indicator ash in red.
a) Mobile device is not placed in a correct position.
b) Placing any metal or other item with electric eld
may cause short circuit, such as credit card, key,
memory card, etc.
c) The charging system is malfunction.
Declaration of Conformity (RED)
Hereby, DSG Retail Ltd. declares that the radio
equipment type [GP10WC20] is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of conformity is
available at the following internet address:
https://www.teamknowhow.com/
Click on SEARCH and enter the model number.
10W Qi Wireless Charging
Pad with Mains Charger
Instruction Manual
GP10WC20

Thank you for purchasing your new
product.
We recommend that you spend some time reading
this instruction manual in order that you fully
understand all the operational features it oers.
You will also nd some hints and tips to help you
resolve any issues.
Read all the safety instructions carefully before
use and keep this instruction manual for future
reference.
Product Overview
LED indicator
Qi sensor
USB input socket
Charging Your Digital Devices
1. Connect the USB charging cable to the product.
2. Connect the other end of the USB charging cable to a
powered USB device.
3. Place your mobile device on the top of the product.
Ensure it is on the right position/direction.
LED indicator
Qi sensor
This product only supports mobile device with
Qi feature.
Status Charging indicator
Charging Light up in green
Fully charged Light off
Error Flash in red
Mobile device’s
Qi sensor
Charging pad’s
Qi sensor
4. Both Qi sensors must overlap.
