Denon PMA-30 User manual

.
PMA-30
INTEGRATED AMPLIFIER
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 4
Features 5
High quality 5
High performance 5
Part names and functions 6
Front panel 6
Display 8
Rear panel 9
Remote control unit 10
Connections
Installing this unit 14
Installing horizontally 14
Installing vertically 15
Before using the remote control unit 17
Operating range of the remote control unit 18
Connecting speakers 19
Speaker connection 20
Connecting to a device with digital audio output connectors 21
Connecting to a device with analog audio output connectors 22
Connecting the power cord 23
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index

Playback
Basic operation 25
Turning the power on 25
Switching the power to standby 25
Selecting the input source 26
Adjusting the volume 27
Turning off the sound temporarily (Muting) 27
Switching the display’s brightness 27
Playing a device 28
Playing CDs 28
Listening to music via a digital connection (COAXIAL/OPTICAL-1/
OPTICAL-2) 29
Listening to music via a analog connection (AUX) 30
Listening to music on a Bluetooth device 31
Settings
Menu map 37
Source Direct 39
Bass 39
Treble 39
Balance 39
H/P AMP Gain 39
Bluetooth 40
Auto Standby 40
Tips
Tips 42
Troubleshooting 43
Resetting to factory settings 49
Appendix
Specifications of supported audio formats 50
D/A Converter 50
Playing back Bluetooth devices 50
Bluetooth communications 50
Explanation of terms 51
Trademark information 52
Specifications 53
Index 56
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Cautions on Using Batteries Notes on radio
Remote control unit
(RC-1220) (built-in battery)
Caps (silver) (x4)
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Features
High quality
0The Denon unique digital integrated stereo amplifier
With an output of 40 W+40 W (4 Ω/ohms) much higher than you would
expect from an enclosure of this size, you can enjoy the balance
between delicacy and power that Denon’s sound is known for.
0Durable Aluminum Panels
The upper and lower panels of this device are made with 3mm-thick
aluminum. The highly rigid aluminum panels allow the device to perform
to its full capabilities by suppressing the negative effects external
vibrations have on sound quality.
High performance
0Compatible with a wide range of digital input equipment
This device is installed with two optical digital input interfaces and one
coaxial digital input interface to enable connection to a variety of TVs
and other digital input devices.
0Wireless connection with Bluetooth enabled devices (v p. 31)
You can connect Bluetooth enabled devices such as smartphones and
tablets with this unit to listen to music while browsing email and Web
sites in the Internet away from this unit. In addition, this unit supports
high quality audio codecs, aptX Low Latency and AAC, to enjoy music
and games with a powerful sound.
0Supports vertical installation
This unit can be installed vertically or horizontally. The display
automatically rotates to match the installation orientation.
0System remote control
This unit comes with a system remote control that can also operate the
Denon's CD Player DCD-50.
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Part names and functions

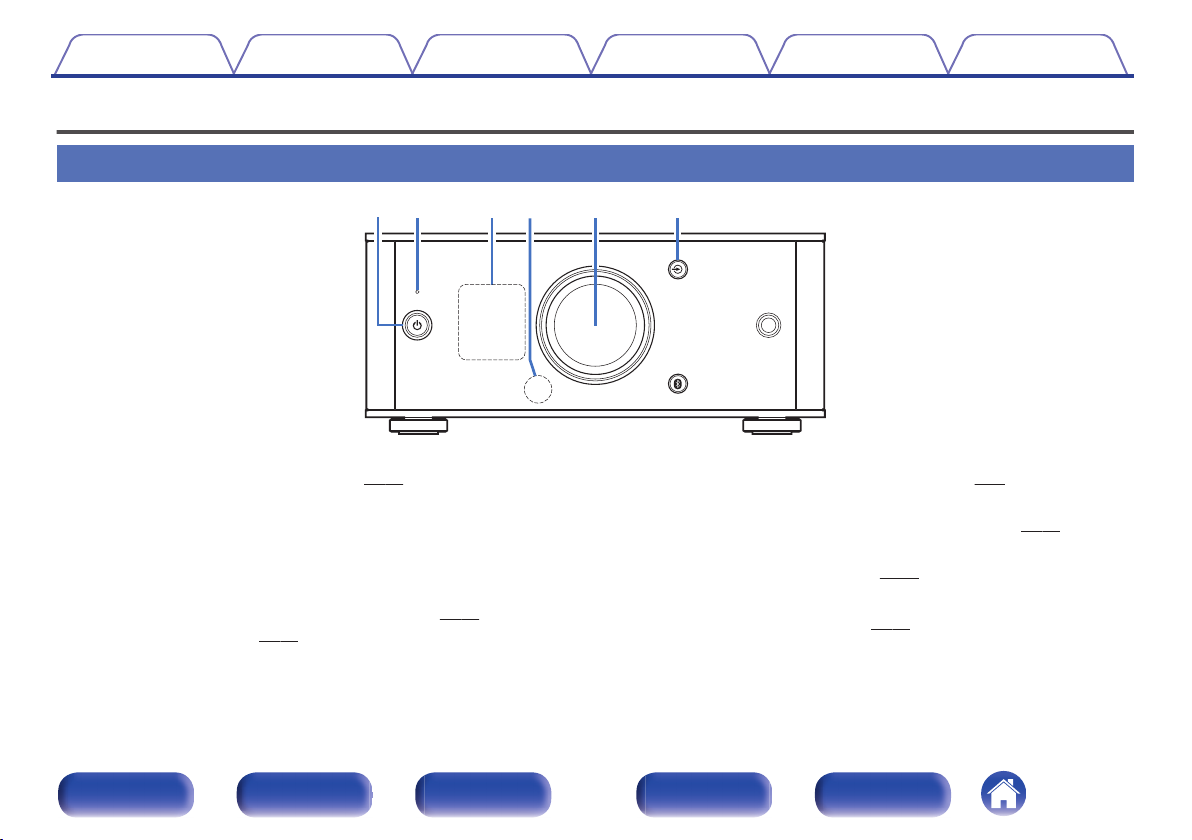

Front panel
.
w e t y q r
APower operation button (X)
This turns the power on/to standby. (v p. 25)
The power status is indicated as follows.
0Power on: Display lit
0Standby: Display off
BProtection circuit indicator
This blinks when the protection circuit has operated.
0“Power does not turn on/Power is turned off” (v p. 44)
0“Protection circuit” (v p. 51)
CDisplay
This displays various pieces of information. (v p. 8)
DRemote control sensor
This receives signals from the remote control unit. (v p. 18)
EVolume control knob
This adjusts the volume level. (v p. 27)
FInput source switching button (q)
This switches input sources. (v p. 26)
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

.
i
u
.
o
GHeadphones jack
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the speaker terminals.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
HBluetooth button (V)
This switches the input to Bluetooth. This is also pressed during the
pairing operation. (v p. 32)
IInstallation holes for vertical installation feet
These are used when the unit is installed vertically. (v p. 15)
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Display
.
q w
AInput source indicator
The following is displayed depending on the selected input source.
COAXIAL OPTICAL-1 OPTICAL-2 AUX Bluetooth
.
.
.
.
.
BInformation display
Displays items such as information on the audio signal being input or
the name of a Bluetooth device.
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Rear panel
.
q
r t
we
APower cord (v p. 23)
BAUX input connectors (AUDIO IN)
Used to connect devices equipped with analog audio connectors such
as CD players. (v p. 22)
CDIGITAL AUDIO IN connectors
Used to connect devices equipped with digital audio output
connectors. (v p. 21)
DSpeaker terminals (SPEAKERS)
Used to connect speakers. (v p. 20)
ESubwoofer terminal (PRE OUT)
Used to connect a subwoofer with a built-in amplifier. (v p. 20)
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Remote control unit
.
q
e
r
t
w
oOperating this unit
ADIMMER button
Adjust the display brightness of this unit. (v p. 27)
BCursor buttons (uio p)
These select menu items.
CBACK button
Returns to the previous item.
DBluetooth button (V)
This switches the input to Bluetooth. This is also pressed during the
pairing operation. (v p. 32)
EINPUT SELECT buttons (df)
This switches input sources. (v p. 26)
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

.
u
y
o
Q0
i
Q1

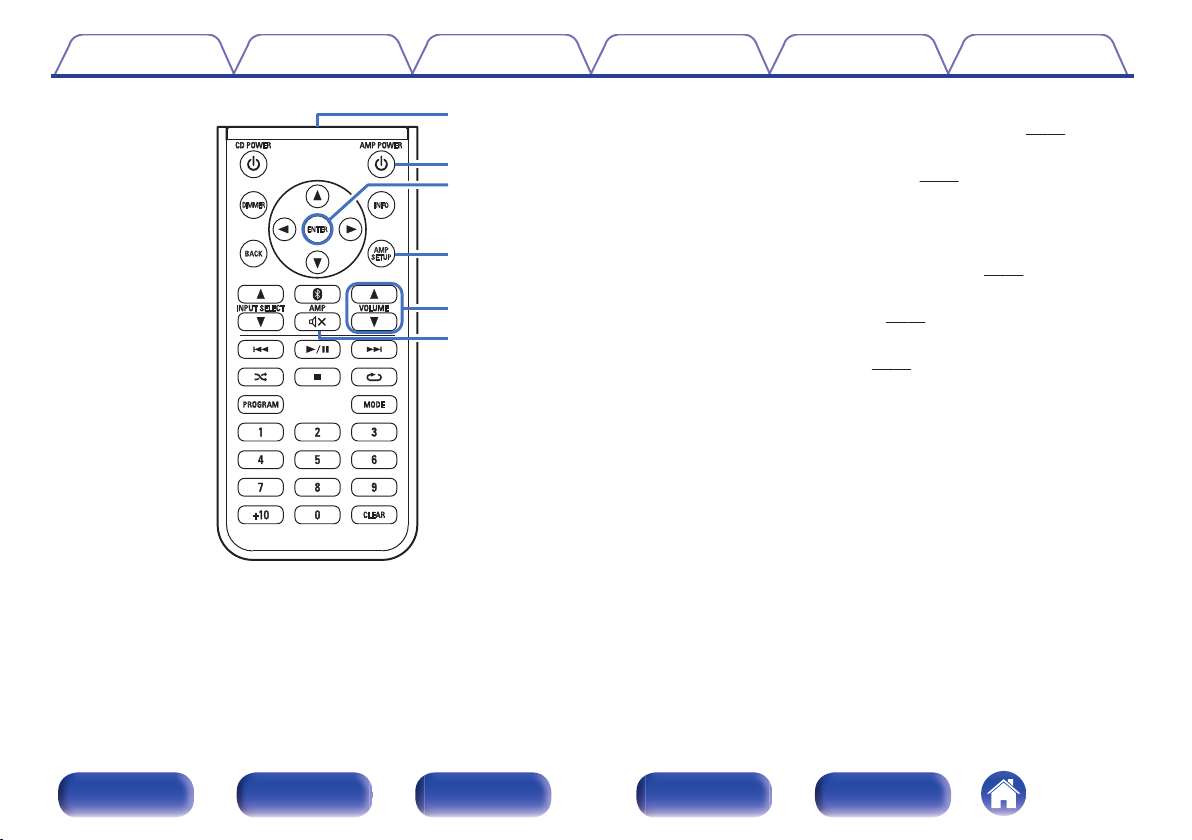

FSignal transmitter
This transmits signals from the remote control unit. (v p. 18)
GPower operation button (AMP POWER X)
This turns the power on/to standby. (v p. 25)
HENTER button
This determines the selection.
IAMP SETUP button
The setting menu is displayed on the display. (v p. 38)
JVOLUME buttons (df)
These adjust the volume level. (v p. 27)
KMute button (:)
This mutes the output audio. (v p. 27)
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

.
q
w
e
r
t
y
i
o
Q0
Q1
Q2
u

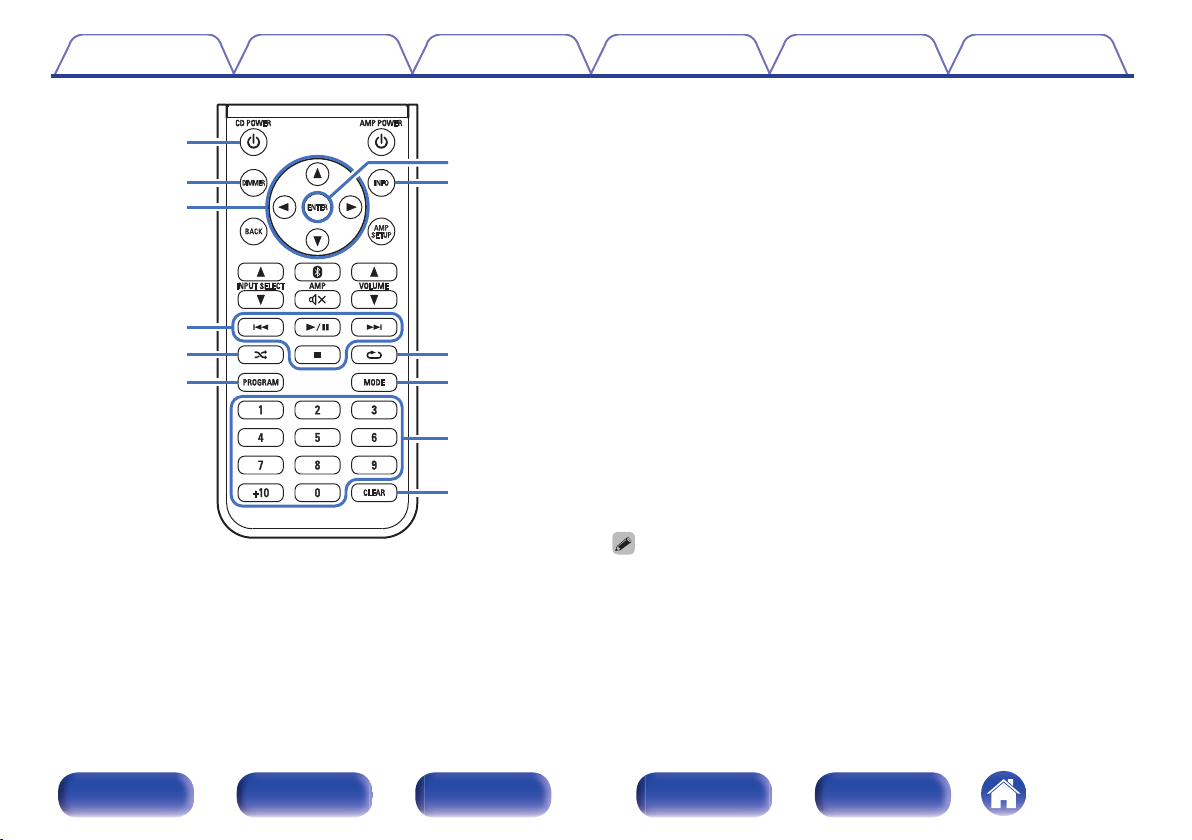

oCD player operations
A Denon CD player can be operated.
APower operation button (CD POWER X)
BDIMMER button
CCursor buttons (uio p)
DSystem buttons
0Skip buttons (8 / 9)
0Play/pause button (1 / 3)
0Stop button (2)
ERandom button (P)
FPROGRAM button
GENTER button
HINFO button
IRepeat button (L)
JMODE button
KNumber buttons (0 – 9, +10)
LCLEAR button
0The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

oContents
Installing this unit 14
Installing horizontally 14
Installing vertically 15
Before using the remote control unit 17
Connecting speakers 19
Connecting to a device with digital audio output connectors 21
Connecting to a device with analog audio output connectors 22
Connecting the power cord 23
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
oCables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Audio cable
.
R
L
R
L
Optical cable
.
Coaxial digital cable
.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

Installing this unit
This unit can be installed in two ways - horizontally or vertically. You can
select how to install this unit according to the installation place and your
preference. Installing horizontally
The feet are initially attached to the unit for horizontal installation.
.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

Installing vertically
This orientation is suitable for placing a narrow place such as a place next
to a laptop computer.
.
1Remove the feet.
.
0Rotate each of the 4 feet counter-clockwise to remove.
2Insert the supplied caps (silver) into the holes from
which the feet were removed.
.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

3Remove the cap (black).
.
NOTE
0Be careful not to damage your nails when removing the caps.
If necessary, use a thin-tipped tool to remove the caps. However, be careful
not to damage the unit when using tools.
4Rotate the removed feet clockwise to attach them.
.
NOTE
0After attaching the feet, adjust the height of the feet as necessary so that the
set is stable when installed.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

Before using the remote control unit
The remote control unit has a built-in lithium battery.
Pull out the insulation sheet before use.
.

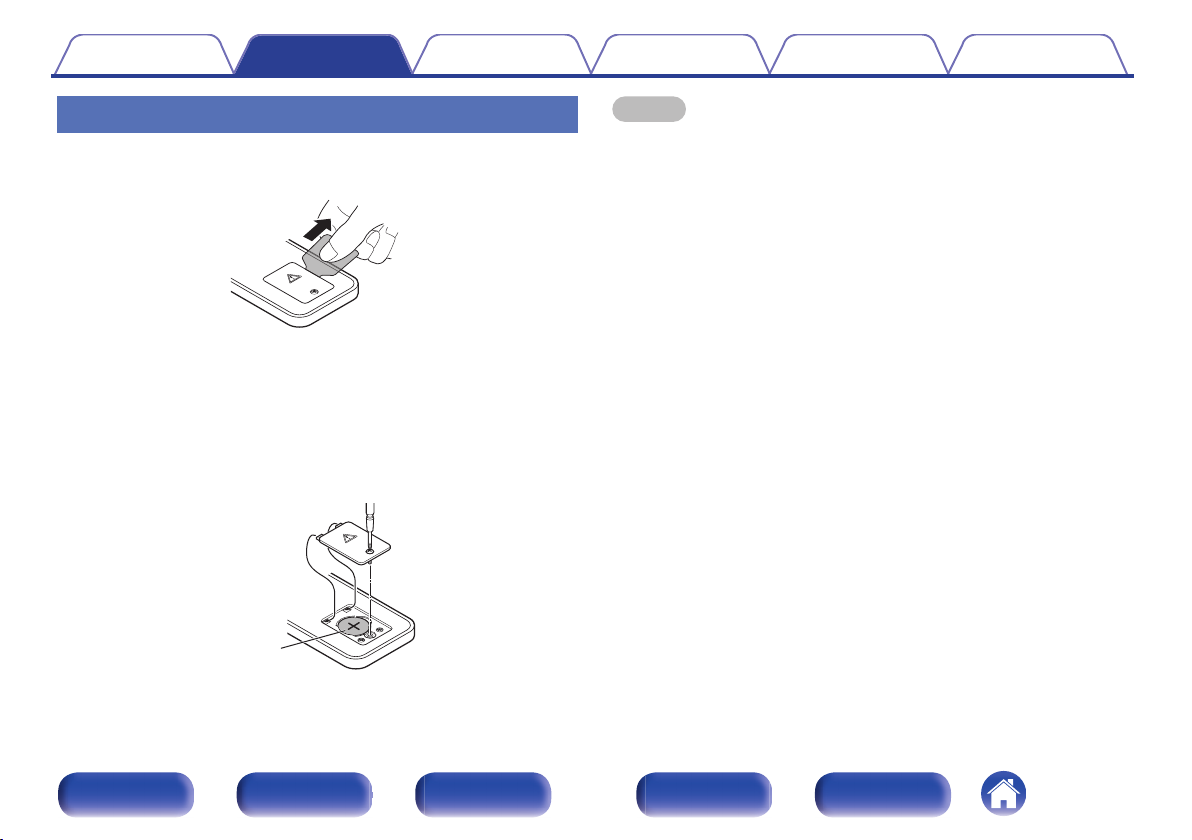

oReplacing the battery
1. Loosen the screws of the back cover with a fine crosshead screwdriver
(purchased separately) and remove the back cover.
2. Remove the old battery, then insert a new coin-shaped lithium battery
(CR2025) so that the + symbol engraved on the battery faces upwards.
3. Put the back cover back on and tighten the screws.
.
CR2025
NOTE
0If the battery should have a leakage, immediately replace and dispose of the
battery. In this case, there is a risk of burn when the liquid comes in contact with
skins or clothes, so a great care should be taken. If the liquid accidentally comes in
contact, wash with tap water and consult a doctor.
0Remove the battery from the remote control unit if it will not be in use for long
periods.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 7 m
30° 30°
[Horizontal installation]
.
30° 30°
Approx. 7 m
[Vertical installation]
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

Connecting speakers
NOTE
0Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v p. 51))
0Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0Use speakers with impedance of 4 - 16 Ω/ohms.
oConnecting the speaker cables
Carefully check the left (L) and right (R) channels on the speakers
being connected to this unit, and be sure to connect the polarities
correctly.
1Peel off about 10 mm of sheathing from the tip of the
speaker cable, then either twist the core wire tightly or
terminate it.
.
2Turn the speaker terminal counterclockwise to loosen
it.
.
3Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
.
4Turn the speaker terminal clockwise to tighten it.
.
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

Speaker connection
.
wq
(R)
wq
(L)
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
