HYBRID OPERATION

2
Overview of HYBRID MIDI FUNCTION
Denon’s new Hybrid MIDI mode adds impressive DVS (Digital Vinyl System) versatility to the DN-S3700 Digital
Media Turntable and the DN-S1200 Compact Media Player & Controller with today’s leading DJ applications. World’s
First Hybrid MIDI mode generates the required CD/Vinyl control signal (timecode) from within the deck’s DSP
allowing for super accurate tracking and spinning platter performance (S3700) without using the CD
timecode. Other buttons and knobs can control essential features such as, File Browsing, Hot Cues, Looping…etc
over USB MIDI. Direct DVS support for *Serato Scratch Live, Virtual DJ, MixVibes Cross, RPM and others are
available.
*Serato/Rane Hardware is required (SL1/SL3/TTM57SL/TTM68) for Serato Scratch Live operation.
Hybrid MIDI mode is made available to all current owners and future owners by a simple free firmware update.
Visit our global Denon DJ websites to download.
America’s & Canada: www.denondj.com
Europe: www.denon.dj
Asia Pacific: www.denon.jp/dj
Contents
oHybrid MIDI Configuration …………………………………………………………………… 3
oMIDI Channel Configuration ………………………………………………………………… 4
oHow to Enter and Exit Hybrid MIDI Mode ……………………………………………… 5
oRane/Serato Hardware Configuration …………………………………………………… 6
oLoading the Serato Scratch Mapping File ……………………………………………… 7
oDN-S3700 Serato Scratch Mapping File Operation ………………………………… 8
oDN-S1200 Serato Scratch Mapping File Operation ………………………………… 9
oHybrid Mode Panel Operation ……………………………………………………………… 10
oOther DENON DVS System Software Packages ……………………………………… 11

3
Fig.
1
Hybrid MIDI Configuration
Select the DVS output control signal
before you get started
1. Power ON the DN-S3700 / DN-S1200
2. Push and hold the MEMO/-PRESET key for 2-
seconds to enter the Preset mode. You will
briefly see, “Preset Mode”, then “Cue Mode –
DENON”
3. Turn the flashing Parameters knob
backwards until you see, “Hybrid MIDI Sel –
Scratch Live”
4. Scratch Live is the default setting for Scratch
Live users. If you are a Scratch Live user, skip
to item “6” and then go to page 4, MIDI channel
configuration
No Disc
Preset Mode
Hybrid MIDI Sel
Scratch Live
Cue Mode
DENON
5. To select other DVS DJ application control
signals, push down on the Parameters knob and
turn it to select, 2.0kHz, 1.2kHz, 3.0kHz
o2.0kHz is currently undefined
oSelect 1.2kHz for, Torq
oSelect 3.0kHz for, MixVibes Cross
6. Push the MEMO/-PRESET key to save your
new setting and to exit Preset Mode. If you
have selected something other than Scratch
Live, the display will indicate, “Now Saving” for
a moment
Hybrid MIDI Sel
2.0kHz
Hybrid MIDI Sel
1.2kHz
Hybrid MIDI Sel
3.0kHz
Now Saving

4
(DN-S3700/DN-S1200) MIDI Channel Configuration
When using the DENON provided Scratch
Live .xml mapping file, you can control
various pre-mapped functions over USB
MIDI. Before doing so, you will need to
change the MIDI Channel assignment for
each deck. Follow these instructions to
configure your decks to work properly
with Scratch Live.
1. While in Cue or No Disc mode, push and hold
the MEMO/-PRESET key for 2-seconds to enter
the Preset mode. You will briefly see, “Preset
Mode”, then “Cue Mode – DENON”
2. Turn the flashing Parameters knob
backwards until you see the default of,
“MIDI CH Set – 1”
MIDI CH Set
1
Preset Mode
Cue Mode
DENON
3. To select other MIDI channels, push down on
the Parameters knob and then turn it to change
your Left deck setting to “CH 5” and your Right
deck setting to “CH 6”
oLeft Deck, select CH 5
oRight Deck, select CH 6
Note:
When using other DVS applications, (MixVibes,
Torq) keep your Left deck setting to CH 1 and
change your Right deck setting to CH 2
When using, Virtual DJ Pro or RPM in normal
MIDI mode or Hybrid MIDI mode, keep your
Left and Right deck MIDI CH setting to CH 1
5. Push the MEMO/-PRESET key to save your
new settings and to exit the Preset Mode. If you
have selected something other than CH 1, the
display will indicate, “Now Saving” for a moment
MIDI CH Set
5
MIDI CH Set
6
Now Saving

5
How to Enter and Exit Hybrid MIDI Mode
For DN-S3700’s
1. Connect USB cable for both Decks to your
computer.
Use a “powered USB HUB” if your
computer does not have enough USB ports available.
2. While in Cue, Pause or No Disc mode, push
the MIDI key, you will see, “MIDI Mode”
3. Turn the flashing Parameters knob one click,
you will see, “Hybrid MIDI”
4. Push down on the parameters knob to select,
then the following 3 screens are displayed.
5. To Exit this mode. While in Cue or Pause
mode, push the CD/USB key, you will see, “OK”
6. Push down on the parameters knob to select
and Exit Hybrid MIDI mode
Hybrid MIDI
MIDI
For DN-S1200’s
1. Connect USB cable for both Decks to your
computer.
Use a “powered USB HUB” if your
computer does not have enough USB ports available.
2. While in Cue, Pause or No Disc mode, push
the Source key, you will see, “Source Cancel”
3. Turn the Parameters knob three clicks, or
until you see, “Source? – Hybrid MIDI”
4. Push down on the parameters knob to select,
then the following 3 screens are displayed.
5. To Exit this mode. While in Cue or Pause
mode, push the Source key, you will see, “Quit
PCMode – Cancel”, then turn the parameters
knob and you will see, “Quit PCMode – OK”
6. Push down on the parameters knob to select
and Exit Hybrid MIDI mode
Source?
Hybrid MIDI
Source?
Cancel
PC MODE
Connecting
PC MODE
PC Linked
PC MODE
Completed!
PC MODE
Connecting
PC MODE
PC Linked
PC MODE
Completed!

6
Rane/Serato Hardware Configuration
OR
OR
DN-S3700:Connect the analog RCA Outputs from the Left and Right
Decks to the Rane/Serato SL3, SL1 (TTM57SL, TTM68) Inputs. Connect a
USB cable from each Deck and Rane/Serato hardware to your computer.
DN-S1200:Connect the analog RCA Outputs from the Left and Right
Decks to the Rane/Serato SL3, SL1 (TTM57SL, TTM68) Inputs. Connect a
USB cable from each Deck and Rane/Serato hardware to your computer.
In Scratch Live,
uncheck the “Thru”
option and select “REL”
mode.
*ABS is not
supported.
In Scratch Live,
uncheck the “Thru”
option and select “REL”
mode.
*ABS is not
supported.

7
Loading the Serato Scratch Mapping File

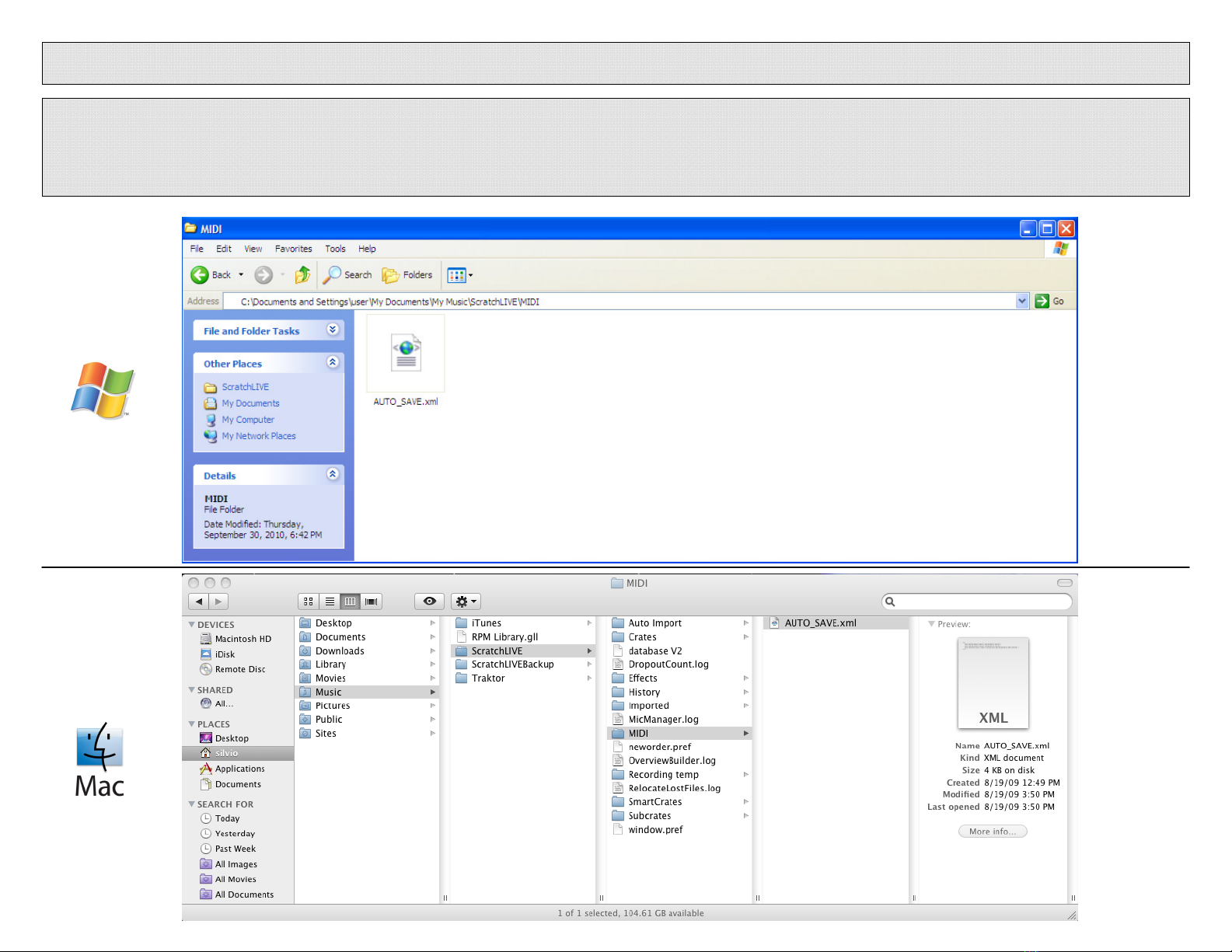

Close the Scratch Live application (if open). Take the Auto_Save.xml file provided by DENON and copy it to the appropriate Scratch Live folder
shown below.
Note: if you have mapped other devices previously and would like to save these settings, rename your current Auto_Save file “before” you copy the DENON one.
oWindows \My Documents\My Music\ScratchLIVE\MIDI (after you copy the xml file, close the folder and launch Scratch Live, enjoy!)
oMAC \Music\ScratchLIVE\MIDI
(after you copy the xml file, close the folder and launch Scratch Live, enjoy!)

8
DN-S3700 Serato Scratch Mapping File Operation
A
O P
D
B
J
Y
E
S
V
W
T
I
A
U
X
g
K
L
f
F
c
b
G
e
d
H
a
M
N
Z
RQ
DN-S3700 Hybrid MIDI (Serato Scratch Live)
DN-S3700 CONTROLS SCRATCH LIVE FUNCTIONALITY SHIFT1 [DISC EJECT] +
ACUE Jump Temp Cue Set Temp Cue
BECHO/LOOP Browse Button -
CFLANGER History Button -
DFILTER Prepare Button -
EAUTO LOOP SET Auto Loop Button -
FA Loop In Adjust Button -
GB Loop Out Adjust Button -
HEXIT/RELOOP Reloop Button -
IMEMO Loop Roll Button -
JTAP Tap Tempo -
KDUMP Censor Button -
LKEY ADJUST Key Lock Button -
MPARAMETERS SW Load to deck Button -
PARAMETERS KNOB Scroll Library Knob -
NBACK Tab Focus Button -
OREWIND Rewind -
PFORWARD Fast Forward -
QBEND DOWN [-] Pitch Down -
RBEND UP [+] Pitch Up -
SHOT1 Trigger Cue Point Button A0 -
THOT2 Trigger Cue Point Button A1 -
UHOT3 Trigger Cue Point Button A2 -
VCLR1 Set Cue Point Button A0 -
WCLR2 Set Cue Point Button A1 -
XCLR3 Set Cue Point Button A2 -
YEFFECTS KNOB AutoLoopSelect Knob -
ZPLAYLIST Add To Prepare Button -
aDISPLAY Auto Loop Four Button -
bTITLE/ID3 Auto Loop Two Button -
cTIME Auto Loop One Button -
dNEXT TRACK Auto Loop Half Button -
eA/B TRIM Auto Loop Fourth Button -
fFLIP Auto Loop Eighth Button -
gDISC EJECT -SHIFT Button -

9
DN-S1200 Serato Scratch Mapping File Operation
DN-S1200 Hybrid MIDI (Serato Scratch Live)
DN-S1200 CONTROLS SCRATCH LIVE FUNCTIONALITY SHIFT1 [DISC EJECT] + SHIFT2 [NEXT TRACK] +
ACUE Jump Temp Cue Set Temp Cue
BECHO/LOOP Trigger Cue Point Button A0 - Set Cue Point Button A0
CFLANGER Trigger Cue Point Button A1 - Set Cue Point Button A1
DFILTER Trigger Cue Point Button A2 - Set Cue Point Button A2
EA1 Auto Loop Button - -
FA2 Loop In Adjust Button - -
GB Loop Out Adjust Button - -
HEXIT/RELOOP Reloop Button - -
IFLIP Loop Roll Button - -
JTAP Tap Tempo - -
KDUMP Censor Button - -
LJOG MODE Key Lock Button - -
MPARAMETERS SW Load to deck Button - -
PARAMETERS KNOB Scroll Library Knob - AutoLoopSelect Knob
NBACK Tab Focus Button - -
OREWIND Rewind - -
PFORWARD Fast Forward - -
QBEND DOWN [-] Pitch Down - -
RBEND UP [+] Pitch Up - -
SDISC EJECT SHIFT 1 Button - -
TNEXT TRACK SHIFT 2 Button - -
A
J
T
I
E
H
G
F
D
B
C
N
PO
M
RQ
L
K
S

10
Hybrid Mode Panel Operation
This layout describes available panel functionality during Hybrid
MIDI mode.
oThe solid Green diamonds are available for MIDI mapping control
oThe mixed Green/Red diamonds are shared for MIDI mapping
control and Internal operation
oThe solid Red diamonds are reserved for Internal operation only
This layout describes available panel functionality during Hybrid
MIDI mode.
oThe solid Green diamonds are available for MIDI mapping control
oThe mixed Green/Red diamonds are shared for MIDI mapping
control and Internal operation
oThe solid Red diamonds are reserved for Internal operation only

11
Other DENON DVS System Software Packages
DN-S3700:DENON offers a full range of Professional 2 Channel & 4
Channel DVS Ready Digital Mixers to complement the DN-S3700 Hybrid
mode. Select a DENON mixer & your supported DVS Software Application.
DN-S1200:The DVS Ready DN-X600 and DN-S1200 Hybrid mode makes
for a perfect compact portable system package to complement your
supported DVS Software Application.
OR
OR
DN-X1600 DN-X1700
DN-X600 DN-S3700 DN-S3700 DN-S1200 DN-X600 DN-S1200
MixVibes
Torq
Virtual DJ Pro
RPM
MixVibes
Torq
Virtual DJ Pro
RPM
During Hybrid Mode,
Select “REL” mode in
various DJ applications.
*ABS is not supported.

D&M Professional, All Rights Reserved, Copyright 2010
Serato™ is a registered trademark of Serato Audio Research
Rane™ is a registered trademark of Rane Corporation
Virtual DJ is a registered trademark of Atomix Productions ©
RPM™ is a registered trade mark of Gizmolabs Inc.
MixVibes ™ is a registered trademark of MixVibes
Torq are either trademarks or registered trademarks of Avid Technology, Inc. in the U.S. and in other countries
