Denon DCD-F100 User manual

1
PHONES
BASS TREBLE BALANCE
LR
SYSTEM
REMOTE SENSOR
VOLUME
ON / STANDBY
PERSONAL COMPONENT SYSTEM / AM-FM STEREO RECEIVER DRA-F100
B
MHz
TUNED STEREO AUTO
CH
TIMER
MONO /
STEREO
BAND
MEMORY FUNCTION
UP
DOWN
TUNING
TIMER DISPLAY
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / COMPACT DISC PLAYER DCD-F100
/ /
3
B
C
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT TUNER FUNCTION
1 2 3 4 5
6 7 8 9 10
PRESET
TUNING
MEMO
BAND
VOLUME
+10
89
89
2
2
1
21
67
67
01
B
REMOTE CONTROL UNIT RC-829
DECK
PERSONAL COMPONENT SYSTEM
DRA-F100 (AM-FM Stereo Receiver)
DCD-F100 (Compact Disc Player)
OPERATING INSTRUCTIONS
MODE D’EMPLOI
INSTRUCCIONES DE OPERACION
FOR ENGLISH READERS PAGE 005 ~ PAGE 020
POUR LES LECTEURS FRANCAIS PAGE 021 ~ PAGE 036
PARA LECTORES DE ESPANOL PAGINA 037 ~ PAGINA 052

2
IMPORTANT TO SAFETY
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOIS-
TURE.
CAUTION:
1. Handle the power supply cord carefully
Do not damage or deform the power supply cord.
If it is damaged or deformed, it may cause electric
shock or malfunction when used. When removing
from wall outlet, be sure to remove by holding the
plug attachment and not by pulling the cord.
2. Do not open the top cover
In order to prevent electric shock, do not open the
top cover.
If problems occur, contact your DENON DEALER.
3. Do not place anything inside
Do not place metal objects or spill liquid inside the
system.
Electric shock or malfunction may result.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALI-
FIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
NOTE:
This system uses the semiconductor laser. To allow
you to enjoy music at a stable operation, it is
recommended to use this in a room of 5 °C (41 °F) ~ 35
°C (95 °F).
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR
REFOR-MANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE
ADJUSTED OR REPAIRED BY ANYONE EXCEPT
PROPERLY QUALIFIED SERVICE PERSONNEL.
SAFETY INSTRUCTIONS
1. Read Instructions – All the safety and operating
instructions should be read before the appliance is
operated.
2. Retain Instructions – The safety and operating
instructions should be retained for future reference.
3. Heed Warnings – All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions – All operating and use instructions
should be followed.
5. Water and Moisture – The appliance should not be used
near water – for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, and the like.
6. Carts and Stands – The appliance should be used only
with a cart or stand that is recommended by the
manufacturer.
6A. An appliance and cart
combination should be
moved with care.
Quick stops, excessive
force, and uneven
surfaces may cause
the appliance and cart
combination to overturn.
7. Wall or Ceiling Mounting – The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
8. Ventilation – The appliance should be situated so that its
location or position does not interfere with its proper
ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may
block the ventilation openings; or, placed in a built-in
installation, such as a bookcase or cabinet that may
impede the flow of air through the ventilation openings.
9. Heat – The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
10. Power Sources – The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
11. Grounding or Polarization – Precautions should be taken
so that the grounding or polarization means of an
appliance is not defeated.
FIGURE A
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL
ELECTRICAL CODE ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC - NATIONAL ELECTRICAL CODE
12. Power-Cord Protection – Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.
14. Cleaning – The appliance should be cleaned only as
recommended by the manufacturer.
15. Power Lines – An outdoor antenna should be located
away from power lines.
16. Outdoor Antenna Grounding – If an outside antenna is
connected to the receiver, be sure the antenna system is
grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of
the National Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to
an antenna-discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding
electrode. See Figure A.
17. Nonuse Periods – The power cord of the appliance should
be unplugged from the outlet when left unused for a long
period of time.
18. Object and Liquid Entry – Care should be taken so that
objects do not fall and liquids are not spilled into the
enclosure through openings.
19. Damage Requiring Service – The appliance should be
serviced by qualified service personnel when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled into the
appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or
exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure
damaged.
20. Servicing – The user should not attempt to service the
appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte
toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
CAUTION
TO PREVENT ELECTRIC SHOCK DO
NOT USE THIS (POLARIZED) PLUG
WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
ATTENTION
POUR PREVENIR LES CHOCS
ELECTRIQUES NE PAS UTILISER
CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR UNE PRISE DE
COURANT OU UNE AUTRE SORTIE
DE COURANT, SAUF SI LES LAMES
PEUVENT ETRE INSEREES A FOND
SANS EN LAISSER AUCUNE
PARTIE A DECOUVERT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

3
FRONT PANEL / PANNEAU AVANT / PANEL FRONTAL
PHONES
BASS TREBLE BALANCE
LR
SYSTEM
REMOTE SENSOR
VOLUME
ON / STANDBY
PERSONAL COMPONENT SYSTEM / AM-FM STEREO RECEIVER DRA-F100
B
MHz
TUNED STEREO AUTO
CH
TIMER
MONO /
STEREO
BAND
MEMORY FUNCTION
UP
DOWN
TUNING
TIMER DISPLAY
qw ert y u
io!0 !1 !2 !3 !4 !5
• As an aid to better understanding the operation method, the illustrations used in this manual may differ from the actual system.
• Pour faciliter la compréhension de la méthode de fonctionnement, les illustrations utilisées dans ce manuel peuvent être différentes de celles de la chaîne réelle.
• Como ayuda a un mejor entendimiento del método de funcionamiento, las ilustraciones utilizadas en este manual puede diferir del sistema real.
AM-FM STEREO RECEIVER
SINTO AMPLIFICATORE STEREO AM-FM
RECEPTOR ESTEREOFÓNICO AM-FM
CD PLAYER
LECTEUR CD
REPRODUCTOR DE CD
See ENGLISH Page 7
Voir FRANÇAIS Page 23
Consulte la página 39 para ESPAÑOL
See ENGLISH Page 8
Voir FRANÇAIS Page 24
Consulte la página 40 para ESPAÑOL
DRA-F100
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / COMPACT DISC PLAYER DCD-F100
/ /
3
B
q w e rty
uio
DCD-F100
ENGLISH FRANCAIS ESPAÑOL

4

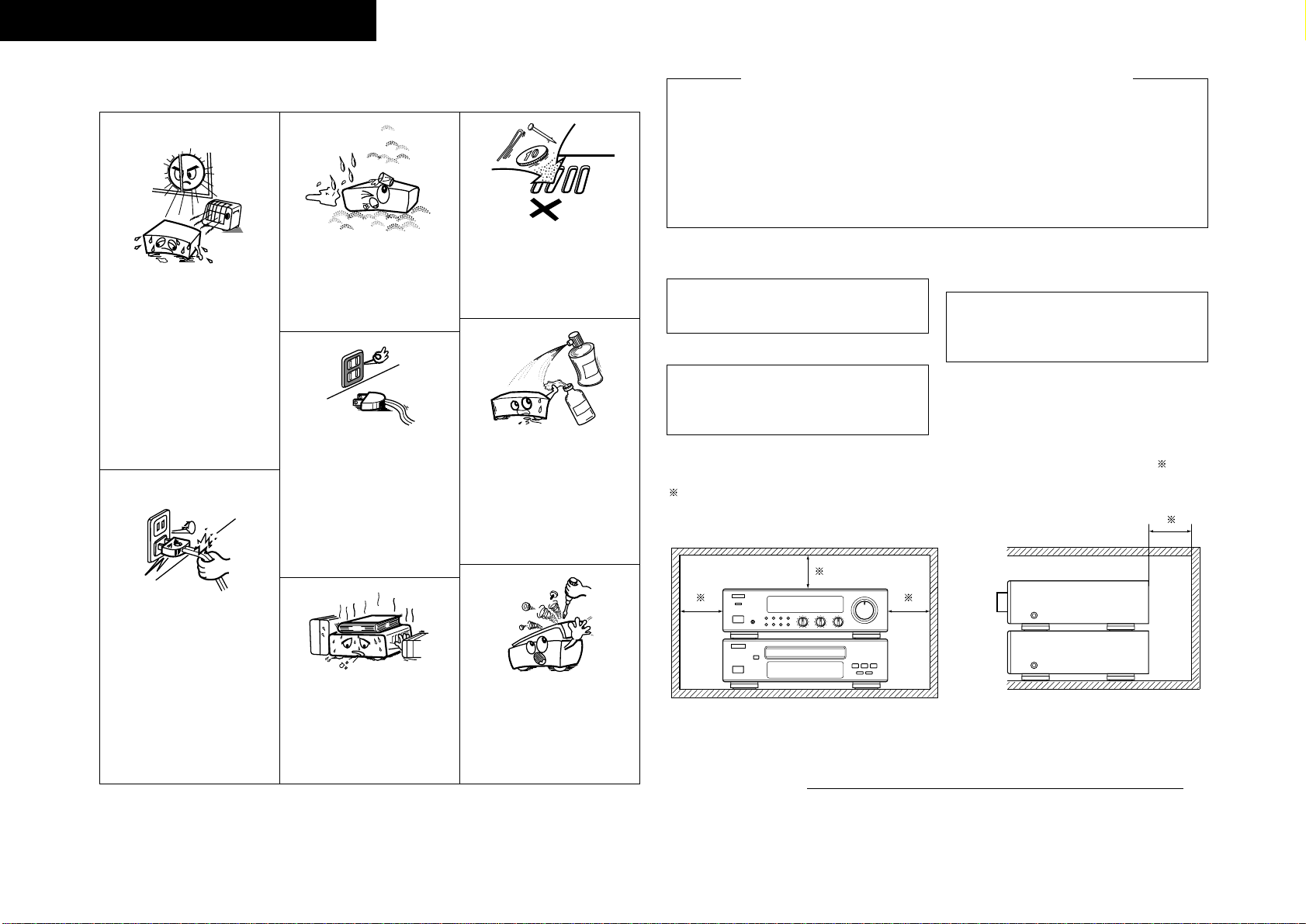

•INSTALLATION PRECAUTIONS
For heat dispersal, leave at least 10 cm of space
between the top, back and sides of this unit and
the wall or other components.
•PRECAUTIONS D’INSTALLATION
Afin de disperser la chaleur, laisser un espace
d’au moins 10 cm entre le haut, l’arrière les
côtés de cet appareil et le mur ou un autre
composant.
•PRECAUCIONES DURANTE LA
INSTALACION
Para que el calor se disipe, deje por lo menos 10
cm de espacio entre las partes superior,
posterior y laterales de esta unidad y la pared u
otros componentes.
NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION /
NOTAS SOBRE EL USO • If the system should smoke or produce strange smells, immediately set the power operation switch to
the STANDBY position, unplug the power cord, and contact your store of purchase.
• Si de la fumée sort de la chaîne ou des odeurs bizarres, placer l’interrupteur de functionnement de
i’alimentation immédiatement sur la position de veille (STANDBY), débrancher le cordon d’alimentation
et contacter le distributeur.
• En caso de que el sistema produzca humo u olores extraños, ajuste inmediatamente el interruptor de
activación de la alimentación en su posición de estado de espera (STANDBY), desenchufe el cable de
alimentación, y contacte su establecimiento de compra.
• Avoid high temperatures.
Allow for sufficient heat
dispersion when installed on a
rack.
• Eviter des températures élevées
Tenir compte d’une dispersion de
chaleur suffisante lors de
l’installation sur une étagère.
• Evite altas temperaturas.
Permite la suficiente dispersión
del calor cuando está instalado en
la consola.
CAUTION / ATTENTION / PRECAUCION
• Handle the power cord carefully.
Hold the plug when unplugging
the cord.
• Manipuler le cordon d’alimenta-
tion avec précaution.
Tenir la prise lors du
débranchement du cordon.
• Maneje el cordón de energía con
cuidado.
Sostenga el enchufe cuando
desconecte el cordón de energía.
• Keep the set free from moisture,
water, and dust.
• Protéger l’appareil contre
l’humidité, l’eau et lapoussière.
• Mantenga el equipo libre de
humedad, agua y polvo.
• Unplug the power cord when not
using the set for long periods of
time.
• Débrancher le cordon d’alimenta-
tion lorsque l’appareil n’est pas
utilisé pendant de longues
périodes.
• Desconecte el cordón de energía
cuando no utilice el equipo por
mucho tiempo.
• Do not obstruct the ventilation
holes.
• Ne pas obstruer les trous
d’aération.
• No obstruya los orificios de
ventilación.
✽(For sets with ventilation holes)
• Do not let foreign objects in the
set.
• Ne pas laisser des objets
étrangers dans l’appareil.
• No deje objetos extraños dentro
del equipo.
• Do not let insecticides, benzene,
and thinner come in contact with
the set.
• Ne pas mettre en contact des
insecticides, du benzène et un
diluant avec l’appareil.
• No permita el contacto de
insecticidas, gasolina y diluyentes
con el equipo.
• Never disassemble or modify the
set in any way.
• Ne jamais démonter ou modifier
l’appareil d’une manière ou d’une
autre.
• Nunca desarme o modifique el
equipo de ninguna manera.
Wall
Mur
Pared
“SERIAL NO.
PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE
CABINET FOR FUTURE REFERENCE”
ENGLISH FRANCAIS ESPAÑOL
B
B
10 cm or greater
10 cm ou plus
10 cm o más

5
ENGLISH
CONTENTS
zMain Features ………………………………………5
xBefore Using ………………………………………5
cConnecting the Included Antennas ………………5
vConnections …………………………………………6

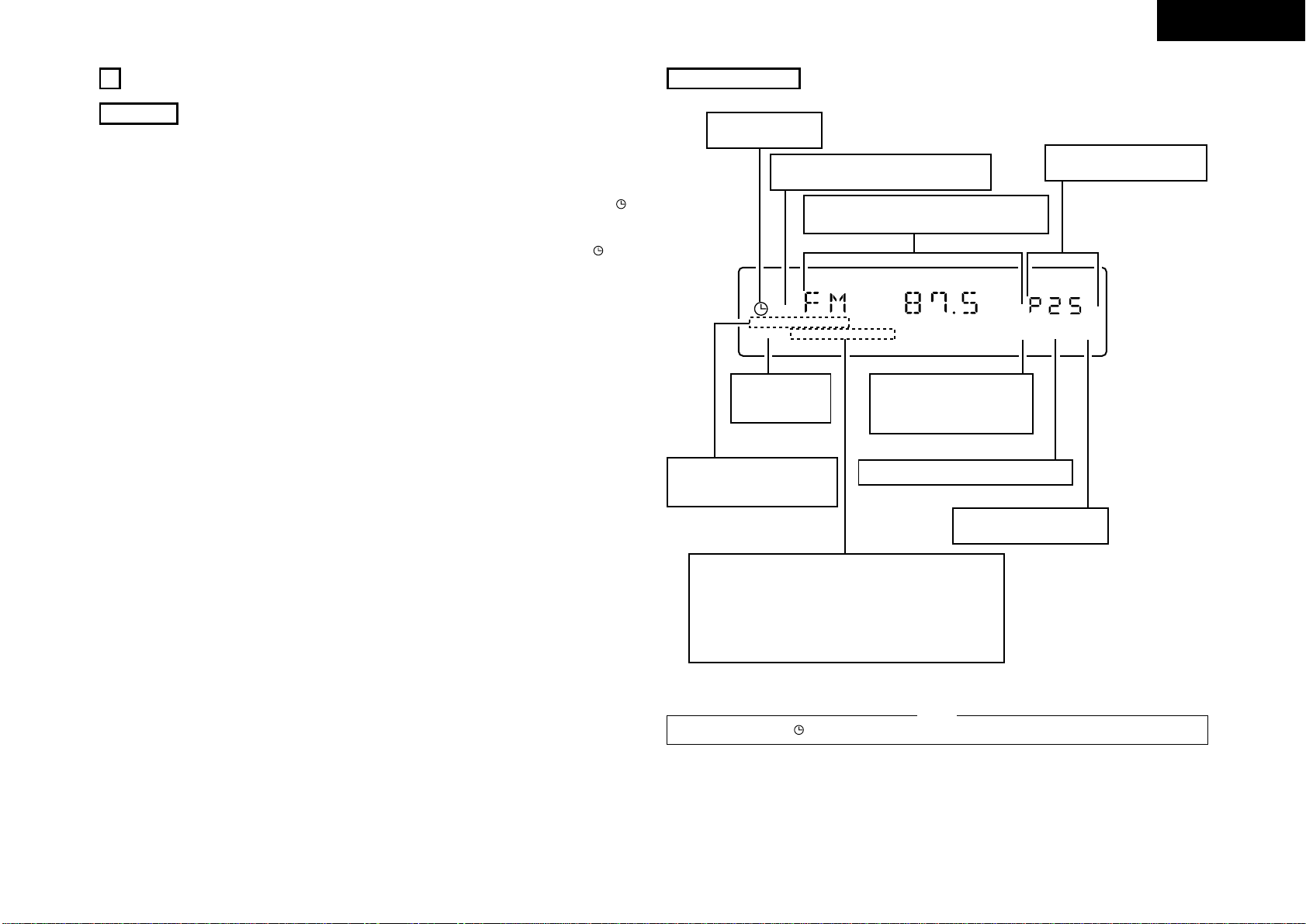

bPart Names, Functions and Displays …………7, 8
• Receiver …………………………………………7
• CD Player ………………………………………8

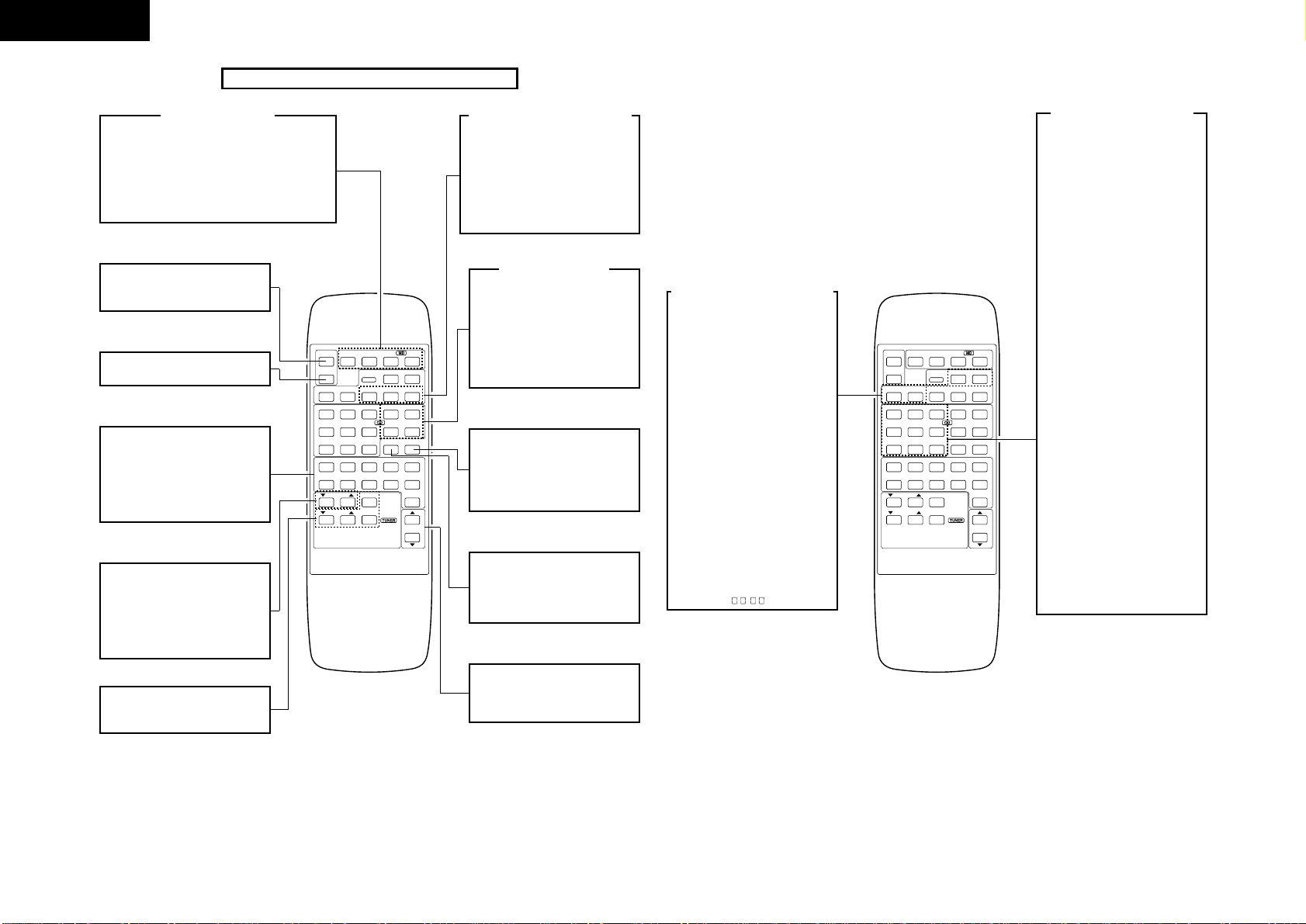

nRemote Control Unit …………………………9, 10
mListening to Radio Programs ……………………11
,Using the Timer ……………………………12 ~ 14
.Playing CDs ………………………………………15
• About Compact Discs …………………………15
• Normal Playback …………………………15, 16
• Various Playback Functions ……………16 ~ 18
⁄0 Other Information …………………………………19
⁄1 Specifications ……………………………………19
⁄2 Troubleshooting …………………………………20
DENON Service Network…………………………53, 54
1
MAIN FEATURES
•Quality power for high quality sound
30 W + 30 W (4 Ω/ohms, DIN) high quality
amplifier and terminals for large speakers.
•High sound quality, multi-function CD player
•Two types of timers
Two timer settings can be made – everyday and
sleep.
•Easy-to-use remote control unit
2
BEFORE USING
Read the following before using the system.
•Before turning on the power
Check again that all connections are correct and
that there are no problems with the connection
cords. Be sure to unplug the power cord before
connecting or disconnecting the connection cords.
• Humming may be produced if this system is set
near a TV or other audio equipment.
If this happens, try changing the position of the
equipment or the connection cords.
•Moving the system
Be sure to remove CDs before moving the system.
If a CD is left in the CD player, it may be scratched.
To prevent short-circuits or damage to the
connection cords, always unplug the power cord
and disconnect all connection cords to other audio
equipment.
•Condensation (dew)
Condensation (water droplets) may be produced on
internal optical lenses or discs in the following
cases:
• Directly after a heater is turned on.
• When the system is in a steamy or humid room.
• When the system is moved abruptly from a cold
place (room) to a warm room.
•Should condensation occur:
The signals on the disc cannot be read and the
system will not function properly. Remove the
disc then let the system set with the power on.
The condensation will evaporate in one hour or
less, at which time the system will function
normally.
• Note that some of the illustrations used for
explanations in this manual may differ from the
actual system.
3

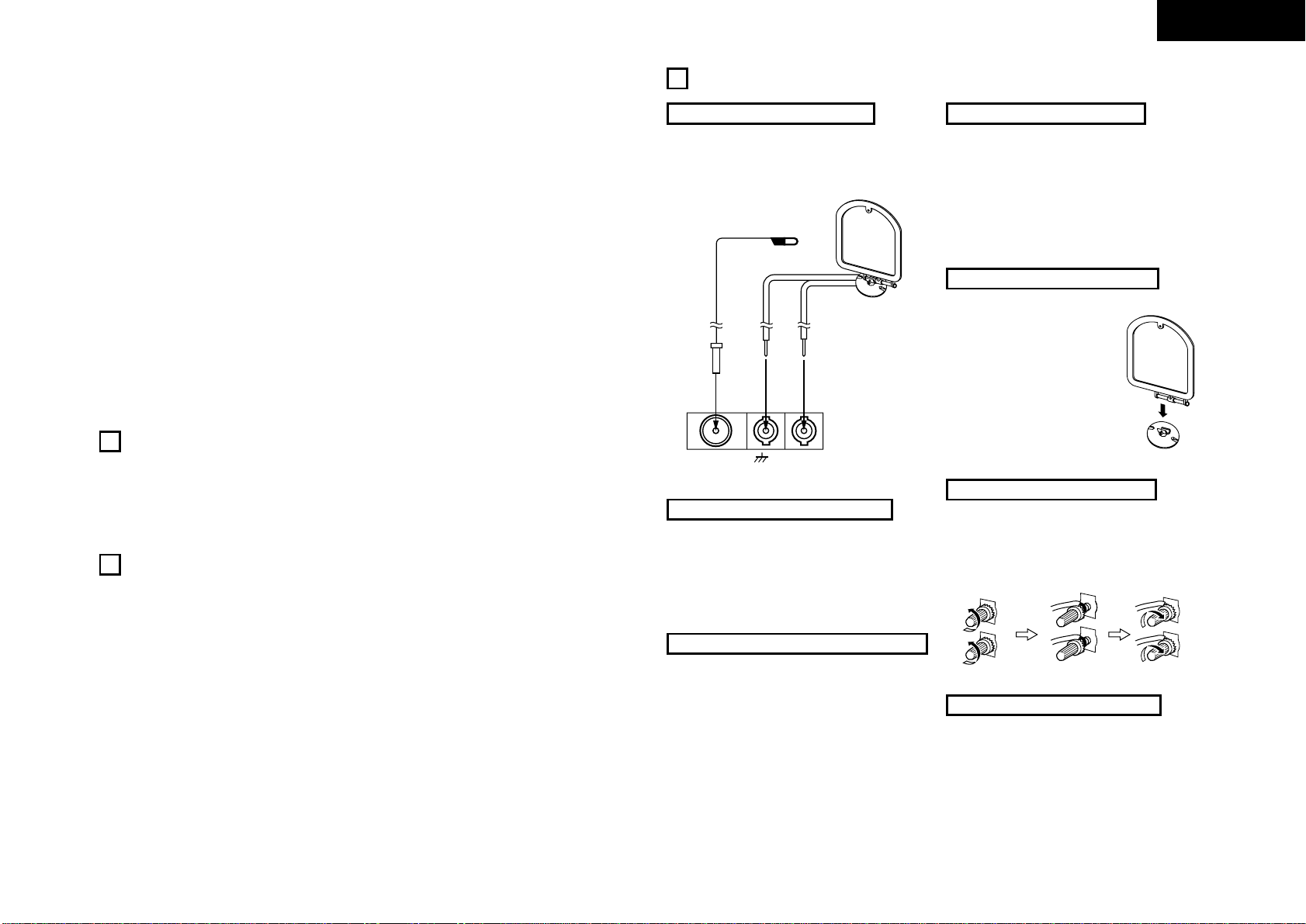

CONNECTING THE INCLUDED ANTENNAS
Installing the FM indoor antenna
Tune in an FM station (Refer to page 11.), set the
antenna in a position in which distortion and noise is
minimum, then fasten the tip of the antenna in this
position using tape or a pin.
Installing the AM loop antenna
Tune in an AM station (Refer to page 11.) and set the
antenna in a position as far from the system as
possible in which distortion and noise is minimum. In
some cases it is best to invert the polarities.
AM broadcasts cannot be received well if the loop
antenna is not connected or if it is set close to metal
objects.
Assembling the AM loop antenna
Assemble the included AM loop antenna as shown in
the diagram.
qRemove the clamp.
wInsert the AM loop antenna
into the antenna stand.
Connecting the AM loop antenna
Connect the included AM loop antenna to the antenna
terminals as shown in the diagram.
q Loosen the
terminal
knobs.
w Insert the
antenna
wire.
e Tighten the
terminal
knobs.
Installing an AM outdoor antenna
Connect the signal wire from the AM outdoor antenna
to the antenna terminal. Be sure to ground the
antenna and connect the ground wire to the GND
terminal. Also be sure to connect the included AM
loop antenna.
Connecting an FM outdoor antenna
If good reception cannot be achieved with the
included FM antenna, use an FM outdoor antenna.
Connect an F-shaped connector to the coaxial cable
and connect the antenna to the FM COAX (75
Ω/ohms) terminal.
Selecting a place for the FM outdoor antenna
• Set the antenna so that it is pointing towards the
broadcast station’s transmitting antenna. Behind
buildings or mountains, set the antenna in the
position at which reception is best, and also try
changing the direction of the antenna.
• Do not install the antenna under power lines.
Doing so is extremely dangerous, as the power line
could touch the antenna.
• Install the antenna away from roads or train tracks
to avoid noise from cars or trains.
• Do not install the antenna too high, as it may be hit
by lightning.
Check that the following parts are included in the package aside from the main unit:
•DRA-F100 (AM-FM stereo receiver)
• Remote control unit (RC-829) ……………………1
• R6P/AA batteries …………………………………2
• Operating instructions ……………………………1
• FM antenna ………………………………………1
• AM loop antenna …………………………………1
•DCD-F100 (Compact disc player)
• System connector cable …………………………1
• RCA pin-plug cord…………………………………1
FM COAX 75ºLOOP
ANT. AM
Antenna stand
FM antenna
AM loop antenna

6
ENGLISH
ON / STANDBY
BPERSONAL COMPONENTSYSTEM / STEREO CASSETTE TAPE DECK DRR-F100
REC/
REC MUTE CD SRS
COUNTER
RESET DOLBY NR
REC LEVEL
OPEN / CLOSE
REV. MODE
-10
+5
+3+10-1-3-5-10
-20
-30-40
dB
L
R
TAPE BPLAY
MIN MAX
PHONES
BASS TREBLE BALANCE
LR
SYSTEM
REMOTESENSOR
VOLUME
ON/ STANDBY
PERSONAL COMPONENT SYSTEM / AM-FM STEREO RECEIVER DRA-F10 0
RT
EON-PTY
EON-TA
B
MHz
TUNED STEREO AUTO
CH
TIMER
MONO/
STEREO
BAND
MEMORY FUNCTION
UP
DOWN
TUNING
TIMER DISPLAY
ON/ STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / COMPACT DISC PLAYER DCD-F100
/ /
3
B
POWER LOADING MECHANISM
ON / STANDBY
B
EJECT
PERSONAL COMPONENT SYSTEM / MINIDISC RECORDER DMD-F100
INPUT SELECT
DIGITAL ANALOG
12
REMOTE SENSOR
RANDOM
-60 -40 -30 -20 -12 -6 -2 0
OVER
L
dB
R
1
D.IN
04Tr 12m 48s
13
EDIT
- +
PUSH ENTER
REC LEVEL
CHARACTER
REC /
PICK REC CD SRS
PICK REC MODE
12
CONNECTOR
SYSTEM
OPTICAL
DIGITAL OUT
LINE OUT
L
R
PHONO AUX CD PB-TAPE-REC PB-MD-REC
12
CONNECTOR
SYSTEM
L
L
R
RR L
SPEAKERS
IMPEDANCE 4~16º
FM COAX 75ºLOOP
ANT. AM
AC OUTLET
SWITCHED
120W(1A.)MAX
120V 60Hz
AC OUTLET
UNSWITCHED
120W(1A.)MAX
120V 60Hz
SIGNAL GND
RLRL
OUTPUT INPUT
RLRL
OUTPUT INPUT
OPTICAL
4

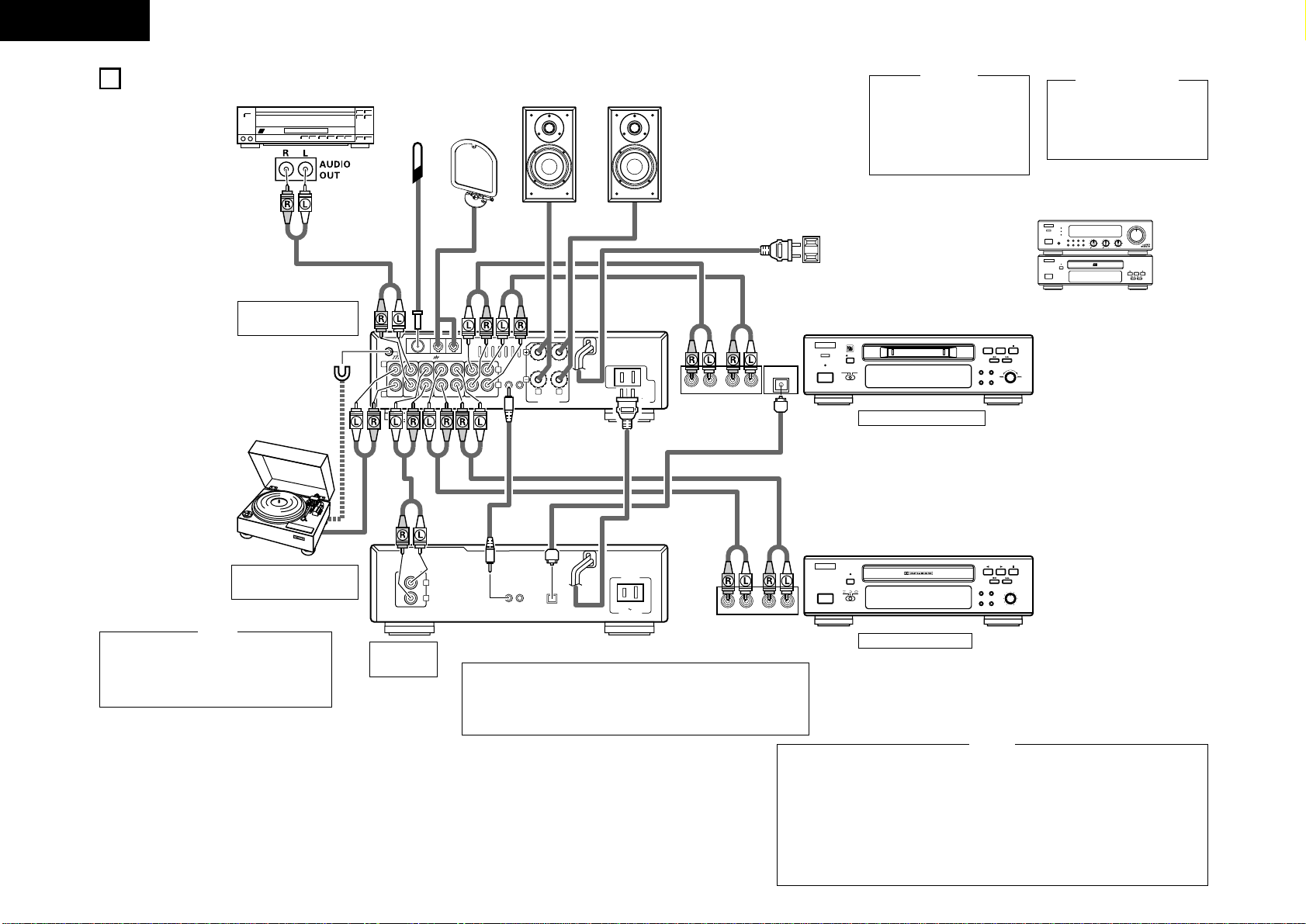

CONNECTIONS
This system includes digital circuitry which may
cause interference such as color blotching or
changes in the color on TVs. If this happens,
move the system and the TV as far apart as
possible.
NOTE:
System operations
Such system operations as the timer and the auto on functions,
as well as remote control operations cannot be performed
unless all the RCA pin-plug cords and system connector cords
are connected between the units, so be sure to make all the
connections properly as shown in the diagram. Also,
disconnecting system connectors while the system is operating
may result in malfunction. Be sure to unplug the power cord
before changing connections.
AM loop
antenna
FM
antenna
Record player
Speaker systems
Use a record player with
an MM cartridge.
• Disconnect the ground cord if
humming or noise is produced
when it is connected.
Ground cord
LD player, video deck, etc.
Power plug
AC 120 V 60 Hz
(Plug into a power outlet)
• Do not plug the power cord into the power outlet until all connections are completed. Be
sure to interconnect the channels (L to L (white) and R to R (red)) properly, as shown on the
diagram.
• Insert the plugs securely. Incomplete connections may result in noise.
• Be sure to connect the speaker cords between the speaker terminals and the speaker
systems with the same polarities (+ to +, – to –). If the polarities are switched, the sound at
the center will be weak, the position of the different instruments will be unclear, and the
stereo effect will be lost.
• After unplugging the power cord, wait about 5 seconds before plugging it back in.
• Note that setting the connection cords (pin-plug cords) next to the power cords may result
in humming or other noise.
NOTES:
AM-FM Stereo Receiver
(DRA-F100)
CD player
(DCD-F100)
Connecting the speaker systems
Connect the speaker system for the
left channel (the left side as seen
from the front) to the ”L“ terminals,
the speaker system for the right
channel to the ”R“ terminals. Be sure
to use speaker systems with an
impedance of 4 Ω/ohms or greater.
Whenever the power switch is
in the STANDBY position, the
unit is still connected on AC line
voltage.
Please be sure to unplug the
cord when you leave home for,
say, a vacation.
CAUTION:
Right Left
AC Outlets
• SWITCHED outlet (DRA-F100)
The power of this outlet is switched on and off by the receiver’s SYSTEM
power operation switch.
This outlet will also be switched on when the power is set to ON-
STANDBY with the remote control.
When the receiver is in the standby mode, the outlet switches off after
approximately 20 seconds.
• UNSWITCHED outlets (DCD-F100)
These outlets remains on at all times, regardless of the setting of the CD
player’s and cassette’s power operation switch.
✽Do not connect the receiver’s AC cord to the outlets on the CD player
(DCD-F100). Doing so could result in damage.
PRECAUTIONS FOR
INSTALLATION
For heat dispersal, leave at least
10 cm of space between the
top, back and sides of this unit
and the wall or other
components.
Stacking installation
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article
820-40 of the NEC which provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
Connecting a MD recorder
Connections for recording:
Connect the tape deck’s recording input jacks (LINE IN or REC) to this unit’s tape recording
(OUT) jacks using pin plug cords.
Connections for playback:
Connect the tape deck’s playback output jacks (LINE OUT or PB) to this unit’s tape playback
(IN) jacks using pin plug cords.
MD recorder
Connecting a tape deck
Connections for recording:
Connect the tape deck’s recording input jacks (LINE IN or REC) to this unit’s tape recording
(REC) jacks using pin plug cords.
Connections for playback:
Connect the tape deck’s playback output jacks (LINE OUT or PB) to this unit’s tape playback
(PB) jacks using pin plug cords.
Tape deck

7
ENGLISH
TIME
TIMER ON OFF
TUNED STEREO MONO AUTO MEMOADJ SLEEP OFF
CHMHz
5
PART NAMES, FUNCTIONS AND DISPLAYS
RECEIVER
qSYSTEM power operation switch
(ON/STANDBY)
This turns the power for the entire system on
and off.
Press this once to turn the power on, then press
again to set the power to the standby mode.
wREMOTE SENSOR
When operating the remote control unit, point it
at this sensor.
eTUNING UP and DOWN buttons
These buttons are used to select AM and FM
stations and to set the clock and timer.
rBAND (AM/FM) selector button
The band switches between AM and FM each
time this button is pressed.
tMONO/STEREO selector button
AUTO mode:
Use this mode to receive programs in stereo.
The sound and the indicators on the display
automatically switch between monaural
(”MONO“) and stereo (”STEREO“) according
to whether the program is being broadcast in
monaural or stereo.
MONO mode:
Use this mode to receive programs in
monaural, regardless of whether they are
being broadcast in monaural or stereo.
Set this mode if there is much noise or if the
signals are weak when receiving stereo
programs (when ”AUTO“ is lit).
yDisplay
uVOLUME control
Use this to adjust the overall volume.
The volume increases when the control is
turned clockwise (,) and decreases when it is
turned counterclockwise (.).
iPHONES (headphones jack)
Plug the headphones into this jack.
No sound is produced from the speakers when
headphones are plugged in.
oTIMER button
Press this when setting the timer and to turn the
timer on so that it operates at the set times.
When the button is pressed after the timer has
been set, the timer standby mark (” “)
appears on the display. Press again to turn the
mark off.
The timer will not operate when the ” “ mark
is off.
!0 DISPLAY button
This button is used to switch the display
between the reception frequency (function) and
the clock.
!1 MEMORY button
This button is used to preset AM and FM
stations and when setting the timer.
!2 FUNCTION (input) selector button
Use this to select the input (function).
The input changes in the following order each
time this button is pressed: CD, TAPE, TUNER,
PHONO, MD and AUX. (The function changes
automatically when the system’s CD player or
cassette deck is played or when a preset
channel is recalled on the tuner.)
!3 BASS control
Use this to adjust the volume of the low
frequencies.
!4 TREBLE control
Use this to adjust the volume of the high
frequencies.
!5 BALANCE control
Use this to adjust the balance of the volume
between the left and right channels.
When set at the center position, the volume is
the same for the left and right channels.
RECEIVER DISPLAY
The timer will operate
when this is lit.
This lights when the display is set to the clock
mode.
The reception band, reception frequency, reception
function, time and timer settings are displayed here.
This indicates the number of the
preset channel.
This lights when a
station is tuned in
properly.
This flashes for approximately 10
seconds when the MEMORY
button is pressed while pre-
setting stations.
These light when setting the timer.
”TIMER“ lights when the timer is
set.
This lights when the sleep timer is operating.
This lights when in the standby
mode.
These display the reception mode.
STEREO : This lights when a stereo program is received in the
AUTO mode.
MONO : This lights when a monaural program is received in the
AUTO mode and when the MONO/STEREO button is
pressed, setting the manual mode.
AUTO : This lights when the MONO/STEREO button is pressed,
setting the auto mode.
The timer standby mark (” “) does not light if the current time and the timer have not been set.
NOTE:

8
ENGLISH
RANDOM TRACK No. SCAN REMAIN TIME REPEAT
INDX
12 34 56 78 910 1112 13141516
PROGRAM
ONE
ALL
AB
CD PLAYER CD PLAYER DISPLAY
qPower operation switch
(ON/STANDBY)
When the switch is pressed, the standby mode
is set and “OFF” appears on the display. When
pressed again, the power turns off. (This
operation is not performed when the receiver
system power operation switch is off.)

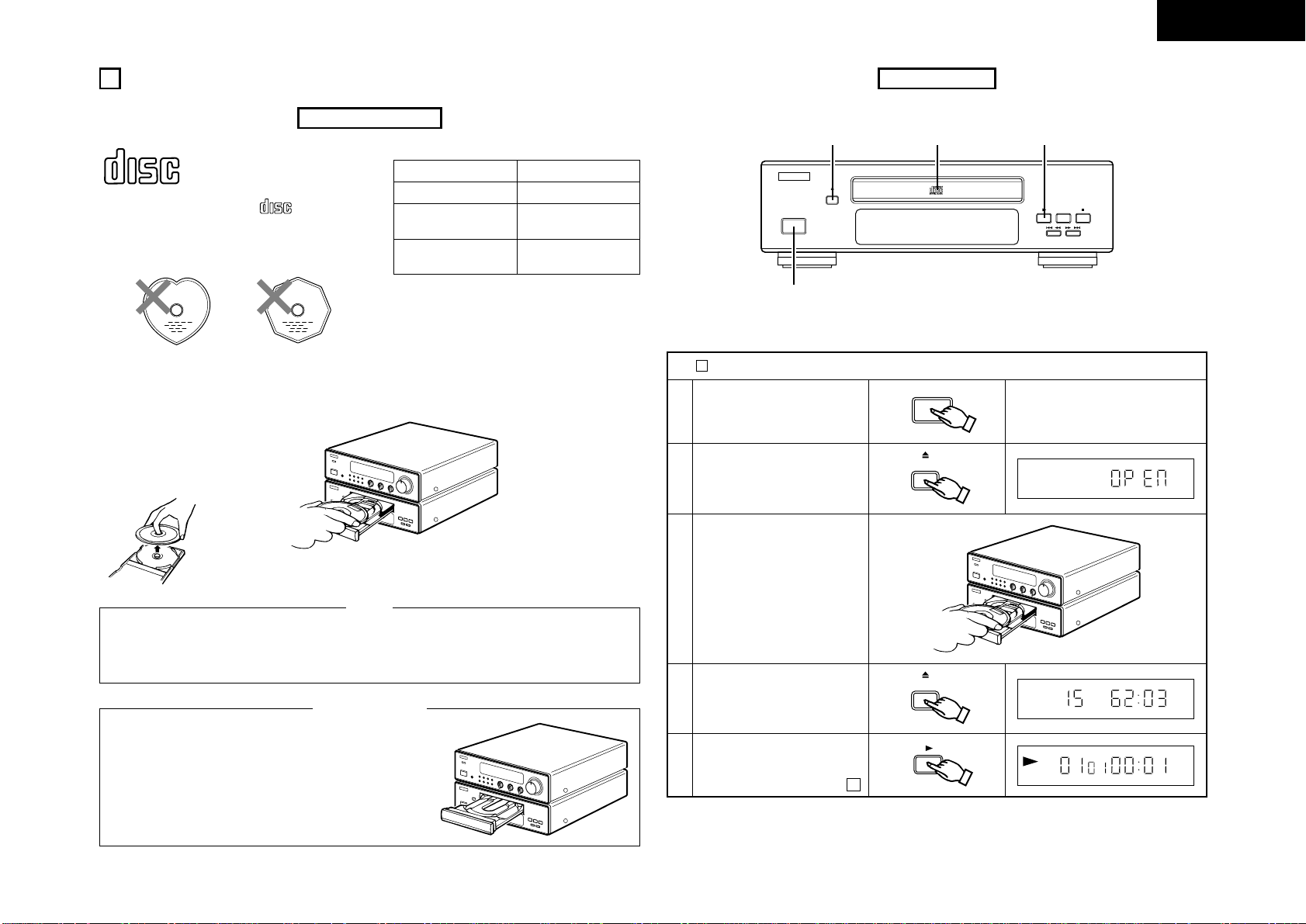

wOPEN/CLOSE button (5)
Press this to open and close the disc tray.
When pressed once, the disc tray opens out,
and when pressed again, the disc tray closes. If
a disc is loaded, the total number of tracks and
total playing time of the disc are displayed
several seconds after the disc tray is closed.
eDisc tray
Load discs here.
r1(play) button
Press this button to start playing the disc.
Even when the disc tray is open, the disc tray
closes and playback begins when this button is
pressed.
t3(pause) button
Press this button to stop playback temporarily.
Press the play button (1) to cancel the pause
mode and resume playback.
y2(stop) button
Press this button to stop playback.
uDisplay
i8/6(automatic/manual search
reverse) button
Use this to move to the beginning of a specific
track.
When pressed during playback or in the pause
mode, the pickup moves backward a number of
tracks equal to the number of times the button
is pressed.
o7/9(automatic/manual search
forward) button
Use this to move to the beginning of a specific
track.
When pressed during playback or in the pause
mode, the pickup moves forward a number of
tracks equal to the number of times the button
is pressed.
• The automatic search mode is set if the ior
obutton is released within 0.5 seconds, and
the manual search mode is set if the button is
held for over 0.5 seconds.
The following is displayed on the track number display:
• When the disc’s data cannot be read properly……………………………………………………………
• In the stop mode ………………………………………………………………………Total number of tracks
• In the play and program modes …………………………………………………………………Track number
The following is displayed on the time display:
• When the disc’s data cannot be read …………………………………………………………
• In the stop mode ……………………………………………………………………………Total playing time
• In the play and pause modes …………………………………………………Elapsed time for current track
• In the program mode……………………………………………………Elapsed time of programmed tracks
• When the outermost section of the disc is reached during the manual search operation ………
This lights when the RANDOM
button is pressed.
1(the play indicator)
lights when a disc is
playing, and 3(the
pause indicator) lights
when the pause
mode is set.
Music calendar
The numbers of the tracks on the disc are displayed here (up to track number 16). The number
for the corresponding track turns off after that track is played.
During programmed playback, the numbers of the programmed tracks are displayed (up to track
number 16).
All the numbers light if the disc’s data cannot be read properly.
This changes as follows each time the REPEAT button is pressed:
1st press : REPEAT (single-track repeat) is displayed and the number of the track to be repeated on the music
calendar lights.
2nd press : REPEAT (all-track repeat) is displayed.
3rd press : REPEAT is displayed.
4th press : REPEAT is displayed.
5th press : Nothing is displayed.
(Only REPEAT and REPEAT are displayed in the stop mode.)
ALLONE
A /B
A /
ALL
ONE
”PROGRAM“ lights
during programmed
playback. This lights if there are more than
17 tracks on the disc.
Track number display Time display

9
ENGLISH
6
REMOTE CONTROL UNIT
The DRA-F100 comes with a system remote control unit (RC-829).
• Use R6P (AA) batteries in this remote control unit.
• Replace the batteries with new ones approximately
once each year, though this depends on how
frequently the remote control unit is used.
• Replace the batteries with new ones earlier if the
remote control unit does not operate even from a
short distance.
• Insert the batteries in the proper + and – direction,
following the marks in the battery compartment.
• Remove the batteries when not using the remote
control unit for extended periods of time.
• To avoid damage and leakage:
• Do not use a new battery with an old one.
• Do not use two different types of batteries.
• Do not short-circuit, take apart, heat or dispose of
batteries in flames.
• If the batteries should leak, carefully wipe the fluid
out of the battery compartment, then insert new
batteries.
NOTES:
Inserting the batteries
qOpen the battery compartment cover on the back of the
remote control unit.
wInsert the two R6P (AA) batteries, following the + and –
marks in the battery compartment.
eClose the cover of the battery compartment.
Using the Remote Control Unit
• The remote control unit may not operate if the remote
sensor is exposed to direct sunlight or the strong light
from a lighting fixture, or if there is an obstacle
between the remote control unit and the remote
sensor.
• Do not press buttons on the remote control unit and on
the set at the same time. Doing so could result in
malfunction.
• If the remote control unit is pointed away from the
remote sensor during continuous operations (such as
when turning the volume up or down), the operation
will stop. If this happens, point the remote control unit
at the remote sensor and press the button again.
Cautions on Use
• The remote sensor is located on the
receiver. Point the remote control unit at
the remote sensor as shown on the
diagram when operating it.
The remote control unit will operate from a
direct distance of approximately 7 meters,
but this distance will be shortened if
obstacles are present or if operated at an
angle.
(The remote control unit will operate at an
angle of up to 30° in either direction.)
B
MHz
TUNEDSTEREOAUTO
CH
TIMER
B
7m
30°
30°

ENGLISH
Remote Control Unit Part Names and Functions
MD operation buttons
1(play) button
Press this button to start playback.
2(stop) button
Press this button to stop playback.
8and 9(automatic search buttons)
Use these buttons to search for the beginning of
the desired track.
Cassette deck operation buttons
2(stop) button
Press this button to stop the tape.
1(forward play) button
Press this to start playback or
recording in the forward direction.
0(reverse play) button
Press this to start playback or
recording in the reverse direction.
Cassette deck operation buttons
•REC/REC MUTE button
To start recording from the stop
mode, press this button, then
press 1.
When this button is pressed
during the recording, a blank
section of approximately
5 seconds is created, after which
the recording standby mode is set.
6(rewind) button
Press this button to rewind the
tape.
Press this button during playback
to set the music search mode (to
find the beginning of selections).
7(fast-forward) button
Press this button to fast-forward
the tape.
Press this button during playback
to set the music search mode (to
find the beginning of selections).
RESET button
Press this button to reset the tape
counter to ” “.
CD player operation buttons
DIRECT button
Press this button for direct search
on the CD player.
6and 7
(manual search) buttons
Press these buttons during
playback to move quickly forward
or backward.
REPEAT button
Press this button for repeat
playback.
RANDOM button
Press this button to play the tracks
in random order.
PROGRAM button
Press this button for programmed
playback on the CD player.
CANCEL button
Press this button to clear the last
track from the program.
TIME/SIDE A/B button
•TIME
Press this button during the play
or pause mode to switch the
time display.
Normally the elapsed time for
the track currently playing is
displayed. When this button is
pressed, the display switches to
the remaining time for that track,
the total remaining time on the
disc, then back to the elapsed
time per track.
During programmed playback,
the total remaining time display
indicates the total remaining
time of the programmed tracks.
CD operation buttons
2(stop) button
Press this button to stop playback.
1(play) button
Press this button to start playback.
8and 9
(automatic search buttons)
Use these buttons to search for
the beginning of the desired track.
Press this button to switch the
input (function).
The input changes in the
followingorder each time this
button is pressed: CD, TAPE,
TUNER, PHONO, MD, AUX.
POWER operation switch
Use this switch to turn on the
power of the entire system or set
the power to the standby mode.
SLEEP button
Press this button to set the sleep
timer.
PRESET buttons
Use these buttons to recall preset
stations on the tuner.
When the PRESET UP or DOWN
button on the remote control unit
is pressed while in the standby
mode, the power turns on and the
receiver begins operating.
BAND (AM/FM) selector button
TUNING buttons
MEMO button
Press these buttons after pressing
the TUNER button to recall preset
stations.
When playing a CD, press these
buttons after pressing the DIRECT
or PROGRAM button to specify
the desired track.
FUNCTION selector button
Press this button to switch the
function to the tuner and to recall
preset stations from the remote
control unit using the number
buttons.
TUNER button
Use these to adjust the volume.
The volume increases when the •
button is pressed and decreases
when the ªbutton is pressed.
VOLUME buttons
Number buttons
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT TUNER FUNCTION
1 2 3 4 5
6 7 8 9 10
PRESET
TUNING
MEMO
BAND
VOLUME
+10
89
89
2
2
1
21
67
67
01
B
REMOTE CONTROL UNIT RC-829
DECK
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT TUNER FUNCTION
1 2 3 4 5
6 7 8 9 10
PRESET
TUNING
MEMO
BAND
VOLUME
+10
89
89
2
2
1
21
67
67
01
B
REMOTE CONTROL UNIT RC-829
DECK
10

11
ENGLISH
1 4,6
PHONES BASS TREBLE BALANCE
LR
SYSTEM
REMOTE SENSOR
VOLUME
ON / STANDBY
PERSONAL COMPONENT SYSTEM / AM-FM STEREO RECEIVER DRA-F10 0
B
MHz
TUNED STEREO AUTO
CH
TIMER
MONO /
STEREO
BAND
MEMORY FUNCTION
UP
DOWN
TUNING
TIMER DISPLAY
3,5 2
7
LISTENING TO RADIO PROGRAMS
(Check the connections on pages 5 and 6.)
Receiver
(DRA-F100)
TUNING
Example: Tuning in FM 87.5 MHz
(AM stations are tuned in using the same procedure.)
1
Set the VOLUME control on the
receiver to the minimum position,
then press the SYSTEM power
operation switch (SYSTEM ON/
STANDBY) to turn on the power.
SYSTEM
ON / STANDBY
2Press the BAND button on the
receiver to select the FM band.
BAND
MHz
3
Use the TUNING UP and DOWN
buttons to tune the frequency to
87.50. Once the frequency is tuned
in, adjust the volume to the desired
level using the VOLUME control.
DOWN TUNING UP
DOWN TUNING UP
TUNED STEREO
MHz
AUTO
Auto Tuning
• When one of the TUNING buttons is pressed, the frequency changes in steps of 50kHz in the FM band, 9kHz in the AM band.
• If one of the TUNING buttons is held in for over 1 second, the frequency continues to change when the button is released (auto
tuning) and stops when a station is tuned in. Tuning will not stop at stations whose reception is poor.
• To stop the auto tuning function, press the UP or DOWN button once.
Example: Presetting FM 87.5 (currently tuned in) at preset number 3
Presetting AM and FM Stations
4Press the MEMORY button.
The indicator flashes for
10 seconds.
MEMO
MEMORY
TUNED STEREO AUTO MEMO
CHMHz
5
Use the TUNING UP and DOWN
buttons to call out the number at
which you want to preset the
station (3), or simply press the
corresponding number button “3”
on the remote control unit.
TUNED STEREO AUTO MEMO
CHMHz
6Press the MEMORY button while
the indicator is flashing.
MEMO
MEMORY
TUNED STEREO AUTO
CHMHz
Up to 40 AM or FM stations can be preset using this procedure.
(FM ONLY)
This function automatically stores the FM stations which can be received in the area in which the set is being used in the
preset memory. Also note that the channel memories can be changed at will even after the preset stations have been
stored with this function.
Auto Preset Memory Function
The preset stations can be recalled using the number buttons on the remote control unit.
Also, if the following operation is performed when the system power is off, the power automatically turns on and the radio
is played. (Auto on function)
Listening to Preset Stations
Flashes
Flashes
Flashes
“P3” lights
“P” flashes
1Connect the FM antenna and set it
so that FM stations can be
received.
2
Press the SYSTEM power operation
switch (SYSTEM ON/STANDBY) to
turn on the power while holding in
the MEMORY button.
MEMORY
SYSTEM
ON / STANDBY
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT FUNCTION
1 2 3 4 5
89
89
2
2
1
21
67
67
01
DECK
CD
MD
TUNER
q
w
MEMO
3
Searching begins automatically, and
stations are stored in the preset
memory in order, beginning from
channel 1 (The operation
automatically stops once 40
stations have been set in the
memory.)
TUNED STEREO AUTO
CHMHz
TUNED STEREO AUTO
CHMHz
Refer to page 5.
1
2
Press the TUNER button on the
remote control unit.
Press button ”3“ on the remote
control unit.
”AUTO“ is displayed and the MEMO indicator
flashes during this operation.
When the operation is completed, the station
stored at preset number 1 is tuned in.
NOTES:
• In addition to the reception frequency, the reception mode (monaural or auto) is also preset, so check the display when
presetting stations.
• If a station is preset at a number where a station is already preset, the previous station is replaced with the new station.
• The preset memory is not cleared immediately when the power cord is unplugged, but is cleared if the cord is left
unplugged for an extended period of time. If this happens, preset the stations again.
This lights when a station is tuned in.
Example: Listening to the station preset at number 3
(This operation is only possible from the remote control unit.)

12
ENGLISH
8
USING THE TIMER
The time and timer functions are incorporated in the receiver.
2Types of timer operations
TIMER : Use this to turn the power on and off at the same times every day.
SLEEP TIMER : Use this to set the power to turn off after 10 to 60 minutes, in steps of 10 minutes (operated from the
remote control unit).
2Notes on timer settings
• Be sure to set the current time beforehand.
• To listen to or record a radio program (”air check“) using the timer, be sure to preset the station beforehand. (Refer to
”Presetting AM and FM Stations“ on page 11.)
Timer Settings
Power Failures
Checking the Settings
Setting the Current Time
The Time is displayed in the 12-hour mode
Example: Setting to 7:30 p.m.
Should there be a power failure or should the power cord be unplugged, the time display will flash at ” “. If this
happens, reset the current time.
Also check the timer and tuner presettings, and reset them if they have been cleared.
To check the timer settings, press the TIMER button for at least 3 seconds. (This can also be done when the tuner’s
power is off.)
Next, press the MEMORY button repeatedly to display the timer start mode, the reception band and preset channel
number when in the tuner mode, the on time and the off time. Press the MEMORY button once more to return to the
current mode display.
Changing the Settings
Repeat the timer setting operation to erase the previous settings and set the new settings.
Clearing the Settings
Press the TIMER button for at least 3 seconds, then press it for at least 3 seconds again while ”FUNC“ is displayed to
clear the timer settings.
Note on Setting the Timer
If the time set with the timer is reached while the system power is on, the operation switches to the operation set by the
timer.
Turning the Timer Off
Press the TIMER button to turn the mark off.
PHONES BASS TREBLE BALANCE
LR
SYSTEM
REMOTE SENSOR
VOLUME
ON / STANDBY
PERSONAL COMPONENT SYSTEM / AM-FM STEREO RECEIVER DRA-F10 0
B
MHz
TUNED STEREO AUTO
CH
TIMER
MONO /
STEREO
BAND
MEMORY FUNCTION
UP
DOWN
TUNING
TIMER DISPLAY
2,4 1 3,5
1Press the DISPLAY button for at
least 3 seconds.
DISPLAY
The hours place flashes.
The hours place flashes.
The minutes place flashes.
The minutes place flashes.
The display stops flashing and
the clock starts running from
00 seconds.
(If the hours have already been set, that number flashes.)
2Use the TUNING UP and DOWN
buttons to set the hours.
3Press the MEMORY button.
(If the minutes have already been set, that number
flashes.)
4Use the TUNING UP and DOWN
buttons to set the minutes.
5
Press the MEMORY button at the
sound of a time service’s chime.
The time display stops flashing and
the clock starts running.
• The current time can be set even when the power is off.
Receiver (DRA-F100)
MEMORY
MEMORY
DOWN TUNING UP
DOWN TUNING UP

13
ENGLISH
Setting the Timer
The power can be set to turn on and off every day at the same time in any of five modes: tuner, CD, cassette deck, MD
player and air check (recording from the radio). (Preset the AM or FM station beforehand.)
1
Press the SYSTEM power operation
switch (SYSTEM ON/ STANDBY) on
the receiver to turn on the system’s
power.
TUNED
CHMHz
TUNING UP and DOWN buttons
TIMER button
Example: Setting the tuner to turn on at 2:35 p.m., off at 2:56 p.m. (with FM 87.5 MHz preset at channel ”3“)
Say that FM 90.00 MHz is tuned in at preset
channel number ”1“.
2Press the TIMER button for at least
3 seconds to set the timer setting
mode.
TIMER
TIMER
3Use the TUNING UP and DOWN
buttons to set the ”TUNER“ mode.
TIMER
4Press the MEMORY button.
CHMHz
TIMER
5Use the TUNING UP and DOWN
buttons to set the preset channel
number.
TIMER ON
6Press the MEMORY button.
7Use the TUNING UP and DOWN
buttons to set the hours for the
timer on time.
TIMER ON
Flashes
Flashes
Flashes
(If the timer has already been set, that number
flashes.)
8Press the MEMORY button.
TIMER ON
(If the timer has already been set, that number
flashes.)
Flashes
9Use the TUNING UP and DOWN
buttons to set the minutes for the
timer on time.
TIMER ON
Flashes
10 Press the MEMORY button.
TIMER OFF
Flashes
11 Use the TUNING UP and DOWN
buttons to set the hours for the
timer off time.
OFF
TIMER
Flashes
12 Press the MEMORY button.
OFF
TIMER
(If the timer has already been set, that number
flashes.)
Flashes
13 Use the TUNING UP and DOWN
buttons to set the minutes for the
timer off time.
OFF
TIMER
(If the timer has already been set, that number
flashes.)
Flashes
14 Press the MEMORY button.
TIMER
TUNED
CHMHz
The display returns to as it was before the
timer setting mode was set.
15 Press the TIMER button.
TIMER
TUNED
CHMHz
Lights
16
Press the SYSTEM power operation
switch (SYSTEM ON/STANDBY) on
the receiver to turn off the
system’s power.
TIMER
TIME
OFF
If the mark is displayed after the TIMER button is pressed, the timer will operate at the same times every day. To
turn the timer off, press the TIMER button again to turn the mark off.
The standby mark (” “) will not light if the current time is not set. If this is the case, set the current time, then press
the TIMER button.
NOTE:
PHONES BASS TREBLE BALANCE
LR
SYSTEM
REMOTE SENSOR
VOLUME
ON / STANDBY
PERSONAL COMPONENT SYSTEM / AM-FM STEREO RECEIVER DRA-F10 0
B
MHz
TUNED STEREO AUTO
CH
TIMER
MONO /
STEREO
BAND
MEMORY FUNCTION
UP
DOWN
TUNING
TIMER DISPLAY
Receiver (DRA-F100)
MEMORY button
SYSTEM
ON / STANDBY
SYSTEM
ON / STANDBY
DOWN TUNING UP
DOWN TUNING UP
DOWN TUNING UP
TIMER
DOWN TUNING UP
DOWN TUNING UP
DOWN TUNING UP
MEMORY
MEMORY
MEMORY
MEMORY
MEMORY
MEMORY

14
ENGLISH

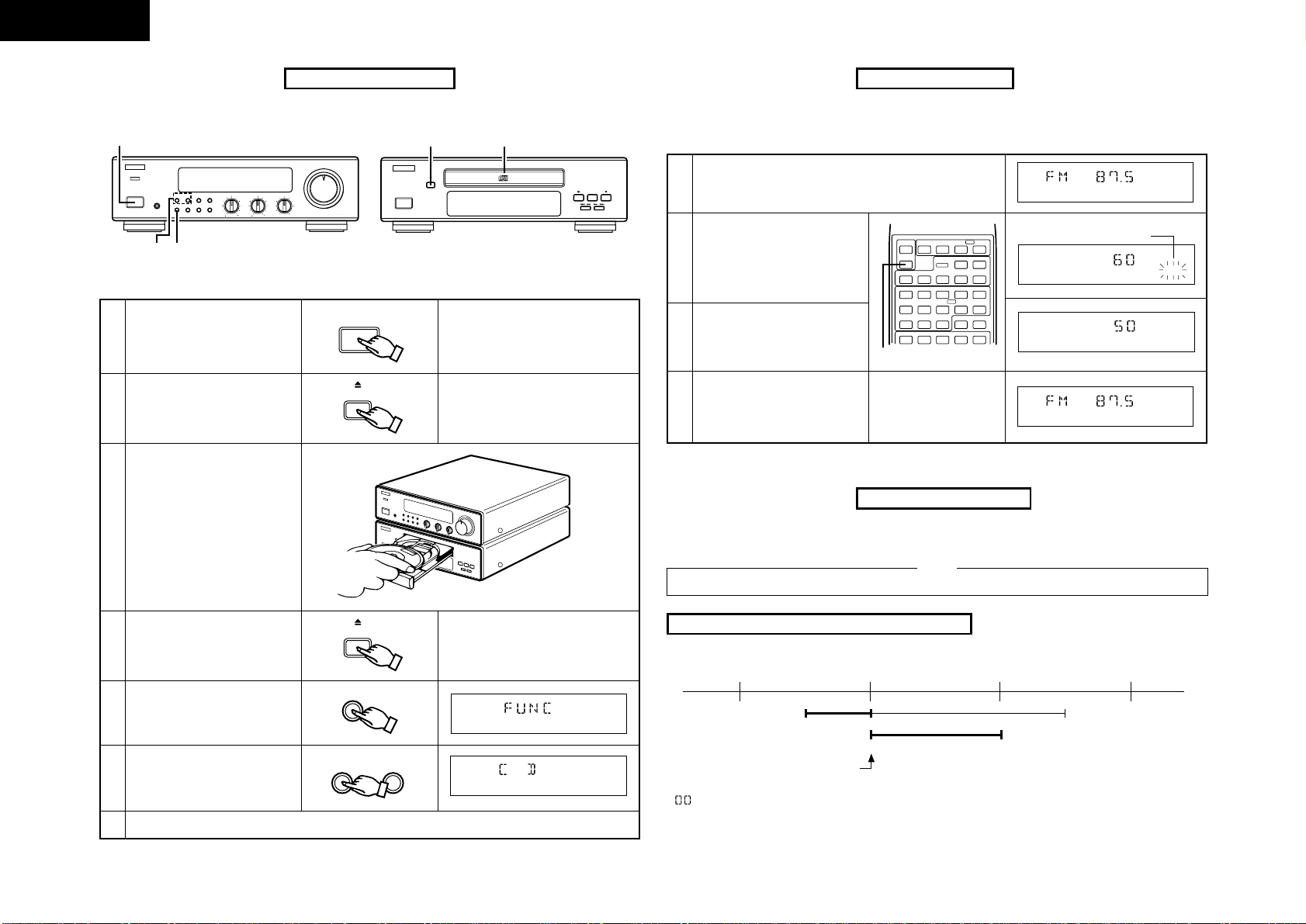

Various Timer Operations
Example: Playing a compact disc with the timer
PHONES BASS TREBLE BALANCE
LR
SYSTEM
REMOTE SENSOR
VOLUME
ON / STANDBY
PERSONAL COMPONENT SYSTEM / AM-FM STEREO RECEIVER DRA-F10 0
B
MHz
TUNED STEREO AUTO
CH
TIMER
MONO /
STEREO
BAND
MEMORY FUNCTION
UP
DOWN
TUNING
TIMER DISPLAY
65
1
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / C OMPACT DISC PLAYER DCD-F100
/ /
3
B
2,4 3
1
Press the SYSTEM power operation
switch (SYSTEM ON/STANDBY) on
the receiver to turn on the system’s
power.
OPEN/CLOSE
OPEN/CLOSE
2Press the CD player’s OPEN/
CLOSE button (5) to open the disc
tray.
3Load the disc in the disc tray.
Refer to page 15.
4Press the CD player’s OPEN/
CLOSE button (5) again to close
the disc tray.
5Press the receiver’s TIMER button
for at least 3 seconds.
TIMER
6Use the receiver’s TUNING UP and
DOWN buttons to set the ”CD“
mode.
TIMER
7Now follow steps 6 to 16 under ”Setting the Timer“ on page 13.
B
MHz
TUNEDSTEREOAUTO
CH
TIMER
B
CD player (DCD-F100)Receiver (DRA-F100)
Setting the Sleep Timer
Cancelling the Sleep Timer
With this function, the power can be set to turn off after 10 to 60 minutes, in steps of 10 minutes, using the remote
control unit.
Example: Setting the power to turn off in 50 minutes
(This operation is only possible from the remote control unit.)
1Tuner currently set to FM 87.5 MHz.
TUNED STEREO
MHz
2Press the SLEEP button.
SLEEP
3Press the SLEEP button again while
the ”SLEEP“ indicator is flashing.
SLEEP
4
The previous display reappears
after 5 seconds.
The ”SLEEP“ indicator remains lit,
indicating that the sleep timer is
functioning.
MHz
SLEEP
Order of priority of the sleep and everyday timers
Flashes
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT FUNCTION
1 2 3 4 5
89
89
2
2
1
21
67
67
01
DECK
CD
MD
TUNER
we
• The time is reset to ”60“ (60 minutes) if the SLEEP button is pressed again while the sleep timer is functioning.
Press the SLEEP button repeatedly until the ”SLEEP“ indicator turns off.
The sleep timer is also cancelled if the receiver’s SYSTEM power operation switch or the POWER operation switch on the
remote control unit is pressed, turning the system power off.
If the times set with the sleep and everyday timers overlap, the sleep timer has priority.
NOTE:
The sleep timer has priority for the off time. (The system operates as indicated by the bold lines.)
8 : 00 p.m. 9 : 00 p.m. 10 : 00 p.m.
ON OFF
SLEEP
ON OFF
Even when the power was turned on with the timer, the power turns off if the remaining time of the sleep timer reaches
” “ before the off time set with the everyday timer is reached. If the everyday timer’s on time is reached while the
sleep timer is functioning, the everyday timer does not function.
Sleep timer set to 60 minutes
Everyday timer set
SYSTEM
ON / STANDBY
TIMER
DOWN TUNING UP

15
ENGLISH
9
PLAYING CDs
About Compact Discs
DIGITAL AUDIO
DIGITAL AUDIO
COMPACT
Only discs with the mark shown left can
be played on the DCD-F100. Disc Remarks
CD
CDV
CD singles
(8 cm discs)
Only the audio part is
played.
Use compact discs that include the mark.
CD’s with special shapes (heart-shaped CD’s, octagonal CD’s
etc.) cannot be played on this set.
Attempting to do so may damage the set. Do not use such
CD’s.
DIGITAL AUDIODIGITAL AUDIO
COMPACTCOMPACT
• For CDVs, only the audio part is played. (The video part is
not played.)
2Removing discs from their cases
As shown on the diagram,
grasp the outer edge of the
disc with your fingers,
insert a finger in the center
hole, press gently, then lift
the disc out of the case.
2Loading discs in the disc tray
Be sure to load the disc with
the labelled side facing up.
(Compact discs only play on
one side.) For 8 cm CDs, set
the disc in the sunken section
in the center of the tray.
• The disc tray opens when the OPEN/CLOSE button (5) is pressed once and closes when it is pressed again.
• When the disc tray is closed, the disc turns automatically for several seconds, then the total number of tracks and
total playing time of that disc appear on the display.
• The disc tray can also be closed by pressing the play button (1), in which case playback automatically starts from the
first track on the disc (or if tracks are programmed, from the first programmed track).
NOTES:
Do not turn off the power, stop the disc tray by hand or pull on it when
it is moving. Doing so may damage it.
If the headphones’ cord or some other object accidentally gets caught in
the disc tray while it is closing and the disc tray stops, press the
OPEN/CLOSE button (5) again to open the tray and remove the
obstacle.
Do not set objects other than discs on the disc tray. Doing so may
damage it.
Handling the Disc Tray
B
MHz
TUNEDSTEREOAUTO
CH
TIMER
B
Normal Playback
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / C OMPACT DISC PLAYER DCD-F100
/ /
3
B
2,4 3 5
1
CD player (DCD-F100)
2Press the OPEN/CLOSE button (5)
to open the disc tray.
3Load the CD in the disc tray.
The mark indicates operations which can also be performed on the remote control unit.
R
4
Press the OPEN/CLOSE button (5).
The disc tray closes.
The display appears after several
seconds.
12 3 4 56 78 910 11 12 1314 15
5Press the play button (1).
12 3 4 56 78 910 11 12 1314 15
R
Example: Playing a disc containing 15 tracks and with a playing time of 62 minutes, 03 seconds, starting from the
first track
1
Press the SYSTEM power operation
switch (SYSTEM ON/STANDBY) on
the receiver to turn on the system’s
power.
B
MHz
TUNEDSTEREOAUTO
CH
TIMER
B
ON / STANDBY
B
MHz
TUNEDSTEREOAUTO
CH
TIMER
B
OPEN/CLOSE
OPEN/CLOSE

16
ENGLISH
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT FUNCTION
1 2 3 4 5
6 7 8 9 10
PRESET MEMO +10
89
89
2
2
1
21
67
67
01
DECK
CD
MD
TUNER
Play button Stop button
Pause button
Interrupting playback temporarily
Press the pause button (3).
3
The “3” mark appears on the display, and
playback stops at the point where the button
was pressed.
Resuming playback
Press the play button (1).
The “3” mark turns off on the display, and
playback resumes from the
point where the pause button (3) was
pressed.
R
Stopping playback
Press the stop button (2).
R
12 34 56 78 910 1112 131415
• When a disc is loaded, “ ” is displayed on the
display for several seconds while the data on the
number of tracks and total playing time is being read
from the innermost side of the disc, after which the
number of tracks and total playing time appear.
• If no disc is loaded, if the disc is upside down, or if the
data cannot be read properly due to scratches or dirt,
the display reads as shown below and the disc will not
play.
NOTES:

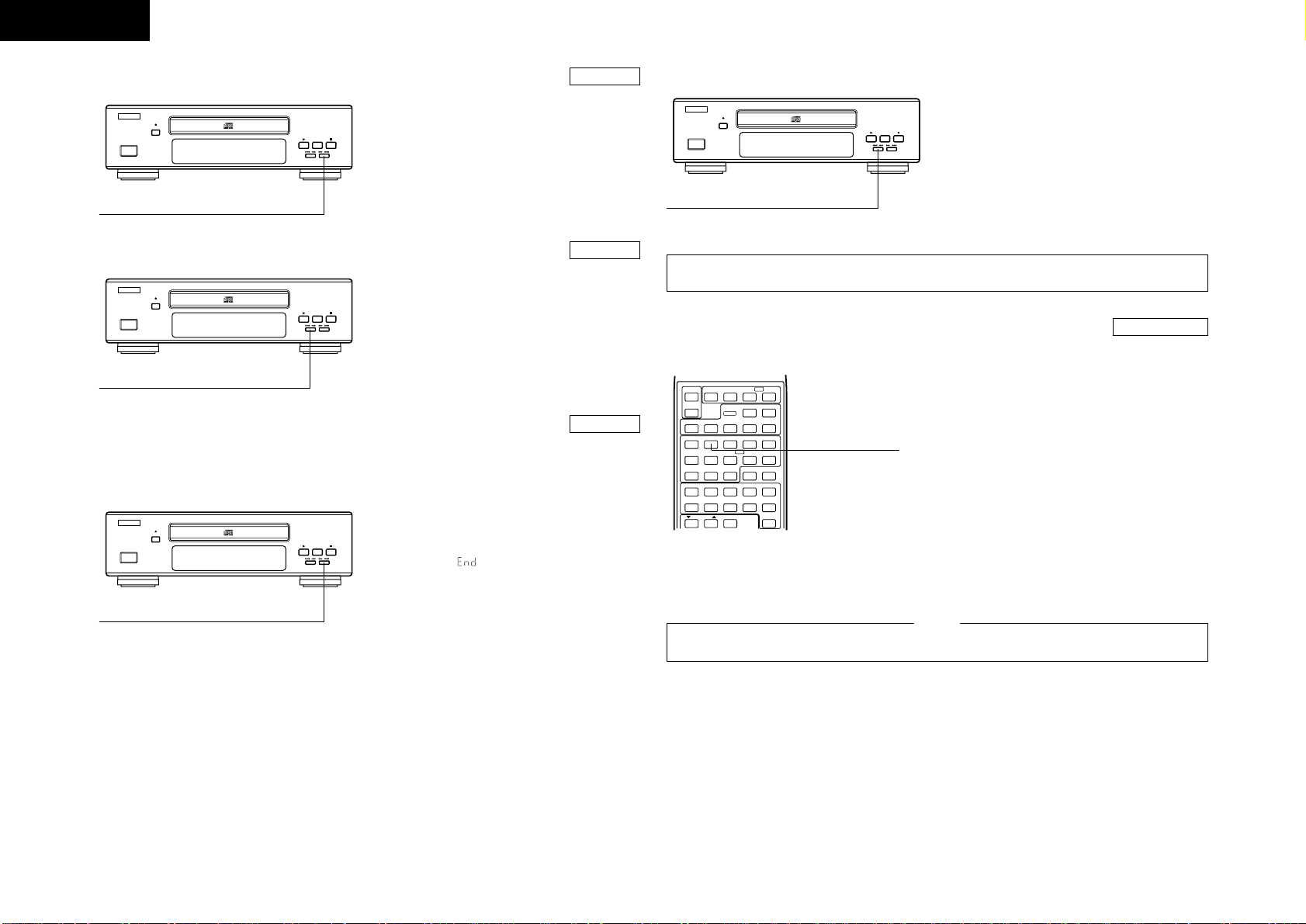

Various Playback Functions
In addition the regular playback, the DCD-F100 also offers the following playback functions:
qPlaying a specific track ………………………………………………………………………………………… Direct Search
(Using the remote control unit)
Example: Playing the 8th track
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT FUNCTION
1 2 3 4 5
6 7 8 9 10
PRESET MEMO +10
89
89
2
2
1
21
67
67
01
DECK
CD
MD
TUNER
Direct button
REPEAT button
Play button (1)
Play button (1)
8
(auto search button)
9
(auto search button)
“8”
qPress the DIRECT button.
wPress the button corresponding to the number of the
track 8. “8” appears on the track number display and
playback of track number 8 begins.
• When the end of the track is reached, playback continues
on the next track.
• To specify a track number of 11 or greater, say track 15,
press then , and to specify a track number of 20
or greater, say track 23, press , then .
To play track 20, press then .
10+10
3+10+10
5+10
wPlaying a single track repeatedly …………………………………………………………………… Single-track Repeat
(Using the remote control unit)
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT FUNCTION
1 2 3 4 5
6 7 8 9 10
PRESET MEMO +10
89
89
2
2
1
21
67
67
01
DECK
CD
MD
TUNER
qWhen the REPEAT button is pressed once, REPEAT
appears on the display and the single-track repeat
mode is set.
wUse the 8and 9buttons to select the track to be
repeated.
ePress the play button (1) to start playback.
• When the end of the specified track is reached, playback
starts over from the beginning of that track.
• The single-track repeat mode can also be set by pressing
the REPEAT button once during playback.
• To cancel the single-track repeat mode, press the REPEAT
button repeatedly until the “REPEAT” indicator turns off.
ONE
REPEAT button
ePlaying all the tracks repeatedly ………………………………………………………………………… All-track Repeat
(Using the remote control unit)
qWhen the REPEAT button is pressed twice, REPEAT
appears on the display and the all-track repeat
mode is set.
wPress the play button (1) to start playback.
• The all-track repeat mode can also be set by pressing the
REPEAT button twice during playback.
• To cancel the all-track repeat mode, press the REPEAT
button to turn the “REPEAT” indicator off.
• If the REPEAT button is pressed during programmed
playback, the tracks are played repeatedly in the
programmed order.
ALL
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / COMPACT DISC PLAYER DCD-F100
/ /
3
B
CD player (DCD-F100)

17
ENGLISH
rPlaying a certain section repeatedly …………………………………………………………………………… A-B Repeat tPlaying the tracks in a certain order ……………………………………………………………… Programmed Playback
Example: Using a CD containing 15 tracks
1st press2nd press3rd press4th press
(1) When pressed during playback:
The single-track repeat mode is set and “REPEAT” and
“ ” light.
ONE
REPEAT
ONE
12 34 56 78 910 1112 131415
(1) When pressed during playback:
The all-track repeat mode is set and “REPEAT” and “ ”
light.
ALL
REPEAT
12 34 56 78 910 1112 131415
ALL
(2) When pressed before playback: The all-track repeat mode is set and “REPEAT” and “ ”
light.
Then press the play button (1) or direct search buttons on
the remote control unit to play.
ALL
ALL
REPEAT
12 3 4 56 78 910 11 12 1314 15
When pressed during playback:
“REPEAT” and “ ” light.
A /
REPEAT
A
When pressed during playback:
Press the REPEAT button again to return to normal playback.
“REPEAT” and “ ” light, and the section between
points A and B is played repeatedly.
A /B
REPEAT
AB
(2) When pressed before playback: The single-track repeat mode is set and “REPEAT” and
“ ” light.
Next,
qPress the play button (1) to play the first track
repeatedly.
wIf playback is started using the direct search buttons on
the remote control unit or the 7/9and 8/6
buttons on the CD player, the specified track is played
repeatedly.
ONE
REPEAT
ONE
12 3 4 56 78 910 11 12 1314 15
(Using the remote control unit)
Example: Programming the 3rd track to play first, the 18th track to play second, using a CD containing 18 tracks
and with a playing time of 62 minutes, 03 seconds
Procedure
1Press the PROGRAM button.
2Press “3” to set the 3rd track at
the first place in the program.
3Press “+10” and “8” to set the
18th track at the second place in
the program.
4Press the play button (1).
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT FUNCTION
1 2 3 4 5
6 7 8 9 10
PRESET
TUNING
MEMO
BAND
VOLUME
+10
89
89
2
2
1
21
67
67
01
B
REMOTE CONTROL UNIT RC-829
DECK
TUNER
CD
MD
TUNER r
q
w
e
PROGRAM
PROGRAM
3
After 2 seconds
display when the 3rd track is set at the
first place
3
PROGRAM
After 2 seconds
display when the 18th track is set at the
second place
The tracks are played in the
programmed order.
• When the TIME/SIDE A/B button is pressed before playback, the total playback time of programmed tracks is displayed.
• Press the DIRECT button to resume normal playback during the programmed playback.
• To cancel the entire program, press the DIRECT button or cancel the program one by one using the CANCEL button.
• If you want to correct the programmed track, press the automatic/manual search reverse button (8/6) to display
the track to correct and press the desired number button on the remote control unit. Press the CANCEL button instead
of the number button to cancel the displayed track. After finishing the correction, press the automatic/manual forward
button (7/9) repeatedly until “– –” is displayed on the track number display.
Other operations possible during programmed playback:
Such operations as quick search, pause and skip monitor are also possible during programmed playback.
For the quick search function, press the automatic/manual search reverse button (8/6) to move back to the
beginning of the track, then press it again while the time display reads “ ” to move back to the beginning of the
preceding track.
To move ahead to the beginning of the next track, press the automatic/manual search forward button (7/9),
regardless of the time display.
• The numbers of the programmed tracks on the music calendar turn off after the tracks have been played.
• With this CD player, up to 20 tracks with any track number between 1 and 99 can be programmed.
• If a number greater than the total number of tracks on the disc is specified, that number will not be displayed.
• Programming is also possible with the disc tray open. In this case it is possible to program a track number not
included on the disc, but when the program is played, that track number will be skipped.
• The entire program is cancelled when the OPEN/CLOSE button (5) is pressed.
• If you make a mistake when programming, press the CANCEL button to cancel the mistake. (The last track in the
program is cancelled each time the CANCEL button is pressed.)
• The A-B repeat functions do not work during programmed playback.
• Set the stop mode when cancelling tracks from the program.
NOTES:

18
ENGLISH
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / C OMPAC T DI SC PL AYER DCD-F100
/ /
3
B
yMoving ahead to the next track during playback ………………………………………………………… Quick Search
Quick Search
CD player (DCD-F100)
CD player (DCD-F100)
Automatic/manual search
forward button (7/9)
Press the automatic/manual search forward button
(7/9).
uMoving back to the beginning of the track during playback ……………………………………………
Press the automatic/manual search reverse button
(8/6).
Skip Monitor
iFinding a certain spot on the disc while listening to the sound …………………………………………
• The track currently being monitored and the elapsed
time for that track are indicated on the display.
• If the end of the last track on the disc is reached while
pressing the automatic/manual search forward button
(7/9), “ ” appears on the display and the
manual search operation stops.
To continue playback, press and hold in the
automatic/manual search reverse button (8/6) until
a track number appears on the display, then perform the
desired operation.
• Use this function to skip through the disc while listening to the sound.
• When the desired spot is reached using the skip monitor function, release the automatic/manual search forward button
(7/9) or automatic/manual search reverse button (8/6) to resume normal playback from that point.
(1) Forward skip monitor
During playback, press and hold in the automatic/manual
search forward button (7/9) to skip through the disc
in the forward direction while listening to the sound.
(2) Reverse skip monitor
• The track currently being monitored and the elapsed
time for that track are indicated on the display.
• If the automatic/manual search reverse button
(8/6) is pressed continuously, it will reach the
beginning of the first track on the disc.
Release the automatic/manual search reverse button
(8/6) to resume normal playback.
During playback, press and hold in the automatic/manual search reverse button (8/6) to skip through the disc in the
reverse direction while listening to the sound.
If the automatic/manual search forward or automatic/manual search reverse button is pressed during programmed
playback then released at a track not in the program, instantly the next track in the program is searched and played.
Random Playback
oPlaying the tracks in random order ……………………………………………………………………
(Using the remote control unit)
• Use this function to play all the tracks on the disc once in random order.
POWER
SLEEP
EDIT RANDOM REPEAT
RESET
REC / MUTE
TIME
SIDE A/B
PROGRAM CANCEL DIRECT FUNCTION
1 2 3 4 5
6 7 8 9 10
PRESET MEMO +10
89
89
2
2
1
21
67
67
01
DECK
CD
MD
TUNER
RANDOM button
• The programmed tracks can be played in random order
by pressing the RANDOM button when tracks are
programmed.
• If the RANDOM button is pressed while the repeat
mode is set, the tracks are each played once in random
order, then played again in another order, and so on.
• Random playback cannot be set in the A-B repeat mode.
• While the next track is being searched for, any numbers
of the tracks on the disc are not displayed on the track
number display so it is not possible to know which track
will be played next.
• The repeat mode is set to the all-track repeat mode
when the RANDOM button is pressed during the single-
track repeat mode.
• Press the RANDOM button to turn on the “RANDOM”
indicator, then press the play button to start random
playback in the programmed playback mode.
• In the normal playback mode, simply press the
RANDOM button to start random playback.
• The total remaining time cannot be displayed during the random playback mode.
• The random playback mode cannot be set during editing.
NOTES:
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / C OMPAC T DI SC PL AYER DCD-F100
/ /
3
B
CD player (DCD-F100)
Automatic/manual search
forward button (7/9)
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / C OMPAC T DI SC PL AYER DCD-F100
/ /
3
B
Automatic/manual search
reverse button (8/6)
CD player (DCD-F100)
ON / STANDBY
OPEN/CLOSE
PERSONAL COMPONENT SYSTEM / C OMPACT DISC PLAYER DCD-F100
/ /
3
B
Automatic/manual search
reverse button (8/6)

19
ENGLISH
11
SPECIFICATIONS
10
OTHER INFORMATION
2Receiver (DRA-F100)
Practical maximum output: 30 W + 30 W (4 Ω/ohms, DIN)
Low frequency adjustment range: 100 Hz ±8 dB
High frequency adjustment range: 10 kH ±8 dB
Reception frequency band: FM: 87.5 MHz ~ 108.0 MHz
AM: 520 kHz ~1710 kHz
Reception sensitivity: FM: 1.5 µ/75 Ω/ohms
AM: 20 µV
FM stereo separation: 35 dB (1 kHz)
Audio input/output jacks: CD input jacks, tape input/output jacks,
MD input/output jacks, Aux input jacks.
3.5 mm headphones jack and phono input jacks
Power supply: AC 120 V, 60 Hz
Power consumption: 130 W
Maximum external dimensions: 270 (W) x 84 (H) x 289 (D) mm
(10-5/8” x 3-5/16” x 11-3/8”)
(including feet, controls and terminals)
Mass: 4.1 kg (9 lbs. 1 oz)
2CD player (DCD-F100)
Wow & flutter: Below measurable limits
(±0.001 % W. peak)
Sampling frequency: 44.1 kHz
Optical source: Semiconductor
Power supply: AC 120 V, 60 Hz
Power consumption: 10 W
Maximum external dimensions: 270 (W) x 84 (H) x 264 (D) mm
(10-5/8” x 3-5/16” x 10-25/64”)
(including feet, controls and terminals)
Mass: 2.7 kg (5 lbs. 15 oz)
2Remote control unit (RC-829)
Remote control system: Infrared pulse
Number of buttons: 47
Power supply: Two DC 1.5 V R6P/AA batteries
Maximum external dimensions: 64 (W) x 195 (H) x 18 (D) mm
(2-1/2” x 7-43/64” x 23/32”)
Mass: 130 g (including batteries) (Approx. 4.6 oz)
✽Maximum dimensions include controls, jacks, and covers.
(W) = width, (H) = height, (D) = depth
• For improvement purposes, specifications and functions are subject to change without advanced notice.
Cleaning Discs
Dust, fingerprints or spit on the disc will result in noise or
skipping. If the disc is dirty or if the CD player does not
operate properly, use the following procedure to clean the
disc:
• Hold the disc with the signal surface (the side opposite
the labelled side) facing up, as shown in the diagram.
• Wipe the disc gently from the center towards the edge
(in the direction of the arrow) with a soft cloth.
Do not clean discs with the following:
• Benzene, alcohol or other solvents
• Cleaner including an abrasive
• Sprays or cleaners designed for records
• Anti-static
• Do not wipe discs in the direction opposite the arrow or in a circular motion as with regular records.
• The disc’s signal surface is easily damaged, so do not wipe it with a hard cloth or rub it strongly.
NOTES:

20
ENGLISH
12
TROUBLESHOOTING
Check the following once more before assuming there is a problem with the system.
1. Are connections proper ?
2. Is the system being operated as explained in the operating instructions ?
If the system does not seem to be operating properly, check as shown on the table below. If none of these checks apply
to the problem, the system may be malfunctioning. Disconnect the power cord immediately and contact your store of
purchase.
Symptom Cause Countermeasure Page
Power does not turn on
when power switch is
pressed.
• Power cord is not plugged into a power
outlet.
• Plug the power cord securely into an
outlet.
6
No sound is produced from
the speakers.
• VOLUME control is turned down.
• Headphones are connected.
• Speaker cords are not securely con-
nected.
• Set the control to an appropriate
position.
• Disconnect the headphones.
• Connect securely.
7
7
6
No treble sound is
produced, or the position of
the instruments is unclear.
• Speaker polarities (<and >) are
inverted.
• Connect the speaker cords properly. 6
A source other than the
desired one is heard.
• Function is not properly set. • Set the desired function using the
FUNCTION button.
7
Hissing sound is heard in
FM programs.
• Antenna direction is poor.
• Signals from the broadcast station are
weak.
• Change the direction of the antenna.
• Install an outdoor antenna.
5
5
Hissing sound is heard in
AM programs.
• Noise from a TV or interference from a
broadcast station.
• Turn the TV off.
• Change the direction of the loop
antenna.
• Install an outdoor antenna.
–
–
5
Humming sound is heard in
AM programs.
• Signals on the power cord are being
modulated by the power source
frequency.
• Insert the power cord in the opposite
direction.
• Install an outdoor antenna.
–
5
Total number of tracks not
displayed when disc is
loaded.
• Disc is loaded upside-down.
• Disc is dirty.
• Disc is not of the specified type.
• Reload the disc.
• Clean the disc.
• Replace with a disc of the specified
type.
15
19
–
Nothing happens when
oper-ating buttons are
pressed.
Disc stops in the middle of
a track and will not play
properly.
• Disc is loaded upside-down.
• Foreign object on disc tray.
• Disc is dirty.
• Disc is scratched.
• Reload the disc.
• Remove the disc and the foreign
object.
• Clean the disc.
• Replace with an unscratched disc.
15
15
19
–
Sound is broken.
• Dirt, fingerprints, spittle, etc. on disc.
• Disc is scratched.
• Player is in an unstable place and
vibrates strongly.
• Clean the disc.
• Replace with an unscratched disc.
• Place the player in a stable place with
no vibrations.
19
–
–
Humming sound is heard
when disc is played.
• Signals on the power cord are being
modulated by the power source
frequency.
• Insert the power cord in the opposite
direction.
–
•Protector circuit
The DRA-F100 is equipped with a high speed protector circuit.
This circuit protects internal parts from being damaged by strong currents generated in the set should the set be
operated when the speaker terminals are incompletely connected or short-circuited.
If this protector circuit is activated, a relay sound is produced, the output to the speakers is interrupted, and the function
and power LEDs flash to indicate that there is a problem. If this should happen, unplug the power cord, check the
speaker connections, then plug in the power cord and turn the power back on. After several seconds, a relay sound is
heard and the set starts operating properly.
• The set may not operate properly due to such external influences as lightning or static electricity. If this happens, either
turn off the power with the receiver’s SYSTEM power operation switch or unplug the power cord, wait approximately 5
seconds, then plug the power cord back in.
GeneralReceiverCD player
