DENTSPLY MIDWEST Stylus 181S Series User manual

Stylus™Standard
M IDWEST®
180S, 181S, 360S, 361S, 540S, 541S
High Speed Handpiece with Fiber Optics & Push Button Chuck

Midwest®Stylus™Standard
180S, 181S, 360S, 361S, 540S, 541S
High Speed Handpiece
with Fiber Optics and Push Button Chuck
Installation, Maintenance
and Operation Instructions 1

Midwest®Stylus™Standard High Speed Handpiece
Standard Description Series SKU Ref
Stylus 180S 790300
Stylus Compatible with MULTIflex®LUX Coupler 181S 790330
Stylus Lite 360S 791300
Stylus Lite Compatible with MULTIflex®LUX Coupler 361S 791330
Stylus Mini 540S 792300
Stylus Mini Compatible with MULTIflex®LUX Coupler 541S 792330
Caution: US Federal law restricts this device to sale by or on the order of a Dentist.
INDICATIONS FOR USE:
This air-turbine high-speed handpiece is intended to be used
for general dentistry.
CONTRAINDICATIONS:
Do not use this handpiece within the oral cavity when a soft
tissue wound is present. Air pressure may force septic
materials into these tissues.
WARNINGS:
•This product is intended for use by dental professionals only.
•It is the responsibility of the Dental Healthcare Professional (DHCP)
to understand the intended uses of this product, the health of each
patient, the dental procedures being undertaken and industry and
governmental agency recommendations, requirements, and
regulations for safe practice of dentistry.
•Before operating handpiece, carefully read and follow these
instructions and save them for future reference.
•Handpieces should be heat-sterilized between patients to prevent
cross-contamination which could result in serious illness or even
death from infectious organisms such as HIV (the virus that causes
AIDS) or hepatitis B.
•Do not cut with the handpiece unless you are sure the bur is secure. Do
not extend the bur outward from the handpiece head. A loose or extend-
ed bur could eject from the head or break and cause personal injury.
•Sterilize handpiece prior to first use.
•Midwest turbines should not be rebuilt. Replacing bearings only could
result in unexpected failure and patient injury due to different wear
factors of new vs. old components.
2

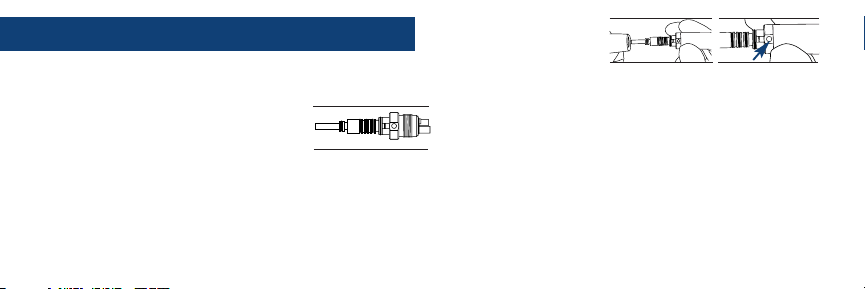

Checking Handpiece Hose
Make sure all tubing supplying the handpiece hose is properly
connected within the dental unit. Be sure the air and water are
delivered to the handpiece as shown in the illustration below.
Air Requirements
The handpiece delivers designed speed and torque when operated
with clean, filtered, moisture-free air at the recommended operating
pressure of 40 psi (2.7 Atm.) for 180S, 360S, 540S series and
42 psi (2.9 Atm.) for 181S, 361S, 541S series. Air pressure
should be measured at the handpiece end of the hose.
Have your dealer or serviceman use an analyzer gauge. Connect
gauge to hose, then handpiece to gauge. Fully depress foot control
and run the handpiece. Adjust drive air pressure to 40 or 42 p.s.i.
(see requirements above) as indicated on analyzer gauge. Remove
gauge and connect handpiece to hose.
Installation
3
5-Hole Fiber Optic 6-Pin Fiber Optic
Drive Air
Water
Chip Air
Exhaust 2 Pins Supplying
Voltage to Bulb
Drive Air
Water
Chip Air
Exhaust Fiber Optic
