DENTSPLY AEU-25T Manual

Endo
DTC
DIGITAL TORQUE CONTROL
DUAL VOLTAGE
AEU-25T Electronic Endodontic System
OPERATION and MAINTENANCE
INSTRUCTION MANUAL
®

TABLE OF CONTENTS:
Introduction . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . .1
Setting Up the Unit . . . . . . . . . . . . . . . . . . .2
Quick Start Operation . . . . . . . . . . . . . . . . .4
Advanced Operation & Functions . . . . . . . .6
HANDPIECE RATIO SELECTOR . . . . . . . .6
SPEED (RPM) SELECTOR . . . . . . . . . . . .6
TORQUE SELECTOR . . . . . . . . . . . . . . . . .6
FORWARD/REVERSE SELECTOR . . . . . .6
MAXIMUM TORQUE BUTTON . . . . . . . . . .6
CALIBRATION AND SYSTEM SETUP . . . .7
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
System Setup Menu
PRESET MEMORY LOCK . . . . . . . . . . . . . . .7
RECALL FACTORY SETUP . . . . . . . . . . . . . .7
AUTO STOP REVERSE . . . . . . . . . . . . . . . . .7
REVERSE BEEPER . . . . . . . . . . . . . . . . . . . .8
TORQUE WARNING TONE . . . . . . . . . . . . . .8
ACCESSORY WARNING TONE . . . . . . . . . . .8
SLEEP MODE . . . . . . . . . . . . . . . . . . . . . . . . .8
Intro to Programming Preset Buttons . . . . .9
Sterilization & Maintenance . . . . . . . . . . . .14
Troubleshooting . . . . . . . . . . . . . . . . . . . . .16
Symbol Definitions . . . . . . . . . . . . . . . . . . .16
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .17
Console Size: 3.5” x 5” x 7”
(9 cm x 13 cm x 18 cm)
Console Weight: 3.55 lbs (1.6 kg)
Power Source: Dual Voltage
115V or 230V AC
Power Consumption
Maximum: 100 W (approx.)
Sleep Mode: 6 W
SPECIFICATIONS:
INDICATIONS FOR USE:
The Endo DTC®is an electric handpiece control system
that is used in dentistry to drive endodontic files and
instruments.
CONTRAINDICATIONS:
• None Known
WARNINGS:
• Equipment not suitable for use in the presence of a
flammable mixture with air or with oxygen or nitrous oxide.
• Do not use near standing water. Dropping the unit into
water may cause electric shock.
• This equipment provides ordinary protection against
harmful ingress of liquids (IPX0). Do not submerge the
electric hand motor in any liquid.
PRECAUTIONS:
• Always unplug the unit before changing fuses.
• Do not clean unit with a flammable cleaning solution.
ADVERSE REACTIONS:
• None Known
To prevent injury to people and damage to prop-
erty, please heed relevant warnings and remarks.
They are marked as follows:
WARNING: Serious injury or death may
result if ignored.
CAUTION: Damage to property or the
environment may result if ignored.
NOTE: Important additional information
and hints.
ªSTEP-BY-STEP INSTRUCTIONS
BEGIN ON PAGE 2
ªSTERILIZATION METHOD
INSTRUCTIONS BEGIN ON PAGE 14

1
Your new Endo DTC®is one of the most advanced units available
to the dental profession. This system features advanced digital
torque control technology with auto-stop reverse to help prevent
file breakage in the canal, five programmable memory buttons
with an onboard file library, an integrated calibration system, and
the versatility of an autoclavable 30,000 RPM brushless micro
motor. These features combine to make the perfect rotary file
system for endodontic and other dental procedures.
Congratulations
This system is engineered to provide many years of reliable
service. Please read the instructions provided in this manual to
receive the best and longest service from your Aseptico
equipment.
Separate manuals may be provided to cover the operation and
maintenance of handpieces or other accessories for your unit.
PACKAGE CONTENTS
Electronic Control Console
Remote Power Cord
AE-4B-30 Autoclavable 30K Brushless Micro Motor
Autoclavable Motor Holder
AE-7P Foot Switch (971-S)

SETTING UP THE UNIT:
1. Unpack the console and check
that the Voltage Selector is set
to the proper voltage. Use 115v
for 110-120v 60Hz voltages, and
the 230v for 220-250v 50Hz
voltages. To change the Voltage
Selector, see page 15.
2. Attach the power cord to
the back of the Console and plug
into a grounded electrical outlet.
3. Connect the AE-4B-30 motor to
the receptacle on the lower front
panel of the console.
4. Attach the “E” Type handpiece to
the motor. See Figure 2.
5. Attach the supplied AE-7P On/Off
Foot Switch to the connector on
the back of the unit marked “Foot
Switch.”
POWER
CORD
CONSOLE
MOTOR
FOOT SWITCH
“E” TYPE
HANDPIECE
MOTOR
MOTOR HOLDER
Do not attempt to operate the Endo DTC®
while configured in the 115V mode with a
230V power source. This could damage
the electrical components and will void
the warranty.
CAUTION
Figure 1
Figure 2
STEP-BY-STEP INSTRUCTIONS

3

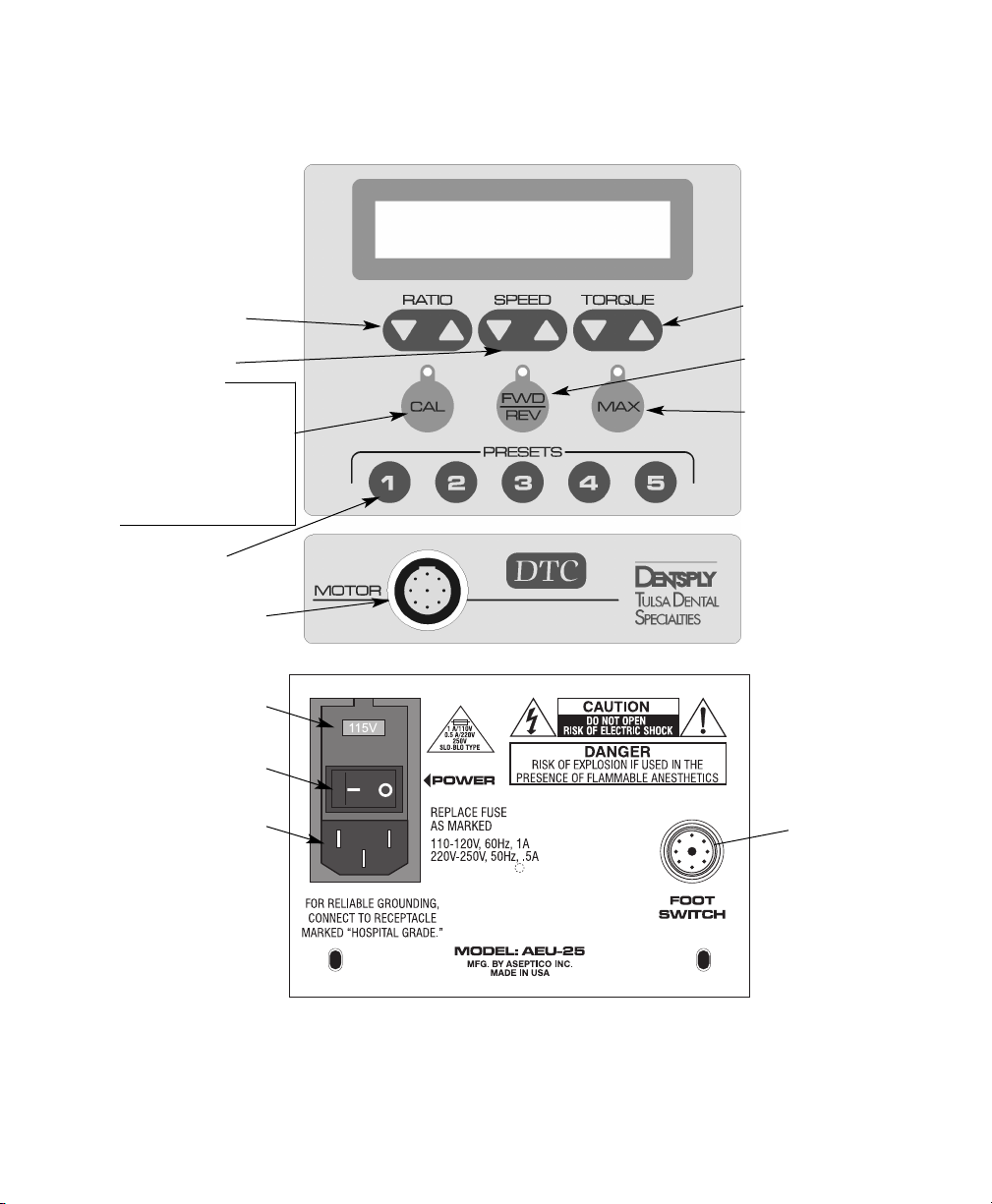

CONSOLE LCD DISPLAY
MOTOR RECEPTACLE
FUSE/VOLTAGE
SELECTOR PANEL
POWER SWITCH
POWER CORD
RECEPTACLE
FOOT SWITCH
RECEPTACLE
Figure 3 - Console Front
Figure 4 - Console Back
Handpiece Ratio
Selector
Speed Selector
Calibration/
System Setup:
• PRESET MEMORY LOCK
• RECALL FACTORY SETUP
• AUTO STOP REVERSE
• REVERSE BEEPER
• TORQUE WARNING TONE
• ACCESSORY WARNING TONE
• SLEEP MODE
Preset Buttons
Torque Selector
Forward/Reverse
Maximum Torque
Selector
* See page 6 for ADVANCED OPERATION AND FUNCTIONS

4
QUICK START OPERATION
After the unit has been set up, you are ready for
quick start operation as follows:
1. Turn the Power Switch on the rear panel of
the console from the 'OFF' (0) to the 'ON' (-)
position.
The Console LCD Display will light and the
Startup Screen (shown below) will be dis-
played for a few seconds. The Startup Screen
displays the software version onboard your
Endo DTC®.
ASEPTICO AEU25
Software Rev. TUL06
2. Set The Default Handpiece:
On your first use (and after Recalling Factory
Setup, see System Setup Menu page 7) you
must specify which handpiece you are using
with the Endo DTC®. This ensures accurate
torque response. The handpiece included
with your Endo DTC®has either Tul 8M or
Anthogyr 1/8* written on it.
A. The screen will display:
1/8 TUL HANDPIECE
1=next 2=ok
• If your 1/8 reduction contra-angle
handpiece is the Tul 8M model, press
Button #2 to set this as your default
handpiece, then go on to Step 3 below.
• If you do not have the Tul 8M model, press
Button #1 and go on to Step B.
B. The screen will display:
1/8 AG HANDPIECE
1=next 2=ok
• If you have the Anthogyr 1/8 handpiece,
press Button #2 to set the Anthogyr 1/8 as
your default handpiece.
3. Insert an endodontic rotary file into the
handpiece.
4. Use the Calibration function to calibrate the
Endo DTC®. See Caution at right.
Press and release the “CAL” button. The
unit will run for a few seconds, measuring
the handpiece for an accurate display of
speed and torque values.
5. Select the Preset Button corresponding to
the endodontic rotary file series you are
using.
By default, the Endo DTC®preset buttons
are set for the file series shown in Chart 1.
Pressing the Preset Button repeatedly will
cycle through the individual files listed
below each series name.
6. Press the foot pedal to activate motor and
begin operation.
When using the optional AE-7D Dual Foot
Control:
The black (right side) pedal controls the
on/off operation of the handpiece (exactly
like the standard AE-7P foot pedal).
The blue (left side) pedal provides a hands-
free way to operate the preset buttons:
• To step to the next individual file of an
entire file series on the active preset but-
ton: Press and release the blue pedal.
• To step to the next preset button: Press
and hold the blue pedal for 1/2 sec. (until
you hear a double beep), then release
the blue pedal.
7. After 20 minutes of inactivity, the Endo
DTC®will go into Sleep Mode to conserve
power. To exit Sleep Mode and resume
operation, press the Foot Pedal.
*The ratios 8:1 and 1/8 are equivalent; one is a U.S. term (8:1), one is a European term (1/8).

5
During Calibration, the
handpiece will operate,
rotating through a pre-
programmed speed
range. Before calibrating,
be sure a file or bit is
secured in the handpiece
with the collet closed.
CAUTION
Chart 1 - Endo DTC®Default Presets
Preset Button 1 Default File Series:
DENTSPLY Tulsa Dental Specialties PathFile®All Files
File #1: PathFile (All Files)
Preset Button 2 Default File Series:
DENTSPLY Tulsa Dental Specialties ProTaper Next™ Files
File #1: ProTaper Next High All
File #2: ProTaper Next Low All
Preset Button 3 Default File Series:
DENTSPLY Tulsa Dental Specialties ProTaper®Universal Files
File #1: ProTaper Universal S1 & SX
File #2: ProTaper Universal S2 & F1
File #3: ProTaper Universal F2, F3, F4, F5
File #4: ProTaper Universal Retreatment D1 & D2
File #5: ProTaper Universal Retreatment D3
Preset Button 4 Default File Series:
DENTSPLY Tulsa Dental Specialties Vortex®04 & 06 Taper Files
File #1: Vortex Orifice (All)
File #2: Vortex 04, .35 through .50 taper
File #3: Vortex 04, .25 and .30 taper
File #4: Vortex 04, .15 and .20 taper
File #5: Vortex 06, .35 through .50 taper
File #6: Vortex 06, .25 and .30 taper
File #7: Vortex 06, .15 & 20 taper
Preset Button 5 Default File Series:
DENTSPLY Tulsa Dental Specialties GT®Series 20, 30, 40 Files
File #1: Accessory 90, 70, 50, 35/.12 taper
File #2: GT Yellow 20 Series, .10 and .08 taper
File #3: GT Yellow 20 Series, .06 and .04 taper
File #4: GT Blue 30 Series, .10 and .08 taper
File #5: GT Blue 30 Series, .06 and .04 taper
File #6: GT Black 40 Series, .10 and .08 taper
File #7: GT Black 40 Series, .06 and .04 taper

6
1. HANDPIECE RATIO SELECTOR:
Sets the Handpiece Ratio Indicator on the
Console LCD Display to read accurately for
different handpiece ratios.
Multiple handpieces with different ratios are
often required to obtain the various speed
ranges used in dental procedures.
The available handpiece ratios and speed &
torque ranges for each are shown in Chart 2
below.
Chart 2 - Ratio, Speed and, Torque
Push the Handpiece Ratio Selector up or down
arrows until the displayed handpiece ratio
matches the handpiece ratio you are using.
Ratio settings are held in memory even after
unit is turned off.
Auto Stop Reverse (ASR) is not available with
Increaser handpieces.
2. SPEED (RPM) SELECTOR:
Controls the speed of the motor and
handpiece. Push the Speed Up arrow to
increase speed and the Speed Down arrow to
decrease speed. The Speed (RPM) Indicator
on the Console LCD Display shows actual
RPM. For display accuracy, the displayed
handpiece ratio must exactly match the ratio of
the handpiece being used. Speed settings are
held in memory even after unit is turned off.
3. TORQUE SELECTOR:
Allows the user to adjust exact torque limits
in Gram•Centimeter increments. Push the
Torque Selector up/down arrows until the
desired torque level is indicated on the
Console LCD Display. By adjusting the
torque control to reduced limits for each
instrument size and operating the handpiece
at a constant RPM, the risk of instrument
breakage is greatly reduced.
Torque settings are held in memory even
after unit is turned off.
For most endodontic root canal applications,
the included 1/8 reduction contra-angle
handpiece is normally used. Proper-contra
angle maintenance, including cleaning and
lubrication are essential to minimize torque
losses when using the torque reduction set-
tings.
4. FORWARD/REVERSE SELECTOR
(FWD/REV):
Determines the rotation of the motor and
handpiece. A red LED light above this button
will indicate the reverse rotation during
operation. When the Reverse Beeper (BPR)
feature is active, an audible beeper (and the
red LED light) will indicate the reverse
rotation.
5. MAXIMUM TORQUE BUTTON (MAX):
Press and release to override the Endo DTC®
Torque Control feature.
With MAX Torque activated:
The LED above the Max. Torque Button will
display a steady red light, the Torque
Indicator will display "MAX", and the motor
will operate at full torque. When the Max
function is enabled, the Auto Stop Reverse
(ASR) and torque warning tone features are
automatically disabled.
With MAX Torque disabled:
When the motor reaches the programmed
maximum torque level, the LED above the
Max. Torque Button will blink green. This is
the normal setting for endodontic procedures.
ADVANCED OPERATION AND FUNCTIONS
Note: Speed and torque ranges are accurate when
handpieces are used with the supplied 30K motor.
Handpiece Speed Torque
Ratio Range (RPM) Range (g•cm)
5/1 1,500 - 150,000 2-15 (No ASR)
1/1 TUL or AG 300 - 30,000 4 -125
1/4 75 - 7,500 15 - 500
1/8 TUL or AG 40 - 3,750 30 - 1,000
1/16 TUL or AG 20 - 1,800 60 - 2,000
1/64 5 - 460 400 - 7,000

7
RECALL FACTORY SETUP
1=no, 2=yes, 3=esc
Recalling the Factory Setup allows you to reset
your Endo DTC®to factory specifications. NOTE:
Any customized presets will be lost if you Recall
Factory Setup.
• To keep your customized settings, press 1.
• To return the Endo DTC®preset buttons to the
factory settings (as shown in Chart 1 on page
5), press 2.
•CONFIRM RECALL will appear. Select 2 to
confirm recall or select 1 to reject changes.
• To exit the System Setup Menu and save
changes, press 3.
AUTO STOP REVERSE
1=on, 2=off, 3=esc
When the Auto Stop Reverse (ASR) feature is
enabled, rotation of the handpiece will automati-
cally stop and reverse when the selected torque
limit is reached. Do not release the foot pedal
when this occurs; keep the foot pedal activated
and the Endo DTC®will automatically alternate
between forward and reverse rotation in an
attempt to free the instrument.
The Auto Stop Reverse setting is saved when
programming Preset Buttons.
• To enable the Auto Stop Reverse feature,
press 1.
This setting is highly recommended for
endodontic procedures.
• To disable the Auto Stop Reverse feature,
press 2.
Disabling auto stop reverse is not recom-
mended for endodontic procedures, as file
separation may occur.
• To exit the System Setup Menu, press 3.
SAVE CHANGES selection will appear.
Select 1 to save changes and exit or select 2
to reject all changes and exit.
6. CALIBRATION AND
SYSTEM SETUP BUTTON:
Calibration (CAL):
Press and release the "CAL" button to activate
the Integrated Calibration System. The AEU-25
will automatically run the handpiece and
system through a self test.
Use the Calibration function in the following
circumstances:
• At the beginning of each day
• After changing handpieces
(especially when changing handpiece type)
• After changing files or burs (optional)
System Setup Menu:
Press and hold the "CAL" button until you hear
a double beep to enter the System Setup Menu.
After entering the System Setup Menu, the fol-
lowing setup options will be displayed on the
Console LCD Display.
PRESET MEMORY LOCK
1=on, 2=off, 3=esc
By default, the Preset Memory Lock is activated
to prevent the user from inadvertently entering
the File Library during a procedure.
To customize the Preset Buttons with other File
Library Settings or User Defined Presets, the
Preset Memory Lock must be disabled.
To protect any customized presets, re-enable
the Preset Memory Lock after programming the
Preset Buttons.
This is a system-wide setting and is not saved
on a Preset Button when programming.
• To enable the Preset Memory Lock,
press 1.
• To disable the Preset Memory Lock,
press 2.
• To exit the System Setup Menu without
changes, press 3.

8
REVERSE BEEPER
1=on, 2=off, 3=esc
When the Reverse Beeper (BPR) feature is active,
an audible beep will sound when the handpiece is
rotating in the reverse direction. This is a system-
wide setting and is not saved on a Preset Button
when programming.
• To enable the Reverse Beeper feature, press 1.
• To disable the Reverse Beeper feature, press 2.
• To exit the System Setup Menu, press 3.
SAVE CHANGES selection will appear. Select 1
to save changes and exit or select 2 to reject all
changes and exit.
TORQUE WARNING TONE
1=on, 2=off, 3=esc
When the Torque Warning feature is active, a
chirping warning noise will be audible when the
torque level reaches approximately 75% of the
selected torque limit. This is a system-wide setting
and is not saved on a Preset Button when
programming.
• To enable the Torque Warning Tone,
press 1.
• To disable the Torque Warning Tone,
press 2.
• To exit the System Setup Menu, press 3.
SAVE CHANGES selection will appear. Select 1
to save changes and exit or select 2 to reject all
changes and exit.
ACCESSORY WARNING TONE
1=off, 2=on, 3=esc
When the Accessory Warning feature is active, a
warning tone will be audible when a GT Accessory
file or ITR Emulation Accessory file is in use. This is
a system-wide setting and is not saved on a Preset
Button when programming.
• To disable the Accessory Warning, press 1.
• To enable the Accessory Warning press 2.
• To exit the System Setup, press 3.
SAVE CHANGES selection will appear.
Select 1 to save changes and exit or select
2 to reject all changes and exit.
SLEEP MODE
1=on, 2=off, 3=esc
After 20 minutes of inactivity, the Endo DTC®
will enter Sleep Mode to conserve power. In
Sleep Mode, the lighted Console LCD display
will turn off and the green LEDs above the
CAL, FWD/REV, and MAX buttons will blink
once every second.
To resume normal operation when the Endo
DTC®is in Sleep Mode, press any button on
the console or press the foot control.
This is a system-wide setting and is not saved
on a Preset Button when programming.
• To enable the Sleep Mode, press 1.
• To disable the Sleep Mode, press 2.
• To exit the System Setup, press 3. SAVE
CHANGES selection will appear. Select 1 to
save changes and exit or select 2 to reject
all changes and exit.
7. POWER SWITCH:
Controls power on/off to console. On the
switch, the on position is represented by a
‘1’ and the off position is represented by a
‘0’. When the AEU-25 is turned on and not
in Sleep Mode, the Console LCD Display
will light.
SYSTEM SETUP MENU - CONTINUED:

9
2. If a Single File was programmed on the
preset button, the words "Single File
Preset" and the File Name will be dis-
played, as shown in the example below.
Preset Type
SINGLE FILE PRESET
PROTAPER S1 & SX
File Name
3. If a User Defined Preset was programmed
on the preset button, the words "User
Defined Preset" and the Handpiece Ratio,
Speed in RPM, and Torque in
Gram•Centimeters, will be displayed, as
shown in the example below.
Preset Type
USER DEFINED PRESET
1/8 AG 300 240
Ratio Speed Torque
4. For all programming modes:
When the Endo DTC®is in operation (with
the foot pedal pressed), the Operation
Screen will be displayed. The Operation
Screen will show the Handpiece Ratio,
Speed (in RPM), Torque (in
Gram•Centimeters), Reverse Beeper (if
enabled), and Auto Stop Reverse (if
enabled).
Ratio Speed Torque
1/8 AG 300 240
ASR BPR RPM g-cm
{Auto Stop Reverse} {Reverse Beeper}
By default, the Preset Buttons are programmed
to recall the file series shown in Chart 1 on
page 5.
The Preset Buttons are also used to navigate
the various menus in the System Setup and
File Library.
The Preset Buttons can be customized to suit
individual preferences. There are three ways to
program a preset button.
The Preset Buttons can be programmed with:
1. An Entire File Series from the File Library
2. A Single File from the File Library
3. A User Defined Preset
When recalling a preset button, three different
displays will appear depending on how the pre-
set button was programmed:
1. If an Entire File Series was programmed
on the preset button (as is the case for
the factory default setup), the File Series
and File Name will be displayed, as
shown in the example below.
File Series
GT SERIES 20, 30, 40
ACC 90, 70, 50, 35/12
File Name #1
Pressing the same preset button again will
step to the next file in the file series, as
shown below.
File Series
GT SERIES 20, 30, 40
GT YEL 20/10 & 20/08
File Name #2
8. INTRODUCTION TO PROGRAMMING PRESET BUTTONS:
NOTE: When PRO-POST DRILLS is selected, there will not be a prompt for “LOAD ENTIRE SERIES”
because there is only one selection.
*
*

10
7. The display will show:
USE DEFAULT HP?
1=next, 2=ok, 3=esc
NOTE: The default handpiece is the
handpiece that was shipped with the
Endo DTC®, specified in Quick Start
Operation Section 2 on page 4.
• If you are using the default handpiece
with this file series, press Button #1 and
go on to step 8.
• If you are using a handpiece other than
the default handpiece, press Button #2.
i. The display will show:
1/8 TUL HANDPIECE or
1/8 AG HANDPIECE
1=next, 2=ok, 3=esc
ii. Press Button #1 repeatedly to cycle
through the available handpiece ratios.
When the displayed handpiece ratio
matches the handpiece ratio you are
using with this File Series, press Button
#2.
8. The Preset Button is now set with the
selected file series.
For Example 1:
The display will now show:
PROTAPER UNIVERSAL
PROTAPER S1 & SX
Pressing the Preset Button repeatedly will
cycle through the individual files in the
selected series.
9. When you have completed the customiza-
tion of the desired preset buttons, re-enable
the Preset Memory Lock to avoid
inadvertently entering the File Library during
a procedure. For instructions, read about
the System Setup Menu beginning
on page 6.
1. Disable the Preset Memory Lock.
For instructions, read about the System
Setup Menu beginning on page 6.
2. Press and hold the desired Preset Button
for 1 second (until you hear a double
beep).
3. The display will show:
ACCESS FILE LIBRARY?
1=yes, 2=no, 3=esc
Press Button #1 to access file library.
4. The display will show:
PATHFILE ALL
1=next, 2=ok, 3=esc
Press Button #1 repeatedly until the
desired file series is shown on the
display. See the Chart 3 on page 11 for a
list of available file series.
Example 1:
To go to the Protaper®Universal series,
press preset button #1 three times.
The display will then show:
PROTAPER UNIVERSAL
1=next, 2=ok, 3=esc
5. Press Button #2 to select the displayed
file series.
6. The display will show:
LOAD ENTIRE SERIES?
1=yes, 2=no, 3=esc
Press Button #1 to load the entire series.
9. PROGRAMMING A PRESET BUTTON WITH AN ENTIRE FILE SERIES:

12
Example 2:
To go to the F2 and F3 files in the
Protaper series, press Button #1 twice.
The display will show the following:
PROTAPER F2 F3 F4 F5
1=next, 2=ok, 3=esc
8. Press Button #2 to select the displayed files.
9. The display will show:
USE DEFAULT HP?
1=yes, 2=no, 3=esc
NOTE: The default handpiece is the
handpiece that was shipped with the Endo
DTC®, specified in Quick Start Operation
Section 2.
a. If you are using the default handpiece
with this file series, press Button #1 and
go on to Step 10.
b. If you are using a handpiece other than
the default handpiece, press Button #2
and choose the correct handpiece. For
instructions, refer to i and ii on page 10.
10. The Preset Button is now set with the
selected single file settings.
For Example 2 above:
The display will now show:
SINGLE FILE PRESET
PROTAPER F2 F3 F4 F5
11. When you have completed the program-
ming of the desired preset buttons, re-
enable the Preset Memory Lock to avoid
inadvertently entering the File Library dur-
ing a procedure. For instructions, read
about the System Setup Menu beginning
on page 6.
1. Disable the Preset Memory Lock.
For instructions, read about the System
Setup Menu beginning on page 6.
2. Press and hold the desired Preset Button for
1 second (until you hear a double beep).
3. The display will show:
ACCESS FILE LIBRARY?
1=yes, 2=no, 3=esc
Press Button #1 to access the File Library.
4. The display will show:
PATHFILE ALL
1=next, 2=ok, 3=esc
Press Button #1 repeatedly until the desired
file series is shown on the display. See
Chart 3 on page 11 for a list of available file
series.
Example 2:
To go to the Protaper®Universal series,
press preset button #1 three times.
The display will then show:
PROTAPER UNIVERSAL
1=next, 2=ok, 3=esc
5. Press Button #2 to select the displayed file
series.
6. The display will show:
LOAD ENTIRE SERIES?
1=yes, 2=no, 3=esc
Press Button #2. Do not load entire series.
7. Press Button #1 repeatedly until the desired
file is shown on the display.
See Chart 3 on page 11 for a list of available
files in each file series.
10. PROGRAMMING A PRESET BUTTON WITH A SINGLE FILE

13
7. The display will show:
ACCESS FILE LIBRARY?
1=yes, 2=no, 3=esc
Press Button #2. Do not access
the file library.
8. The display will show:
SAVE CURRENT SETTING
1=yes, 2=no, 3=esc
Press Button #1 to record settings on the
Preset Button.
9. The display will resemble the following:
(The handpiece ratio, speed and torque
values will vary according to your settings).
USER DEFINED PRESET
1/8 AG 300 240
The Preset Button is now programmed with
the specified settings.
10. When you have completed the program-
ming of the desired preset buttons,
re-enable the Preset Memory Lock to avoid
inadvertently entering the File Library
during a procedure. For instructions, read
about the System Setup Menu beginning
on page 6.
1. Disable the Preset Memory Lock and
enable or disable Auto Stop Reverse and
torque warning tone.
For instructions, read about the System
Setup Menu beginning on page 6.
2. Set the Handpiece Ratio to the correct set-
ting.
Press the Handpiece Ratio Selector up or
down arrows until the Handpiece Ratio
Indicator matches the ratio of the
handpiece to be used.
3. Set the speed to the desired setting.
Press the Speed Selector up/down arrows
until the desired speed is shown on the
display.
4. Set the torque level to the desired setting.
Press the Torque Selector up/down arrows
until the desired torque is shown on the
display.
To operate the motor at full torque, press
the "MAX" Torque Button. The LED above
the "MAX" Torque Button will display a
steady red light, the Torque Indicator on the
display will read "MAX". Operating at max.
torque will override the Auto Stop Reverse
feature.
5. Set Handpiece Rotation to the desired
direction.
Press the Forward/Reverse Selector to
change the direction of handpiece rotation.
A red L.E.D. light above the
Forward/Reverse Selector indicates
reverse rotation.
6. Press and hold the desired Preset Button
for 1 second (until you hear a double
beep).
11. PROGRAMMING A PRESET BUTTON WITH A USER DEFINED PRESET

14
STERILIZATION AND
MAINTENANCE:
HANDPIECES - Wipe with an alcohol
gauze. Clean and lubricate handpieces
with a cleaner/lubricant after each use and
before autoclaving. This will ensure proper
operation and a long service life for your
handpiece. Do not use a cleaner/lubricant
after autoclaving, only use before
sterilization. Follow the instructions provided
with the handpiece purchased for complete
maintenance instructions.

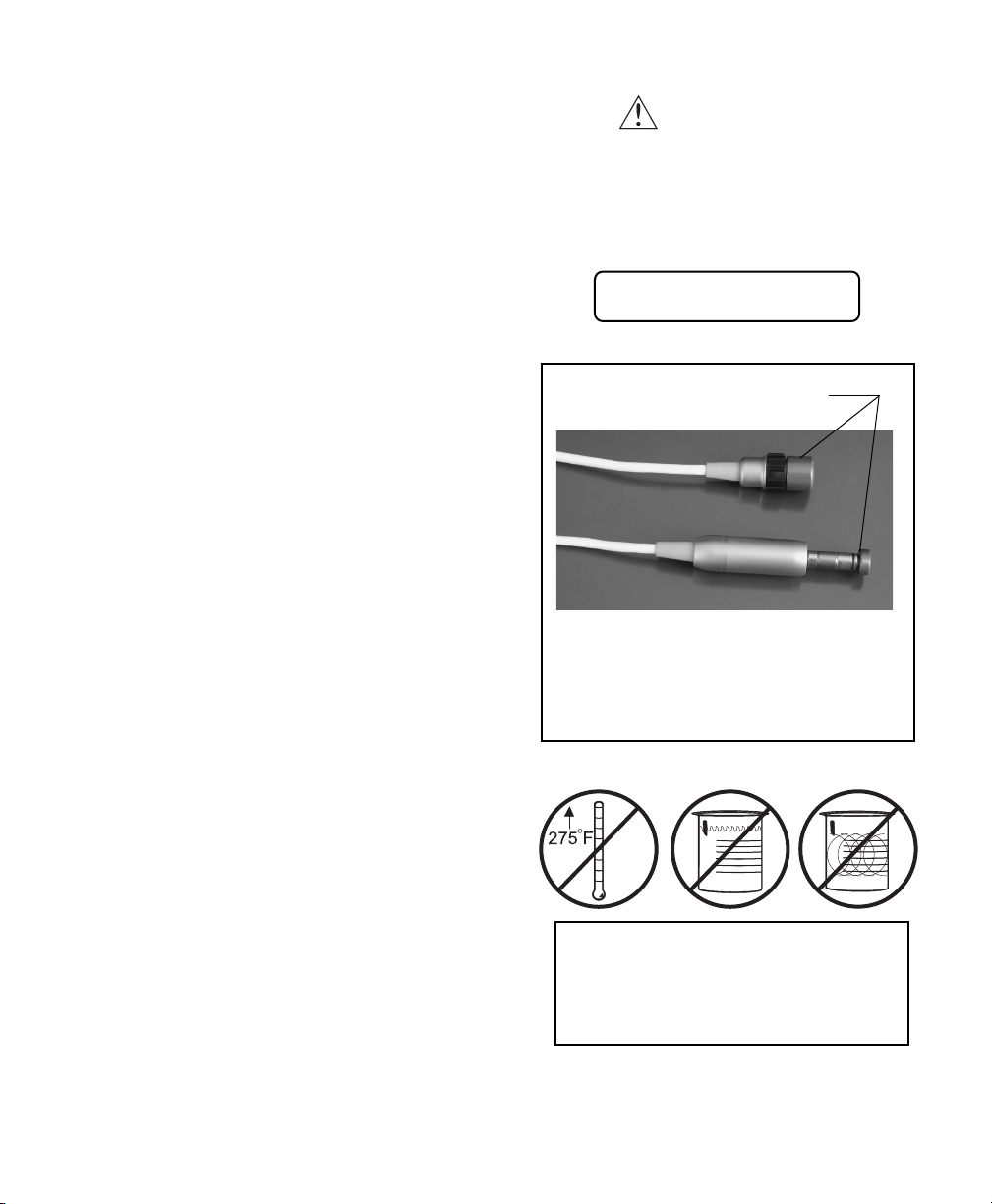

MOTORS - The entire motor and cord
assembly supplied with your unit must be
surface sterilized by autoclave. Prevacuum
sterilize at 132º C (270º F) for 3 minutes.
Before autoclaving the motor and cord
assembly, always install the autoclaving
plug into the motor and motor connector. A
plug with sealing O-ring is supplied with
the motor. Remove the handpiece from the
motor and install plug as shown at right.
The included motor/handpiece holding
cradle is also fully autoclavable.
CONSOLE - The exterior of the console
may be cleaned by wiping with a soft cloth
moistened with mild detergent or disinfect-
ing solution.
CAUTION FOR ALL STERILIZATION:
• Do not exceed 135° C or 275° F
• Do not submerge in any solutions
• Do not use ultrasonic cleaners
• Do not attempt to disassemble
the motor or motor connector.
• Do not oil or lubricate the motor.
• Do not attach a handpiece to the
motor while the motor is running.
• Do not bend motor cord sharply.
Failure to comply with any of the above
instructions may void your warranty
WARNING
• Always install the red autoclaving plugs into motor
and motor connector before autoclaving.
• If the autoclaving plug for the motor becomes
difficult to remove or install, apply silicone grease
or similar lubricant to the o-rings.
• Loosely coil the motor cord when autoclaving.
Avoid crowding the motor when autoclaving.

15
CHANGING THE FUSE OR VOLTAGE -
1. Use a small flathead screwdriver to open the
Fuse/Voltage Selector Panel on the back of
the unit.
2. Remove the red Fuse holder from the unit.
3a. Changing the fuse:
Replace the blown fuses on either side
of the Fuse holder.
Replacement Fuses:
115V: 1.0A/250V slo-blo fuse
230V: 0.5A/250V slo-blo fuse
3b. Changing the voltage:
The proper fuses for the country of use are
sent in the unit. When changing voltage,
replace the fuses with fuses that are rated
for the new voltage.
Turn the Fuse holder until the white lettering
with the proper voltage is right side up.
4. Replace the Fuse holder and close the
Fuse/Voltage Selector Panel.
5. Select a power cord or grounded plug
adapter specific to the country of use.
Turn the power off and unplug the
unit before following the steps below.
WARNING
1.
2.
4.
3b.
Do not attempt to operate the Endo DTC®
while configured in the 115V mode with a
230V power source. This could damage
the electrical components and will void
the warranty.
CAUTION
CHANGING THE VOLTAGE
Follow the corresponding steps.

16
Problem:
Console does not light when
turned on:
Console lights when turned on,
but handpiece does not turn:
Improper display:
Motor slowing down or sluggish:
Correction:
If lights are blinking, press a button or foot switch
to exit Sleep Mode.
Check console to power connection.
Check voltage setting.
Check fuse. If blown, replace with 1.0A/250V
slo-blo fuse for 115 volts, & 0.5A/250V slo-blo
fuse for 230 volts.
Check motor plug connection.
Check foot switch connection.
Depress foot switch.
Check that a file is properly seated in the
handpiece and the latch is closed.
Verify that ratio setting matches handpiece ratio.
Use Calibration function.
Turn power switch off, wait 5 seconds, then turn
back on to reset.
Dirty, under-lubricated handpiece.
Handpiece lubricant is running into motor.
After lubricating and before autoclaving, set
handpiece with head down to let excess lubricant
drain out.
Check voltage setting.
TROUBLESHOOTING:

SYMBOL DEFINITIONS:
Type B
Equipment
Dangerous
Voltage
Attention - Consult
Accompanying
Documents
17
Tulsa Dental Specialties warrants this product
against defects in material or workmanship for
a period of two (2) years, from date of original
invoice. Handpieces are warranted for one
year under the same conditions. Expendable
components such as light bulbs, are covered
by shorter warranty periods, or are not
warrantied. Tulsa Dental Specialties’ sole
obligation under product warranty is (at its
sole option and discretion) to repair or replace
any defective component or product in part or
whole. Tulsa Dental Specialties shall be the
sole arbiter of such action.
In the event of alleged defect under warranty,
the purchaser is to notify Tulsa Dental
Specialties Customer Service Department
promptly. Customer Service will provide
instructions, usually directing that the product
be returned for service. Shipment to Tulsa
Dental Specialties and the cost thereof is
always the responsibility of the purchaser.
Accidental misuse, inappropriate installation,
or failure to perform directed maintenance
voids the warranty.
Tulsa Dental Specialties does not assume,
under this warranty, any risks or liabilities
arising from the clinical use of its products,
whether or not such use involves coincidental
utilization of products manufactured by others.
Tulsa Dental Specialties makes no warranty
other than that stated above, express or
implied.
WARRANTY:
The UL 2601 Standard Duty Cycle for Intermittent Use is 1 min.
on / 5 min. off.
MEDICAL EQUIPMENT WITH RESPECT
TO ELECTRIC SHOCK, FIRE AND
MECHANICAL HAZARDS ONLY IN
ACCORDANCE WITH UL 2601-1
CAN/CSA C22.2 No. 601.1
ISO 13485
0459
COMPLIES WITH DIRECTIVE 93/42/EEC
CONCERNING MEDICAL DEVICES
WARNING: This device has been tested and found
to comply with the emissions requirements of
EN 55011:1991. These requirements provide
reasonable protection against harmful electro-
magnetic interference in a typical medical installation.
However, high levels of radio-frequency (RF)
emissions from electrical devices, such as cellular
phones, may disrupt the performance of this device.
To mitigate disruptive electromagnetic interference,
position this device away from RF transmitters and
other sources of electromagnetic energy.
AEU-25T Endodontic System
Distributed By:
DENTSPLY Tulsa Dental Specialties
DENTSPLY International, Inc.
608 Rolling Hills Drive
Johnson City, TN 37604
1-800-662-1202 • Fax: [phone]
www.TulsaDentalSpecialties.com
Manufactured By:
Aseptico, Inc.
8333 216th St. SE
Woodinville, WA 98072, USA

For Dental Use Only
DENTSPLY International
608 Rolling Hills Dr.
Johnson City, TN 37604
1-800-662-1202
Fax: [phone]
www.TulsaDentalSpecialties.com
Rx Only
DFUDTC Rev 4 12/12
P/N: 420322 • Rev. J • ECO 12954 12/12
Software: P/N 890002 Rev. J (TUL06 Series)
© 2012 DENTSPLY International, Inc.
DTC® is a registered trademark of Aseptico, Inc.
