Desa RCLP155 User manual

OWNER’S MANUAL
CANADIAN
PROPANE
CONSTRUCTION
HEATERS
IMPORTANT
Read and understand this manual before assembling, starting, or servicing
heater. Improper use of heater can cause serious injury. Keep this manual
for future reference.
Models RCLP155 and BCLP155

2
100170
Safety Information.........................................................................3
Product Identification .................................................................... 4
Unpacking......................................................................................4
Theory of Operation ......................................................................5
Propane Supply..............................................................................5
Installation .....................................................................................6
Ventilation .....................................................................................7
Operation .......................................................................................7
Troubleshooting.............................................................................8
Maintenance ..................................................................................8
Storage ........................................................................................... 8
Service Procedures ........................................................................9
Wiring Diagram.............................................................................10
Specifications ................................................................................ 10
Accessories ....................................................................................11
Technical Service ..........................................................................11
Service Publications ......................................................................11
Replacement Parts .........................................................................11
Warranty and Repair Service.........................................................Back Cover
SECTION PAGE
CONTENTS
FOR YOUR SAFETY
Do not use this heater in a space where gasoline or other liquids
having flammable vapors are stored or used.

3
100170
SAFETY
INFORMATION WARNINGS
IMPORTANT: Read this owner’s manual carefully and completely
before trying to assemble, operate, or service this heater. Improper
use of this heater can cause serious injury or death from burns, fire,
explosion, electrical shock, and carbon monoxide poisoning.
Carbon Monoxide Poisoning: Some people are more affected by carbon
monoxide than others. Early signs of carbon monoxide poisoning resemble the flu,
with headaches, dizziness, and/or nausea. If you have these signs, the heater may
not be working properly. Get fresh air at once! Have heater serviced.
PropaneGas:Propanegasisodorless.Anodor-makingagentisaddedtopropane
gas. The odor helps you detect a propane gas leak. However, the odor added to
propane gas can fade. Propane gas may be present even though no odor exists.
Makecertainyoureadandunderstandallwarnings.Keepthismanualforreference.
It is your guide to safe and proper operation of this heater.
• Do not use heater outdoors or in occupied dwellings. Only use for temporary
heating of buildings under construction, alteration, or repair.
• Install and use heater with care. Follow all local ordinances and codes. In the
absence of local ordinances and current codes, refer to CAN/CGA-B149.2
Installation Code for Propane. This instructs on the safe storage and handling
of propane gases.
• Check heater for damage before each use. Do not use a damaged heater.
• Use only propane gas set up for vapor withdrawal.
• Keep propane tank(s) below 38°C (100° F).
• Use only in well-vented areas. Provide at least a 0, 28 m2 (three-square-foot)
opening of fresh, outside air for each 105.500 kJ/hr (100,000 BTU/Hr) of rating.
• Use only in places free of flammable vapors or high dust content.
• Keep heater away from strong drafts, water spray, rain, or dripping water.
• Use only the electrical voltage and frequency specified on model plate.
• Use only a three-prong, grounded extension cord.
• Use only the hose and factory regulator provided with the heater.
• Inspect hose assembly before each use of heater. If excessive abrasion or wear
is seen, or the hose is cut, replace before using heater. Use the replacement
hose assembly that is specified by the manufacturer.
• Keep heater at least six feet from propane tank(s). Do not point heater at
propane tank(s) within 6 m (20) feet.
• Minimum heater clearances from combustibles:
Front outlet: 3 m (10 Ft.) Sides: 0,61 m (2 Ft.)
Top: 2 m (6 Ft.) Rear: 0,61 m (2 Ft.)
• Locate heater on stable and level surface while it is hot or running.
• Keep children and animals away from heater.
• Unplug heater when not in use.
• Never use heater in living or sleeping quarters.
• Never block air inlet (rear) or air outlet (front) of heater.
• Never move, handle, or service a hot, operating, or plugged-in heater.
• Never attach duct work to front or rear of heater.
• Use only original replacement parts. This heater must use design-specific
parts. Do not substitute or use generic parts. Improper replacement parts
could cause serious or fatal injuries.

4
100170
PRODUCT
IDENTIFICATION
Hot Air
Outlet
(Front)
Power Cord
Fan Guard
Handle
Upper Shell
Lower Shell
Hose/Regulator
Assembly
Inlet
Connector
Start Switch

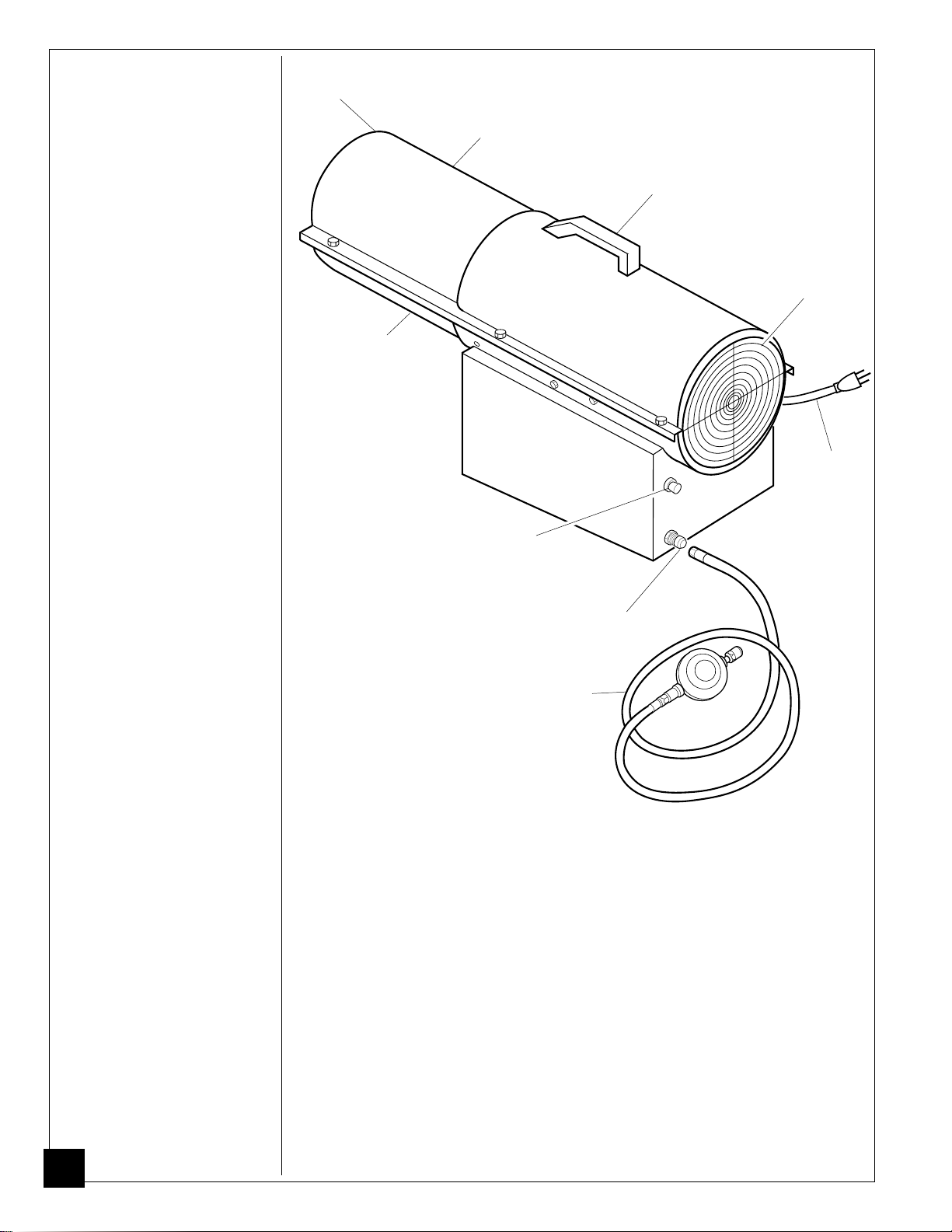

Figure 1 - RCLP155 and BCLP155 Models
UNPACKING 1. Remove all packing items applied to heater for shipment. Keep plastic cover
caps (attached to inlet connector and hose/regulator assembly) for storage.
2. Remove all items from carton.
3. Check all items for shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.

5
100170
THEORY OF
OPERATION
The Fuel System: The hose/regulator assembly attaches to the propane gas
supply. The propane gas moves through the solenoid valve and out the nozzle.
The Air System: The motor turns the fan. The fan pushes air into and around the
combustion chamber. This air is heated and provides a stream of clean, hot air.
The Ignition System: The burner control sends voltage to the ignitor. The
ignitor ignites the fuel and air mixture.
The Safety Control System: This system causes the heater to shut down if the
flame goes out.
Motor
Nozzle
Ignitor Power
Cord
PROPANE
SUPPLY
Propane gas and propane tank(s) are to be furnished by the user.
Use this heater only with a propane vapor withdrawal supply system.
The amount of propane gas ready for use from propane tanks varies. Two factors
decide this amount:
1. The amount of propane gas in tank(s)
2. The temperature of tank(s)
The chart below shows the number of 45 kg (100 pound) tanks needed to run this
heater. Do not operate this product with any tank smaller than 45 kg (100 pounds).
Clean
Heated
Air Out
(Front)
Combustion
Chamber
Cool
Air In
(Back)
Solenoid
Valve
High Limit
Fan

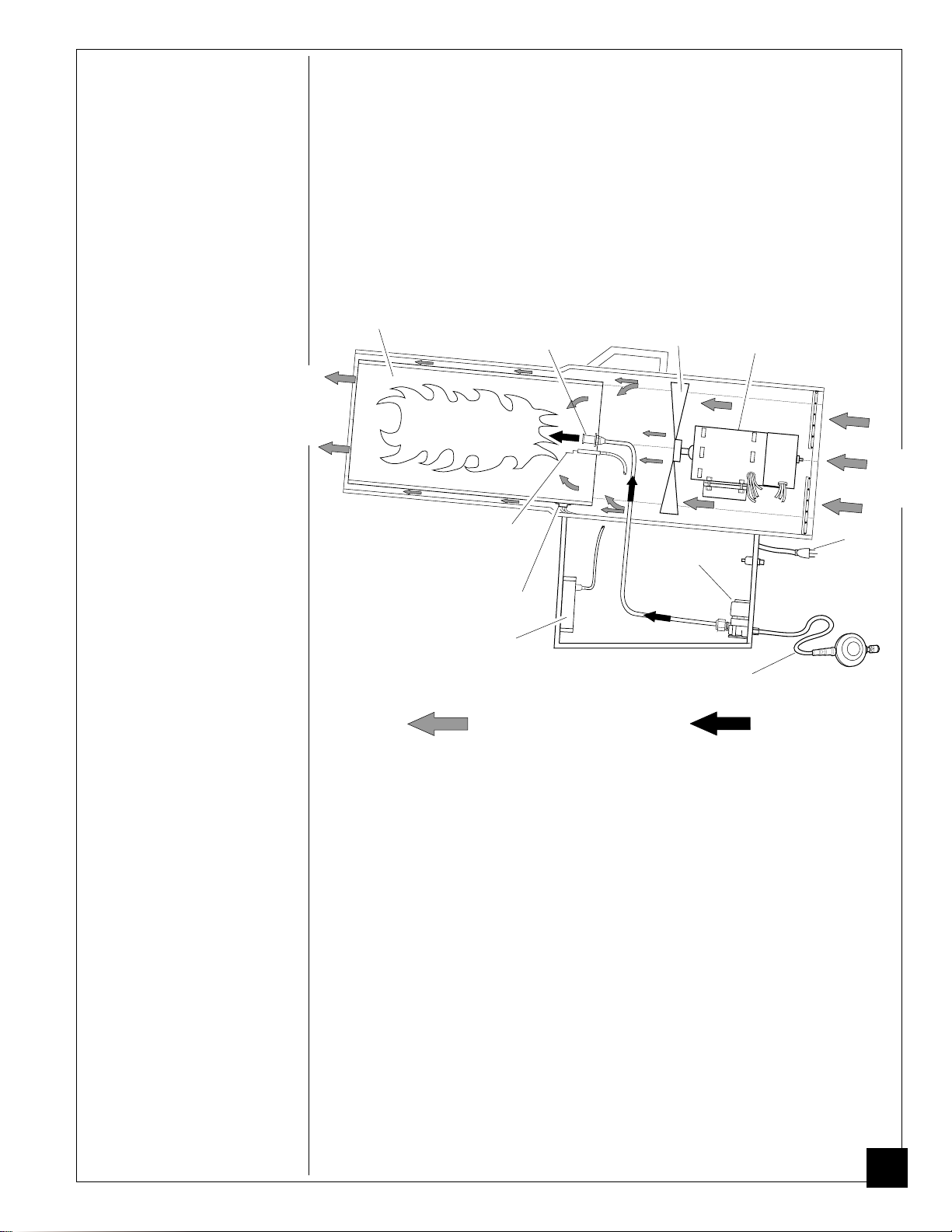

Figure 2 - Cross Section Operational View
Burner Control
Air For Combustion
And Heating Fuel
Hose/Regulator Assembly
Temperature (°C) (°F) At Tank
Less gas is vaporized at lower temperatures. You may need a larger tank in colder
weather.Yourlocalpropanegasdealerwillhelpyouselectthepropersupplysystem.
0°C -6.2°C -12°C -17.7°C -23.3°C -28.9°C
(32°F) (20°F) (10°F) (0°F) (-10°F) (-20°F)
Number of tanks 2 2 3 3 (Use larger tank)

6
100170
INSTALLATION
Hose
Regulator
Vent
(pointing down)
POL Fitting
Supply
Valve
Propane
Tank
1. Provide propane supply system (see Propane Supply, page 5).
2. Connect POL fitting on hose/regulator assembly to propane tank(s). Turn POL
fitting counterclockwise into threads on tank. Tighten firmly using
2.22 cm (7/8in.) wrench.
IMPORTANT: Tighten regulator with vent pointing
down. Pointing vent down protects regulator from weather damage.
WARNING
Review and understand the warnings in the Safety Information
Section, page 3. They are needed to safely operate this heater.
Follow all local codes when using this heater.
WARNING
Test all gas piping and connections for leaks after installing
or servicing. Never use an open flame to check for a leak.
Apply a mixture of liquid soap and water to all joints. Bubbles
forming show a leak. Correct all leaks at once.

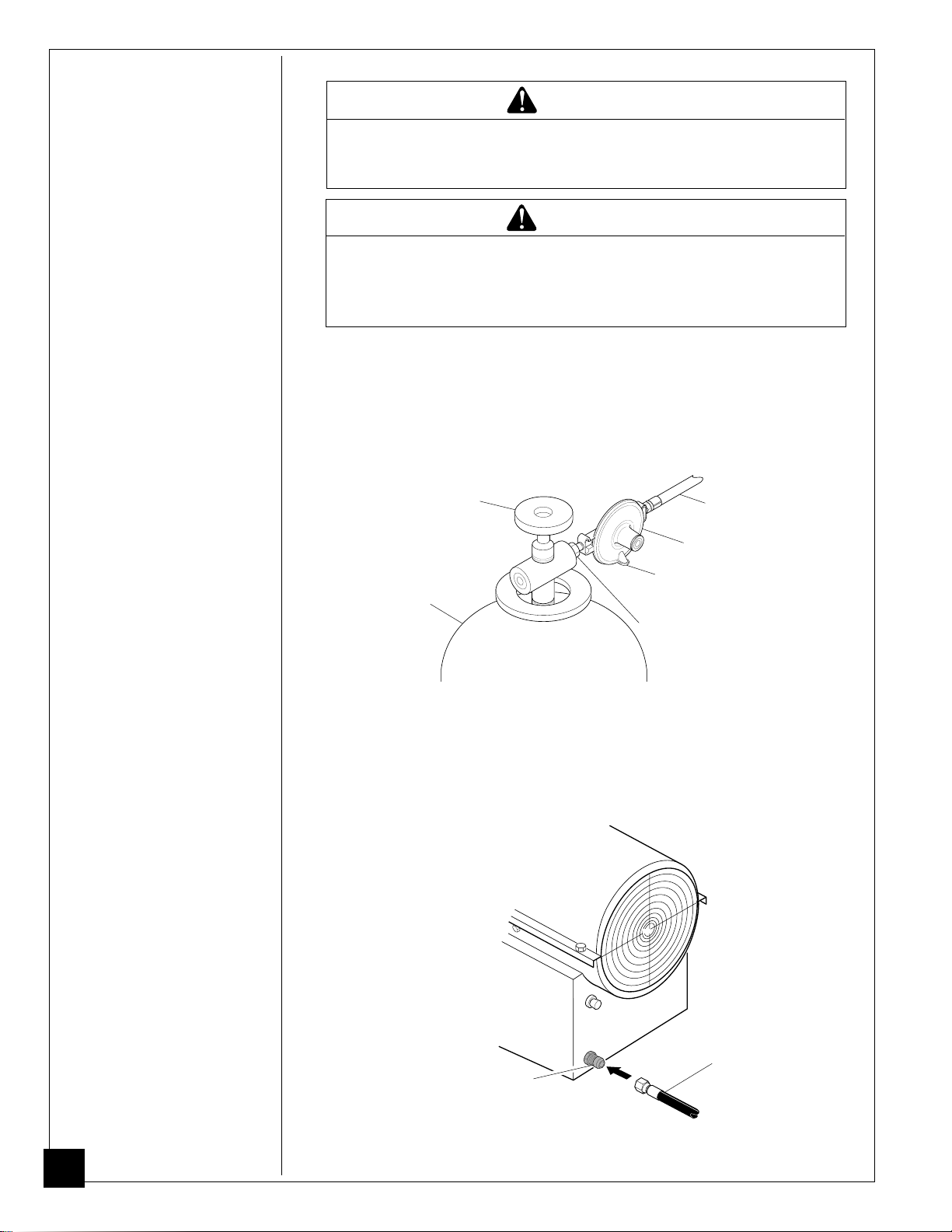

Figure 3 - Regulator With Vent Pointing Down
3. Connect hose to inlet connector. Tighten firmly using a wrench.
IMPORTANT: Extra hose or piping may be used if needed. Install extra hose
or piping between hose/regulator assembly and propane tank. You must use
the regulator supplied with heater.
Figure 4 - Hose and Inlet Connector
Hose
Inlet Connector

7
100170
INSTALLATION
Continued
4. Open propane supply valve on propane tank(s) slowly. Note: If not opened
slowly, excess-flow check valve on propane tank will stop gas flow. If this
happens, close propane supply valve and open again slowly.
5. Check all connections for leaks.
6. Close propane supply valve.
WARNING
Never use an open flame to check for a leak. Apply a mixture
of liquid soap and water to all joints. Bubbles forming show a
leak. Correct all leaks at once.
Continued
To Start Heater
1. Follow all installation, ventilation and safety information.
2. Locate heater on stable and level surface. Make sure strong drafts do not blow
into front or rear of heater.
3. Plug power cord of heater into a three-prong, grounded extension cord.
Extension cord must be at least six feet long, CSA listed, and of a proper size.
OPERATION
WARNING
Review and understand the warnings in the Safety Information
Section, page 3. They are needed to safely operate this heater.
Follow all local codes when using this heater.
Extension Cord Size Requirement
Up to 15m (50 feet) long, use 18 AWG rated cord.
15,5 to 30,5 (51 to 100 feet) long, use 16 AWG rated cord.
31 to 61 M (101 to 200) feet long, use 14 AWG rated cord.
4. Plug extension cord into a 120 volt/60 hertz, three-hole, grounded outlet.
5. Open propane supply valve on propane tank(s) slowly. Note: If not opened
slowly, excess-flow check valve on propane tank will stop gas flow. If this
happens, close propane supply valve and open again slowly.
6. Push start switch to start heater. Heater will start within six seconds.
Note: If heater does not start, unplug heater. Wait ten seconds for safety
control to reset, then try again.
VENTILATION
Provide at least a 0,28 m2(three-square-foot) opening of fresh, outside air for
each 105.500kJ/hr (100,000 BTU/Hr) rating. This heater requires a fresh-air
opening of at least .414 m2(4.5 square feet). Provide extra fresh air if more
heaters are being used.
WARNING
Follow the minimum fresh, outside air ventilation require-
ments. If proper fresh, outside air ventilation is not provided,
carbon monoxide poisoning can occur. Provide proper fresh,
outside air ventilation before running heater.

8
100170
To Stop Heater
1. Tightly close propane supply valve on propane tank(s).
2. Wait a few seconds. Heater will burn gas left in supply hoses.
3. Unplug heater.
To Restart Heater
Ifsafety control stops gasflow to heater, motorwill continue to run.To restart heater:
1. Unplug heater. Wait ten seconds for safety control to reset.
2. Plug in heater. Push start switch.
OPERATION
Continued
1. Store propane tank(s) in safe manner. Follow all local codes.
2. Place plastic cover caps over brass fittings on inlet connector and
hose/regulator assembly.
3. Store in dry, clean, and safe place. Do not store hose/regulator assembly inside
heater combustion chamber.
4. When taking heater out of storage, always check inside of heater. Insects and
small animals may place foreign objects in heater. Keep inside of heater free
from combustible and foreign objects.
CAUTION
Disconnect heater from propane supply tank(s).
STORAGE
TROUBLE-
SHOOTING
If heater does not start or restart
• Check manual valves (if any) and supply valves (on propane tank). Make sure
they are open.
• Check fuel level in propane tank(s). If fuel level is too low, contact local
propane gas company.
If heater still does not start or restart, contact your local service center.
MAINTENANCE
WARNING
Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and
electrical shock can occur.
1. Keep heater clean. Clean heater annually or as needed to remove dust and
debris. If heater is dirty or dusty, clean heater with a damp cloth.
2. Inspect heater before each use. Check connections for leaks. Apply mixture of
liquid soap and water to connections. Bubbles forming show a leak. Correct all
leaks at once.
3. Inspect hose/regulator assembly before each use. If hose is highly worn or cut,
replace.
4. Have heater inspected yearly by service person.
5. Keep inside of heater free from combustible and foreign objects.

9
100170
SERVICE
PROCEDURES
Figure 8 - Fan Cross Section
Figure 7 - Fan, Motor Shaft,
and Setscrew Locations
Fan
Figure 6 - Fan Removal
Hub
Setscrews
WARNING
Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and
electrical shock can occur.
Figure 5 - Upper Shell Removal
Fan Motor
Fan
Clean fan every 500 hours of
operation or as needed.
IMPORTANT: Remove fan
from motor shaft before
removing motor from heater.
The weight of the motor
resting on the fan could
damage the fan pitch.
1. Remove upper shell by
removing the screws along
each side of heater using
7,8 mm (5/16") nut-driver
(see Figure 5). These
screws attach upper and
lower shells together.
2. Lift or slide upper shell off.
3. Remove fan guard.
4. Use 3,17 mm (1/8") Allen
wrench to loosen setscrews
which hold fan to motor
shaft (see Figure 7).
5. Slip fan off motor shaft.
6. Clean fan using soft cloth
moistened with kerosene or
solvent.
7. Dry fan thoroughly.
8. Replace fan on motor shaft.
Make sure rear setscrew is
touching back of flat
surface on motor shaft (see
Figure 8).
9. Place setscrews on flat of
shaft. Tighten setscrews
firmly (4,52 - 5,65 Nm
[40-50 inch-pounds]).
10.Replace fan guard and
upper shell.
Setscrews
Motor shaft
Motor
Shaft
Fan

10
100170
Ignitor
Make sure gap between
ignitor electrode and burner
nozzle is 3,3 to 3,81 mm
(.13/.15"). Access ignitor
electrode from inside combus-
tion chamber. No other
maintenance is needed for
ignitor.
Burner Nozzle
Figure 9 - Gap Between Ignitor Electrode and Burner Nozzle
Ignitor Electrode
.13/.15" Gap
Model RCLP155 and BCLP155
Input Rating 158.250 kJ/Hr (150,000 BTUHr)
Fuel Propane Vapor Only
Fuel Consumption
Liters/Hour (Gallons/Hour) 6,7 (1.6)
Kilos/Hour (Pounds/Hour) 3,15 (7.0)
Supply Pressure To Regulator
Minimum (for purposes of input adjustment) 69 kPa (10 psi)
Maximum Tank Pressure
Regulator Outlet Pressure (Factory Preset) 31,75 (12.5") WC
Manifold Pressure 9.8 po (9.8") WC
Motor 3.400 tr/min 1/8 CV
(3,400 RPM, 1/8 HP)
Electric Input 120 V/60 Hz
Amperage 2.2
Ignitor Gap 3,3 to 3,81 mm (.13/.15 in.)
Weight
Heater 11,2 kg (24 lbs.)
Shipping 15,8 kg (35 lbs.)
Size - L x W x H 95 cm x 36 cm x 53 cm
(371/2" x 141/2" x 21")
SPECIFICATIONS
Motor
Burner
Control
Solenoid
Valve
Ignitor
Green
Blue
Blue
White
Red
Terminal
Board Black
Yellow
Black
Green
White
Blue
T
Blue Green
Connector
Blue
Connector
Relay
Thermal
Switch
Start
Switch
Power
Cord
Yellow
Yellow
Black
White
Red
Black
White
Red
43
21
65
87
Orange
Blue
Orange
Black
Motor Start
Relay
“S” or “2” “M” or “3”
“L” or “1”
WIRING
DIAGRAM

11
100170
ACCESSORIES Purchase accessories and parts from your nearest dealer or service center. If your
dealer or service center can not supply an accessory or part, call DESA Industries’
Parts Department at 905-826-8010. You can also write to the address listed on the
back page of this manual.
REPLACEMENT
PARTS
WARNING
Use only original replacement parts. This heater must use
design-specific parts. Do not substitute or use generic parts.
Improper replacement parts could cause serious or fatal
injuries. This will also protect your warranty coverage for
parts replaced under warranty.
Parts Under Warranty
Contactauthorizeddealersof this product. Iftheycannotsupplyoriginalreplacement
part(s), call DESA Industries at 905-826-8010. When calling DESA Industries, have
ready:
• your name
• your address
• model number of your heater
• how heater was malfunctioning
• purchase date
In most cases, we will ask you to return the defective part to the factory.
Parts Not Under Warranty
Contact authorized dealers of this product. If they cannot supply original replace-
ment part(s), call DESA Industries’ Parts Department at 905-826-8010. When
calling DESA Industries, have ready:
• model number of your heater
• the replacement part number
Regulator: LPA2100
Hose and Regulator Assembly: LPA3070
Fuel Gas Connector: LPA4020
A POL adapter with excess-flow check valve.
You may have further questions about this heater. If so, contact DESA Industries’
Technical Service Department at 1-800-323-5190.
TECHNICAL
SERVICE
SERVICE
PUBLICATIONS
You can receive an Illustrated Parts List free of charge. Send your request and a
self-addressed, stamped envelope to DESA Industries (address on back page). Be
sure to include the heater model number. You can purchase a service manual for
$5. Make check payable to DESA Industries.

100170-01
Rev. B
10/93
Model
Serial No.
Date of Purchase
LIMITED WARRANTY
DESA Industries warrants this product and any parts
thereof, to be free from defects in materials and work-
manshipforsix(6)monthsfromthedateoffirstpurchase
when operated and maintained in accordance with in-
structions.This warranty isextended only totheoriginal
retail purchaser, when proof of purchase is provided.
This warranty covers only the cost of parts and labor
required to restore the product to proper operating con-
dition. Transportation and incidental costs associated
with warranty repairs are not reimbursable under this
warranty.
Warranty service is available only through authorized
dealers and service centers.
This warranty does not cover defects resulting from
misuse, abuse, negligence, accidents, lack of proper
maintenance, normal wear, alteration, modification,
tampering, contaminated fuels, repair using improper
parts,orrepairbyanyoneotherthananauthorizeddealer
or service center. Routine maintenance is the responsi-
bility of the owner.
THISEXPRESSWARRANTYISGIVENINLIEUOF
ANY OTHER WARRANTY EITHER EXPRESSED
OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PAR-
TICULAR PURPOSE.
DESA Industries assumes no responsibility for indirect,
incidentalorconsequentialdamages.Someprovincesdo
not allow the exclusion or limitation of incidental or
consequential damages. These limitations or exclusions
may not apply to you. This Limited Warranty gives you
specific legal rights and you may also have other rights
which vary from province to province.
(To be filled in by purchaser)
WARRANTY SERVICE
Should your heater require service, return it to your
nearest authorized service center. Proof of purchase must
be presented with the heater. The heater will be in-
spected. A defect may be caused by faulty materials or
workmanship. If so, DESA Industries will repair or
replace the heater without charge.
REPAIR SERVICE
Return the heater to your nearest authorized service
center. Repairs not covered by the warranty will be billed
at standard prices.
A service manual may be purchased from the address
listed below. Send a cheque for $5.00 payable to DESA
Industries.
Illustrated parts lists can be obtained free of charge. Send
a self-addressed stamped envelope to the address listed
below. List the heater model number and the date located
in the lower right corner of this page.
When writing for information regarding your heater, be
sure to include the model number and serial number as
shown on the model plate.
Each Service Center is independently owned and operated.
We reserve the right to amend these specifications at any
time without notice.
KEEP THIS WARRANTY
WARRANTY AND REPAIR SERVICE
DESA Industries of Canada, Inc.
2220 Argentia Road
Unit #4
Mississauga, Ontario
L5N 2K7
905-826-8010
FAX [phone]
